Horizon 13 Partition System

Description

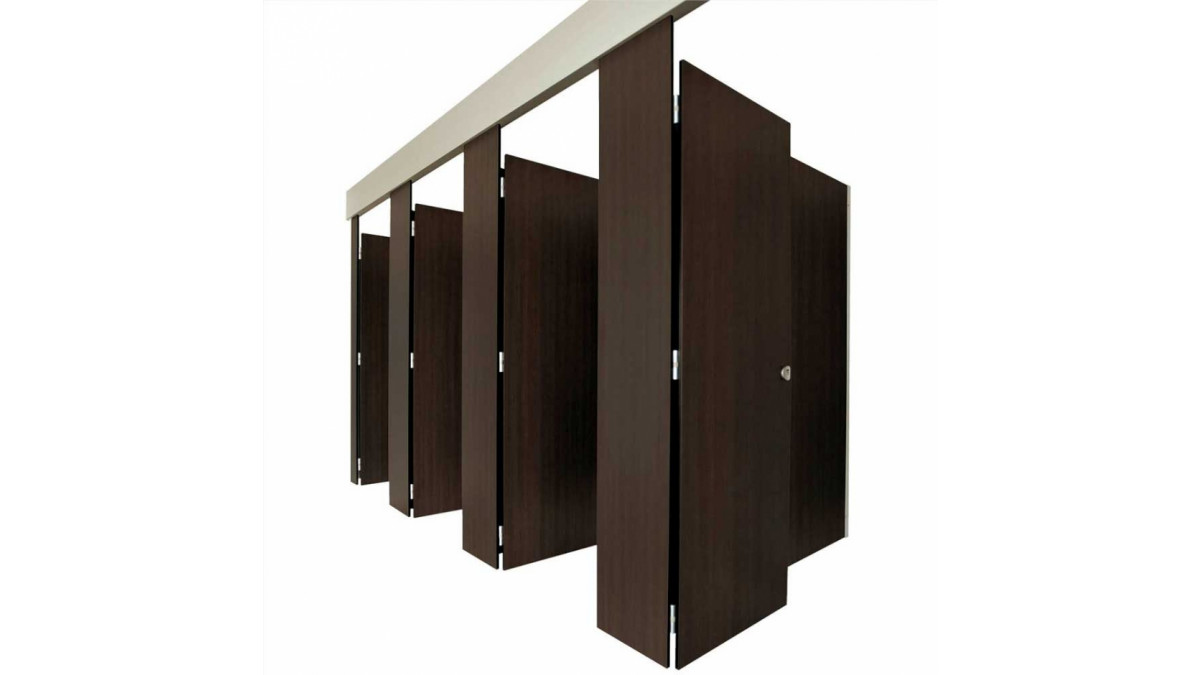

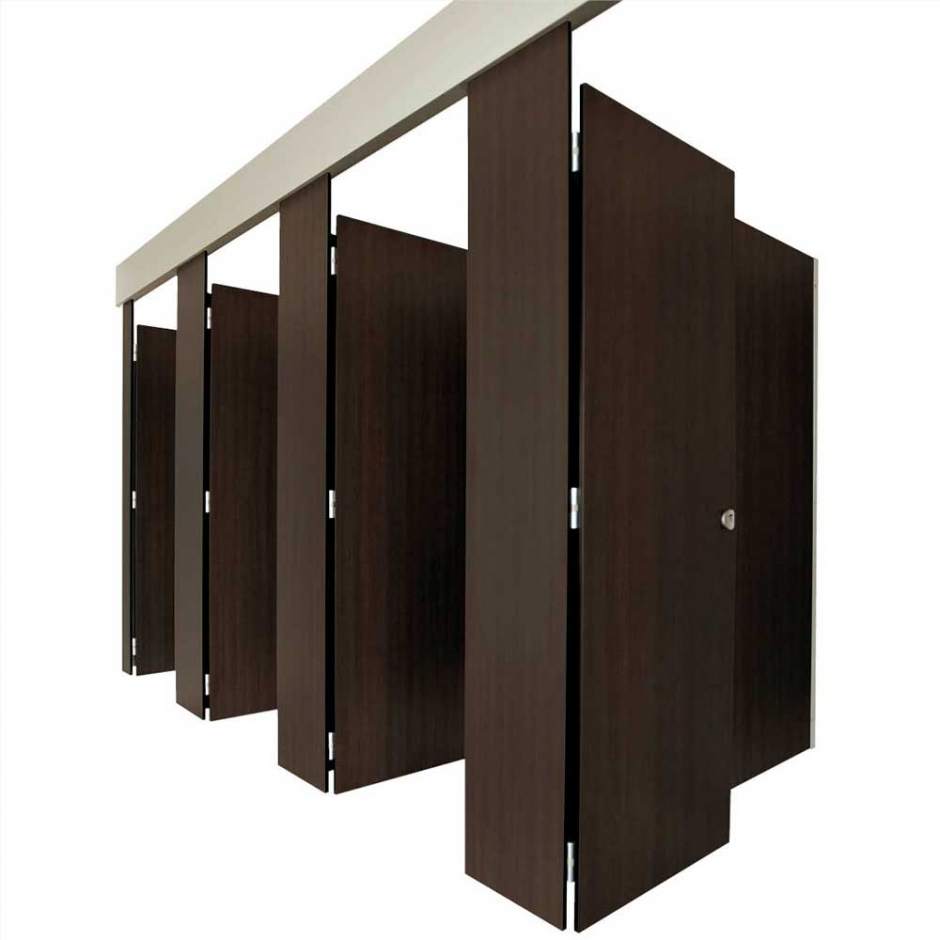

The Hale Horizon partition system is a strong styled, decorative system using 13mm Compact Laminate. This system features fascia panels suspended from a striking natural anodised beam, eliminating the need for pedestals therefore creating clean lines and ease of cleaning. This system is ideally suited to refurbishments. The combination of a durable, strong, self-supporting moisture resistant panel with the anodised beam results in a system with a modern style.

Key Features

Group 3 Fire rating
13mm Antibacterial Compact Laminate panels
Anodised aluminium headrail suspension beam
Antimicrobial treatment reducing bacteria and fungal growth and reproduction throughout the lifetime of the panel
Emergency lift off hinges
No edge treatment required, however, oil will enhance black edge
No floor fixtures for ease of cleaning
A system that uses Laminex Compact Laminate, making it the most durable and flexible system on the market
All dimensions can be tailor made to suit your application and needs
Anodised aluminium headrail suspension beam for stability and clean lines
Concealed fixed Avanti or Wave indicator lock with combined bumper
Concealed fixed Avanti or Wave gravity hinges
Concealed fixed Avanti or Wave coat hook and bumper
Continuous wall channel fixing at all junctions
10 year board guarantee
Environmentally friendly low emissions board
Flexible design, available in ready to install, flat pack complete with shop drawings and installation manual

Optional Extras:

Sliding door or open out door to comply with accessibility requirements
Powder coating to aluminium trim available
Privacy strips along hinge and opening side of door for maximum privacy of cubicle

Ranges

Toilet Partitions Shower Partitions

NZ Made

NZ-Owned Business

Scope of Use

The Hale Horison 13 partition system is suitable for use in high or low abuse wet areas such as toilets, changing rooms or showers.

Recommended applications:

Offices
Factories
Hotels
Restaurants
Shopping centres
Educational centres
Clubs and Entertainment centres
Public areas
Sporting and Gymnasium centres
Recreational centres
Caravan parks and campgrounds

Limitations on Use

The use of strong acid or alkaline cleaning agents, abrasive or polishing materials should not be used as they may stain or damage the worktop surface.

Statement of Building Code Compliance

NZ Building Code: Clause B2 - Durability
NZ Building Code: Clause C - Protection from Fire
NZ Building Code: Clause E3 - Internal Moisture
NZ Building Code: Clause G1 - Personal Hygiene

In-Service History

Hale Manufacturing began manufacturing and installing toilet partitions in the early 1970's. With more than 40 years in the business, their range of tried and tested systems, coupled with bespoke systems, allows architects freedom and flexibility with their designs. All Hale Manufacturing panels are pre-finished, reducing potential issues on site and saving time and additional costs.

Other Performance Attributes

Laminex Compact Laminate is certified antimicrobial to JIS Z 2801:2001 and proven to prevent the growth of bacteria and fungi on the surface up to 99% within 24 hours.

The Hale In-House Compact Laminate is certified antimicrobial to ASTM G22. It is produced by permanently incorporating a US-EPA approved, well-known and widely used anti-microbial agent to retard the growth of nearly 99% of common form of bacteria on any decorative surface, further adding a spectacular look to the overall décor.
