Freestyle 13 Partition System
Description

The Hale Freestyle 13 partition system is an all-purpose, modern style system using 13mm Compact Laminate, offering maximum resistance to graffiti, vandalism, water and impact. The system features an anodised load supporting custom skirt foot mounting, eliminating the need for a headrail and creating a system with clean lines, but does require a concrete floor for installation to ensure maximum rigidity in the system and to minimise panel movement.

Compact Laminate panels have a black core that when machined, presents a distinctive black edge which requires no edge treatment, but oil will enhance the black edge if preferred.

Key Features
  • Group 3 Fire rating
  • 13mm Antimicrobial Compact Laminate panels
  • Anodised load supporting custom skirt mount pedestal
  • Antimicrobial treatment reducing bacteria and fungal growth and reproduction throughout the lifetime of the panel
  • Emergency lift off hinges
  • Skirt foot mounting without the need for headrail
  • No edge treatment required, however oil will enhance black edge
  • Privacy strips to ensure maximum privacy of cubicle
  • Panels are 1800mm wide, eliminating the need for joints in most cases.
  • Concealed fixed Avanti or Wave indicator lock with combined bumper
  • Concealed fixed Avanti or Wave gravity hinges
  • Concealed fixed Avanti or Wave coat hook and bumper
  • Continuous wall channel fixing at all junctions
  • 10 year board guarantee.
  • Environmentally friendly low emissions board.
  • Flexible design, available in ready to install, flat pack complete with shop drawings and installation manual

Optional Extras:

  • Powder coating to aluminium trim available
  • Privacy strips along hinge and opening side of door for maximum privacy of cubicle
NZ Made
NZ Made
NZ-Owned Business
NZ-Owned Business
Scope of Use

The Hale Freestyle 13 partitions system is suitable for use in high or low abuse wet areas such as toilets, changing rooms or showers and can be hosed down for cleaning.

Recommended applications:

  • Offices
  • Factories
  • Hotels
  • Restaurants
  • Educational centres
  • Clubs and Entertainment centres
  • Public areas
  • Sporting and Gymnasium centres
  • Recreational centres
  • Caravan Parks and campgrounds
Limitations on Use

The use of strong acid or alkaline cleaning agents, abrasive or polishing materials should not be used as they may stain or damage the worktop surface.

Statement of Building Code Compliance
  • NZ Building Code: Clause B2 - Durability
  • NZ Building Code: Clause C - Protection from Fire
  • NZ Building Code: Clause E3 - Internal Moisture
  • NZ Building Code: Clause G1 - Personal Hygiene
In-Service History

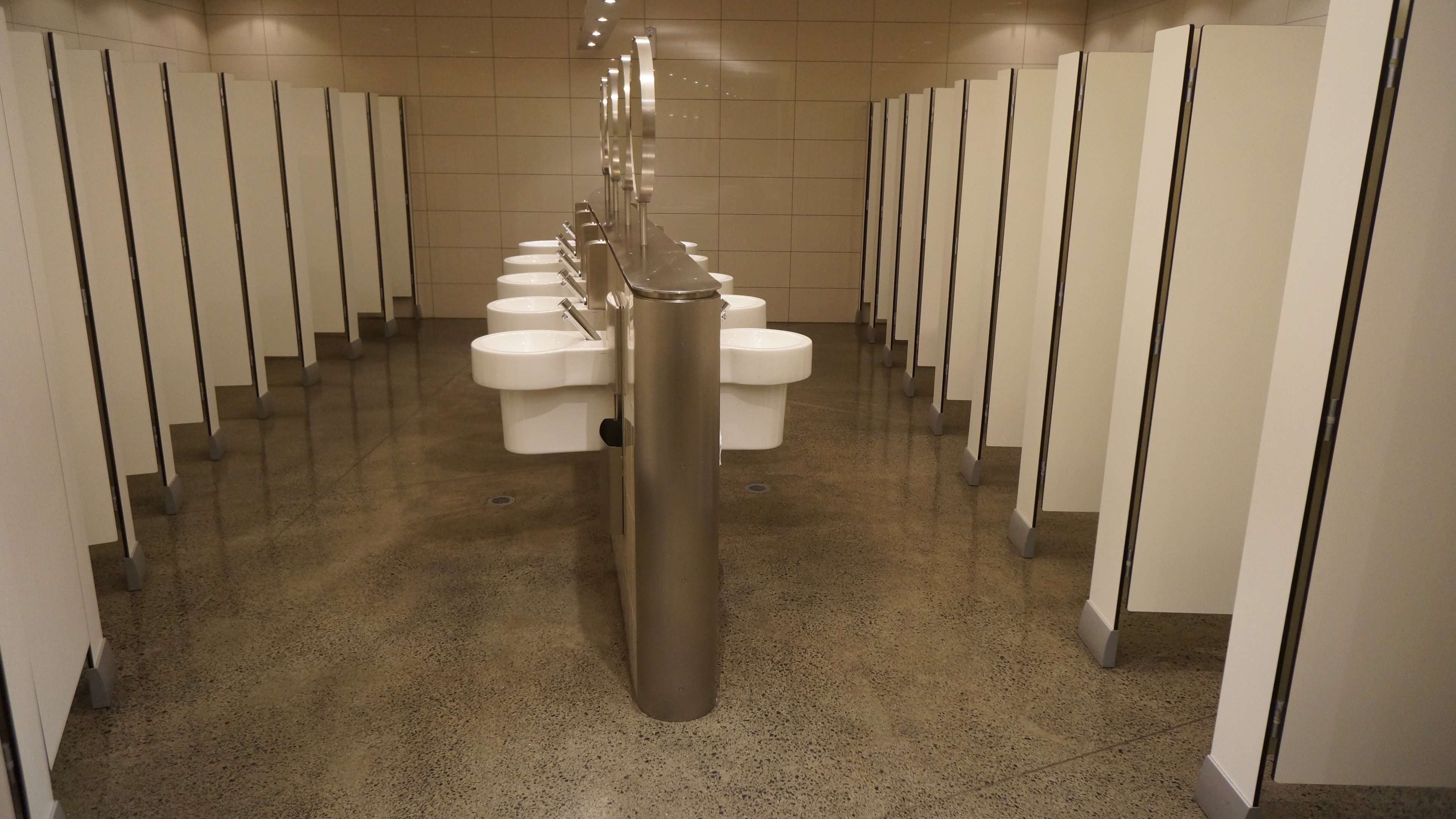

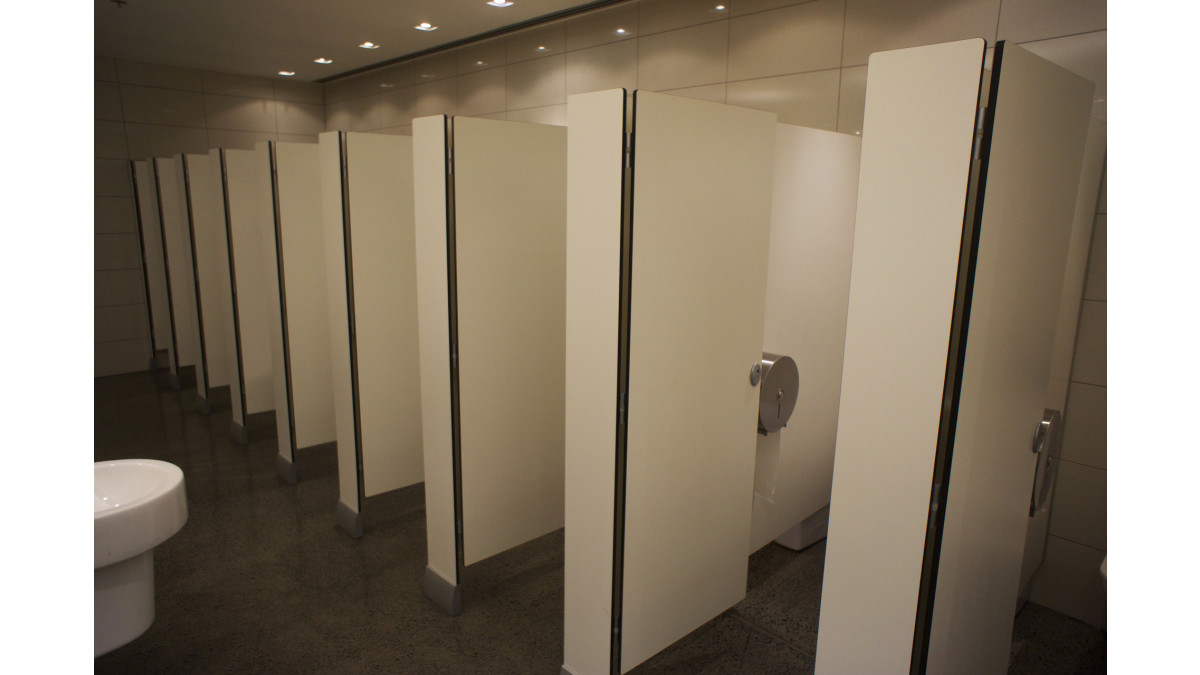

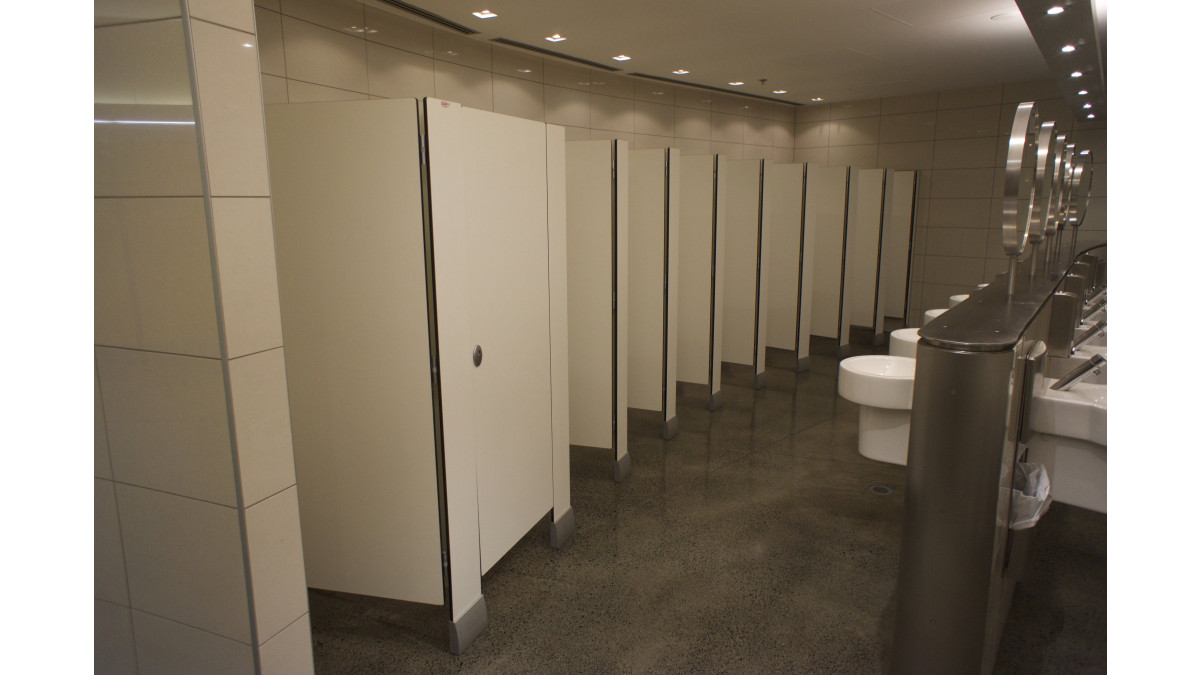

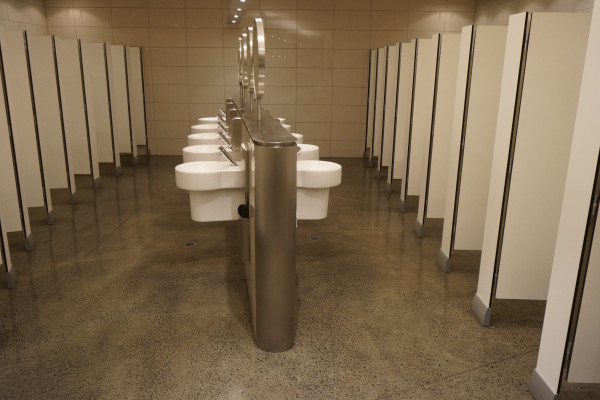

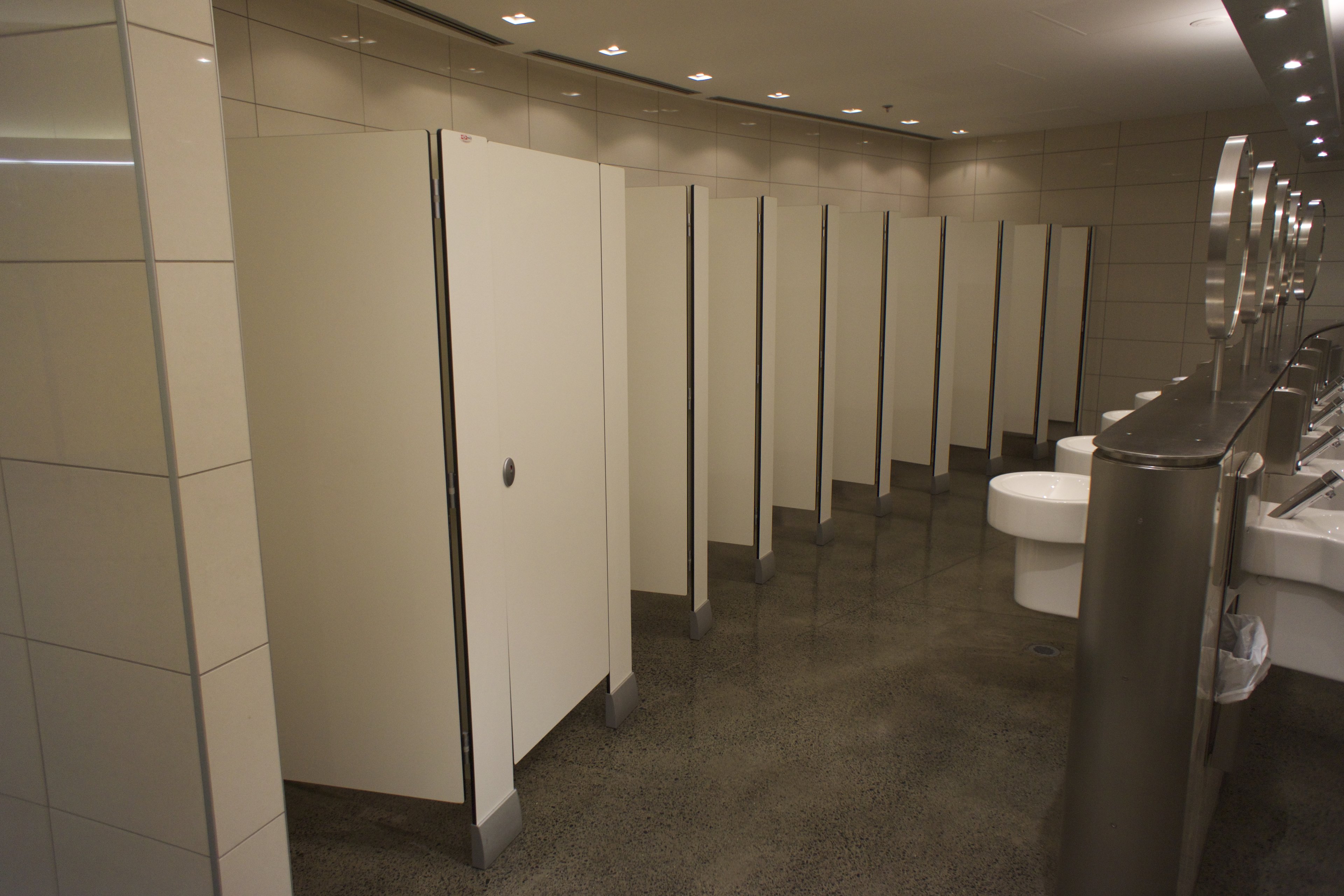

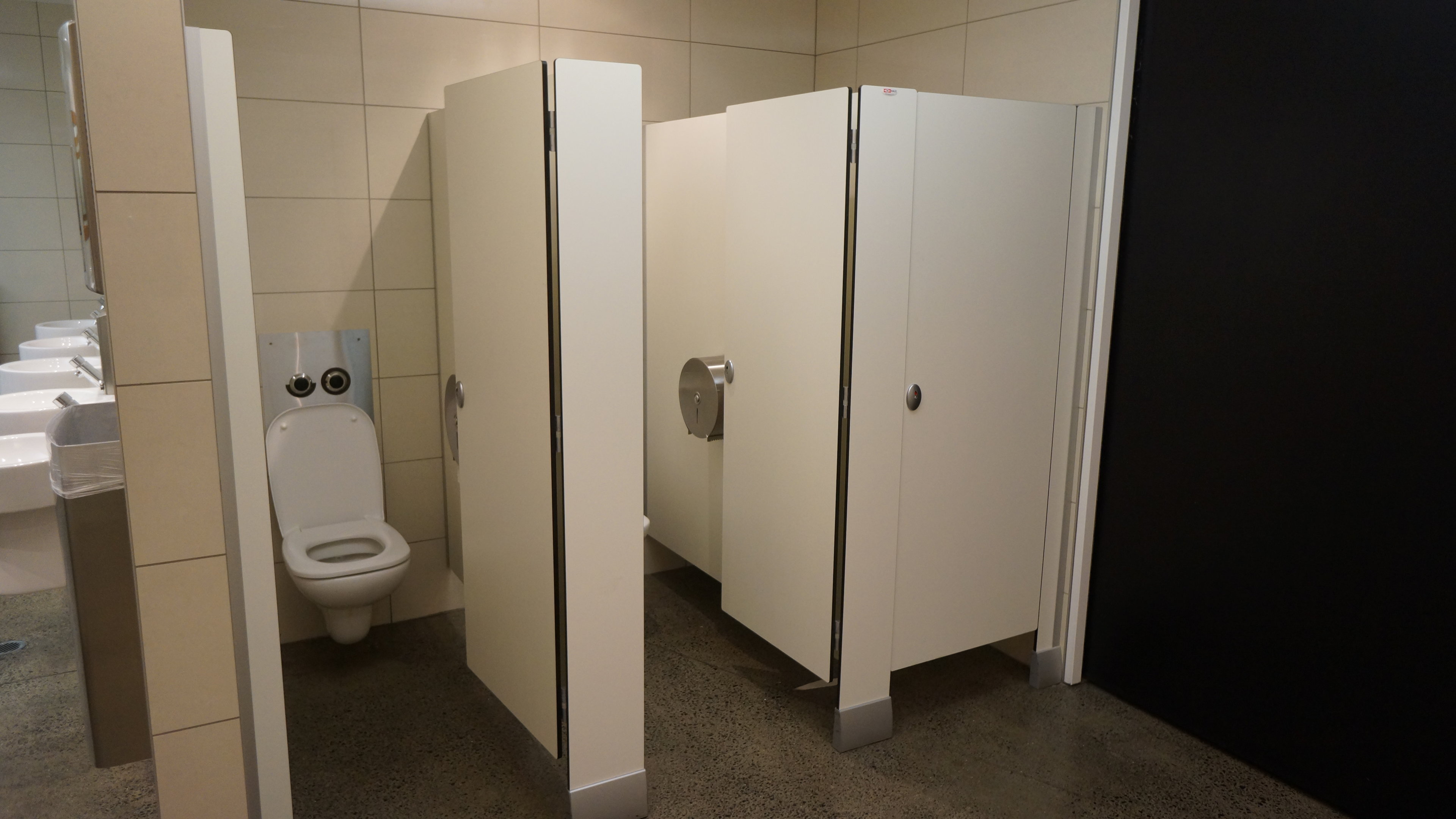

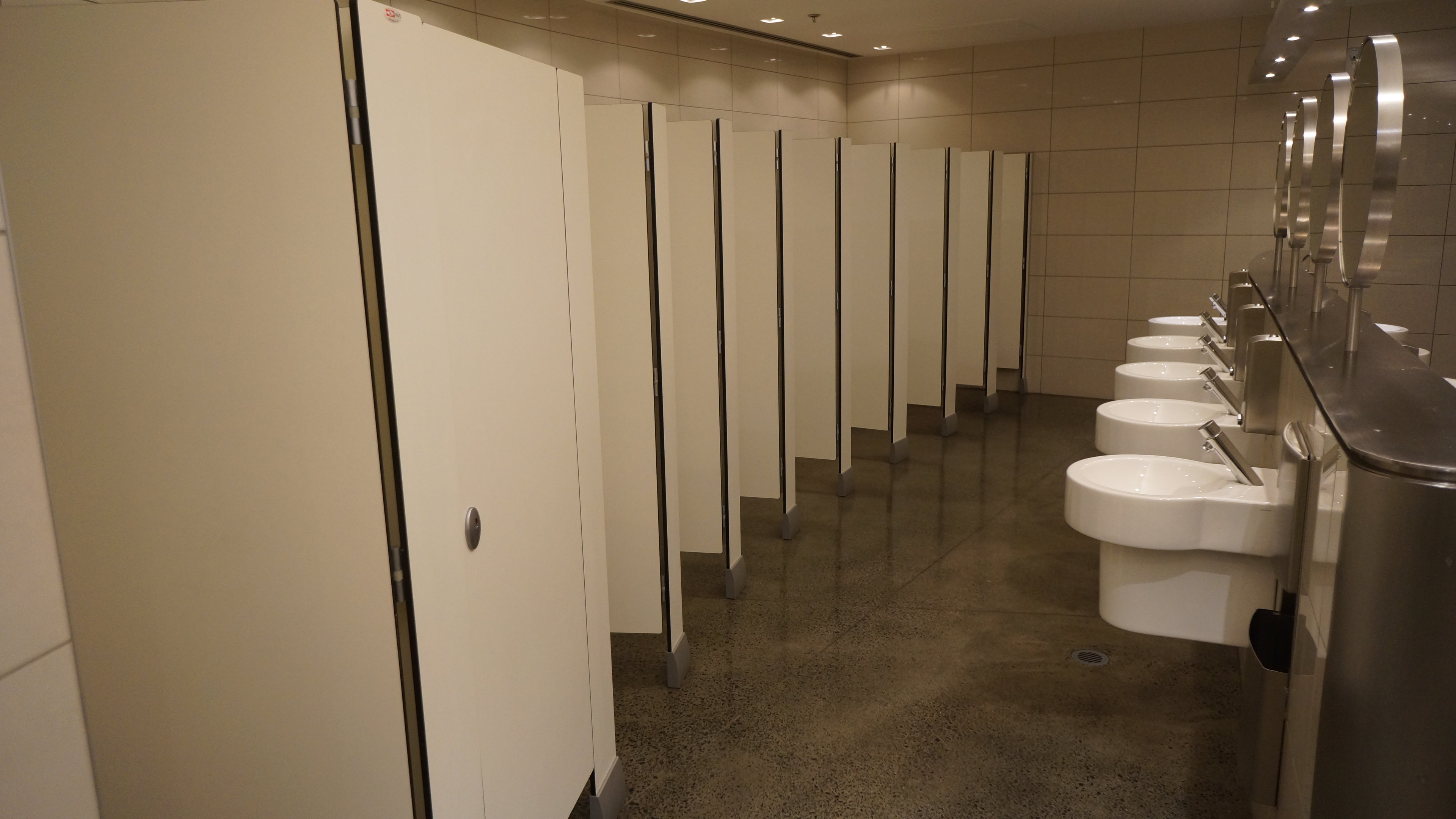

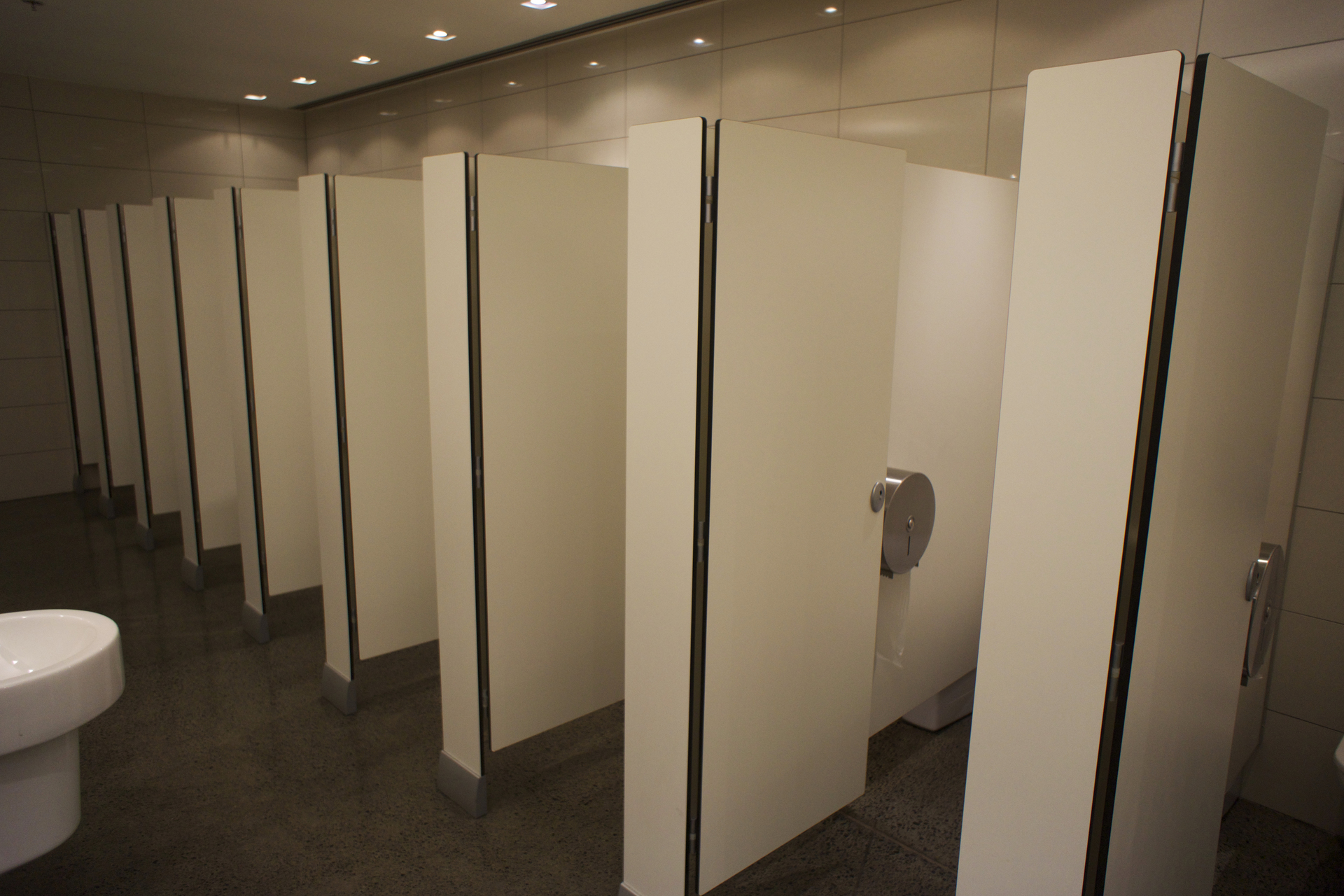

The Hale Freestyle 13 partition system is installed in well known building in Auckland, the most recent being at the Viaduct Events Centre.

Other Performance Attributes

Laminex Compact Laminate is certified antimicrobial to JIS Z 2801:2001 and proven to prevent the growth of bacteria and fungi on the surface up to 99% within 24 hours.

The Hale In-House Compact Laminate is certified antimicrobial to ASTM G22.  It is produced by permanently incorporating a US-EPA approved, well-known and widely used anti-microbial agent to retard the growth of nearly 99% of common form of bacteria on any decorative surface, further adding a spectacular look to the overall décor.

B2 Durability compliant
Durability
C Protection from Fire compliant
Protection from Fire
E3 Internal Moisture compliant
Internal Moisture
G1 Personal Hygiene compliant
Personal Hygiene
Interior Fire Rating 3
3
Documents
Installation Details (link to page on supplier website)
Data Sheet
Hale In-House Antibacterial Fact Sheet
Laminex Protec+ Antimicrobial Fact Sheet
Specification Clause/Guide
Test Results
Test Results
Brochure
Colour Range
Colour Range
CAD/PDF Details

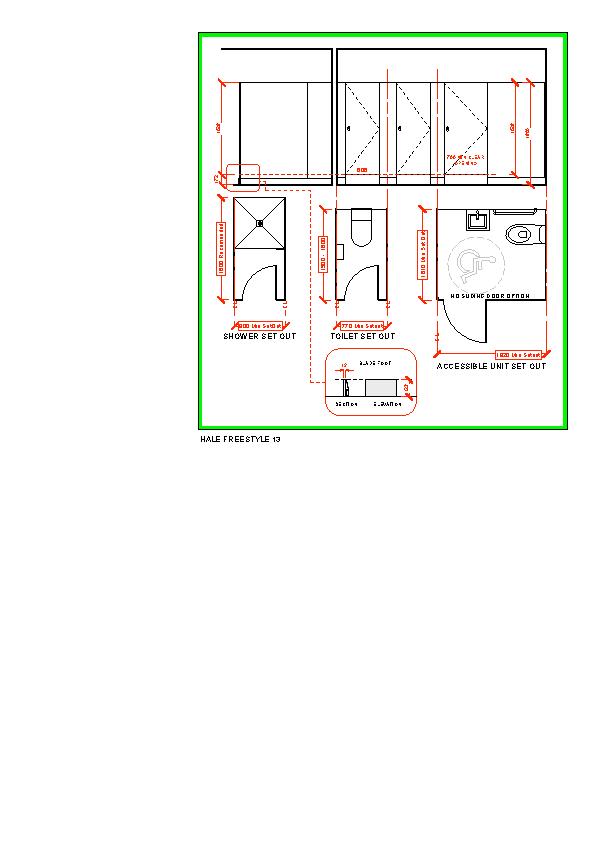

Freestyle 13 Partition System CAD

Hale Manufacturing Ltd are a manufacturer of toilet partitions and bathroom appliances, sold and distributed throughout New Zealand.
