AFX Anti-Fingerprint Compact Laminate Panels
Hale Manufacturing
All products
hale afx anti fingerprint laminate
Description

AFX Laminate is a Compact laminate pre-finished panel that has an Anti-fingerprint surface with a lustrous matt finish, and is water, scratch and stain resistant. It is suitable for wet and dry areas including kitchens, toilets and furniture.

Key Features
  • Electron Beam Curing (EBC) used to ensure anti-fingerprint properties
  • Available in 3 colours – black, white and grey, with 2 core colours – black and white
  • One face and two face finishes available
  • Available in panel size of 3050 x 1300mm in thicknesses ranging from 3mm to 25mm
  • Hygienic
  • Soft touch
  • Anti-bacterial
  • Fire Rating: Group 1-S to NZBC Clause 3
  • Low light reflection
  • Hydro-repellent
  • NSF certified suitable for Food Contact
Categories
Toilet and Cubicle Partitions Bathroom Joinery and Cabinetry Kitchen and Laundry Fixtures and Fittings
Ranges
Wall Panels
Scope of Use

Suitable for dry area and wet areas including kitchens and bathrooms:

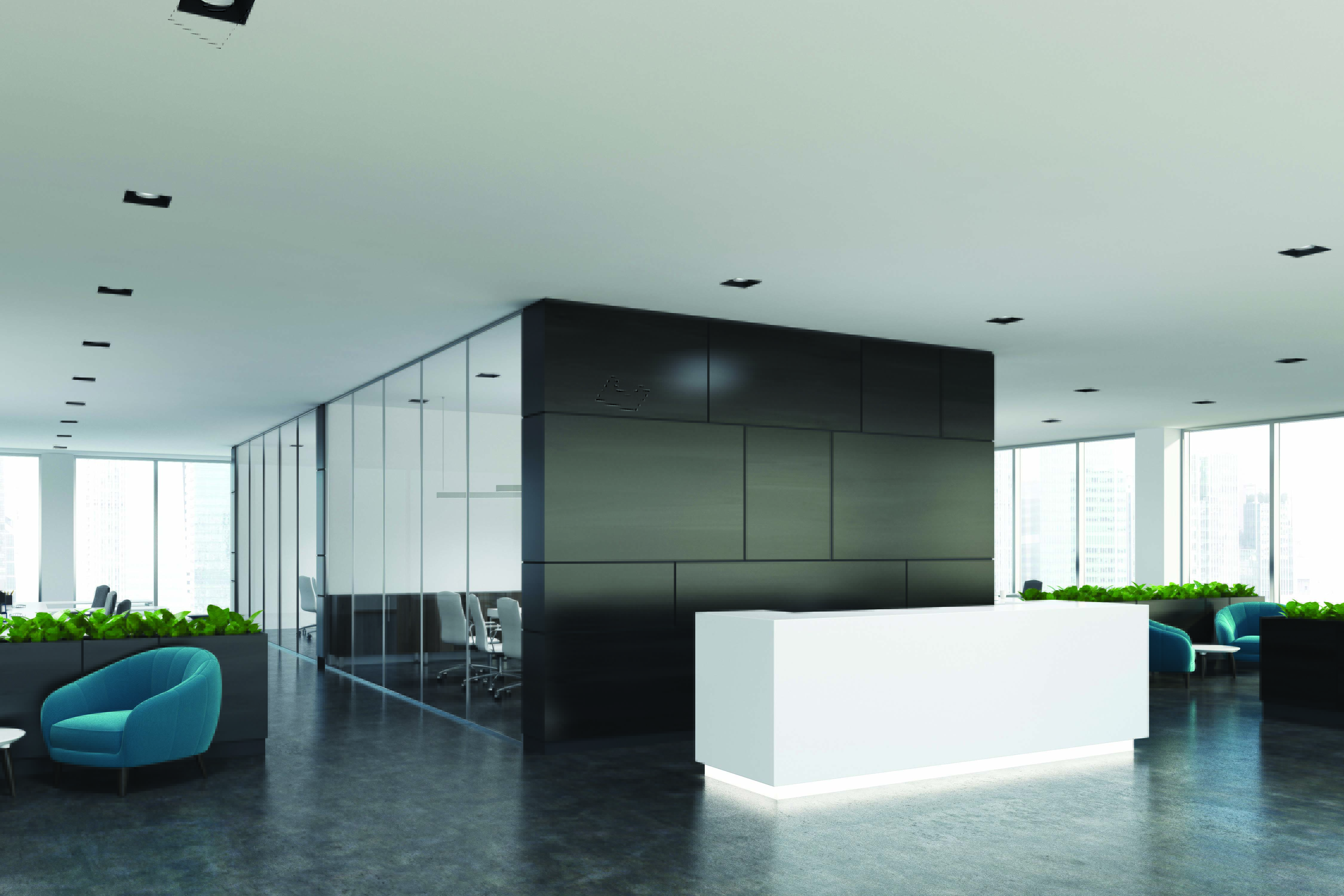

  • Wall cladding

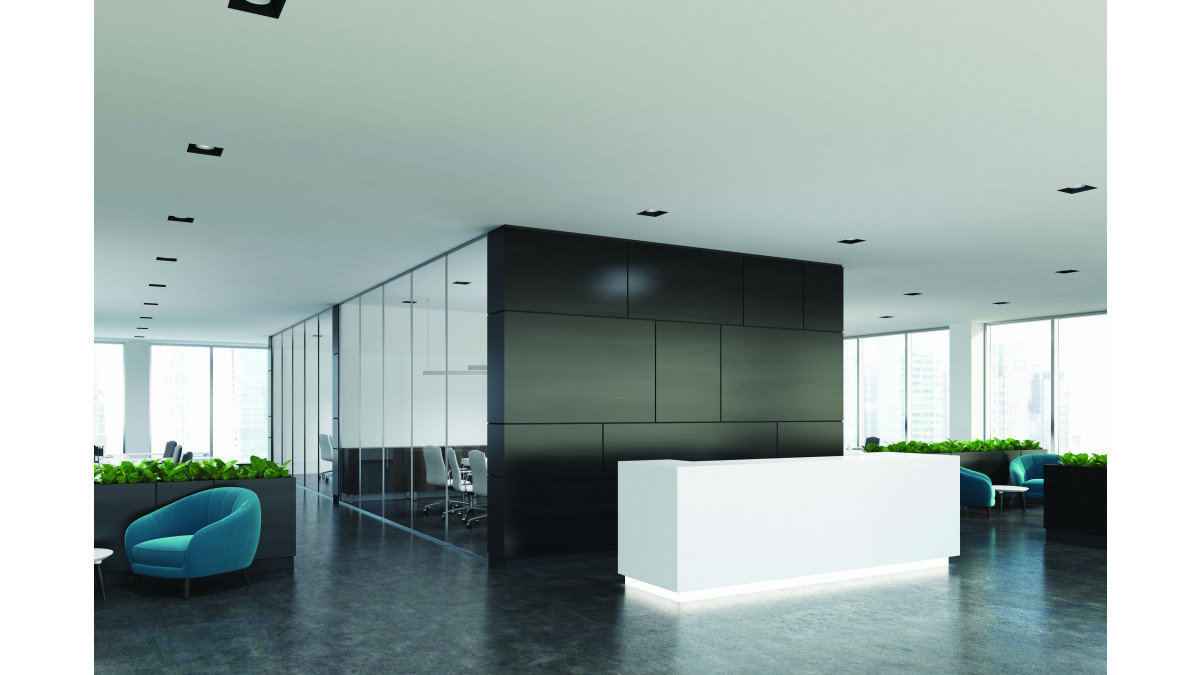

  • Reception desks
  • Table tops (food contact suitable)
  • Counter tops
  • Kitchen bench tops

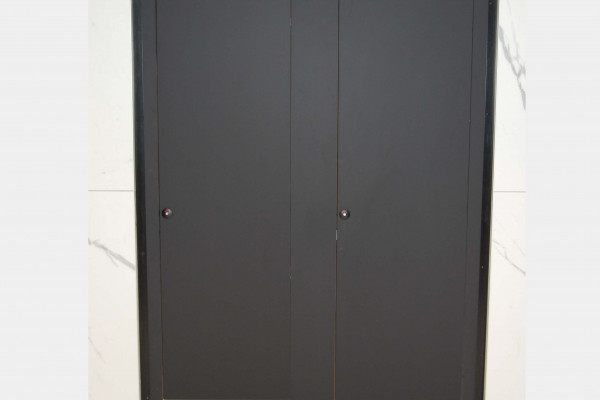

  • Toilet cubicles

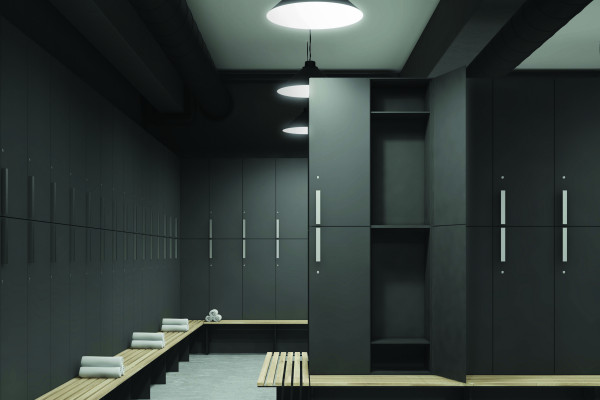

  • Lockers
  • Vanities



Statement of Building Code Compliance
  • Fire Rating: Group 1-S to NZBC Clause C
Other Performance Attributes
  • NSF certified suitable for Food Contact
  • News
Documents
Data Sheet
pdf
Accreditation
pdf
Test Results
pdf

Hale Manufacturing Ltd are a manufacturer of toilet partitions and bathroom appliances, sold and distributed throughout New Zealand.
