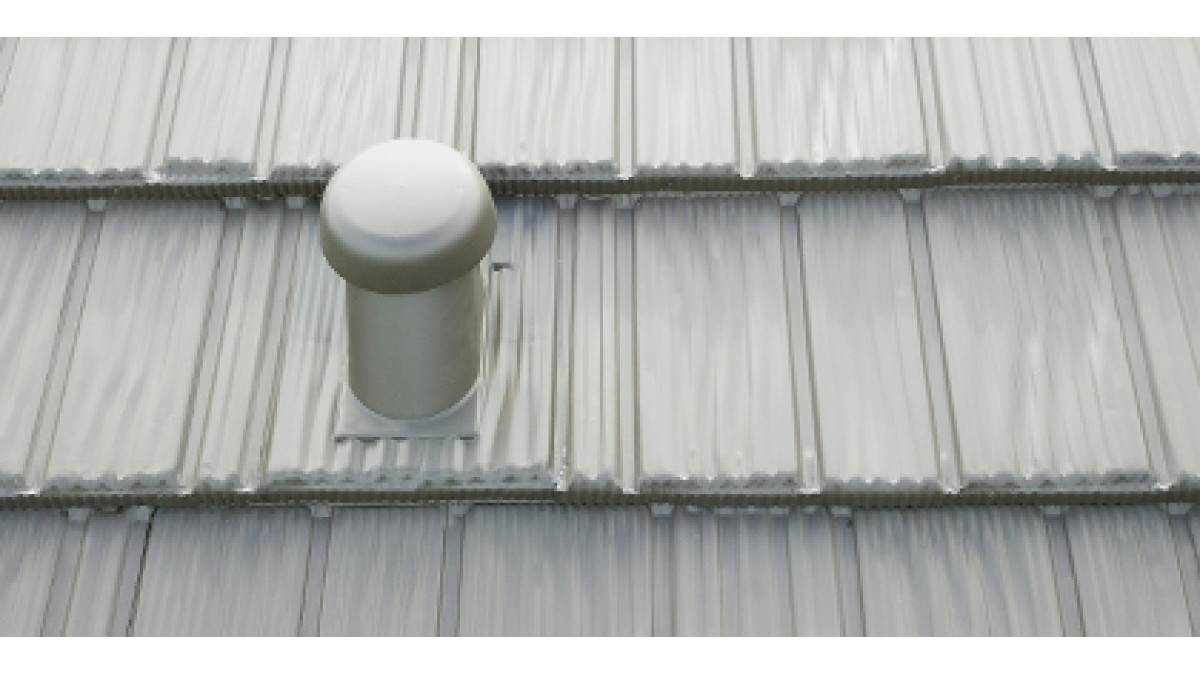

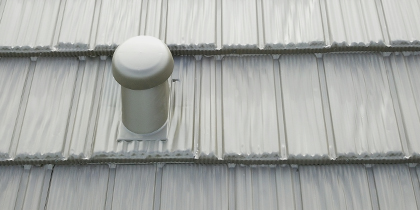

Sanitary Port Roof Vent — GG110
Description

The GG110 Sanitary port is a sanitary roof vent which provided an integrated solution with Gerard roof tiles. The vent is produced on a base plate which is shaped to fit each roof tile profile, and is matched to the colour and texture of the chosen tile.

The design diverts water around the vent and down the roof surface, and has a built in protective grille to keep out leaf fall.

The vent and pipe are manufactured from HIPS (High Impact Polystyrene), with the pipe insulation being made from EPS (Expanded Polystyrene).

Key Features
  • Fully integrated, watertight solution
  • Provides efficient outlet of humid air — preventing condensation that could cause damage
  • Colour and surface match — Textured or Smooth (depending on selected roof tile)
Scope of Use
  • The GG110 vent is primarily a sanitary vent
  • It may also be used as a ventilation outlet of living quarters like kitchen, bathroom and laundry room, or as stack pipe
  • The GG110 vent can also be used for mechanical ventilation

The vent is supplied with an integrated pipe, insulating the vent to the top for efficient outlet of humid air. The insulated pipe comes with a Ø110 mm outlet to which a Flexi Pipe can be connected.

Limitations on Use
  • For pitched roofs 15°– 45°
Statement of Building Code Compliance

This system if designed, used, installed and maintained in accordance with the supporting technical information and additional conditions and limitations will meet the following provisions of the New Zealand Building Code:

  • B1 Structure
  • B2 Durability
  • E2 External Moisture
  • G4 Ventilation
