Free-flow Port Roof Vent — LVG200
Description

The LVG200 Free-flow Port is a cowl vent ideal suitable for discreet roof ventilation solution and is designed especially for humid climates where requirements for ventilation are even more essential. Ideal for outlet of air from areas (kitchen, bathroom , tumbler, laundry room) and as stack pipe, it is also suitable for mechanical ventilation.

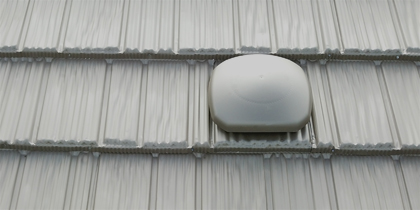

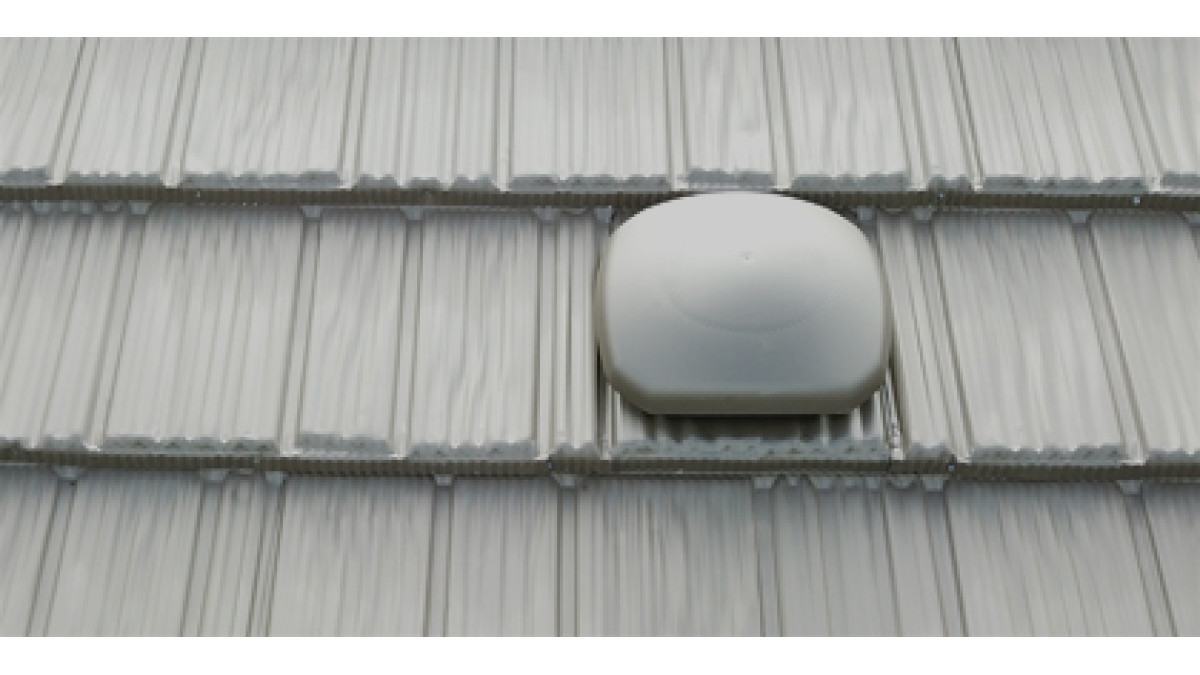

The vent is produced on a base plate which is shaped to fit each roof tile profile, and is matched to the colour and texture of the chosen tile, providing an integrated solution. The design diverts water around the vent and down the roof surface, and has a built in protective grille to keep out insects and drifting snow

The vent and pipe are manufactured from HIPS (High Impact Polystyrene).

Key Features
  • Fully integrated, watertight solution
  • Follows roof pitch
  • Designed especially for humid climates and rooms
  • Colour and surface match — Textured or Smooth (depending on selected roof tile)
Scope of Use
  • Ideal as a ventilation outlet of living quarters like kitchen, bathroom and laundry room, or as stack pipe
  • The LVG200 vent can also be used for mechanical ventilation
  • Multi adapter suitable for use with the LVG200 Ø150/130/125/110/100mm



Limitations on Use
  • For pitched roofs 15°–45°
  • 20,000mm² ventilation area
Statement of Building Code Compliance

This system if designed, used, installed and maintained in accordance with the supporting technical information and additional conditions and limitations will meet the following provisions of the New Zealand Building Code:

  • B1 Structure
  • B2 Durability
  • E2 External Moisture
  • G4 Ventilation
