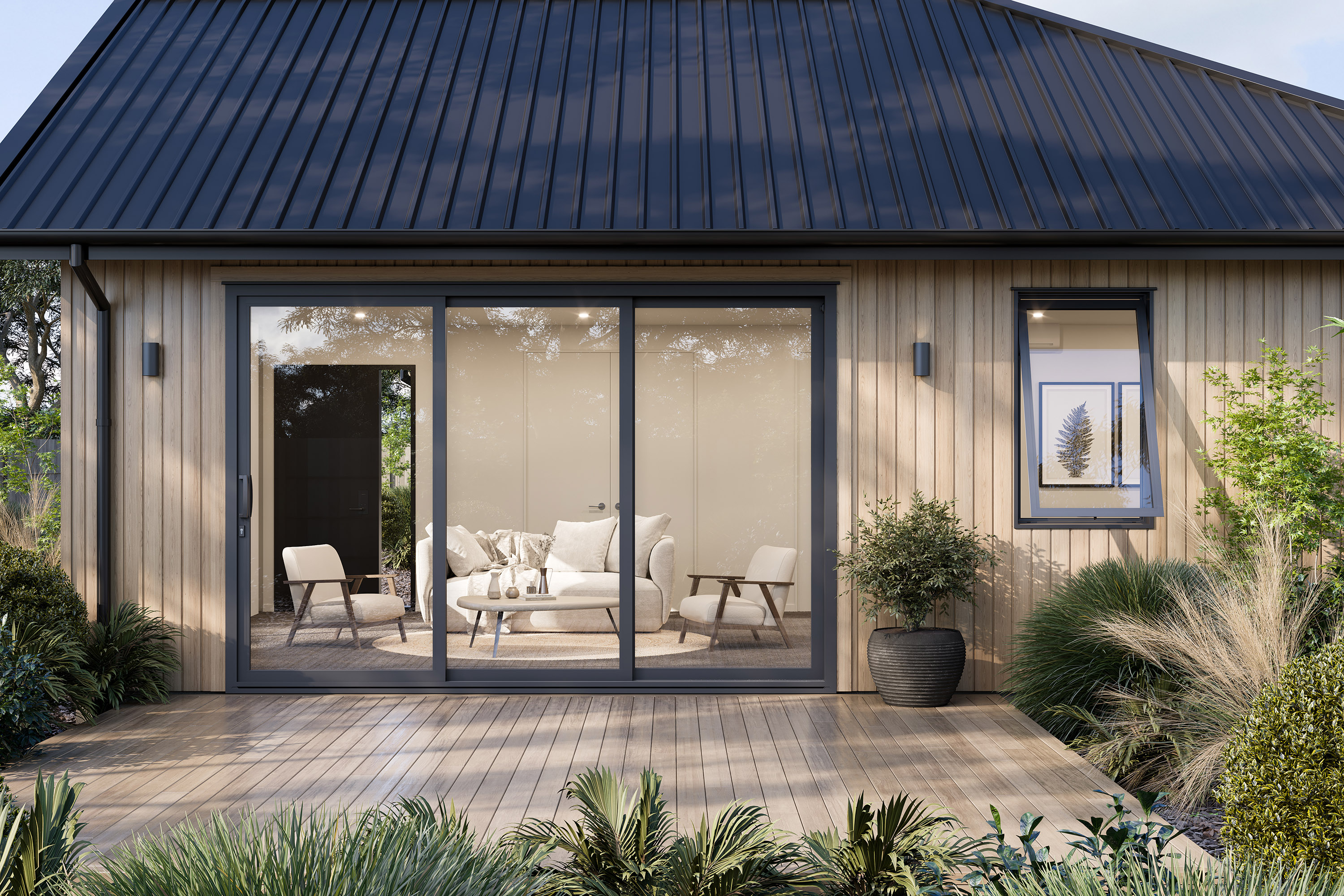

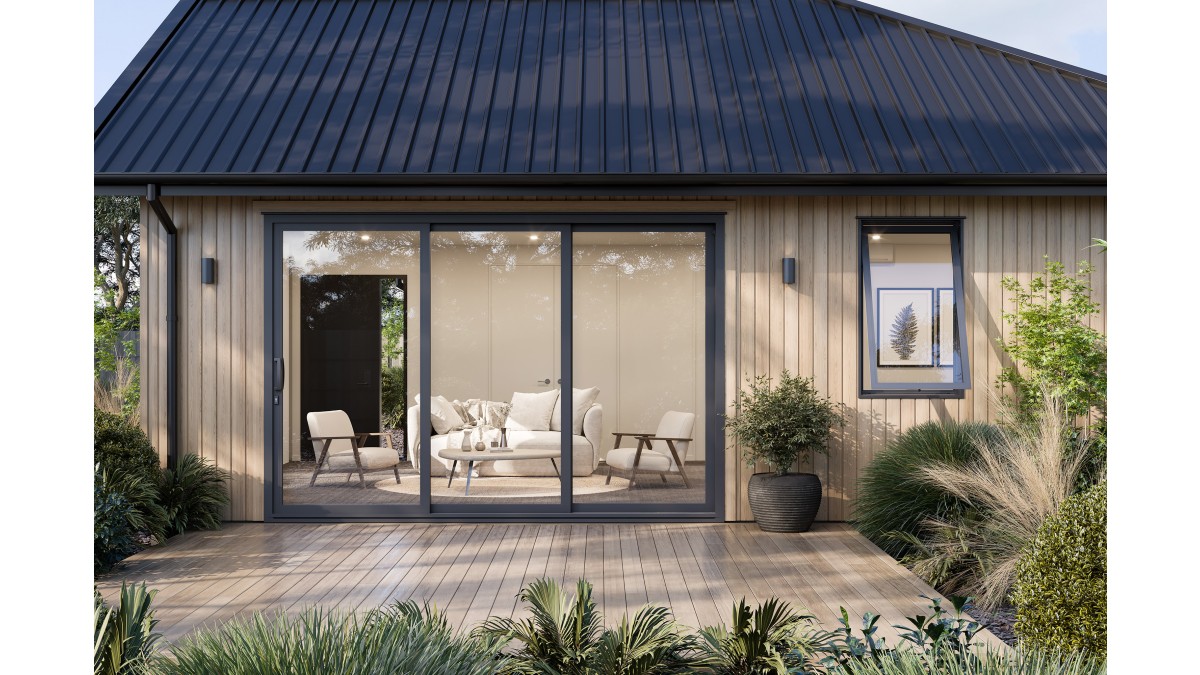

APL Centrafix AW Sash and SD 3P Stacker Final

Product Enquiries

Description

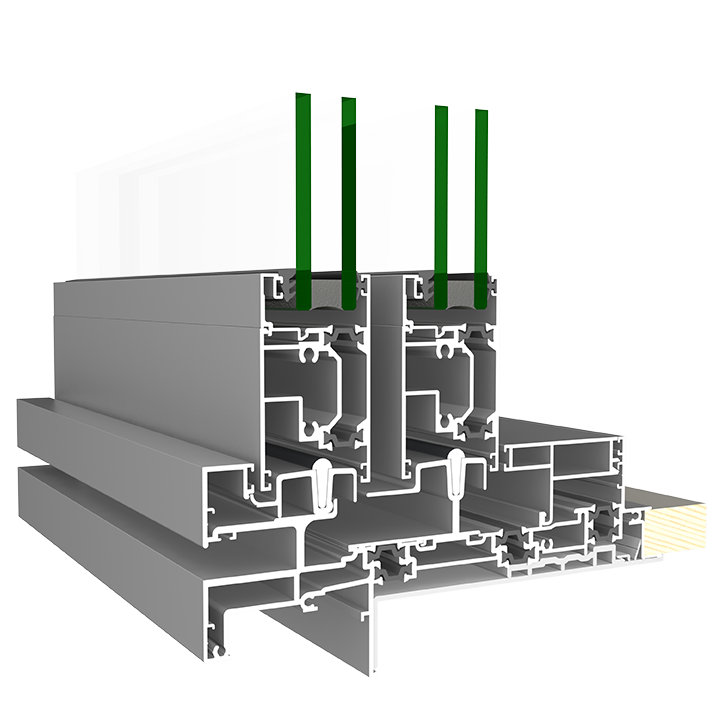

Metro Series ThermalHEART® sliding doors have a flushline sill track with smooth sliding panels. They slide on an external track with fixed or sashed sidelight and are rated to 2.7m high. For higher doors consider using APL Architectural Series ThermalHEART®. Interlocker stiles and mullions are flush in the closed position.

Key Features

An exterior sliding track as standard

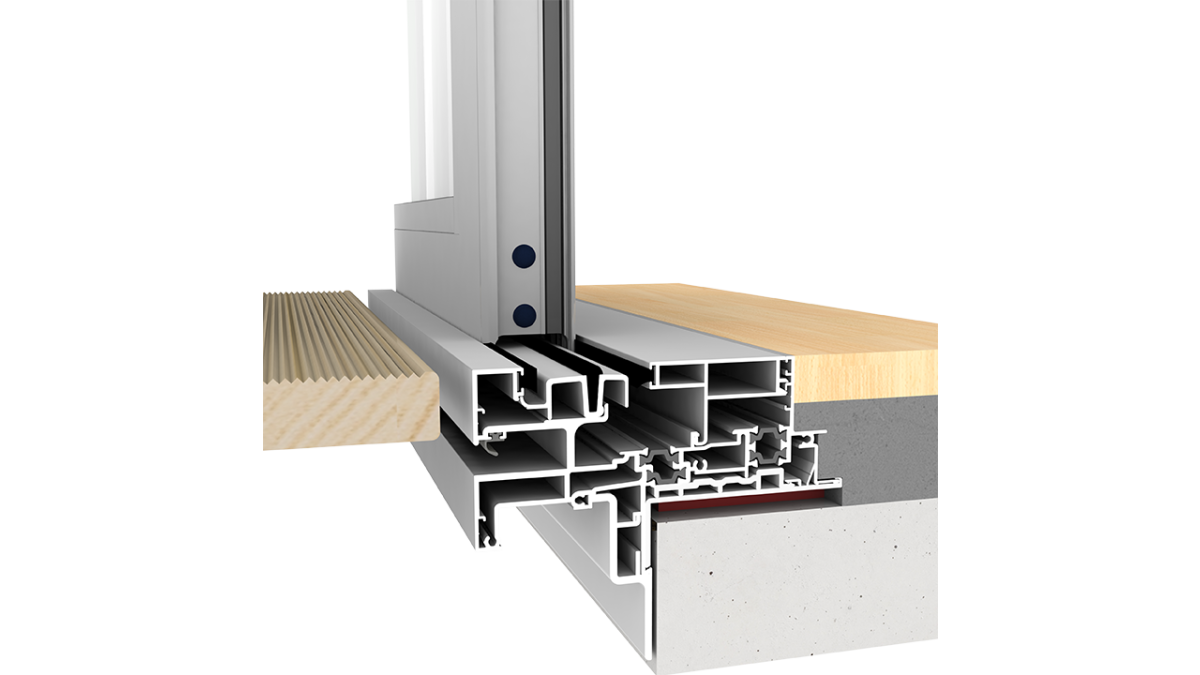

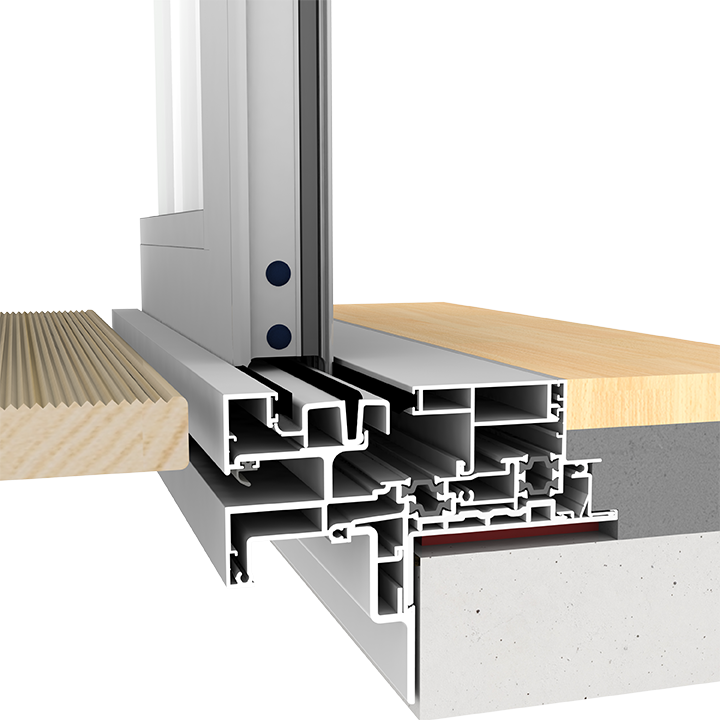

The sill frame has a flush track to optimise inside-to-outside plane
Glazing is deeply set within the building wall, delivering a strong appearance

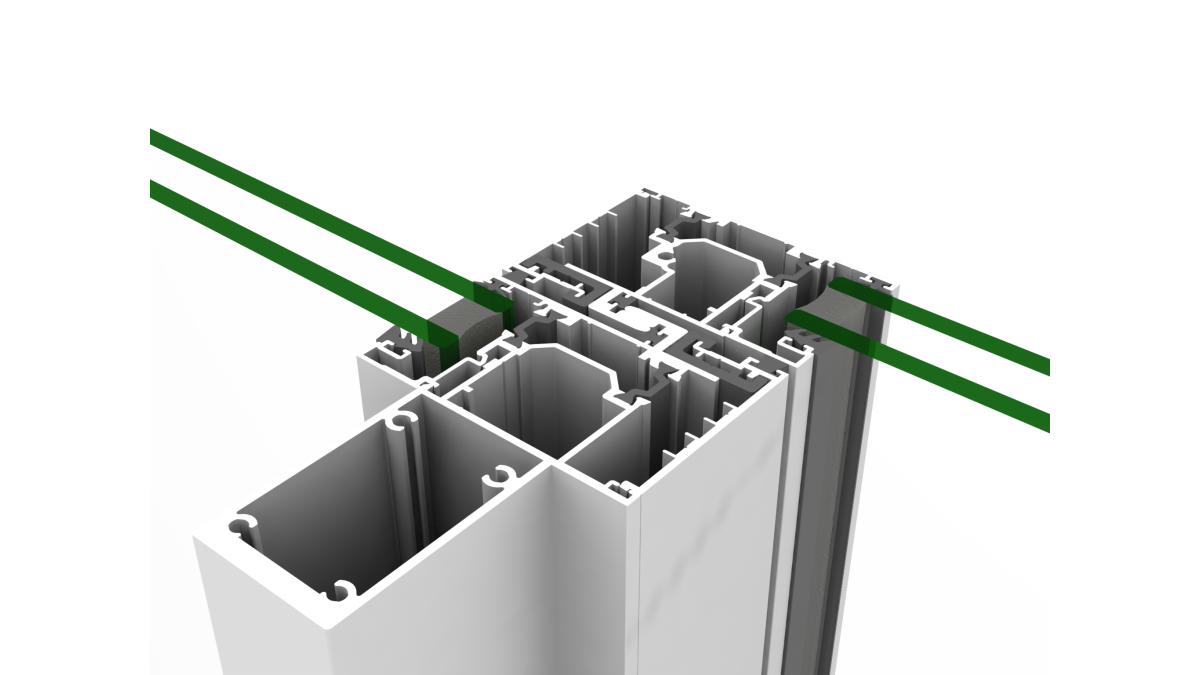

Interlocker stiles and mullions are flush in the closed position
Door stiles and rails feature slender sightlines
Interlockers vary in depth according to height, width and wind pressure requirements
Corner sliding doors (90°) are available with no corner post (exterior and interior corners)
Innovative sill frame design improves weather and water resistance — door height of 2700mm possible in demanding wind zones. For larger sizes consider using APL Architectural Series ThermalHEART®
Maximum glass thickness of 44mm IGU — compliance with NZBC clause H1 Energy Efficiency requires high performing Low-E double glazing

Ranges

Metro Series ThermalHEART® with Centrafix™

Scope of Use

Suitable for broad residential use, including in apartments and buildings over 10m in height
Available in defined maximum sizes

Limitations on Use

For true, flush indoor-outdoor levels consider recessing the sill into the floor pad to minimise or eliminate upstand
Recommended maximum 2700mm high doors in Very High wind zones — for larger sizes consider using APL Architectural Series ThermalHEART®
Compliance with NZBC clause H1 Energy Efficiency requires high performing Low-E double glazing

Statement of Building Code Compliance

Designed, tested and manufactured to meet NZS 4211: Specification for Performance of Windows, and NZS 4233: Glazing in Buildings, Parts 1-4
Conforms to all relevant NZ Building Code clauses

In-Service History

Metro Series ThermalHEART® with Centrafix™ is a new system introduced in 2023

Other Performance Attributes

Window and door warranty provided under normal conditions of use against failure of materials and workmanship for a period of five years
Surface finish is covered by a separate performance warranty dependent on the actual finish selected. Metro Series ThermalHEART® with Centrafix™ products can have a different colour on the interior and exterior faces as an optional choice
A hardware/componentry warranty is offered against defects in manufacturing, functionality and surface finish for a period of five years, provided care and maintenance guidelines have been followed

Documents

Centrafix™ System Guide

2023

URL

QR Code: Centrafix™ on Working Spec

Categories

Popular Products

Popular Brands

Features

Sections

This Month

Contents Visible, Mechanism Unseen

Energy Efficiency and Smart Living in the Bay of Plenty

Achieving a Low Maintenance Façade with a High End Look at Adesanya Close

SECTIONS

Simplifying Flat Roof Design: Cost Efficiency and Performance

Resolving Disputes in Building Projects: When is a Determination Appropriate?

Below Grade Tanking: Why Do I Need It?

Description

Key Features

Categories

Ranges

Scope of Use

Limitations on Use

Statement of Building Code Compliance

In-Service History

Other Performance Attributes

Metro Series ThermalHEART® with Centrafix™ Sliding Doors

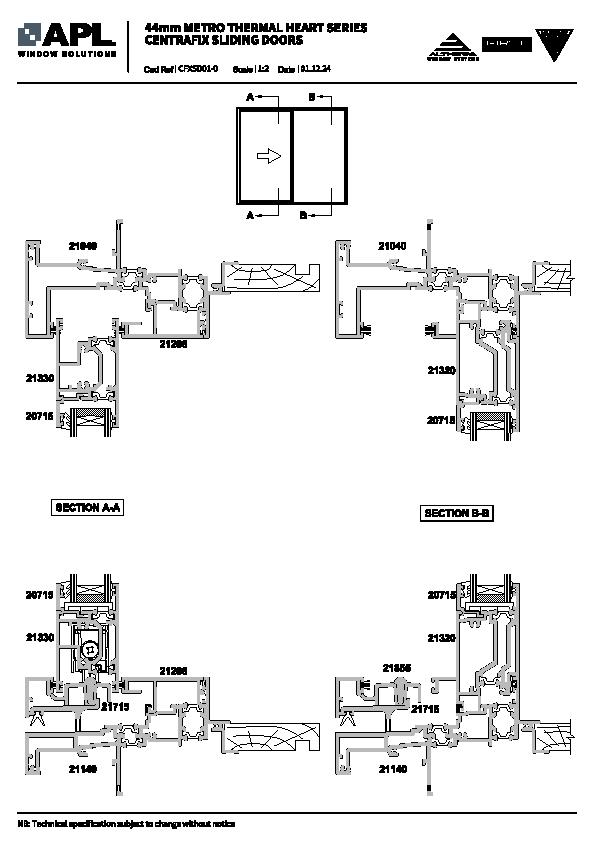

Metro Series ThermalHEART® with Centrafix™ Sliding Doors with Centrafix™ Frame

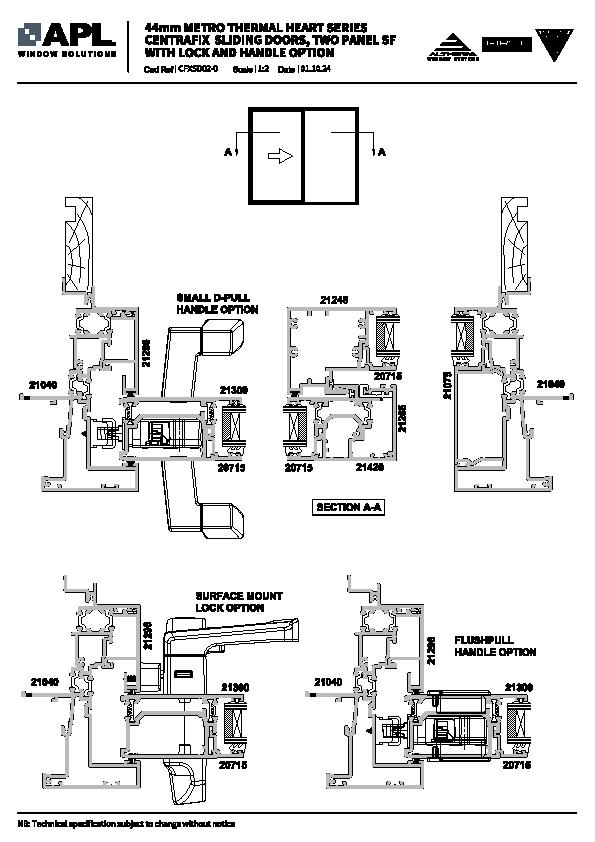

Metro Series ThermalHEART® with Centrafix™ Sliding Doors — Two Panel SF Centrafix™ Frame

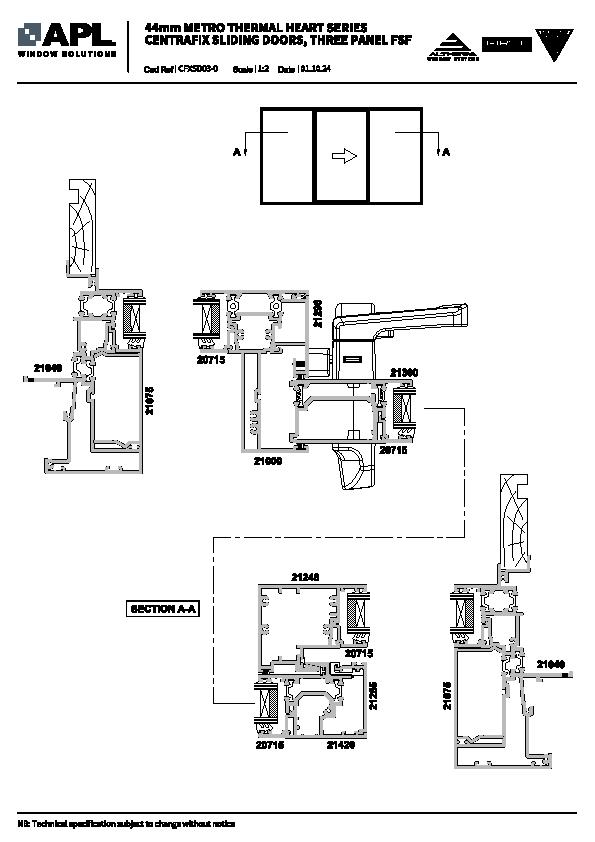

Metro Series ThermalHEART® with Centrafix™ Sliding Doors — Three Panel FSF Centrafix™ Frame

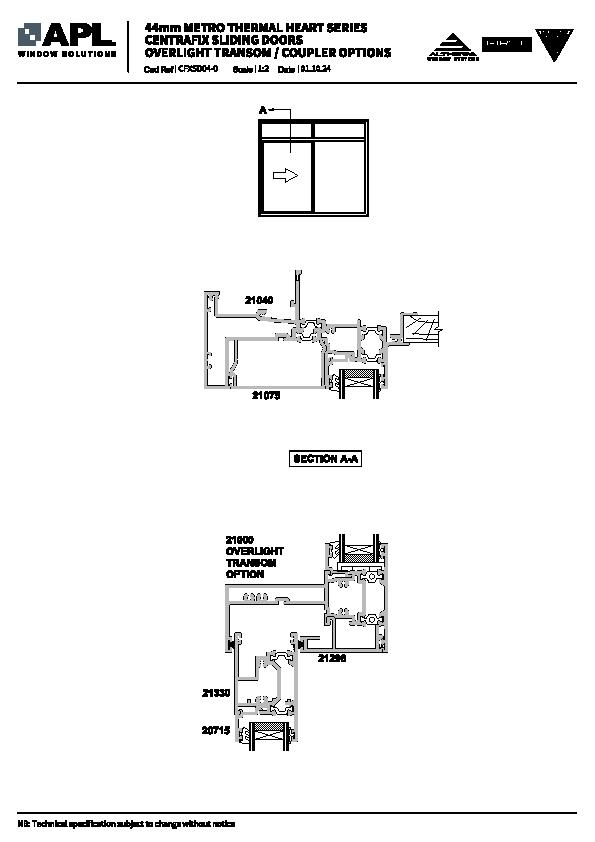

Metro Series ThermalHEART® with Centrafix™ Sliding Doors — Overlight Transom Centrafix™ Frame

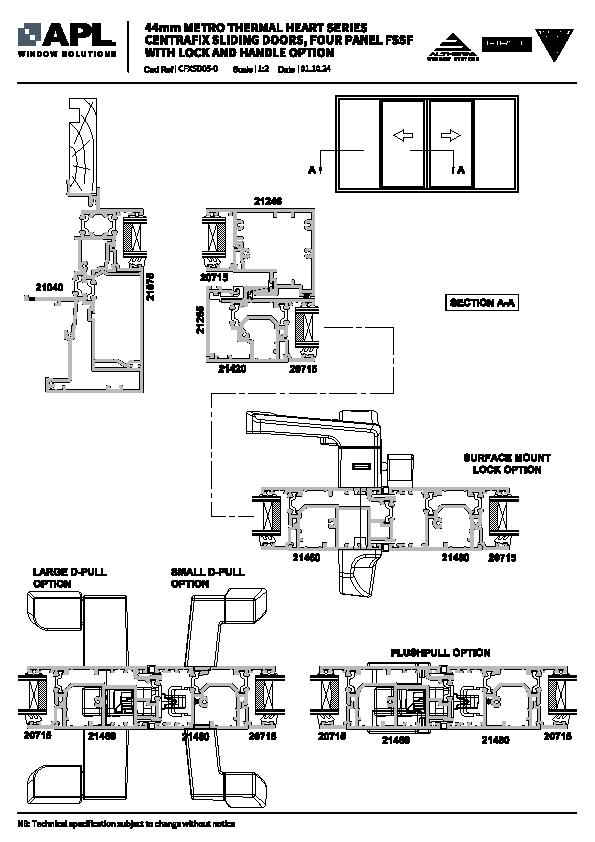

Metro Series ThermalHEART® with Centrafix™ Sliding Doors — Four Panel FSSF Centrafix™ Frame

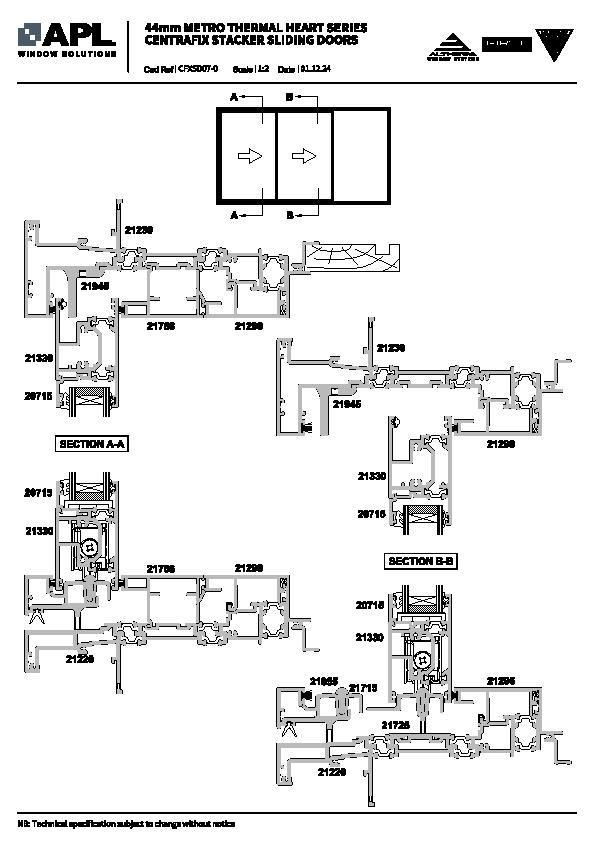

Metro Series ThermalHEART® with Centrafix™ Stacker Sliding Doors Centrafix™ Frame

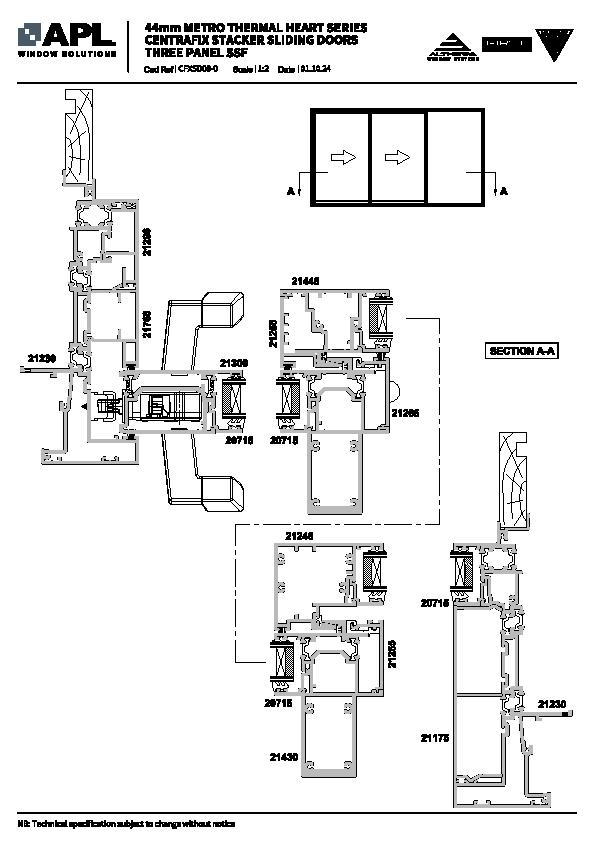

Metro Series ThermalHEART® with Centrafix™ Stacker Sliding Doors — Centrafix™ Frame, Three Panel SSF

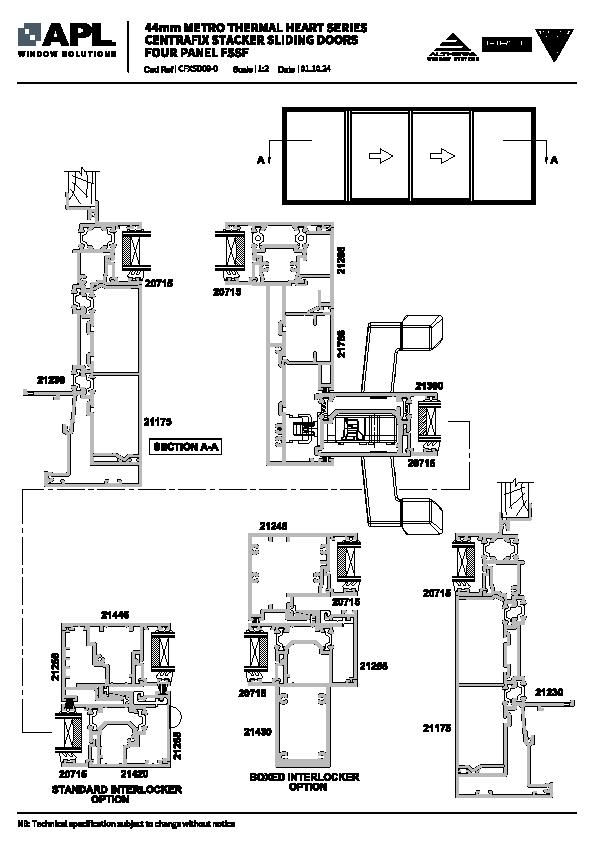

Metro Series ThermalHEART® with Centrafix™ Stacker Sliding Doors — Centrafix™ Frame, Four Panel FSSF

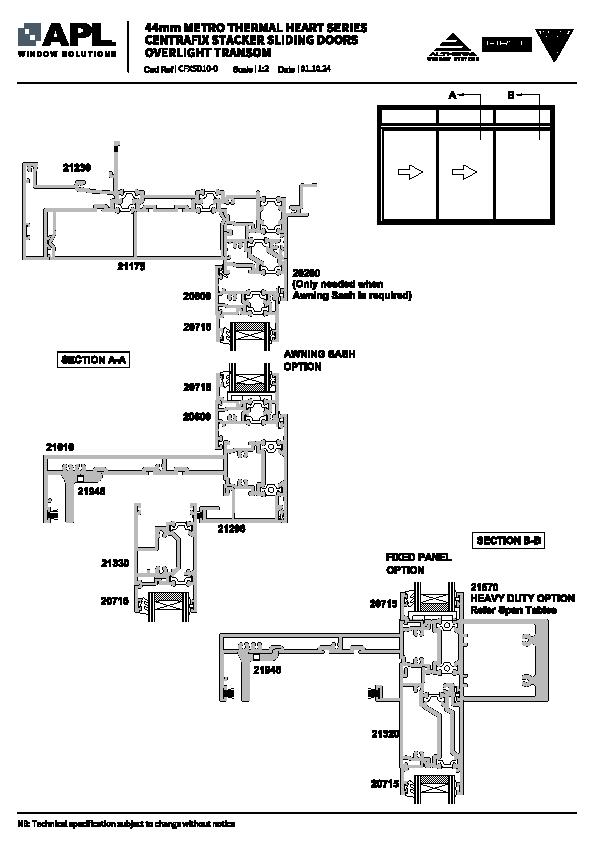

Metro Series ThermalHEART® with Centrafix™ Stacker Sliding Doors — Centrafix™ Frame, Overlight Transom

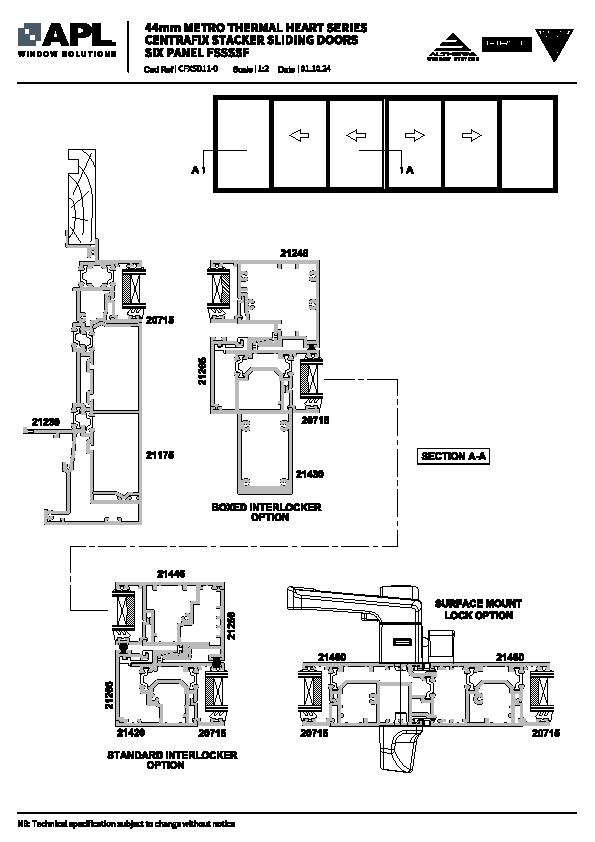

Metro Series ThermalHEART® with Centrafix™ Stacker Sliding Doors — Centrafix™ Frame, Six Panel FSSSSF

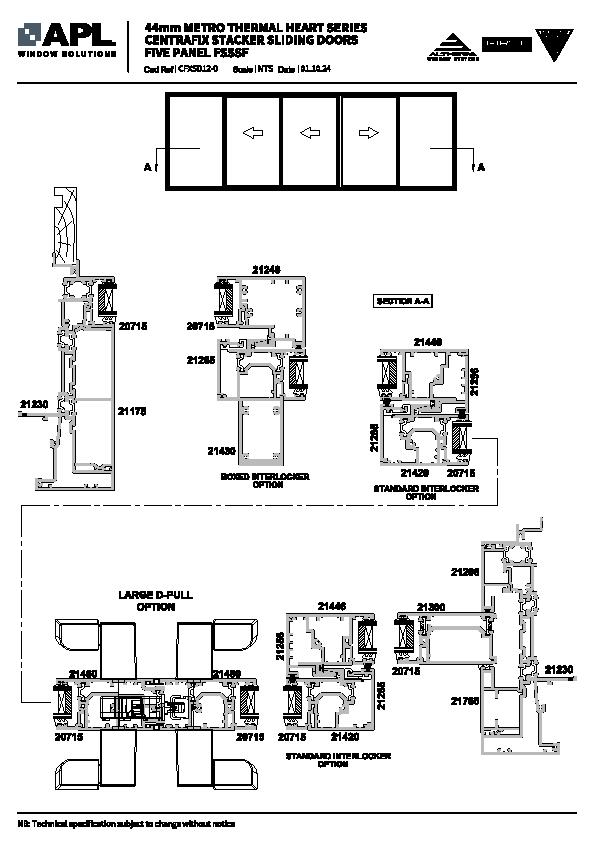

Metro Series ThermalHEART® with Centrafix™ Stacker Sliding Doors — Centrafix™ Frame, Five Panel FSSSF

Metro Series ThermalHEART® with Centrafix™ Sliding Doors — 90° Corners

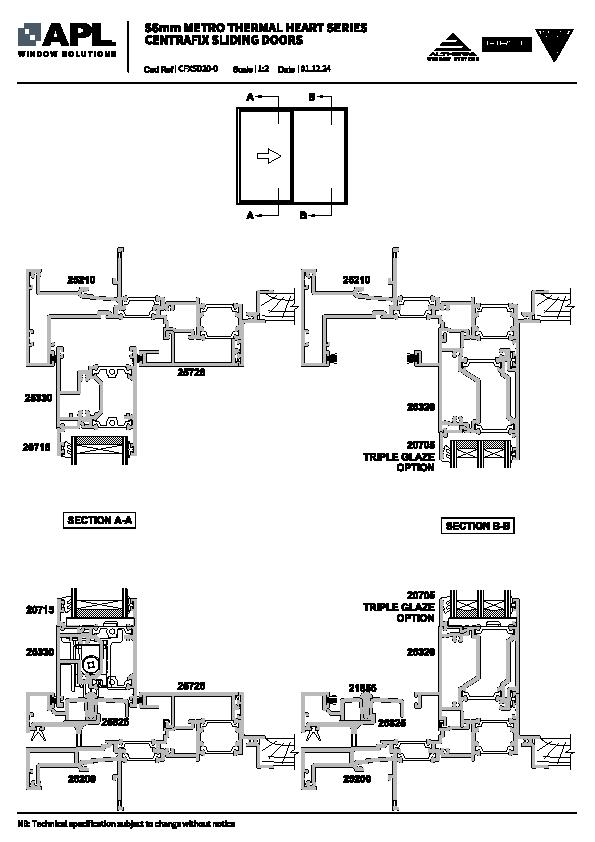

Metro Series ThermalHEART® with Centrafix™ Sliding Doors — Centrafix™ Frame (56mm)

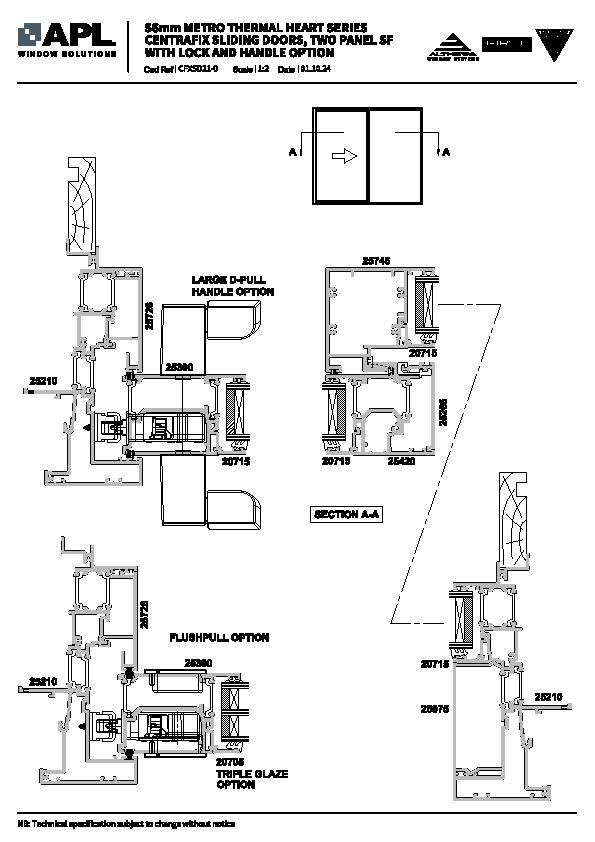

Metro Series ThermalHEART® with Centrafix™ Sliding Doors — Two Panel SF Centrafix™ Frame (56mm)

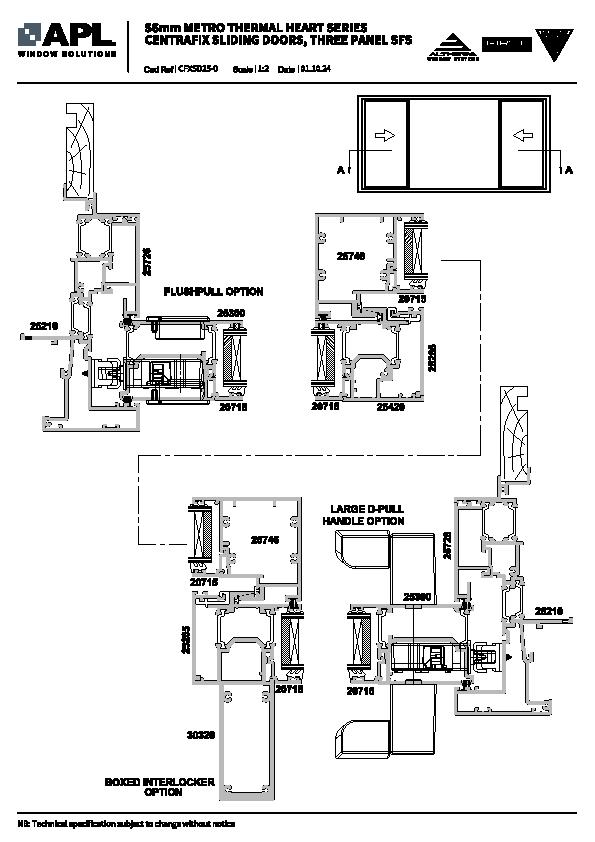

Metro Series ThermalHEART® with Centrafix™ Sliding Doors — Three Panel SFS (56mm)

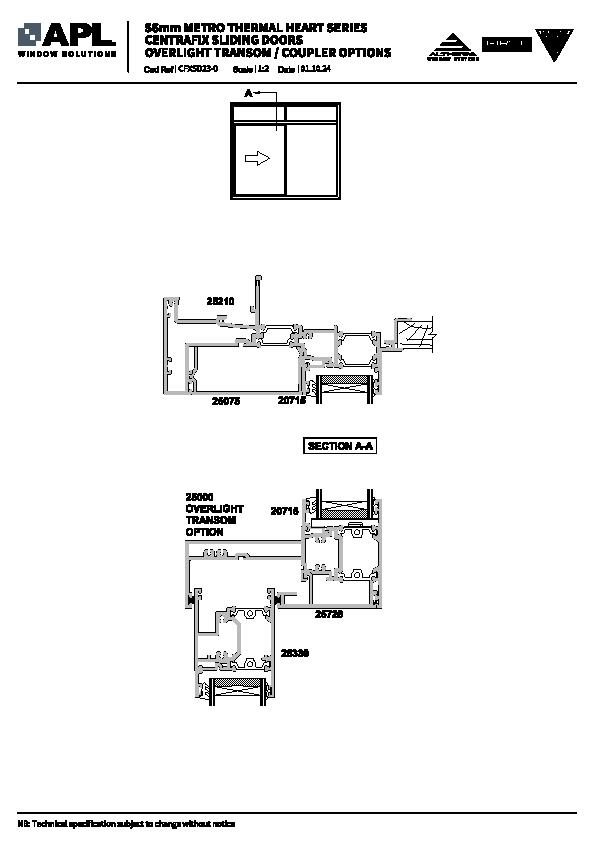

Metro Series ThermalHEART® with Centrafix™ Sliding Doors — Overlight Transom Centrafix™ Frame (56mm)

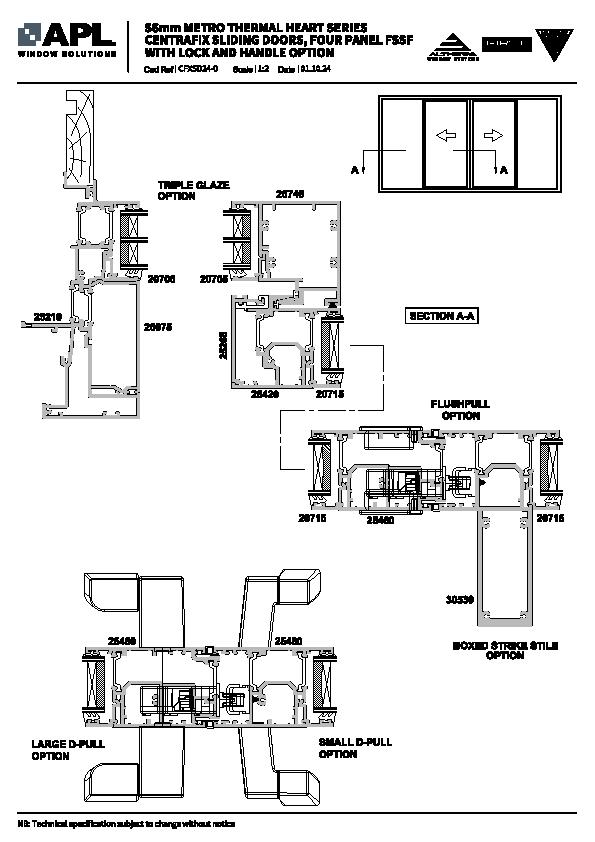

Metro Series ThermalHEART® with Centrafix™ Sliding Doors — Four Panel FSSF, Centrafix™ Frame (56mm)

Metro Series ThermalHEART® with Centrafix™ Sliding Doors — Three Panel SFS, Centrafix™ Frame (56mm)

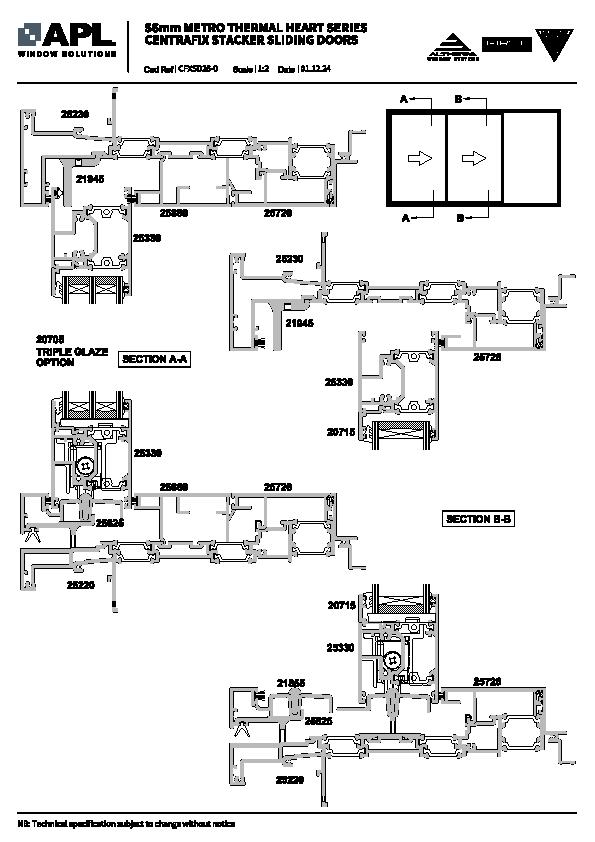

Metro Series ThermalHEART® with Centrafix™ Stacker Sliding Doors Centrafix™ Frame (56mm)

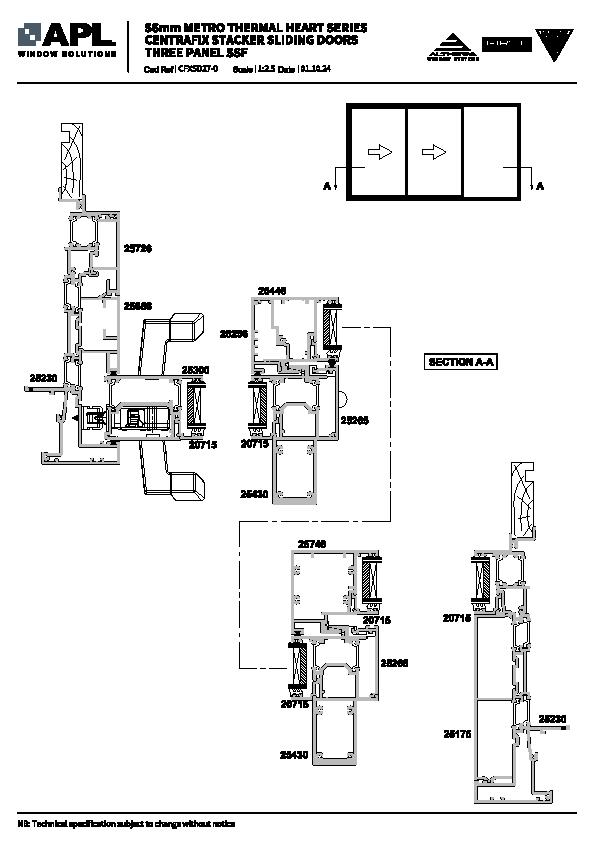

Metro Series ThermalHEART® with Centrafix™ Stacking Sliding Doors — Centrafix™ Frame, Three Panel SSF (56mm)

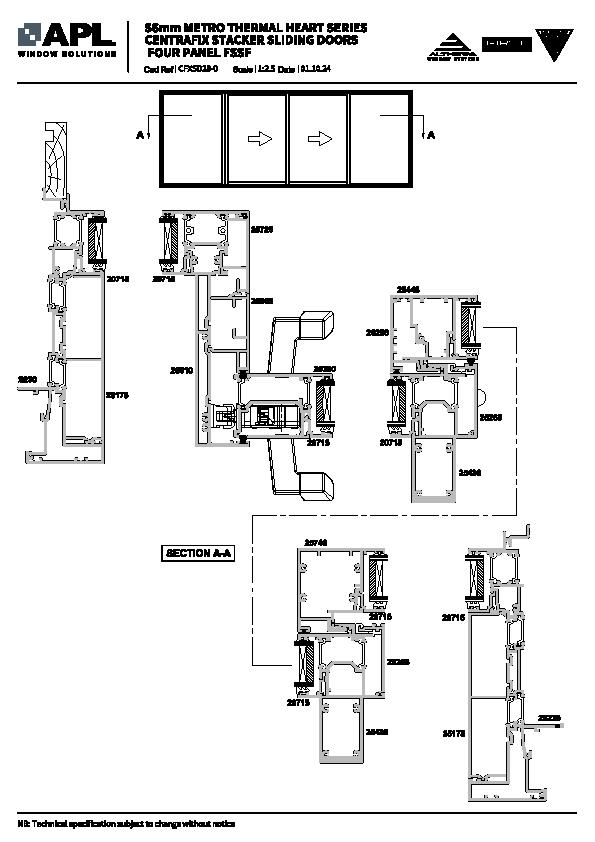

Metro Series ThermalHEART® with Centrafix™ Stacker Sliding Doors — Centrafix™ Frame, Four Panel FSSF (56mm)

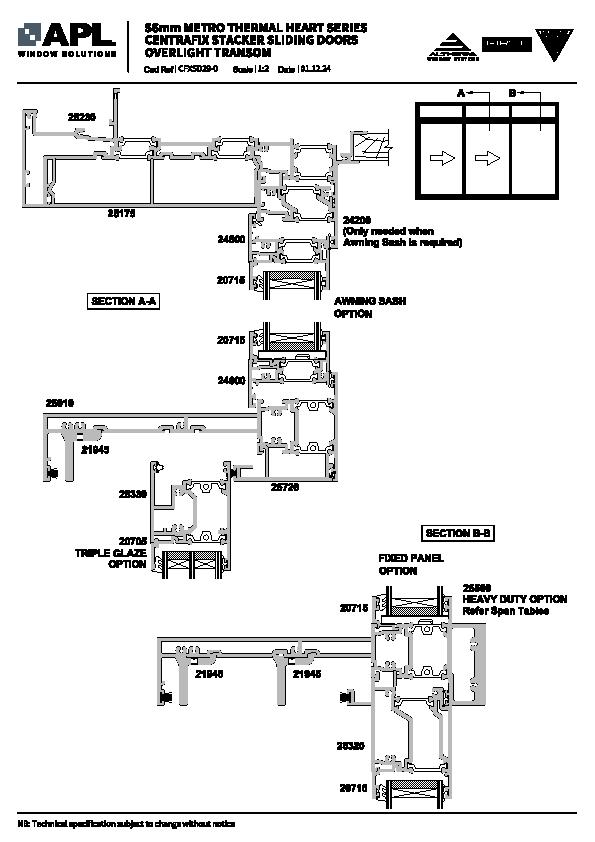

Metro Series ThermalHEART® with Centrafix™ Stacker Sliding Doors — Centrafix™ Frame, Overlight Transom (56mm)

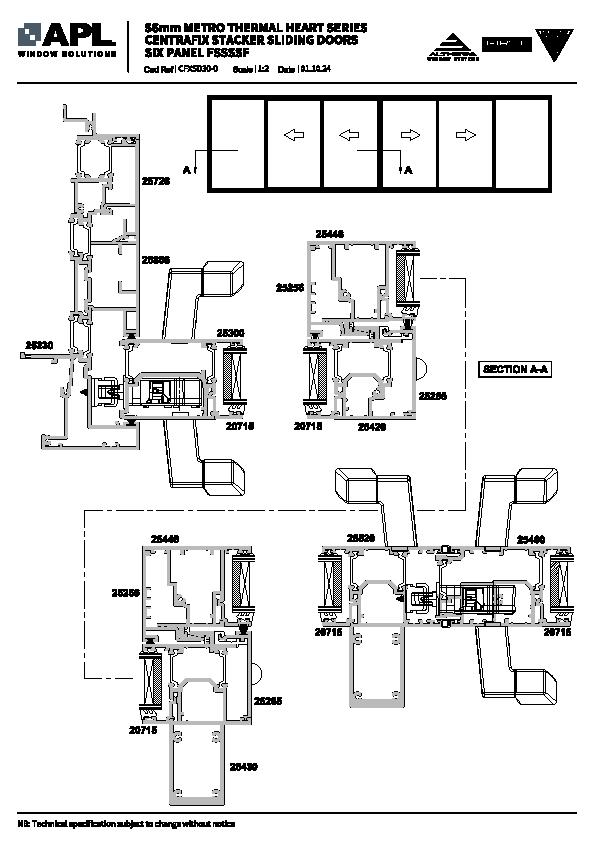

Metro Series ThermalHEART® with Centrafix™ Stacker Sliding Doors — Centrafix™ Frame, Six Panel FSSSSF (56mm)

Metro Series ThermalHEART® with Centrafix™ Sliding Doors — 90° Corners

The Installation Details must be used in conjunction with this Metro Series ThermalHEART® Centrafix™ SYSTEM GUIDE

Metro Series ThermalHEART® with Centrafix™ Multislider Door on Board & Batten

Metro Series ThermalHEART® with Centrafix™ Multislider Door on Brick Veneer

Metro Series ThermalHEART® with Centrafix™ Multislider Door on Bevelback Weatherboard

Metro Series ThermalHEART® with Centrafix™ Multislider Door on Flat Sheet

Metro Series ThermalHEART® with Centrafix™ Multislider Door on Profile Metal

Metro Series ThermalHEART® with Centrafix™ Multislider Door on Rusticated Weatherboard

Metro Series ThermalHEART® with Centrafix™ Multislider Door on Stucco

Metro Series ThermalHEART® with Centrafix™ Sliding Door on Board & Batten

Metro Series ThermalHEART® with Centrafix™ Sliding Door on Brick Veneer

Metro Series ThermalHEART® with Centrafix™ Sliding Door on Bevelback Weatherboard

Metro Series ThermalHEART® with Centrafix™ Sliding Door on Flat Sheet

Metro Series ThermalHEART® with Centrafix™ Sliding Door on Profile Metal

Metro Series ThermalHEART® with Centrafix™ Sliding Door on Rusticated Weatherboard

Metro Series ThermalHEART® with Centrafix™ Sliding Door on Stucco

Metro Series ThermalHEART® with Centrafix™ Multislider Door on Board & Batten (56mm)

Metro Series ThermalHEART® with Centrafix™ Multislider Door on Brick Veneer (56mm)

Metro Series ThermalHEART® with Centrafix™ Multislider Door on Bevelback Weatherboard (56mm)

Metro Series ThermalHEART® with Centrafix™ Multislider Door on Flat Sheet (56mm)

Metro Series ThermalHEART® with Centrafix™ Multislider Door on Profile Metal (56mm)

Metro Series ThermalHEART® with Centrafix™ Multislider Door on Rusticated Weatherboard (56mm)

Metro Series ThermalHEART® with Centrafix™ Multislider Door on Stucco (56mm)

Metro Series ThermalHEART® with Centrafix™ Sliding Door on Board & Batten (56mm)

Metro Series ThermalHEART® with Centrafix™ Sliding Door on Brick Veneer (56mm)

Metro Series ThermalHEART® with Centrafix™ Sliding Door on Bevelback Weatherboard (56mm)

Metro Series ThermalHEART® with Centrafix™ Sliding Door on Flat Sheet (56mm)

Metro Series ThermalHEART® with Centrafix™ Sliding Door on Profile Metal (56mm)

Metro Series ThermalHEART® with Centrafix™ Sliding Door on Rusticated Weatherboard (56mm)

Metro Series ThermalHEART® with Centrafix™ Sliding Door on Stucco (56mm)
