Description

Awning and casement windows have clean lines and a visual aesthetic that matches the entire product range. There is a choice of facing and flush, non-facing options. Designed for suitability in large sizes. For larger format fixed and opening windows consider using APL Architectural Series ThermalHEART®.

Key Features

Glazing is deeply set within the building wall, delivering a strong appearance
Awning and casement windows have a facing option and a flush, non-facing option
Facing sashes available in varying performance grades

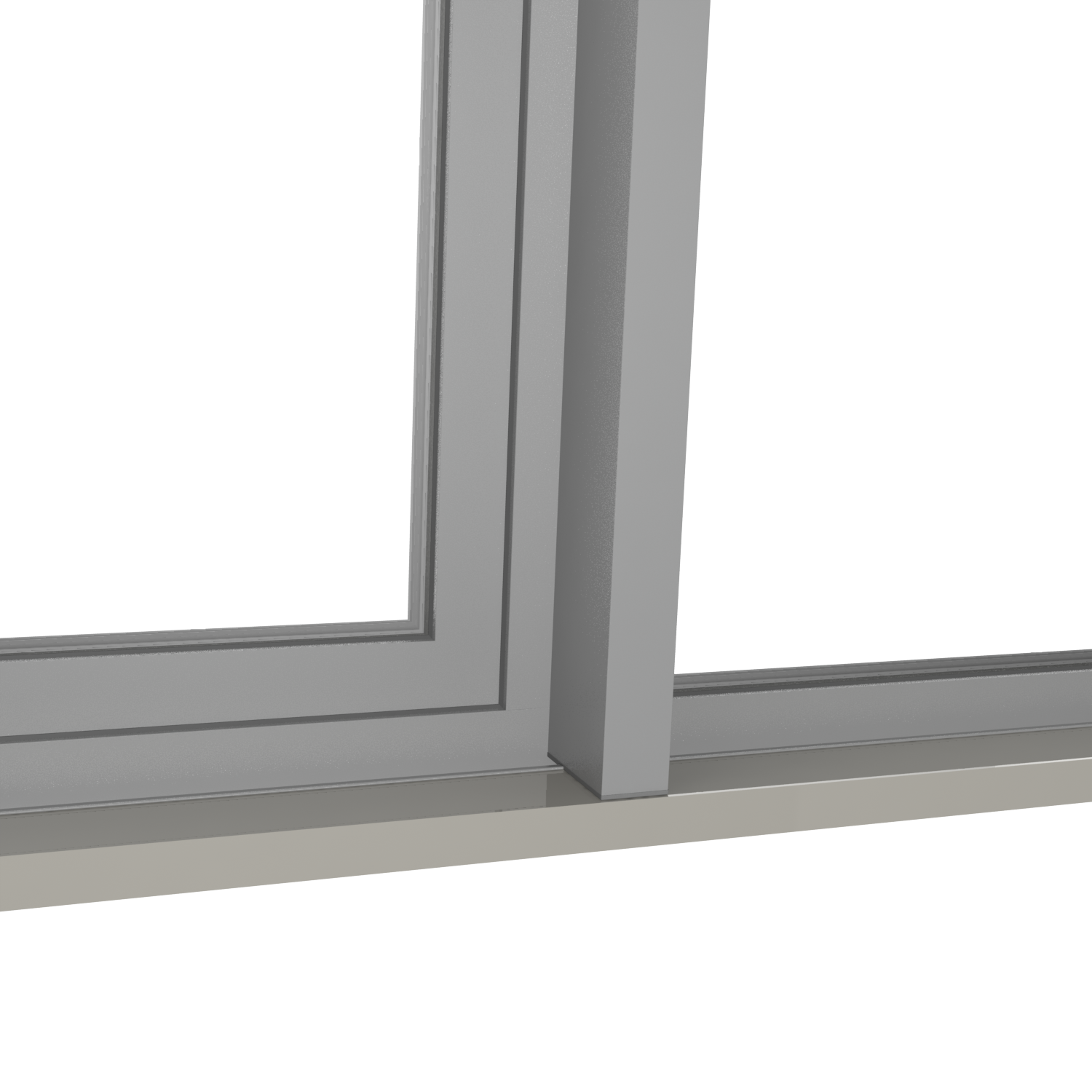

Mullions and transoms with external fins or internal boxes available
Multi-point locking available through Eurogroove feature
Maximum glass thickness of 44mm IGU — compliance with NZBC clause H1 Energy Efficiency requires high performing Low-E double glazing
Vent options — Aerovent, SashVent and Ventient

Ranges

Metro Series ThermalHEART® with Centrafix™

Scope of Use

Suitable for broad residential use, including in apartments and buildings over 10m in height
Compliance with NZBC clause H1 Energy Efficiency requires high performing Low-E double glazing
Awning windows provide versatile ventilation with a good degree of weather protection
Casements can direct breezes inside and have a traditional aesthetic
Need to be used in defined maximum sizes according to the wind exposure

Limitations on Use

Care needed if projecting on to walkways and decks. Restrictor stays can limit opening in such situations
Restrictors will be needed to conform to NZBC F4 'Safety from falling' if windows open on to a drop of 1m or more
Consider a horizontal sliding window to protect walkways
Caution is required for the use of casements which open directly into prevailing winds
Casements beyond benches may have top fasteners that are hard to reach
Compliance with NZBC clause H1 Energy Efficiency requires high performing Low-E double glazing

Statement of Building Code Compliance

Designed, tested and manufactured to meet NZS 4211: Specification for Performance of Windows, and NZS 4233: Glazing in Buildings, Parts 1-4
Conforms to all relevant NZ Building Code clauses

In-Service History

Metro Series ThermalHEART® with Centrafix™ is a new system introduced in 2023

Other Performance Attributes

Window and door warranty provided under normal conditions of use against failure of materials and workmanship for a period of five years
Surface finish is covered by a separate performance warranty dependent on the actual finish selected. Metro Series ThermalHEART® with Centrafix™ products can have a different colour on the interior and exterior faces as an optional choice
A hardware/componentry warranty is offered against defects in manufacturing, functionality and surface finish for a period of five years, provided care and maintenance guidelines have been followed

Documents

Centrafix™ System Guide

2023

URL

QR Code: Centrafix™ on Working Spec

Categories

Popular Products

Popular Brands

Features

Sections

This Month

Innovative Flood Prevention with the Jesani Door Channel

Edgetec PosiGlaze Balustrade System Brings Versatility and Ease of Install to Projects

Parkwood Estate: A Cutting-Edge 64-Unit Terraced House Project Featuring Triboard

SECTIONS

Passive Fire Protection in CLT Construction

500 Days to Build a House: Not a Record Kiwis Should Be Proud Of

The Take-Up of AAC Intertenancy Walls in Aotearoa

Description

Key Features

Categories

Ranges

Scope of Use

Limitations on Use

Statement of Building Code Compliance

In-Service History

Other Performance Attributes

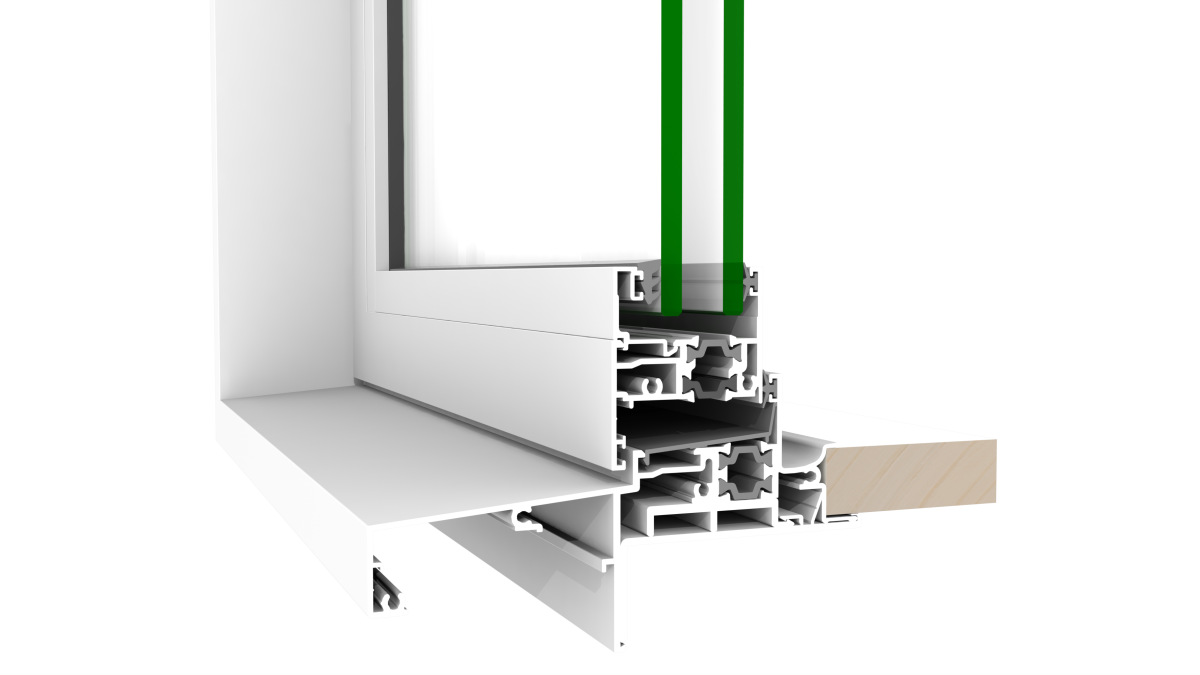

Metro Series ThermalHEART® with Centrafix™ Awning & Casement Windows

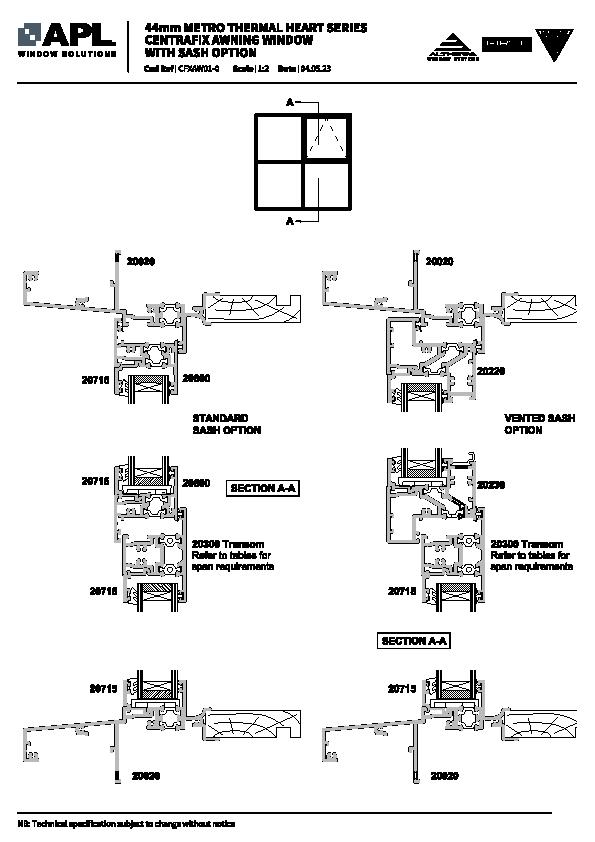

Metro Series ThermalHEART® with Centrafix™ Awning Windows — With Sash Option

Metro Series ThermalHEART® with Centrafix™ Awning Windows — With Sash & Mullion/Transom Options

Metro Series ThermalHEART® with Centrafix™ Awning Windows — Corner Post Options

Metro Series ThermalHEART® with Centrafix™ Awning Windows — Aerovent Options

Metro Series ThermalHEART® with Centrafix™ Awning Windows — Ventient Options

Metro Series ThermalHEART® with Centrafix™ Awning Windows — Ventient at Mullions & Jamb

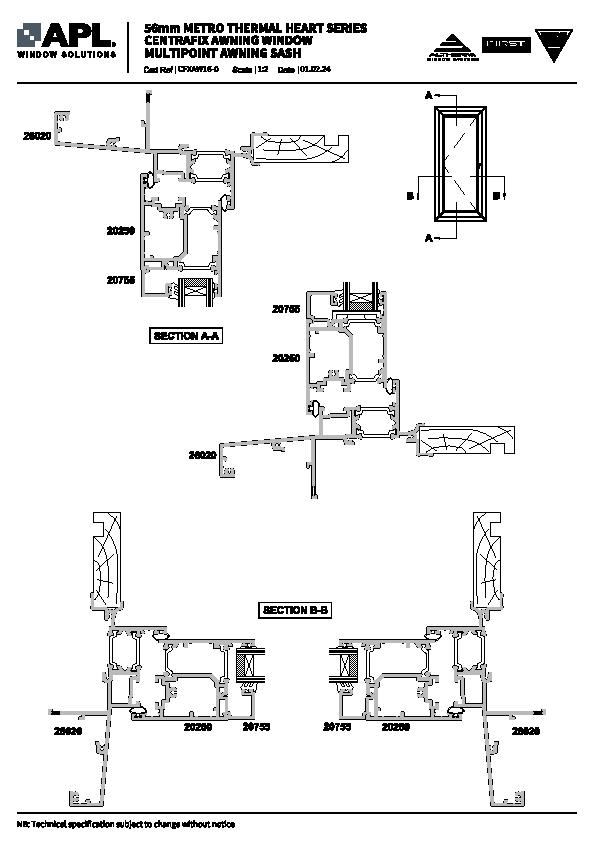

Metro Series ThermalHEART® with Centrafix™ Awning Windows — With Sash Option (56mm)

Metro Series ThermalHEART® with Centrafix™ Awning Windows — With Sash & Mullion/Transom Options (56mm)

Metro Series ThermalHEART® with Centrafix™ Awning Windows — Corner Post Options (56mm)

Metro Series ThermalHEART® with Centrafix™ Awning Windows — Aerovent Options (56mm)

Metro Series ThermalHEART® with Centrafix™ Awning Windows — Ventient Options (56mm)

Metro Series ThermalHEART® with Centrafix™ Awning Windows — Ventient at Mullions & Jamb (56mm)

The Installation Details must be used in conjunction with this Metro Series ThermalHEART® Centrafix™ SYSTEM GUIDE

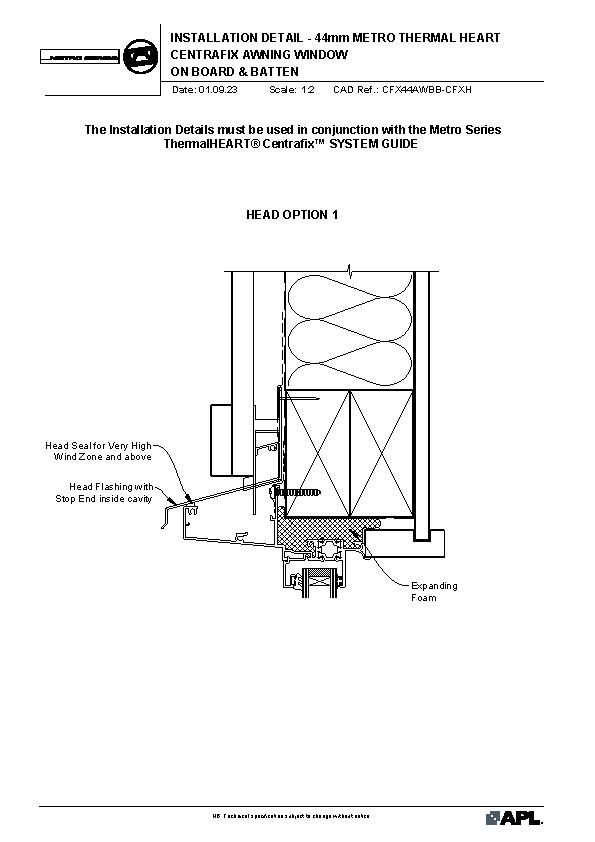

Metro Series ThermalHEART® with Centrafix™ Awning Window on Board & Batten

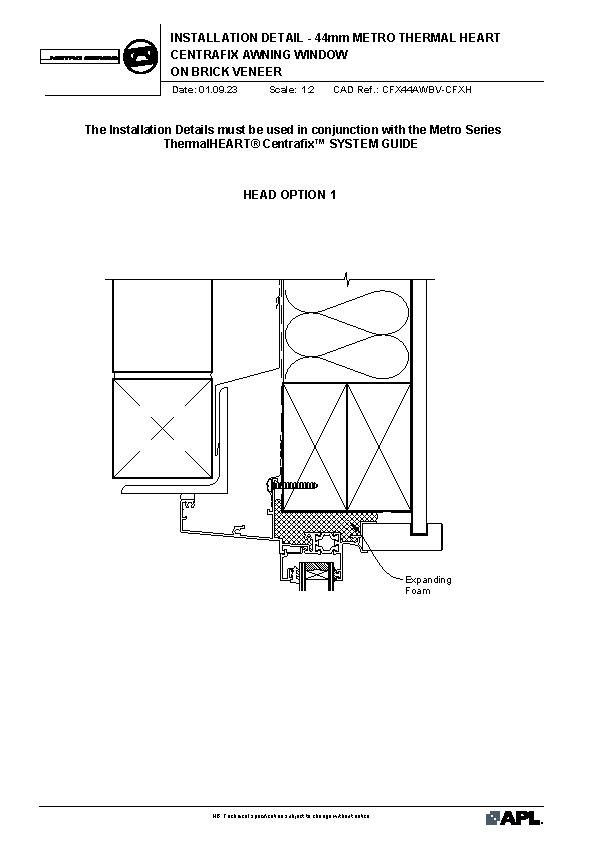

Metro Series ThermalHEART® with Centrafix™ Awning Window on Brick Veneer

Metro Series ThermalHEART® with Centrafix™ Awning Window on Bevelback Weatherboard

Metro Series ThermalHEART® with Centrafix™ Heart Awning Window on Flat Sheet

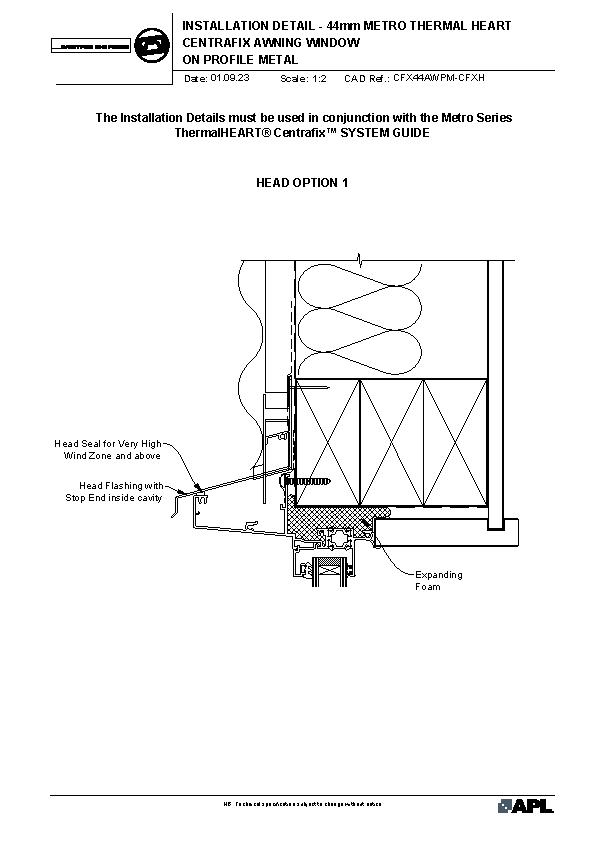

Metro Series ThermalHEART® with Centrafix™ Awning Window on Profile Metal

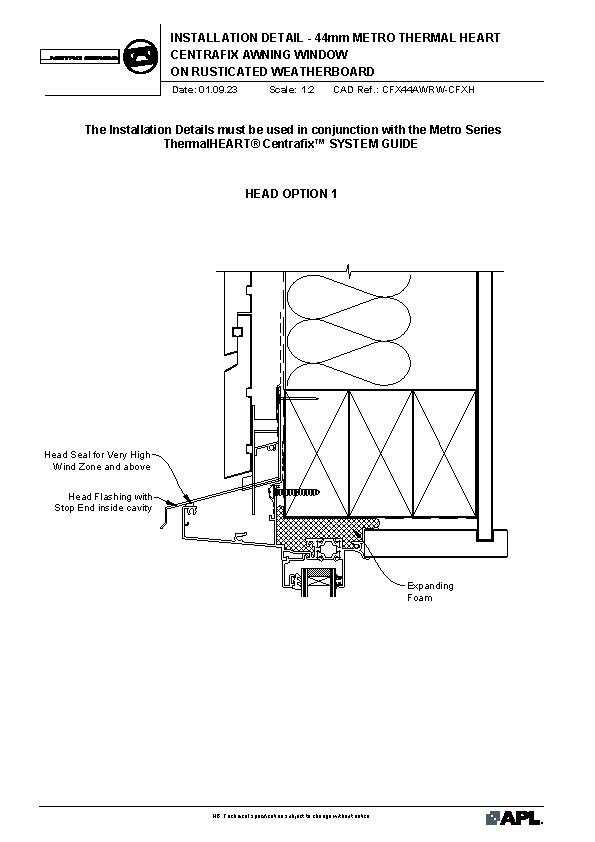

Metro Series ThermalHEART® with Centrafix™ Awning Window on Rusticated Weatherboard

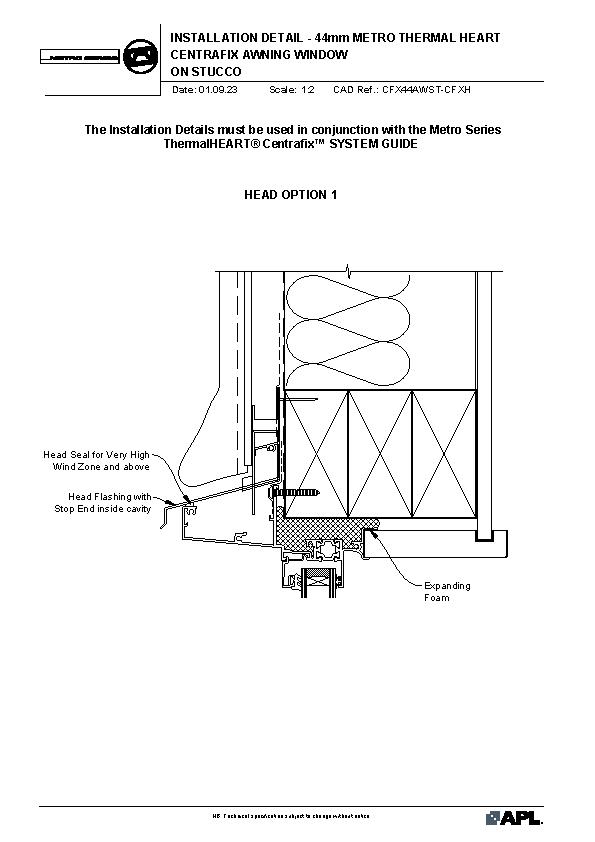

Metro Series ThermalHEART® with Centrafix™ Awning Window on Stucco

Metro Series ThermalHEART® with Centrafix™ Awning Window on Board & Batten (56mm)

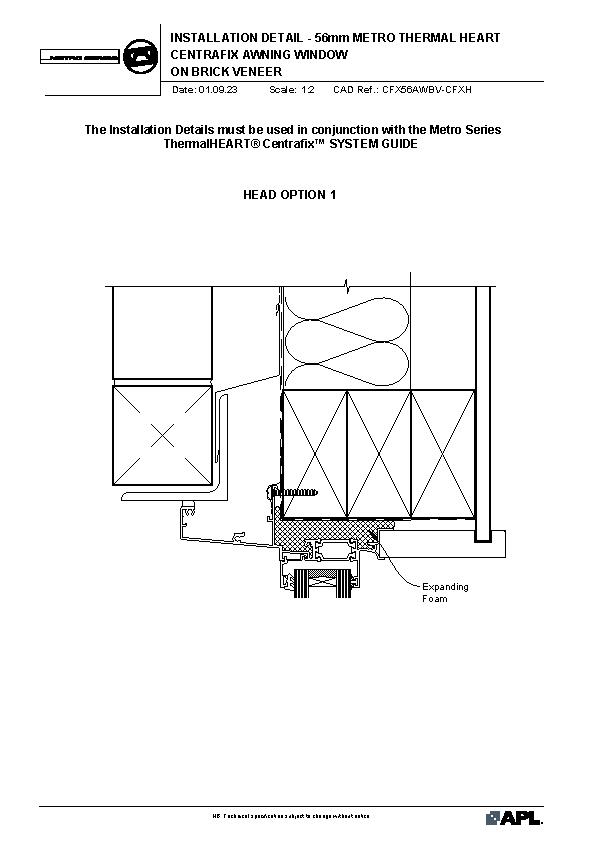

Metro Series ThermalHEART® with Centrafix™ Awning Window on Brick Veneer (56mm)
