Residential Sliding Windows by FIRST Windows & Doors

Residential Sliding Windows

FIRST Windows & Doors

All products

For high-performance double-glazing, explore AGP’s product range available now Explore

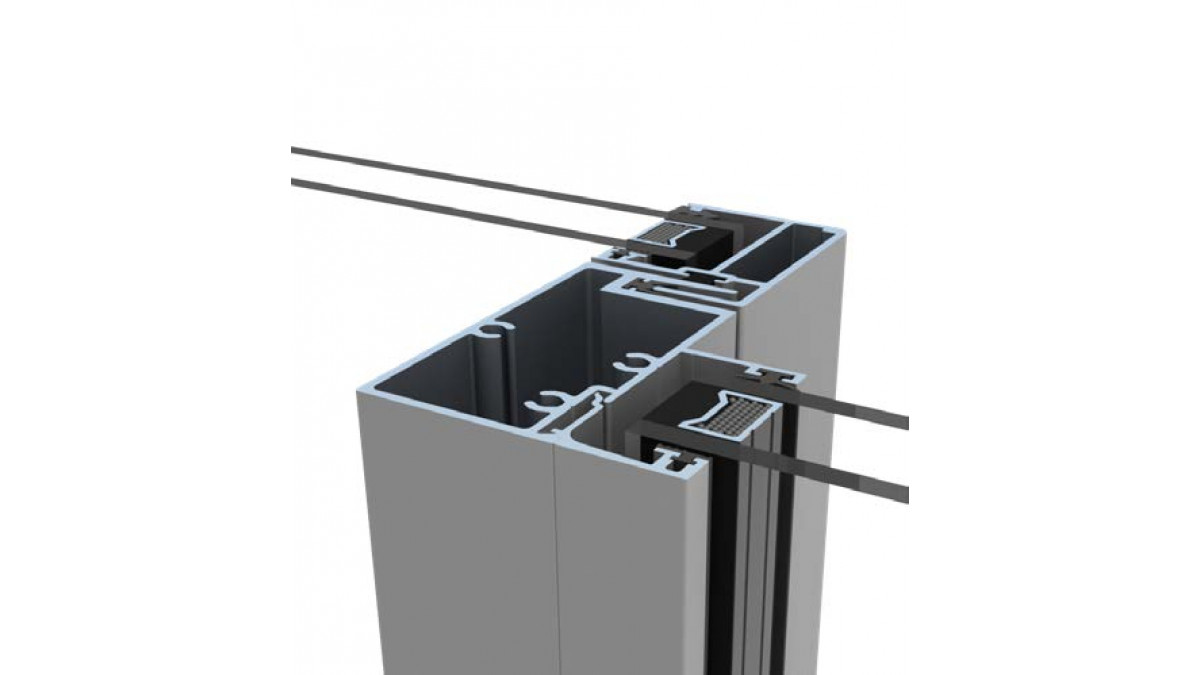

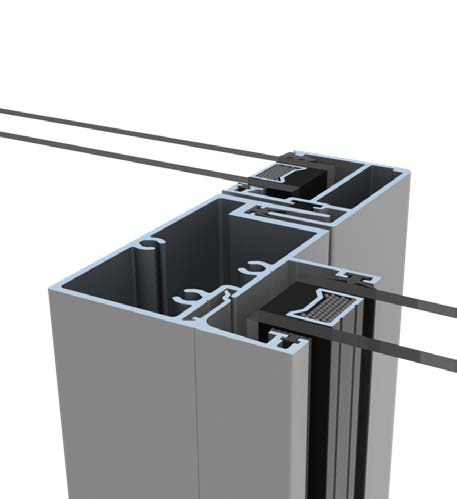

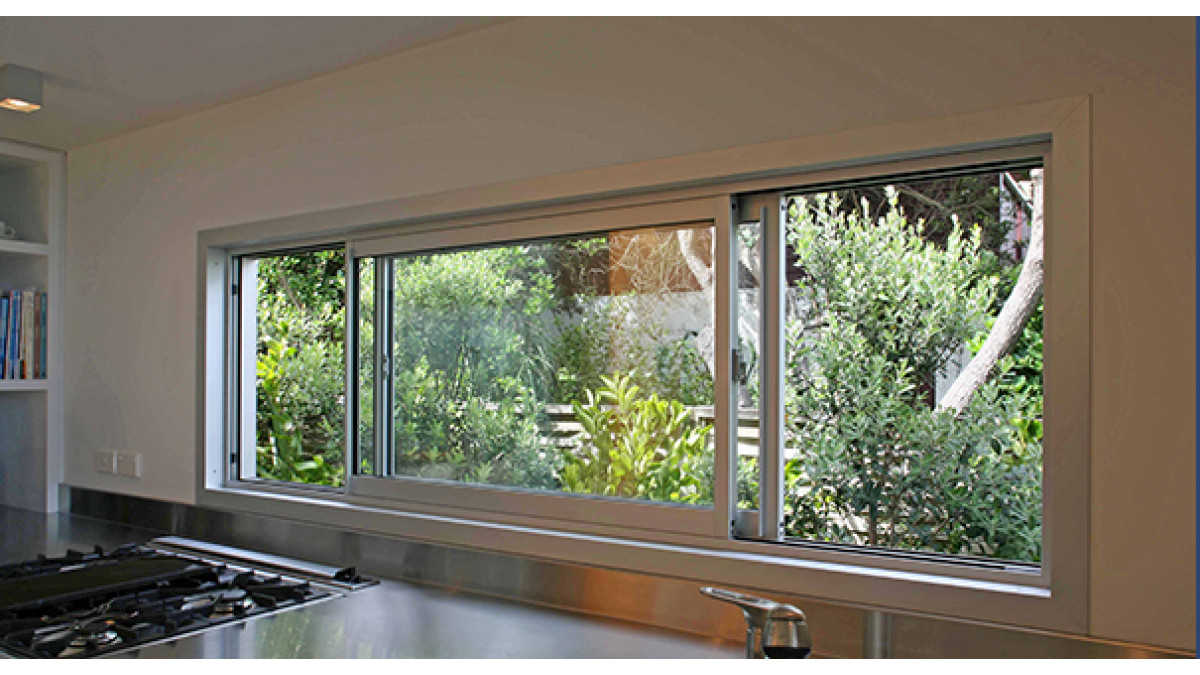

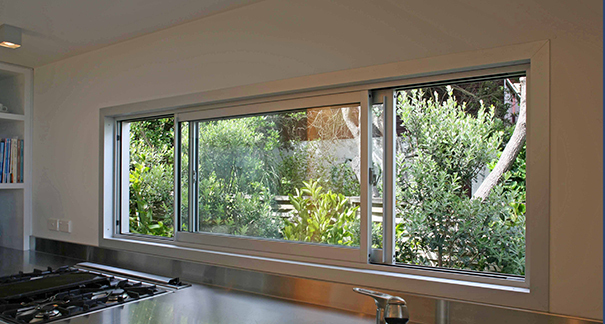

Slidemaster interlocker stiles are flush in the closed position.

Product Enquiries

Description

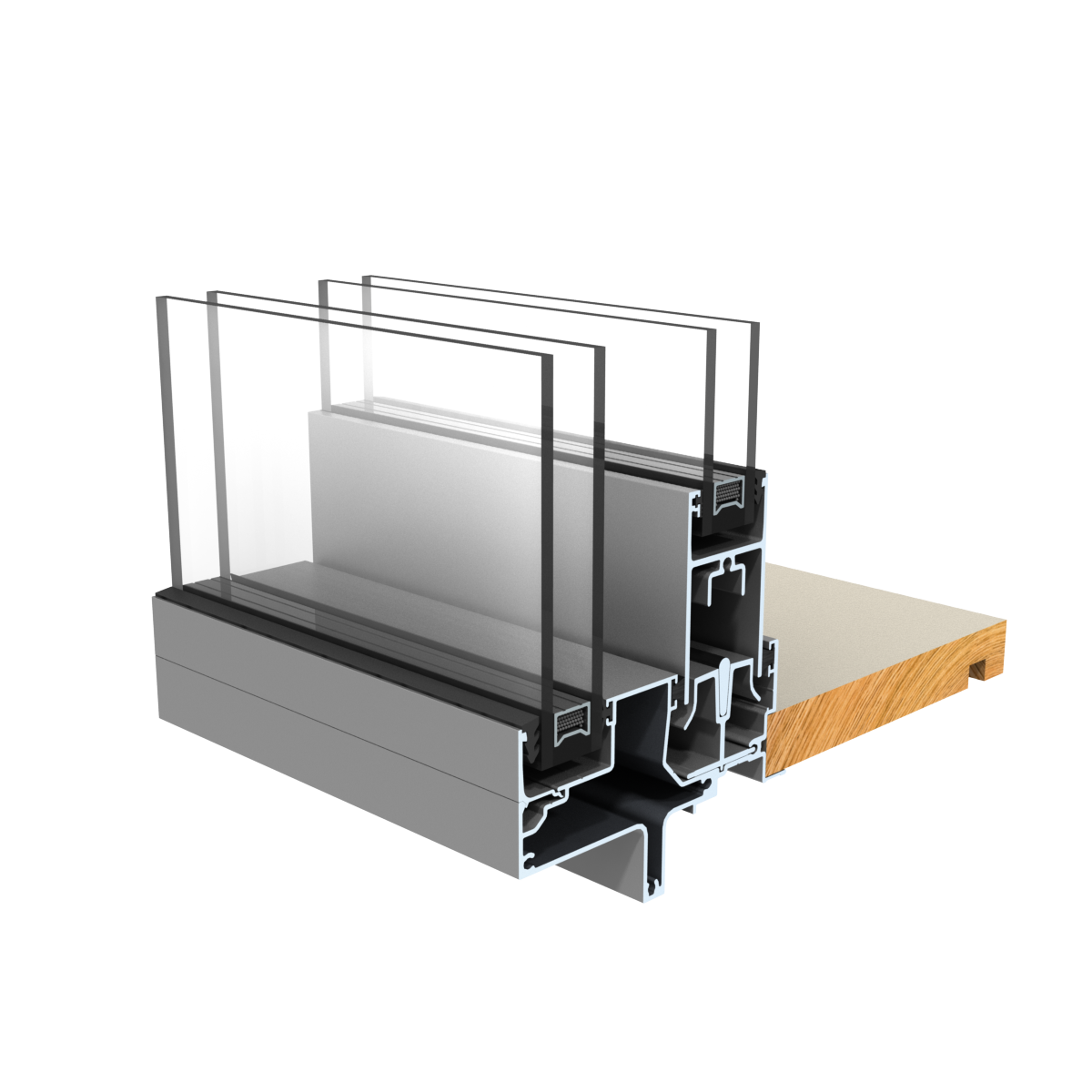

A high specification horizontal sliding window, the Slidemaster has strong profiles suitable for double glazing and significant spans.

Double sliding panels are possible where the choice of opening format exists. Windows incorporating a timber shutter for privacy and sun screening are also available. Over-lights can be included.

Key Features

For mainstream residential use

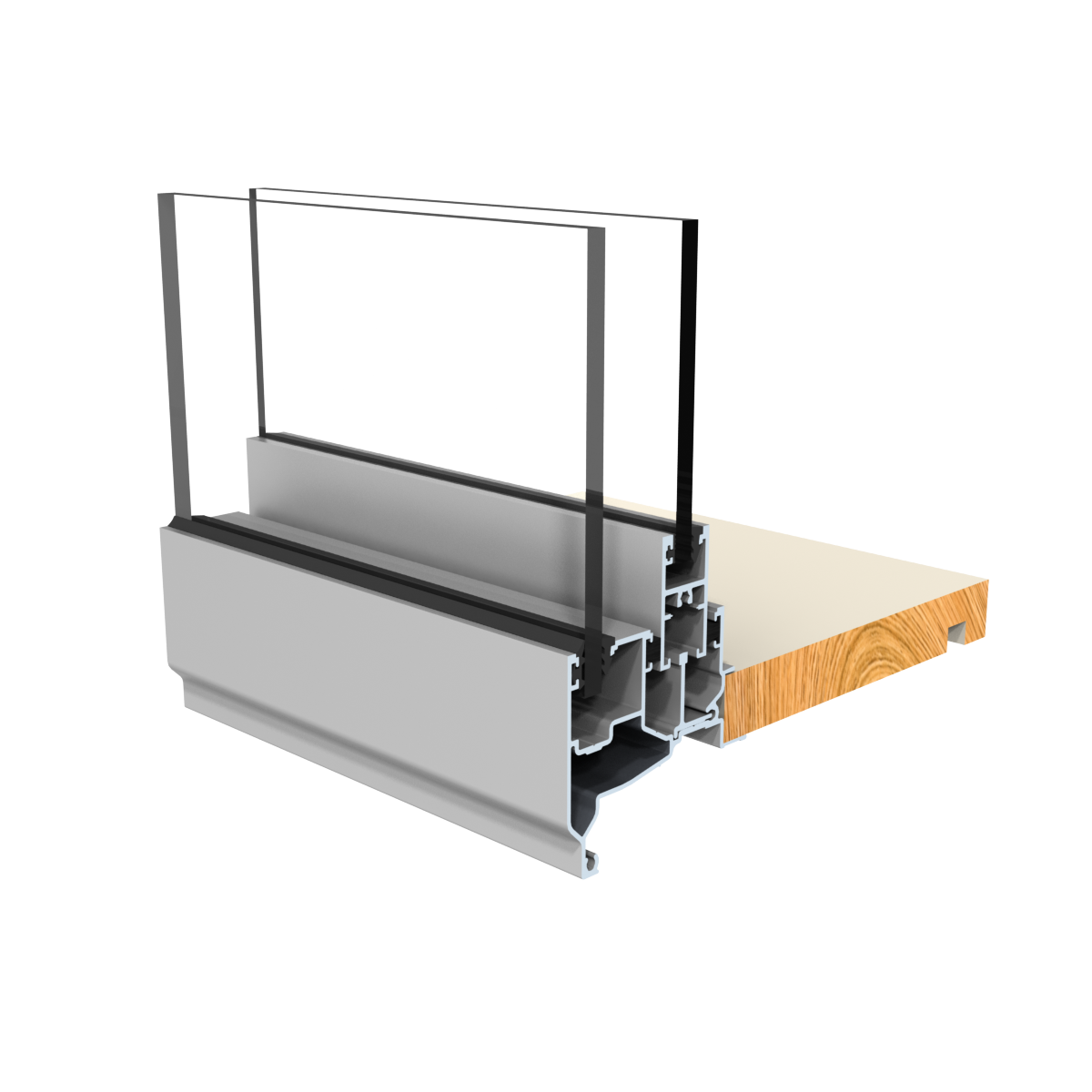

Two ranges available — Slimline (single glaze only) and a heavier duty Slidemaster range
Wide opening is possible in bi-parting or stacking configurations
Double sliding panels are available where two panels slide past each other
Overlights are possible

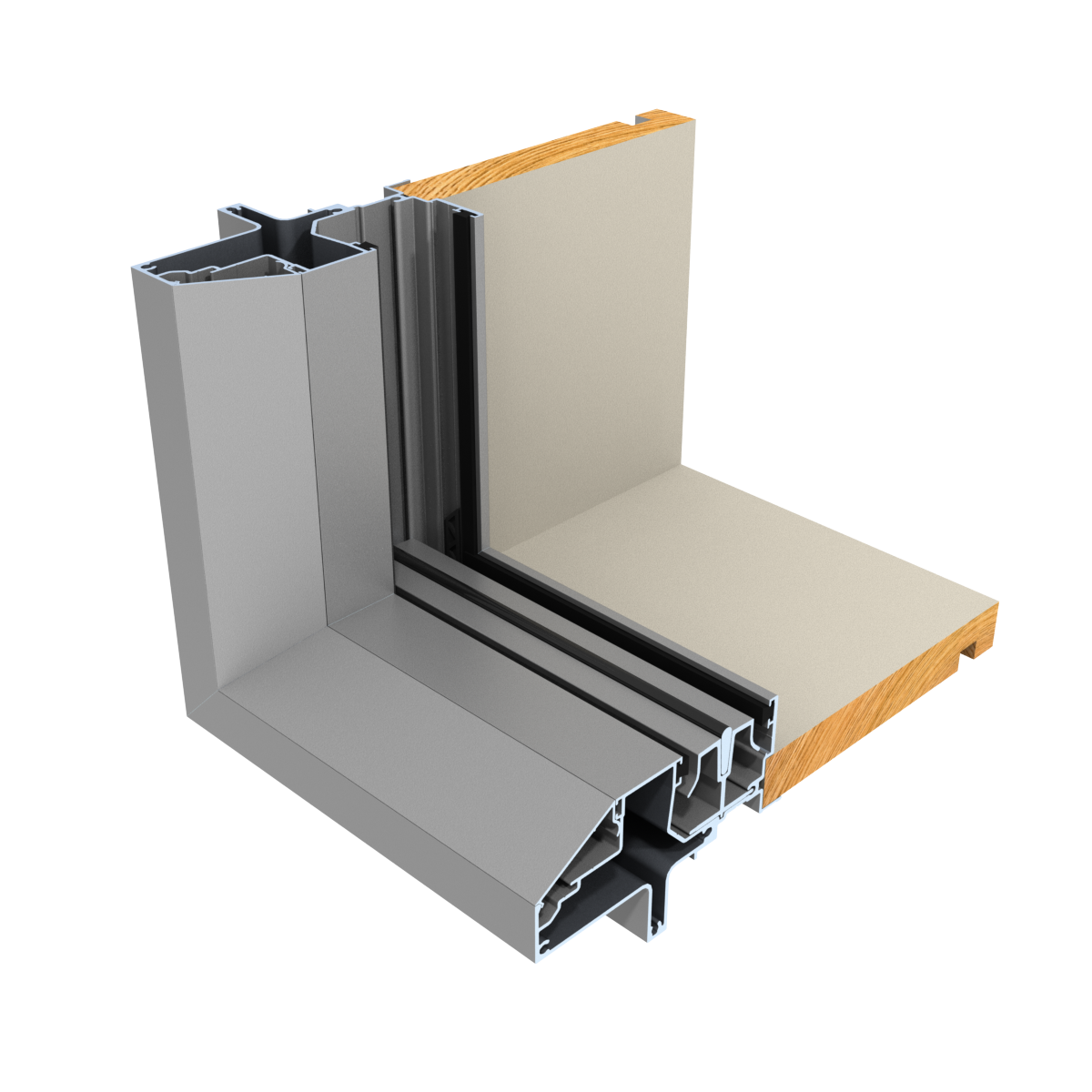

Corner sliders without a corner post are possible with the Slidemaster range

Ranges

Residential Series

Scope of Use

Suitable for most applications where non-projecting windows are desired
Need to be used in defined maximum sizes according to the wind exposure
A good option for servery windows
Work well with insect screens.

Limitations on Use

Slimline option only available with single glazing
Consider the ease of reaching to the window catch if the sliding panel is placed beyond a bench
Some weather protection above e.g. wide eaves recommended to protect open windows.

Statement of Building Code Compliance

Designed, tested and manufactured to meet NZS 4211: Performance of Windows, and NZS 4233: Glazing in Buildings, Parts 1-4
Designed and tested to conform to NZ Building Code, including Clause E2

In-Service History

Extensively used in residential projects throughout New Zealand for more than 40 years with continuous design upgrades
Widely used by homeowners, builders, group home builders and specifiers

Other Performance Attributes

Window and door warranty provided under normal conditions of use against failure of materials and workmanship for a period of five years
Surface finish is covered by a separate performance warranty dependent on the actual finish selected
A hardware/componentry warranty is offered against defects in manufacturing, functionality and surface finish for a period of five years, provided care and maintenance guidelines have been followed

Documents

Data Sheet

pdf

Span Tables

pdf

Declare Label

2022

pdf

FIRST on Masterspec

URL

Full Specification

docx

Specification Clause

docx

Specifier Guide

pdf

WGANZ Guide to E2/AS1

1 August 2019

pdf

First Care, Maintenance & Warranty Brochure (with AGP)

2020

URL

First Brochure

2014

URL

AGP Cleaning & Maintenance

pdf

AGP Condensation Guide

pdf

AGP Visual Quality of Glass

pdf

APL and Sustainability

2019

URL

Manufacturer Contact List

URL

CAD/PDF Details

View full

Full Set of Drawings

pdf

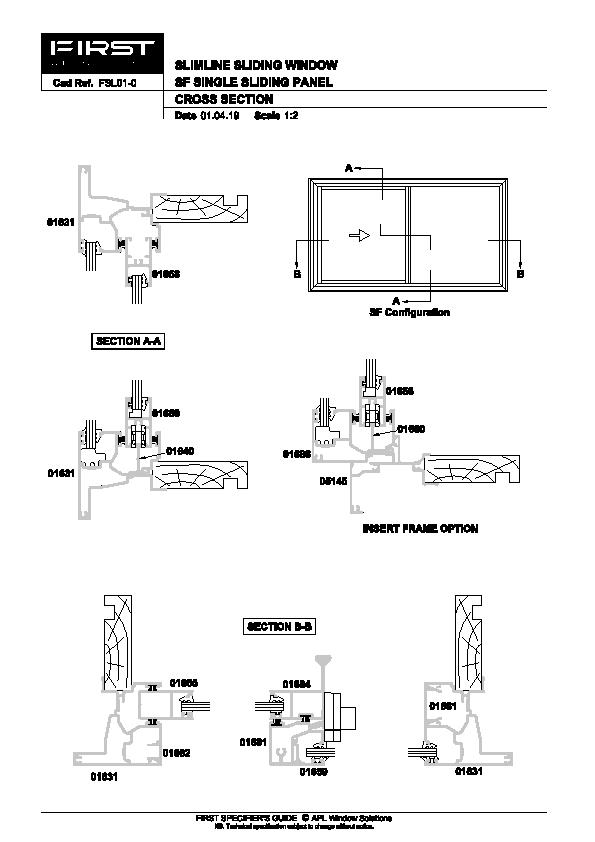

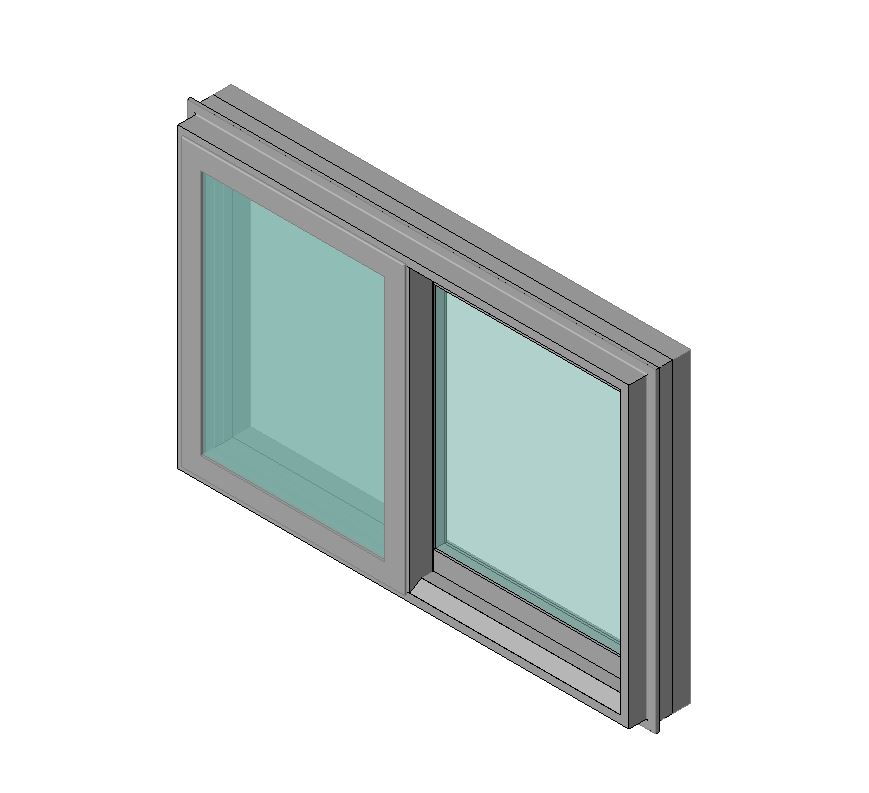

FIRST Residential Slimline Sliding Window SF

FSL01-0

dwf

dwg

dxf

pdf

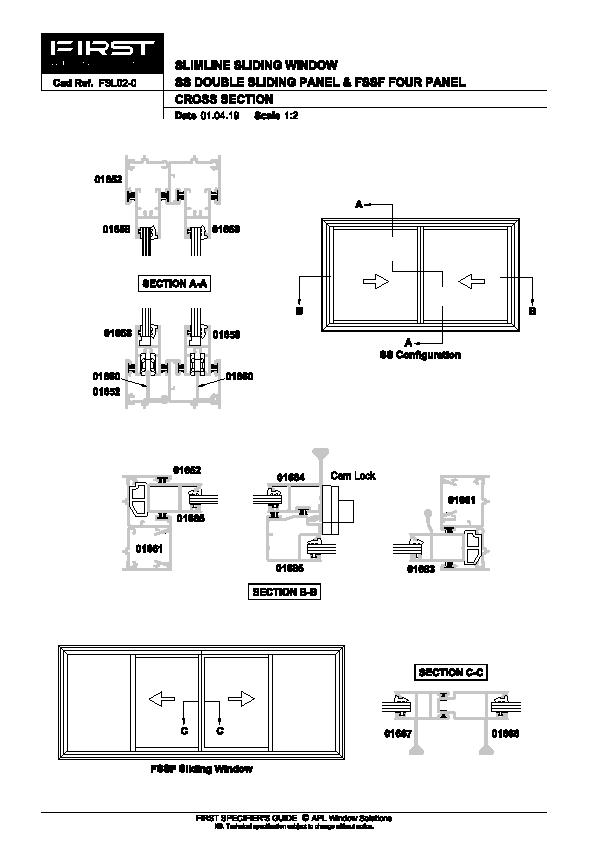

FIRST Residential Slimline Sliding Window SS / FSSF

FSL02-0

dwf

dwg

dxf

pdf

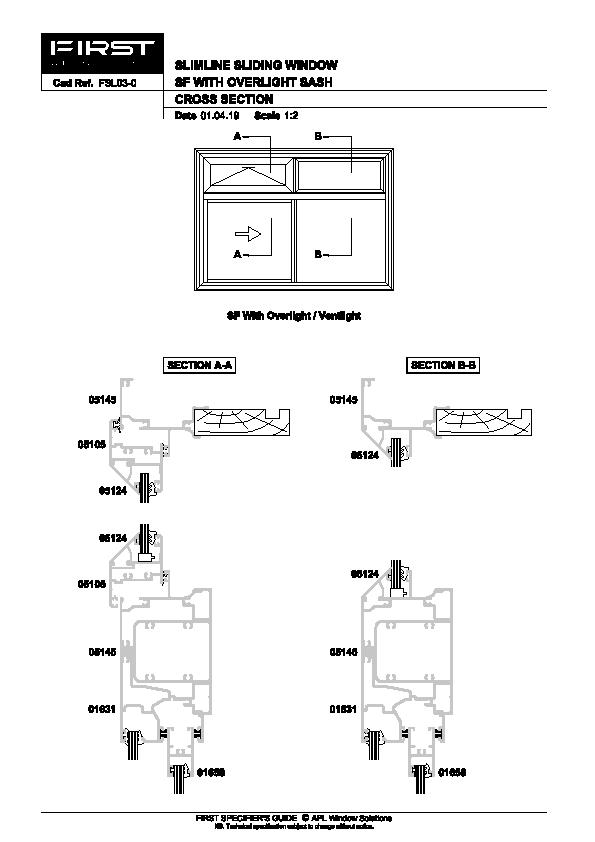

FIRST Residential Slimline Sliding Window SF with Overlight

FSL03-0

dwf

dwg

dxf

pdf

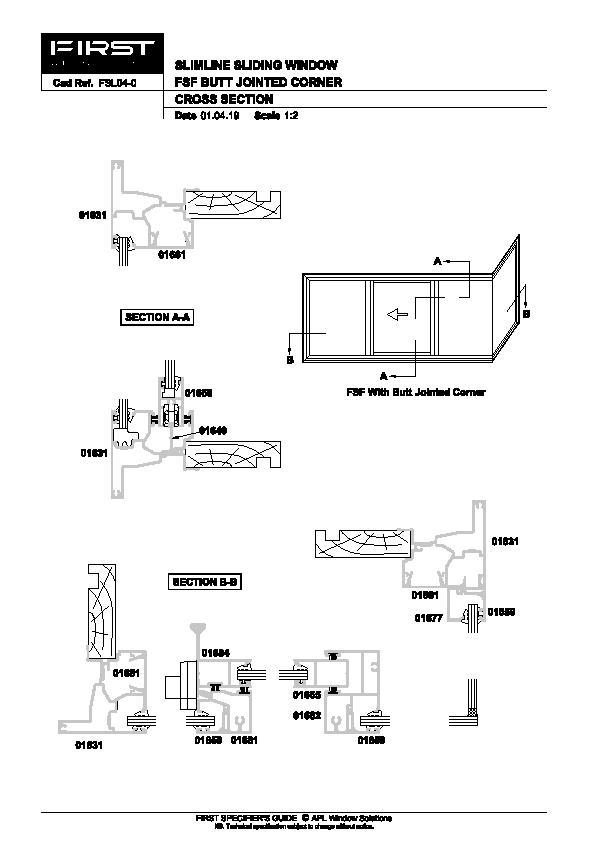

FIRST Residential Slimline Sliding Window FSF Butt Jointed Corner

FSL04-0

dwf

dwg

dxf

pdf

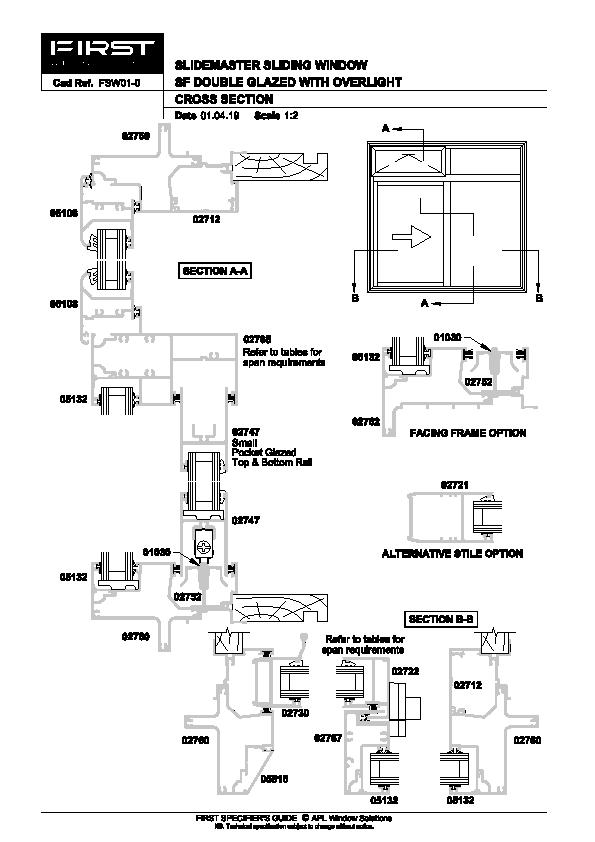

FIRST Residential Slidemaster Sliding Window SF with Overlight

FSW01-0

dwf

dwg

dxf

pdf

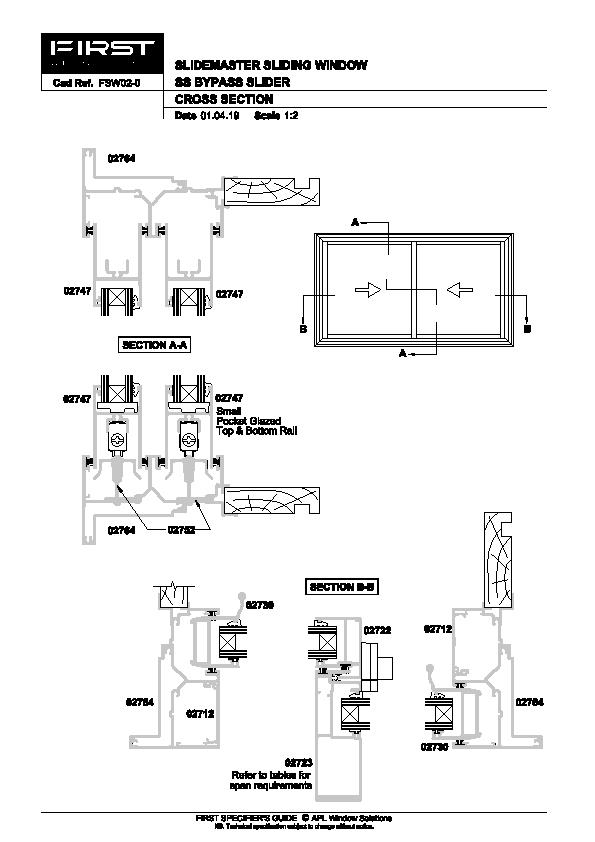

FIRST Residential Slidemaster Sliding Window SS Bypass Slider

FSW02-0

dwf

dwg

dxf

pdf

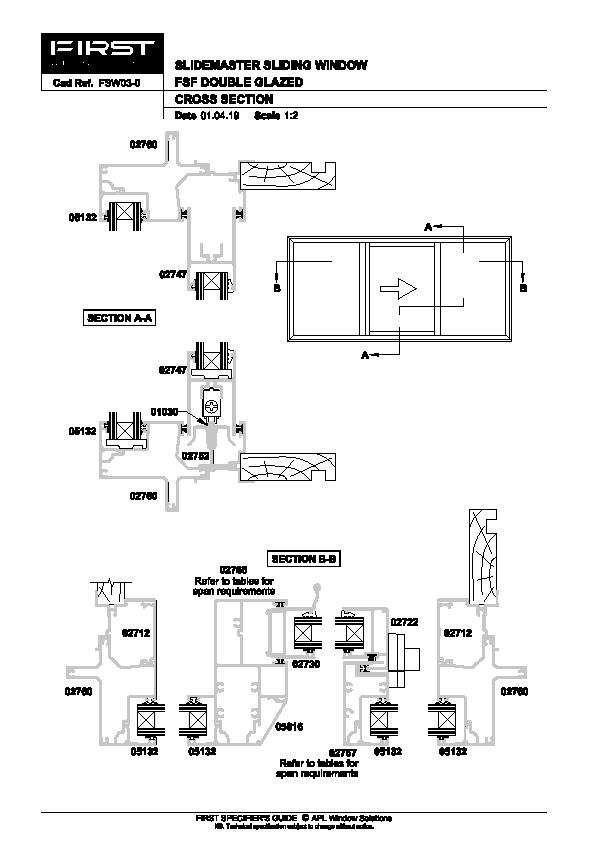

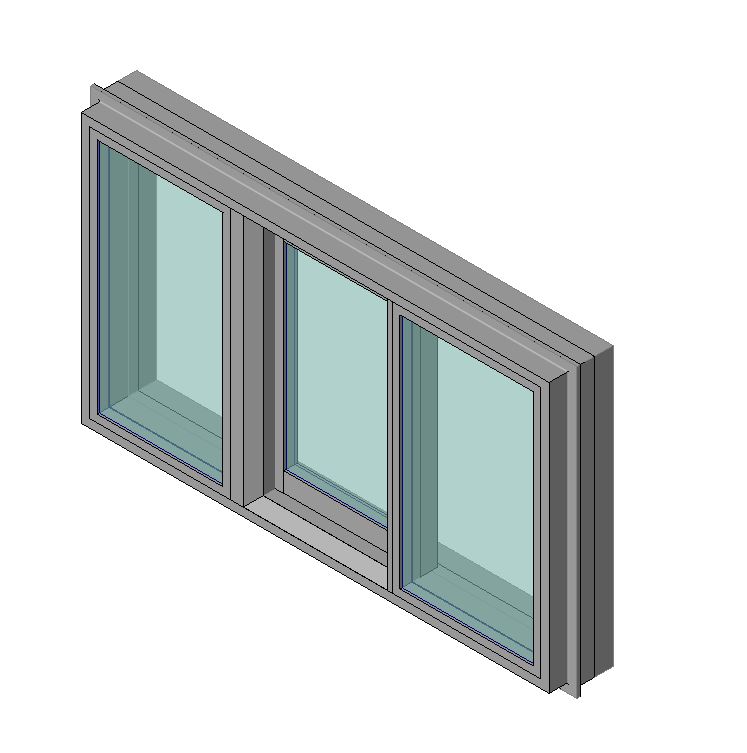

FIRST Residential Slidemaster Sliding Window FSF

FSW03-0

dwf

dwg

dxf

pdf

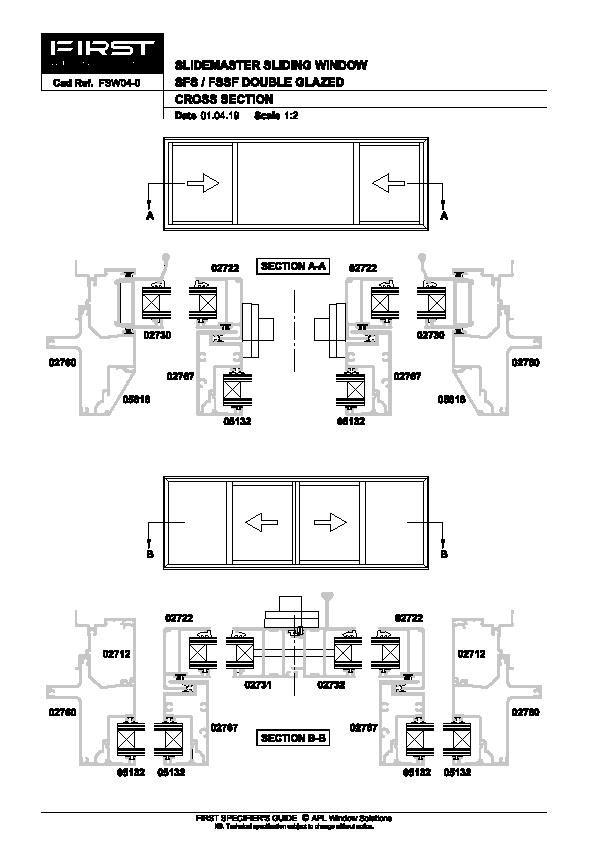

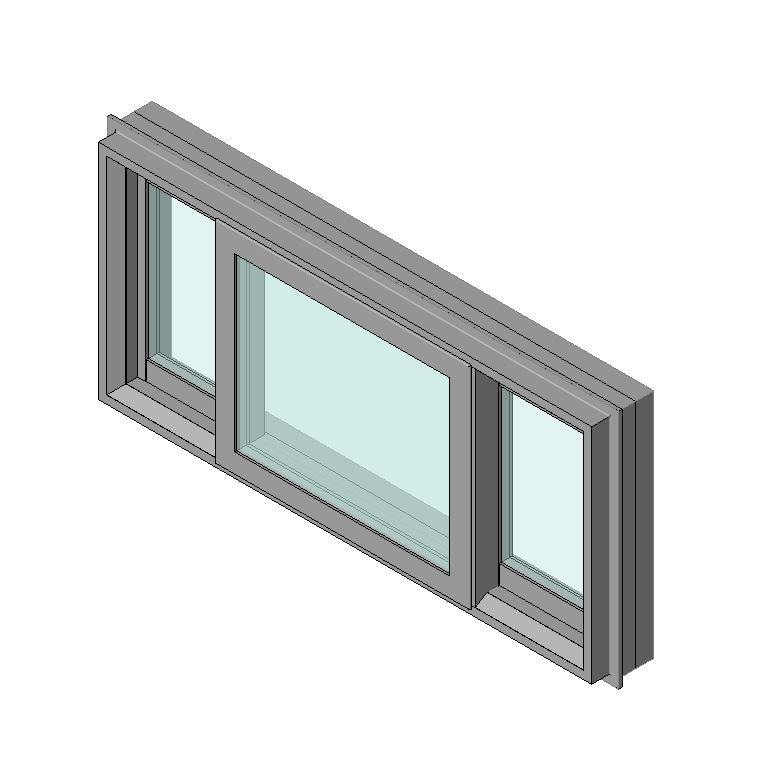

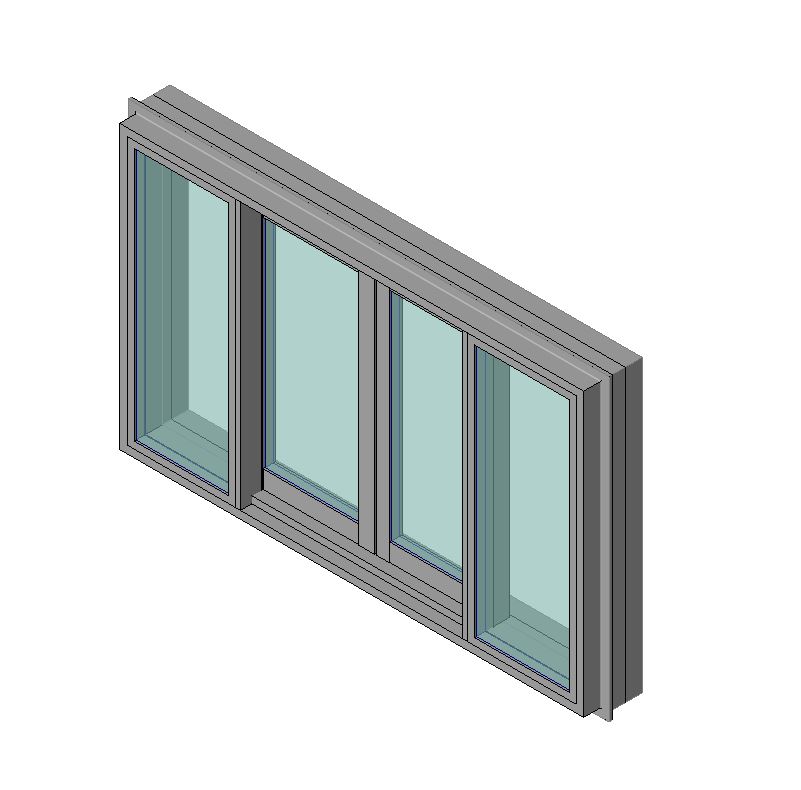

FIRST Residential Slidemaster Sliding Window SFS / FSSF

FSW04-0

dwf

dwg

dxf

pdf

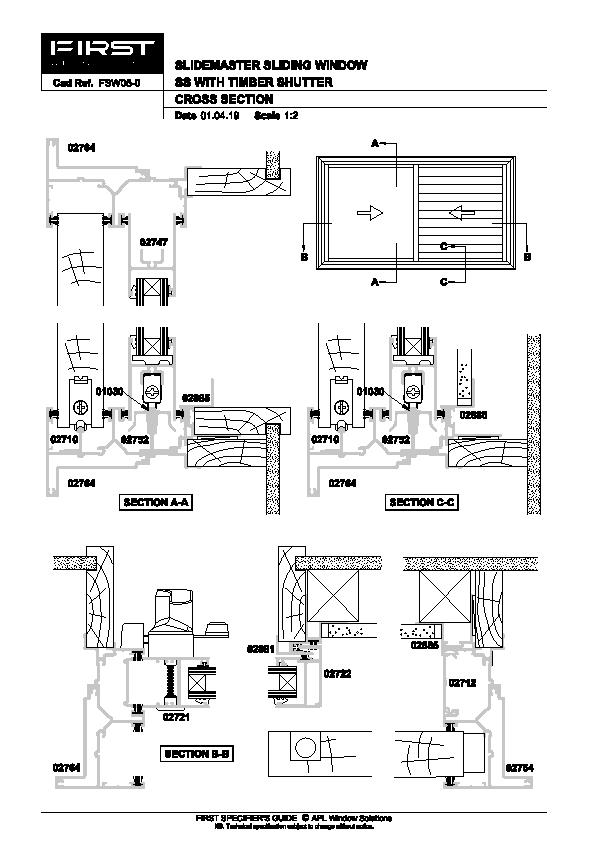

FIRST Residential Slidemaster Sliding Window SS with Timber Shutter

FSW05-0

dwf

dwg

dxf

pdf

Installation Details

View full

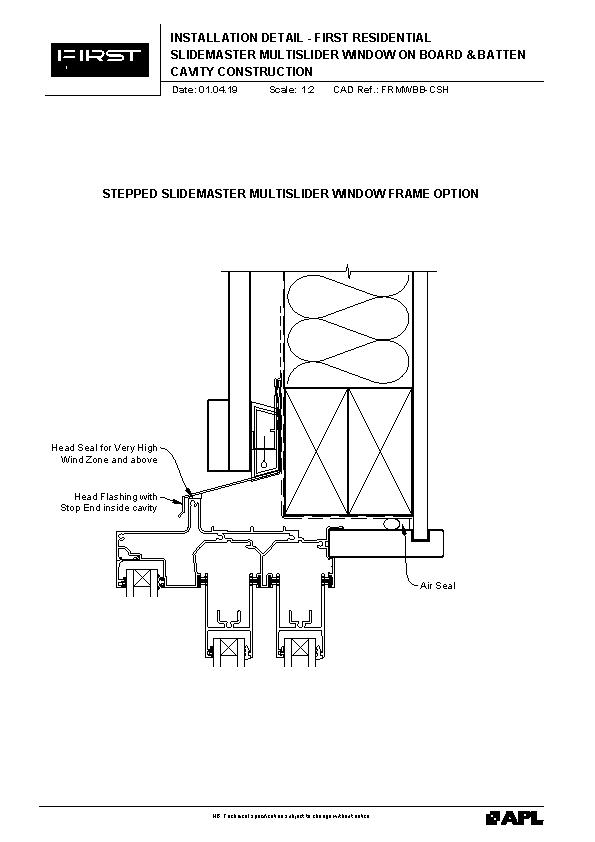

FIRST Residential Slidemaster Multislider Window on Board and Batten

FRMWBB

dwg

pdf

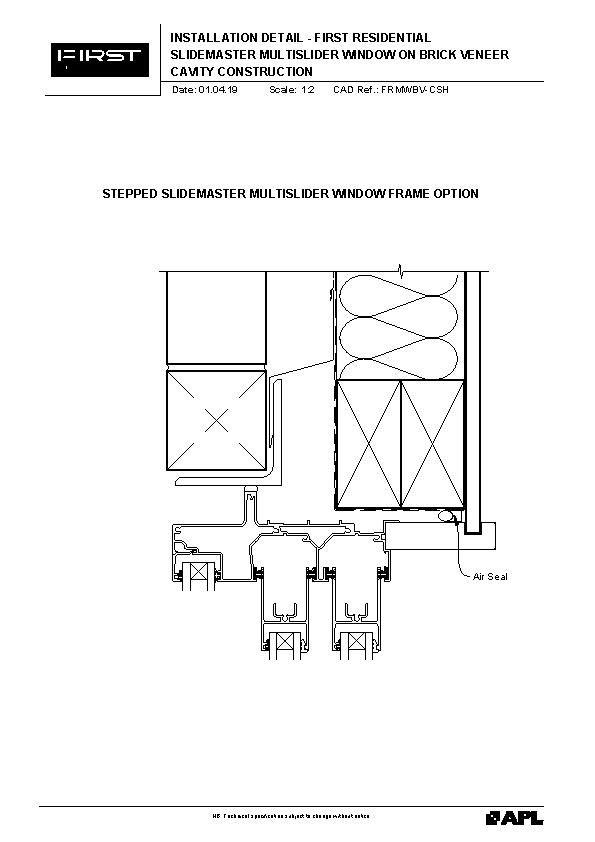

FIRST Residential Slidemaster Multislider Window on Brick Veneer

FRMWBV

dwg

pdf

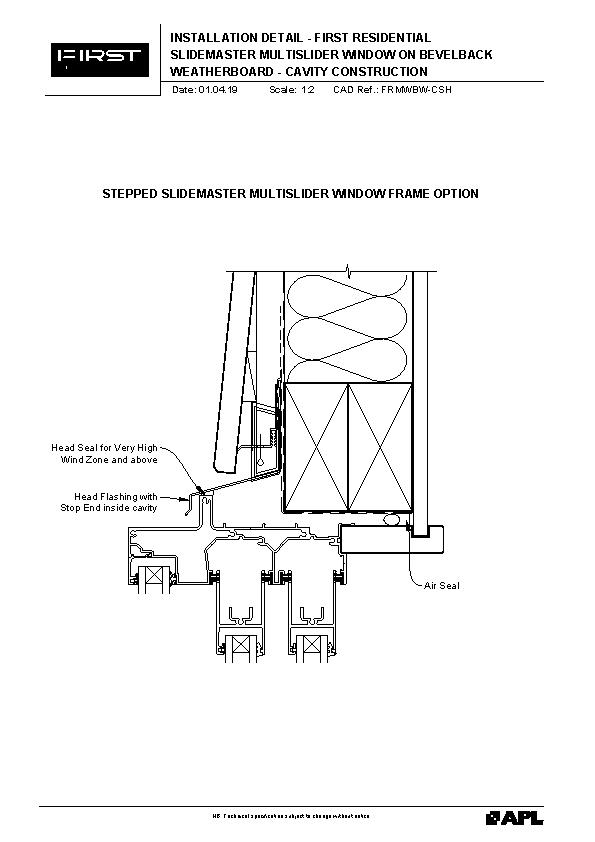

FIRST Residential Slidemaster Multislider Window on Bevelback Weatherboard

FRMWBW

dwg

pdf

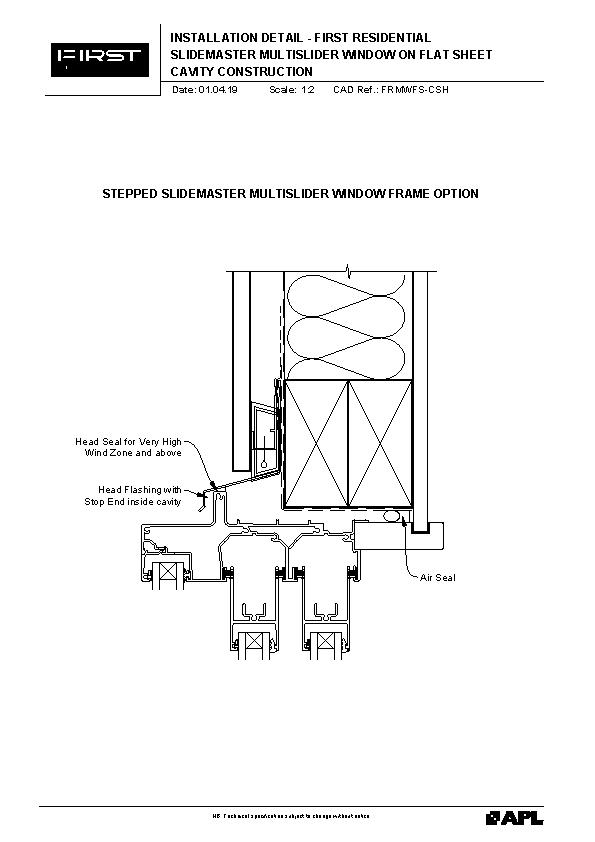

FIRST Residential Slidemaster Multislider Window on Flat Sheet

FRMWFS

dwg

pdf

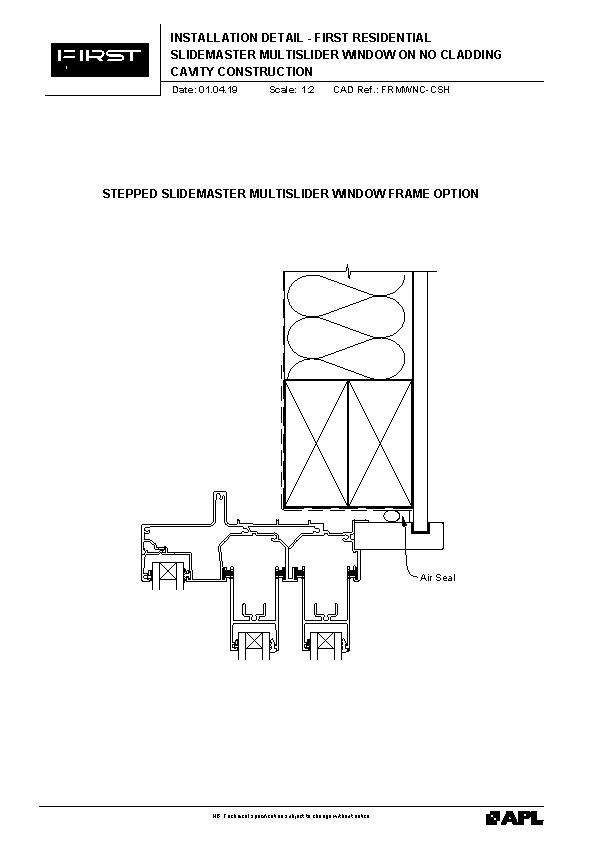

FIRST Residential Slidemaster Multislider Window on No Cladding

FRMWNC

dwg

pdf

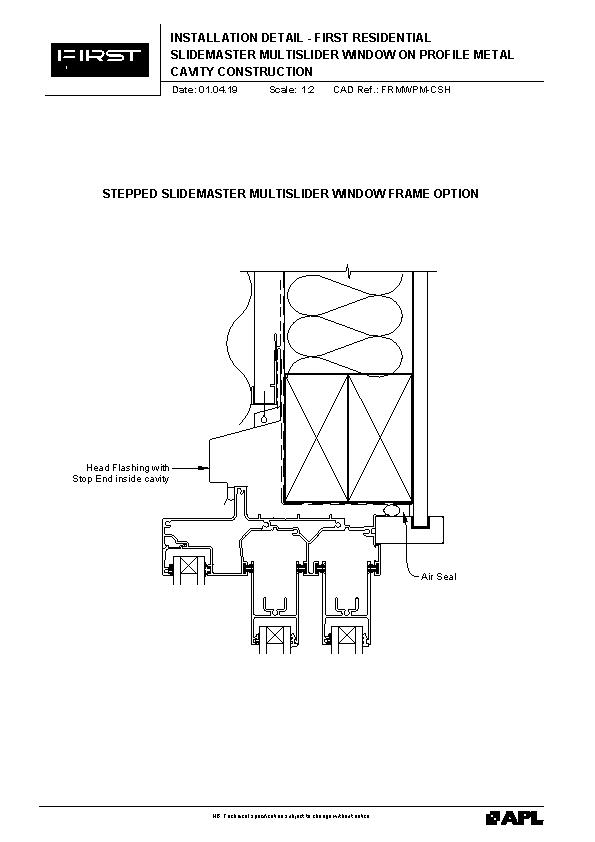

FIRST Residential Slidemaster Multislider Window on Profile Metal

FRMWPM

dwg

pdf

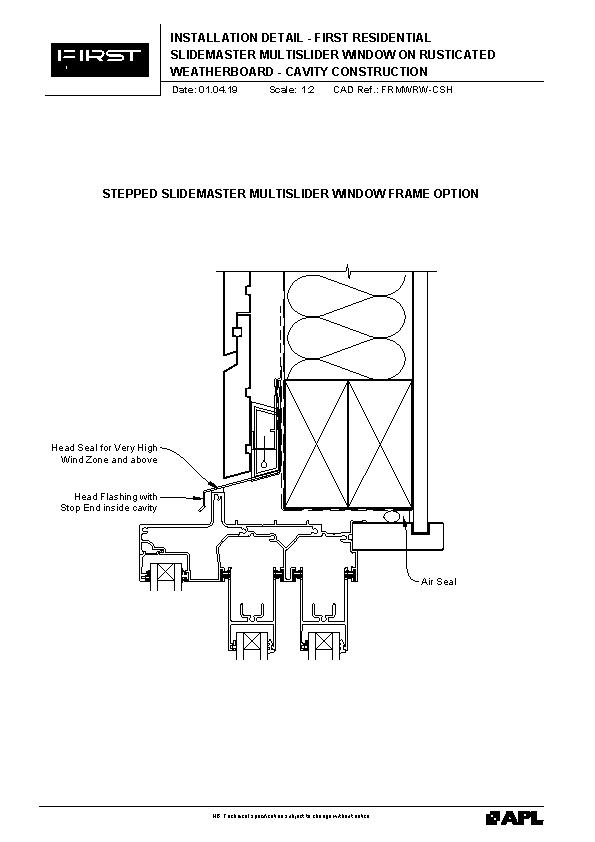

FIRST Residential Slidemaster Multislider Window on Rusticated Weatherboard

FRMWRW

dwg

pdf

FIRST Residential Slidemaster Multislider Window on Stucco

FRMWST

dwg

pdf

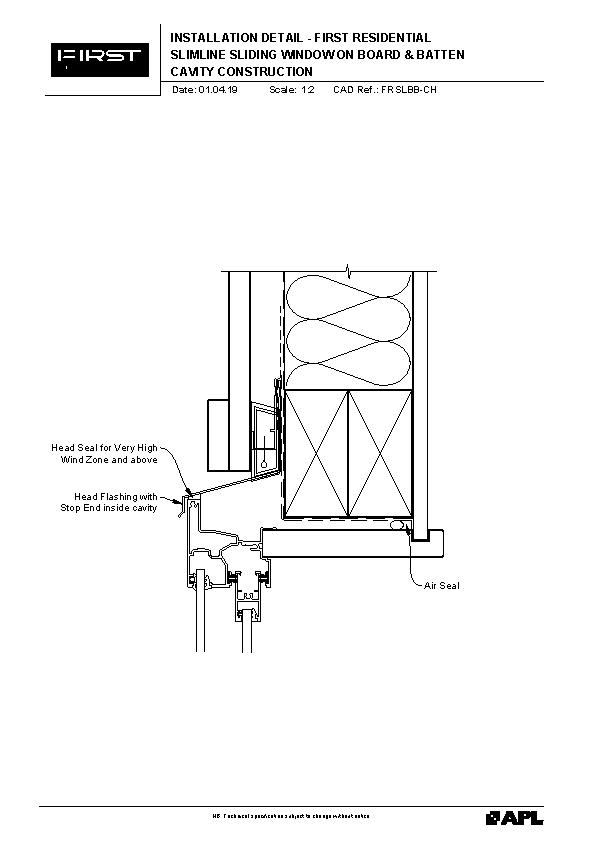

FIRST Residential Slimline Sliding Window on Board & Batten

FRSLBB

dwg

pdf

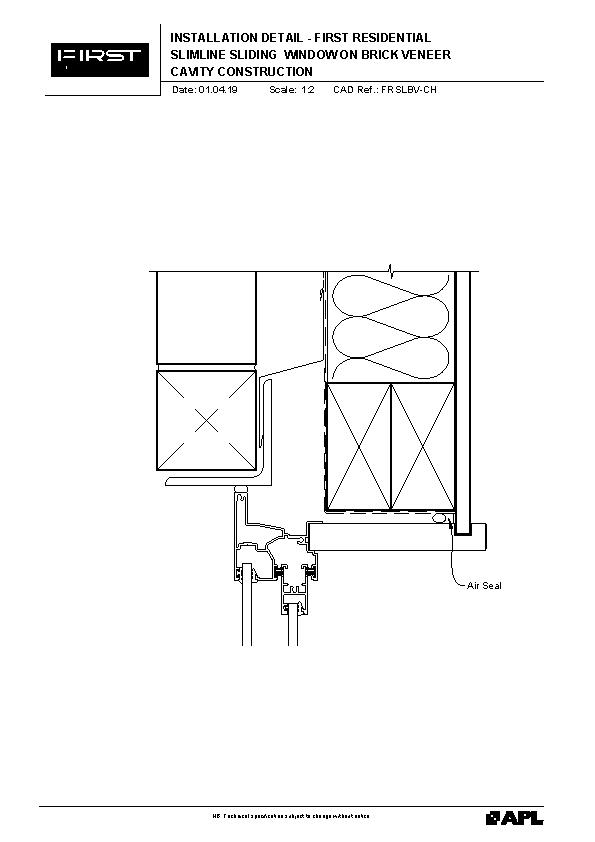

FIRST Residential Slimline Sliding Window on Brick Veneer

FRSLBV

dwg

pdf

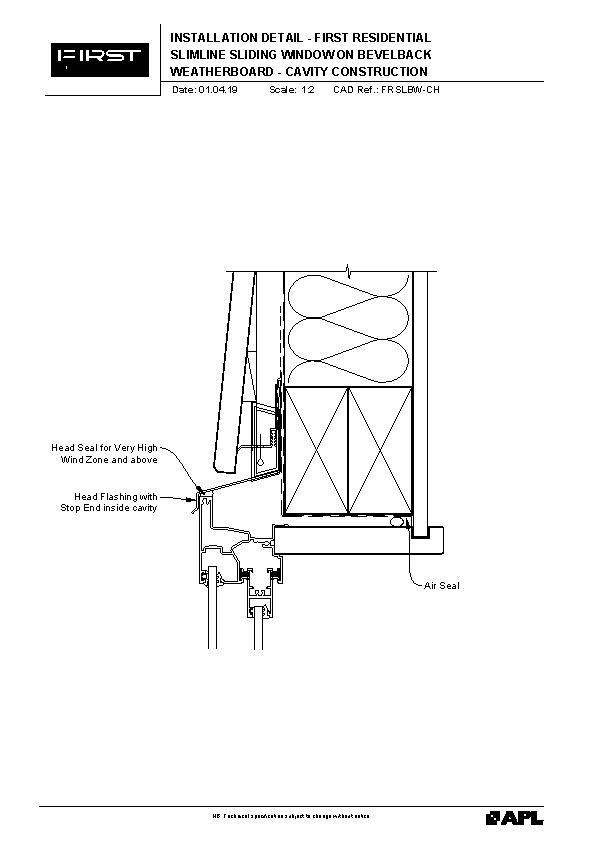

FIRST Residential Slimline Sliding Window on Bevelback Weatherboard

FRSLBW

dwg

pdf

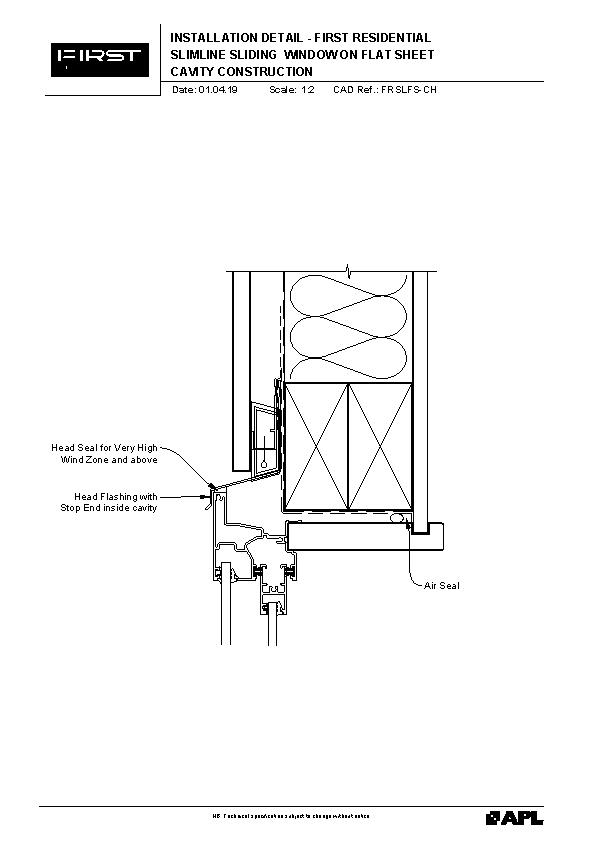

FIRST Residential Slimline Sliding Window on Flat Sheet

FRSLFS

dwg

pdf

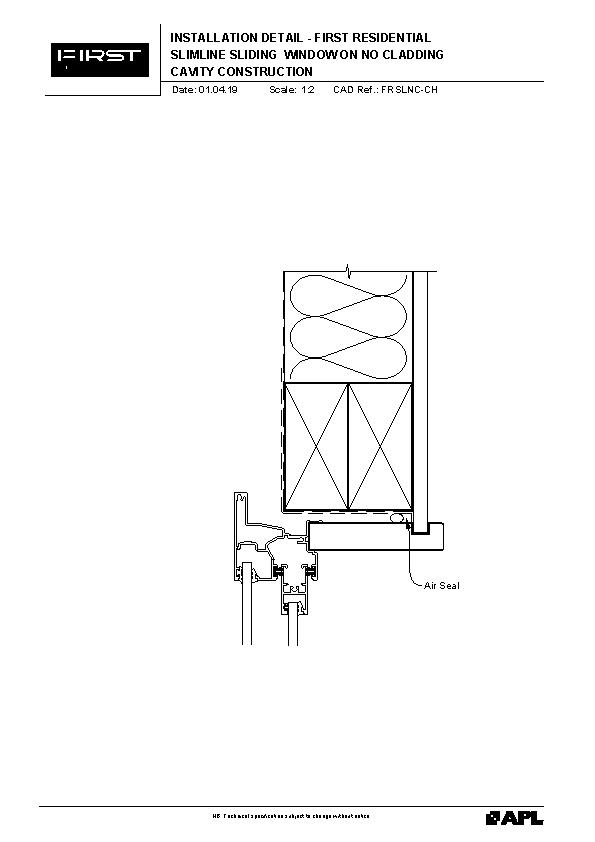

FIRST Residential Slimline Sliding Window on No Cladding

FRSLNC

dwg

pdf

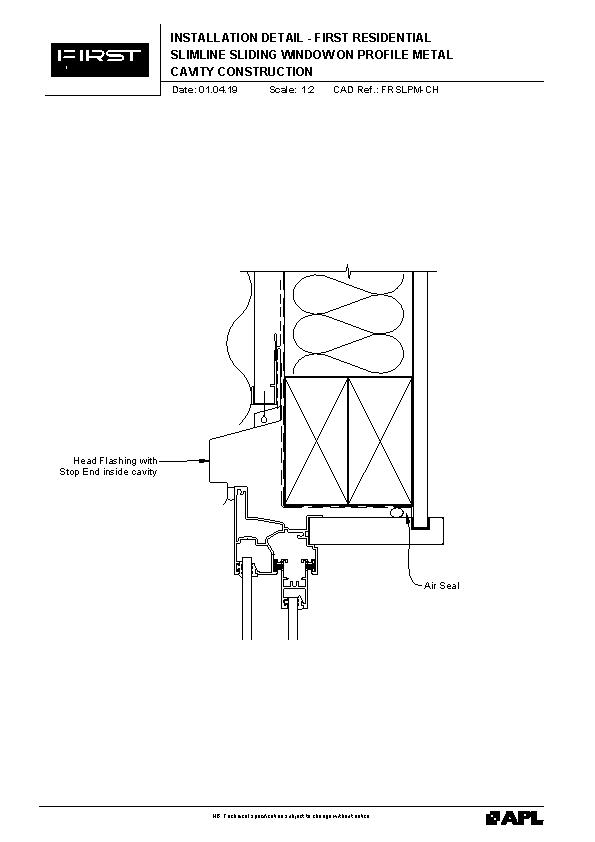

FIRST Residential Slimline Sliding Window on Profile Metal

FRSLPM

dwg

pdf

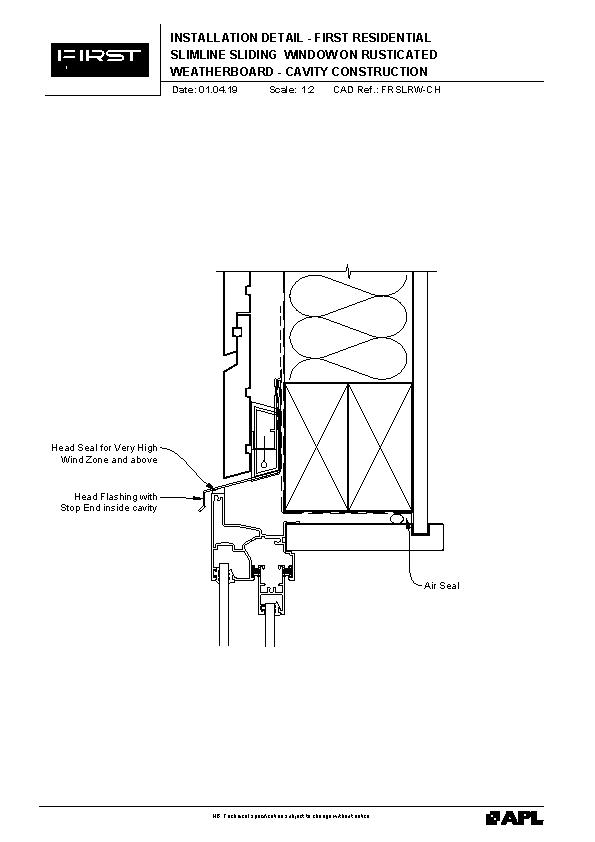

FIRST Residential Slimline Sliding Window on Rusticated Weatherboard

FRSLRW

dwg

pdf

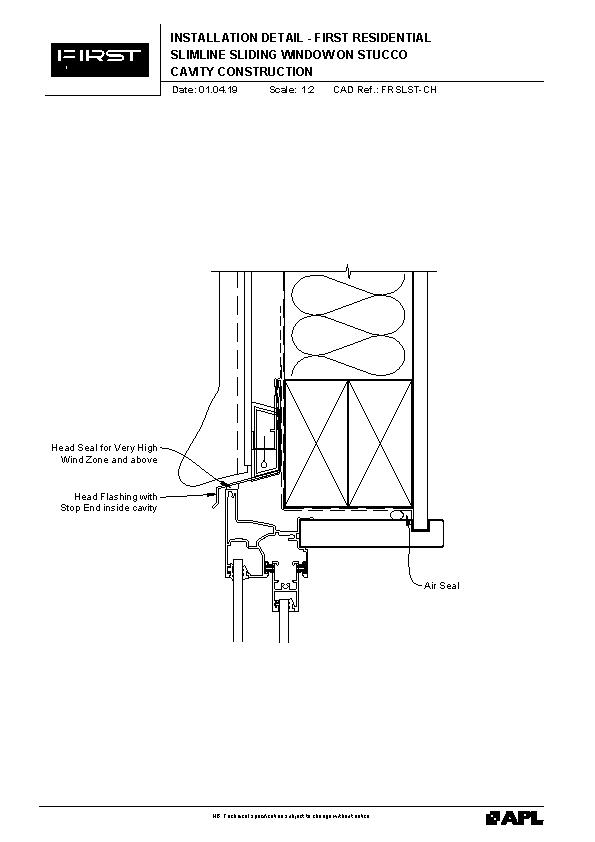

FIRST Residential Slimline Sliding Window on Stucco

FRSLST

dwg

pdf

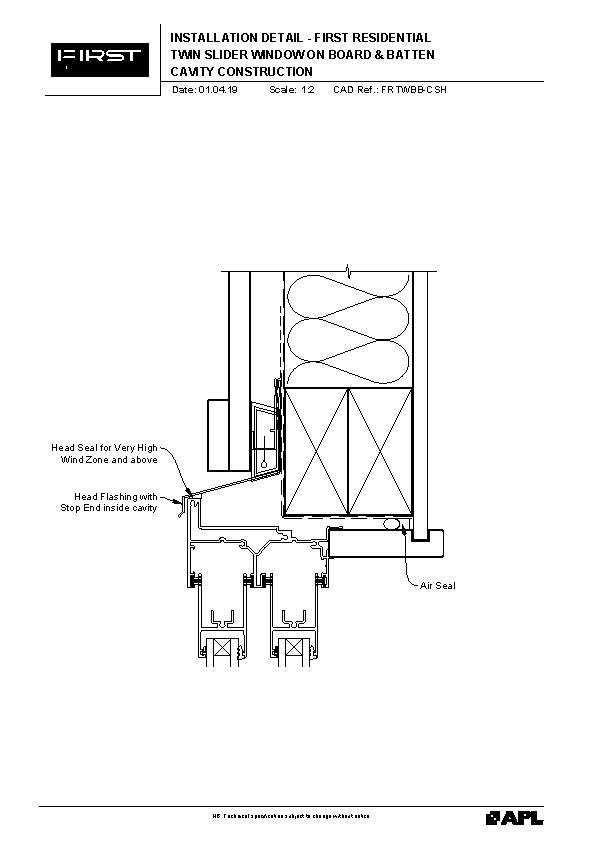

FIRST Residential Twin Slider Window on Board & Batten

FRTWBB

dwg

pdf

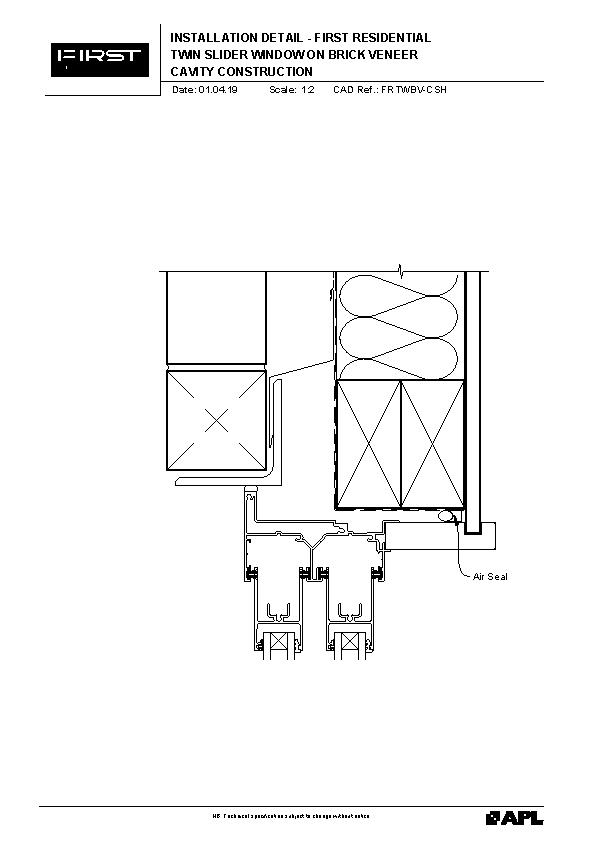

FIRST Residential Twin Slider Window on Brick Veneer

FRTWBV

dwg

pdf

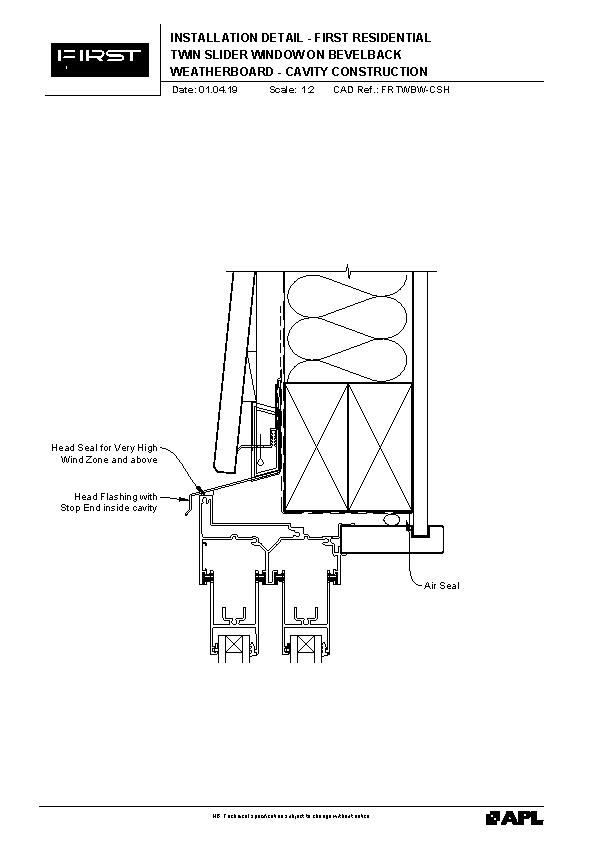

FIRST Residential Twin Slider Window on Bevelback Weatherboard

FRTWBW

dwg

pdf

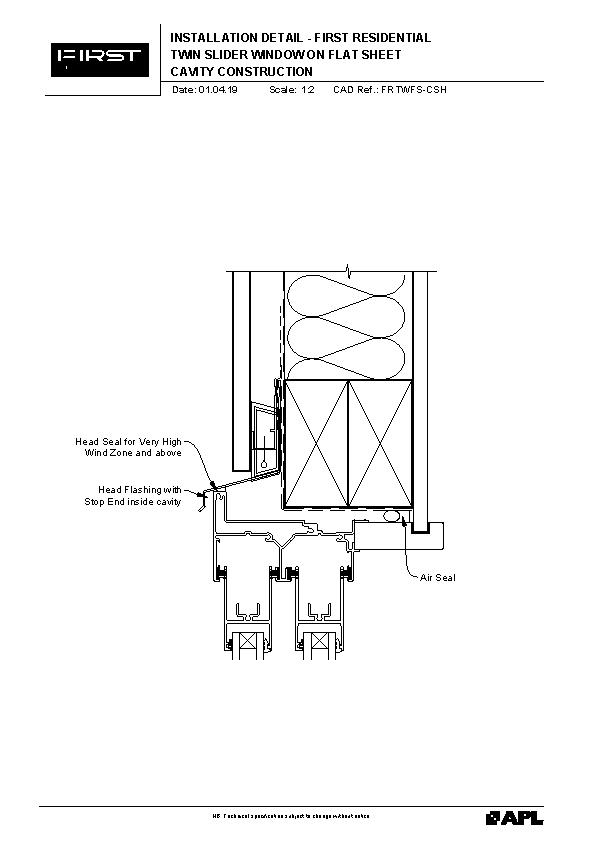

FIRST Residential Twin Slider Window on Flat Sheet

FRTWFS

dwg

pdf

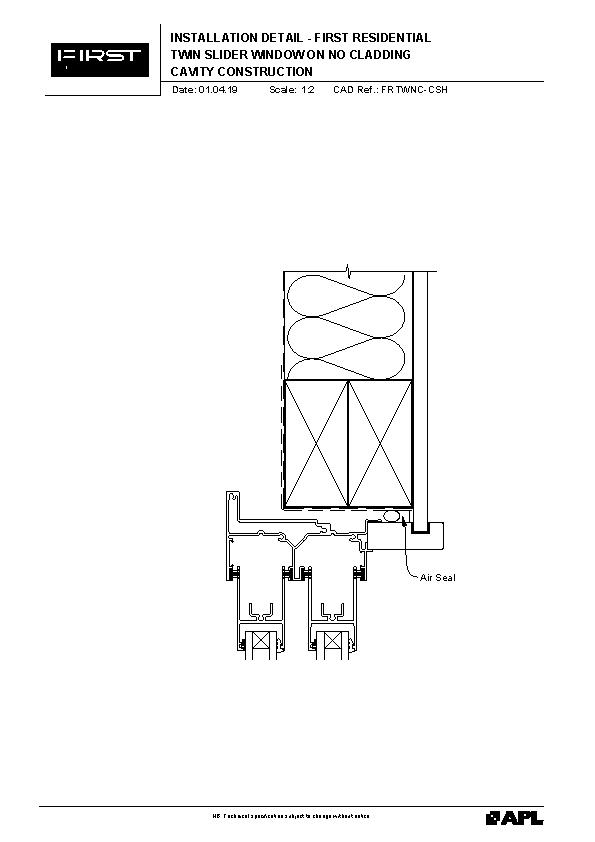

FIRST Residential Twin Slider Window on No Cladding

FRTWNC

dwg

pdf

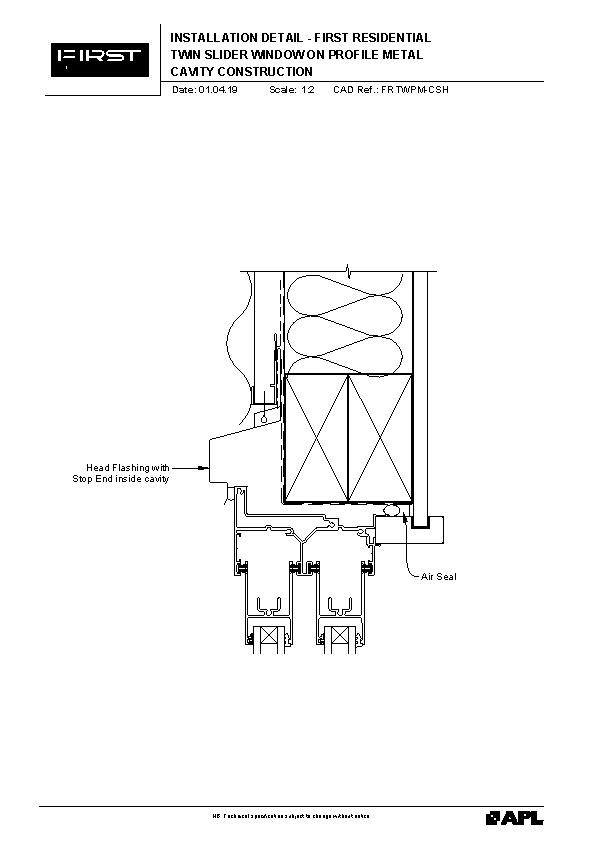

FIRST Residential Twin Slider Window on Profile Metal

FRTWPM

dwg

pdf

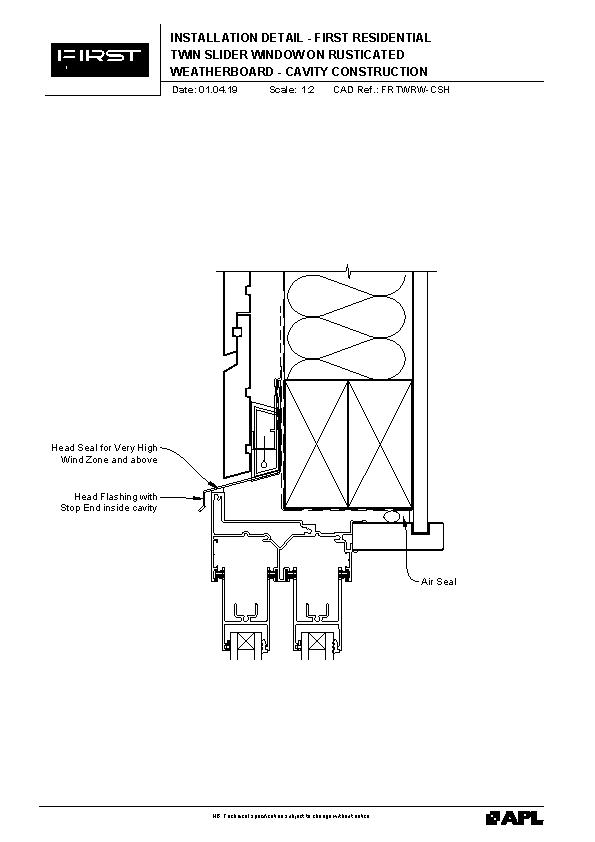

FIRST Residential Twin Slider Window on Rusticated Weatherboard

FRTWRW

dwg

pdf

FIRST Residential Twin Slider Window on Stucco

FRTWST

dwg

pdf

BIM

View full

First Windows & Doors have a high-performing range of solutions for all homes and commercial projects, from entrance doors to windows, sliders, bi-folds and thermally efficient options.
