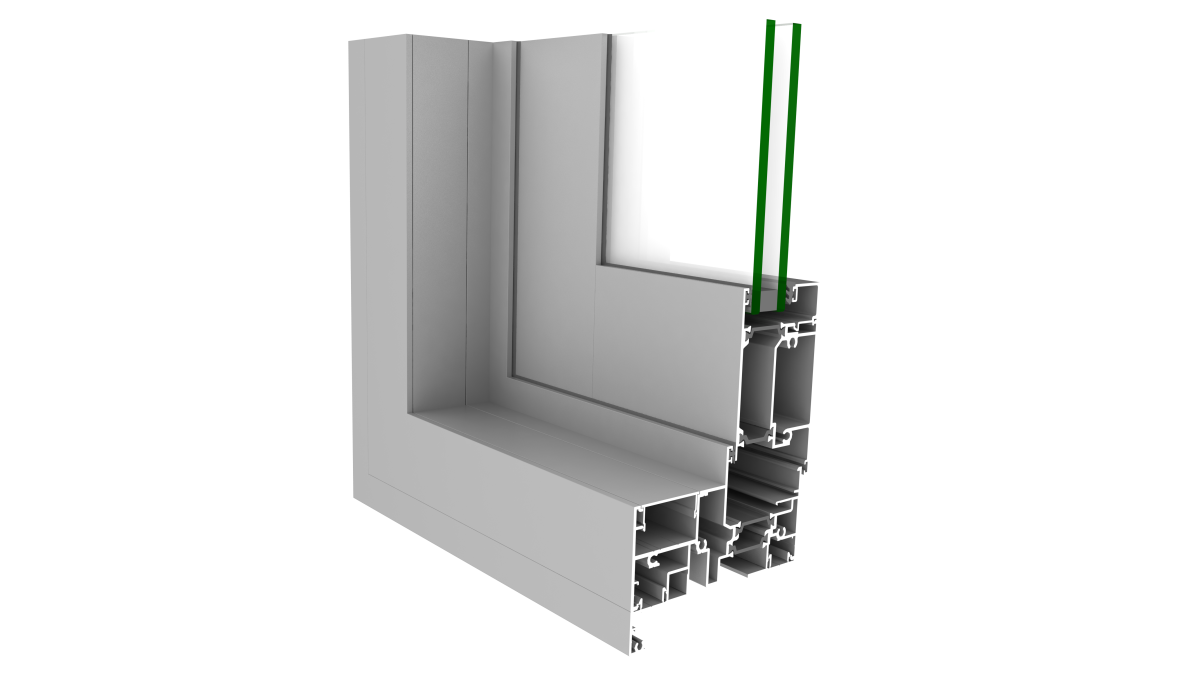

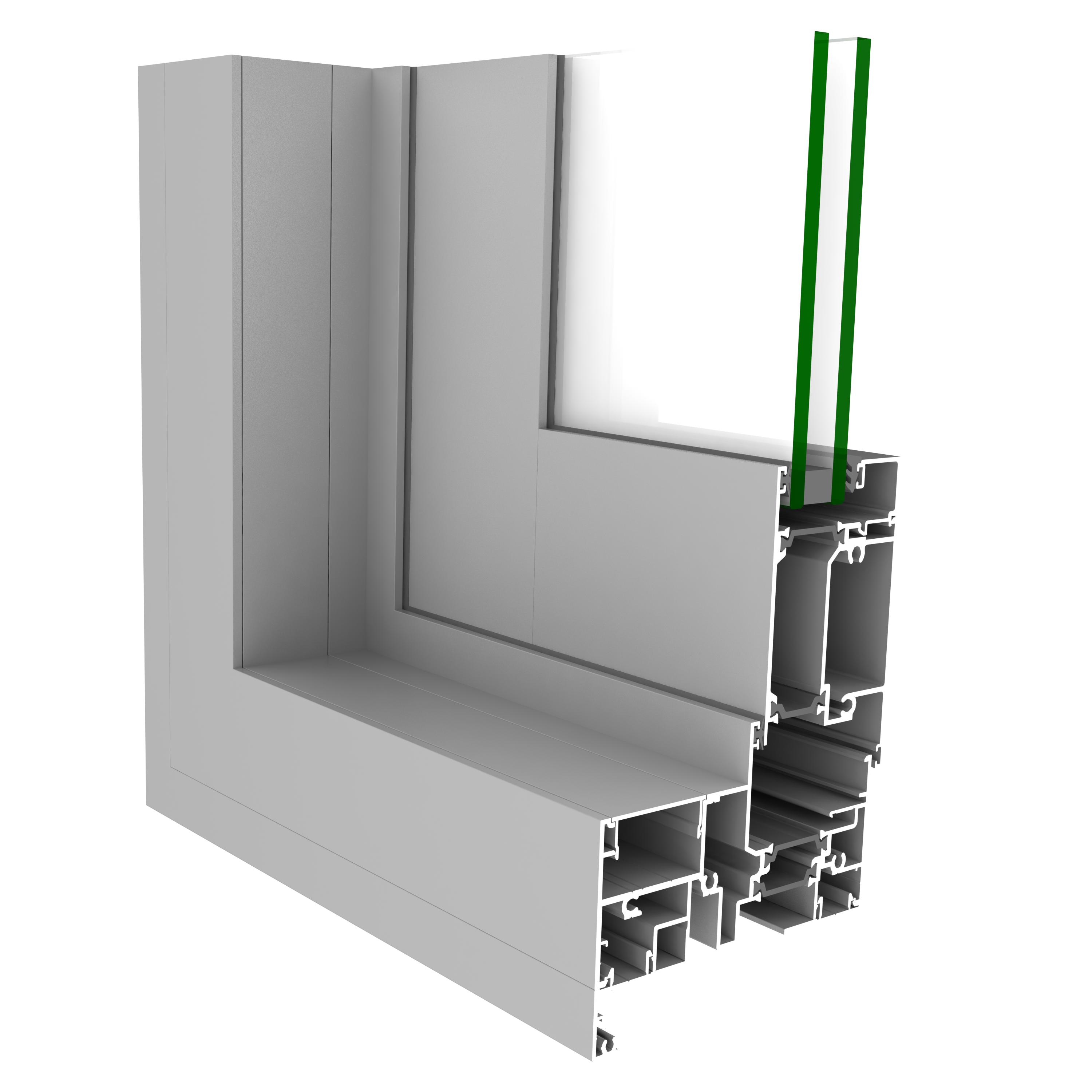

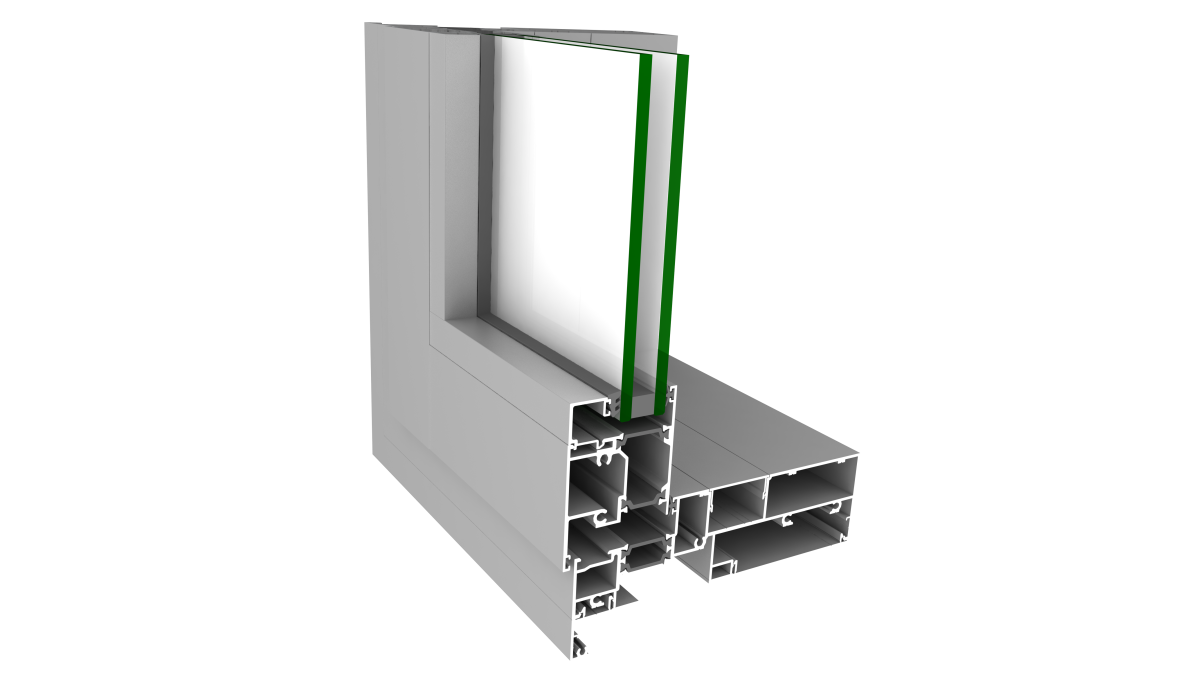

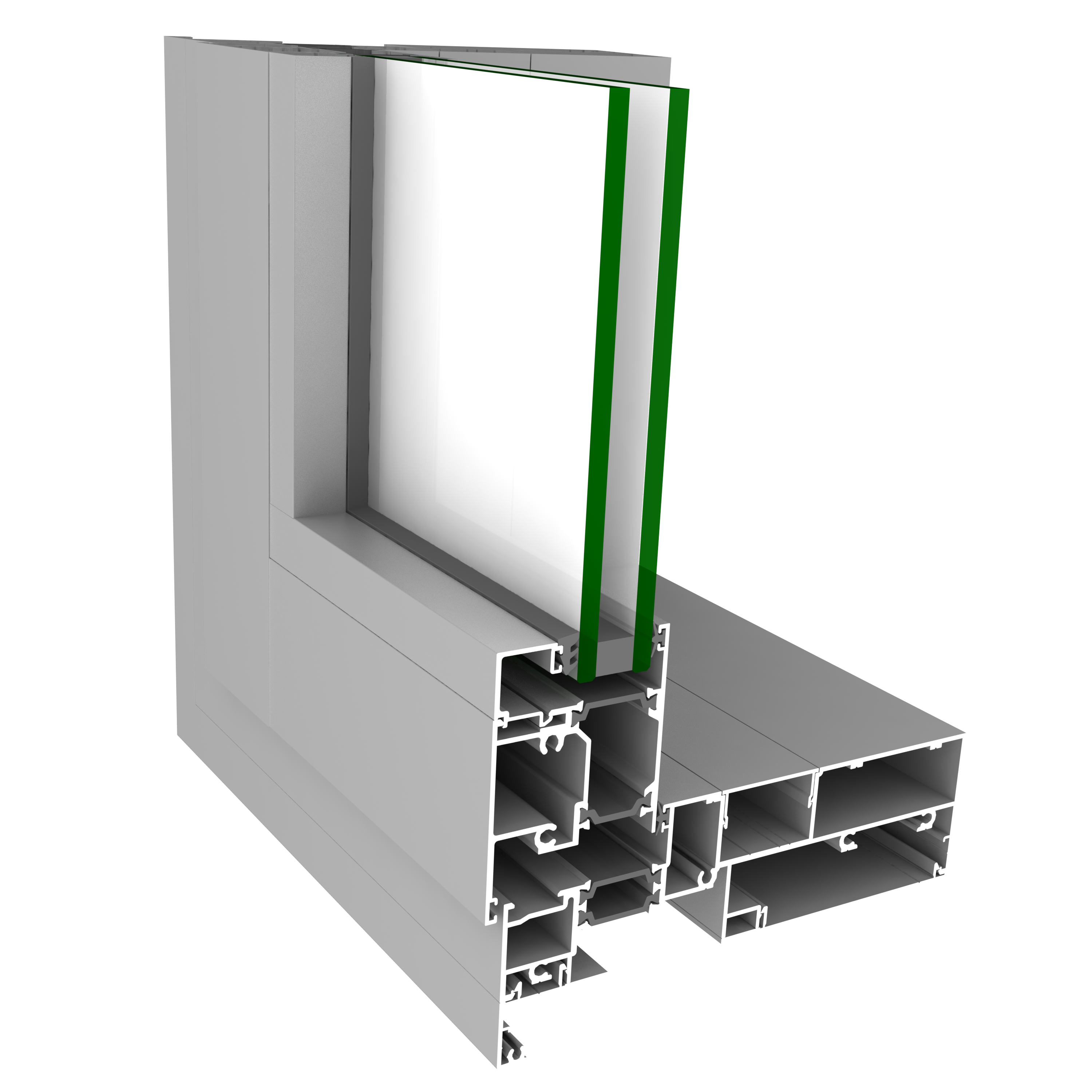

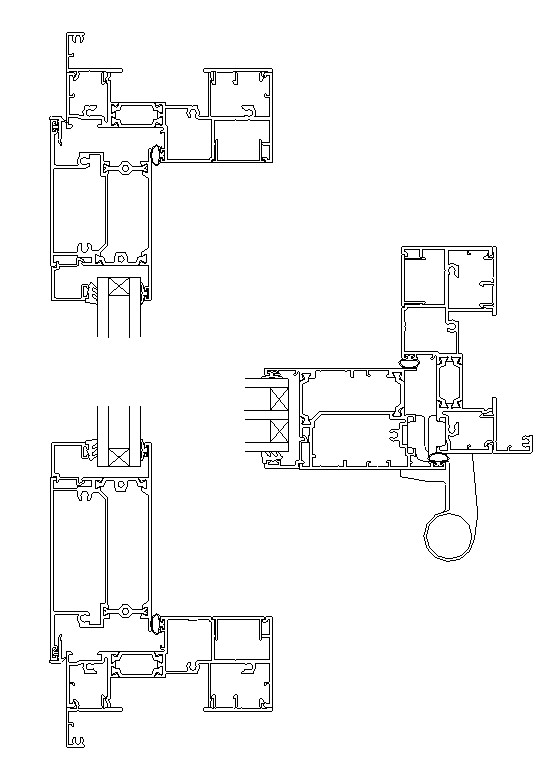

Hinged door frame (114mm) – open-out with applied facings

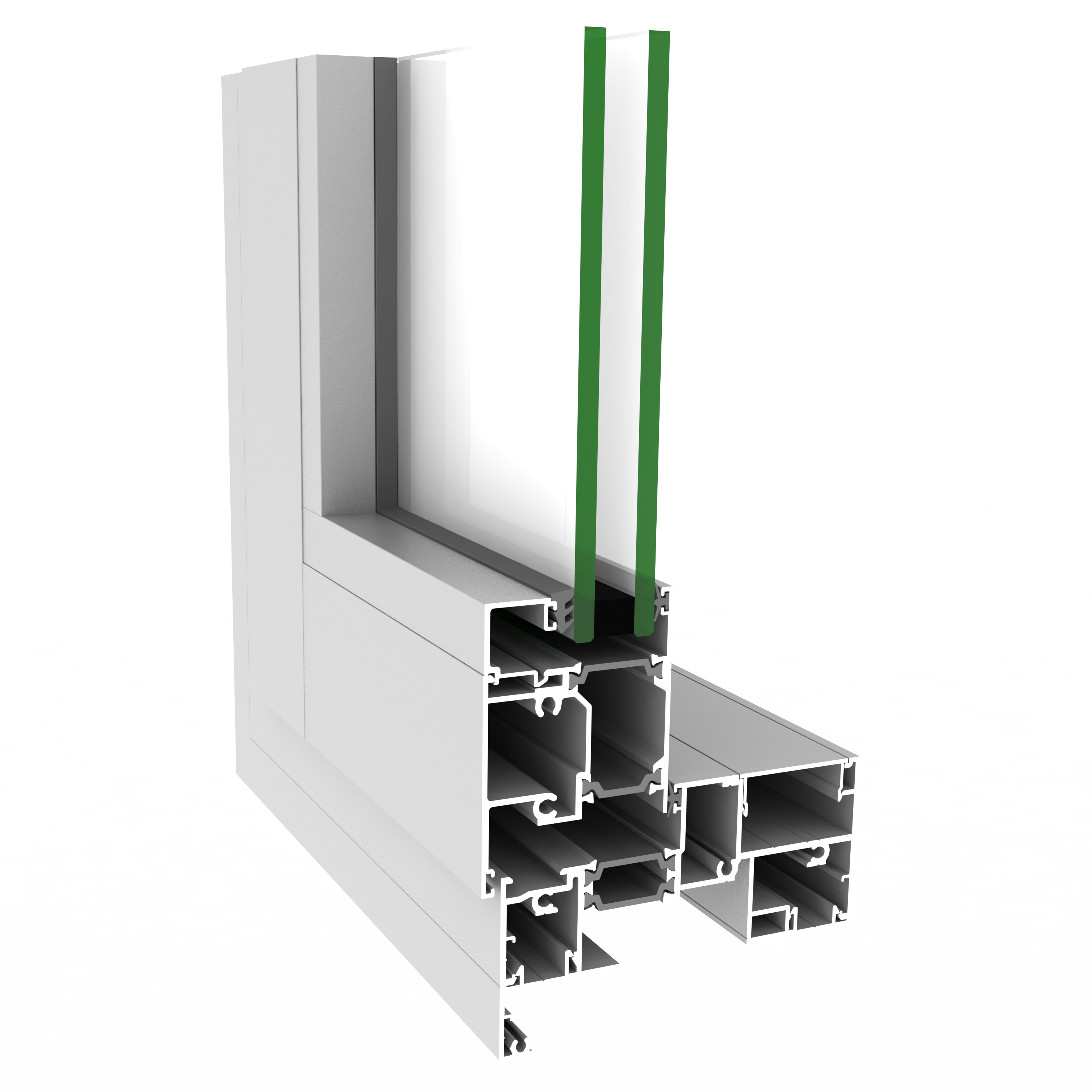

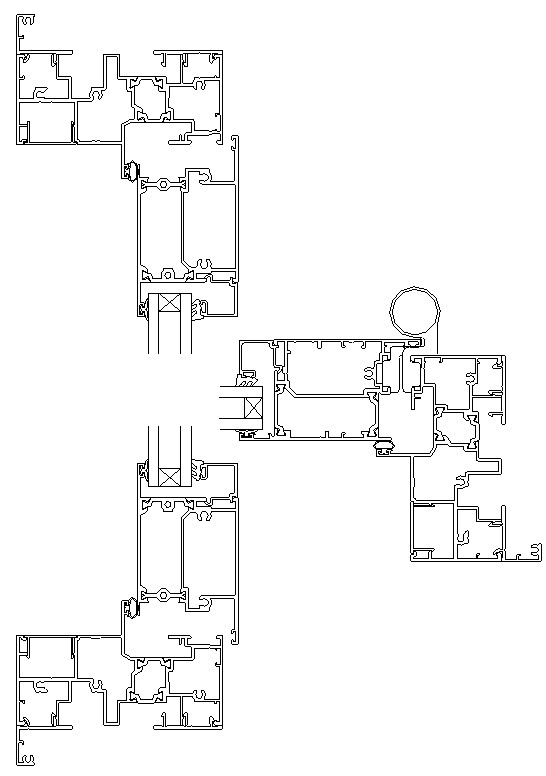

Hinged door frame (114mm) - open -in with applied facings

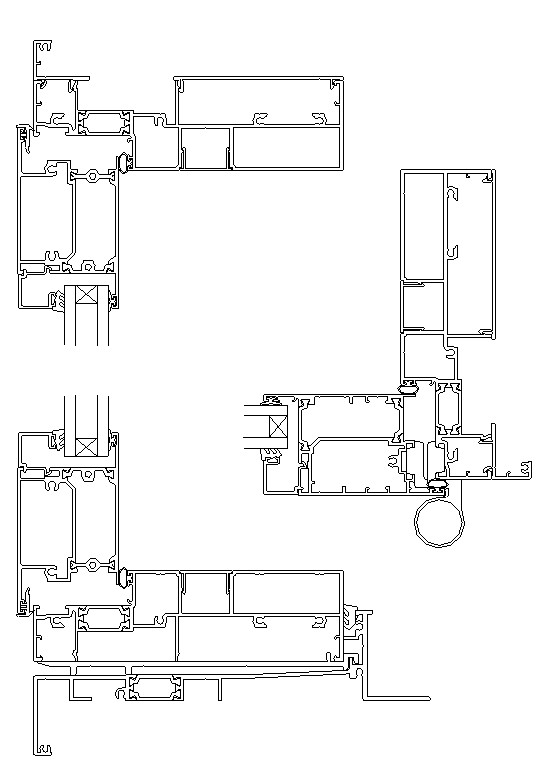

Hinged door frame (171mm) – open-out with applied facings

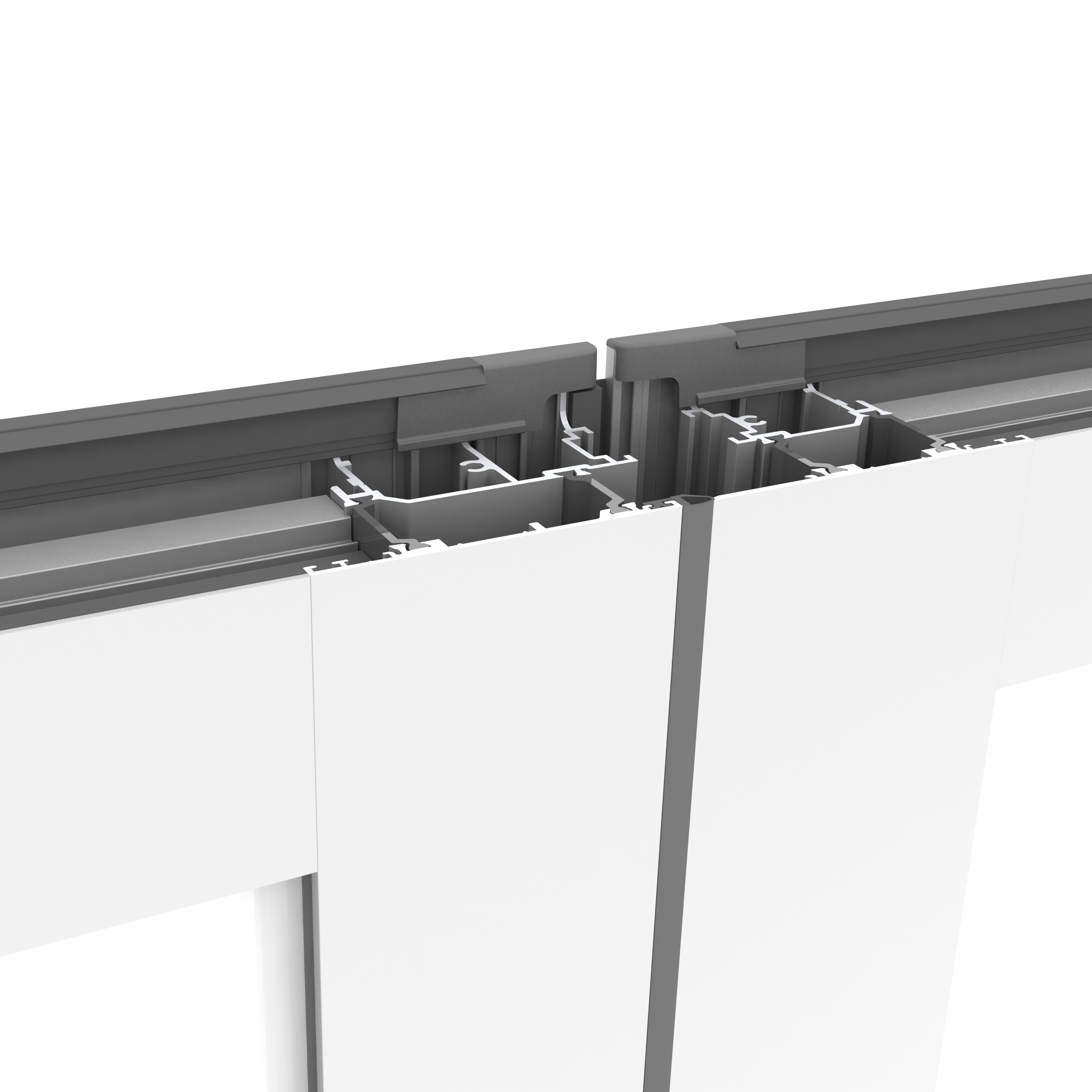

French door meeting stiles interior view

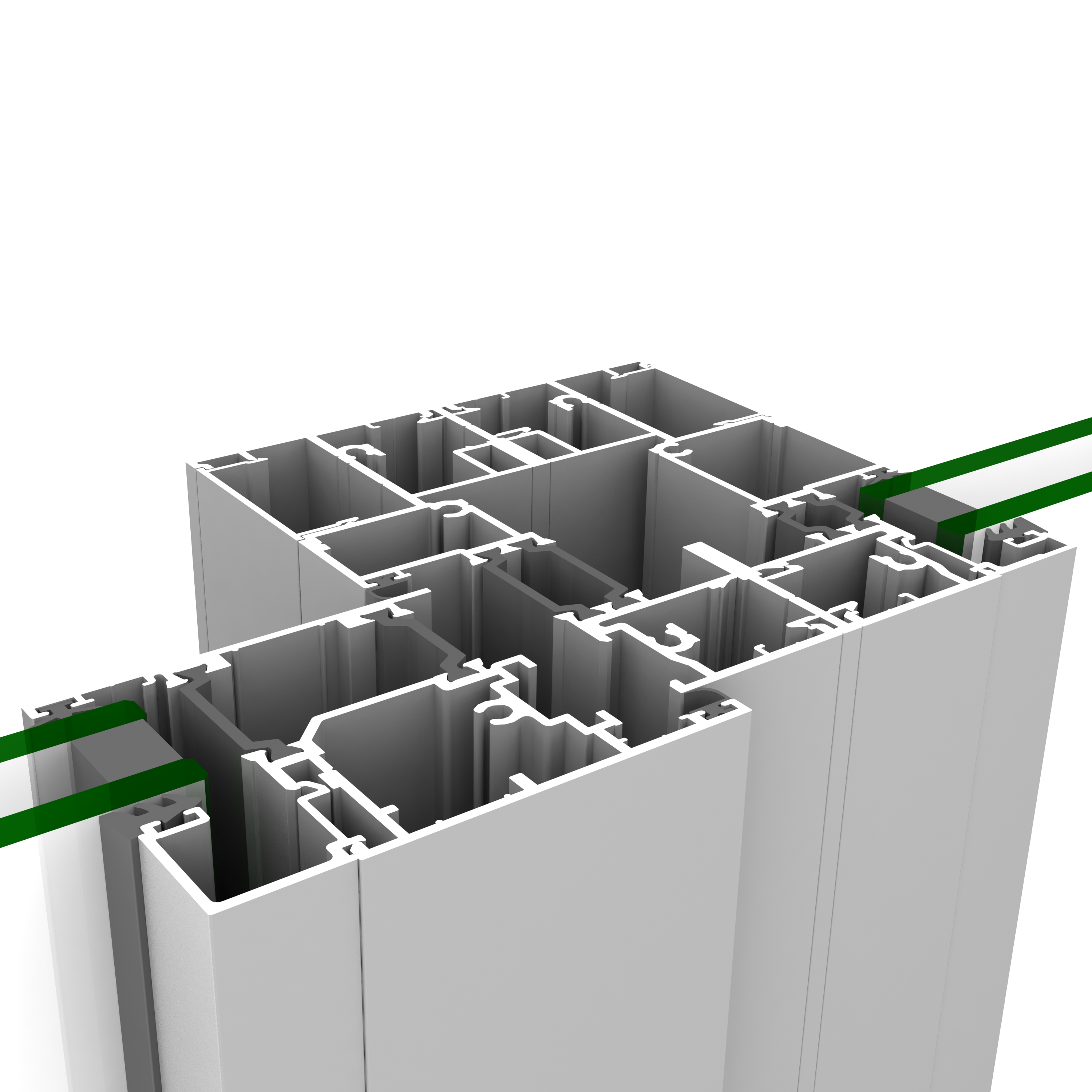

Hinged door, coupling bar and sidelight on right

Product Enquiries

Description

These are available in open-in and open-out formats. Doors are rated to 3.0m high. Both open-in and open-out door systems are available with integrated or coupled sidelights and overlights, with or without opening sashes. French doors have flush meeting stiles for a clean look

Key Features

Door panels lap over frame for superior aesthetics, security, weather tightness and thermal performance
Open-out and open-in frames available
Sill tray and seismic frame options
Parliament hinges allow doors to open outwards a full 180° in brick veneer situations
French door locking bolts can be concealed from view in the leading edge of the passive door panel
Overlights and sidelights are possible
A range of door handle and lock options are available, including multi-point locking.
Hinged doors are available in 114mm frame size and have an equivalent window frame which can seamlessly extend the view either side of the door frame to create an opening door in a wall of fixed glazing

Ranges

APL Architectural Series ThermalHEART®

Scope of Use

Suitable for broad residential use, including in apartments and buildings over 10m in height
Available in defined maximum sizes

Limitations on Use

Recommended maximum 3.0m high doors in Extra High wind zones
Care needs to be exercised in the placement of open-in doors from a weather exposure viewpoint
Compliance with NZBC clause H1 Energy Efficiency requires high performing Low-E double glazing

Statement of Building Code Compliance

Designed, tested and manufactured to meet NZS 4211: Specification for Performance of Windows, and NZS 4233: Glazing in Buildings, Parts 1-4
Conforms to all relevant NZ Building Code clauses

In-Service History

Launched in 2023
New range rolling out nationally

Other Performance Attributes

Window and door warranty provided under normal conditions of use against failure of materials and workmanship for a period of five years
Surface finish is covered by a separate performance warranty dependent on the actual finish selected. APL Architectural Series ThermalHEART® products can have a different colour on the interior and exterior faces as an optional choice.
A hardware/componentry warranty is offered against defects in manufacturing, functionality and surface finish for a period of five years, provided care and maintenance guidelines have been followed

Documents

Full Specification Guide: APL Architectural Series ThermalHEART®

docx

Specification Guide: APL Architectural Series ThermalHEART® Hinged and French Doors

docx

Span Tables

Categories

Popular Products

Popular Brands

Features

Sections

This Month

Caesarstone: Redefining Surface Excellence with Crystalline Silica Free Formulations

NZ's Largest Mass Timber Office Building: The Sustainable Timber Engineering Behind 90 Devonport Rd

Terra Lana Insulation for a World-Leading Hospital Targeting Zero Carbon Certification

SECTIONS

Exploring Options for Self-certification of Building Work

Complaints Not Upheld

From Windows to Warm Roofs: How Can We Make the New Insulation Standards Work?

Description

Key Features

Categories

Ranges

Scope of Use

Limitations on Use

Statement of Building Code Compliance

In-Service History

Other Performance Attributes

APL Architectural Series ThermalHEART® Hinged and French Doors

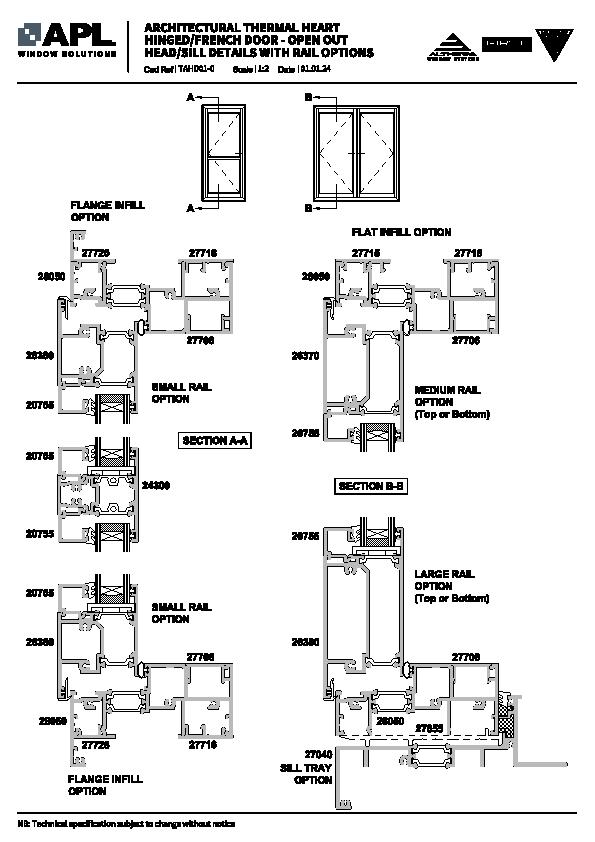

APL Architectural Series ThermalHEART® Hinged/French Door - Open Out Head/Sill Details

APL Architectural Series ThermalHEART® Hinged/French Door - Open Out Flush Sill Rail Options

APL Architectural Series ThermalHEART® Hinged/French Door - Open Out Overlight Cross Section Detail

APL Architectural Series ThermalHEART® Hinged/French Door - Open Out Seismic Frame with Overlight Detail

APL Architectural Series ThermalHEART® Hinged Door - Open Out Seismic Frame with Sidelight Detail

APL Architectural Series ThermalHEART® Hinged Door - Open Out Jamb Details with Stile and Hinge Options

APL Architectural Series ThermalHEART® Hinged Door - Open Out Sidelight Cross Section Detail

APL Architectural Series ThermalHEART® French Door - Open Out Cross Section with French Stile Options

APL Architectural Series ThermalHEART® Hinged/French Door - Open In Head/Sill Details with Rail Options

APL Architectural Series ThermalHEART® Hinged/French Door - Open In Flush Sill Rail Options

APL Architectural Series ThermalHEART® Hinged/French Door - Open In Overlight Cross Sectional Detail

APL Architectural Series ThermalHEART® Hinged/French Door - Open In Seismic Frame with Overlight Detail

APL Architectural Series ThermalHEART® Hinged Door - Open In Seismic Frame with Sidelight Detail

APL Architectural Series ThermalHEART® Hinged Door - Open In Jamb Details with Stile and Hinge Options

APL Architectural Series ThermalHEART® Hinged Door - Open In Sidelight Cross Sectional Detail

APL Architectural Series ThermalHEART® French Door - Open In Cross Section with French Stile Options

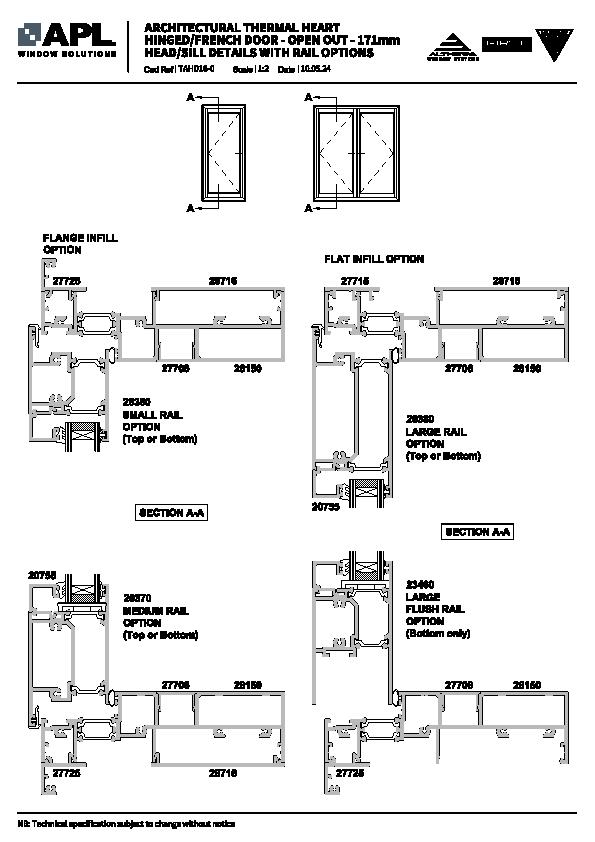

APL Architectural Series ThermalHEART® Hinged/French Door - Open Out - 171mm

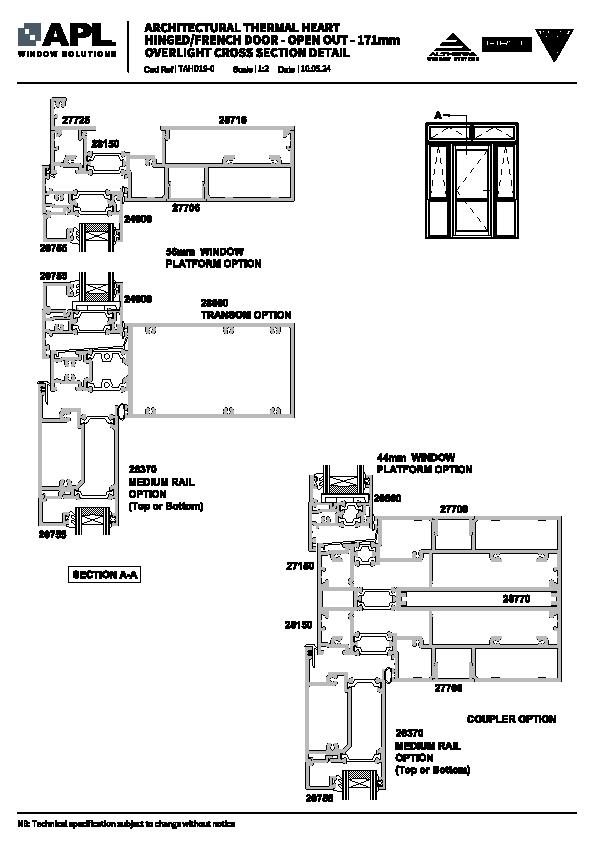

APL Architectural Series ThermalHEART® Hinged/French Door - Open Out - 171mm Overlight Options

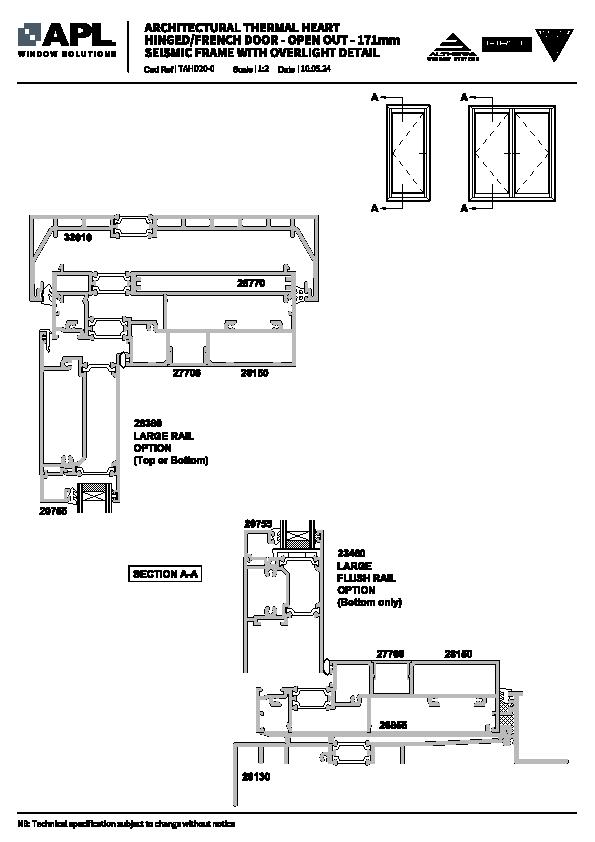

APL Architectural Series ThermalHEART® Hinged/French Door - Open Out - 171mm Seismic Frame
