APL Architectural Series ThermalHEART® Bi-Fold Windows and Doors
FIRST Windows & Doors
All products
For high-performance double-glazing, explore AGP’s product range available now Explore
ASTH BD1

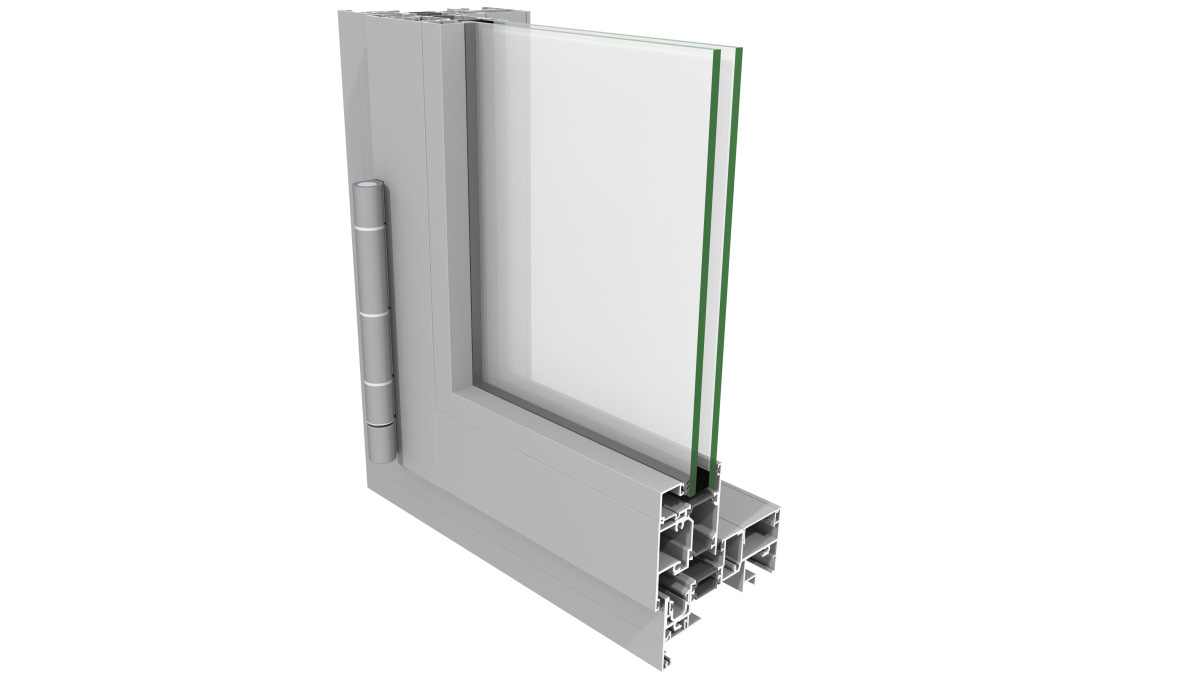

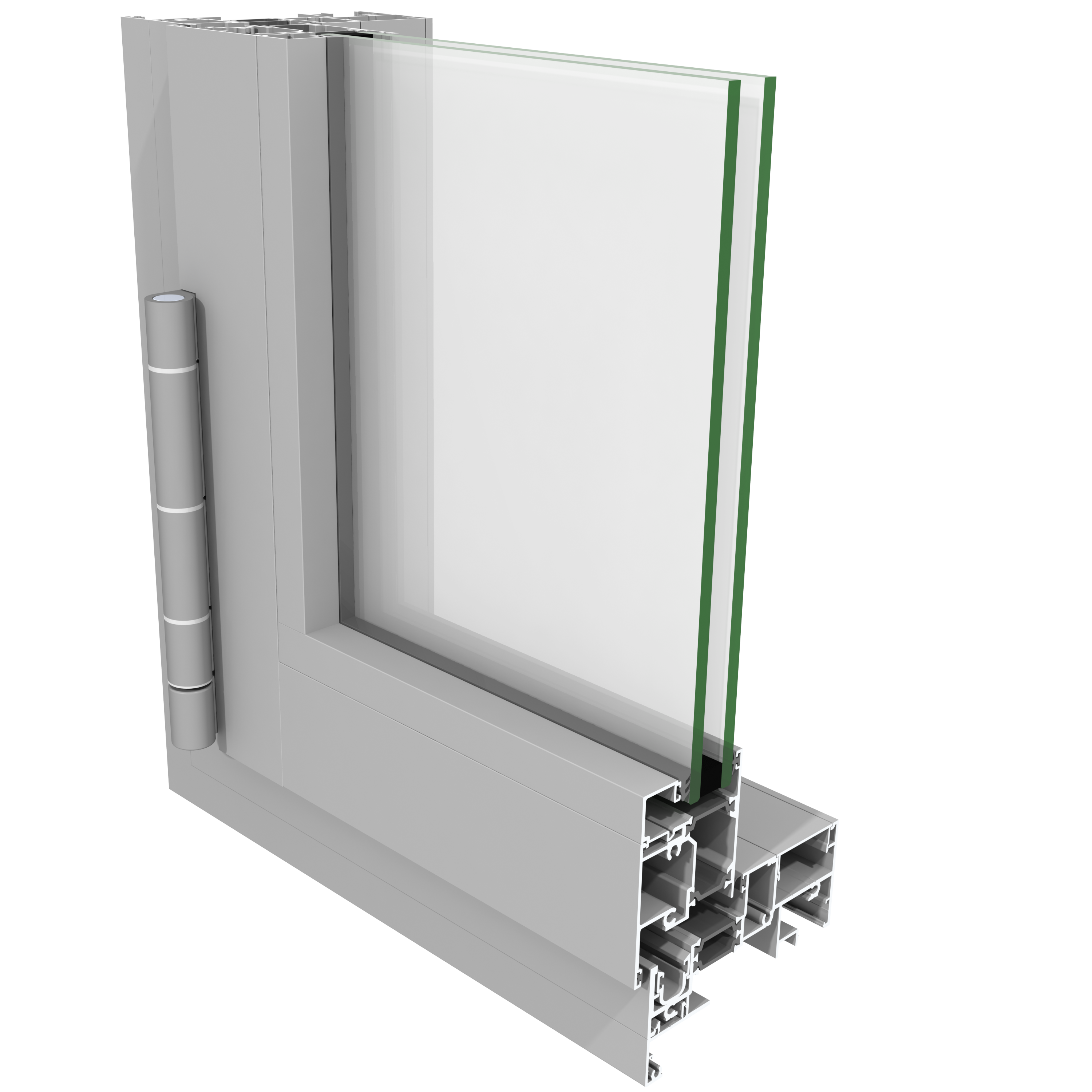

Sill frame and panel section
BD5 Cafe Sill copy

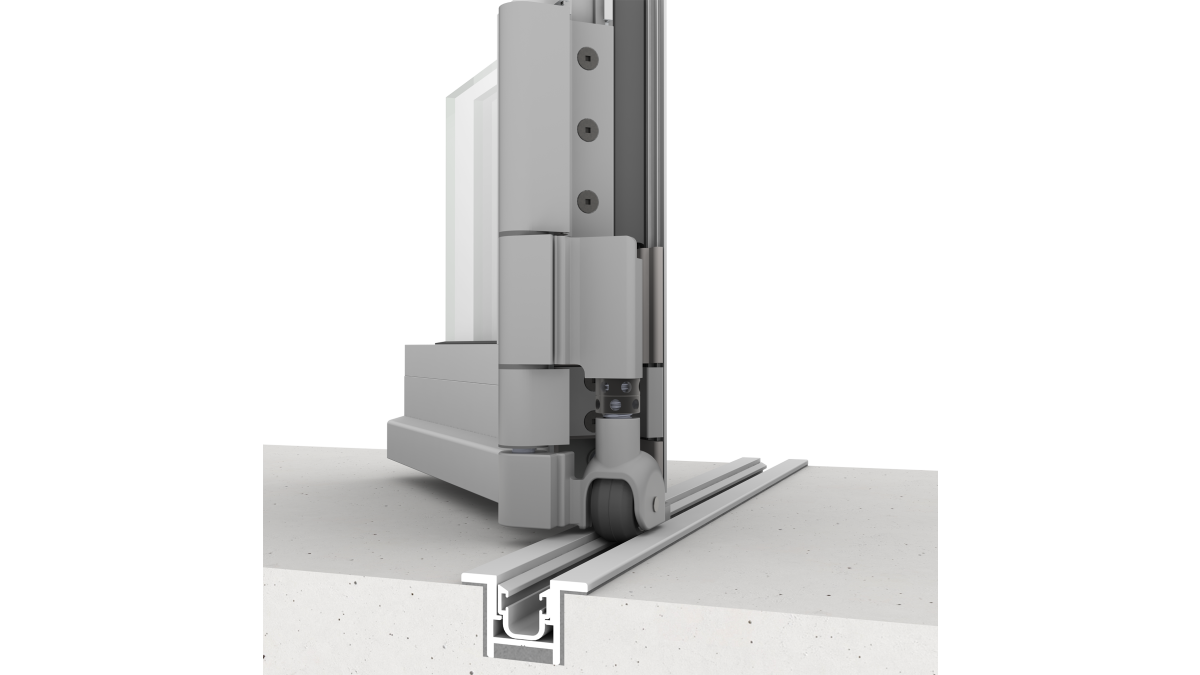

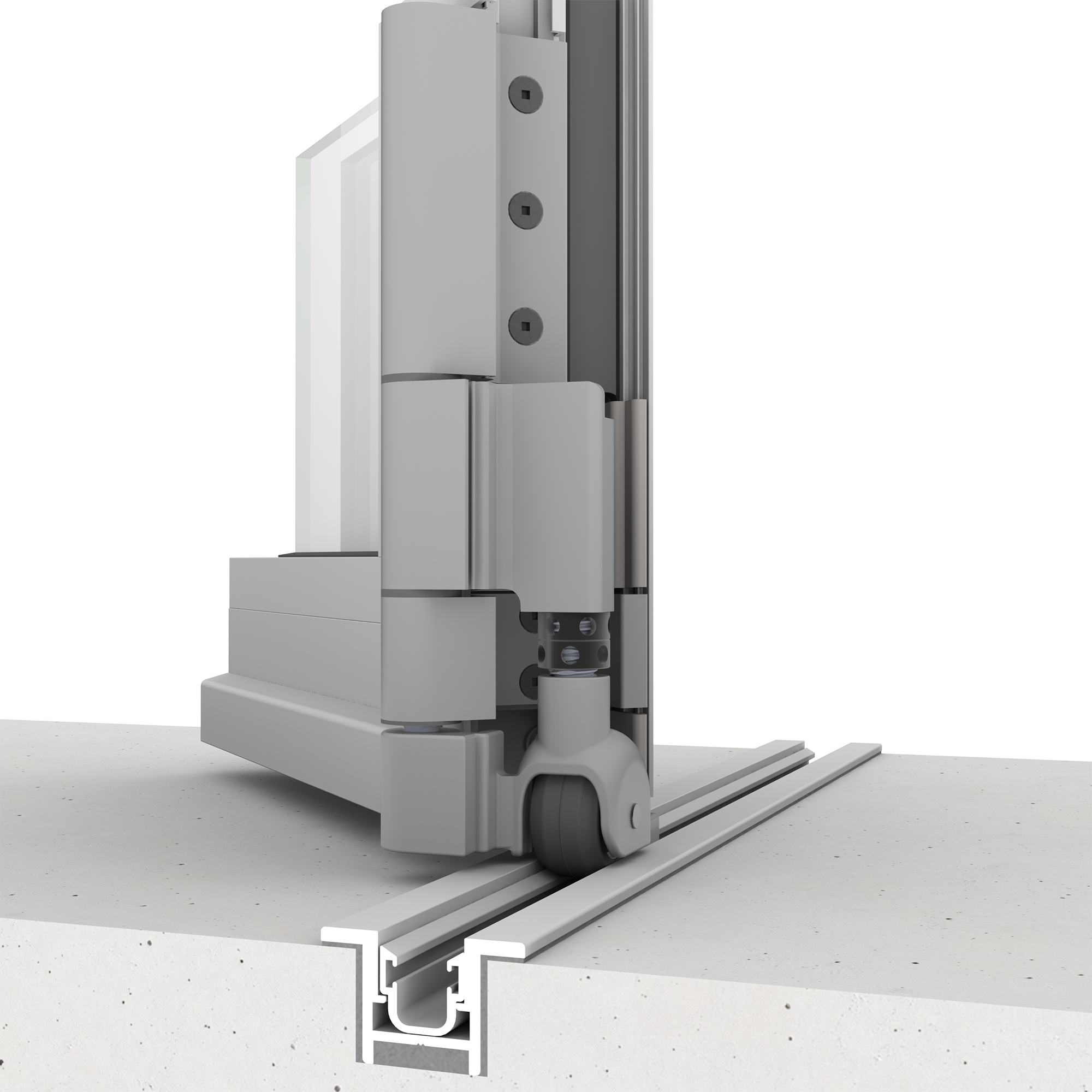

Bi-fold sill and roller on a sill tray
ASTH BD2

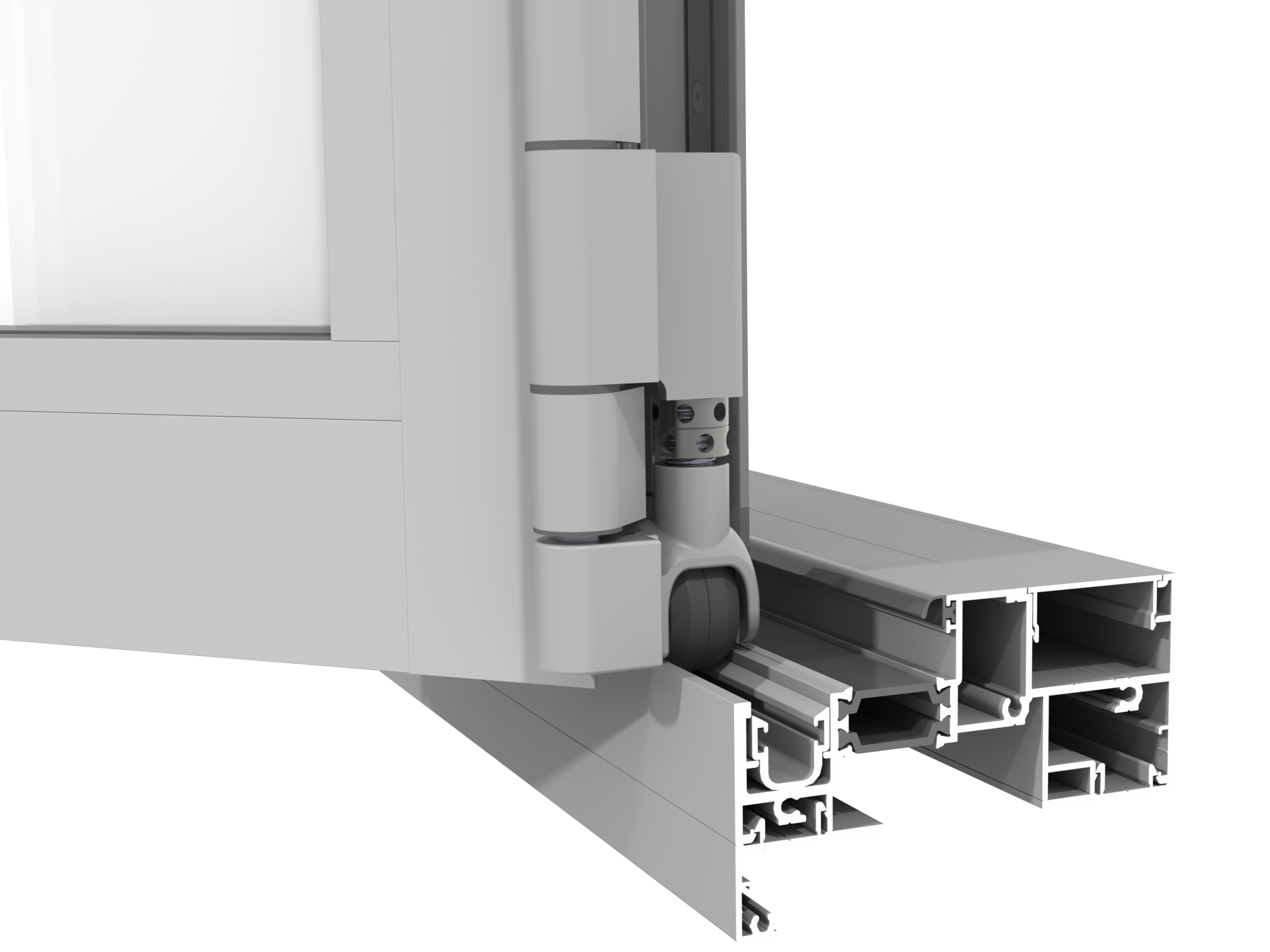

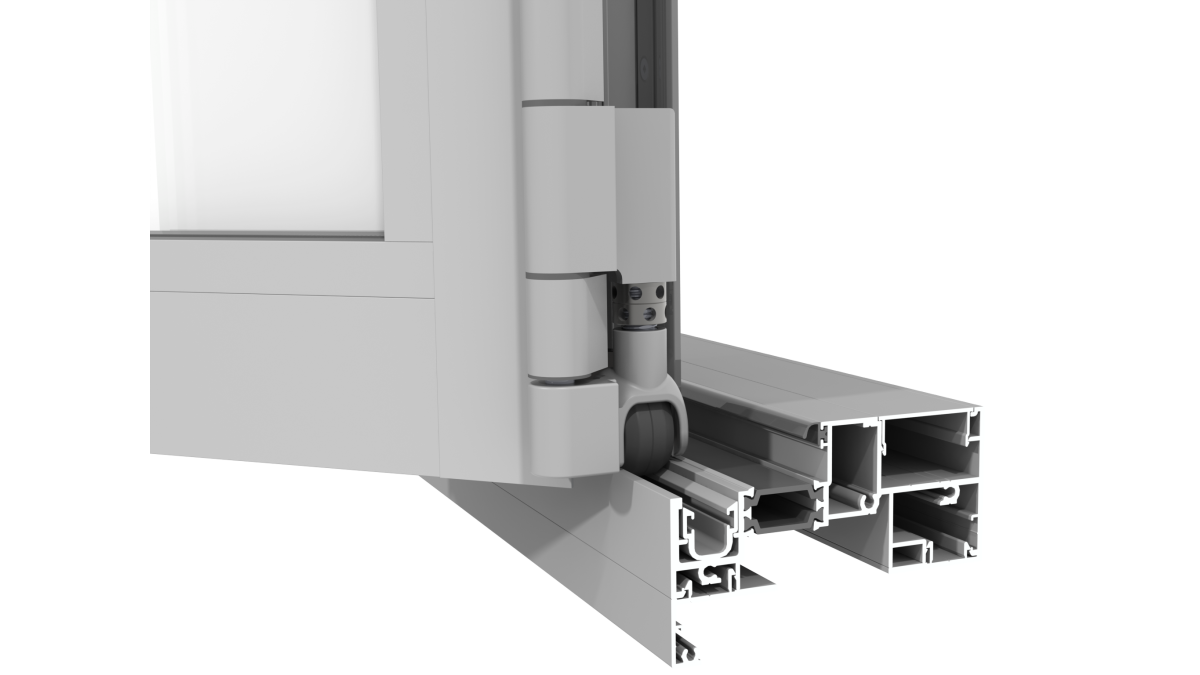

Bi-fold sill and roller
ASTH BD3

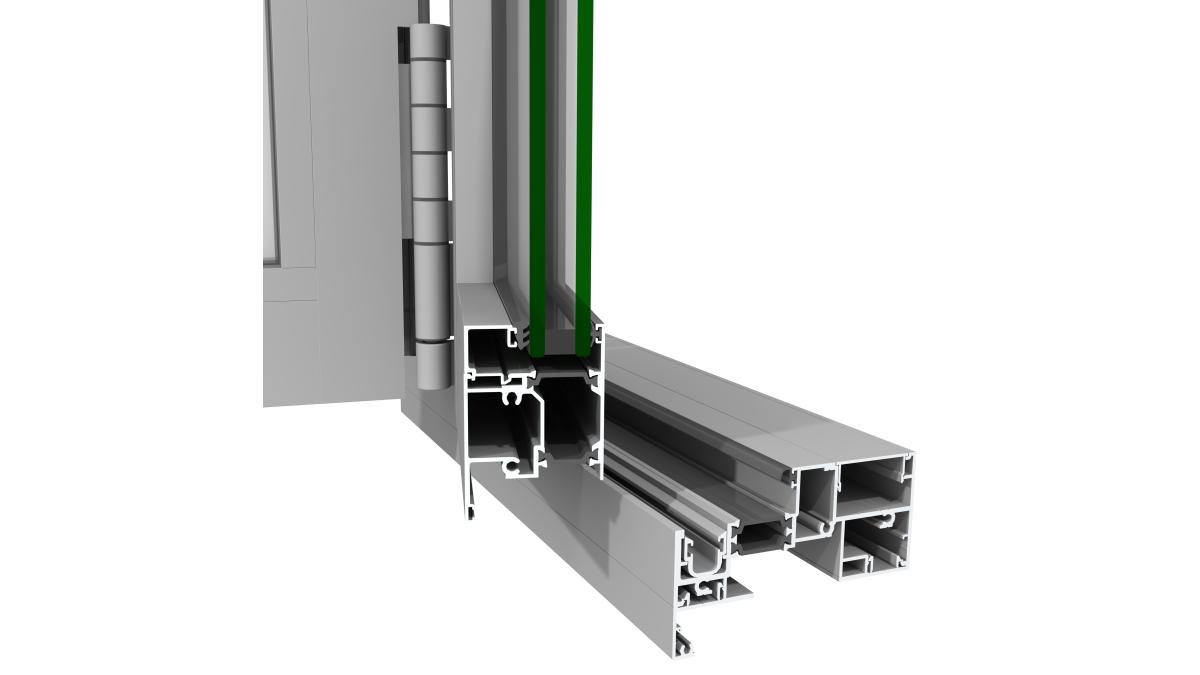

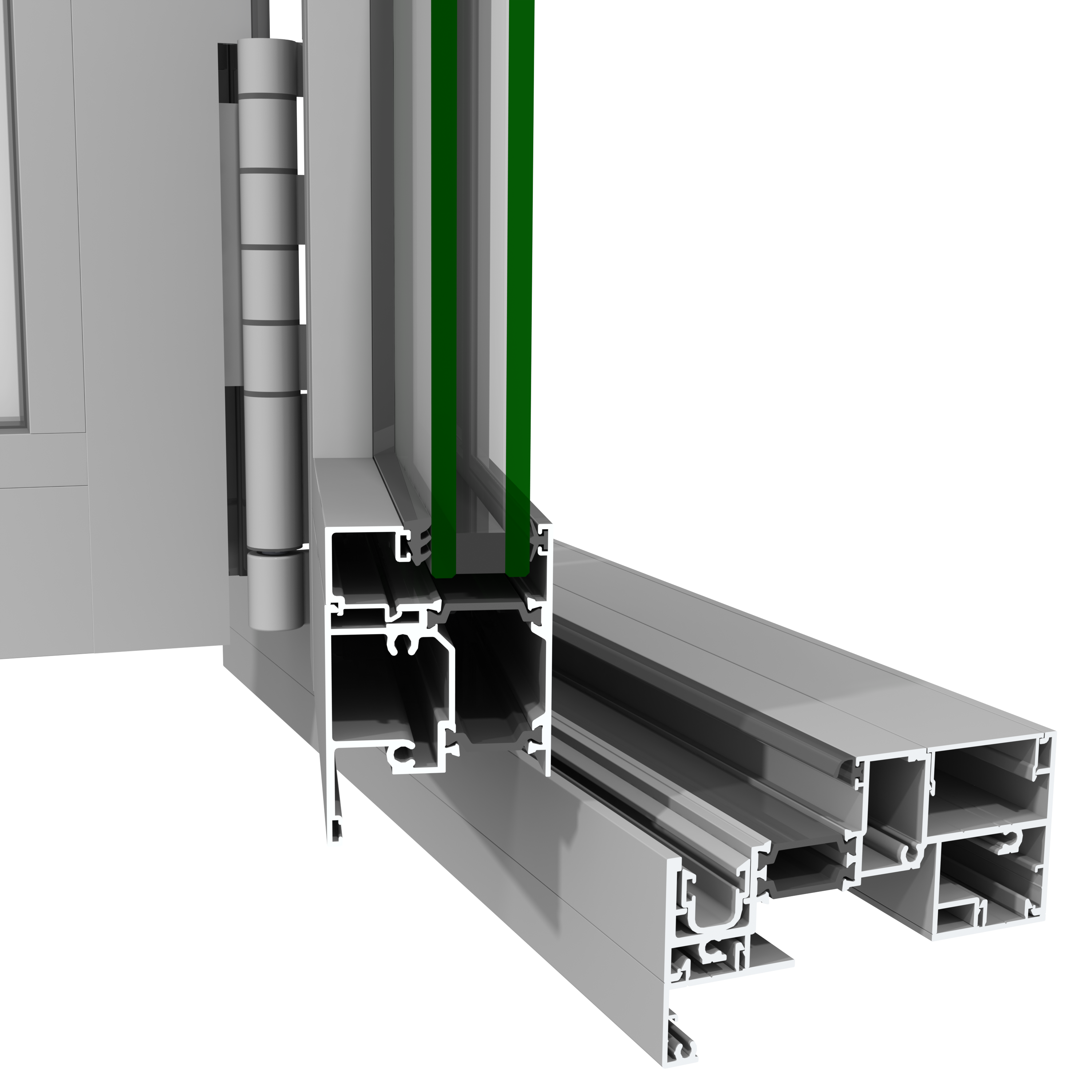

Bi-fold panels and hinge
ASTH BD4

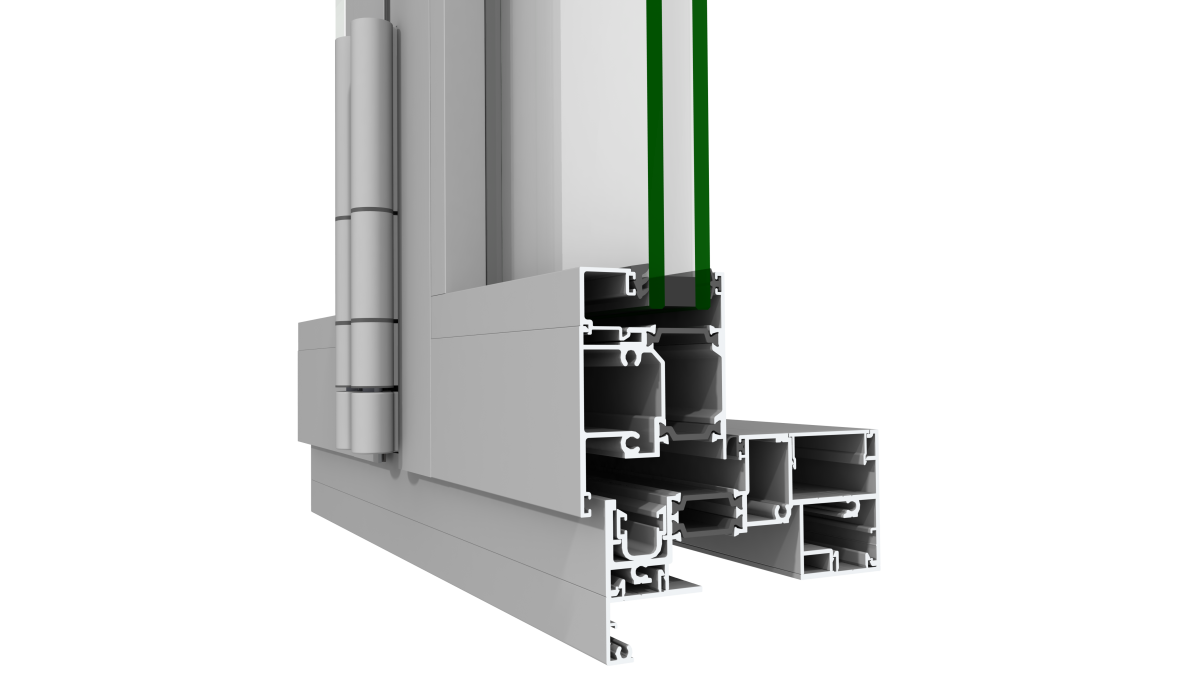

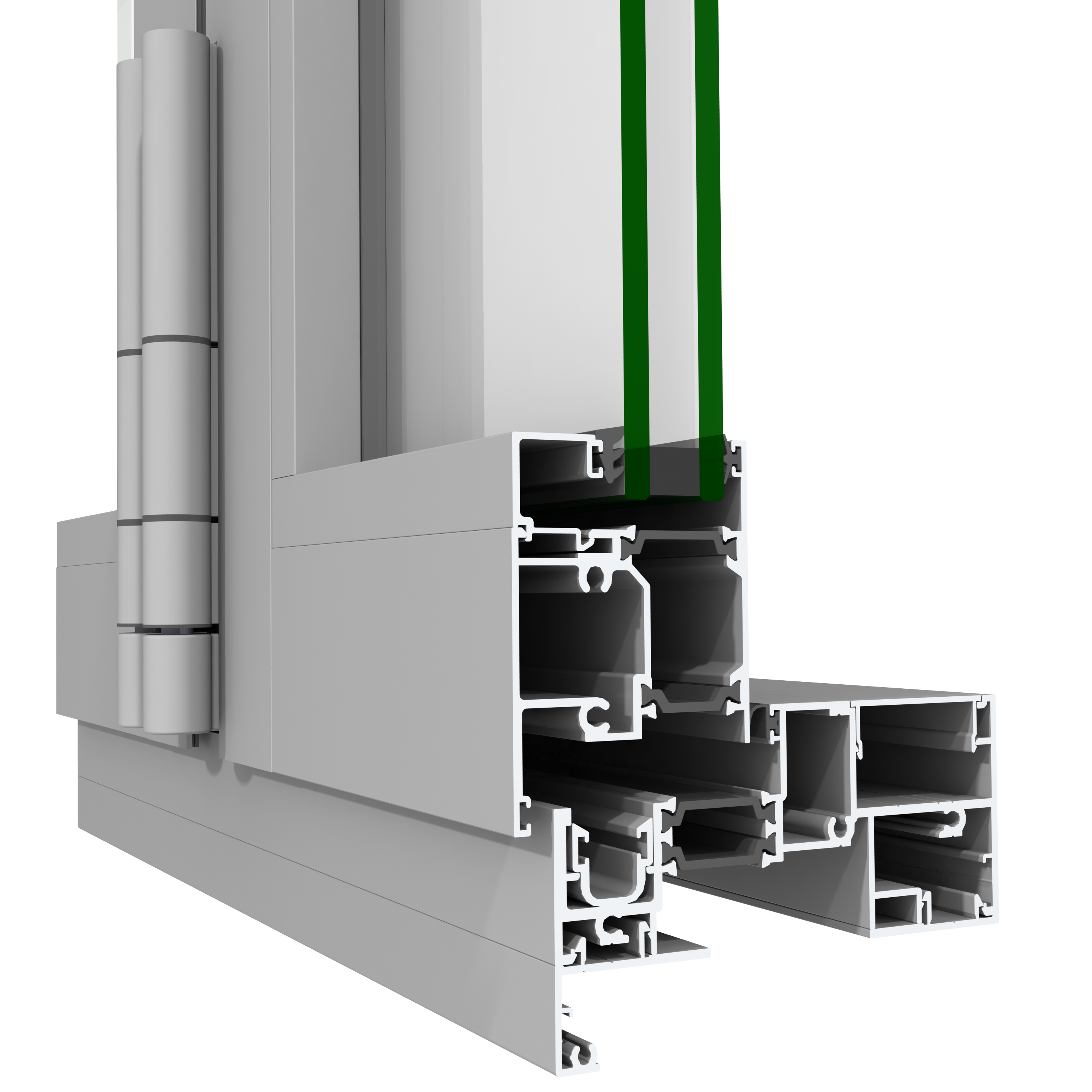

Bi-fold 2 + 2 meeting stiles
Description

The bi-fold system is bottom rolling with an in-frame track for optimum panel support. Rated to 3.0m high in Extra High wind zones. The bi-fold window system uses the bi-fold door system with a smaller stile and top and bottom panel rail.

Key Features
  • Bottom rolling with an in-frame track for optimum panel support
  • A unique roller design ensures panels move smoothly when built in large sizes
  • The track uses an aluminium insert (black anodised) for roller wear
  • Sill tray and seismic frame options
  • Assured smooth operation through enhanced adjustability
  • A slender door stile and rail option is available to minimise visual intrusion
  • Overlights possible
  • Bifold doors are available in 114mm frame size and have an equivalent window frame which can seamlessly extend the view either side of the door frame to create an opening door in a wall of fixed glazing
Categories
Bifold Doors Bifold Windows
Ranges
APL Architectural Series ThermalHEART®
Scope of Use
  • Suitable for broad residential use, including in apartments and buildings over 10m in height
  • Available in defined maximum sizes
Limitations on Use
  • Recommended maximum 3.0m high doors in Extra High wind zones
  • Compliance with NZBC clause H1 Energy Efficiency requires high performing Low-E double glazing
Statement of Building Code Compliance
  • Designed, tested and manufactured to meet NZS 4211: Specification for Performance of Windows, and NZS 4233: Glazing in Buildings, Parts 1-4
  • Conforms to all relevant NZ Building Code clauses
In-Service History
  • Launched in 2023
  • New range rolling out nationally
Other Performance Attributes
  • Window and door warranty provided under normal conditions of use against failure of materials and workmanship for a period of five years
  • Surface finish is covered by a separate performance warranty dependent on the actual finish selected. APL Architectural Series ThermalHEART® products can have a different colour on the interior and exterior faces as an optional choice.
  • A hardware/componentry warranty is offered against defects in manufacturing, functionality and surface finish for a period of five years, provided care and maintenance guidelines have been followed
Documents
Full Specification Guide: APL Architectural Series ThermalHEART®
docx
Specification Guide: APL Architectural Series ThermalHEART® Bifold Windows and Doors
docx
Span Tables
pdf
Data Sheet: APL Architectural Series ThermalHEART®
pdf
APL and Sustainability
URL
Declare Label
pdf
Manufacturer Contact List
URL
AGP Cleaning & Maintenance
pdf
AGP Condensation Guide
pdf
AGP Visual Quality of Glass
pdf
FIRST Brochure
URL
First Care, Maintenance & Warranty Brochure (with AGP)
URL
FIRST on Masterspec
URL
Specifier Guide

2023

URL
WGANZ Guide to E2/AS1
pdf
CAD/PDF Details
View full
Filters
Select Product
Clear filters
APL Architectural Thermal Heart Bifold Door Drawings pdf v3
APL Architectural Series ThermalHEART® Bifold Doors

FULL SET

PDF and ZIP (contains all DWGs)

pdf
zip
APL Architectural Thermal Heart Bifold Window Drawings pdf v2
APL Architectural Series ThermalHEART® Bifold Windows

FULL SET

PDF and ZIP (contains all DWGs)

pdf
zip
TABD01 0 pdf v2

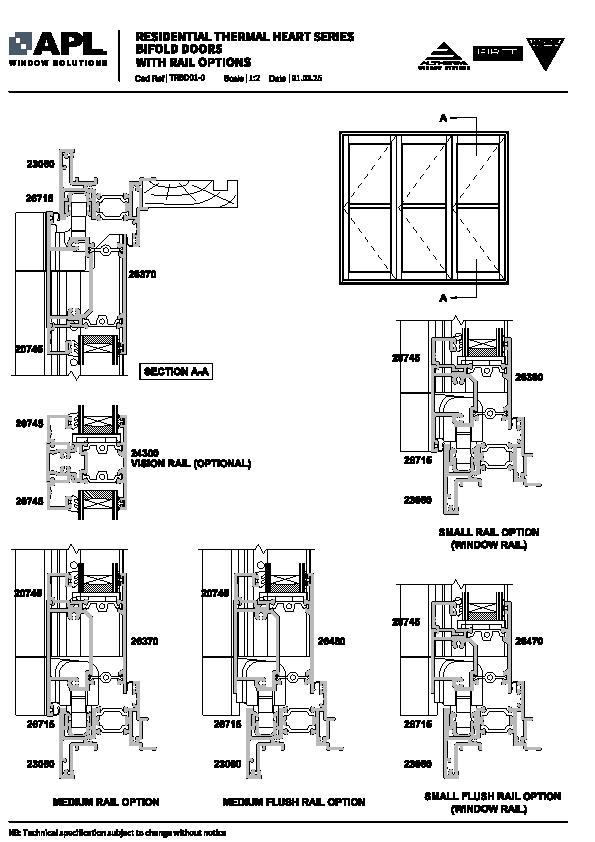

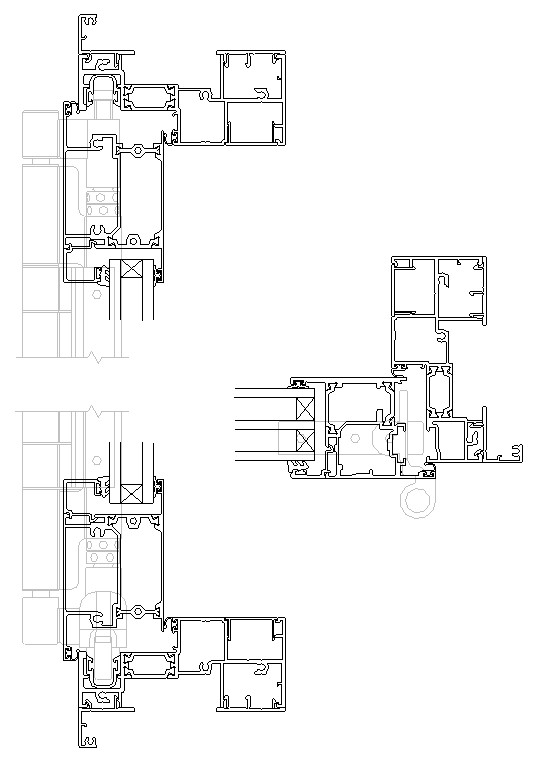

APL Architectural Series ThermalHEART® Bifold Doors Head/Sill with Rail Options

TABD01

dwg
dxf
pdf
TABD02 0 pdf v2
APL Architectural Series ThermalHEART® Bifold Doors Overlight Transom

TABD02

dwg
dxf
pdf
TABD03 0 pdf v2
APL Architectural Series ThermalHEART® Bifold Doors Overlight Transom with Fixed Window

TABD03

dwg
dxf
pdf
TABD04 0 pdf v2
APL Architectural Series ThermalHEART® Bifold Doors Flush Sill Rail Options

TABD04

dwg
dxf
pdf
TABD05 0 pdf v2
APL Architectural Series ThermalHEART® Bifold Doors Seismic Frame with Overlight Coupler

TABD05

dwg
dxf
pdf
TABD06 0 pdf v2
APL Architectural Series ThermalHEART® Bifold Doors 2 Panel

TABD06

dwg
dxf
pdf
TABD07 0 pdf v2
APL Architectural Series ThermalHEART® Bifold Doors 2 + 1 Panel

TABD07

dwg
dxf
pdf
TABD08 0 pdf v2
APL Architectural Series ThermalHEART® Bifold Doors 3 Panel

TABD08

dwg
dxf
pdf
TABD09 0 pdf v2
APL Architectural Series ThermalHEART® Bifold Doors 2 + 2 Panel

TABD09

dwg
dxf
pdf
TABD10 0 pdf v2
APL Architectural Series ThermalHEART® Bifold Doors 3 + 1 Panel

TABD10

dwg
dxf
pdf
TABD11 0 pdf v2
APL Architectural Series ThermalHEART® Bifold Doors 4 Panel

TABD11

dwg
dxf
pdf
TABD12 0 pdf v2
APL Architectural Series ThermalHEART® Bifold Doors 3 + 2 Panel

TABD12

dwg
dxf
pdf
TABD13 0 pdf v2
APL Architectural Series ThermalHEART® Bifold Doors 4 + 1 Panel

TABD13

dwg
dxf
pdf
TABD14 0 pdf v2
APL Architectural Series ThermalHEART® Bifold Doors 5 Panel

TABD14

dwg
dxf
pdf
TABD15 0 pdf v2
APL Architectural Series ThermalHEART® Bifold Doors 3 + 3 Panel

TABD15

dwg
dxf
pdf
TABD16 0 pdf v2
APL Architectural Series ThermalHEART® Bifold Doors 4 + 2 Panel

TABD16

dwg
dxf
pdf
TABD17 0 pdf v2
APL Architectural Series ThermalHEART® Bifold Doors 5 + 1 Panel

TABD17

dwg
dxf
pdf
TABD18 0 pdf v2
APL Architectural Series ThermalHEART® Bifold Doors 6 Panel

TABD18

dwg
dxf
pdf
TABD19 0 pdf v2
APL Architectural Series ThermalHEART® Bifold Doors Sidelight Cross Section

TABD19

dwg
dxf
pdf
TABW01 0 pdf v2
APL Architectural Series ThermalHEART® Bifold Windows Head/Sill with Rail Options

TABW01

dwg
dxf
pdf
TABW02 0 pdf v2
APL Architectural Series ThermalHEART® Bifold Windows 2 Panel

TABW02

dwg
dxf
pdf
TABW03 0 pdf v2
APL Architectural Series ThermalHEART® Bifold Windows 3 Panel

TABW03

dwg
dxf
pdf
TABW04 0 pdf v2
APL Architectural Series ThermalHEART® Bifold Windows 2 + 2 Panel

TABW04

dwg
dxf
pdf
Installation Details
View full
TABDBB pdf
APL Architectural Series ThermalHEART® - Bifold Door on Board & Batten

TABDBB

dwg
pdf
TABDBV pdf
APL Architectural Series ThermalHEART® - Bifold Door on Brick Veneer

TABDBV

dwg
pdf
TABDBW pdf
APL Architectural Series ThermalHEART® - Bifold Door on Bevelback Weatherboard

TABDBW

dwg
pdf
TABDFS pdf
APL Architectural Series ThermalHEART® - Bifold Door on Flat Sheet

TABDFS

dwg
pdf
TABDPM pdf
APL Architectural Series ThermalHEART® - Bifold Door on Profile Metal

TABDPM

dwg
pdf
TABDRW pdf
APL Architectural Series ThermalHEART® - Bifold Door on Rusticated Weatherboard

TABDRW

dwg
pdf
TABDST pdf
APL Architectural Series ThermalHEART® - Bifold Door on Stucco

TABDST

dwg
pdf
