InteriorInterior
Steel Stud and Track
Description

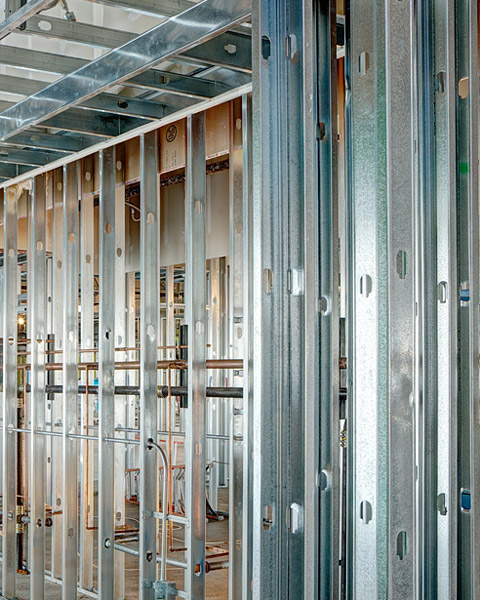

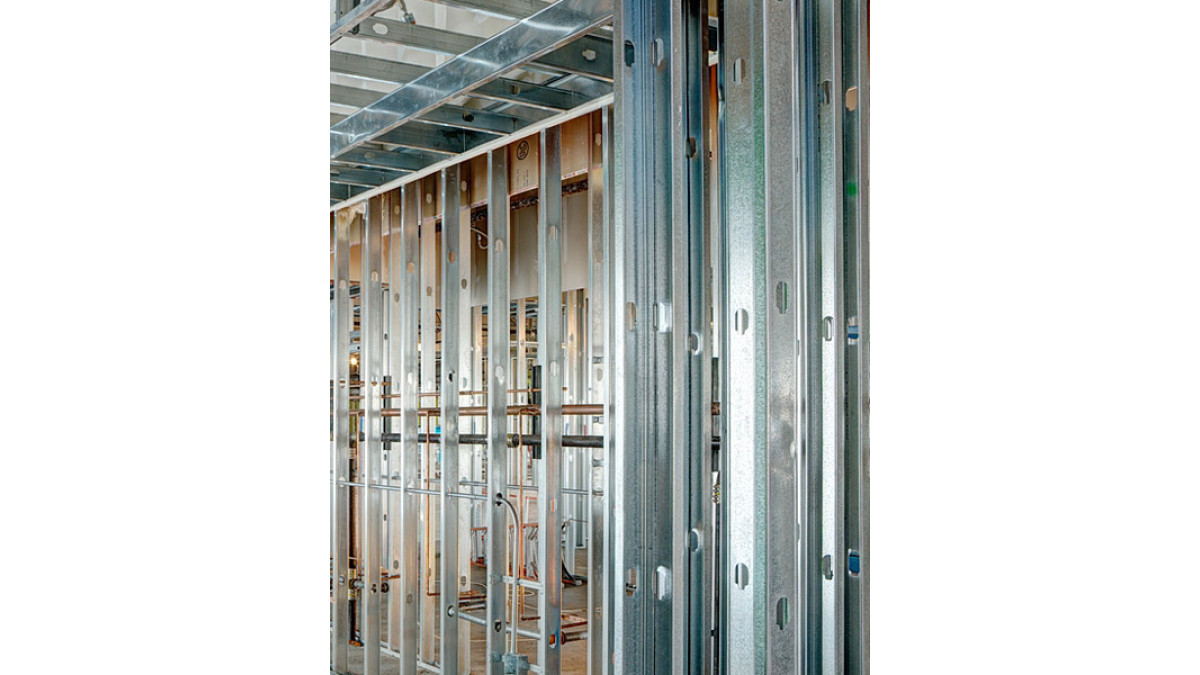

The Ecoplus Steel Stud Framing System provides a durable easy to install structure for plasterboard walls.

Profile widths range from 51mm to 150mm and base metal thickness 0.75mm to 1.15mm. Available in various stud lengths.

Key Features
  • Manufactured from imported steel with a minimum yield strength of 270MPa
  • Z275 protective zinc coating
  • Bell mouthed service holes to protect services
Scope of Use

Suitable for non-loadbearing internal plasterboard walls.

Used in commercial and residential applications including; offices, apartments, retirement villages and housing complexes.

Profile widths range from 51mm to 150mm and base metal thickness 0.75mm to 1.15mm. Available in various stud lengths.

Limitations on Use

Ecoplus system includes stud, bottom track and deflection head track but does not include linings.

In-Service History

The Ecoplus Steel Stud Framing System has been sold into the New Zealand building sector since 2010.

Documents
Ecoplus Framing BRANZ Fire Report

FC11076-1-3 (2023)

Ecoplus Product Substitution

2024

Ecoplus Steel Wall & Ceiling Product Warranty
CAD/PDF Details

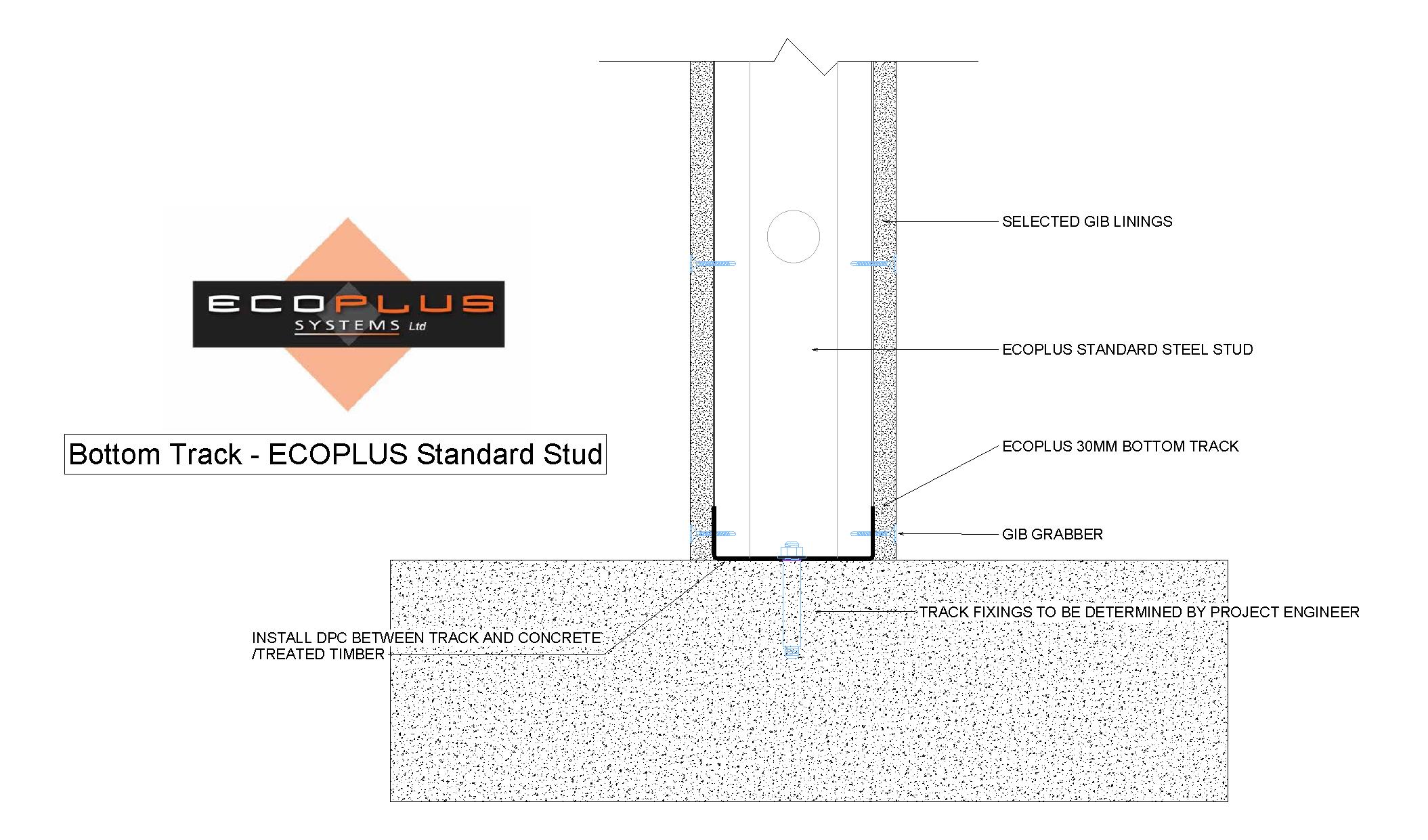

Bottom Track — Standard Stud

001

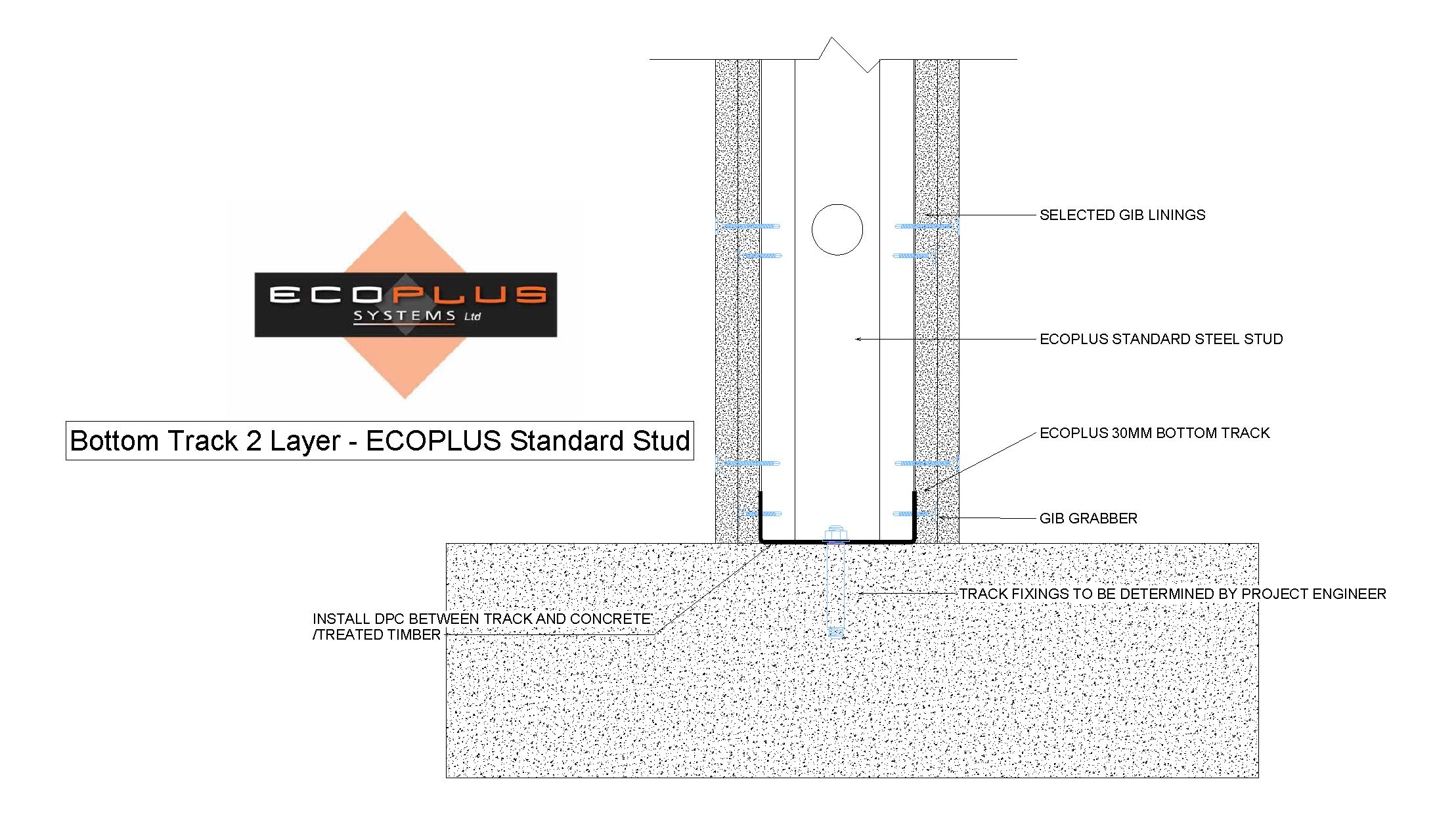

Bottom Track 2 Layer — Standard Stud

002

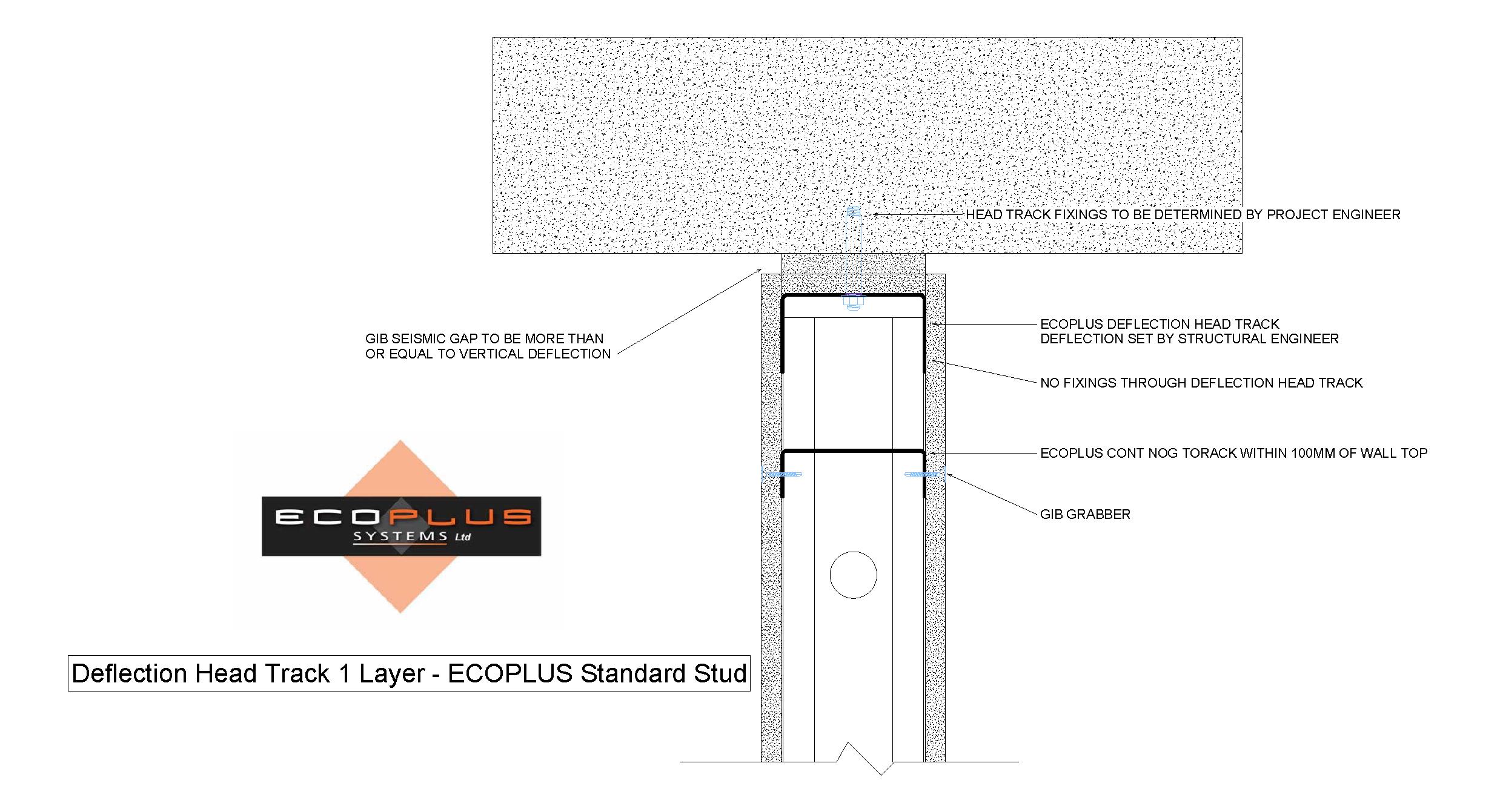

Deflection Head Track 1 Layer — Standard Stud

003

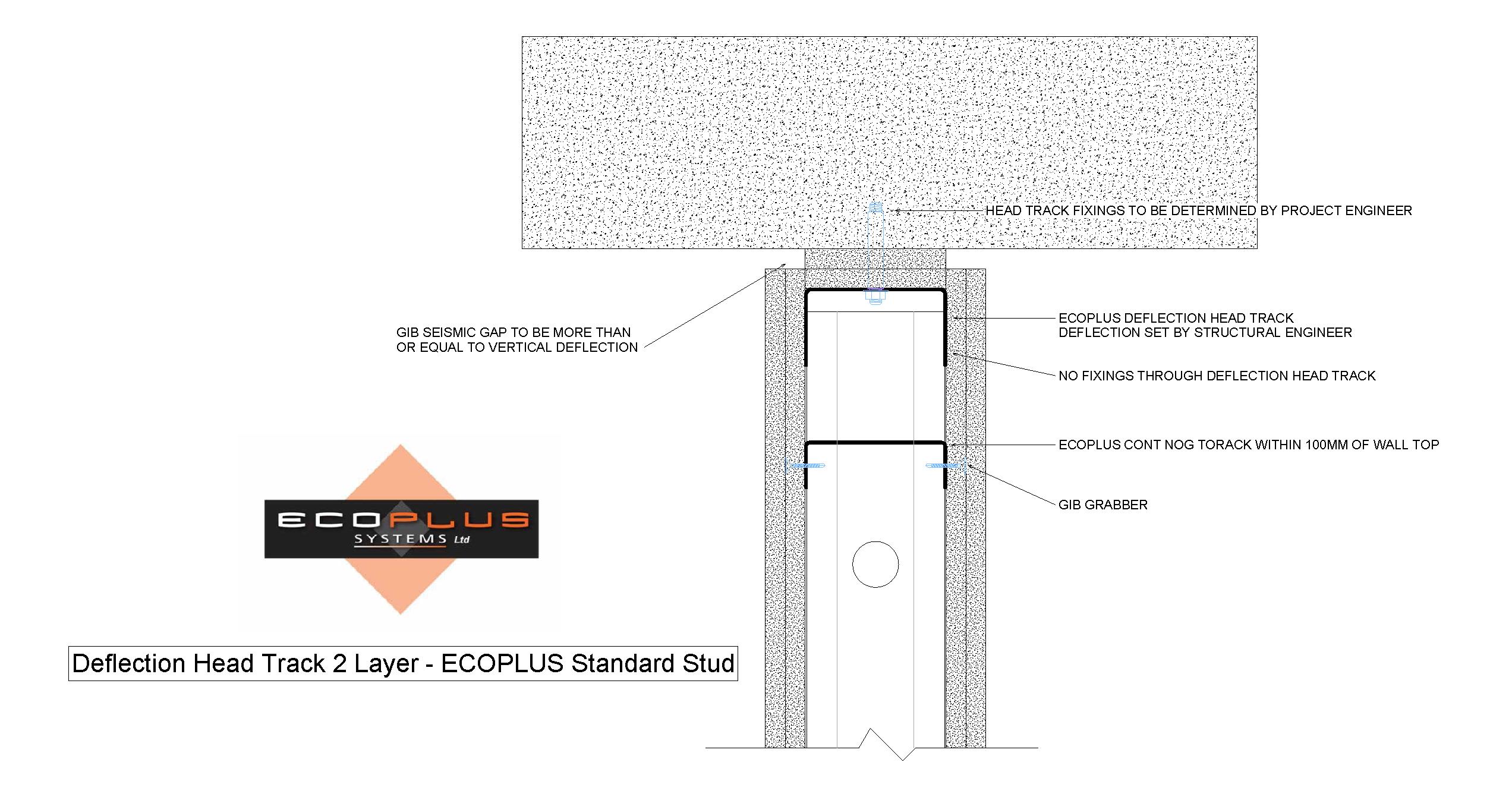

Deflection Head Track 2 Layer — Standard Stud

004

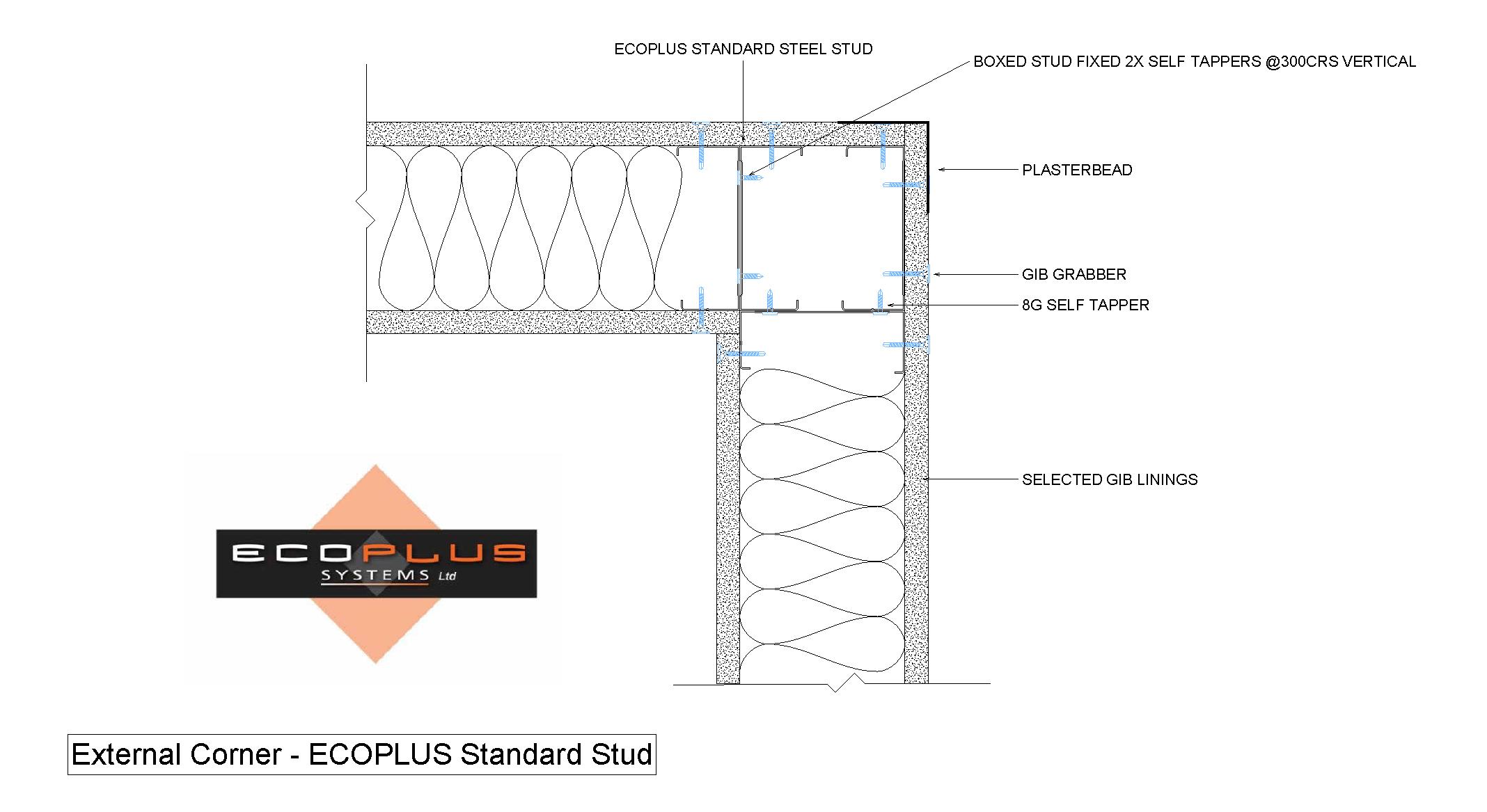

External Corner — Standard Stud

005

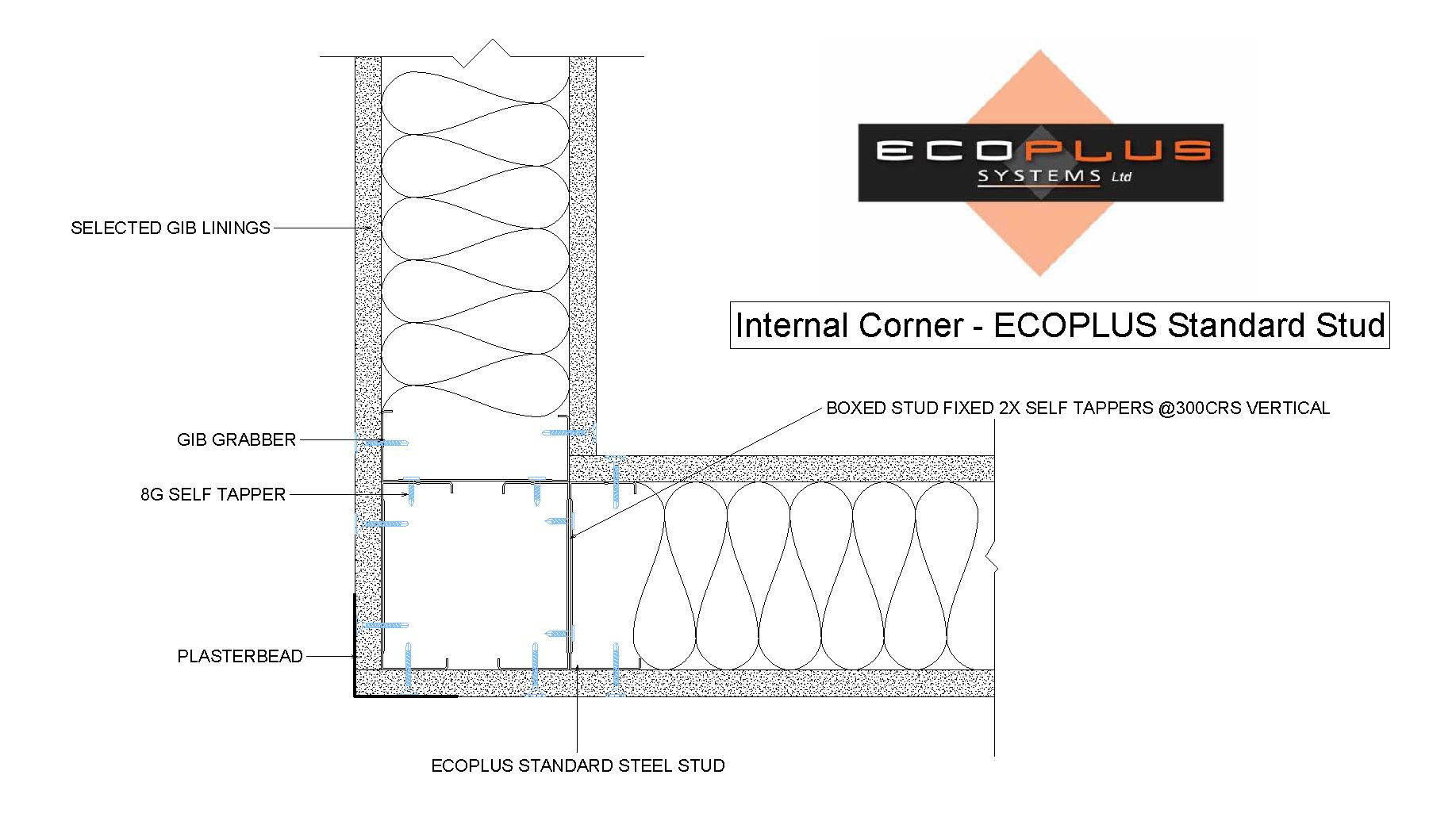

Internal Corner — Standard Stud

006

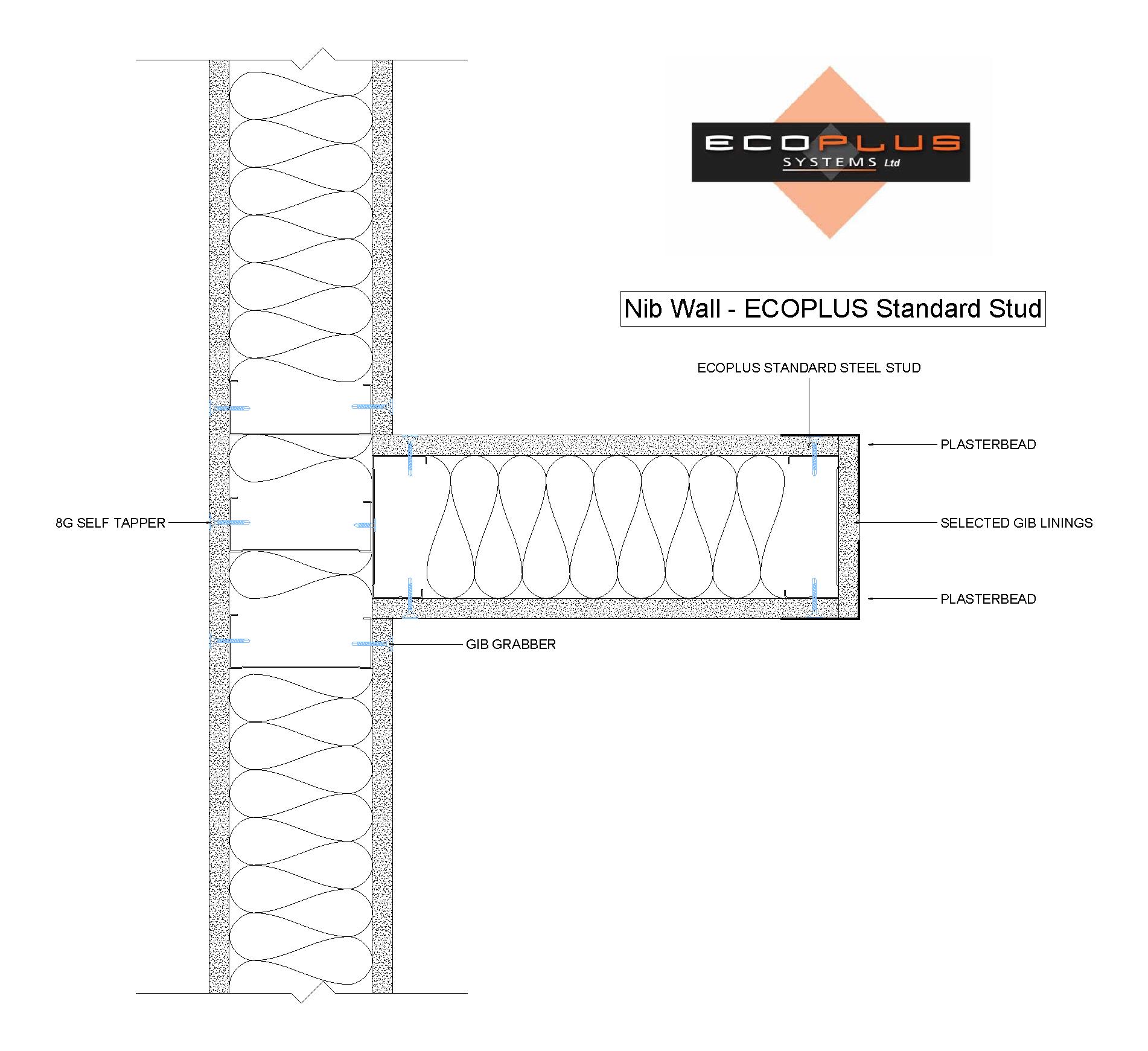

Nib Wall — Standard Stud

007

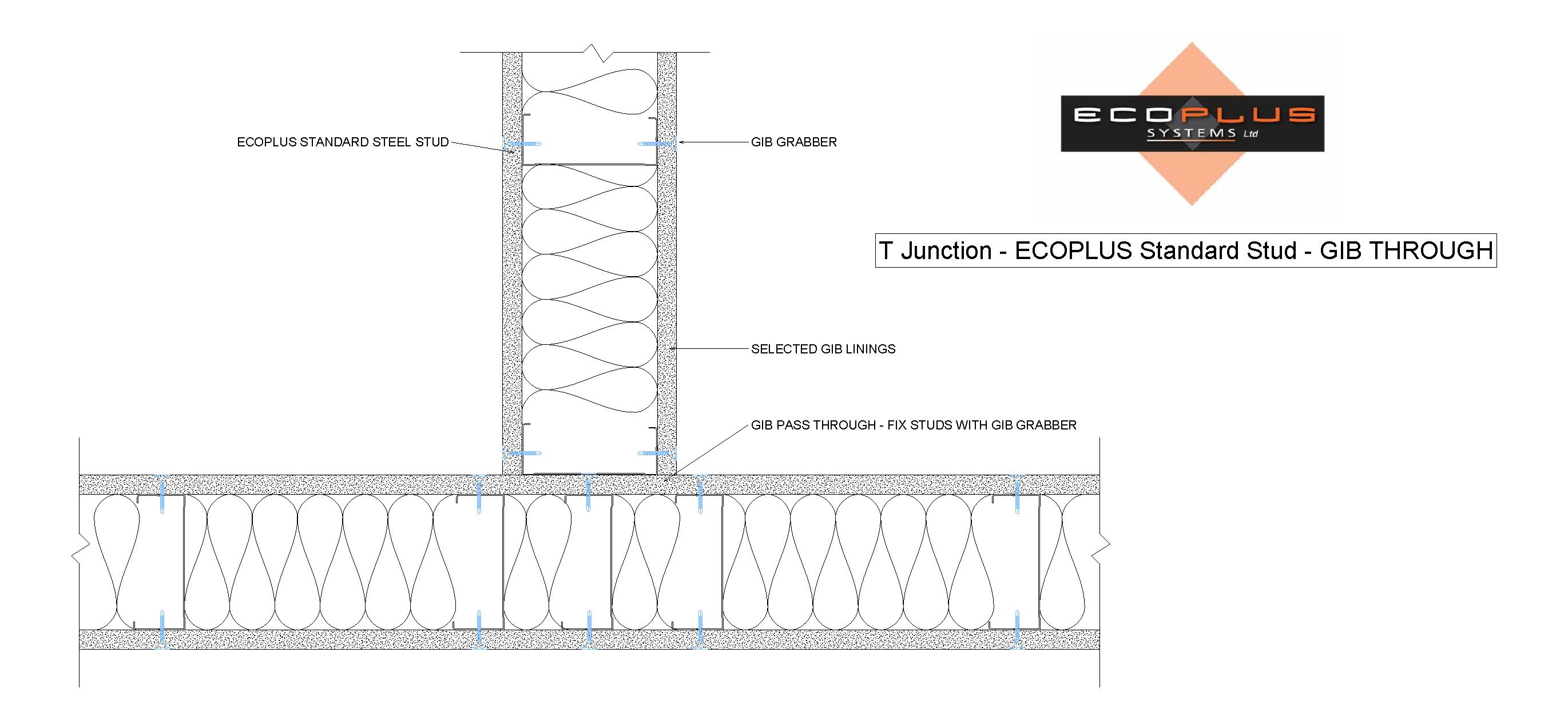

T Junction — Standard Stud — GIB Through

008

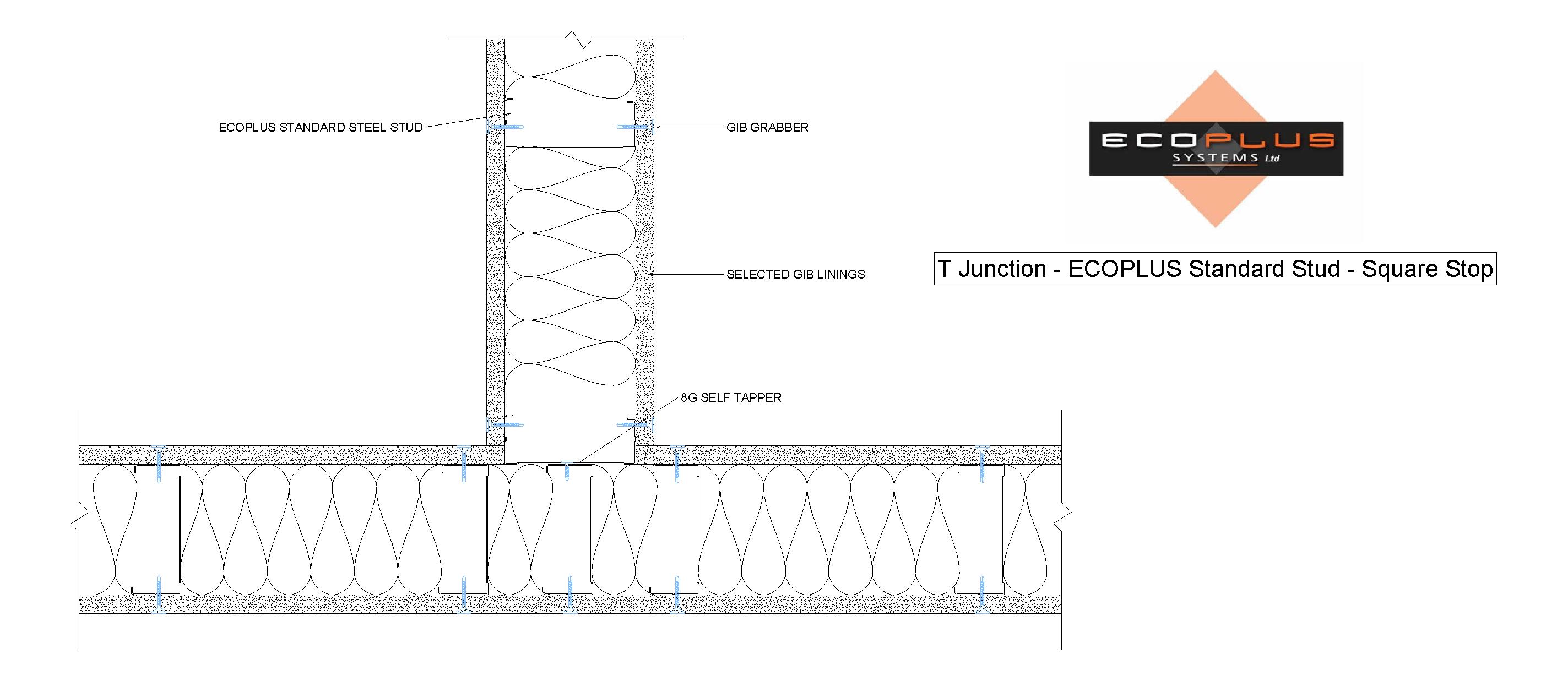

T Junction — Standard Stud — Square Stop

009

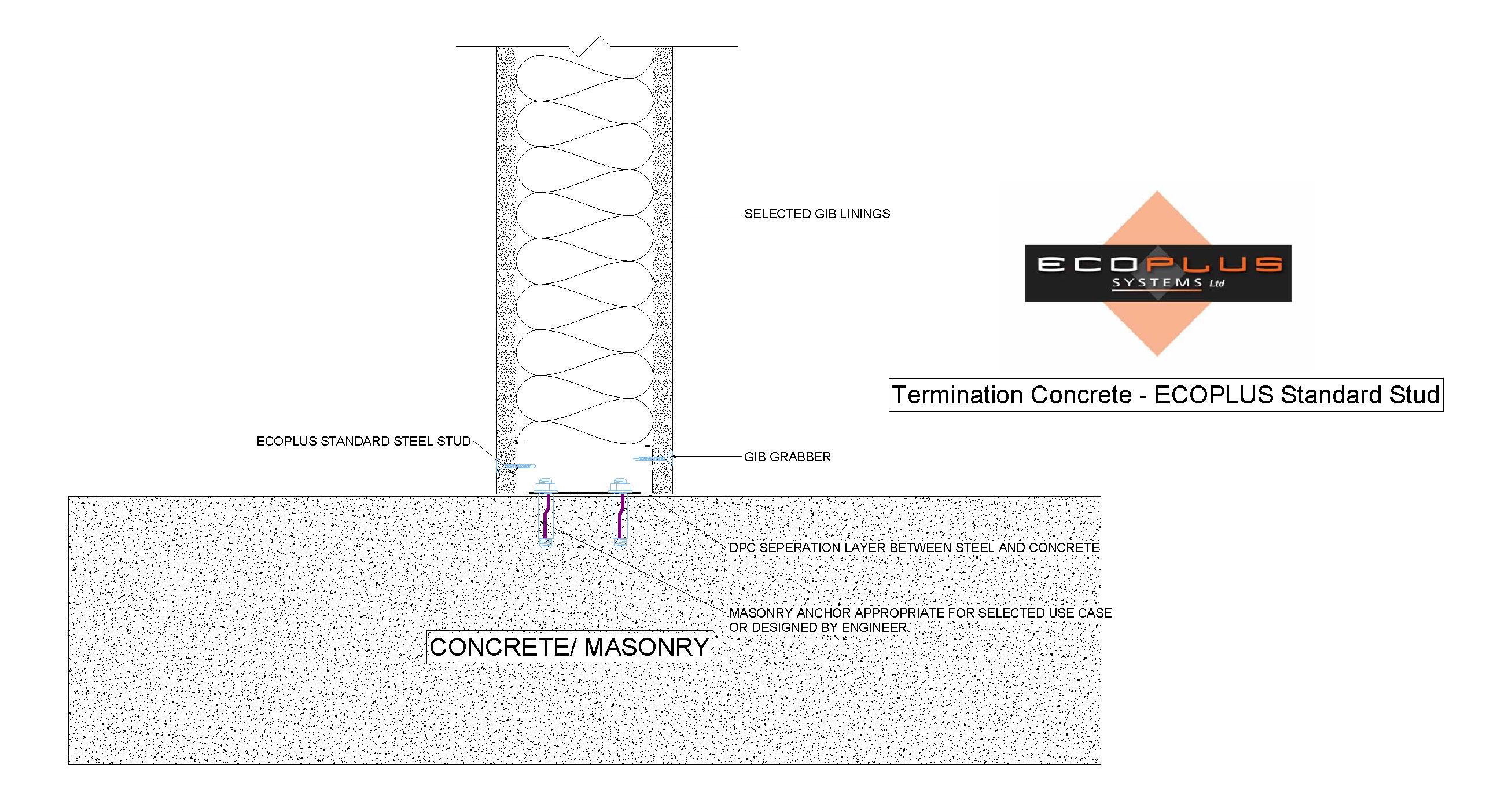

Termination Concrete — Standard Stud

010

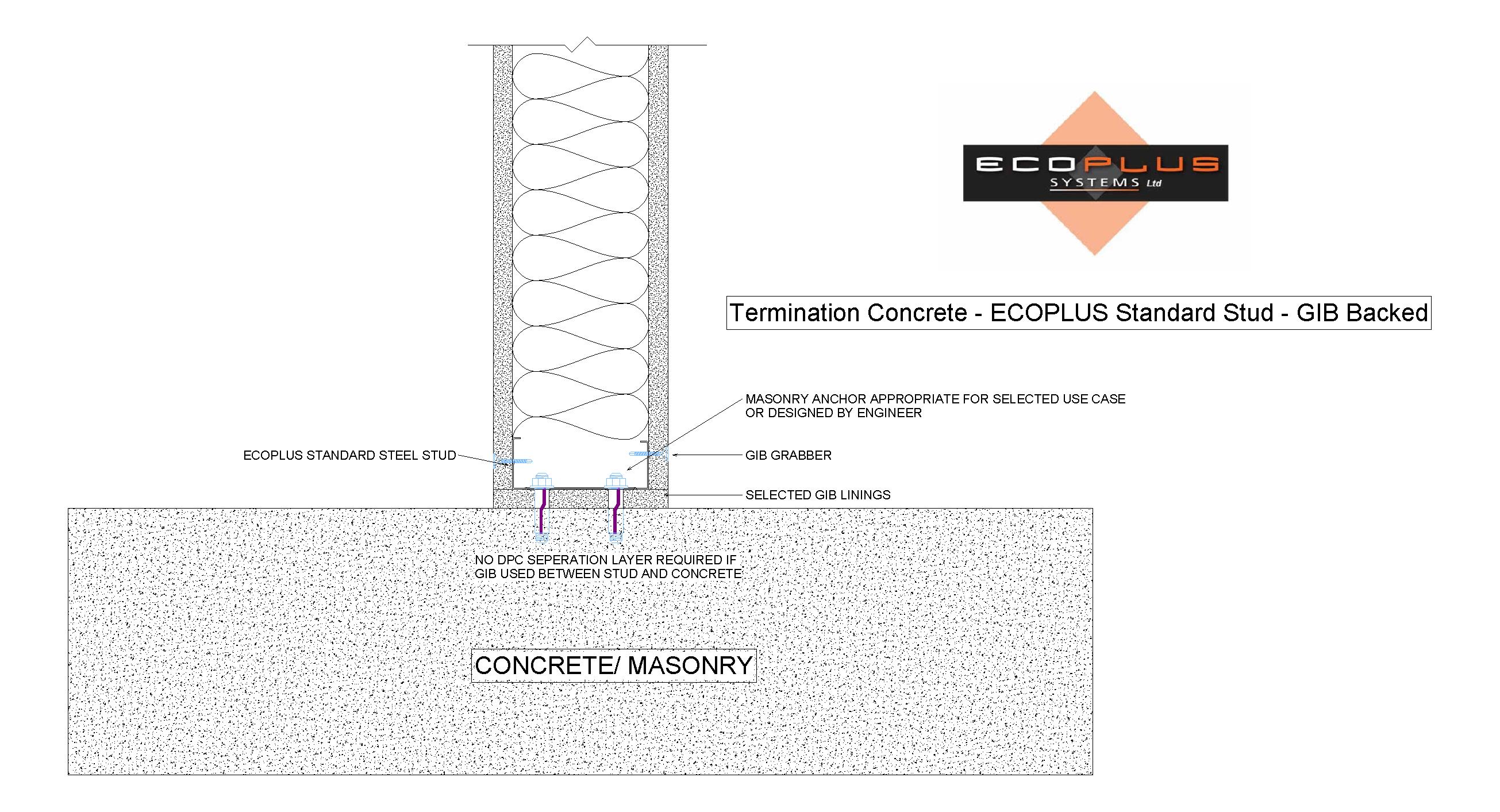

Termination Concrete — Standard Stud — GIB Backed

011
