ProctorGeo HC9 Drainage Mat
DriSpace
All products
Drainage Mat

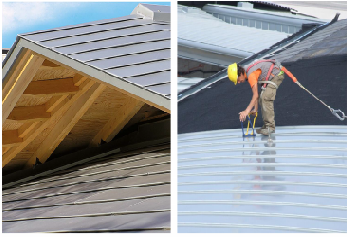

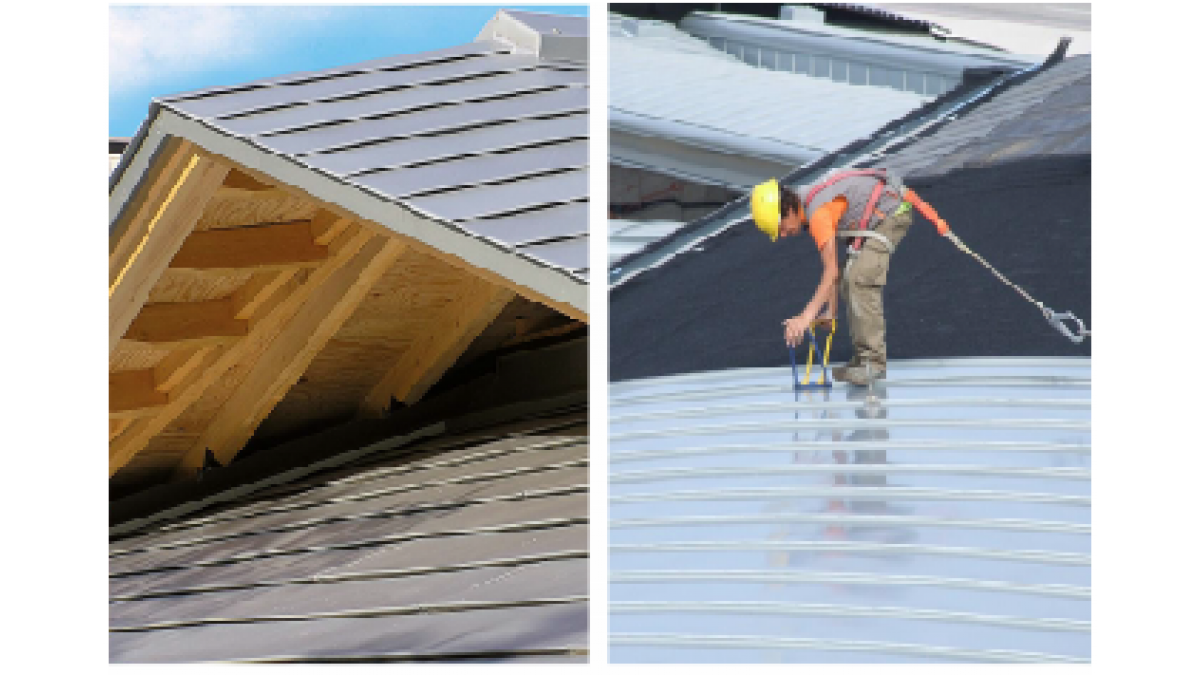

Capture2

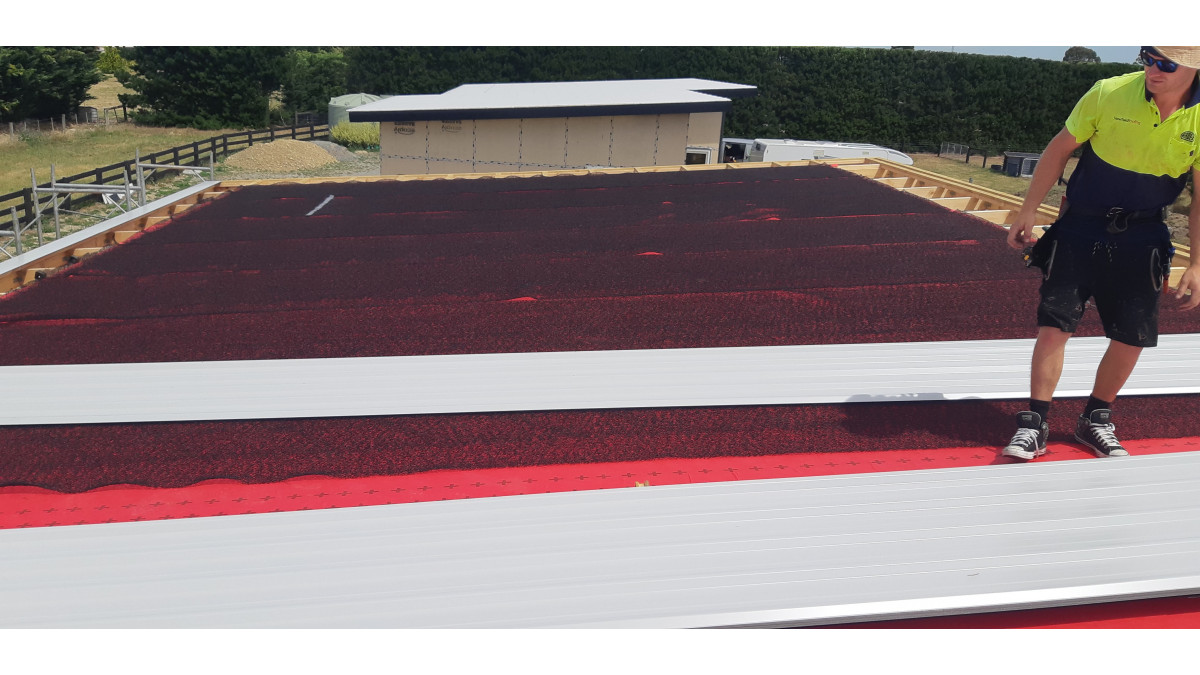

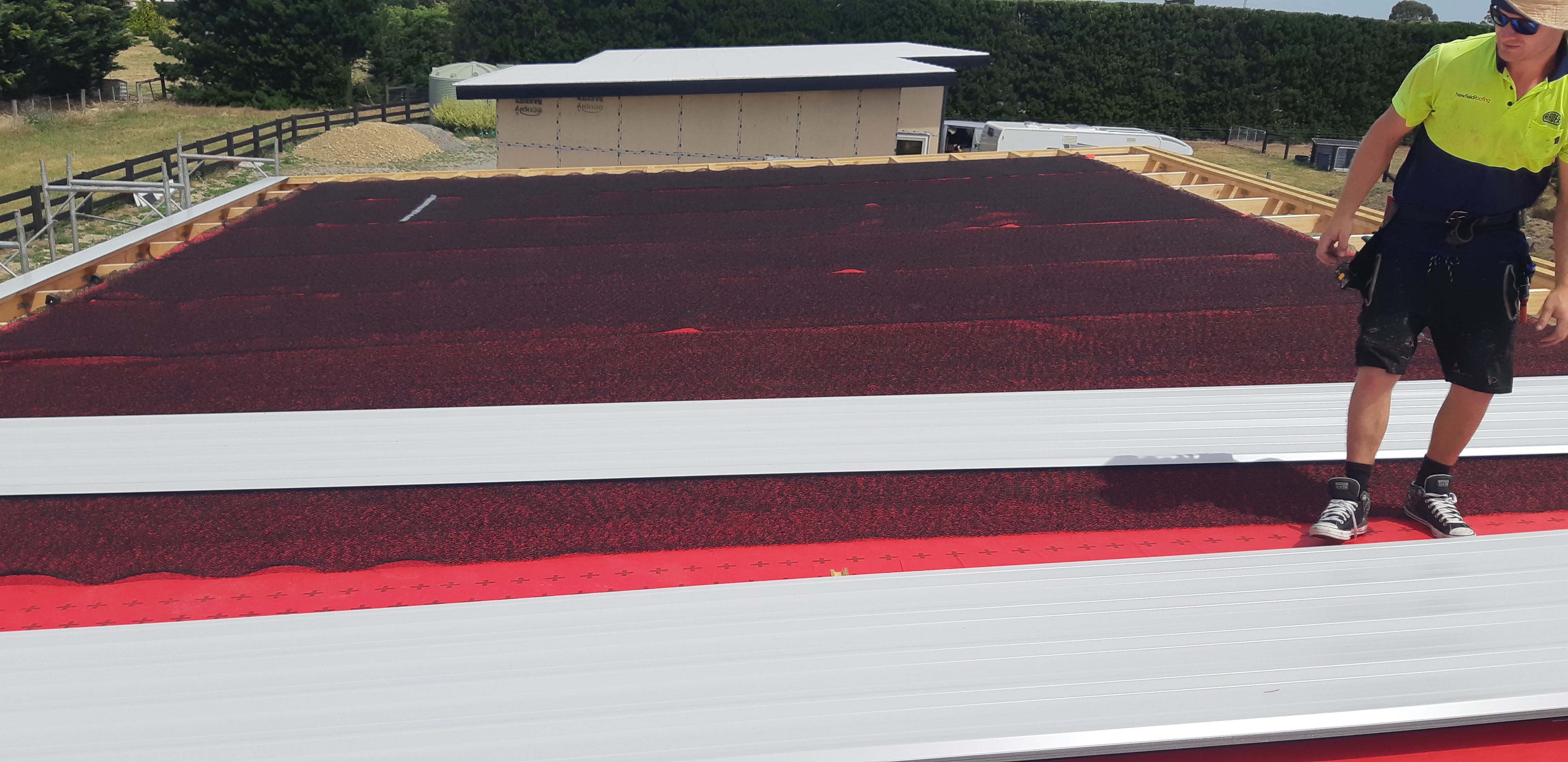

Brennan Lane Mandeville North
Drainage Matt 01
Description

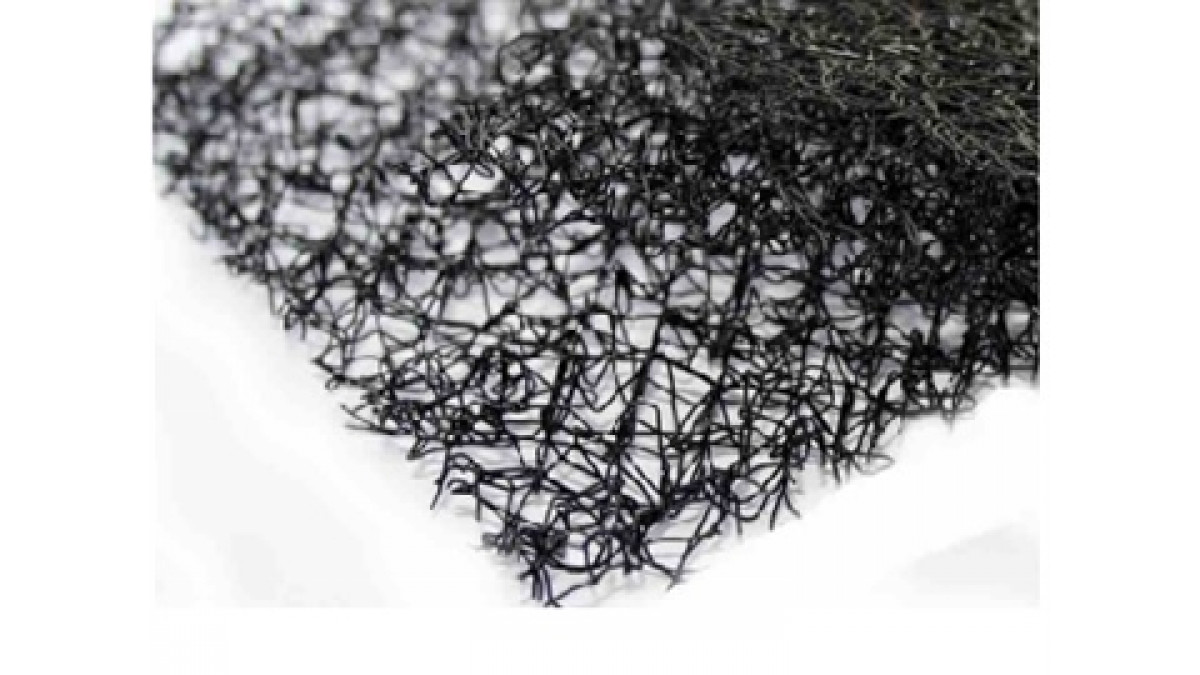

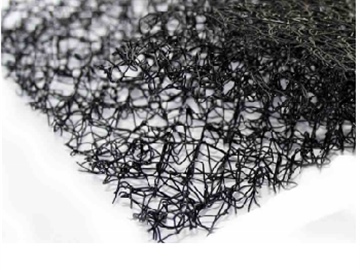

ProctorGeo HC9 Spacer Mat is a three dimensional shaped mesh of UV stabilised polypropylene monofilaments, tangled and fused together.

ProctorGeo HC9 is used to provide permanent drainage and ventilation between the roof sheeting and water resistant roofing underlay. It also offers significant sound reduction from rain impact noise.

Key Features
  • Provides a permanent drainage channel for condensate or moisture that may get under the roof sheet
  • Provides space for continuous air movement between the roof deck/underlay and metal roof
  • Reduces corrosion risk — of particular importance with zinc or galvanised steel roof sheets
  • UV resistant during installation
  • Reduction in rain and hail impact noise on metal roofing of up to 24.8dB
  • Allows for movement of the roof sheet under temperature fluctuations
  • Contributes to reduction in temperature of the roof substrate in summer conditions
  • Allows for evaporation of moisture from the roofing structure
  • Flexible and lightweight for ease of install
  • Easily cut with scissors or knife
Categories
Wraps, Underlays and DPCs
Ranges
Roof Underlays
Scope of Use
  • Used to provide permanent drainage and ventilation between the roof sheeting and water resistant roofing underlay
  • Offers significant sound reduction from rain impact noise
  • Reduces corrosion risk — of particular importance with zinc or galvanised steel roof sheets
  • Allows for movement of the roof sheet under temperature fluctuations and contributes to reduction in temperature of the roof substrate in summer conditions
Other Performance Attributes
  • Reduction in rain and hail impact noise on metal roofing of up to 24.8dB

Technical Properties:

PropertyStandardValue
Weight EN 1849-2 350g/m² (± 5%)
Thickness En 1849-2 9mm (± 15%)
Tensile Strength MD EN 12311-2 70N/50mm (± 15%)
Tensile Strength CD EN 12311-2 40N/50mm (± 15%)
Temperature Range   -20°C / 80°C
Reaction to Fire EN 13501-2 Class E
Flammability AS 1530.2 Low (≤5)
Ignitability Index AS1530.3 0
Spread of Flame Index AS1530.3 0
Heat Evolved Index AS1530.3 0
Smoke Developed Index AS1530.3 2
UV Stability   4 weeks
Documents
Product Technical Statement
pdf
