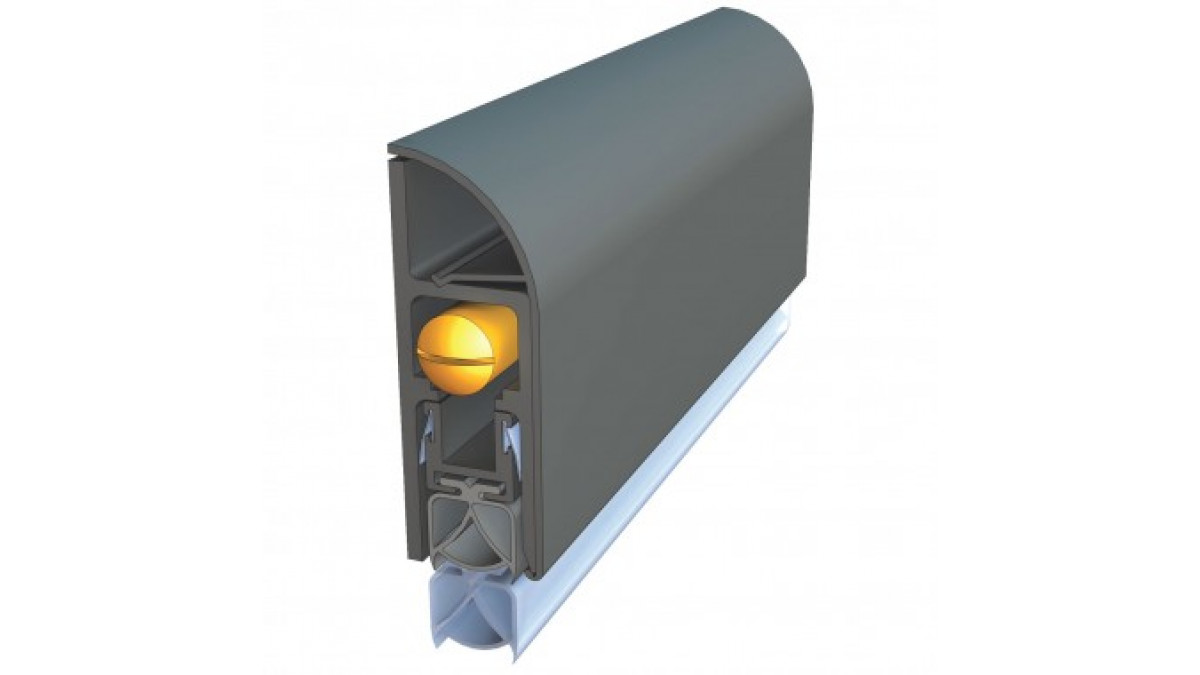

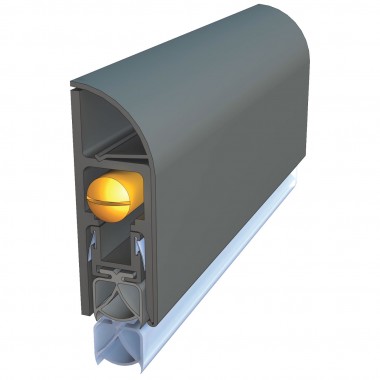

Kilargo IS8091si Automatic Door Bottom Seal
Description

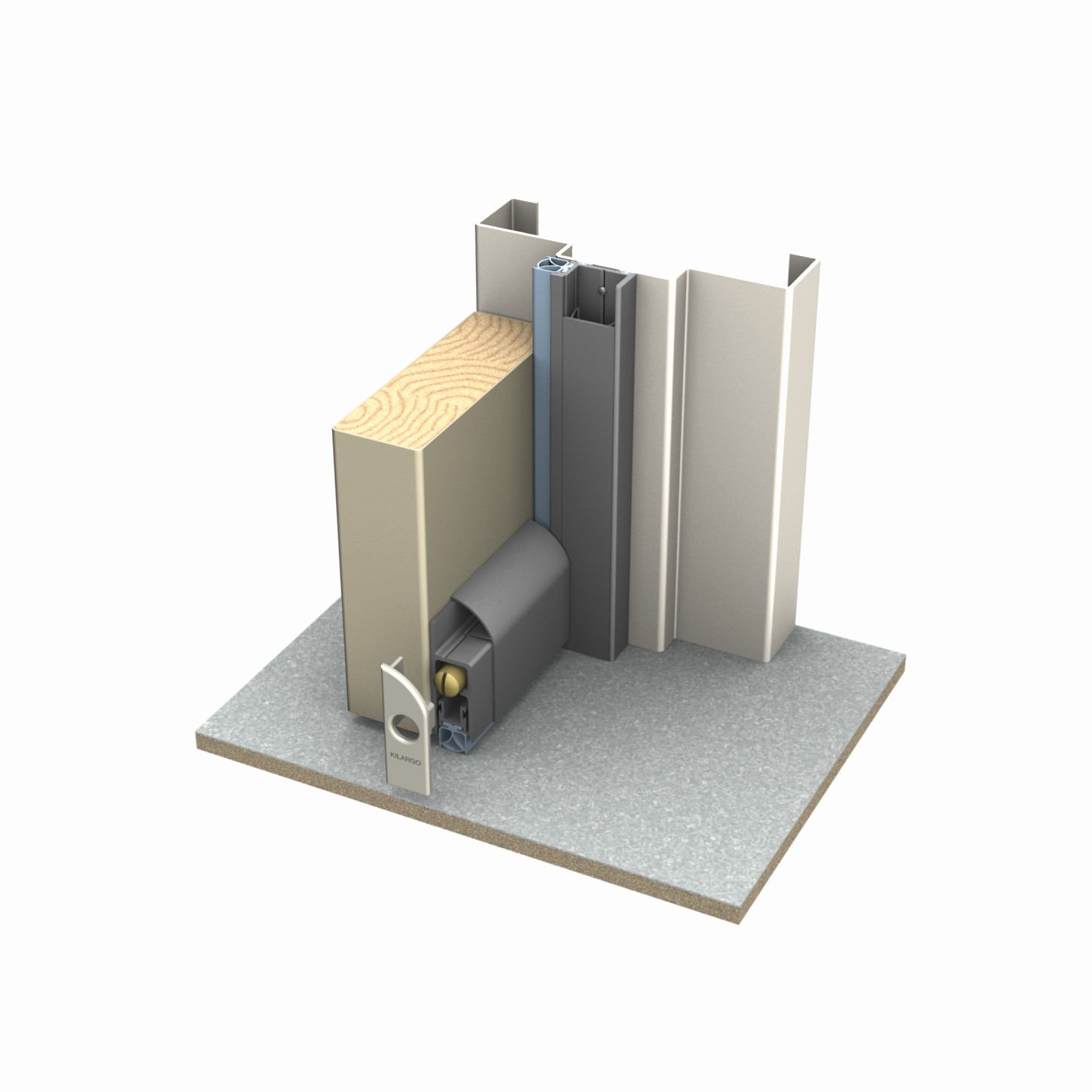

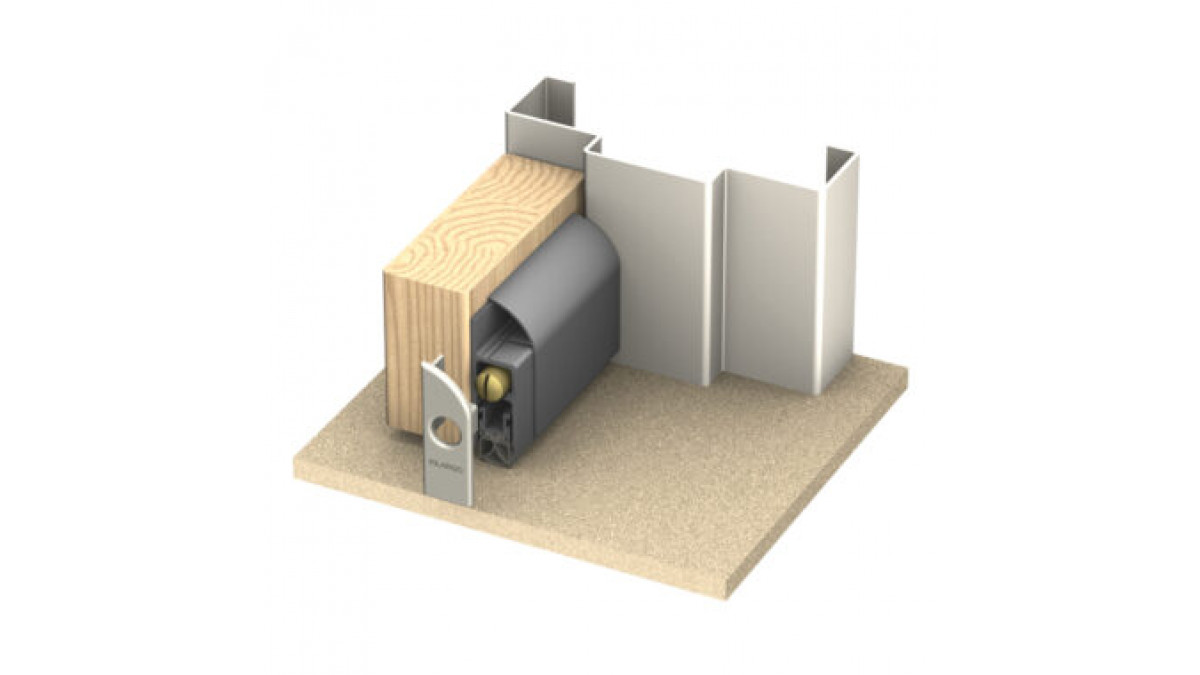

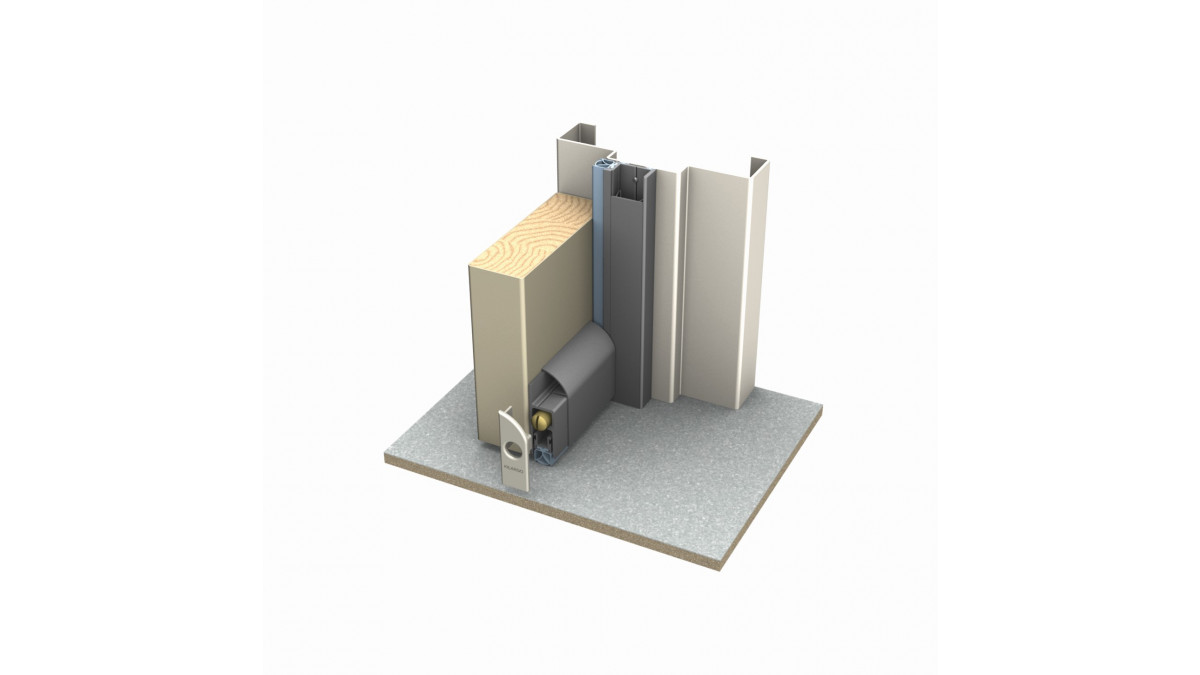

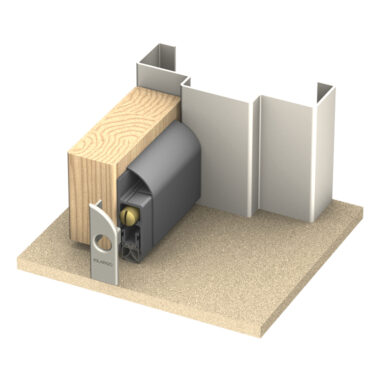

A heavy duty, automatic door bottom seal which is face-fixed to the bottom edge of single action doors. The seal has a spring loaded mechanism which lifts the seal clear of the floor as soon as the door is opened. Pressure against the door jamb on the adjustable brass strike button operates the seal automatically.

The seal is fixed to the face of the door bottom using the fixing screws provided. A set of rigid push-fit reinforced nylon end plates ensure longevity of the seal mechanism. An aesthetic, architectural aluminium cover plate, provides an ‘easy to clean’ surface for clean-room environments.

The seal contains a high efficiency mechanism to assist with the closing force requirements detailed in AS1428/1 (Design for Access and Mobility).

This seal is also available with antimicrobial silicone gasket(s).

Standard colours:

  • Silver anodised aluminium with grey end plates and grey silicone gasket
  • Black end plates and black silicone gasket also available upon request
Key Features
  • Heavy duty face-fixed automatic door bottom seal
  • Operates automatically by pressure against the door jamb on its adjustable strike button
  • Push-fit reinforced nylon end plates ensure longevity of the seal mechanism
  • An aesthetic, architectural aluminium cover plate, provides an ‘easy to clean’ surface for clean-room environments
  • The seal contains a high efficiency mechanism to assist with the closing force requirements detailed in AS1428/1 (Design for Access and Mobility)
Scope of Use
  • Heavy duty, bottom seal which is face-fixed to the bottom edge of single action doors
  • Automatic doors
  • Mechanism to assist with closing for access and mobility design
  • ‘Easy to clean’ surface for clean-room environments
  • Also available with antimicrobial silicone gasket(s)

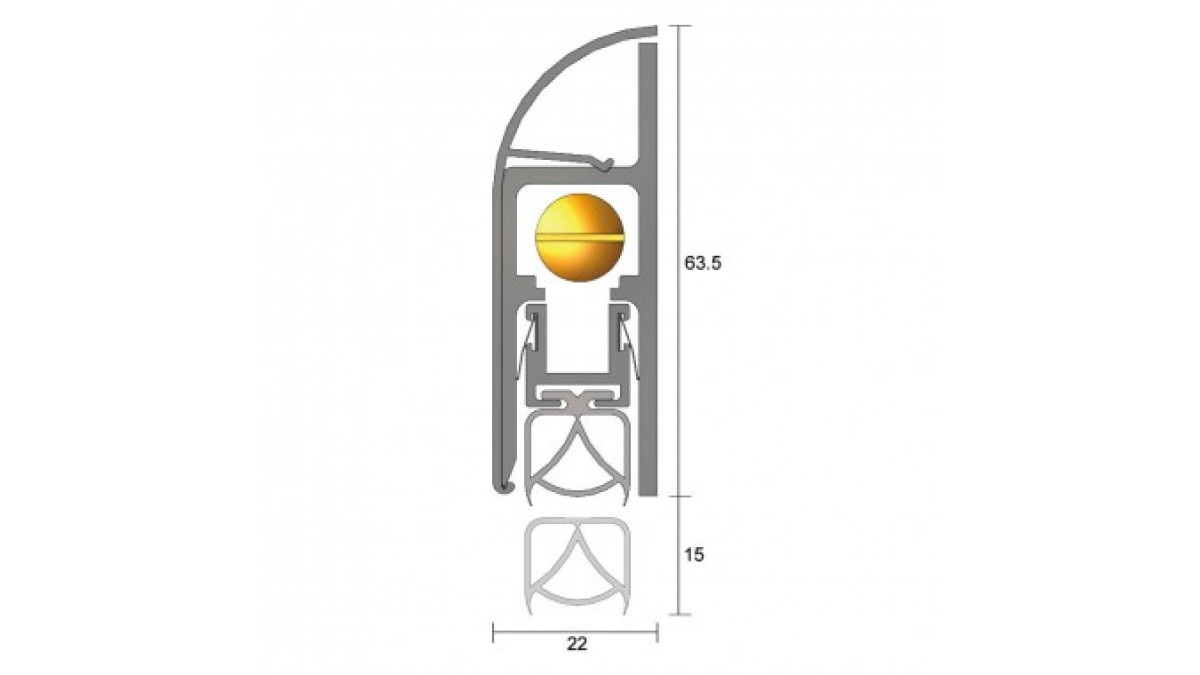

Gap size:

  • Min. 3mm / max. 15mm

Standard lengths:

  • 450mm
  • 610mm
  • 820mm
  • 920mm
  • 1070mm
  • 1220mm
  • 1500mm
  • Longer length available to special order up to a maximum 1600mm

IS8091si maximum allowable cut-back sizes:

  • 450mm seal cuts to 275mm
  • 610mm seal cuts to 450mm
  • 820mm seal cuts to 610mm
  • 920mm seal cuts to 610mm
  • 1070mm seal cuts to 920mm
  • 1220mm seal cuts to 1070mm
  • 1500mm seal cuts to 1220mm
  • Seals can be cut on site for exact dimension
Limitations on Use
  • Generally not suitable for pivot doors as standard
  • Not suitable as a weather seal for external doors

Fire doors are a proprietary product. Despite similarities in manufacture and supply, each fire door must have its own test data outlining its field of application as mandated by the Building Code of Australia through the requirements set out in AS1905 Part 1.

Please contact a dormakaba representative for confirmation on which seals are suitable for the specified fire doors.

Statement of Building Code Compliance
  • Fire tested to AS1530 Part 4 in accordance with AS1905 Part 1
  • Certifications GVYI.R26629, GVWZ.R26629, GVWZ7.R26629
  • Medium temperature smoke leakage approvals to AS1530 Part 7, compliant with AS6905 on proprietary door assemblies
  • Conforms with BCA Specification C3.4 smoke sealing requirements
  • Acoustically tested in accordance with AS1191, IS0140.3 and ISO10140-2
In-Service History

Notable projects include:

  • Lady Cilento Children’s Hospital, Brisbane
  • Adelaide Oval Redevelopment
  • ELF Enoggera Gallipoli Barracks, Brisbane
  • Women's & Children's Hospital — Gilbert Building Extension
Other Performance Attributes
  • All seals manufactured in Australia
  • Durability tests demonstrating over 1,000,000 open and close cycles
Documents
Data Sheet

IS8091si 10/04/2018

Kilargo Antimicrobial Seals Factsheet

Jan 2020

Installation and Operation

IS8091si 05/12

Kilargo Care and Maintenance
Kilargo Door Sealing Systems Product Catalogue

Feb 2018

Kilargo Healthcare & Hygenic Environments Door Sealing Solutions

20200318

CAD/PDF Details
