Accessibility and Wellbeing for Door Openings: Access Solutions for Every Application

Carefully considered products for door openings ensure buildings are open to all, and available for use by everyone — without restriction or the need for assistance. Further to this, we all have responsibilities to maintain hygiene in public areas.

dormakaba focus on specific property and user needs when helping designers to select the right opening/closing technology to ensure ease of accessibility and secure visitor areas within buildings in an attractive manner — compliant with NZ Building Standards and best practice guidelines.

dormakaba offer a variety of solutions by providing a combination of products to create dovetailed solution concepts that are tailored to the individual building requirements. With modern hardware and software solutions, building managers can organise and secure operations in their buildings simply, reliably and on-demand. This includes control of people flow and granting various access rights for different groups of people while enabling unhindered access for people with mobility limitations.

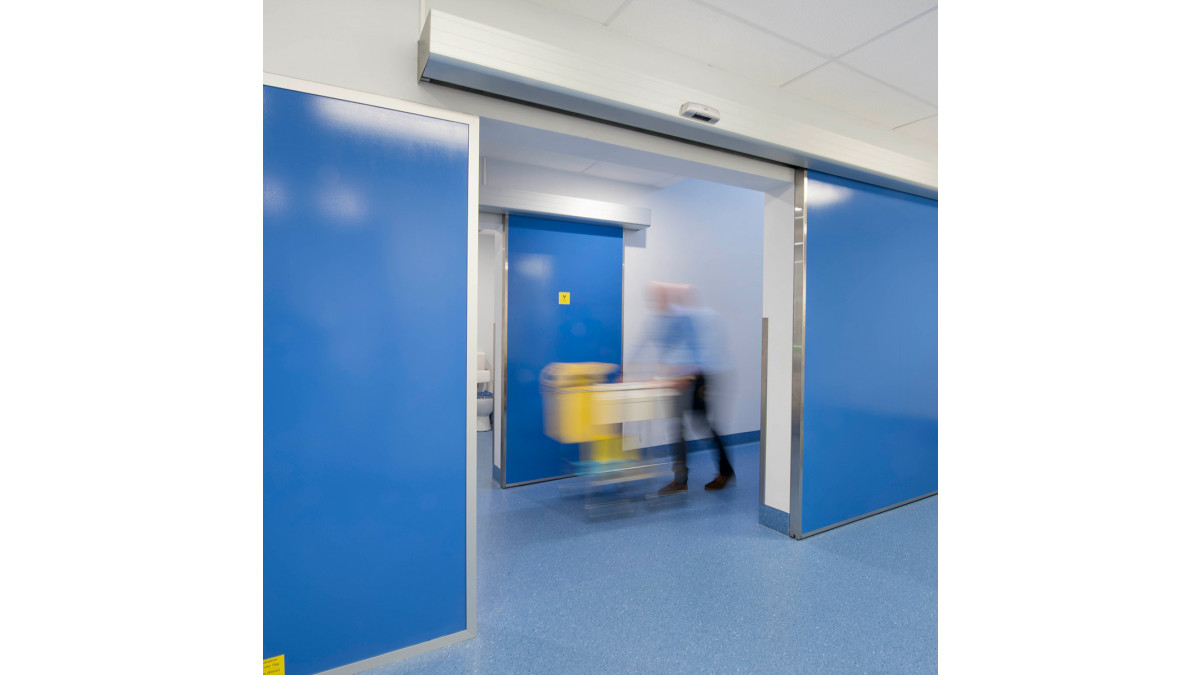

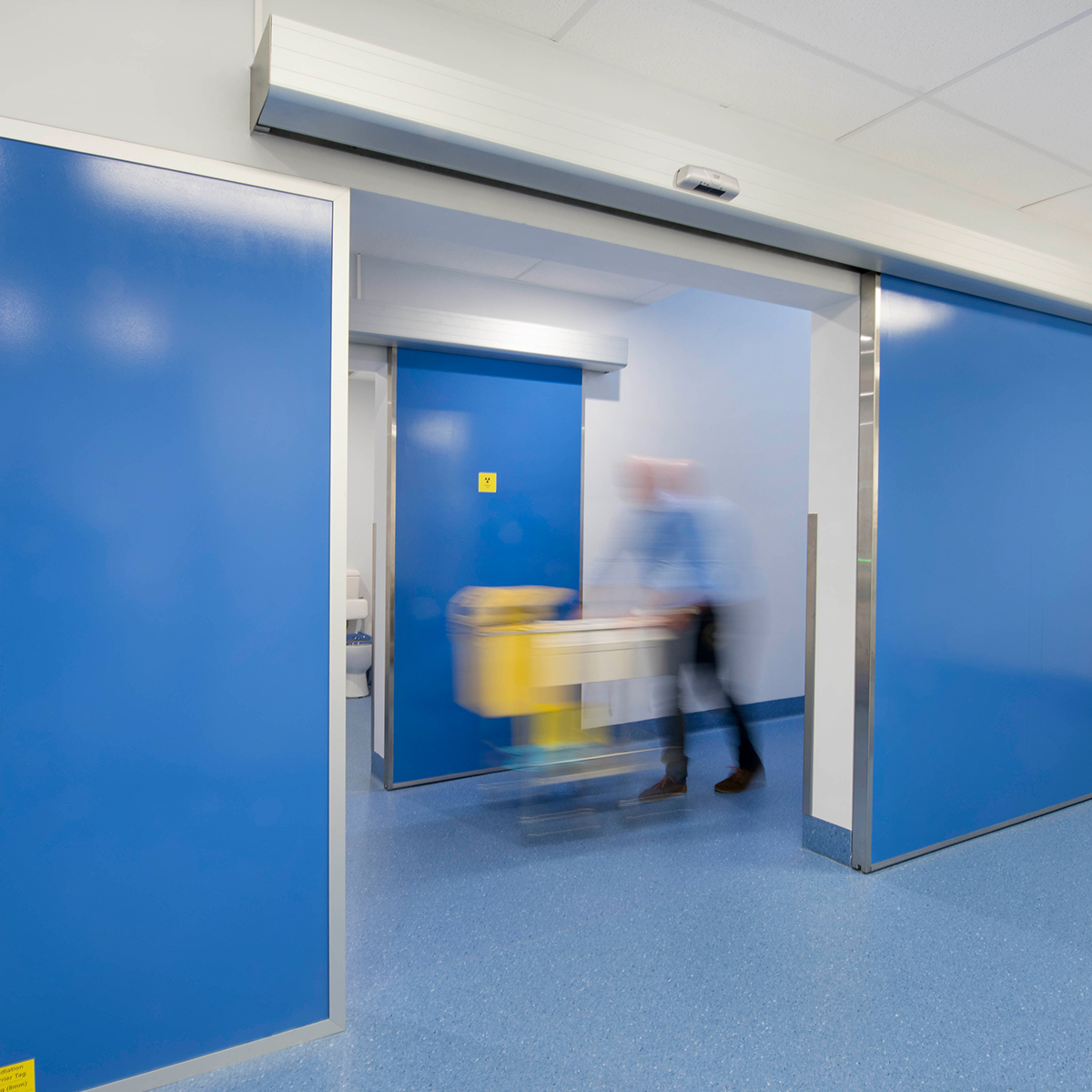

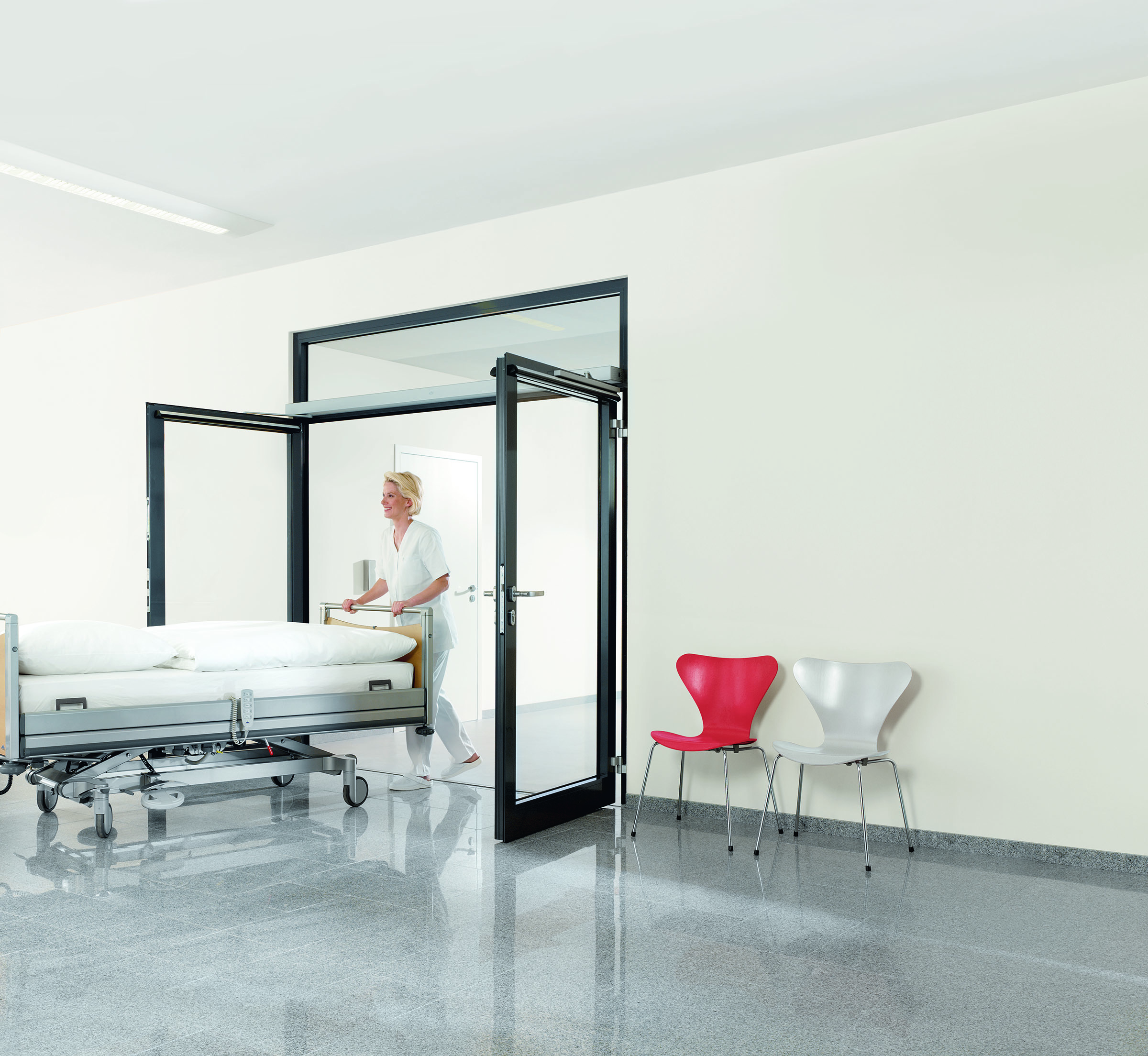

Automatic door systems make facilities such as offices, hospitals, shopping centres or even residential housing easily accessible for any visitor. dormakaba automatic doors and touchless switches play their part in providing easier access for accessibility and reducing the spread of germs — and are all stylishly designed. dormakaba ED100 and ED250 for hinged doors and ES and EL ranges for sliding doors are practically noiseless automatic door operators. Fitted with Touchless Magic Switches these solutions create a complete touch-free door opening solution.

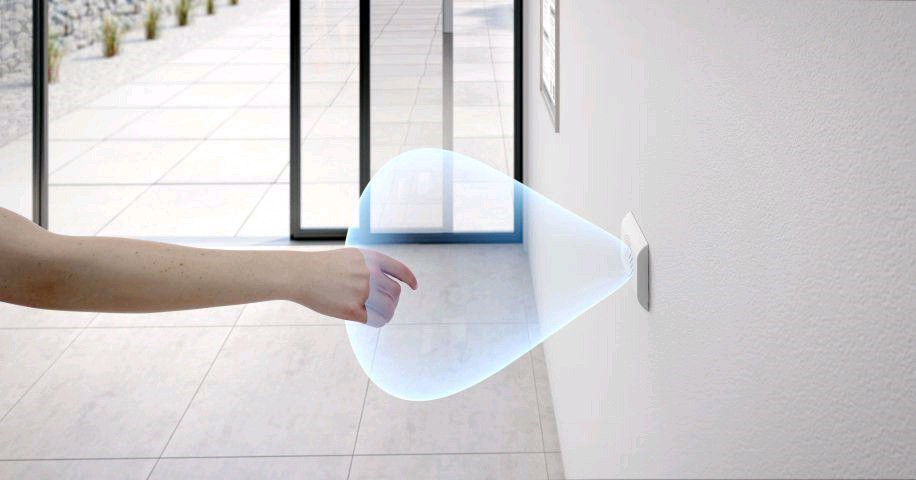

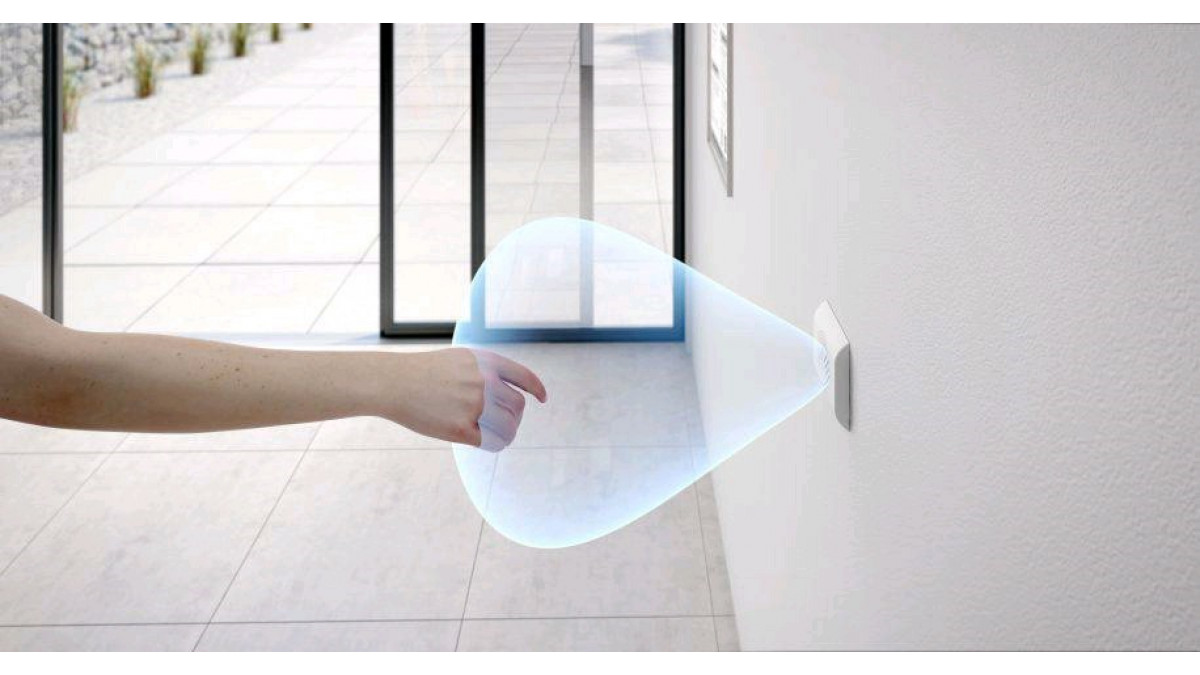

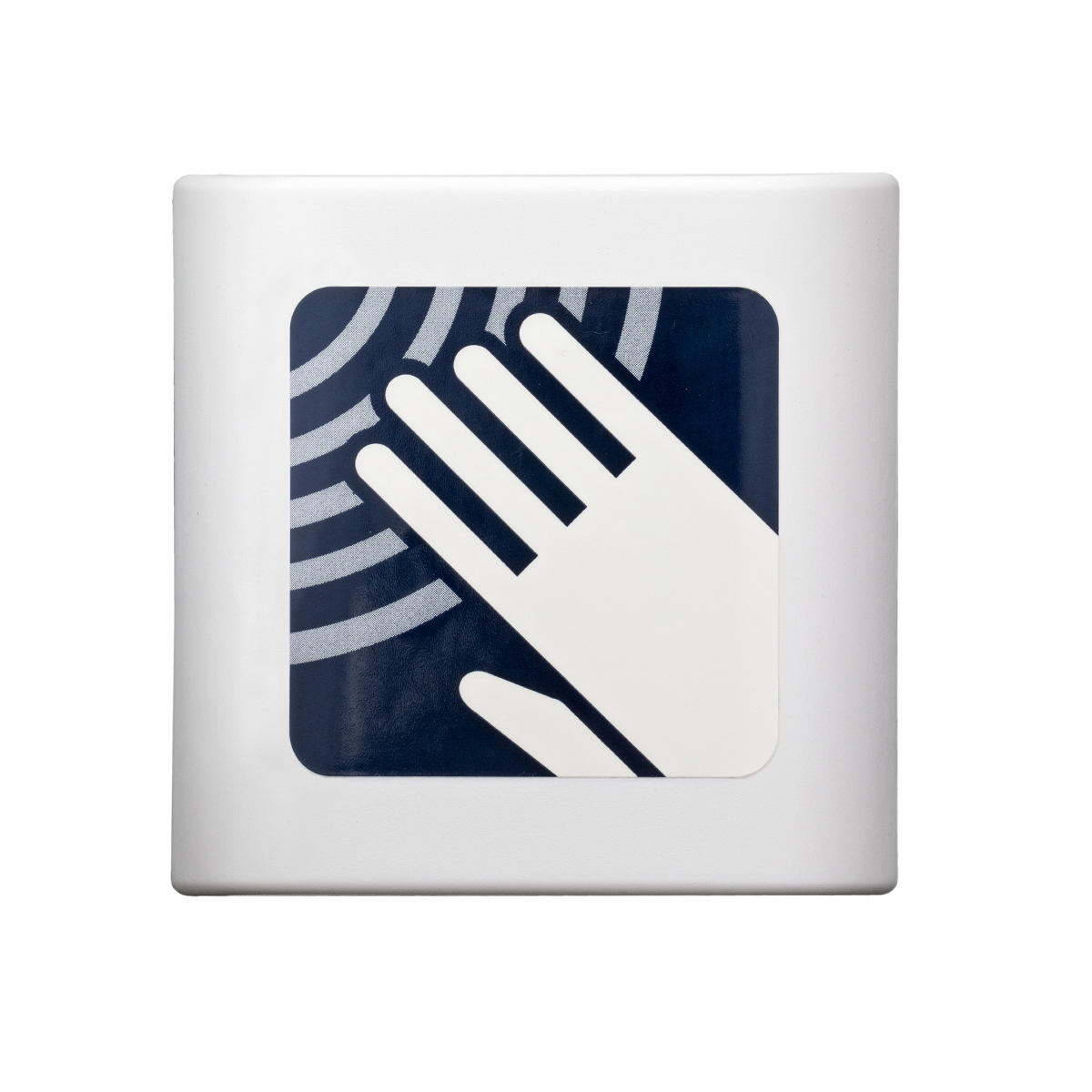

The dormakaba Touchless Magic Switch serves as a non-contact switch and uses the most reliable technology on the market for motion detection: the Doppler effect, which offers the best possible detection. Door opening is triggered by a simple hand movement in front of the sensor; this attribute paired with an automatic operator allows for a contactless hygienic opening.

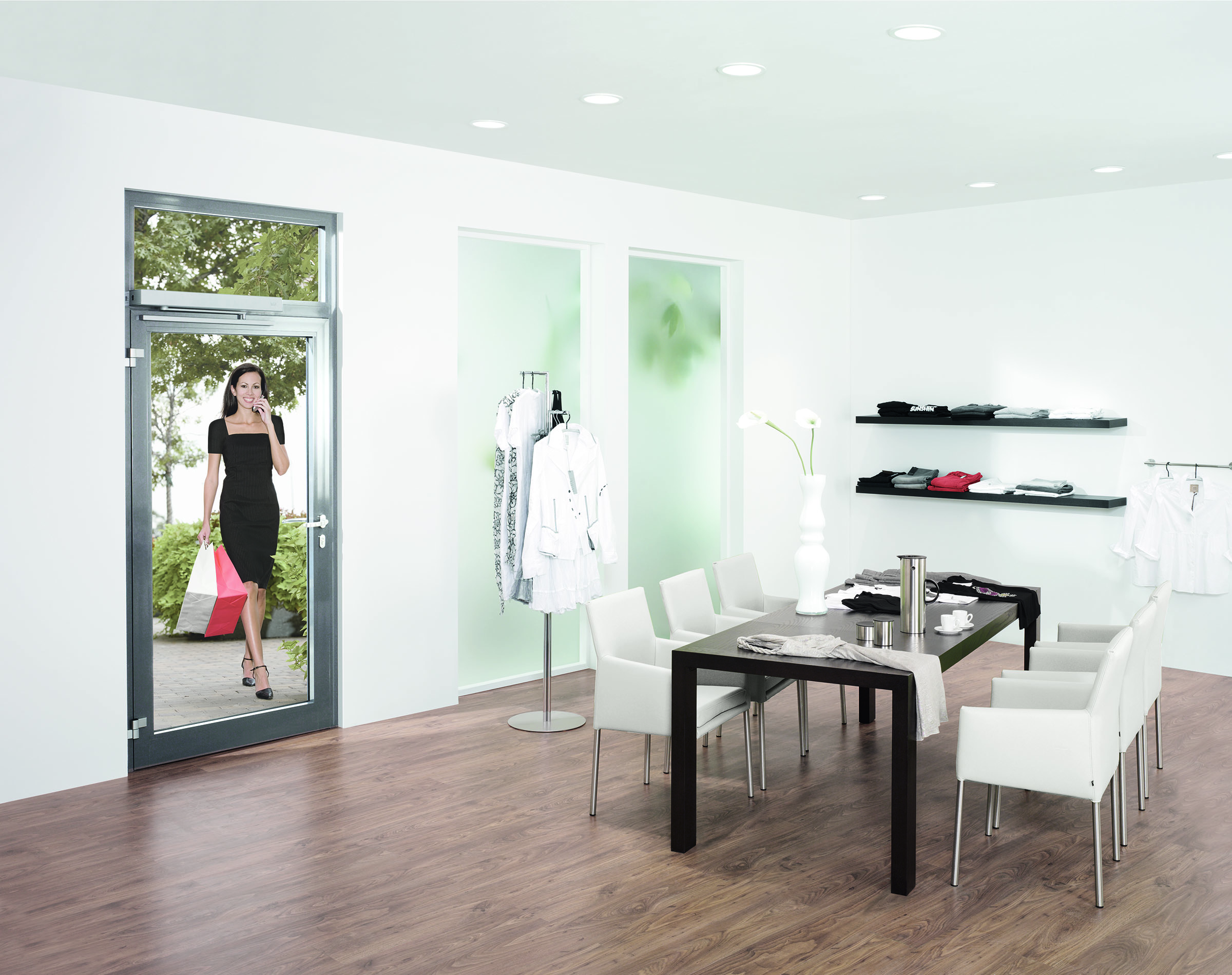

For manual doors, dormakaba cam action doors closers with specially designed accessibility technology — dormakaba's heart-shaped EASY OPEN cam action door closers — guarantee rapidly decreasing opening resistance to allow accessible, effortless opening of doors. This complies with DIN SPEC 1104 recommendations for manual closing devices to reduce opening resistance by 40% in the 2° to 60° range.

Whatever a project consists of, dormakaba support designers in every given situation with their innovative solutions and comprehensive services. This lets designers focus on what is important: ensuring the accessibility and well-being of building occupants and visitors.

A combination of these solutions can be found throughout New Zealand. Recent key projects include:

Oncology Dept Christchurch Hospital
Middlemore Hospital Clinical Services
Acute Services Christchurch Hospital
Grey Base Hospital Theatres
Russley Village Christchurch
University of Auckland
Waitakere Hospital Auckland

View Video: dormakaba Access Solutions for Hygienic Areas

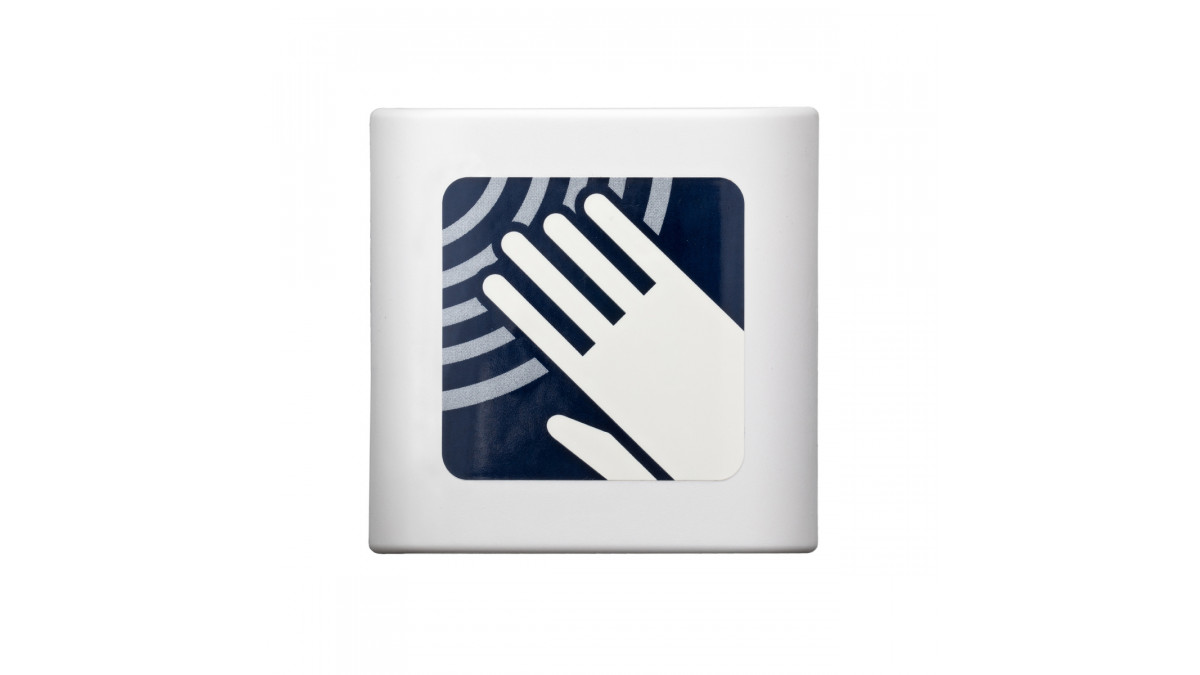

Touchless Magic Switch for Automatic Doors

dormakaba

View Product

The dormakaba Magic Switch serves as a non-contact opener for automatic doors.

Provides a contactless opening solution:

Hinged and sliding automatic doors
Clean rooms, hospitals and operating theatres, restaurants and food preparation, logistics, hotels, and retail
Easy opening solution for low energy doors used by people with disabilities
Can be used in conjunction with security access, as an alternative to a request to exit button
Wall or surface application
Discrete flush mounted design
Dimensions H85mm x W85mm

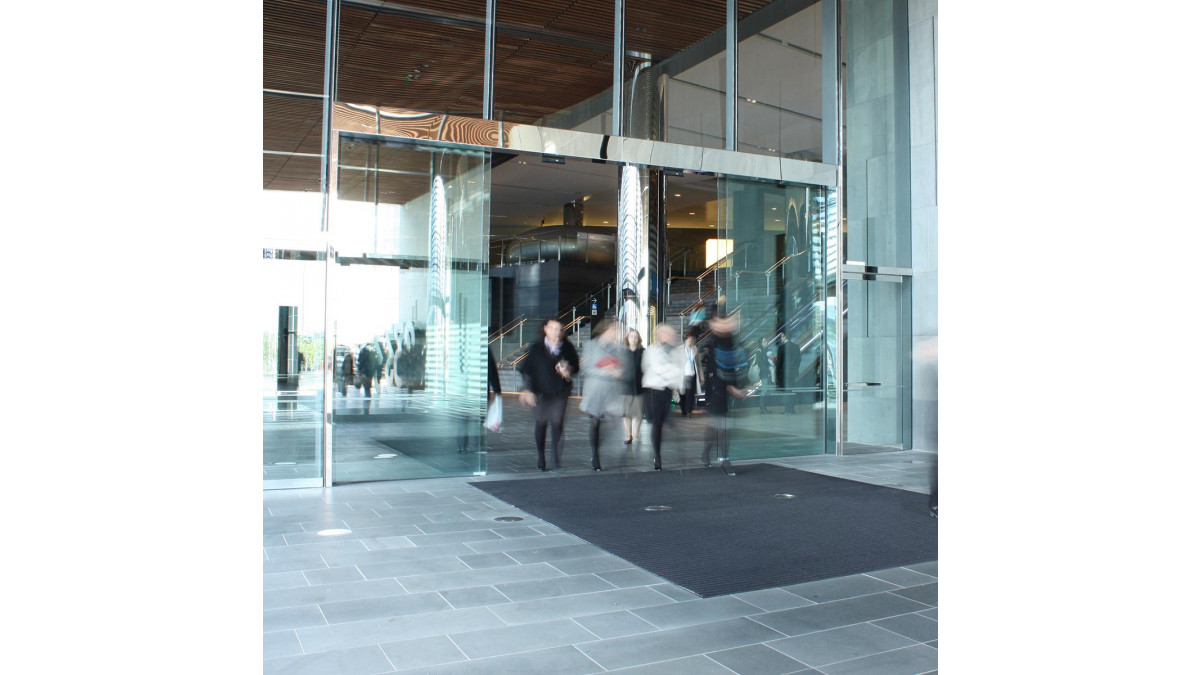

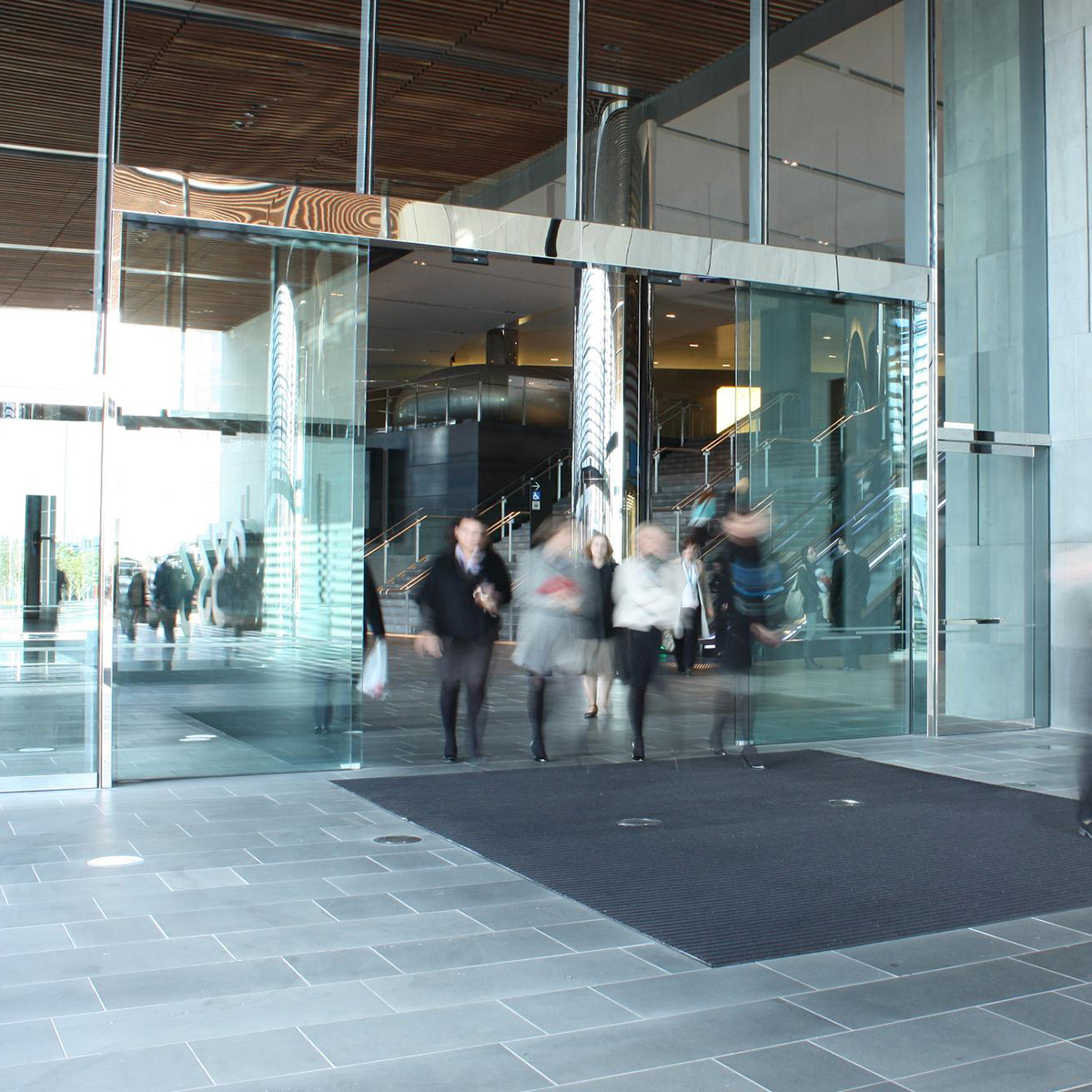

dormakaba AL 401 / 501 Automatic Sliding Door Operator

dormakaba

View Product

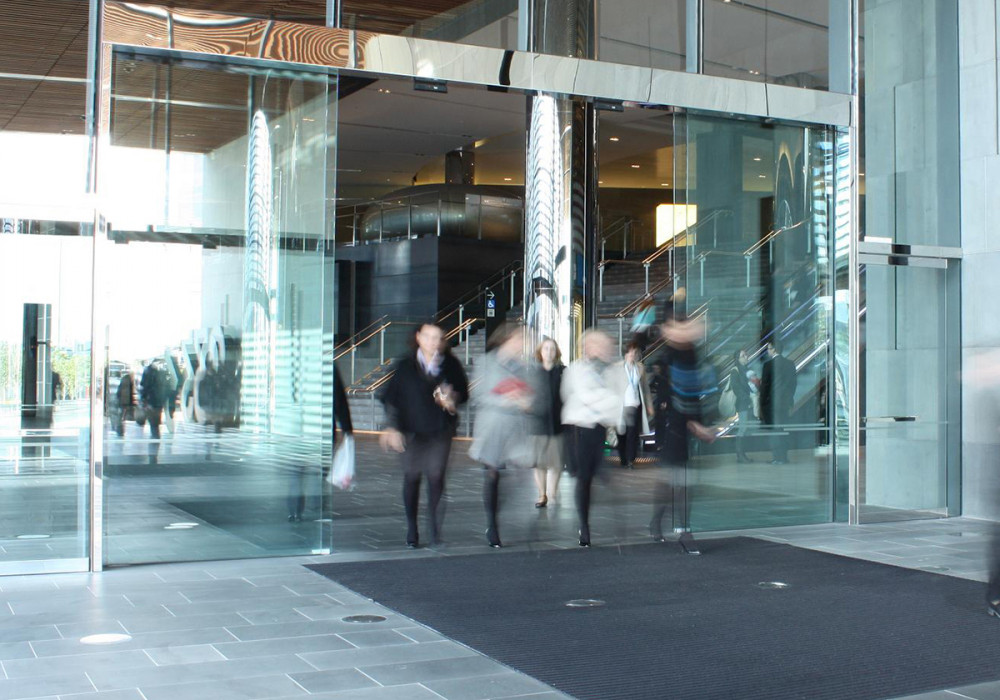

Heavy duty deluxe automatic door operator, engineered to accommodate the extremes of automatic door control.

Suitable for high usage applications and is a proven performer in airports, shopping centres, supermarkets, hotels, hospitals, financial institutions, sports stadiums and many other large commercial applications.

AL 401:

Door weight capacity 400kg
aluminium framed and 12mm, 15mm, 19mm thick frameless glass

AL 501:

Door weight capacity 500kg
aluminium framed and 12mm, 15mm, 19mm, 25mm thick frameless glass

AS5007 NATA accredited

DORMA Sensors

dormakaba

View Product

Sensor is a sensor device for automatic doors supplied by DORMA.

DORMA ED 250 Automatic Swing Door Operator

dormakaba

View Product

Automatic swing door operator for doors up to 250kg.

DORMA provides an easy-to-install integrated door coordinator for double-leaf doors. With the aid of the DORMA Upgrade Card, the system's functional range may be adapted to various door versions, which ensures that the majority of possible applications can be readily accommodated.

The ED 250 swing door operator is especially suitable for exterior doors that are subjected to varying wind loads, and for interior doors separating rooms where different air pressures prevail. While the system is in automatic mode, the wind load control monitors the actuation speed, keeping it constant at the preset value.

For the conversion of two Grade II listed Georgian buildings into the state-of-the-art Eccleston Square Hotel, DORMA supplied its ED 250A with its revolutionary Wind Load Control.

DORMA ED 100 Automatic Swing Door Operator

dormakaba

View Product

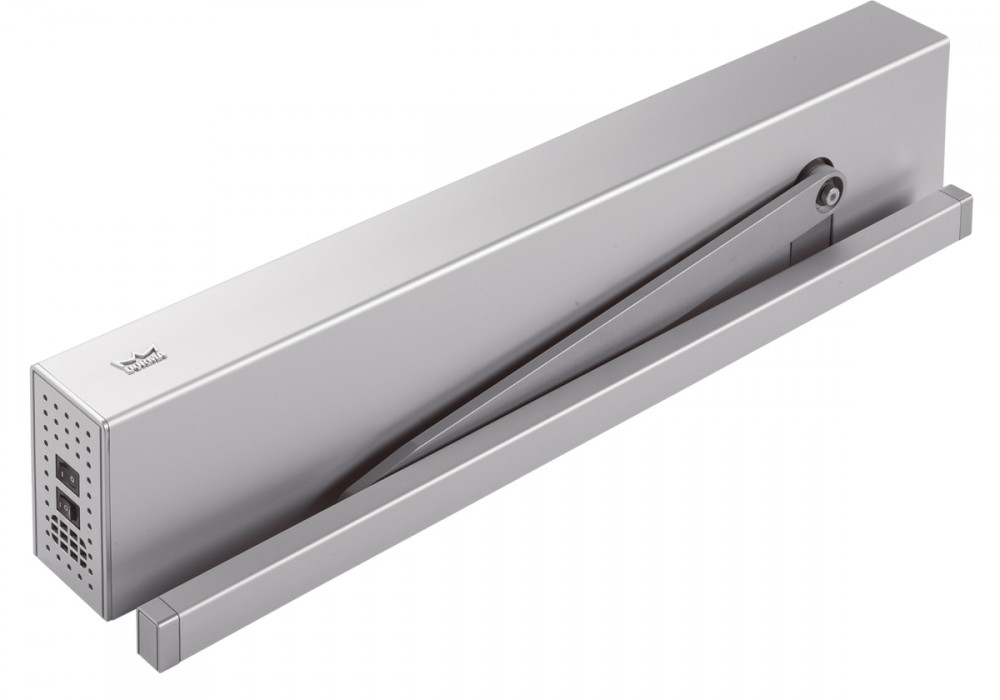

With the ED 100, DORMA offers an electromechanical swing door operator for various fields of application.

An easy-to-install integrated door coordinator for double-leaf doors. With the aid of the DORMA Upgrade Card, the system’s functional range may be adapted to various door versions, which further ensures that the majority of possible applications can be readily accommodated.

The ED 100 Swing Door Operator is especially suitable for exterior doors that are subjected to varying wind loads, and for interior doors separating rooms where different air pressures prevail.

Transport for Greater Manchester Cycle Hub – Manchester (GBR)

Transport for Greater Manchester opened a major new cycle hub in the iconic City Tower skyscraper in Manchester’s Piccadilly Gardens. DORMA was appointed to supply ED 100 low energy swing doors for two separate exits.Opening the door at precisely controlled speeds and forces, even in tough climatic conditions, the ED 100 was ideal for cyclists when carrying or riding a bicycle upon exit.

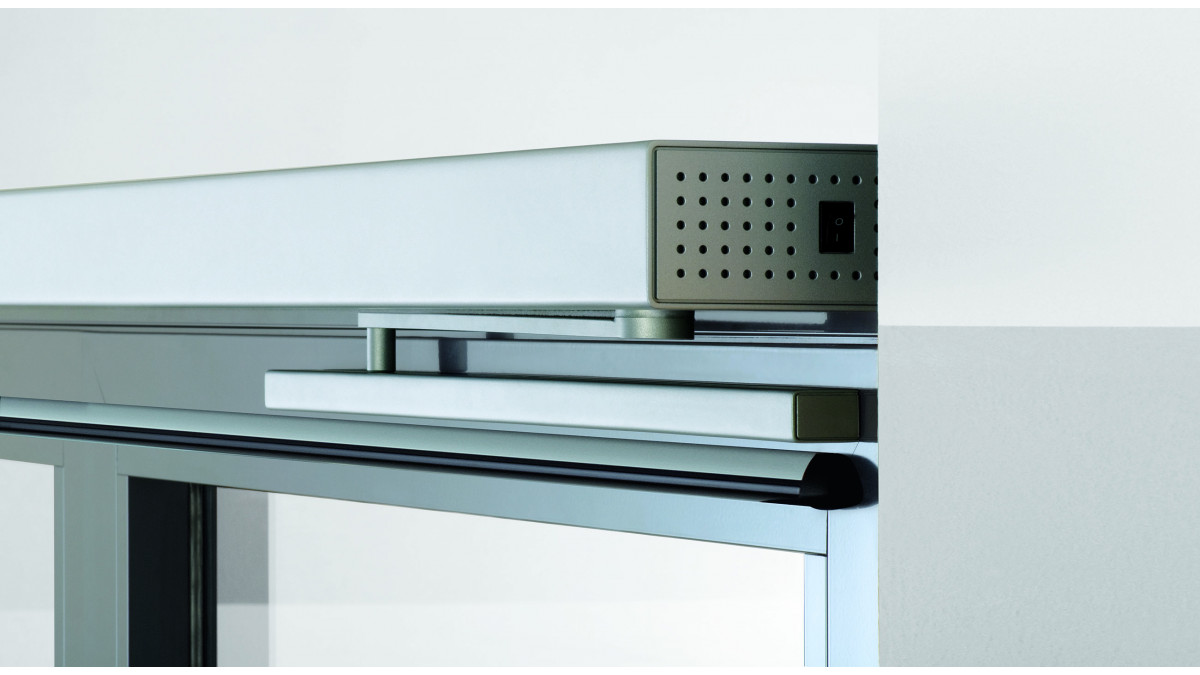

DORMA ES 200 Automatic Sliding Door Operator

dormakaba

View Product

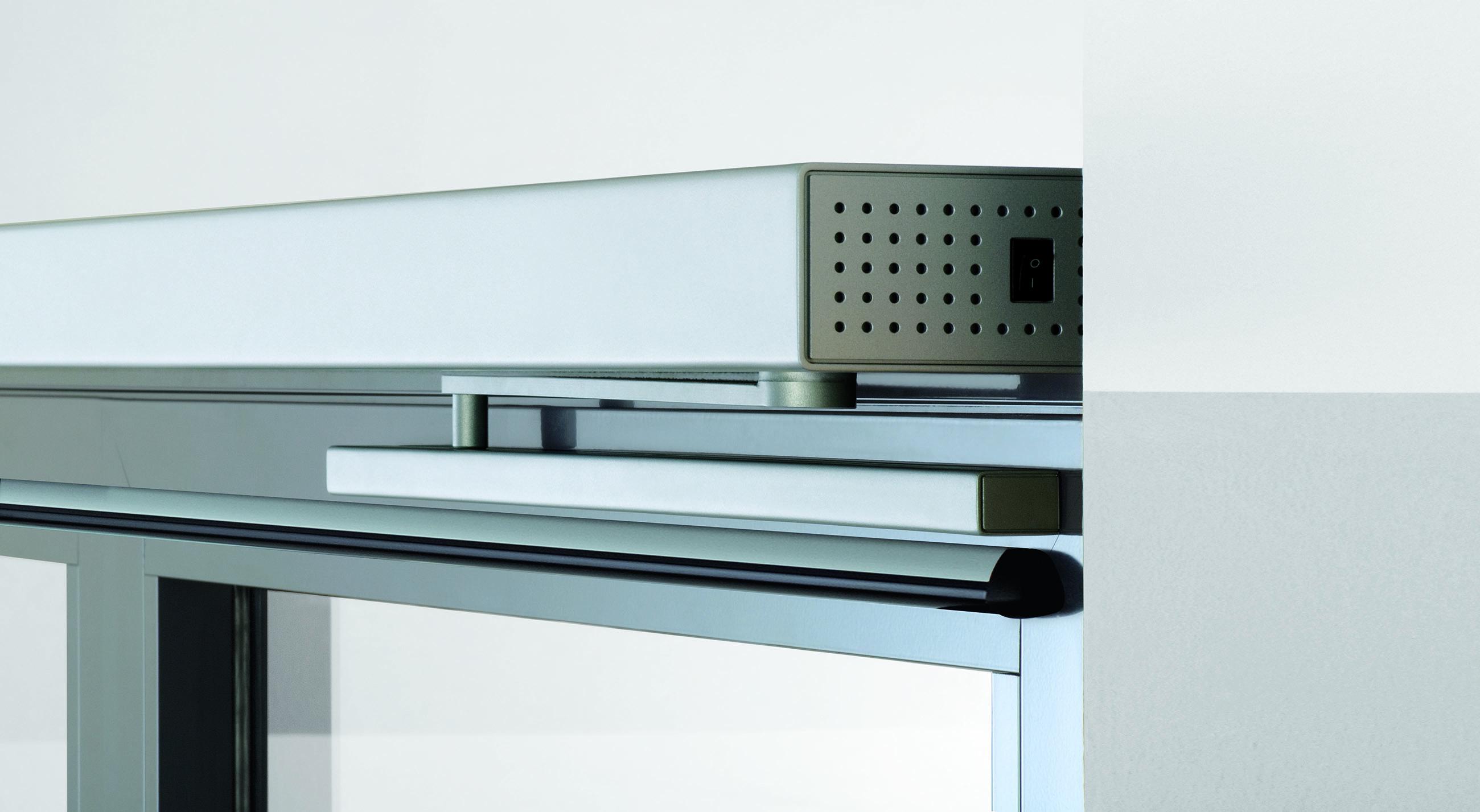

The DORMA ES 200 encompasses a stylish and modern cover design, a motor that ensures a virtually silent operation, a microprocessor that automatically controls the opening and closing speeds of the door, an energy saving power unit and new programming functions allowing for quick and simple installation, set-up and maintenance.

The equipment is designed for mid range commercial automatic sliding doors with maximum door weights of 170kg per single door and 140kg for bi-parting doors.

Suitable for framed doors or frameless glass doors upto 15mm thick.

The equipment may be fully integrated into a Building Management System with all appropriate outputs

Fire
Failsafe
Mains Power

To ensure a high level of safety, the product is tested and complies to N.C.C and is certified by an independent NATA AS5007 accredited lab.

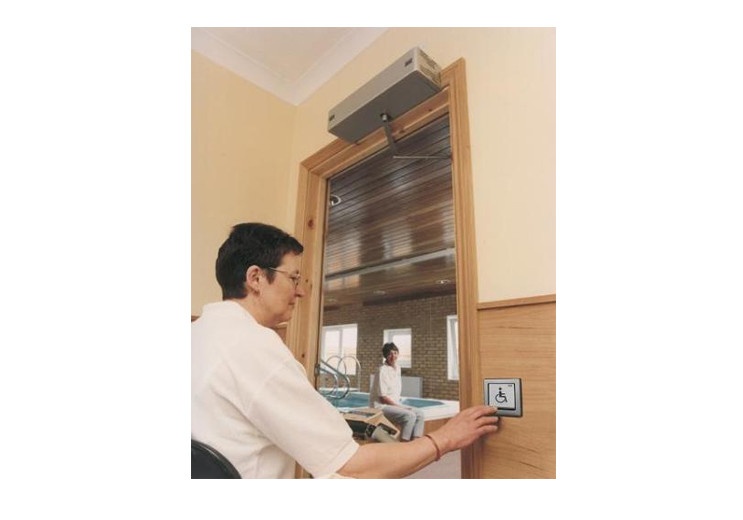

DORMA Disability & Aged Care Applications

dormakaba

View Product

Automated entrances create enormous benefits for the elderly or those with a temporary or permanent disability.

DORMA TS 93 Door Closer System

dormakaba

View Product

The TS 93 cam action door closer system provides a high-quality architectural solution for all project application requirements.

The perfect solution for all application needs; The TS 93 cam action door closer system sets new standards in user convenience in project applications. The proven DORMA technology of the heart-shaped cam ensures exceptional ease of opening.

The TS 93 series comprises a modular system which enables just a few door closer models to be combined with a number of different slide channels to meet virtually every conceivable functional requirement. Doors of varying designs can be equipped for a wide range of different applications.

Cushioned Limit Stop; Accessories for the G-N, RF slide channel: Cushioned limit stop for retrofitting to the slide channel. Adjustable between 80 and 120 degrees. The cushioned limit stop prevents the door from hitting the adjacent wall when opened normally.

TS 93 EMF with Slide Channel with Electro-Mechanical Hold-Open; The G-EMF slide channel assembly enables the door to be held open securely at a preselected position without fall-back. The hold-open point can be adjusted within an opening angle of approx. 80 and 140 degrees.

Vodafone Campus - Dusseldorf

With its new 86,000 sqm Group headquarters located on the former site of the Gatzweiler brewery between Viersener Strasse and Brusseler Strasse, the telecommunications giant Vodafone has created a huge space for the 5,000 employees destined to occupy the complex. Boasting 19 floors and a height of 75 meters, this future German HQ is one of the new landmarks setting the city of Düsseldorf apart.

The Dorma TS 93 Door Closer System was featured in this project.

DORMA TS 92 Door Closer

dormakaba

View Product

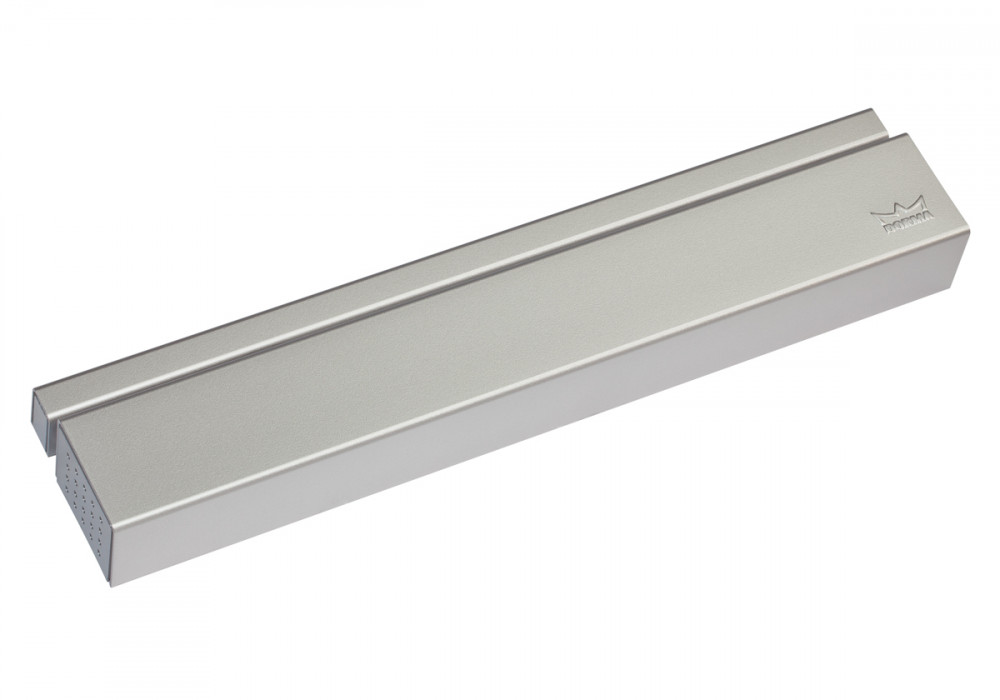

The universal DORMA TS 92 door closer for standard doors in the Contour design.

As units designed especially for interior applications, the TS 92 and TS 91 door closers constitute the perfect complement to the DORMA 93 cam-action door closer system.

The closing speed of the TS 92 is individually adjustable over two independent ranges at two separate valves. The closing force setting (spring strength) for the relevant door width is adjusted with the TS 92 at an infinitely variable lateral adjustment screw.

The heart-shaped cam and the linear drive mechanism which characterise all DORMA cam-action door closers produce a rapidly decreasing opening toque, so greatly reducing the amount of effort required. This means that even children, the elderly and the disabled can open doors with ease.

Olympic Park – London

With over 9 million spectators and a global audience of billions, the London 2012 Olympics was hailed as the most successful ever. As part of this British success story, DORMA, the trusted global partner for premium access solutions and services, supplied 2,500 door closers, 150 items of panic hardware, multiple sets of automatic doors and a variety of glass fittings. Dorma TS 92 Door Closers were specified for this project.

DORMA TS 97 Door Closer

dormakaba

View Product

The TS 97 door closer is a very compact surface-mounted door closer featuring Easy Open technology.

Certified manufacture to ISO 9001.

DORMA TS 90 Impulse Door Closer

dormakaba

View Product

Basic slide channel door closer with cam-action technology.

The DORMA TS 90 Impulse door closer combines technical superiority with excellent efficiency, and advanced design with convenient functionality - based on the EASY OPEN technology. Through its various mounting options and reliable operation, the TS 90 door closer is suitable for a wide range of applications and door situations.

Certified manufacture to ISO 9001
