Kilargo IS8036si Automatic Door Bottom Seal
Description

Medium duty, face-fixed automatic door bottom seal. The seal has a spring loaded mechanism which lifts the seal clear of the floor as soon as the door is opened. Pressure against the door jamb on the adjustable strike button operates the seal automatically.

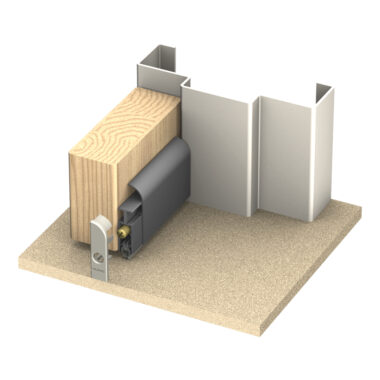

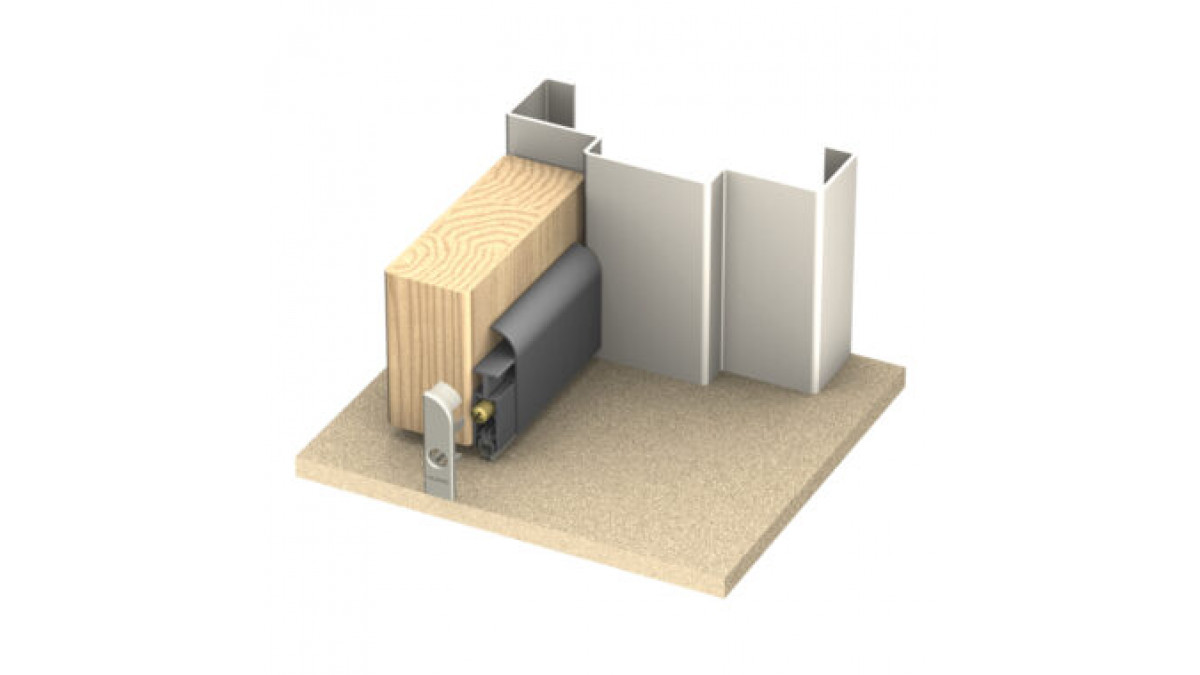

The seal is face-fixed to the bottom edge of single action doors. It has an architectural 'curved' cover plate to conceal fixing points and provide an aesthetic finish. The seal has brass adjustment buttons and injection moulded, push-fit reinforced nylon end plates plus a high efficiency mechanism to assist with the closing force requirements detailed in AS1428/1 (Design for Access and Mobility).

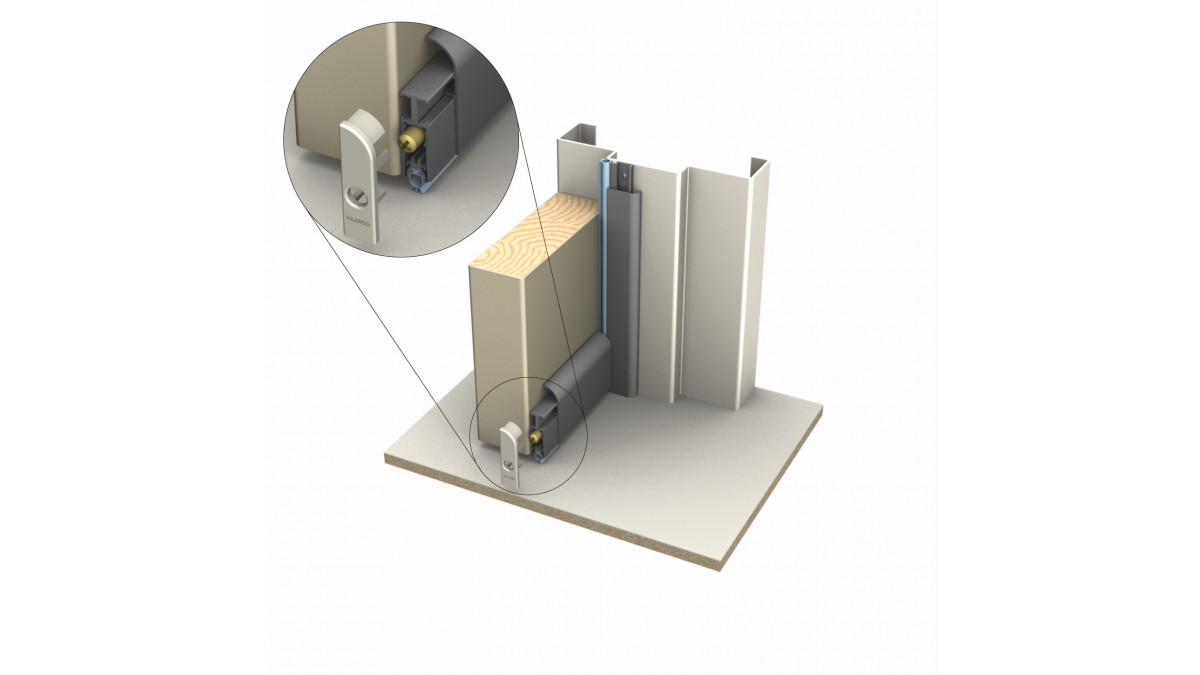

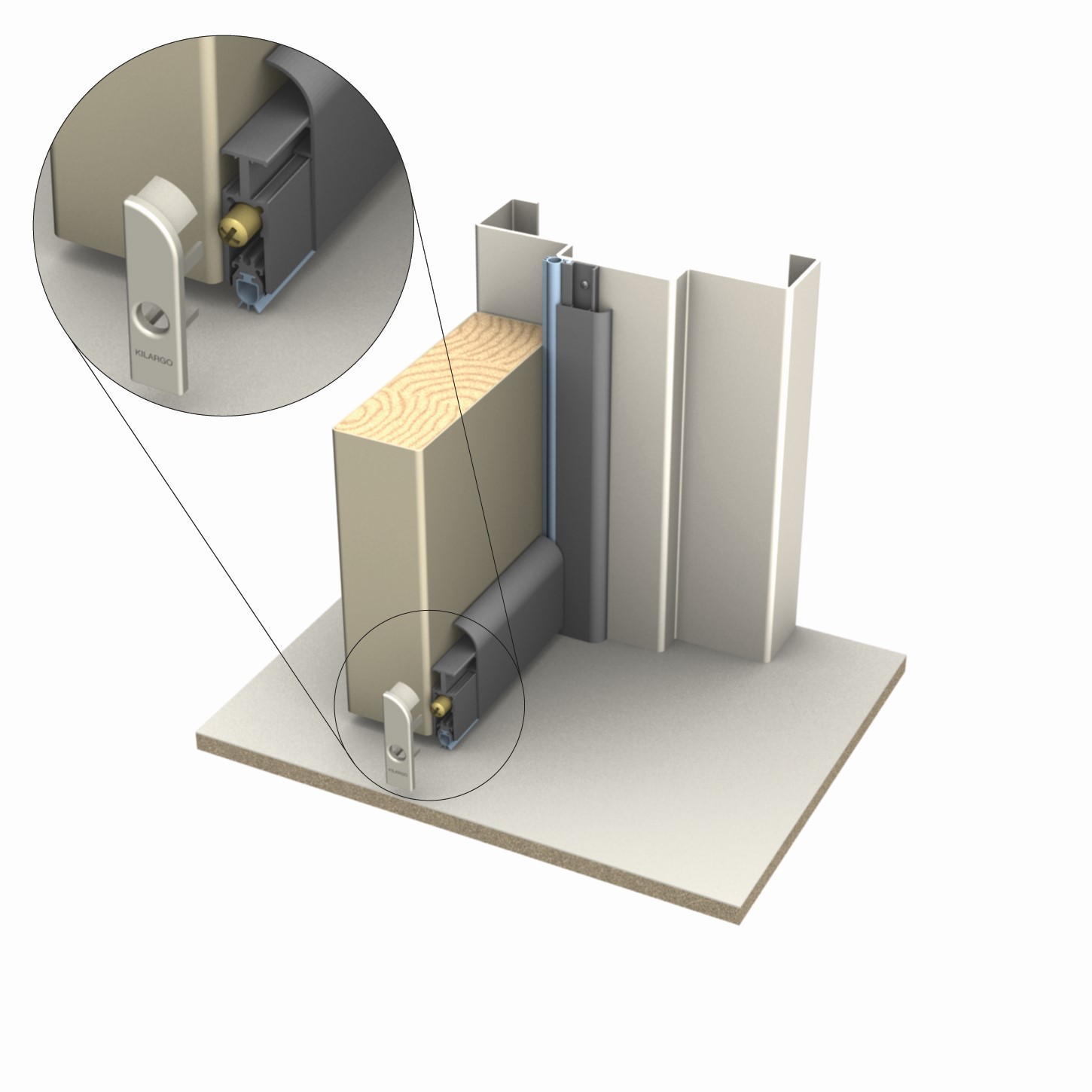

This seal is also available with antimicrobial silicone gasket(s).

Key Features
  • Face-fixed automatic door bottom seal
  • Operates automatically by pressure against the door jamb on its adjustable strike button
  • The seal contains a high efficiency mechanism to assist with the closing force requirements detailed in AS1428/1 (Design for Access and Mobility)
  • Architectural 'curved' cover plate to conceal fixing points and provide an aesthetic finish
Scope of Use
  • Medium duty
  • Face-fixed to the bottom edge of single action doors
  • Single action automatic doors
  • Mechanism to assist with closing for access and mobility design
  • Also available with antimicrobial silicone gasket(s)
  • Conceal fixing points and provide an aesthetic finish

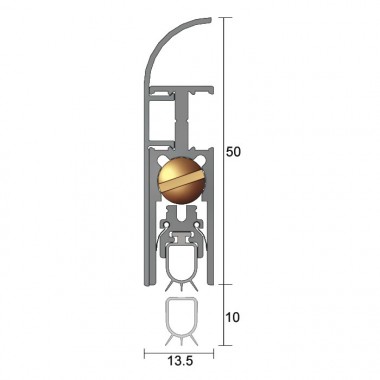

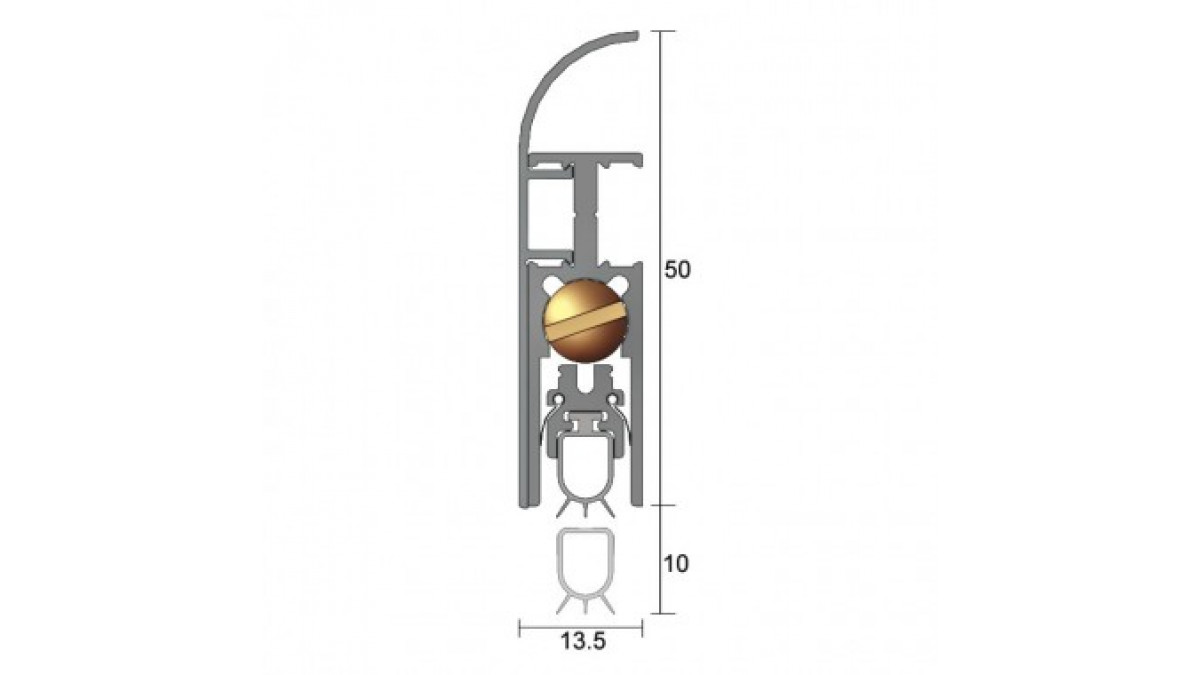

Gap size:

  • Min. 3mm / max. 10mm

Standard lengths:

  • 380mm
  • 600mm
  • 820mm
  • 920mm
  • 1070mm
  • 1220mm


IS8036si maximum allowable cut-back sizes:

  • 380mm seal cuts to 275mm
  • 600mm seal cuts to 380mm
  • 820mm seal cuts to 600mm
  • 920mm seal cuts to 820mm
  • 1070mm seal cuts to 920mm
  • 1220mm seal cuts to 1070mm
  • Seals can be cut on site for exact dimension
Limitations on Use
  • Generally not suitable for pivot doors as standard
  • Not suitable as a weather seal for external doors

Fire doors are a proprietary product. Despite similarities in manufacture and supply, each fire door must have its own test data outlining its field of application as mandated by the Building Code of Australia through the requirements set out in AS1905 Part 1.

Please contact a dormakaba representative for confirmation on which seals are suitable for the specified fire doors.

Statement of Building Code Compliance
  • Fire tested to AS1530 Part 4 in accordance with AS1905 Part 1
  • Certifications GVYI.R26629, GVWZ.R26629, GVWZ7.R26629
  • Medium temperature smoke leakage approvals to AS1530 Part 7, compliant with AS6905 on proprietary door assemblies
  • Conforms with BCA Specification C3.4 smoke sealing requirements
  • Acoustically tested in accordance with AS1191, IS0140.3 & ISO10140-2



Other Performance Attributes
  • All seals manufactured in Australia
  • Durability tests demonstrating over 1,000,000 open and close cycles
