Kilargo IS8010si Automatic Door Bottom Seal
Description

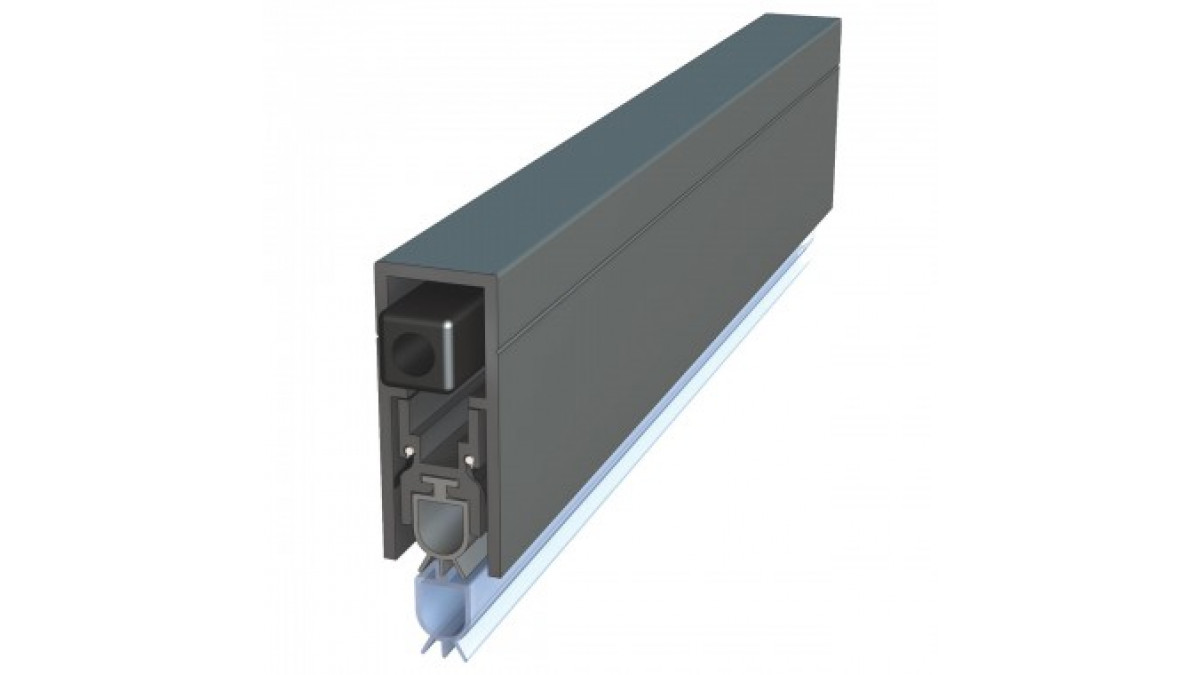

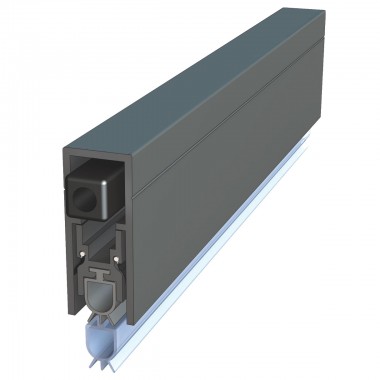

A medium duty, concealed automatic door bottom seal which is mortised into the bottom edge of single action doors. It operates automatically by a spring loaded mechanism which lifts the seal clear of the floor as soon as the door is opened.

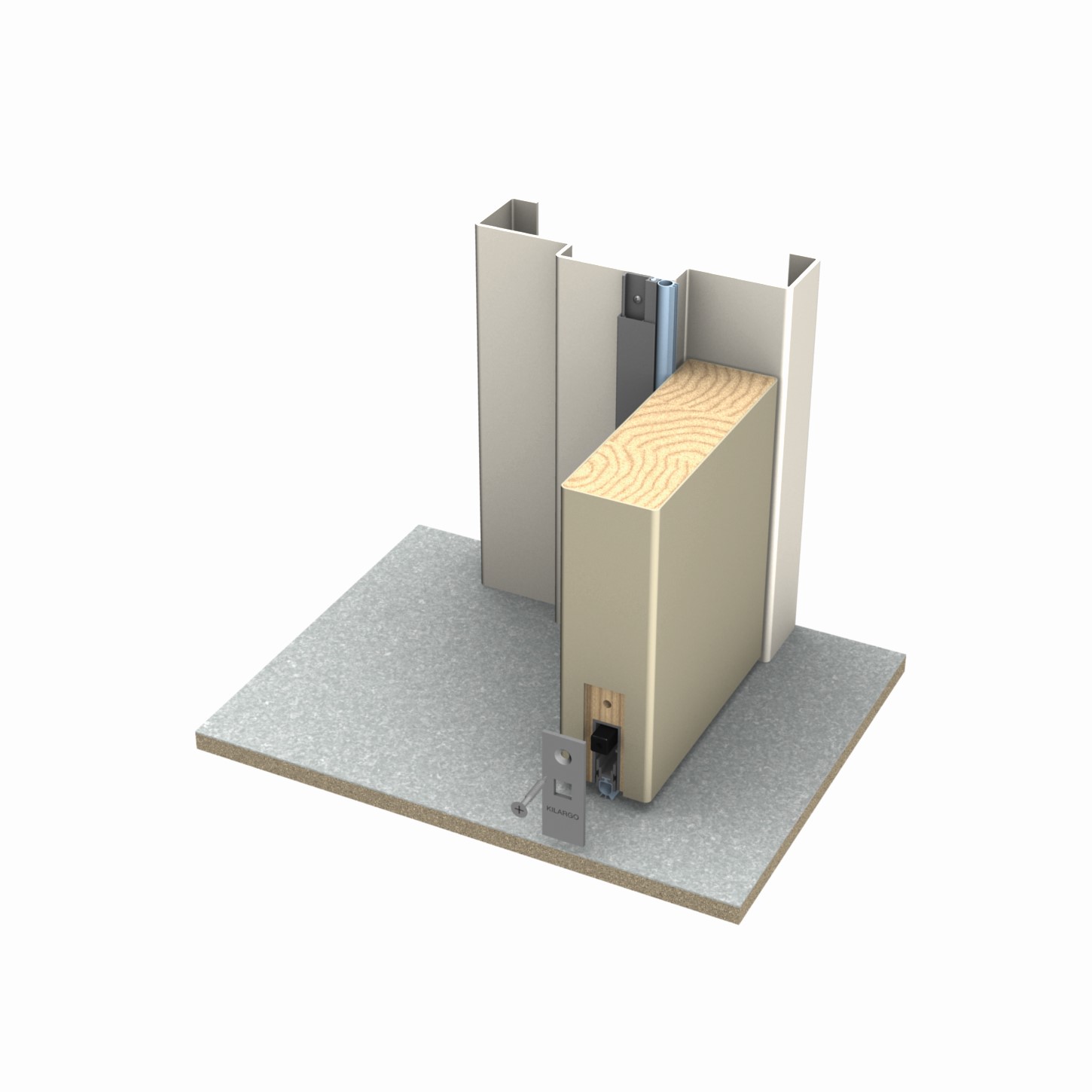

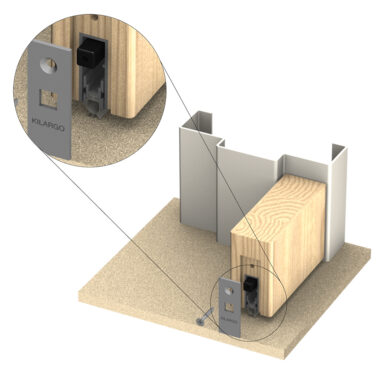

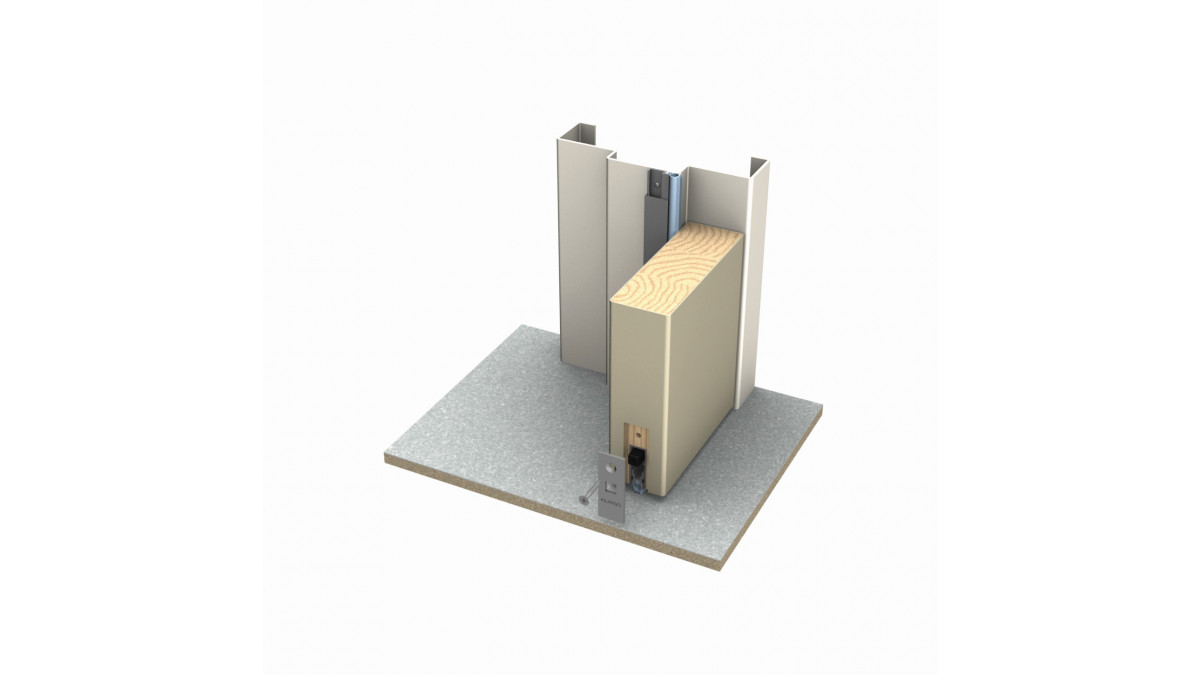

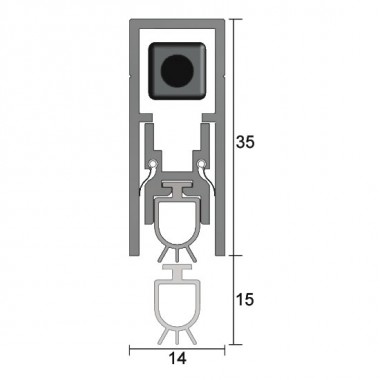

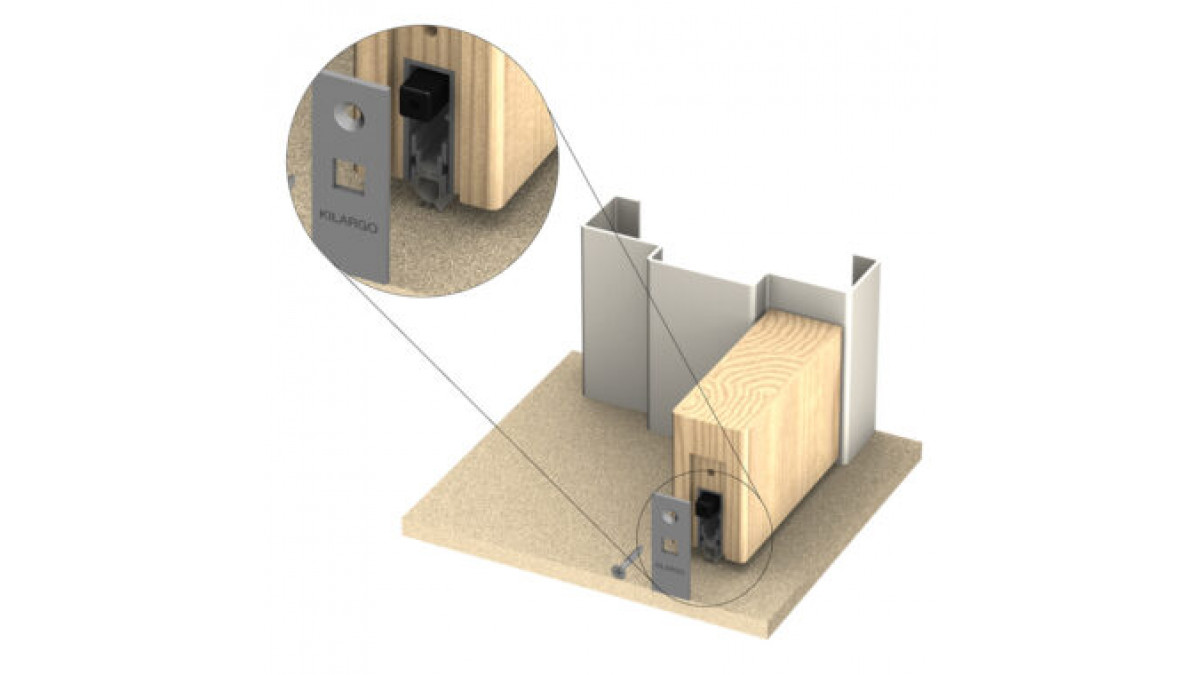

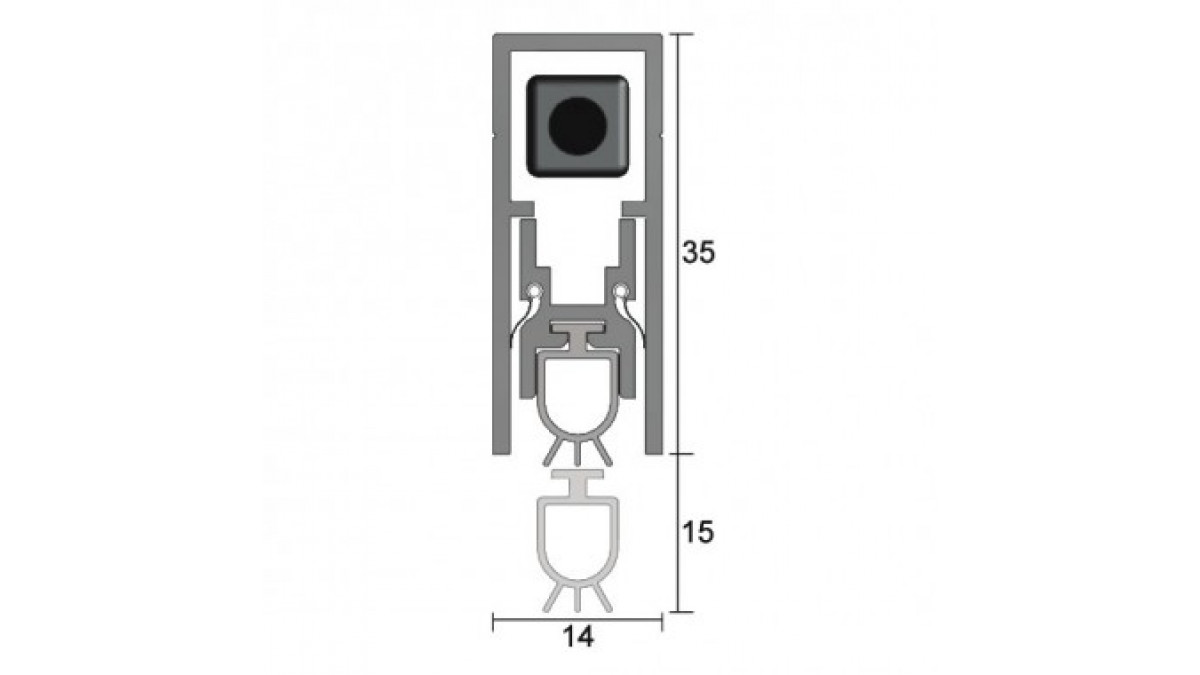

Mounted into a 35mm deep x 15mm wide machined groove, the seal is screw fixed back into the door stiles via stainless steel end plates, holding the seal in place. The seal operates automatically by pressure against the door jamb on its adjustable strike button. The seal contains a high efficiency mechanism to assist with the closing force requirements detailed in AS1428/1 (Design for Access and Mobility).

This seal is also available with antimicrobial silicone gasket(s).

Standard colours:

  • Silver anodised aluminium with stainless steel end plates, grey silicone gasket
  • Black silicone gasket also available upon request
Key Features
  • Concealed automatic door bottom seal
  • Operates automatically by pressure against the door jamb on its adjustable strike button
  • The seal contains a high efficiency mechanism to assist with the closing force requirements detailed in AS1428/1 (Design for Access and Mobility)
  • Radiused stainless steel end plates also available upon request
Scope of Use
  • Medium duty bottom seal
  • Single action automatic doors
  • Mechanism suitable to assist with closing for access and mobility design
  • Option available suitable for antimicrobial applications
  • Concealed seal suitable for aesthetic applications

Gap size:

  • Min. 3mm / max. 15mm

Standard lengths:

  • 380mm
  • 600mm
  • 820mm
  • 920mm
  • 1070mm
  • 1220mm
  • Longer lengths available to special order

IS8010si maximum allowable cut-back sizes:

  • 380mm seal cuts to 275mm
  • 600mm seal cuts to 380mm
  • 820mm seal cuts to 600mm
  • 920mm seal cuts to 820mm
  • 1070mm seal cuts to 920mm
  • 1220mm seal cuts to 1070mm
  • Seals can be cut on site for exact dimension
Limitations on Use
  • It is recommended IS8010si automatic door bottom seal be used together with a Kilargo 7000 series perimeter seal and, if required a 4000 series threshold plate
  • Generally not suitable for pivot doors as standard
  • Not suitable as a weather seal for external doors

Fire doors are a proprietary product. Despite similarities in manufacture and supply, each fire door must have its own test data outlining its field of application as mandated by the Building Code of Australia through the requirements set out in AS1905 Part 1.

Please contact a dormakaba representative for confirmation on which seals are suitable for the specified fire doors.

Statement of Building Code Compliance
  • Fire tested to AS1530 Part 4 in accordance with AS1905 Part 1
  • Certifications GVYI.R26629, GVWZ.R26629, GVWZ7.R26629
  • Medium temperature smoke leakage approvals to AS1530 Part 7, compliant with AS6905 on proprietary door assemblies
  • Conforms with BCA Specification C3.4 smoke sealing requirements
  • Acoustically tested in accordance with AS1191, IS0140.3 and ISO10140-2
In-Service History

Notable projects include:

  • W Hotel Brisbane
  • 1 William Street, Brisbane City
  • Chris O'Brien Lifehouse
  • Royal Adelaide Hospital (RAD)
  • Royal Children's Hospital, Melbourne
  • Gold Coast University Hospital
  • Stamford American International School
  • Crown Towers, Melbourne
  • The Royal, Newcastle NSW
  • The Hyde Apartments, Sydney
  • Trio Apartments, Sydney
  • Medica Centre, NSW
Other Performance Attributes
  • All seals manufactured in Australia
  • Durability tests demonstrating over 1,000,000 open and close cycles
