Kilargo IS7060si Meeting Stile / Astragal Seals
Description

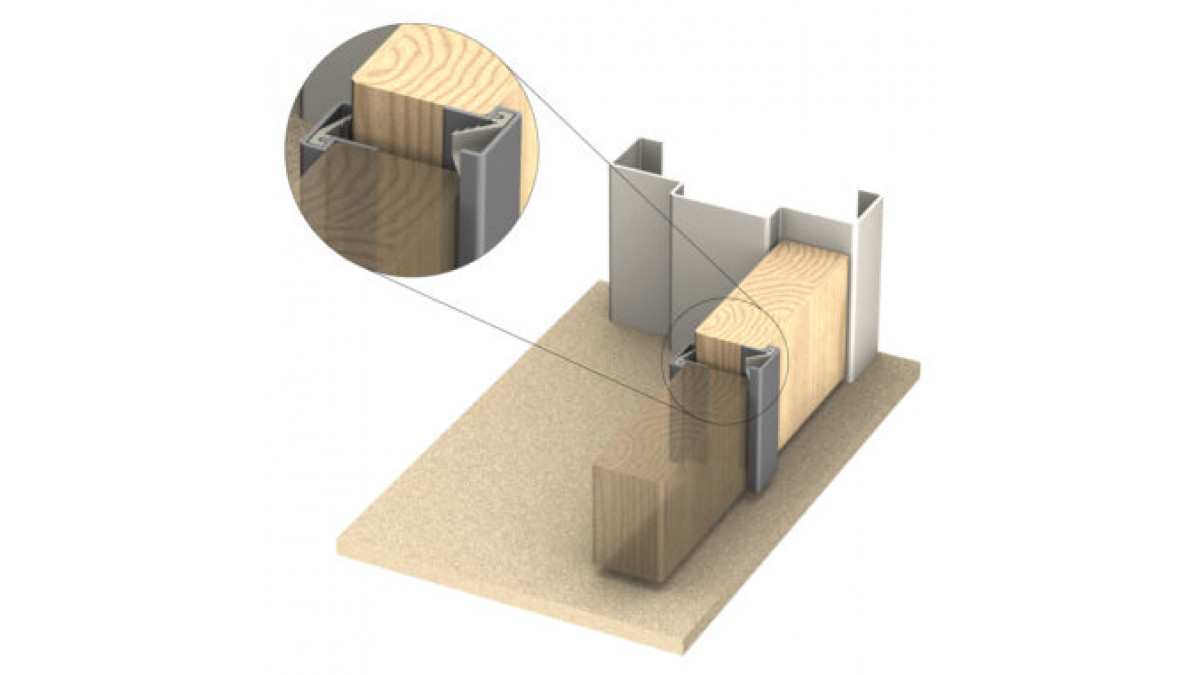

An astragal seal used with either plain or rebated meeting stiles on single swing, double doors (where only one door leaf is active). It provides an excellent acoustic, smoke, light, dust and weather seal.

The thin fixing leg allows this seal to be face fixed to the door (no rebating required). This leg can also be checked to make way for locks and latches.

This seal is also available with antimicrobial silicone gasket(s).

Standard colours:

  • Silver anodised aluminium with grey silicone gasket
  • Black anodised aluminium with black silicone gasket
Key Features
  • Can be used with either plain or rebated meeting stiles on single swing, double doors (where only one door leaf is active)
  • The thin fixing leg allows this seal to be face fixed to the door (no rebating required). This leg can also be checked to make way for locks and latches
Scope of Use

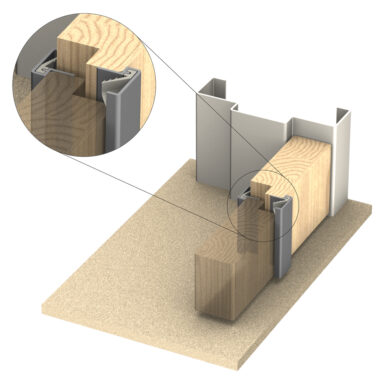

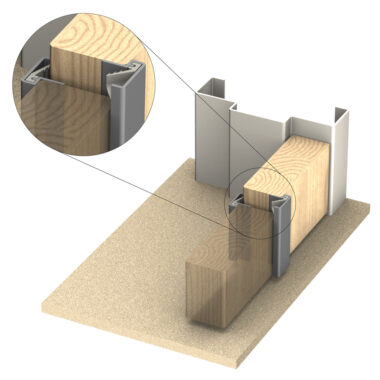

  • Used with either plain or rebated meeting stiles
  • Single swing, double doors (where only one door leaf is active)
  • Excellent acoustic, smoke, light, dust and weather seal
  • Face fixed to the door — can also be checked to make way for locks and latches
  • Also available with antimicrobial silicone gasket(s).

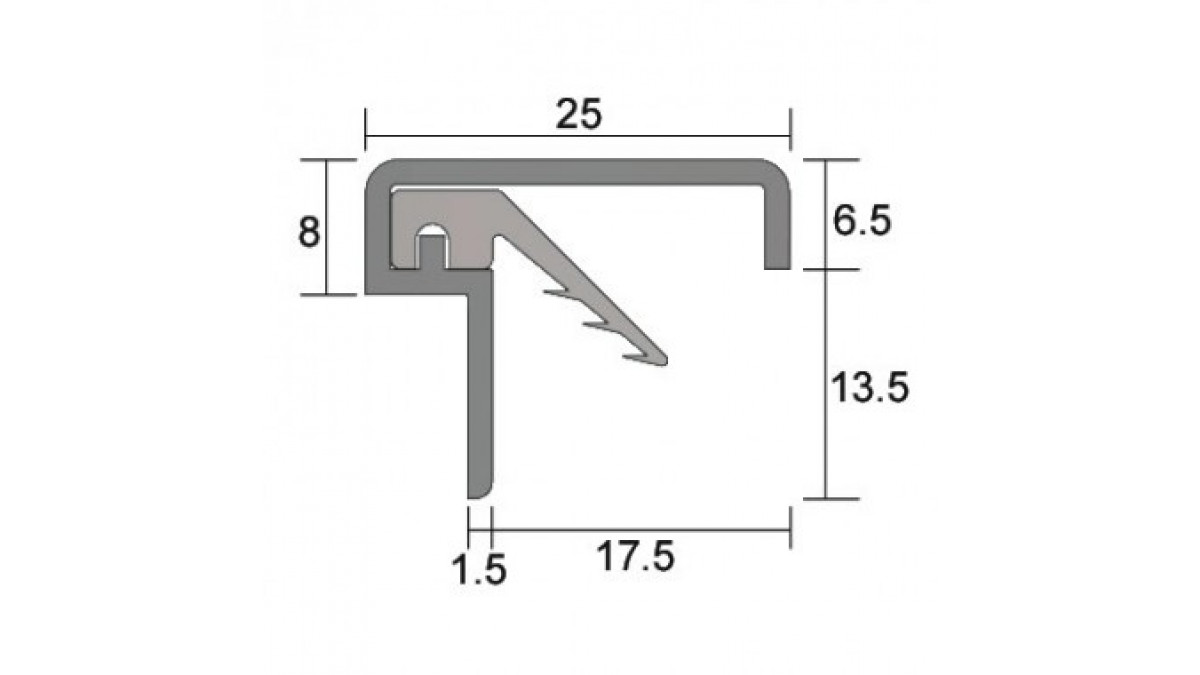

Gap size:

  • Min. 2.5mm / max. 10mm

Standard lengths:

  • 2250mm
  • 3000mm
  • Also available in: 250mm increments from 2000mm to 3500mm
Limitations on Use
  • A door sequence selector should be considered unless one leaf is intended to be fixed.

Fire doors are a proprietary product. Despite similarities in manufacture and supply, each fire door must have its own test data outlining its field of application as mandated by the Building Code of Australia through the requirements set out in AS1905 Part 1.

Please contact a dormakaba representative for confirmation on which seals are suitable for the specified fire doors.







Statement of Building Code Compliance
  • Medium temperature smoke leakage approvals to AS1530 Part 7, compliant with AS6905 on proprietary door assemblies
  • Conforms with BCA Specification C3.4 smoke sealing requirements
  • Acoustically tested in accordance with AS1191, IS0140.3 and ISO10140-2
In-Service History

Notable projects include:

  • National Heart Centre, Singapore
  • Gold Coast University Hospital
  • 1 William Street, Brisbane City
  • Royal Children's Hospital, Melbourne
  • Lady Cilento Children's Hospital, Brisbane
  • Women's & Children's Hospital — Gilbert Building Extension
Other Performance Attributes
  • All seals manufactured in Australia
