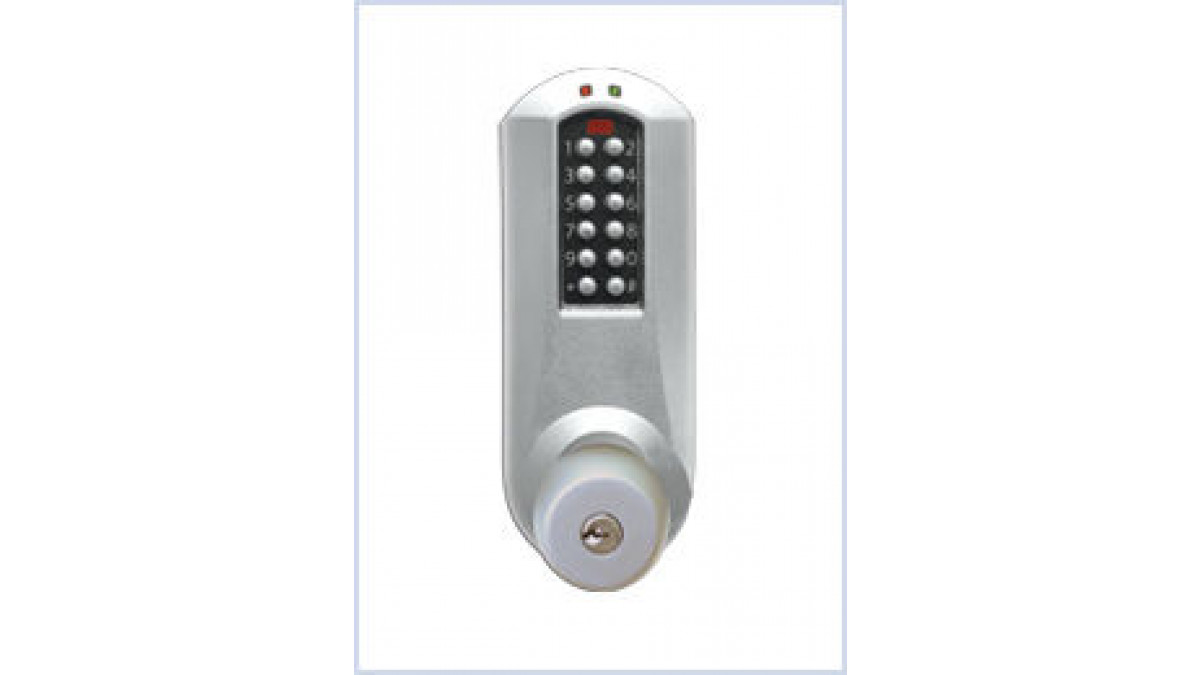

E-Plex 5200
Description

Kaba’s electronic access control provides additional features beyond mechanical access control. E-Plex products range from simple programming at the lock to more advance applications requiring software for managing many users and doors. PIN and/or card access locks allow management to set access schedules and review activity via audit trail.

The sophisticated E-Plex 5200 is ideal for applications requiring access schedules and holiday blocks, especially locations with high user turnover.

Locks are programmed with user-friendly E-Plex software that requires no special knowledge to operate. You can easily add users and doors as your facility’s needs grow with each lock accepting up to 3000 different access codes.

The extensive audit trail offers flexibility enabling you to limit the size of your audit report to specific periods, such as the last seven days. The advanced Access Control Software (ACS) records and saves the last 30,000 lock events to provide user accountability. Audit information is downloaded to customised spreadsheets for analysing, sorting, or printing.

Key Features

· 3,000 Code PIN Access Control
· 30,000 Event Audit Trail
· Advanced Access Control Software
· 16 Access Schedules
· 32 Holiday Blocks
· 6 Authority Access Levels
· Heavy Duty - ANSI/BHMA Grade 1
· Cylinder, Mortice and Exit Device
· 2 Hour Fire Door Rating
· -35° to 66°C Indoor/Outdoor Use
· 180,000 Battery Cycles - 4xAA
· 3 Years Built-In Warranty

Options

Function Options

Cylindrical Lock, Cylindrical Privacy, Mortice Lock or Exit Trim.

Handle Options:

Winston Lever or Winston Knob (available with Cylindrical only)

Colour Range:

Standard: = Satin Chrome.
Custom*: = Bright Chrome, Satin Brass, Bright Brass, Black.

Categories
Locks
Documents
Data Sheet
Quick quide
Installation and Operation
Maintenance Instructions
Brochure
Installation Details

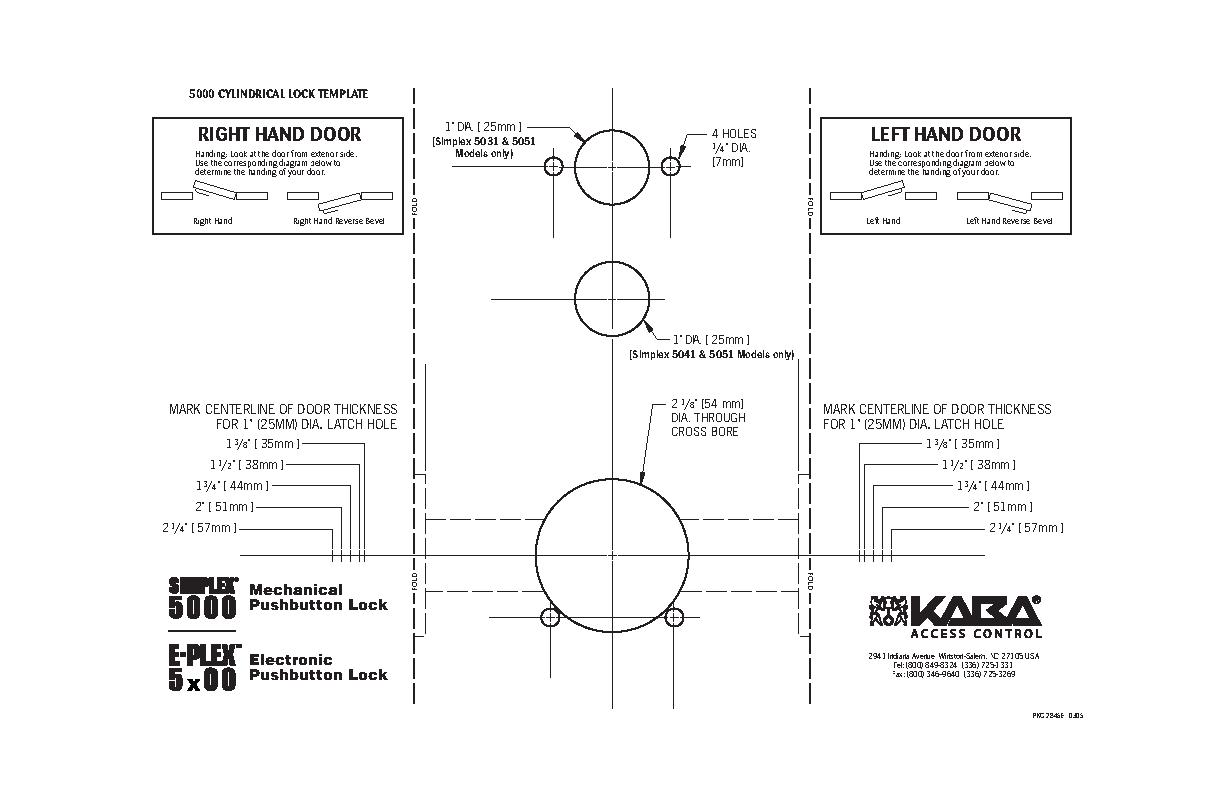

Installation template

Installation template
