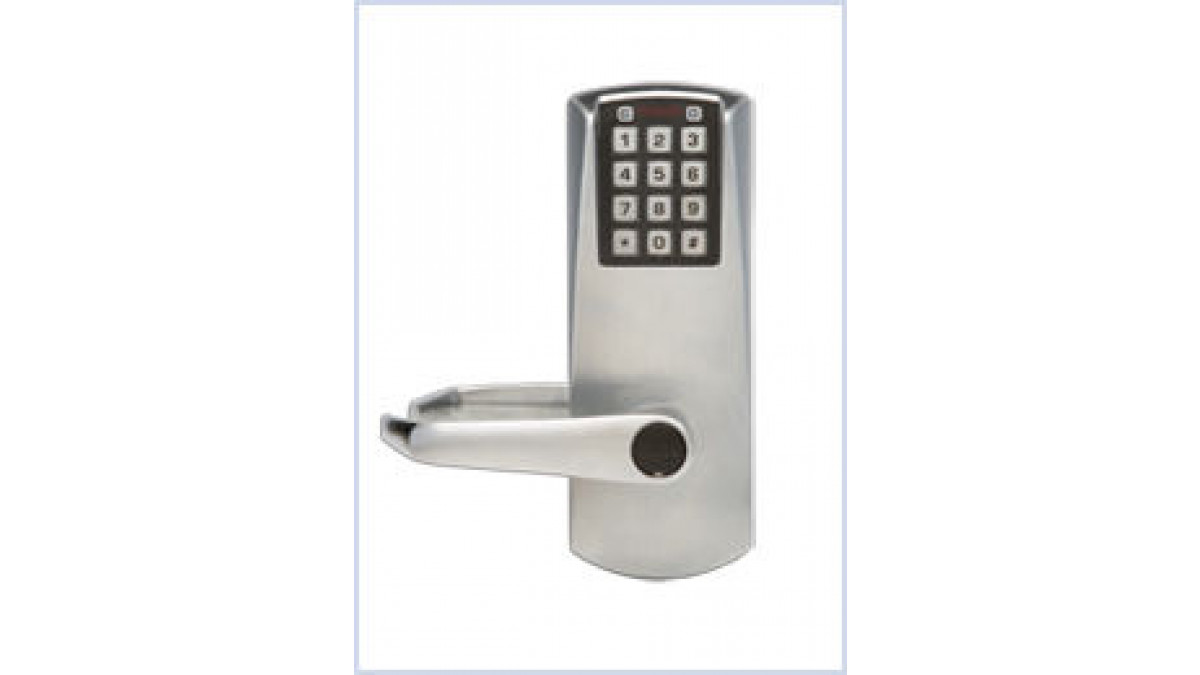

E-Plex 2000
Description

Kaba’s electronic access control provides additional features beyond mechanical access control. E-Plex products range from simple programming at the lock to more advance applications requiring software for managing many users and doors. PIN and/or card access locks allow management to set access schedules and review activity via audit trail.

The economical E-Plex 2000 is the perfect entry-level commercial electronic push button lock. The efficient solution for electronic access control features innovative design, combining the strength, simplicity and reliability of the E-Plex range in a stylish, intuitive pushbutton lock. The stand-alone unit is easily managed with simple keypad programming without using any software or computers.

PIN access eliminates the need for magnetic cards and the need to change credential details each time a user is changed or card is lost/stolen. The E-Plex Series' are easy to install and maintain, requiring no wiring to or through the door. The user-friendly design is equipped with ergonomic levers and audio visual indicators, notifying users when access is granted or denied.

Key Features
  • 100 Code PIN Access Control
  • Keypad Lock Management
  • 4 Authority Access Levels
  • Cylindrical Locking Device
  • 2 Hour Fire Door Rating
  • No wiring to or through the door
  • Locks easily programmed via keypad
  • 35mm to 64mm door thickness
  • 70mm and 60mm backsets
  • -35° to 66°C Indoor/Outdoor Use
  • 100,000 Battery Cycles - 3xAA
  • 2 Years Built-In Warranty

Options

Available in satin chrome and satin brass finishes

Categories
Locks
Documents
Data Sheet
Installation and Operation
Brochure
Brochure
Additional Information
Installation Details

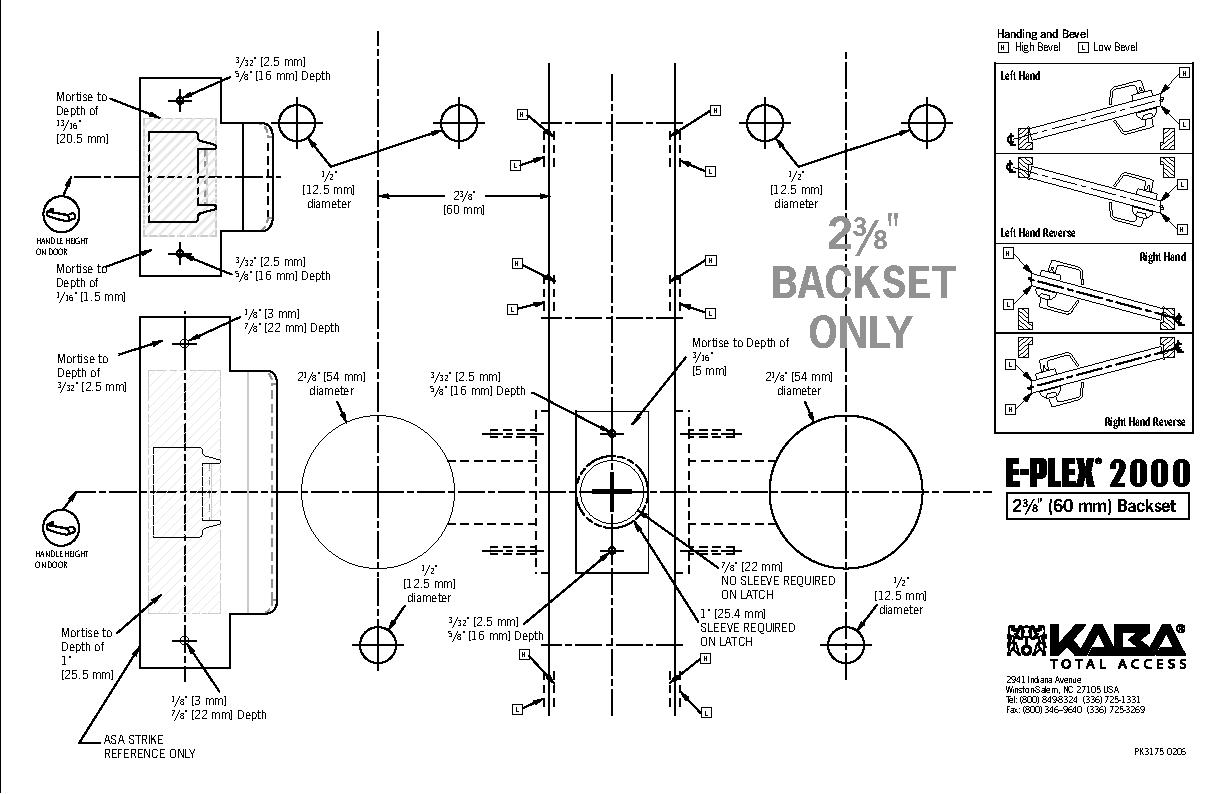

E-Plex 2000 Template 60mm backset

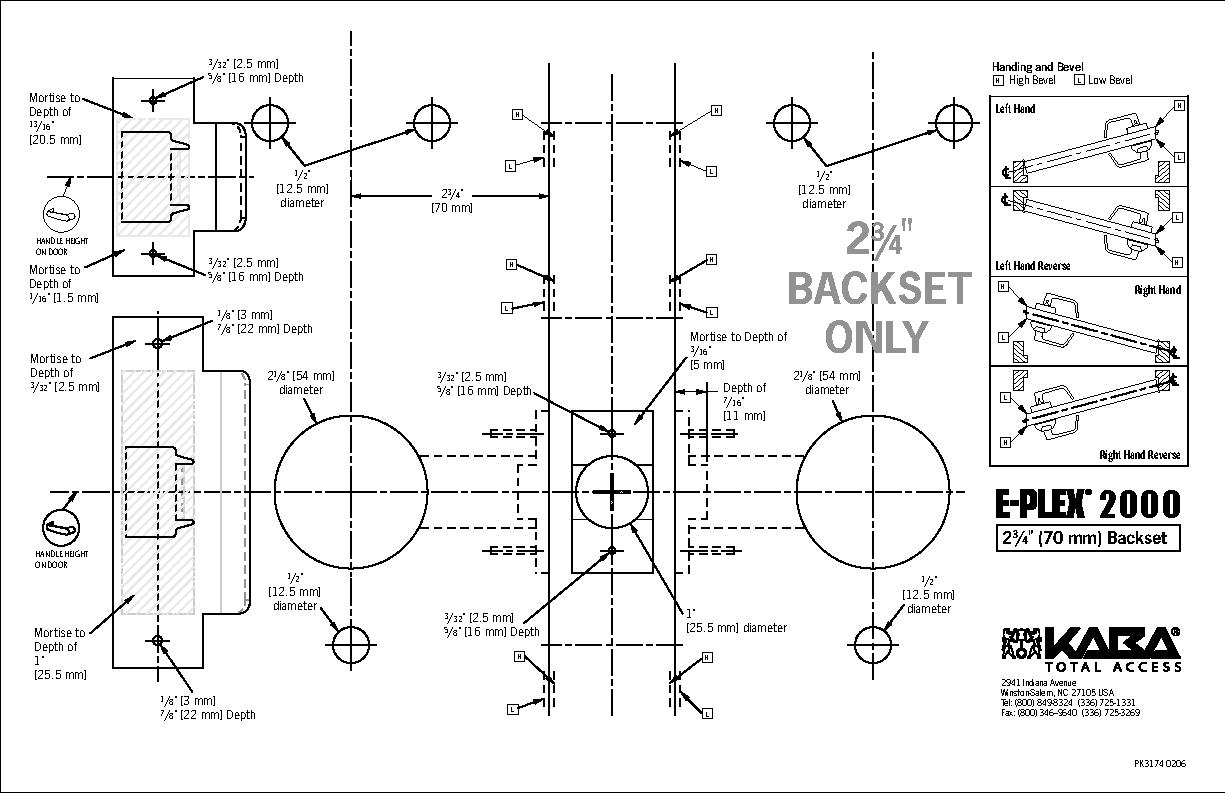

E-Plex 2000 Template 70mm backset

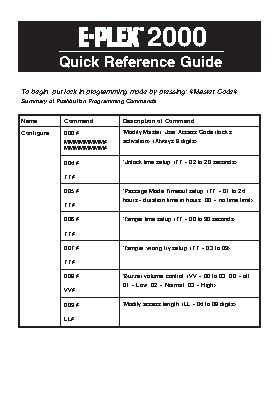

Quick Guide
