DORMA Ancillary Hardware
Description

Comprehensive range of general architectural hardware

An important sector of the commercial and residential building market is ancillary hardware. DORMA has developed a suite of general builders hardware products designed to further complement our range of leading architectural hardware products

Key Features
  • Barrel, Flush and Panic bolts
  • Door stops and Door holders
  • Push and Pull plates
  • Roller bolt
  • Sequence selectors
  • Tubular latches and bolts
Categories
Locks
Scope of Use

Barrel Bolts, Flush Bolts, Panic Bolts and Roller Bolts

  • Barrel Bolts contain a spring loaded ball bearing for positive and smooth action.
  • Flush bolts of 19mm width for ease of installation into thinner doors with extended shoe and break off point.
  • Panic Bolts available in both concealed and visible fix.
  • Roller bolt features adjustable holding force with nylon roller and brass guides.

Door Stops and Door Holders

  • A range of skirting and floor mounted door stops complete with black rubber buffers for ultimate protection of walls and doors.
  • Finished in either Satin Nickel Plate or Stainless Steel.

Push and Pull Plates

  • All push and pull plates have radius 10mm corners preventing sharp edges often associated with square or rectangular plates.
  • Concealed and visible fix plate versions
  • Grade 304 stainless steel.
  • Pull handles offered in two lengths 150mm or 200mm.

Sequence Selectors

  • Available in arm lengths of 180mm, 230mm and 305mm.
  • Clear anodised aluminium finish for better uniform appearance with silver door closers.

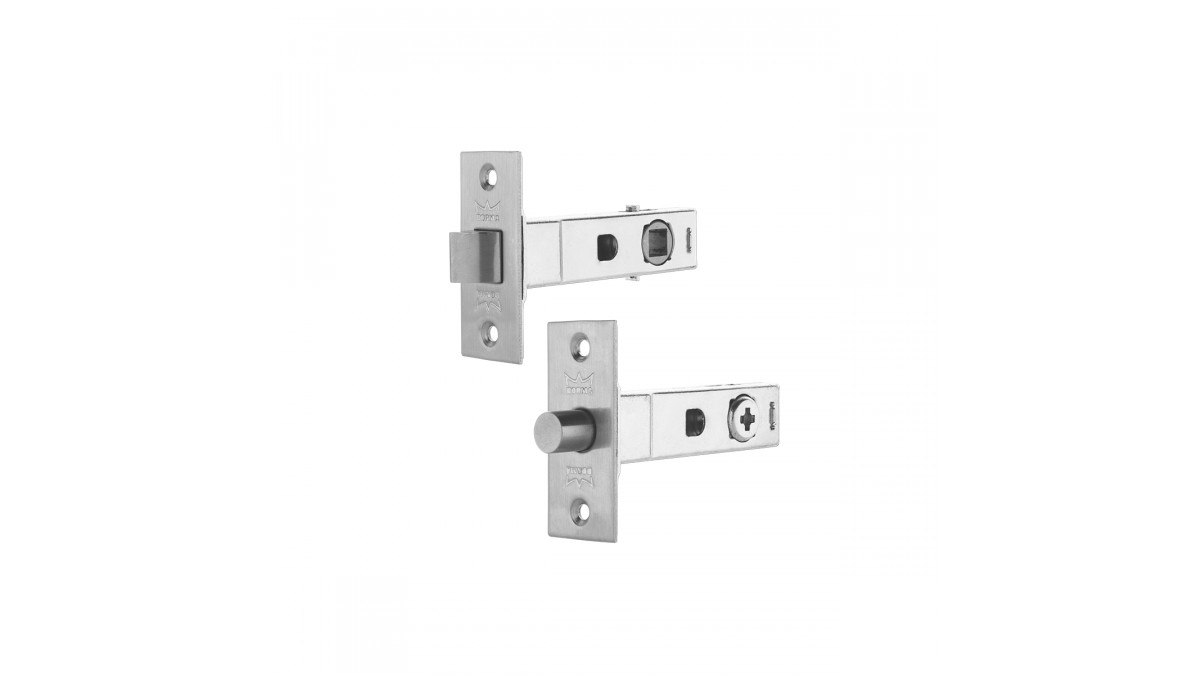

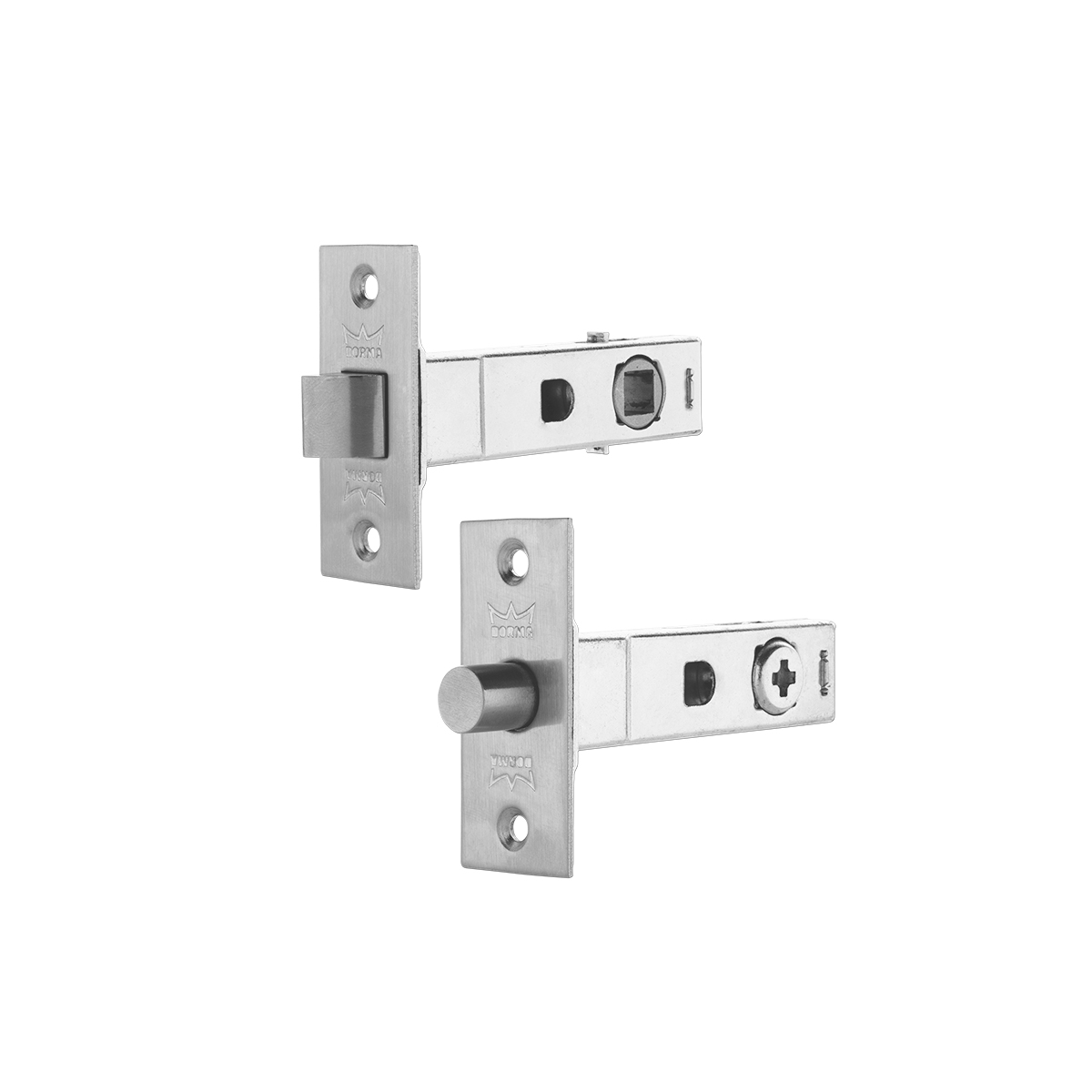

Tubular latch and Privacy bolt

  • Tubular 60 mm backset latch with solid one piece hub and matching stainless steel latch bolt.
  • Tubular 60 mm backset bolt accepts both star spindles and flat tail for turn activation along with matching stainless steel bolt.
  • Rebate kit available for 13mm rebated meeting stiles.
Documents
Brochure
Additional Information
Installation Details

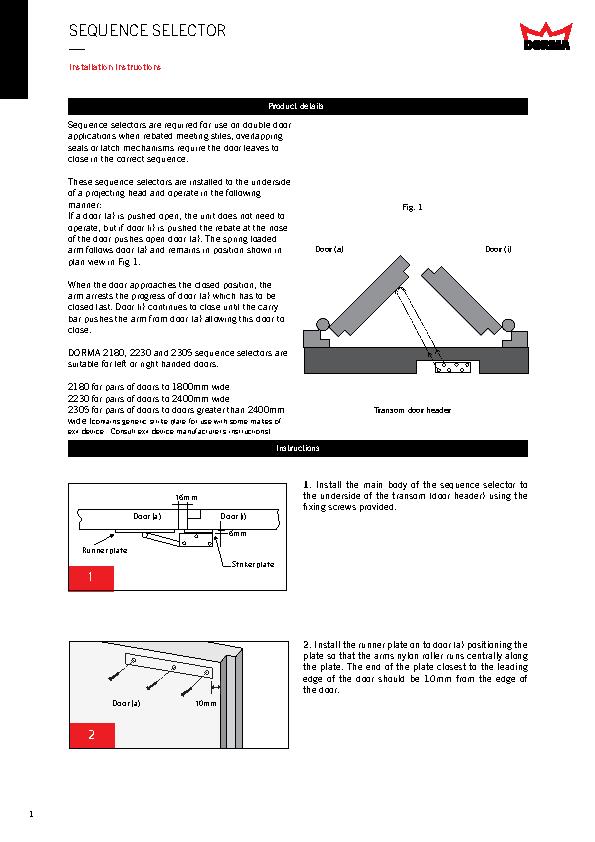

Sequence Selector Installation
