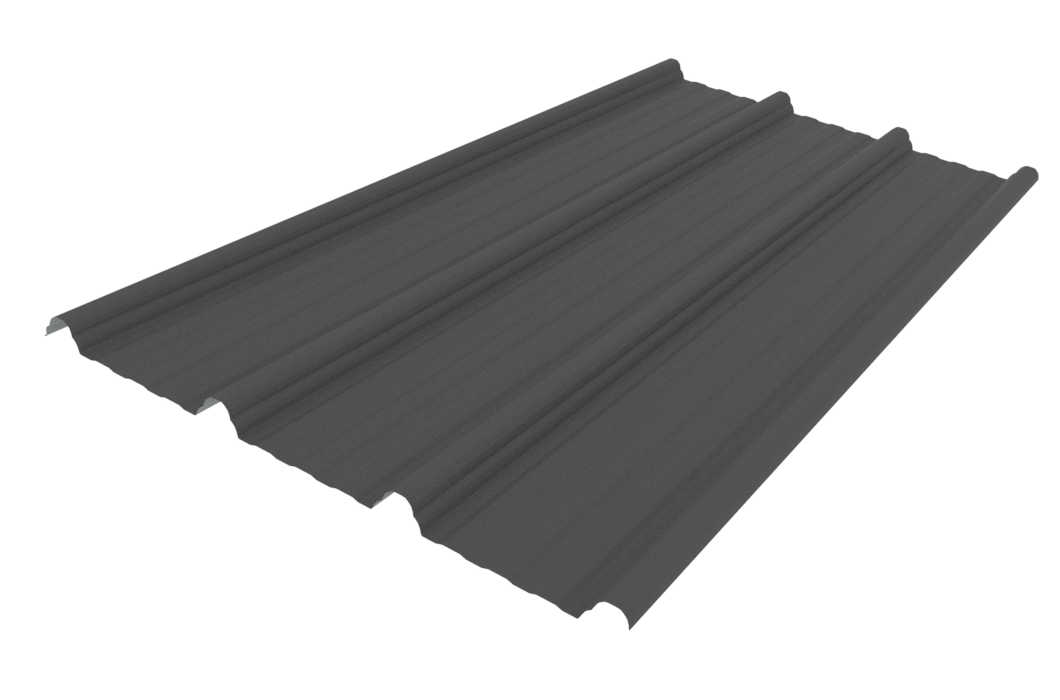

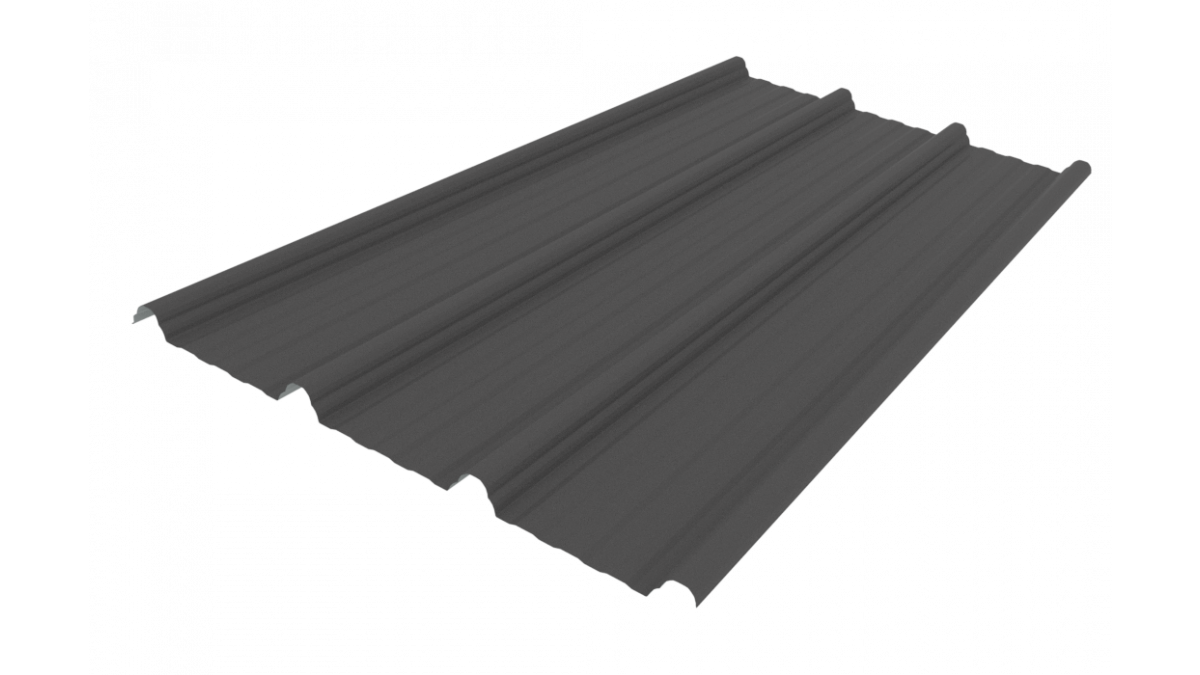

Dimond DP955
Description

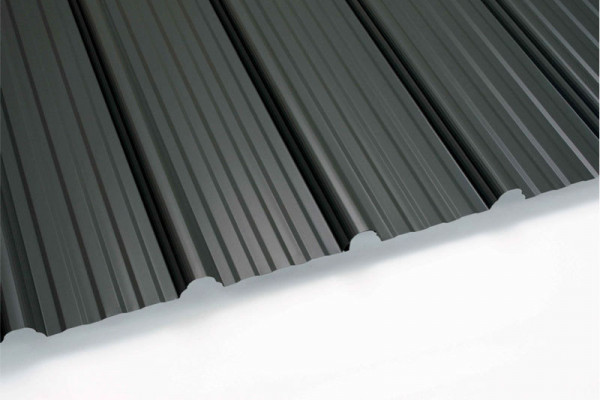

DP955 is designed not only to be stronger than traditional profiles but also more cost effective and faster to install.  Its design provides stronger ribs to protect against buckling and a wide style pan to allow for safe foot placement.

With a wider cover width of 955mm, fewer DP955 sheets are required to be installed, saving both time and money.  DP955's original look creates a distinctive and diverse design unlike traditional profiles ensuring a unique finish.

Key Features
  • Strong trefold arch rib shape means less damage to ribs and allows wider pans for easier foot placement.
  • Excellent spanability under wind loads and foot traffic.
  • Designed and manufactured in New Zealand, specifically for New Zealand conditions.
  • Wider cover means fewer sheets are laid across the building.
  • Fewer ribs means less notching of flashings and fewer fixings
  • Faster installation (no extra weight per sheet).
  • Less steel per square metre cover (fewer tonnes to crane and move around) – saves money.
  • Only 3 fasteners per sheet – faster to install, simple fixing pattern, less risk.
  • Only 3 ridge notches per sheet – faster to install.
  • Wide Pan for ease of foot placement.
  • Less risk of rib buckling under point load.
  • Fewer call backs to repair damage from sub trades.
  • Rib Height 46 mm, Screw length 65 mm – less cost, faster to install.
  • Side Lap Engagement with 85º Lip Underlap Leg.
  • Load-Span Capacity - Comparable to BB900, SS900 and similar competitive profiles for most wind load cases.
  • Wide pan and novel segmented rib – creates distinctive designs.
NZ Made
NZ Made
Scope of Use
  • Cover: 955mm
  • Sheet Width: 1020mm
  • Minimum Pitch 3° (approx 1:20)
  • All roofing spans are shown as maximum spans to suit occasional foot traffic only
Limitations on Use
  • Not suitable for use as a platform for maintenance work.
  • If the need arises to use Dimond long run roofing & cladding outside the limitations and procedures given in the Performance Statements or other referenced literature, or if any doubt exists on product handling or use, written approval for use must be obtained from Dimond before the project commences.
3° Minimum Roof Pitch Required
Statement of Building Code Compliance

Test information available from Pacific Coilcoaters and BHP NZ Steel, and past history of use of long run metal roofing and cladding products in New Zealand indicate that, provided the product use and maintenance is in line with the guidelines contained in the current literature referenced, Dimond long run metal roofing & wall cladding systems can be expected to meet the performance criteria in clause B2 and E2 of the New Zealand Building Code, for a period of not less than 15 years.

In-Service History

Dimond is New Zealand's largest manufacturer of steel roofing, cladding, structural and rainwater goods.

Other Performance Attributes

Green Tag:

  • All Dimond Roofing products roll-formed using ColorCote painted steel coil is Global GreenRate GreenTag certified and is applicable for Green Star and Home Star credits

Span Capacity

Roofing Span Capacity
Thickness End Span Internal Span
0.40mm 1.60m* 2.40m*
0.55mm 2.70m* 4.00m*

*To suit ultimate wind loads up to 2.5 kPa

Cladding Span Capacity
Thickness End Span Internal Span
0.40mm 2.00m 3.00m
0.55mm 2.90m 4.30m

Note: Spans shown above are for steel. When using other materials please call 0800 DIMOND for more info.

B2 Durability compliant
Durability
E2 External Moisture compliant
External Moisture
