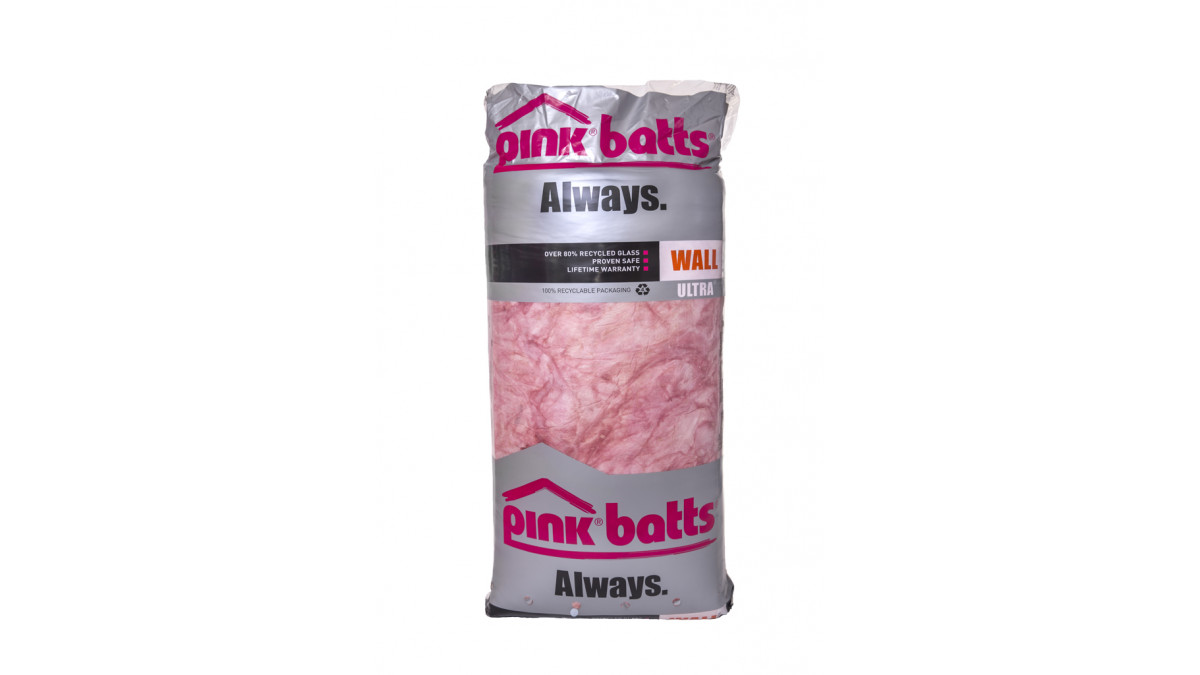

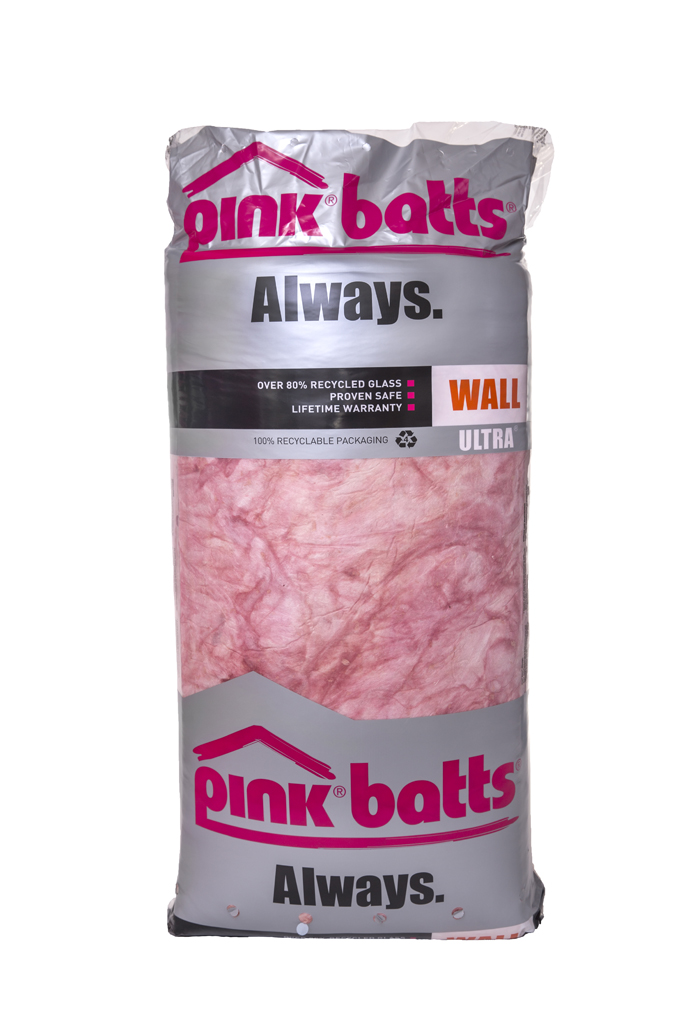

Pink Batts Ultra Wall Insulation - 140mm

Comfortech Building Performance Solutions

All products

Product Enquiries

Description

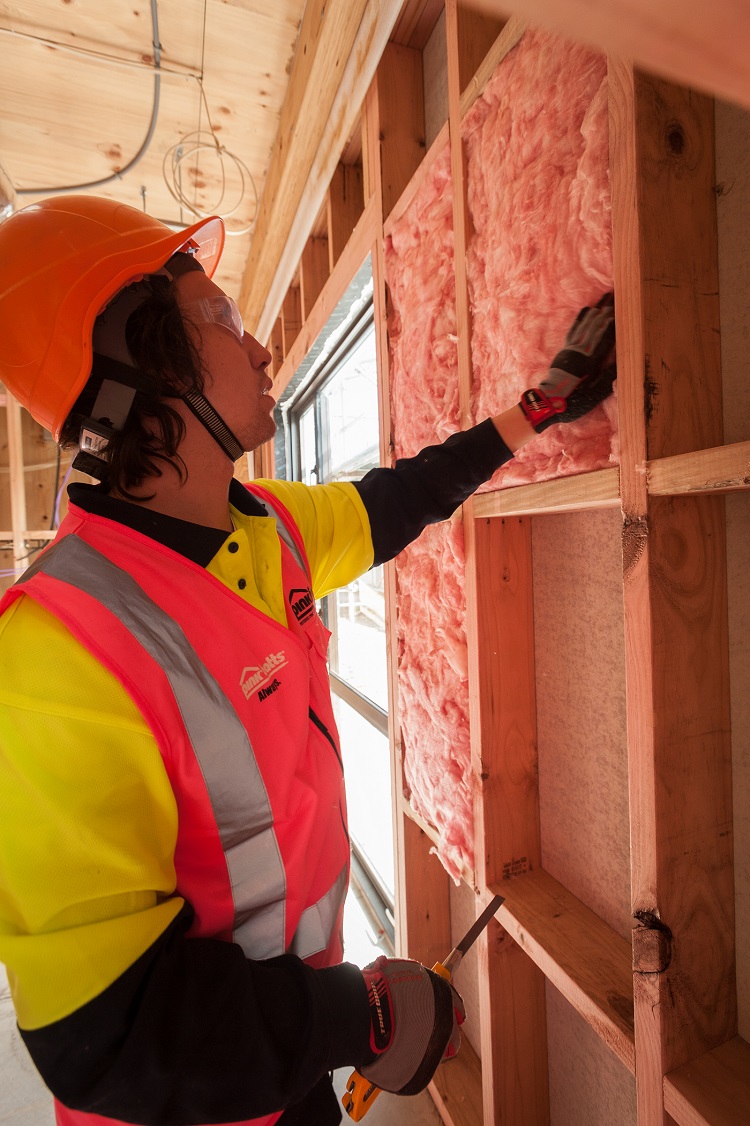

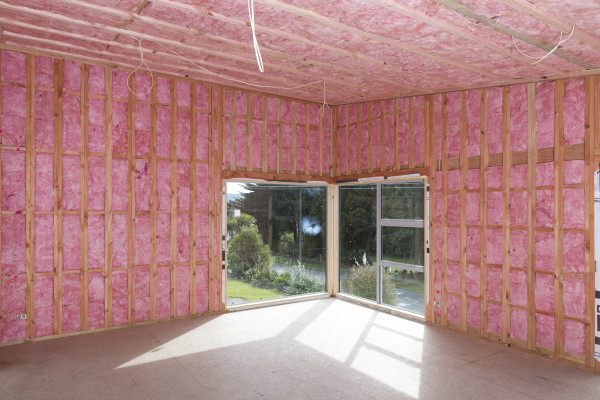

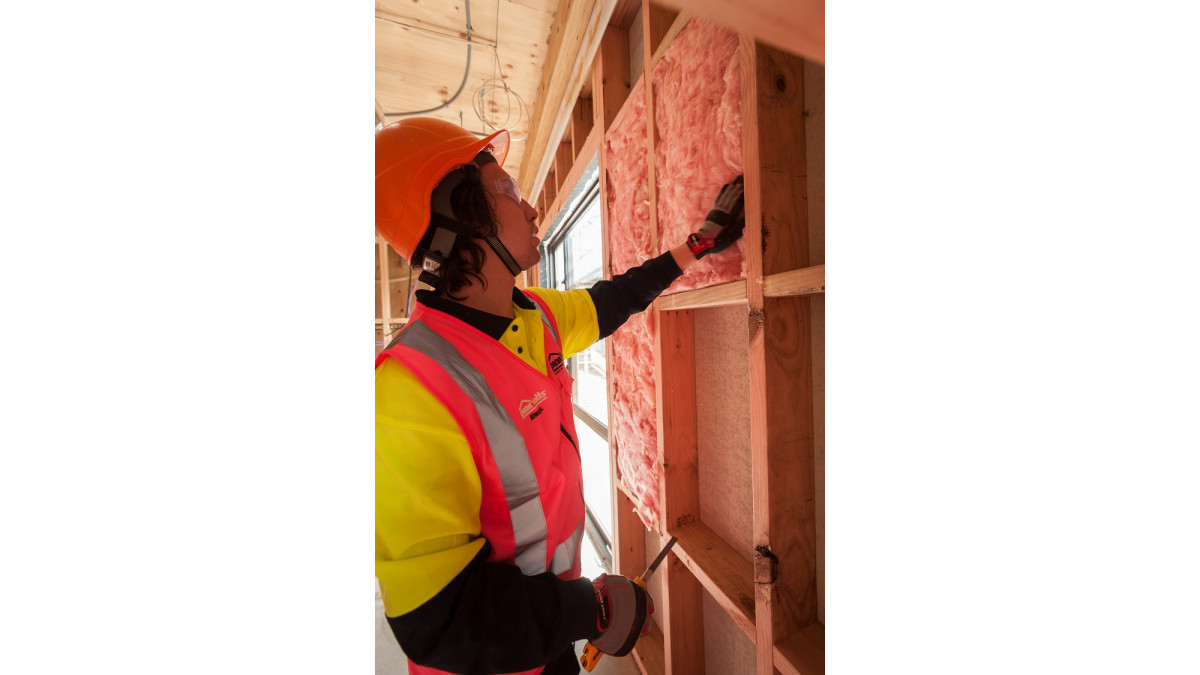

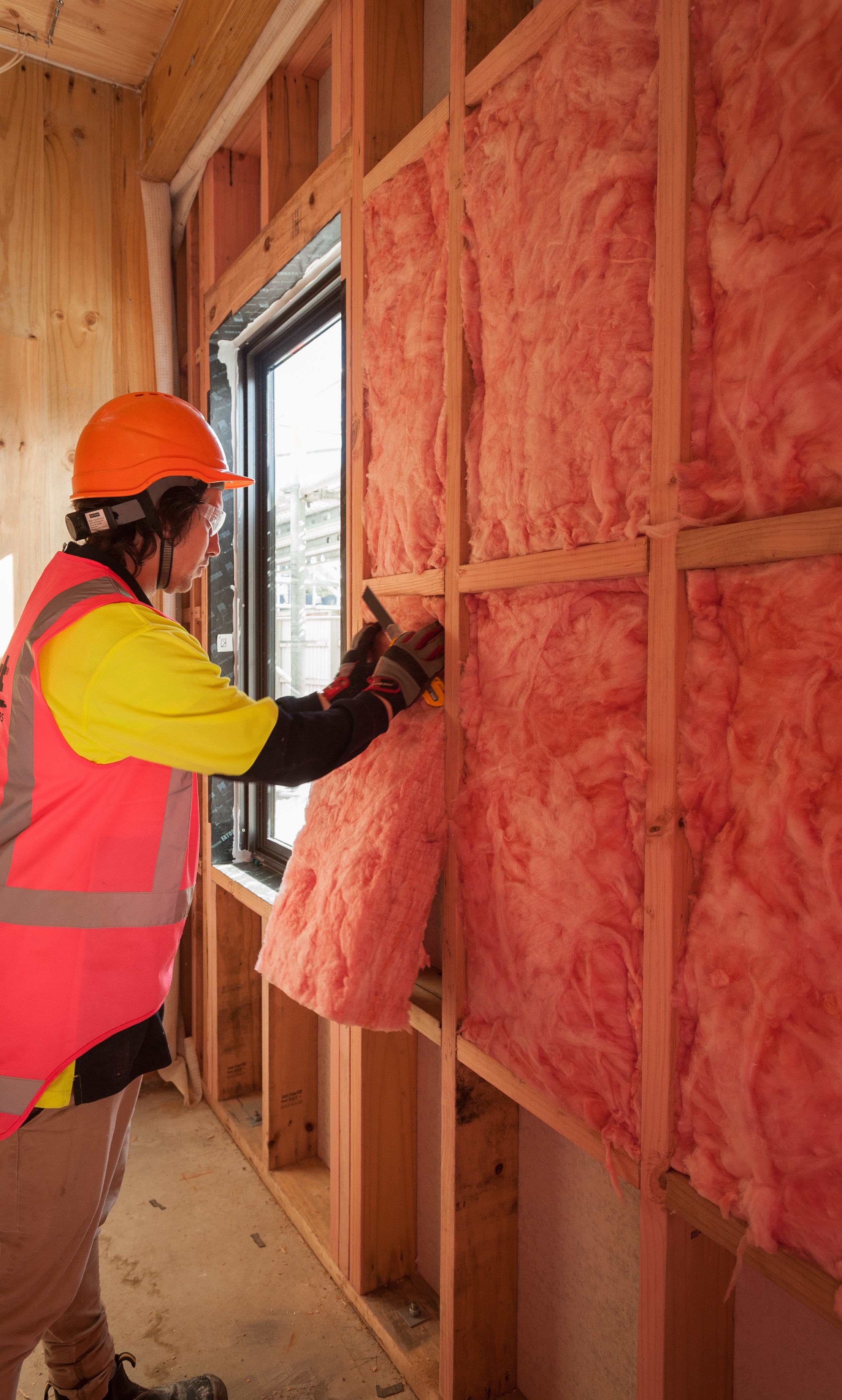

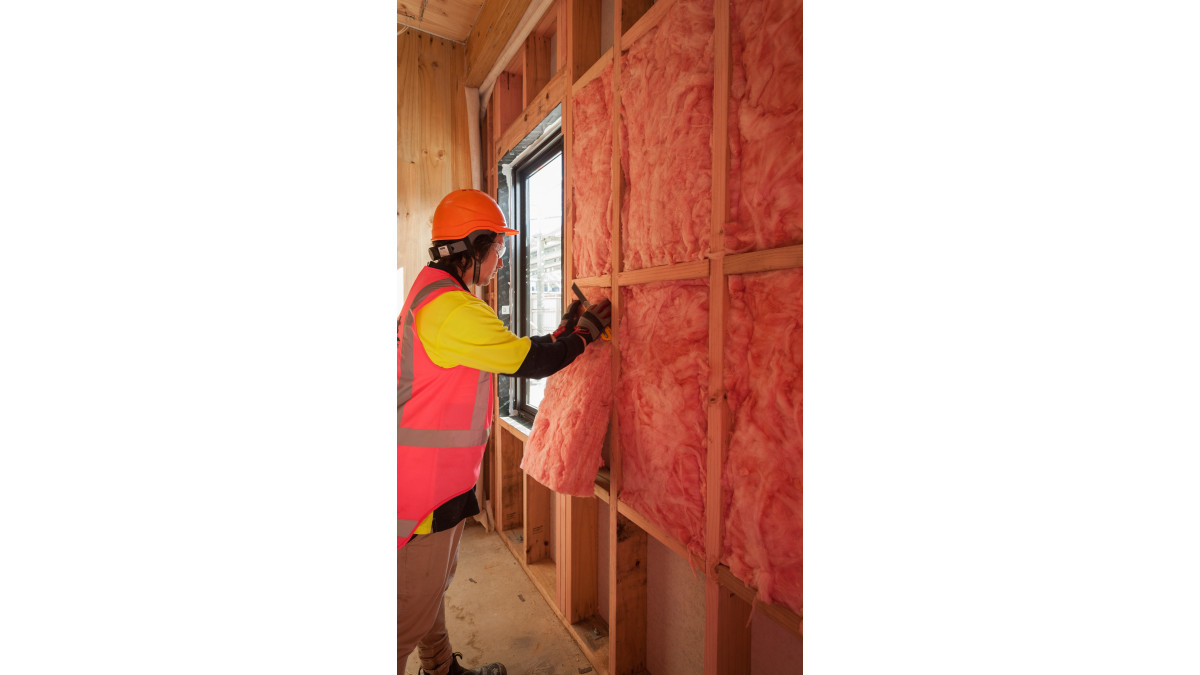

Pink Batts wall insulation is light-weight, flexible, glass wool insulation designed to thermally insulate timber framed walls. There are a number of products suitable for a range of standard wall constructions which can also be easily cut to fit in non-standard constructions, including 'Narrow Wall' options. (See specifications below)

Key Features

BRANZ appraised, durable product for 50 years as required by the NZBC
Non-combustible so will not melt or catch fire easily
R-values up to R4.0, to help in keeping homes above World Health Organisation’s recommended 18°C

Specifications

Pink Batts Ultra Wall Insulation - 140mm is available as:

R3.2 140mm - 1140mm x 560mm, nominal stabilised thickness of 140mm
R3.6 140mm - 1140mm x 560mm, nominal stabilised thickness of 140mm
R4.0 140mm - 1140mm x 560mm, nominal stabilised thickness of 140mm
R3.2 140mm Narrow Wall - 1140mm x 380mm, nominal stabilised thickness of 140mm
R4.0 140mm Narrow Wall - 1140mm x 380mm, nominal stabilised thickness of 140mm

Ranges

Pink Batts Insulation: Wall

Scope of Use

Pink Batts insulation has been appraised as a thermal insulation material for walls, ceilings, and roofs of buildings within the following scope:

framed or part-framed domestic and commercial buildings where the insulation remains dry during its serviceable life

Limitations on Use

Pink Batts insulation must be installed in accordance with the manufacturer's Technical Literature to meet the stated thermal performance rating of the insulation.

Statement of Building Code Compliance

In the opinion of BRANZ, Pink Batts insulation, if designed, used, installed and maintained in accordance with the statements and conditions of Appraisal No. 238 (2012), will meet or contribute to meeting the following provisions of the NZBC:

Clause B2 DURABILITY: Performance B2.3.1(a) not less than 50 years and B2.3.1(b) 15 years. Pink Batts insulation insulation will meet this requirement.
Clause E3 INTERNAL MOISTURE: Performance E3.3.1. Pink Batts insulation insulation will contribute to meeting this requirement.
Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1. Pink Batts insulation insulation meets this requirement and will not present a health hazard to people.
Clause H1 ENERGY EFFICIENCY: Performance H1.3.1(a) and H1.3.2 E. Pink Batts insulation will contribute to meeting these requirements.

Pink Batts has been appraised as an Acceptable Solution in terms of New Zealand Building Code Compliance. Pink Batts insulation thermal resistance (R-Value) has been determined by AS/NZS 4859.1 which is an acceptable method.
