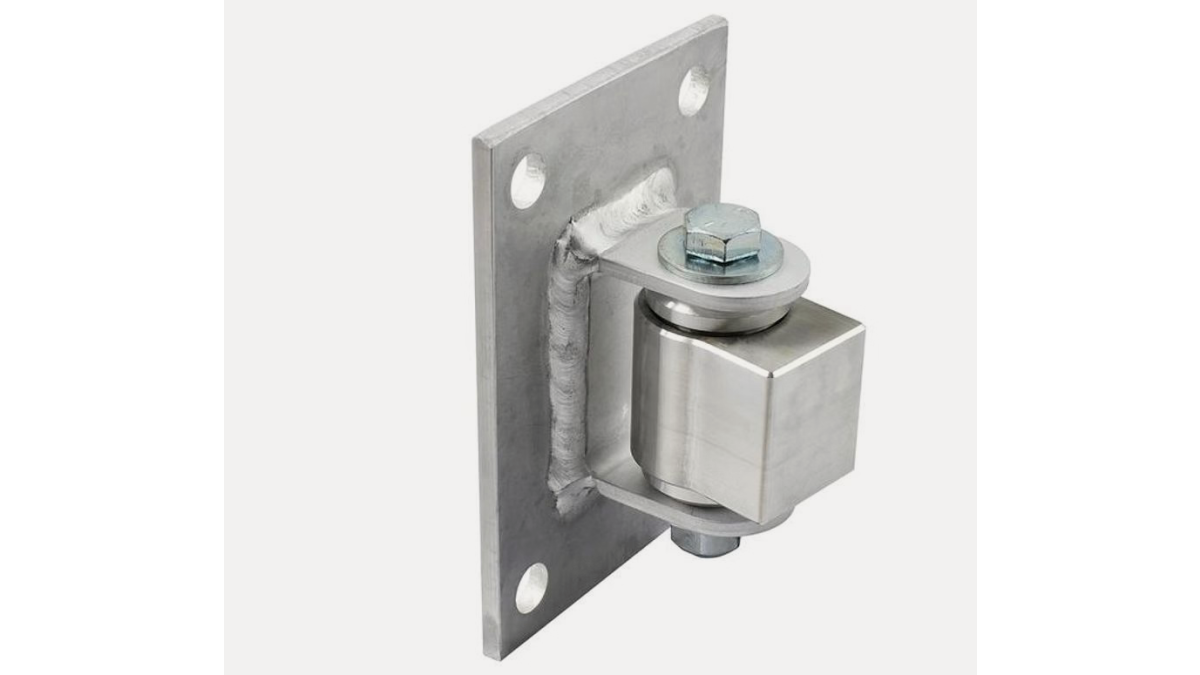

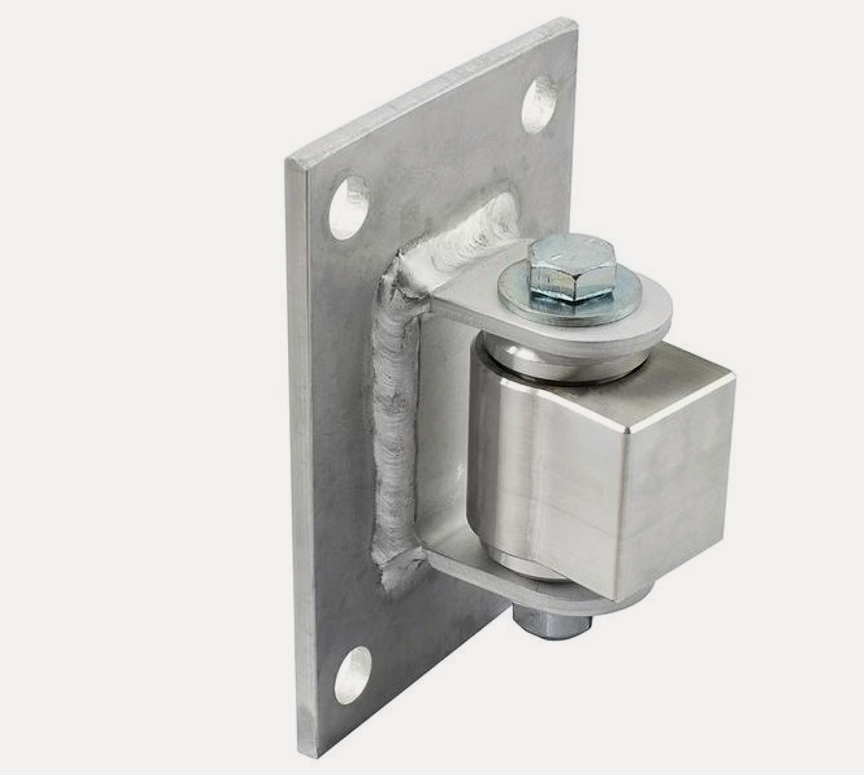

D&D Technologies Shut it® Aluminium Half Bolt-on Badass
Description

With a wide mounting plates and four anchor points, the 102mm and 125mm Half Bolt-on BadAss hinges reduce fence post flexing, preventing fatigue in the fence post. Four anchor points position bolts at the sides, rather than the center of the fence post for a solid, stronger connection. Shut It gate hinges are assembled in the USA with the industry's first maintenance-free high-temperature sealed bearings, which are safe to powder coat with the hinges installed on the gate.

  • Product Code — 102mm: C13740A
  • Product Code — 152mm: C13760A
  • Gate Type: Non-Self-Closing
  • Gate Material: Aluminium
  • Approx Gate Size: 1.5m x 2m (6ft W x 8ft H)
  • Gate Frame/Post Shape: Square to Square
  • Min Post Size: 38mm
  • Ideal Gate Gap: 73-86mm
  • Fixing Method: Bolt-On, Weld On
  • Colour/Finish: Unfinished
Key Features
  • Shut it® 152mm Aluminium Half Bolt-On Badass — Made to bolt or weld to 152mm or larger fence posts
  • Shut it® 102mm Aluminium Half Bolt-On Badass — Made to bolt or weld to 102mm — 127mm fence posts
  • Wider brackets enable anchor points to be positioned at the sides, rather than the centre of a fence post — reducing flexing, preventing fatigue in fence post
  • High-temperature sealed bearings — safe to powder coat with hinges installed on the gate
  • No greasing, no maintenance
  • Precision bushing — distributes gate load for optimal performance and longer life
  • CNC machined to perfection and near-frictionless movement
  • Max Gate Load: 450kg
  • Max Gate Weight: 270kg
  • Limited Lifetime Warranty
Scope of Use
  • Approx Gate Size: 1.5m x 2m (W x H)
  • Gate Frame/Post Shape: Square to Square
  • Min Post Size: 38mm
  • Ideal Gate Gap: 73-86mm
  • Fixing Method: Bolt-On, Weld On
Other Performance Attributes
  • Limited Lifetime Warranty
  • No greasing, no maintenance
  • Precision bushing — distributes gate load for optimal performance and longer life
  • CNC machined, near-frictionless movement
