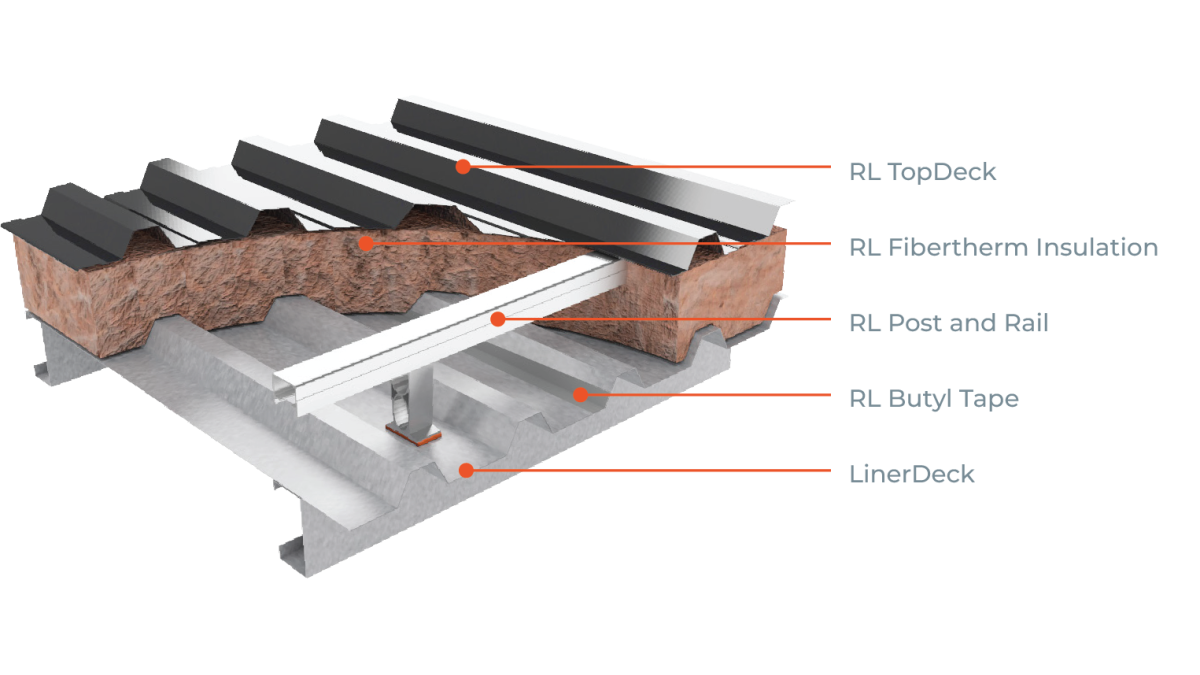

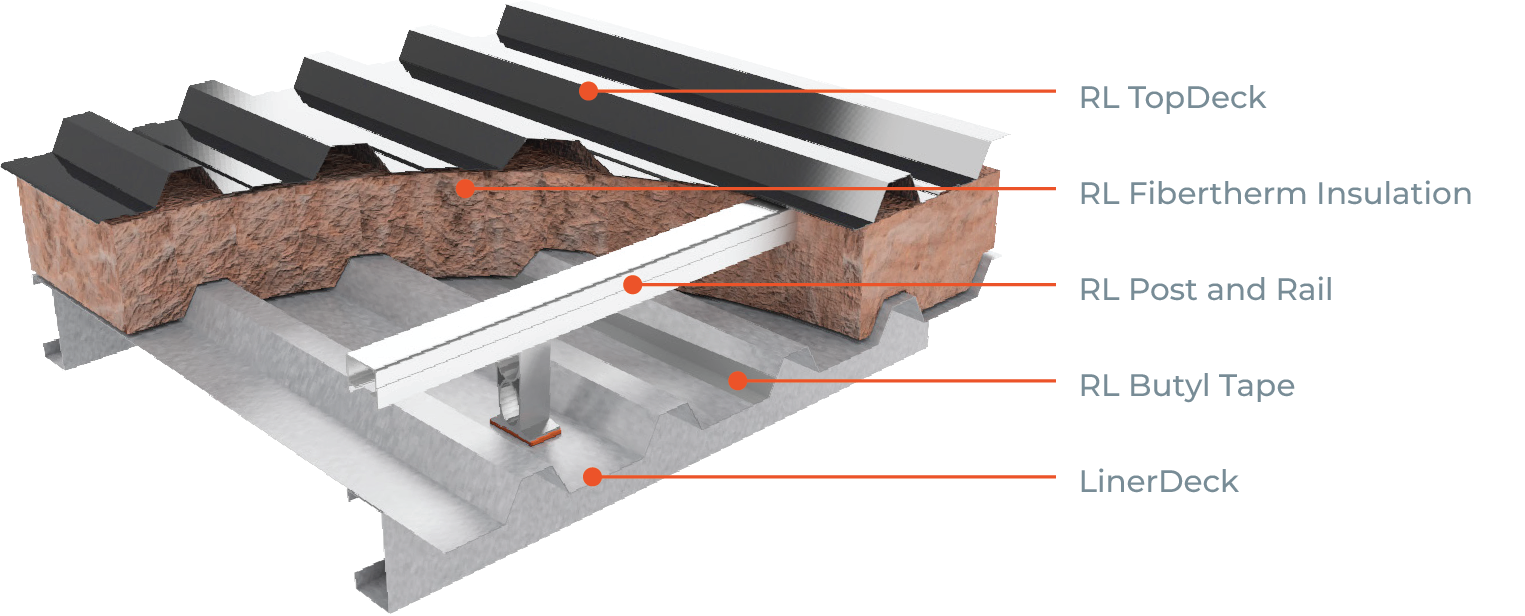

RL FiberthermX with TopDeck T

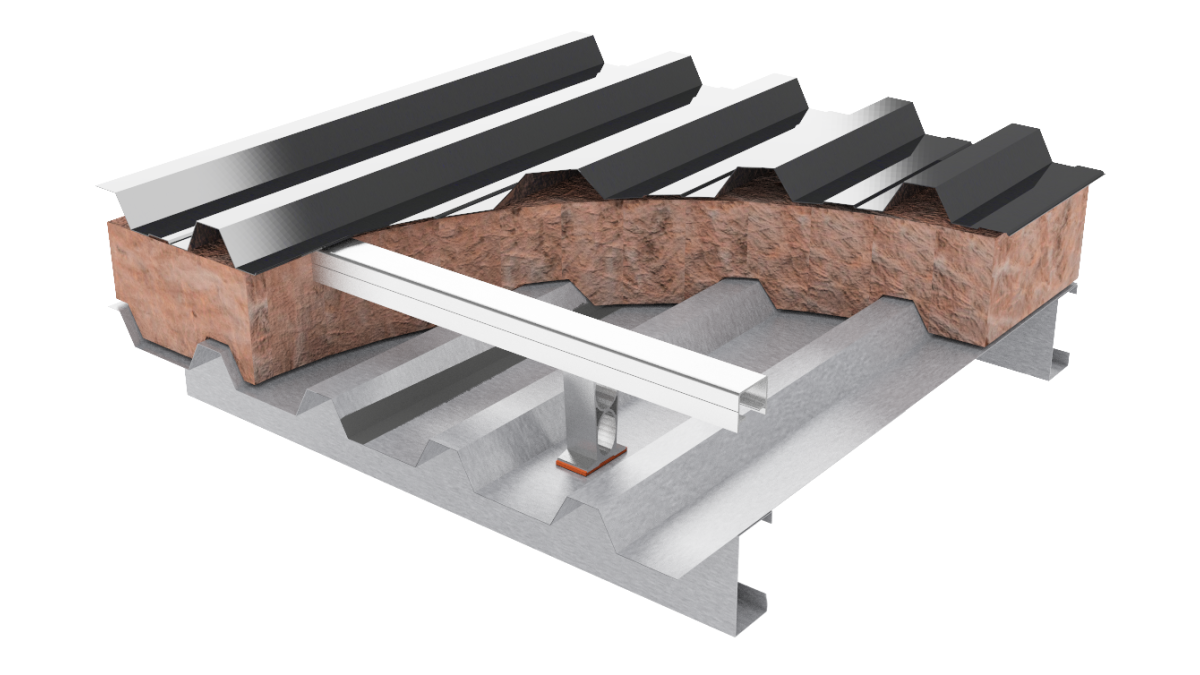

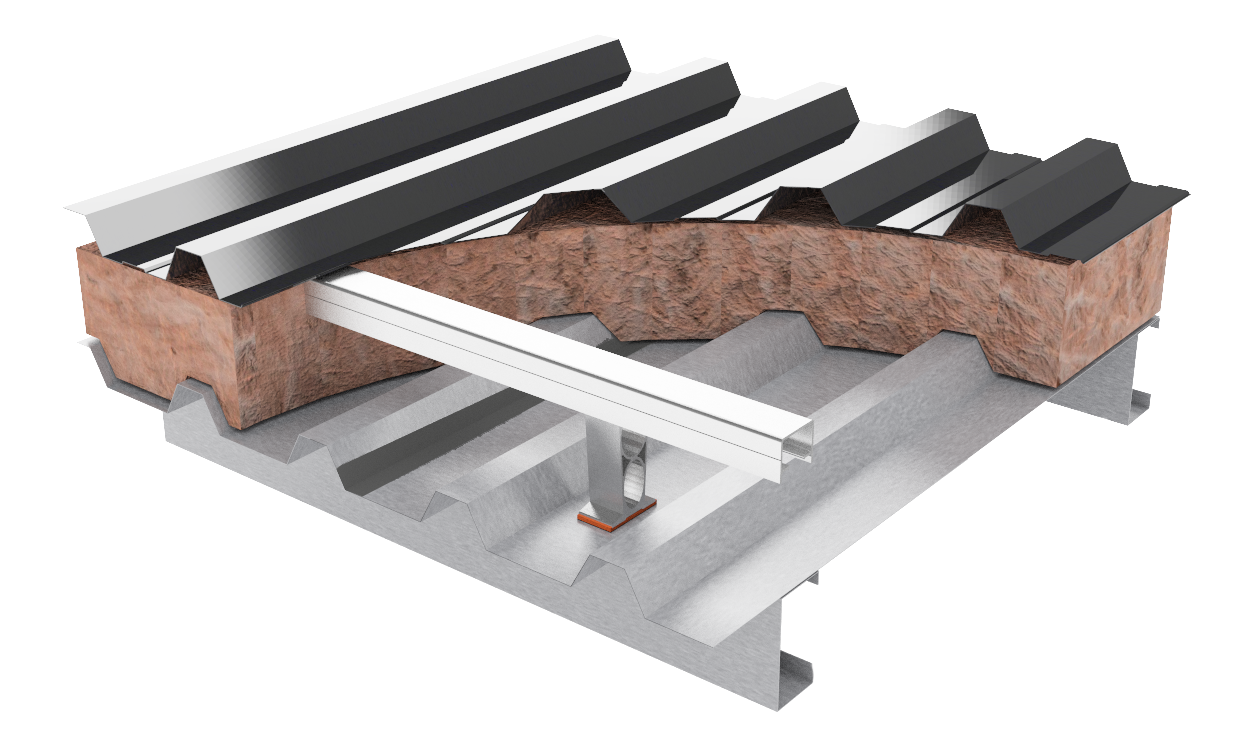

RL FiberthermX

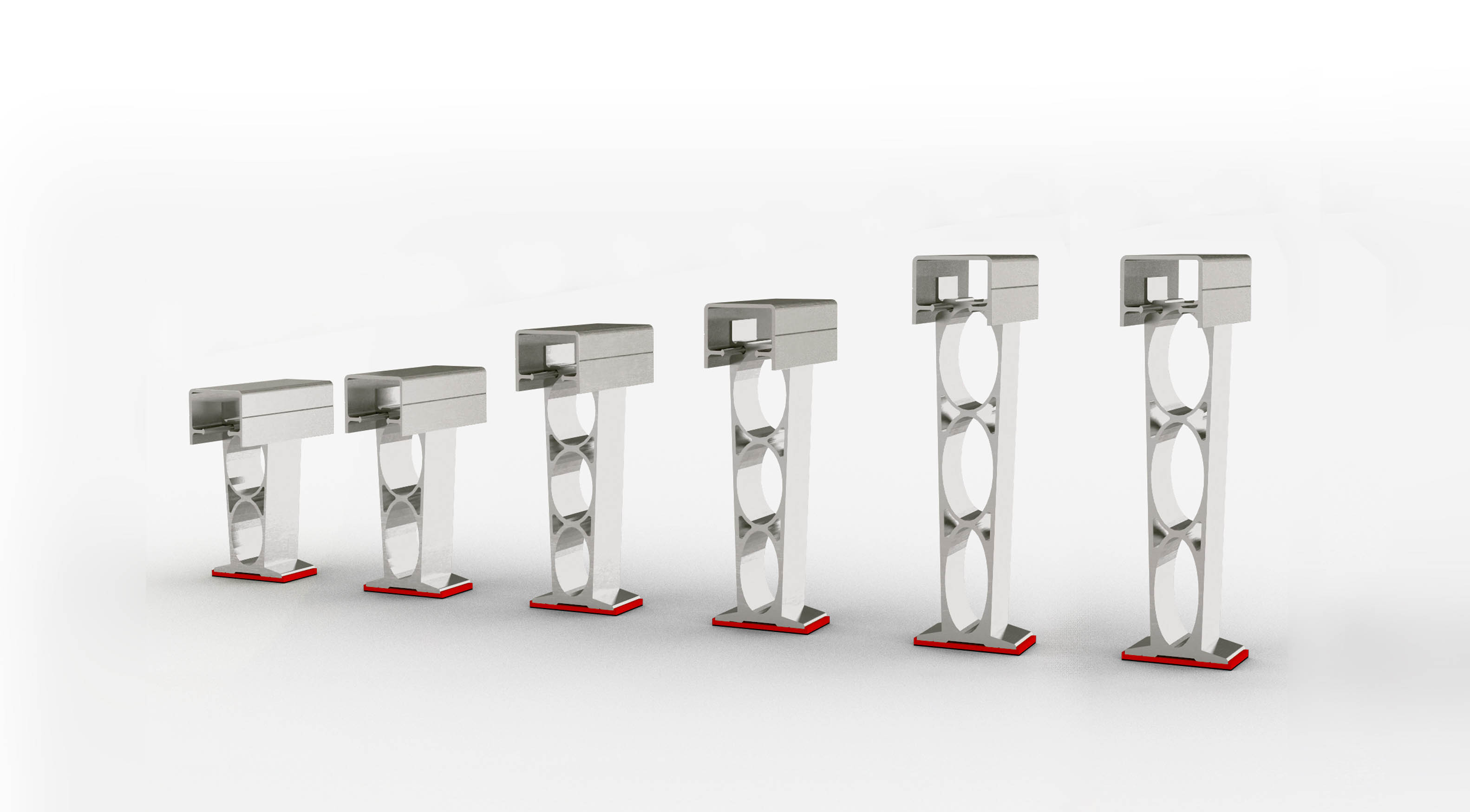

RL Post and Rail

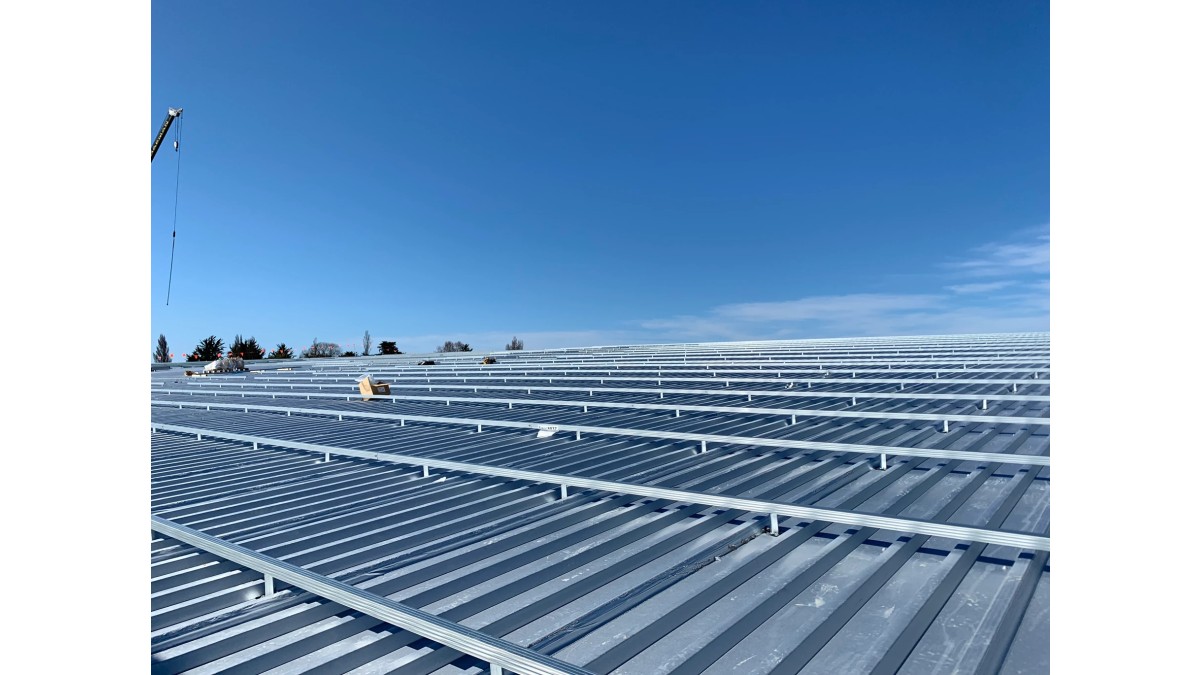

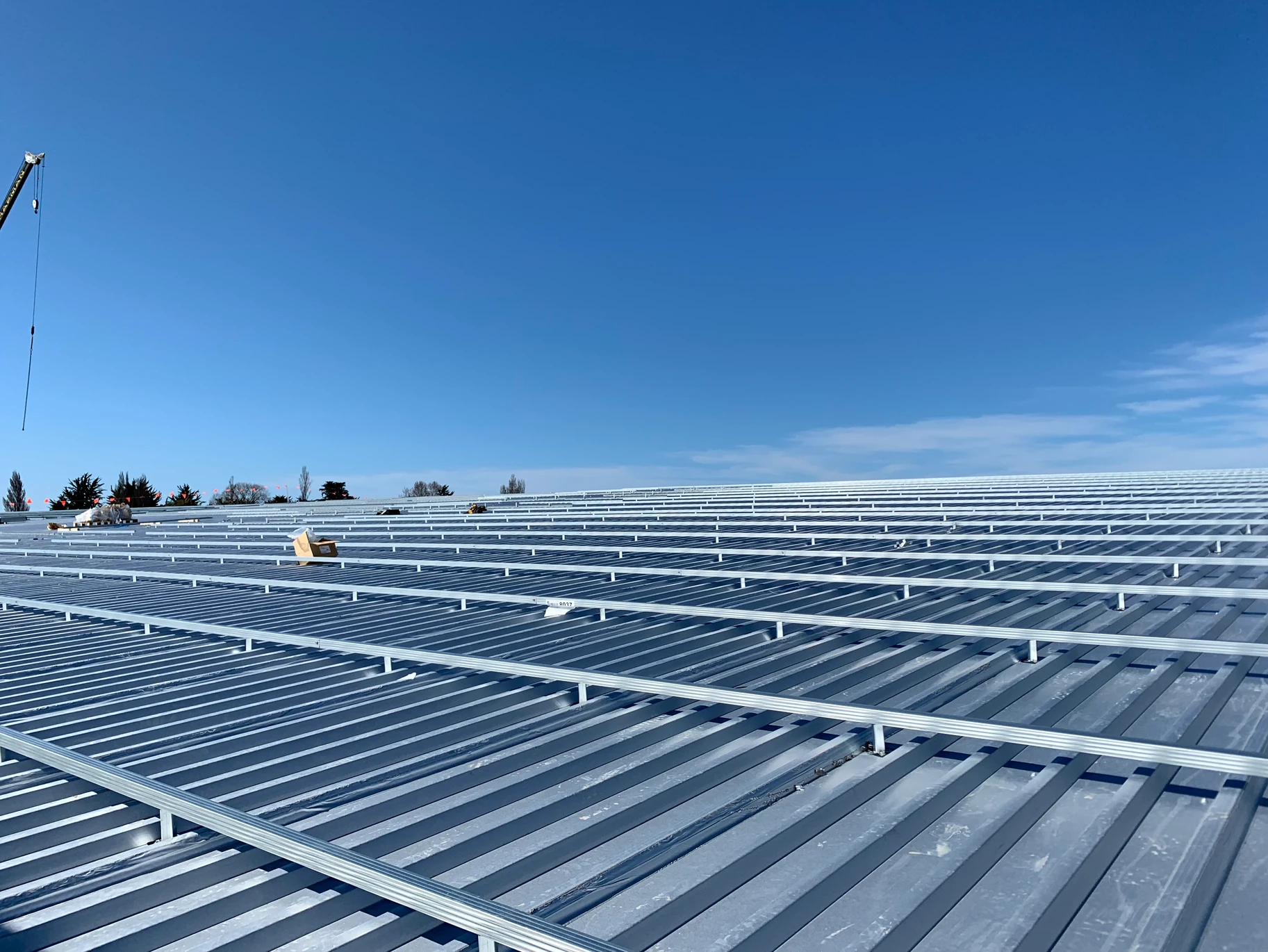

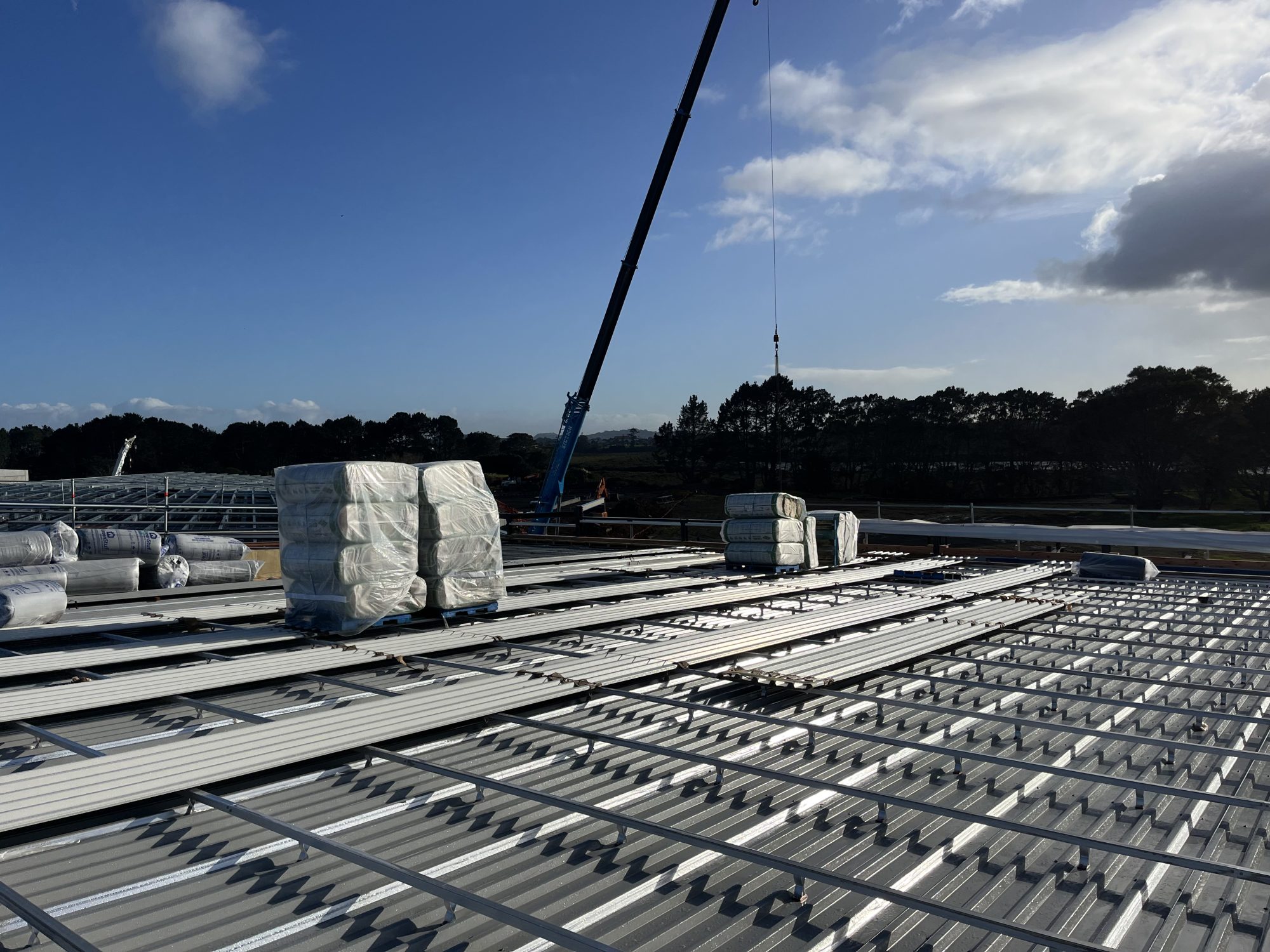

RL FiberthermX Installation

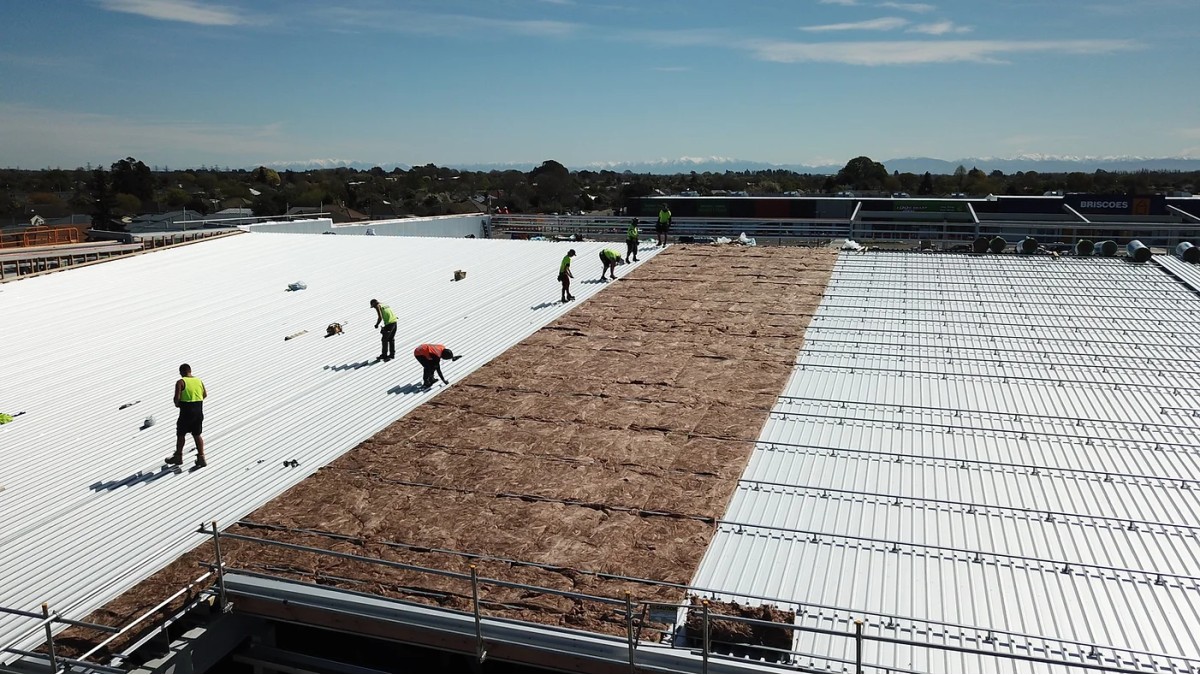

RL FiberthermX Installation

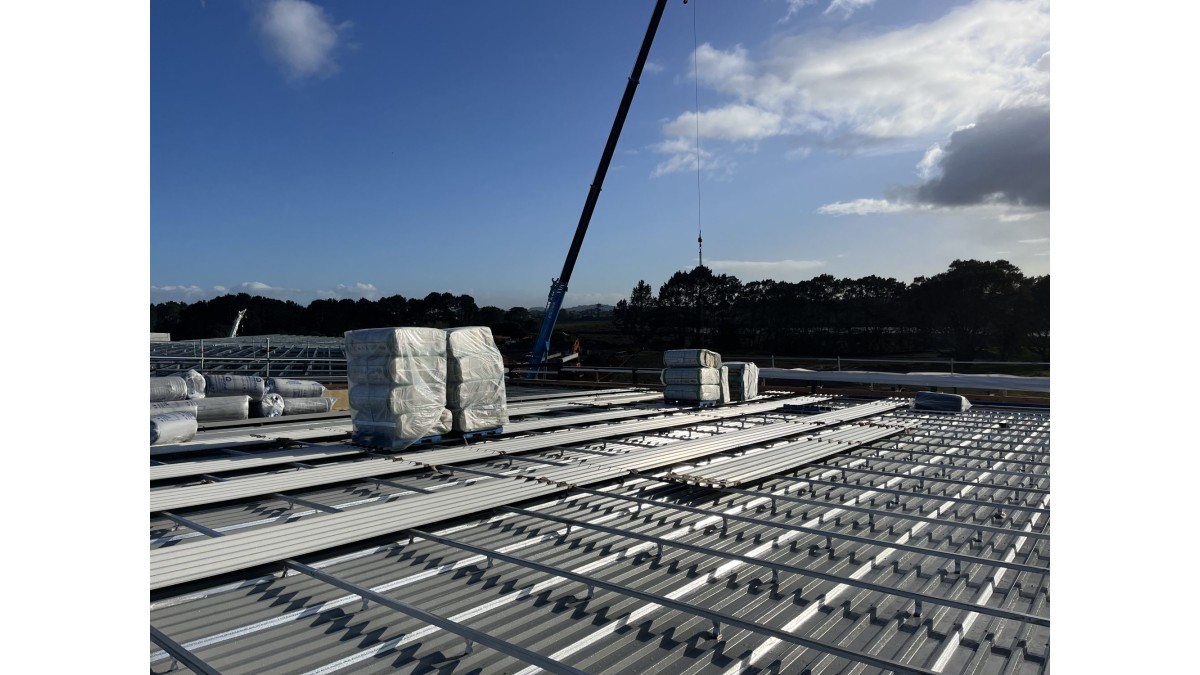

RL FiberthermX Post and Rail Installed

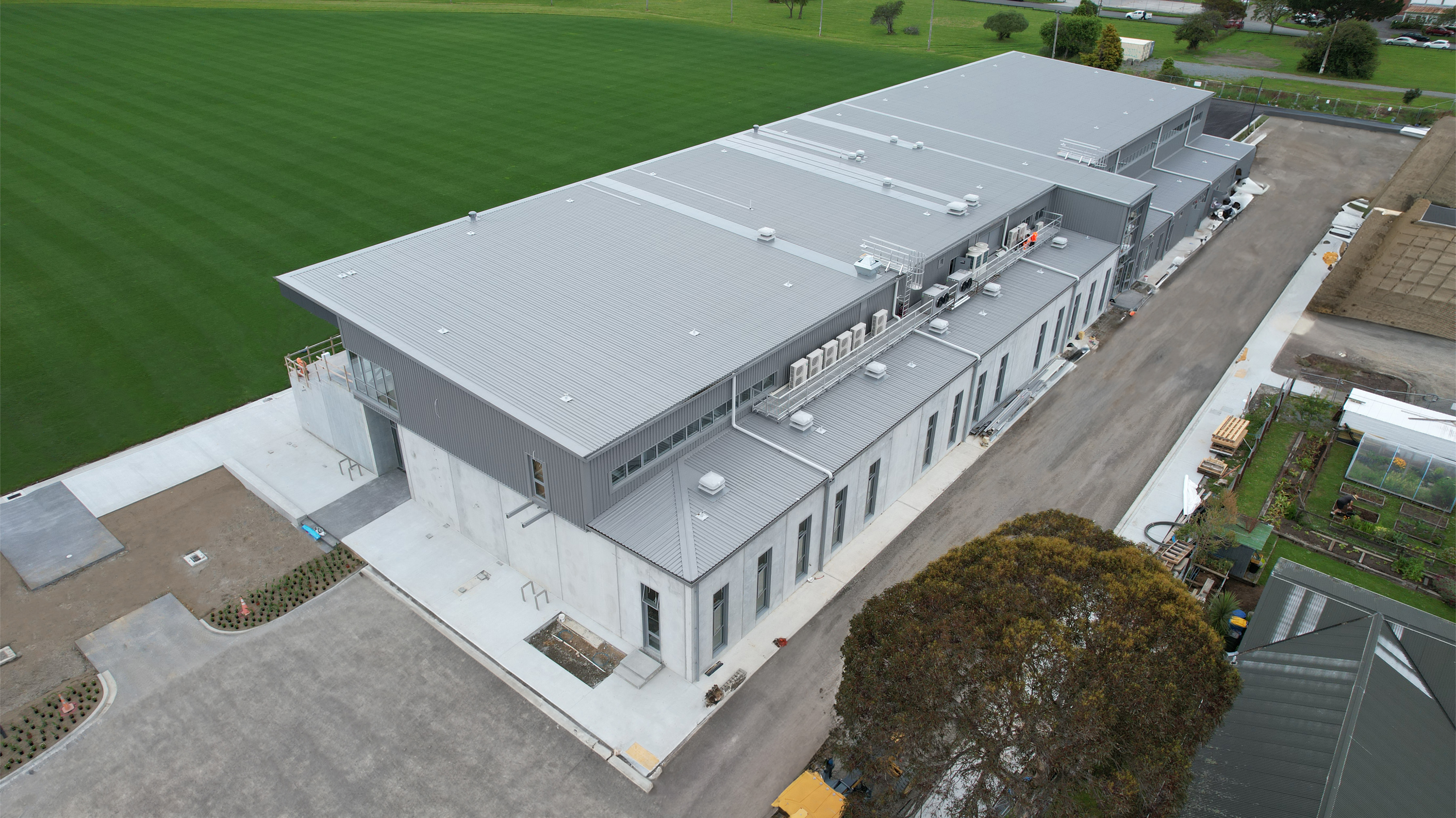

Maidstone Sports Hub with FiberthermX

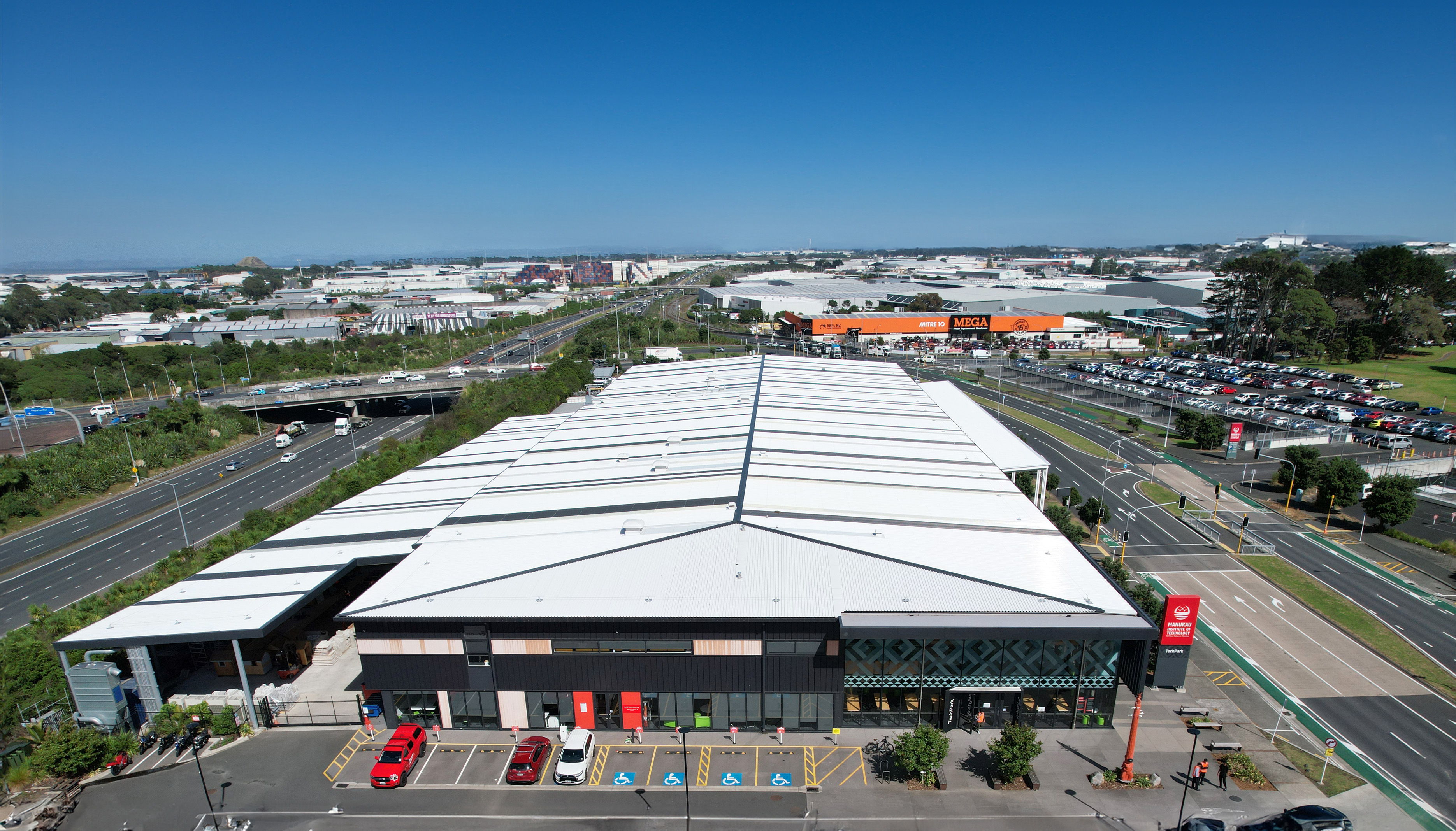

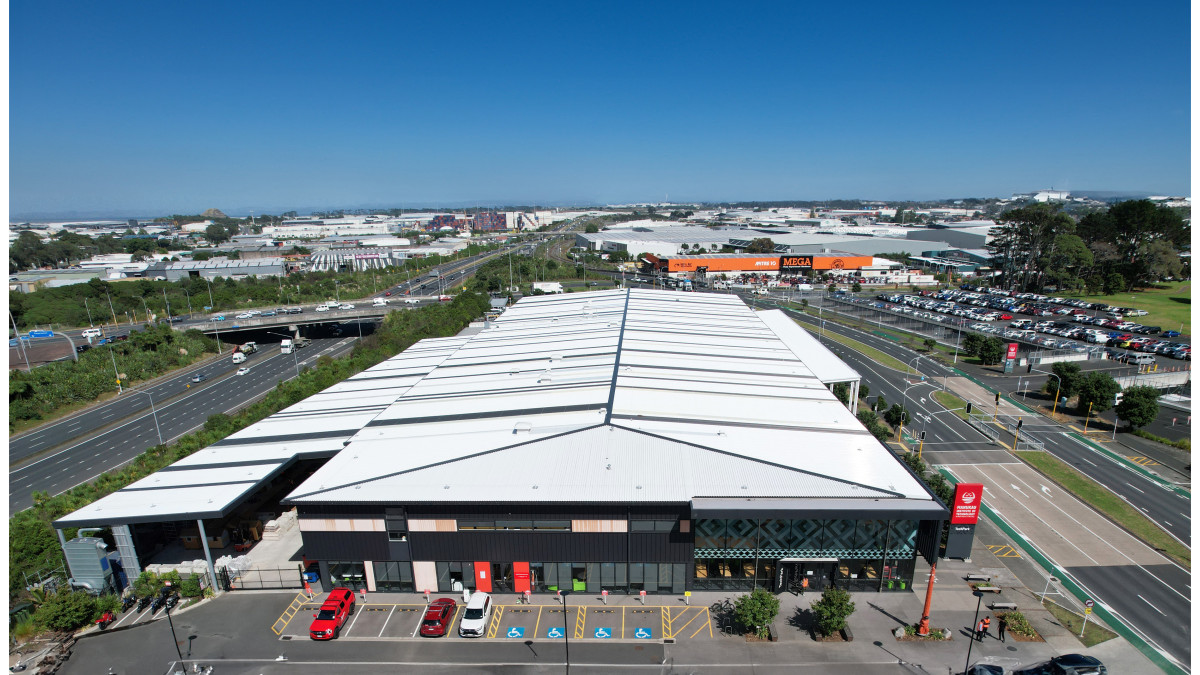

Manakau Institute of Technology with FiberthermX

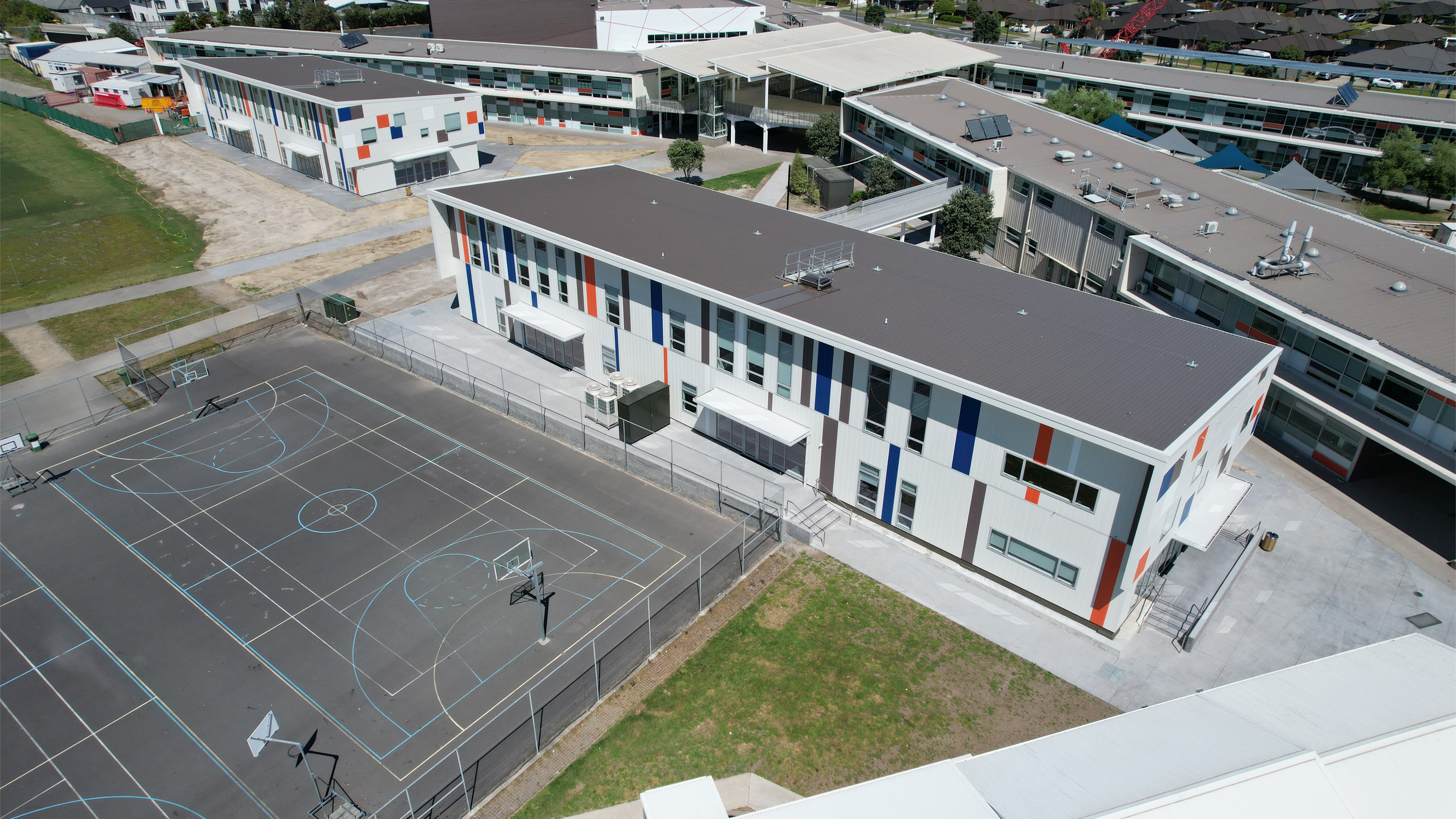

Papamoa College with FiberthermX

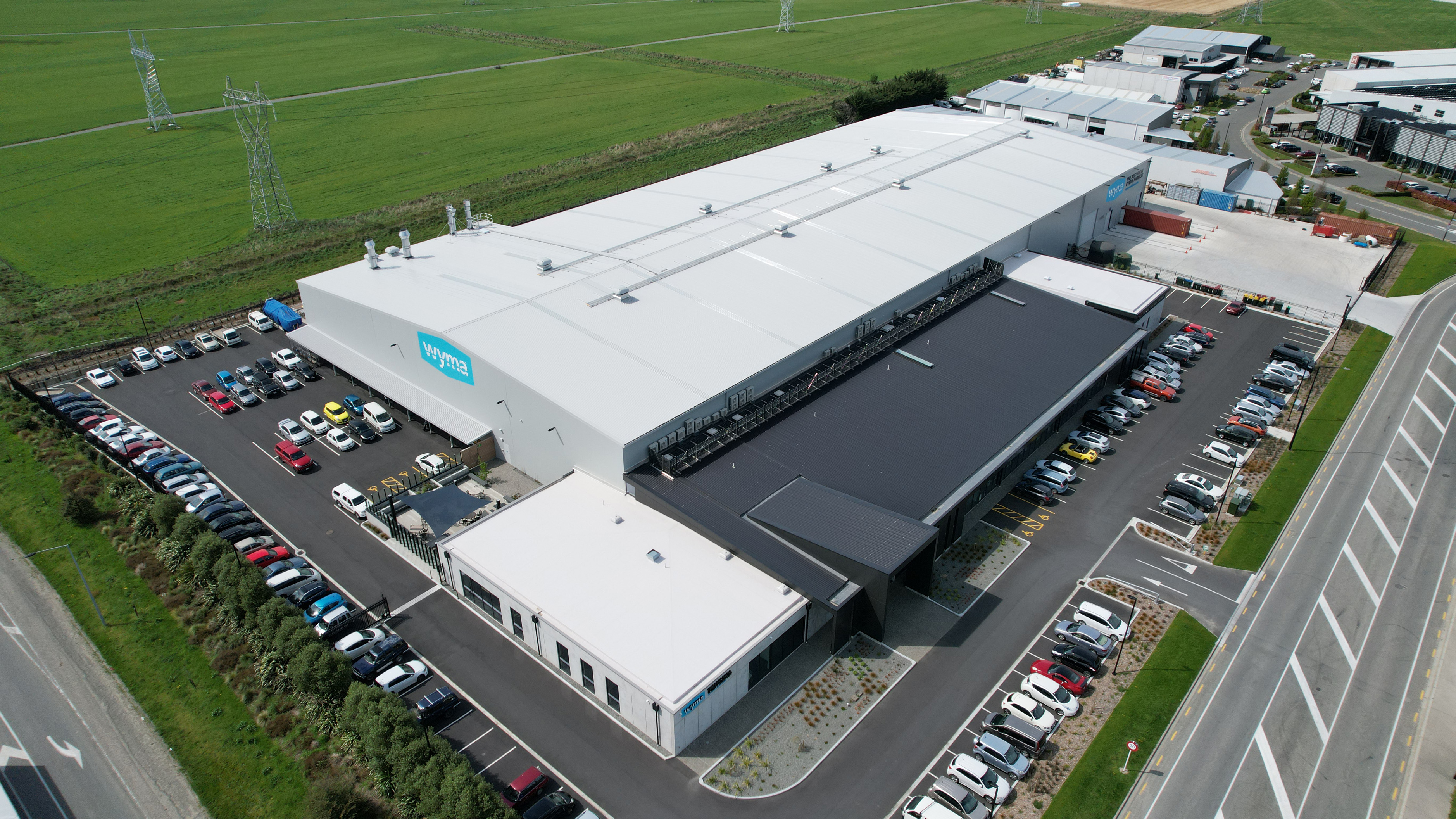

Wyma with FiberthermX

Product Enquiries

Description

The RoofLogic FiberthermX Metal Skin Warm Roof System is an insulated metal roof assembly utilising RL Fibertherm insulation to provide an economical insulated roof solution. Ideal for big box retail, warehouses and large area roofs.

RoofLogic FiberthermX will ensure thermal, hygrothermal and acoustic performance is provided with a system that is simple and efficient to install providing long-term durability.

The FiberthermX system offers a range of Post and Rail heights to accommodate different project requirements, specifically addressing NZBC H1 (Energy Efficiency) needs catering to the complete range of Climate Zones found in New Zealand.

The available Post heights include: 150mm, 165mm, 200mm, 220mm and 250mm.

Key Features

Durability: The FiberthermX system uses premium quality steel roofing products that are manufactured and roll-formed in New Zealand and have demonstrated durability over the last 40 years.
Acoustics: The FiberthermX System provides strong acoustic performance in terms of sound attenuation and rain noise reduction. Additionally, the system can be adapted to offer acoustic absorption, enhancing its versatility in managing various acoustic challenges.
Thermal Performance: The FiberthermX system offers a range of Post and Rail heights to accommodate different project requirements, specifically addressing NZBC H1 (Energy Efficiency) needs
Non-combustible system: All RoofLogic warm roof systems are tested to establish fire performance
Management of Condensation Risk: By incorporating a complete vapour control layer and conducting hygrothermal calculations, the RoofLogic FiberthermX system addresses both thermal performance and moisture-related concerns. The RoofLogic system delivers superior performance, durability, and protection against interstitial condensation, mold growth, and corrosion.
Programme: The FiberthermX system allows for early close-in of the structure. The first process is the installation of the RL LinerDeck which protects the building interior from the weather providing both programme and health and safety benefits particularly when compared to the installation of a traditional built-up roof system.
Weathertightness: The FiberthermX roof can be installed, flashed, and detailed in accordance with the Building Code and NZ Metal Roofi ng Code of Practice. Unlike composite insulated roof panels, the separable top skin of the FiberthermX roof allows for precise length customisation without the need for sealants or non-standard flashing details, ensuring weathertightness.. Enjoy the benefits of a reliable roofing solution that adheres to industry standards and ensures longlasting performance.
Value: When the range of benefits are considered – thermal/ acoustic performance, condensation management, programme — the Fibertherm system represents exceptional value and is highly competitive.

Scope of Use

RoofLogic FiberthermX Metal Skin Warm Roof System is an economical insulated metal roof assembly
Provides thermal insulation, condensation management, acoustic insulation
Ideal for big box retail, warehouses and large area roofs
Range of Post heights — 150mm, 165mm, 200mm, 220mm and 250mm
RoofLogic offers tailored system designs for each project
Suitable for all New Zealand climate zones
All RoofLogic warm roof membrane and metal skin roofing systems can go up to ISO Category 5 Corrosion Zones (severe marine environments)
