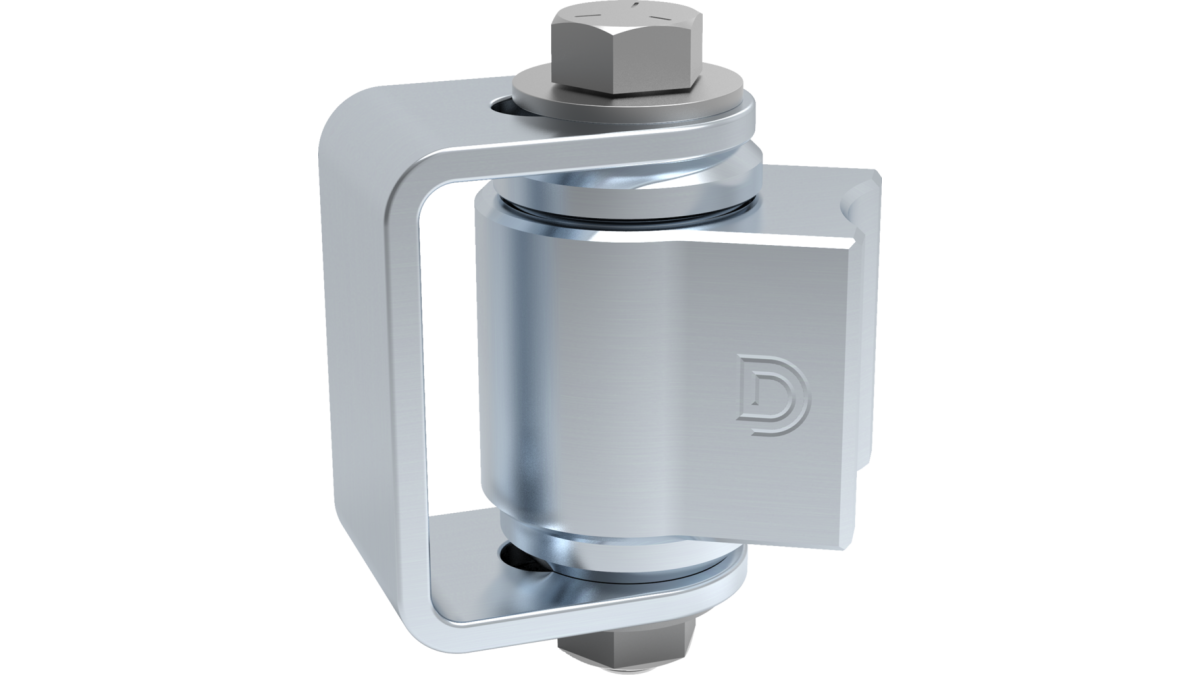

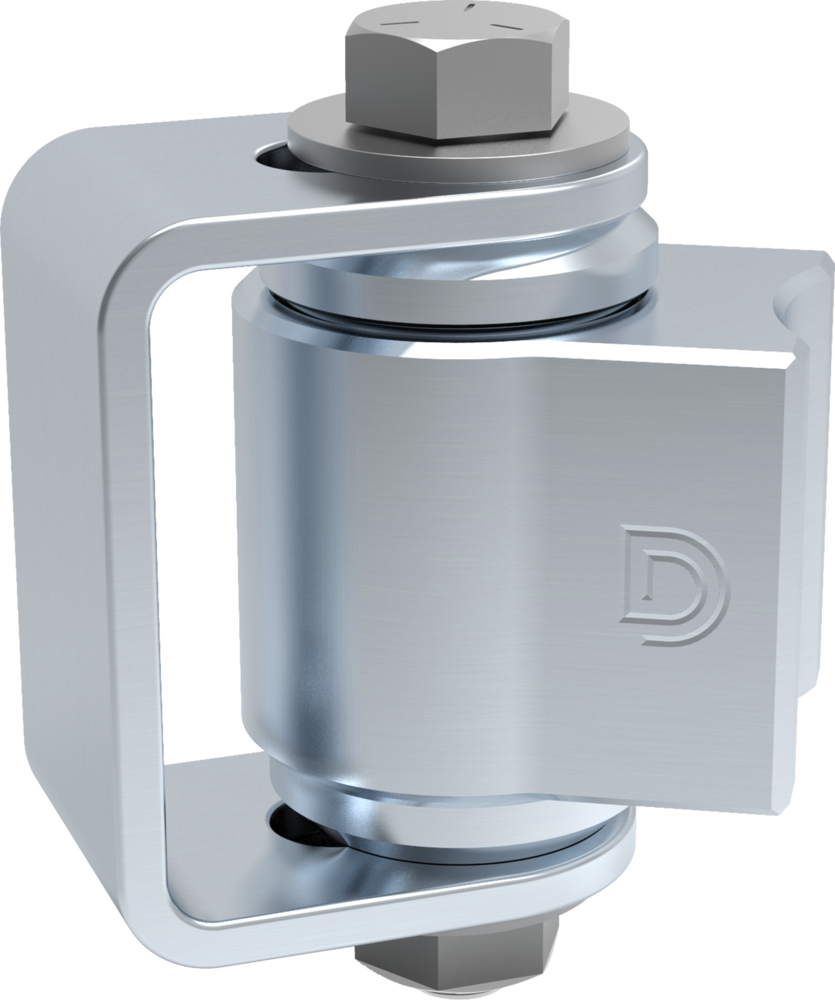

D&D Technologies Shut it® 100 Year Badass Gate Hinge
Description

Shut it® 100 Year Badass Gate Hinge is so durable a standard lifetime warranty does not do it justice, so instead the warranty on the product is for 100 years. The Hundred-Year Hinge uses the unique Shut It bushing design with upgraded hardware for added strength and longevity.

  • Product Code: CI3500
  • Gate Type: Non-Self-Closing
  • Gate Material: Steel/Ornamental Iron
  • Approx Gate Size: 2m H x 3m W
  • Gate Frame/ Post Shape: Square-to-Square, Square-to-Round
  • Min Post Size: 38mm
  • Ideal Gate Gap: 64-76mm
  • Fixing Method: Weld On
  • Colour/Finish: Zinc
Key Features
  • Thicker bracket and higher-tensile shaft
  • Ideal for square  or round-post installations
  • Adjustable bracket for precise installations
  • Load rating per gate: 1,360kg
  • Maximum gate weight: 680kg
  • 100 year warranty
Scope of Use

Hinge for non self-closing gates.

  • Pedestrian Gate
  • Driveway Gate — single or double
  • Pet Gate
  • Playground Gate
  • Public/Commercial Gate
  • Automated/Electric Gate
  • Security Gate
  • Privacy Gate

Installation:

  • Approx Gate Size: 2m H x 3m W - (7ft x 10ft)
  • Gate Frame/ Post Shape: Square-to-Square, Square-to-Round
  • Min Post Size: 38mm
  • Ideal Gate Gap:64-76mm
  • Fixing Method: Weld On
Limitations on Use
  • Load rating per gate: 1,360kg
  • Maximum gate weight: 680kg
Other Performance Attributes
  • 100 year warranty
