Triton 30HD
Description

Triton 30HD is a New Zealand made, high sound absorbing ceiling panel with HD core for attenuation of plenum noise and room to room noise. Triton panels are available in a wide range of size, decorative acoustic laminate finishes, colours, wood prints and perforated patterns for design freedom.

Manufactured from HD 120 kg/m³ bio-soluble glass wool core with Sonatex™ / Sonaris™ glass mat acoustic laminate finish.

Key Features
  • Very high sound absorption rating to control reverberation, NRC 0.95, ISO 11654 class A, αW 1.0
  • CAC 30 for attenuation of plenum & ceiling flanking noise
  • Fire Group 1-S
  • Broad range of Sonatex™ and Sonaris™ perforated acoustic laminate finishes for design freedom
  • Panels available with temporary protective foil to keep them clean during installation. Ideal for service panels
  • Made in NZ, short lead times including replacement panels
  • Green Tag Certified / Level A, low VOC, core contains 80% recycled post consumer waste glass
  • Packaging take back and reuse scheme available
  • Product stewardship renew and reuse program
  • Durable and dimensionally stable in high humidity
  • Light weight for seismic areas, easy to work and trim
Green Tag Certified
Green Tag Certified
Recycled Content (Pre-Consumer)
Pre-Consumer Recycled Content
NZ Made
NZ Made
NZ-Owned Business
NZ-Owned Business
Scope of Use

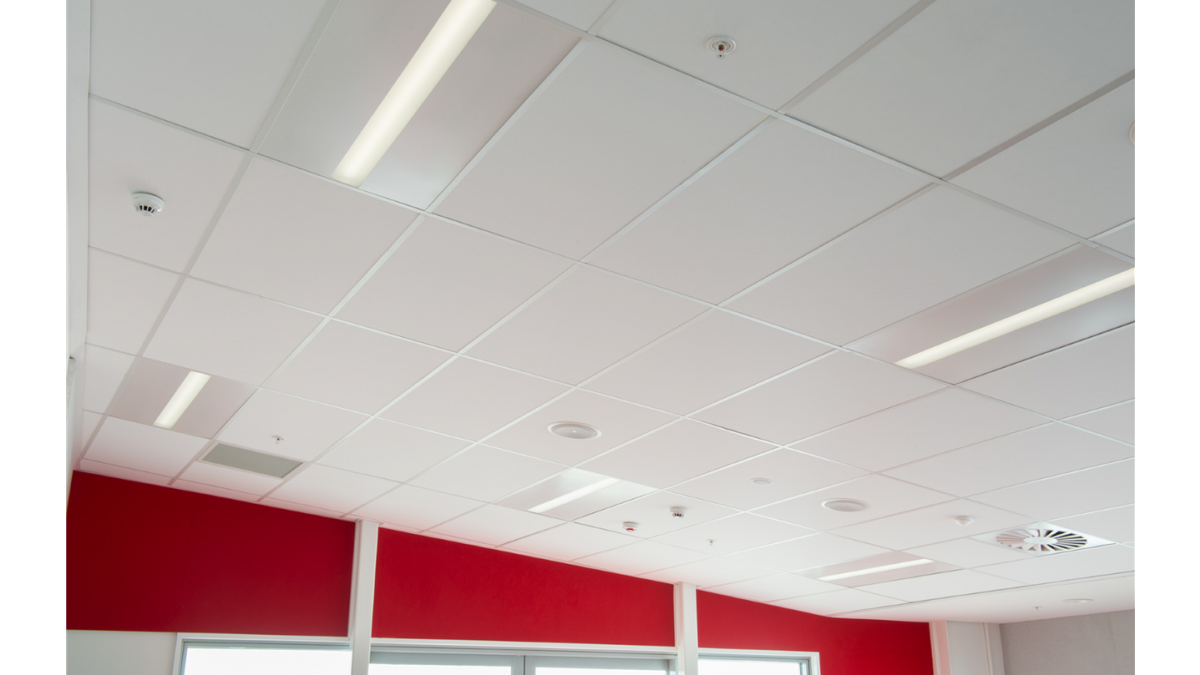

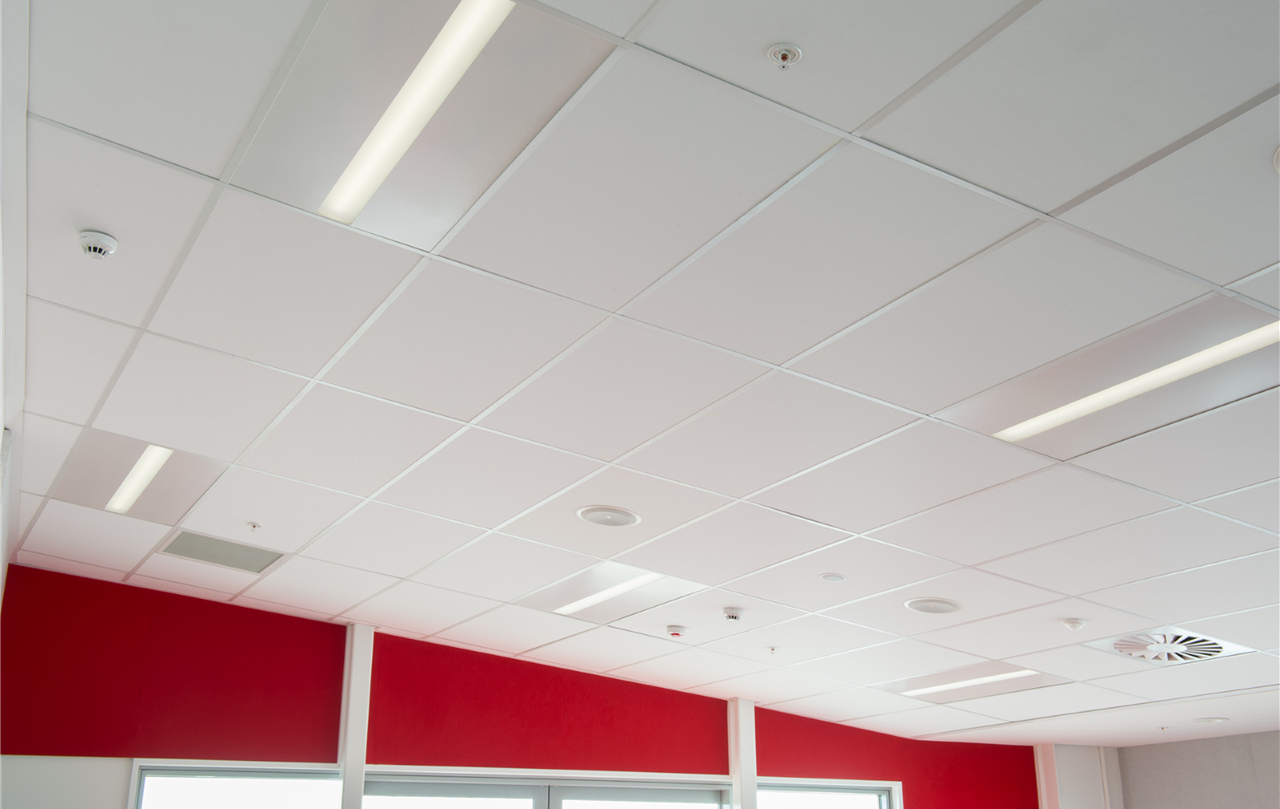

Triton 30HD™ is ideal for use in open plan offices, call centres, schools and general office ceilings. Light weight for larger ceiling spaces in high seismic zones.

  • Very high sound absorption rating to control reverberation, NRC 0.95, ISO 11654 class A, αW 1.0
  • Broad range of Sonatex™ and Sonaris™ perforated acoustic laminate finishes for design freedom
  • Ideal for service panels
  • Light weight for seismic areas, easy to work and trim
Limitations on Use
  • Shall not commence until the building is water tight and dry
  • Light fittings shall be independently supported
  • Max backloading 1.5 kg/m², point loads shall be independently supported
  • Max 99% R/H at 45°C
  • Use hold down clips in areas of wind uplift
  • Not for air return plenums
Statement of Building Code Compliance
  • NZBC verification method C/VM2 material group number: 1-S
  • Clause B2—durability, 5 years
In-Service History

Numerous projects

Other Performance Attributes
  • Global Green Tag Certified, Class A, from 80% recycled local glass waste, low VOC <0.005 Mg/M²/hr per ASTM D5116.
  • Packaging return, panel recycle and renew programs
  • Light Reflectance - 85% per BS8493:2008, White
Independent Assessment
Independent Assessment
Test Results
Test Results
Documents
Triton 30HD

23.12

Environmental Information - GreenTag Level A

230413

Maintenance: Triton Range
