Triton 25 Woodlook™
Description

Triton 25 Woodlook™ is a cost effective fire group 1-S perforated acoustic ceiling panel with a wood look low pressure laminate (LPL) finish. Made in NZ, the high sound absorbing panels are designed to control unwanted noise reverberation. Panels are available in a range of sizes and decorative wood print (or colour) Sonaris™ perforated acoustic laminate patterns.

Key Features
  • Attractive perforated wood panel look at lower cost compared to traditional perforated wood panels
  • Fire Group 1-S rating without cost of intumescent coatings
  • High sound absorption rating to control reverberation, up to NRC 0.90 depending on selected perforation pattern
  • Light weight for superior safety in seismic prone areas
  • Economical grid and tile ceiling system, 60% lower installed cost vs traditional perforated FR plywood or FR MDF ceilings
  • Broad range of perforated patterns to select from as well as custom patterns to order for design flexibility
  • Low VOC, low carbon solution with 90% by volume NZ made/ sourced material content including over 80% recycled post consumer waste
  • Made in NZ for short lead times. Product stewardship Renew and Reuse program available. Packaging take back and reuse scheme available (NZ only)
  • Durable and dimensionally stable, suitable for high humidity and non air conditioned spaces
Declare LBC Red List Free
Declare LBC Red List Free
NZ Made
NZ Made
NZ-Owned Business
NZ-Owned Business
Recyclable Content (Post-Consumer)
Post-Consumer Recyclable Content
Recycled Content (Pre-Consumer)
Pre-Consumer Recycled Content
Scope of Use

Triton 25 Woodlook™ is ideal for use in corporate offices, lobbies, showrooms, retail, hospitality, libraries and schools.

Limitations on Use
  • Back Loading: Max. 1.5 kg/m², point loads shall be independently supported.
  • Humidity: Max 99% R/H at 45°C.
  • Installation: Shall not commence until the building is water tight and dry. Light fittings shall be independently supported, use hold down clips in areas of wind uplift. For suspended ceilings it is recommended that air grilles be installed in the ceiling to balance air pressure differentials. Not for air return plenums
Statement of Building Code Compliance
  • Fire Reaction: NZBC verification method C/VM2 material Group: 1-S NCC BCA C1.10 clause 4, spec A2.4 clause 4. Group 1 Suitable for fire exit way and non sprinklered buildings
  •  NZ Building Code: Clause B2—durability, 5 years
In-Service History

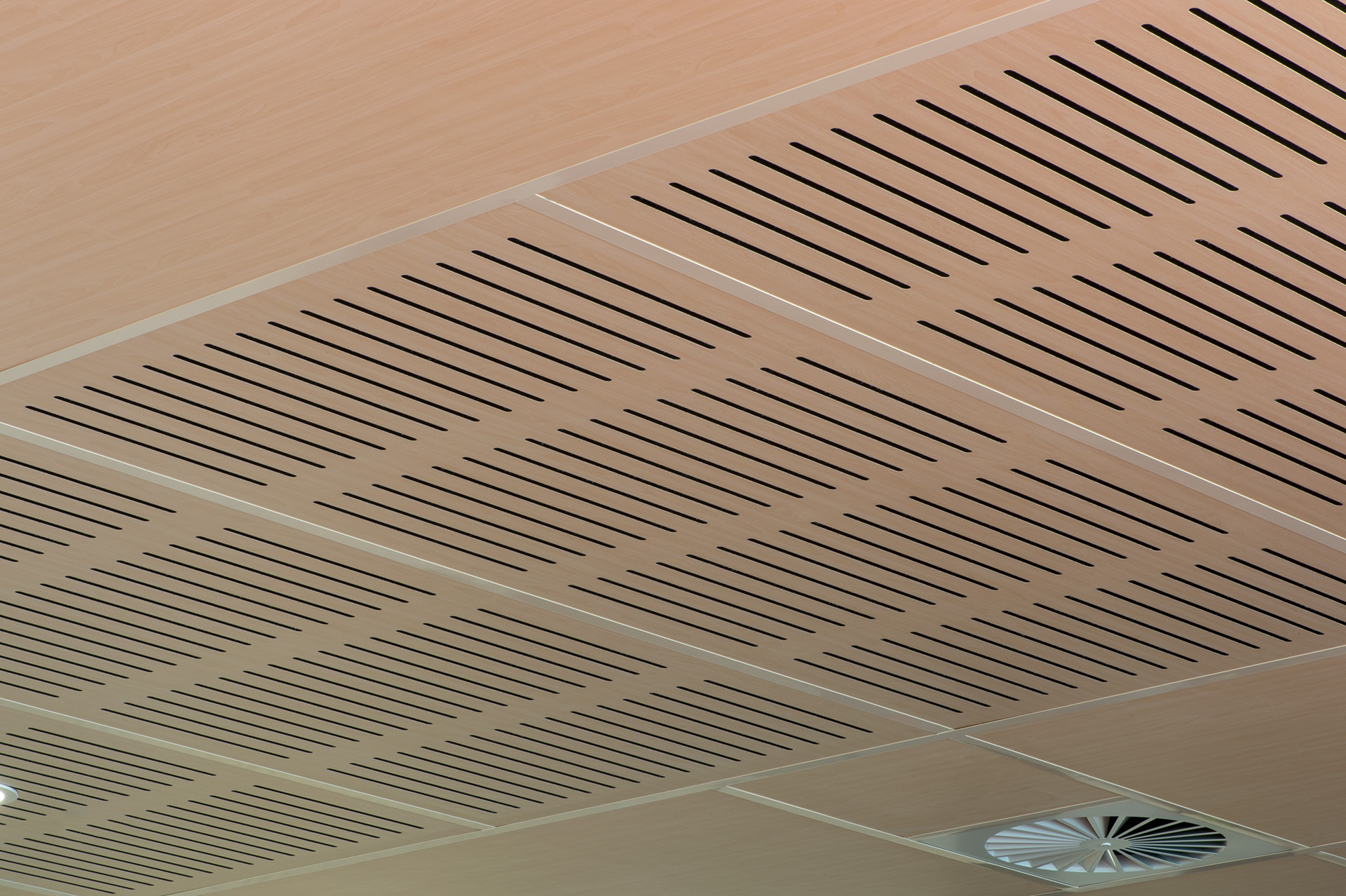

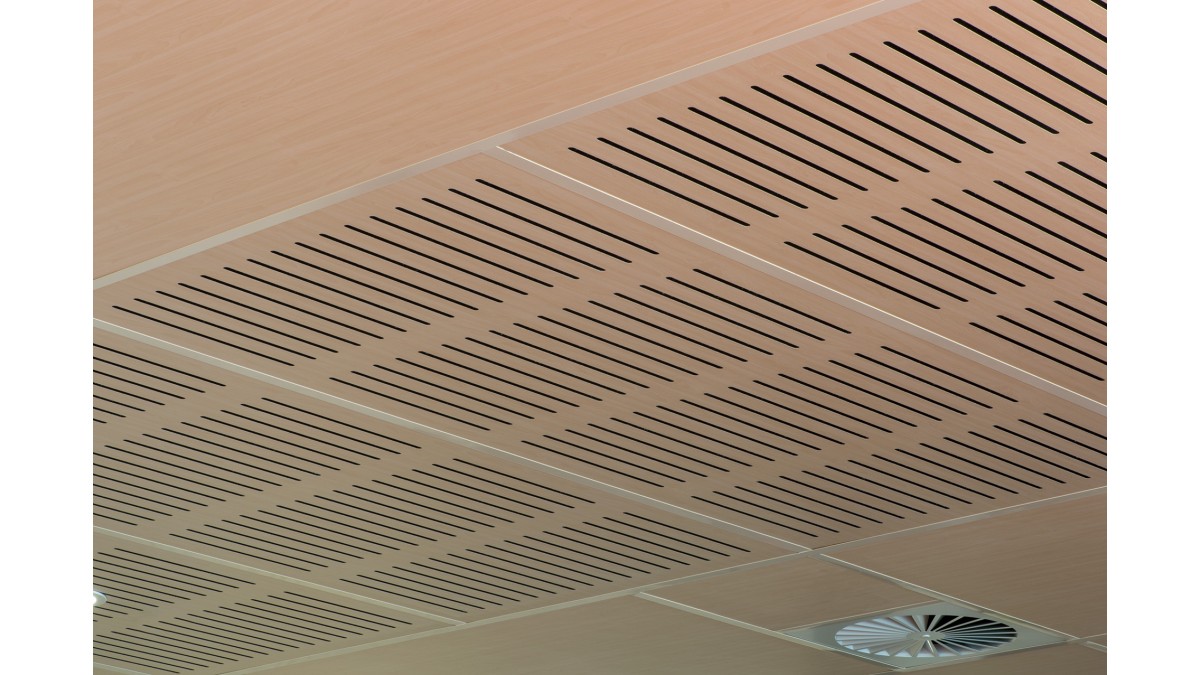

  • Ormiston College — Auckland
Other Performance Attributes
  • High sound absorption rating to control reverberation, up to NRC 0.90 depending on selected perforation pattern.
  • Light weight for superior safety in seismic prone areas
  • Low VOC, low carbon solution with 90% by volume NZ made/ sourced material content including over 80% recycled post consumer waste
  • Durable and dimensionally stable, suitable for high humidity and non air conditioned spaces
Test Results
Test Results
Documents
Acoustic Ceiling Tile

23.12

Asona Ltd are a manufacturer, distributor and installer of acoustic and decorative ceiling and wall panels.
