OWA Oriental
Description

OWA Oriental™ acoustic ceiling system comprises a 15 mm slot grooved suspension grid, with integrated LED strip lights and a 600 x 600 acoustic panel with decorative print finish. The result is a monolithic aesthetic and optimized room acoustics.

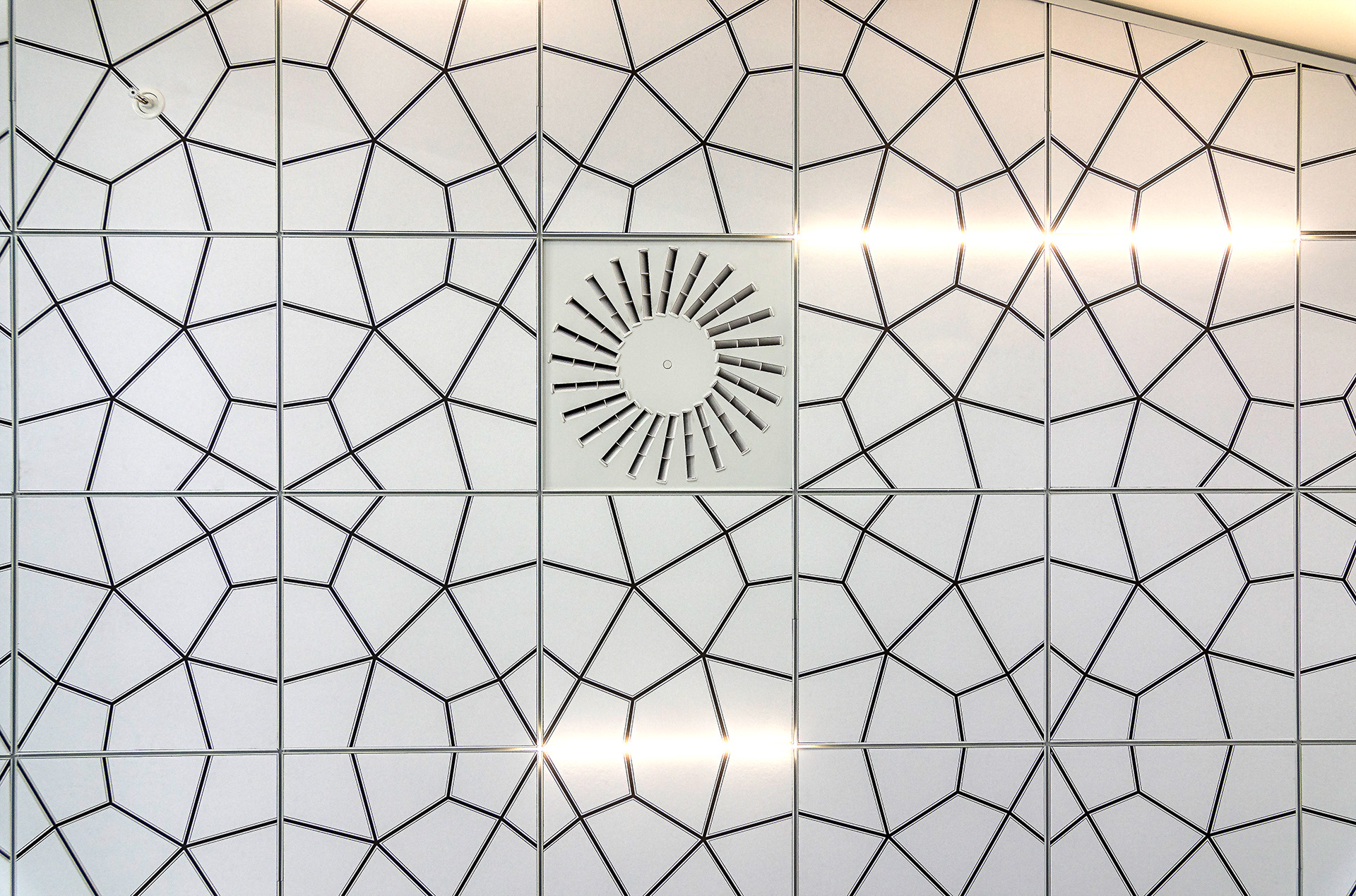

15mm thick wet felt hard mineral fibre ceiling panel with a bold geometric line pattern printed onto a smooth plain white finish.

Key Features
  • Contemporary print patterned mineral fibre ceiling panel
  • Camouflages grid lines for monolithic ceiling aesthetic
  • Fire Resistant, Group 1-S
  • Easy to trim and install
  • Fine plain finish and high light reflectance
  • High sound absorption, NRC 0.85, CAC 30
  • 15mm narrow slot suspension system with integrated LED lighting cross tees option
  • Made in Germany to the highest standards
Green Tag Certified
Green Tag Certified
Scope of Use

OWA Oriental with its striking appearance that can look good in open plan offices, corporate reception and client spaces as well as auditoria and showrooms.

  • High sound absorption, NRC 0.85, CAC 30
  • 15mm narrow slot suspension system with integrated LED lighting cross tees option
Limitations on Use
  • Not for exterior use
  • Installation shall not commence until the building is water tight and dry
  • Light fittings shall be independently supported, use hold down clips in areas of wind uplift
  • It is recommended that air grilles be installed in the ceiling to balance air pressure differentials
  • Do not use in ceilings with negative air return plenums unless encapsulated option specified
  • Max 95% R/H at 30°C
Statement of Building Code Compliance
  • Fire Reaction — Material group number: 1-S C/VM2 / ISO 5660.1. Suitablefor fire exit way and all other sprinklered & non sprinklered buildings.
  • Clause B2—durability, 5 years
In-Service History

OWA is a family business, started in 1948

Other Performance Attributes
  • Fire Resistant, Group 1-S
  • Fine plain finish and high light reflectance
  • High sound absorption, NRC 0.85, CAC 30
  • High Light Reflectance - ISO 7724-2, ISO 7724-3, >84% White
Documents
OWA Oriental

23.12

Environmental Information - GreenTag Level A: OWA

22-03

Asona Ltd are a manufacturer, distributor and installer of acoustic and decorative ceiling and wall panels.
