Knauf-Danoline Contrapanel
Description

Contrapanel is an impact resistant acoustic panel system designed for ceiling and upper level wall lining in gymnasiums schools and halls where physical impact may occur.

Panels are screw fixed to furring battens and butt joined for a solid robust finish. Contrapanel incorporates Cleaneo air purification technology for control of VOCs.

Panels are manufactured from reinforced gypsum core with white impregnated face, press perforated and back laminated with acoustic fleece. Perforations press punched for clean edge finish. Powder coated white bugle head fixing screws.

Key Features
  • Ball impact tested to DIN 18032 pt 3 where a 450 gm hand ball repeatedly impacts the panel at 16.5 m/sec for 60 times without damage
  • High impact resistant — Class 1 In accordance with EN 13964
  • NRC 0.65 for control of reverberation
  • Fire group 1-S
  • Durable and easy to clean white foil facing that resists ball scuff marking
  • Solid fixing, panels screw fixed to metal/ timber battens with white head screws
  • Contrapanel incorporates Cleaneo™ air purification technology for control of VOCs
NZ-Owned Business
NZ-Owned Business
Recyclable Content (Post-Consumer)
Post-Consumer Recyclable Content
Recycled Content (Pre-Consumer)
Pre-Consumer Recycled Content
Scope of Use

Contrapanel is designed for ceiling and upper level wall lining in gymnasiums, schools and halls or other areas where physical impact may occur. and a robust, high light reflectance acoustic surface is preferred.

Limitations on Use

Not for use with negative air return plenums, in direct contact with moisture or in extreme humidity conditions. Lead time 12-14 weeks, indent only.

Statement of Building Code Compliance
  • Fire reaction - C/VM2 / ISO 5660.1, Group number 1-S
  • Clause B2—durability, 5 years
In-Service History

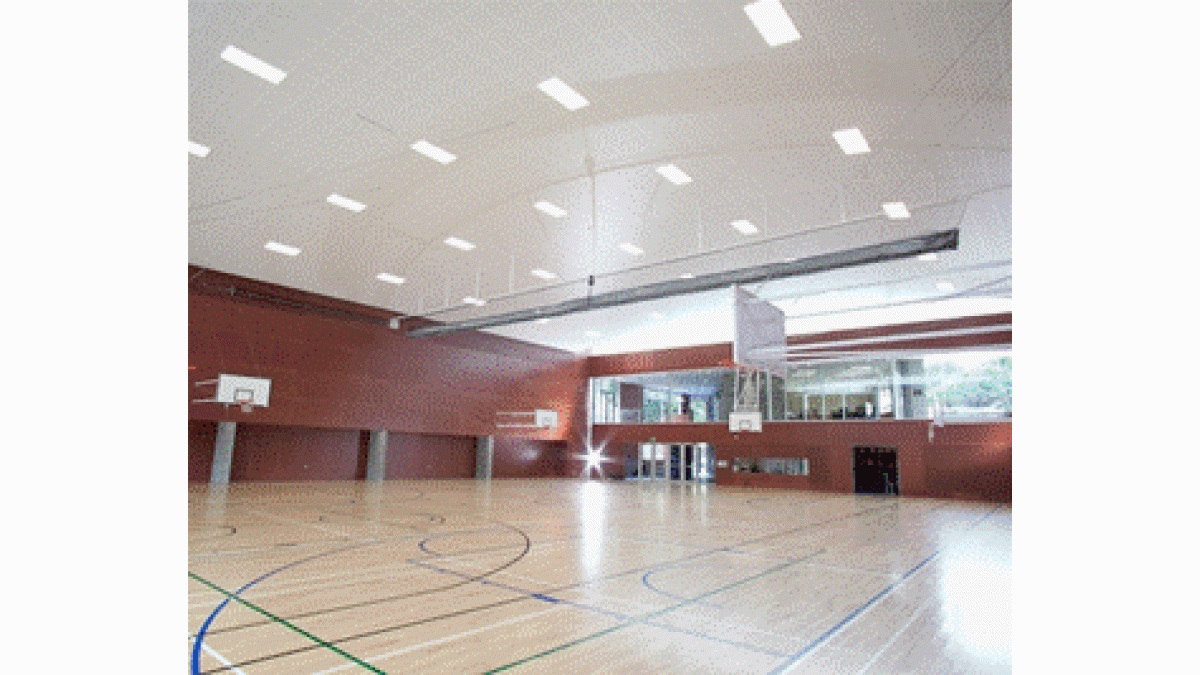

  • St Peters School Gymnasium

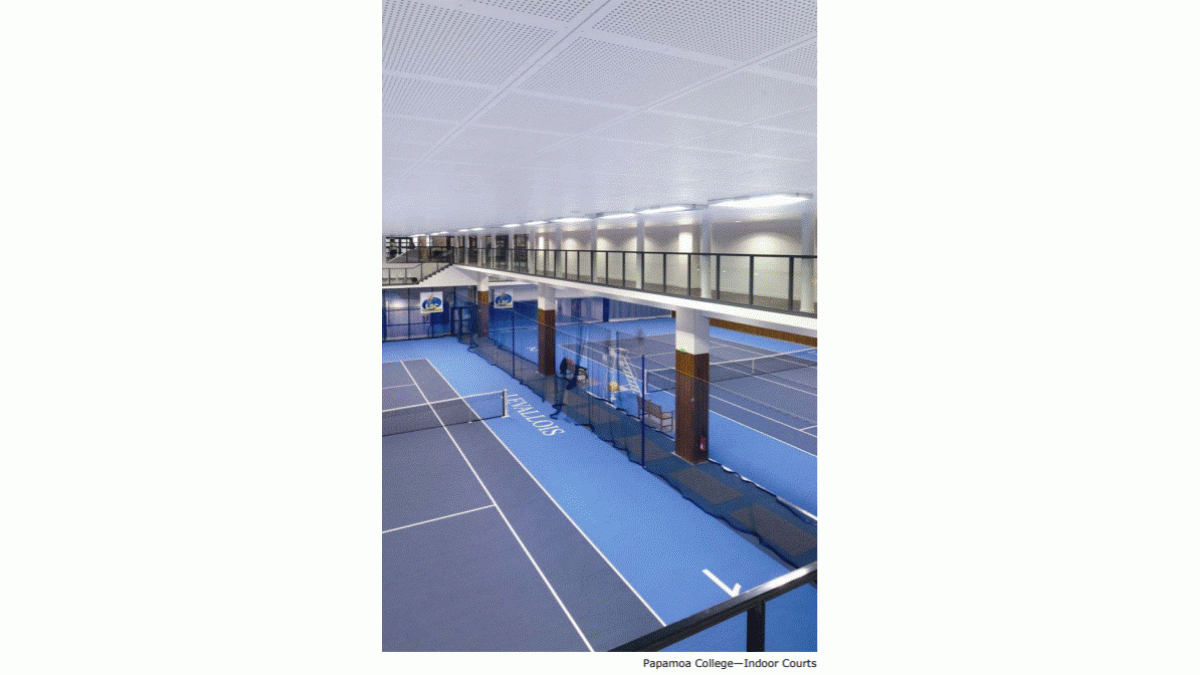

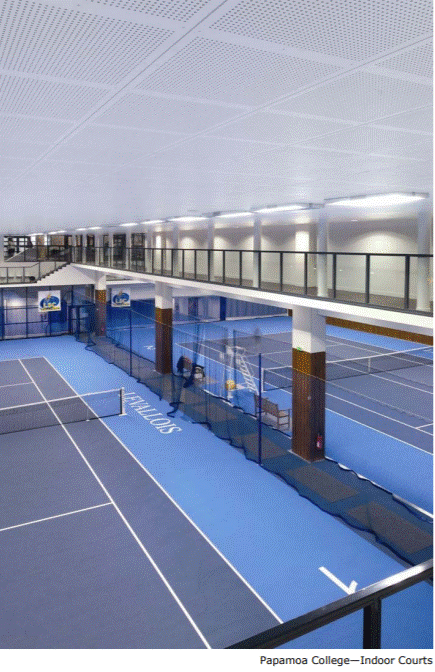

  • Papamoa College Indoor Courts
Other Performance Attributes
  • Ball impact tested to DIN 18032 pt 3 where a 450 gm hand ball repeatedly impacts the panel at 16.5 m/sec for 60 times without damage
  • High impact resistant — Class 1 In accordance with EN 13964
  • NRC 0.65 for control of reverberation
  • Fire group 1-S
  • Contrapanel incorporates Cleaneo™ air purification technology for control of VOCs
Test Results
Test Results
Documents
Knauf-Danoline Contrapanel

23.12

Knauf Danoline Warranty Info
Plasterboard Care & Maintenance
