ARDEX Internal Tiling System — Over Underfloor Heating
ARDEX
All products
shutterstock 217871773small
74x

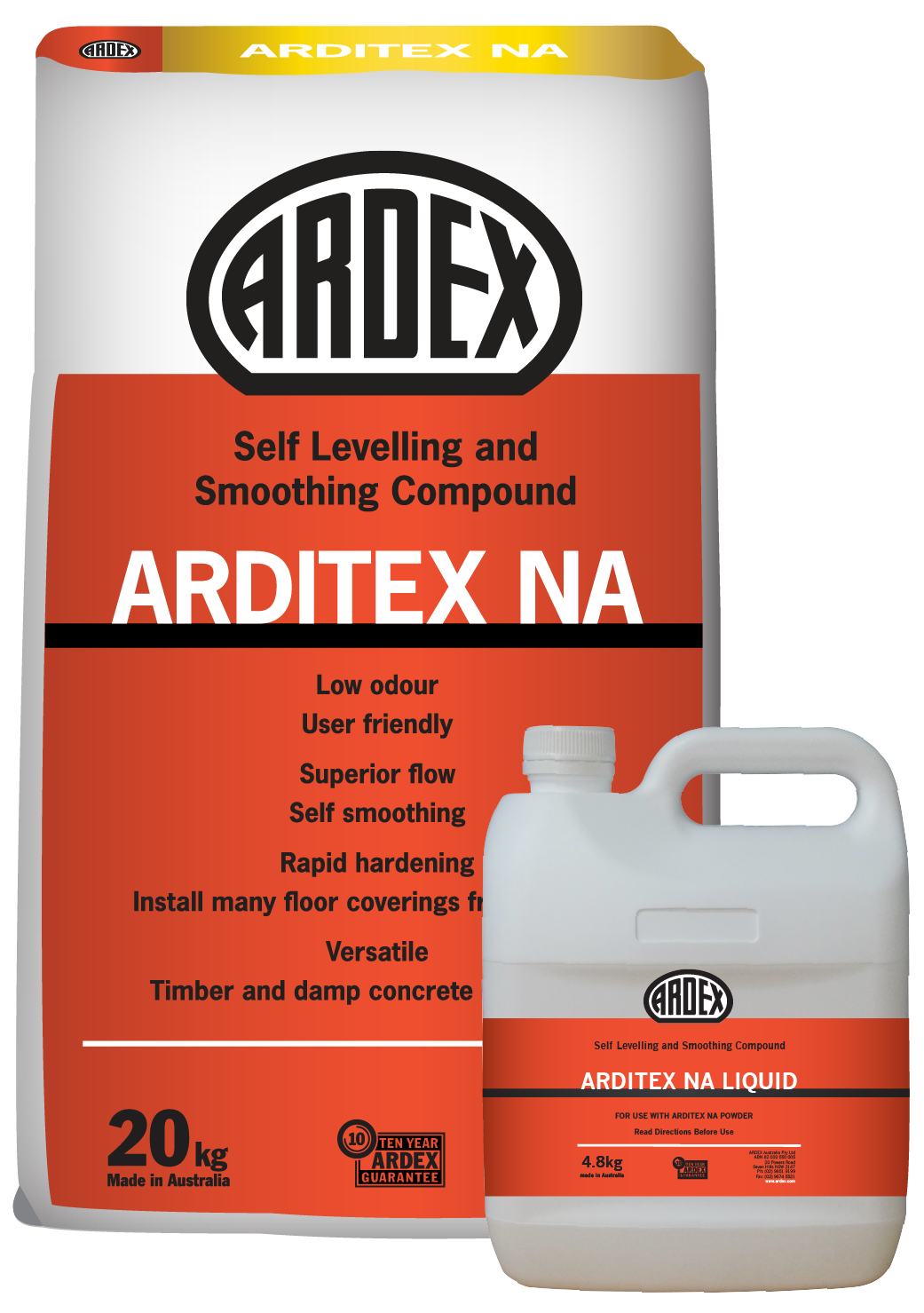

ARDITEX NA

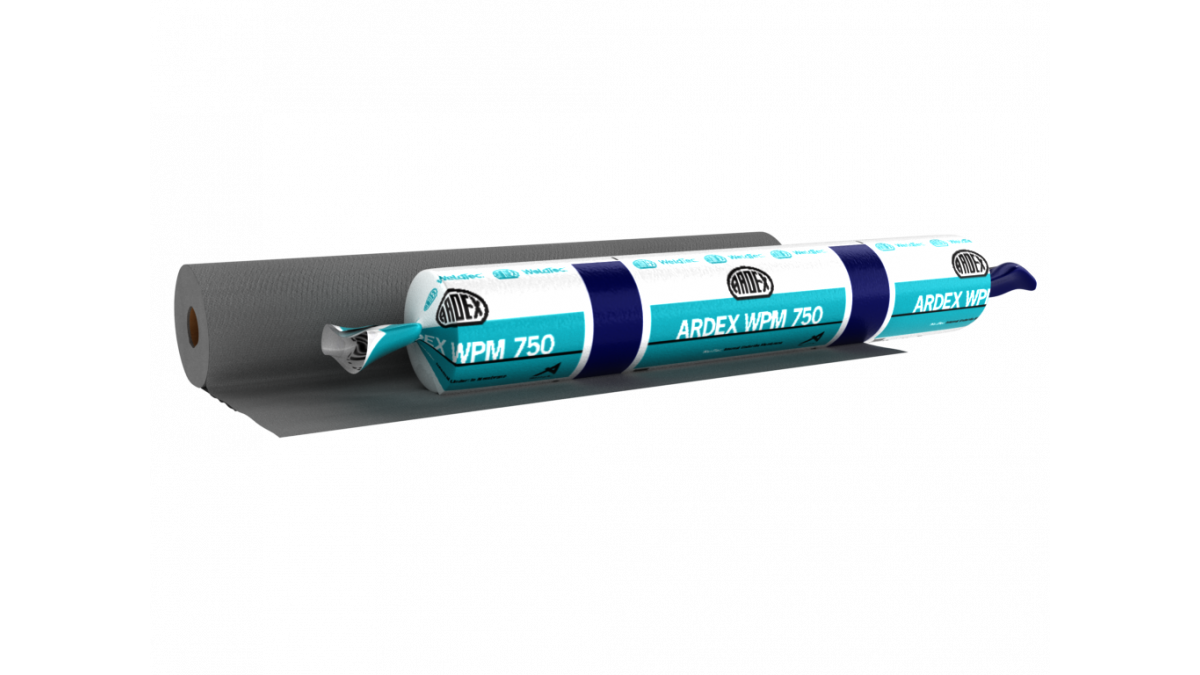

750 packaging Current View

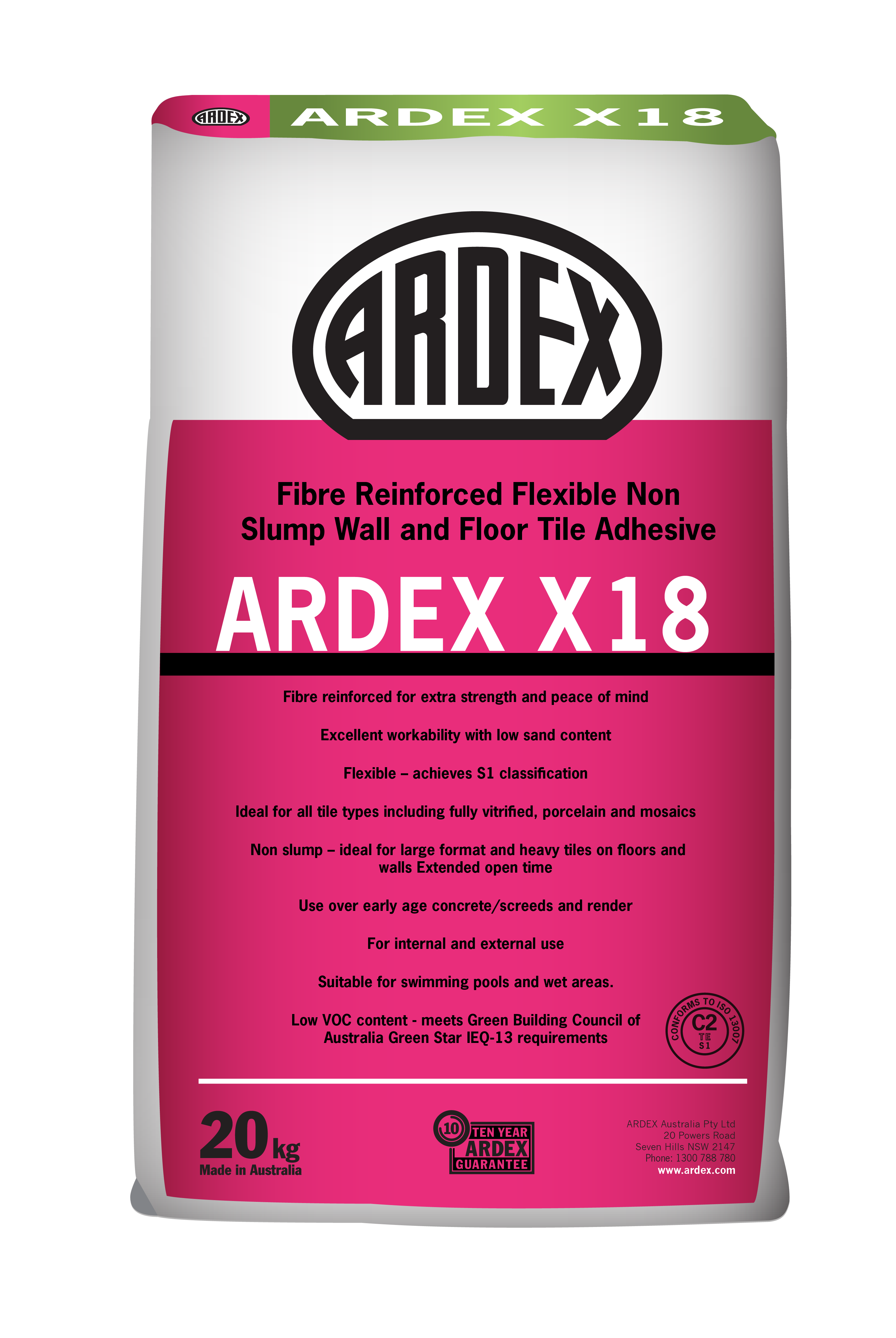

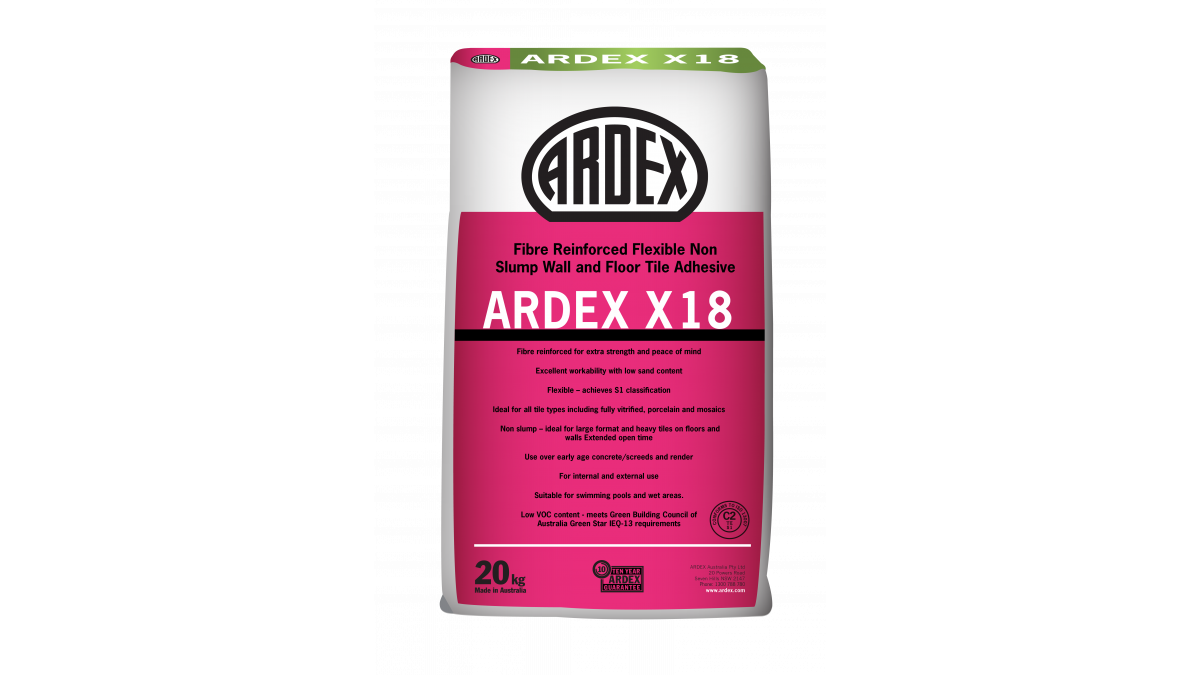

ARDEX X 18 20kg Render
FG8

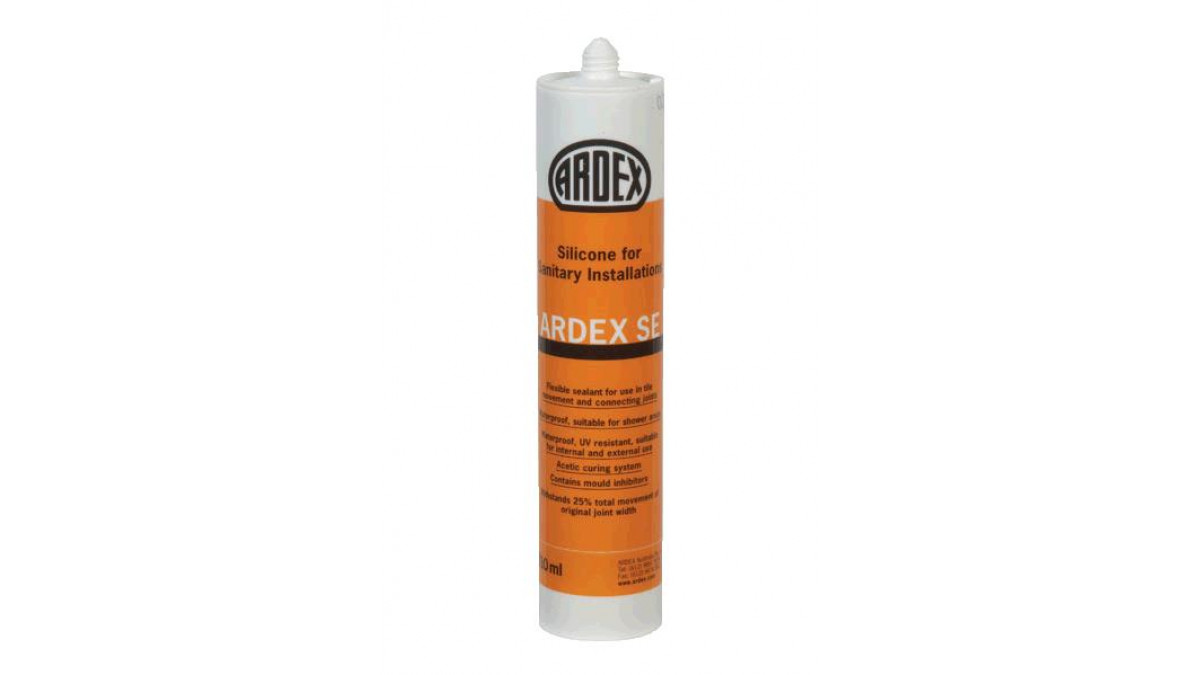

ARDEX SE
Description

Ideal for internal, heated floors, this ARDEX internal tiling system is designed to withstand long periods of heat cycling from an underfloor hearing system.

ARDEX X 18 is a superior polymer fortified cement-based wall and floor tile adhesive that has been specially formulated with mastic type properties. It contains specially developed fibres that add strength to the tiled area. It has an extended open time, is non-slump and flexible. It is suitable for both internal and external situations including swimming pools.

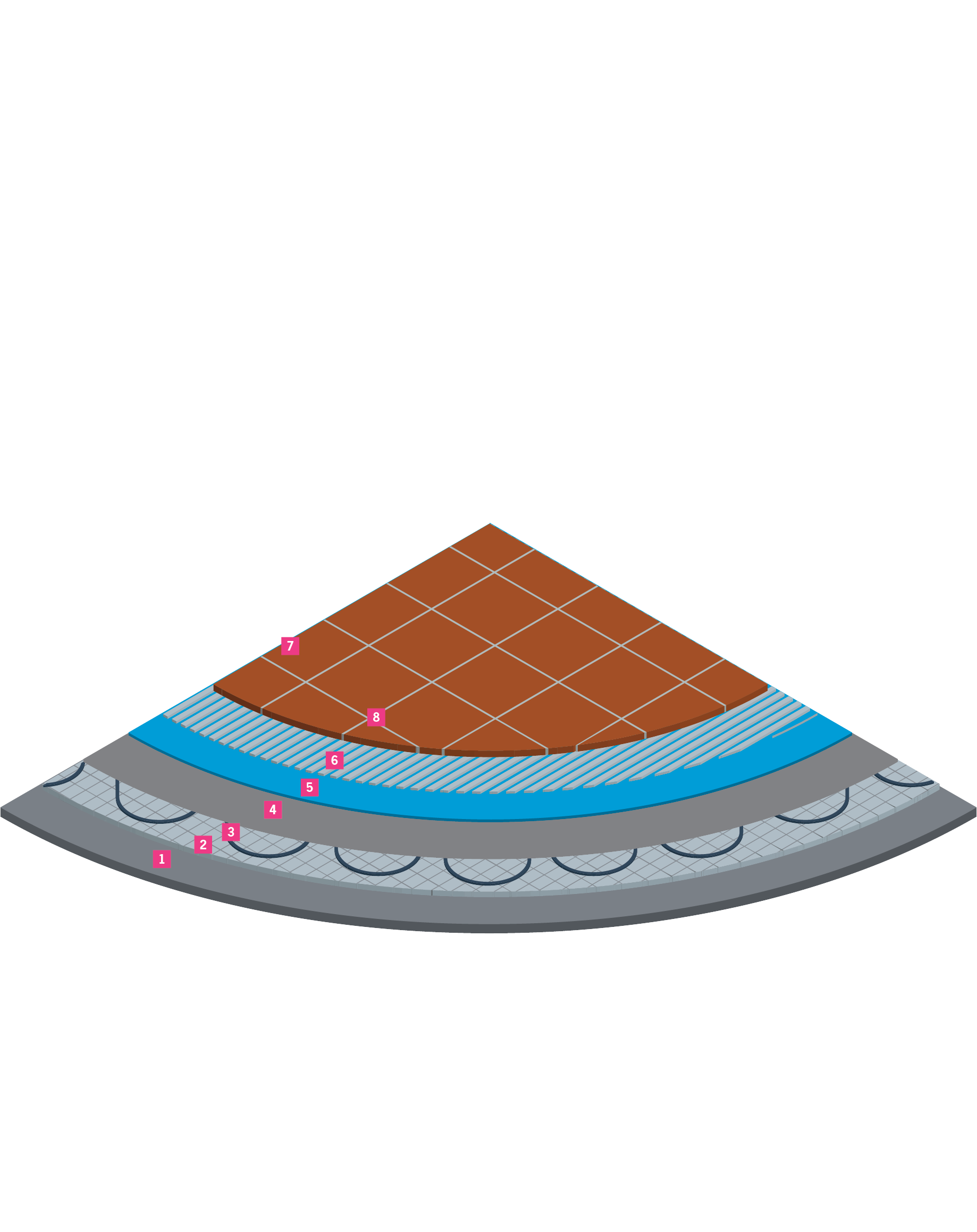

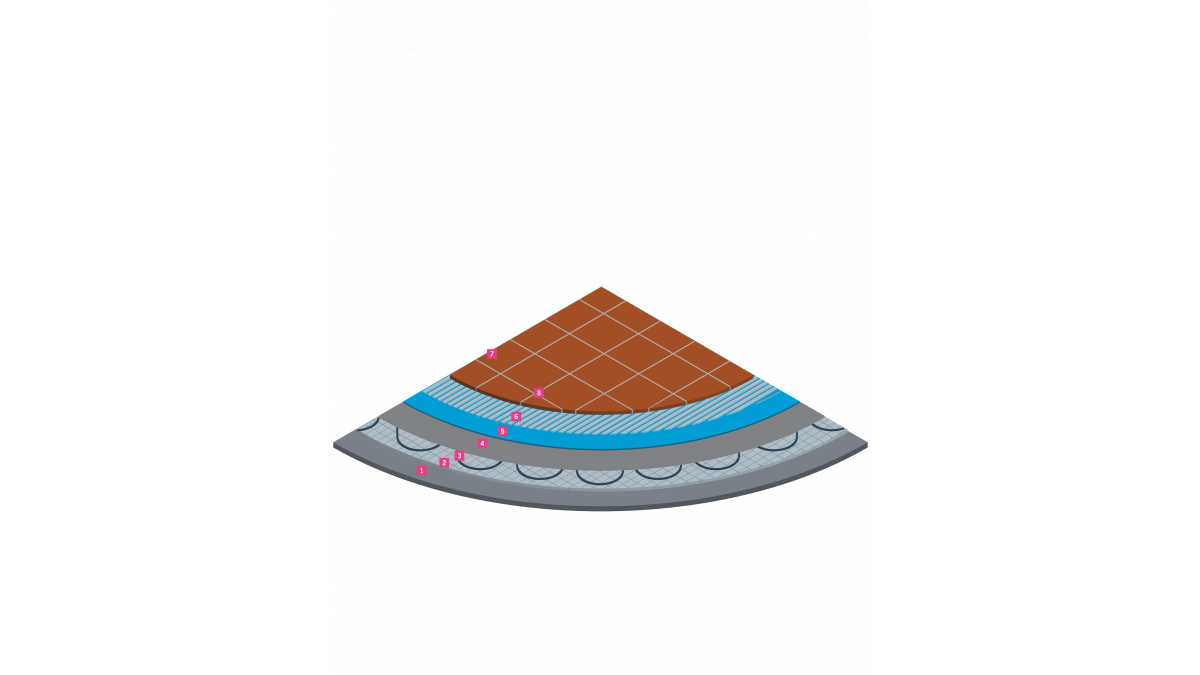

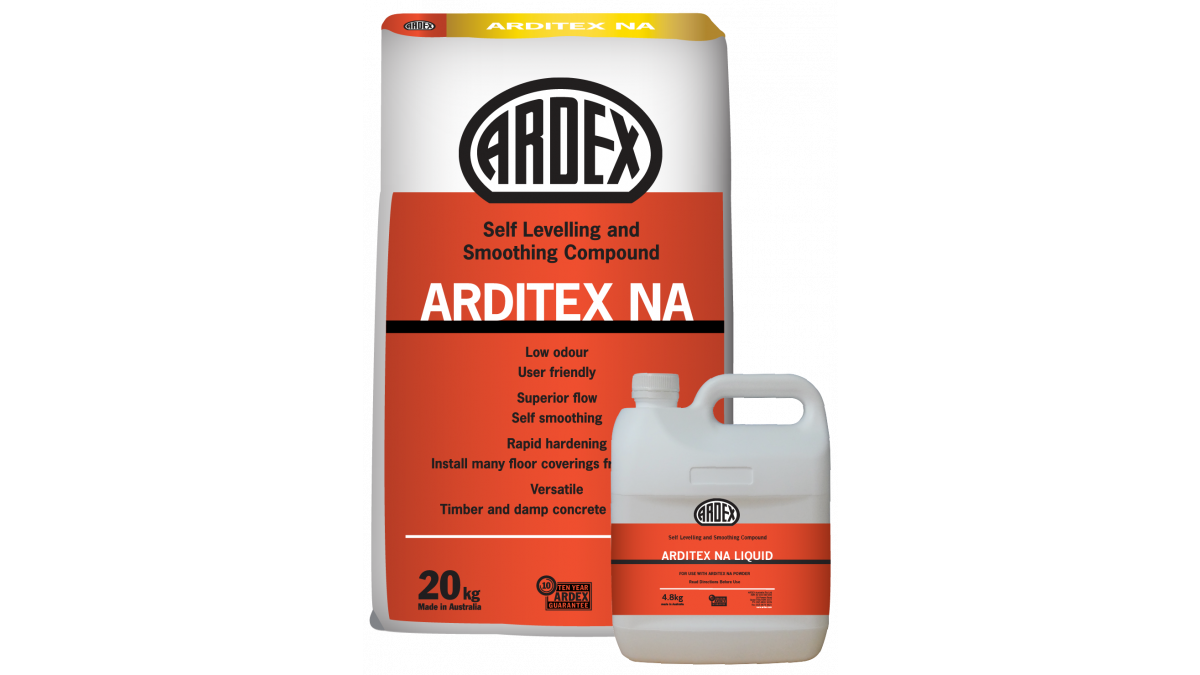

  • Smoothing Compound: ARDITEX NA

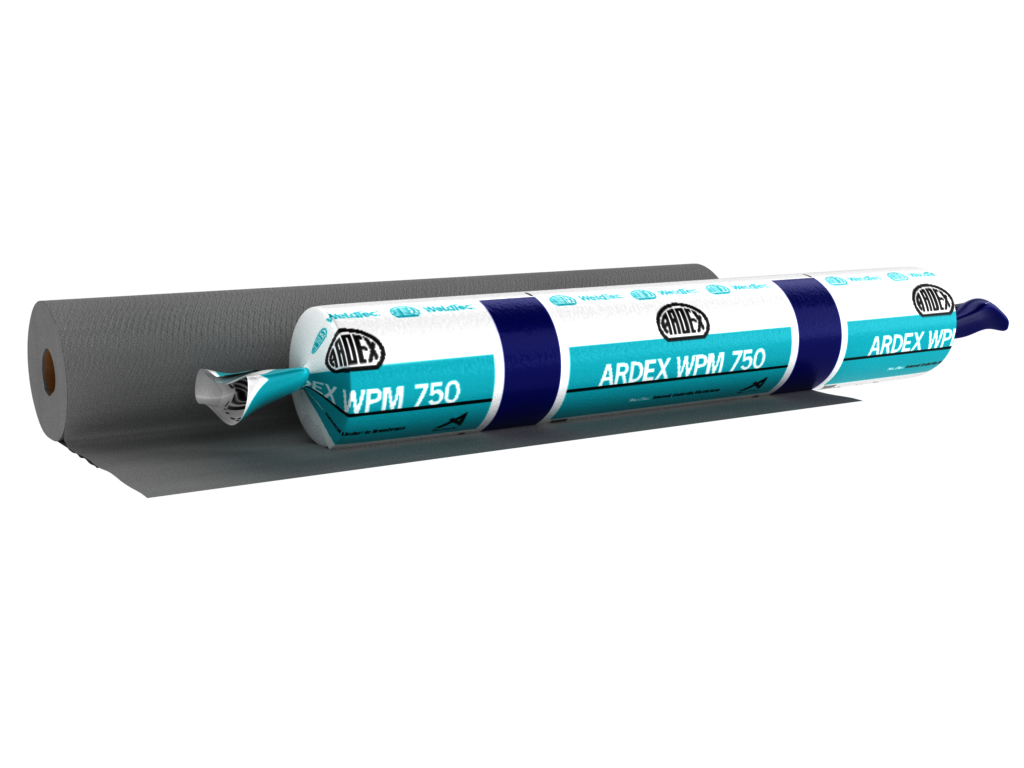

  • Waterproofing: ARDEX WPM 750
  • Tile Adhesive: ARDEX X 18

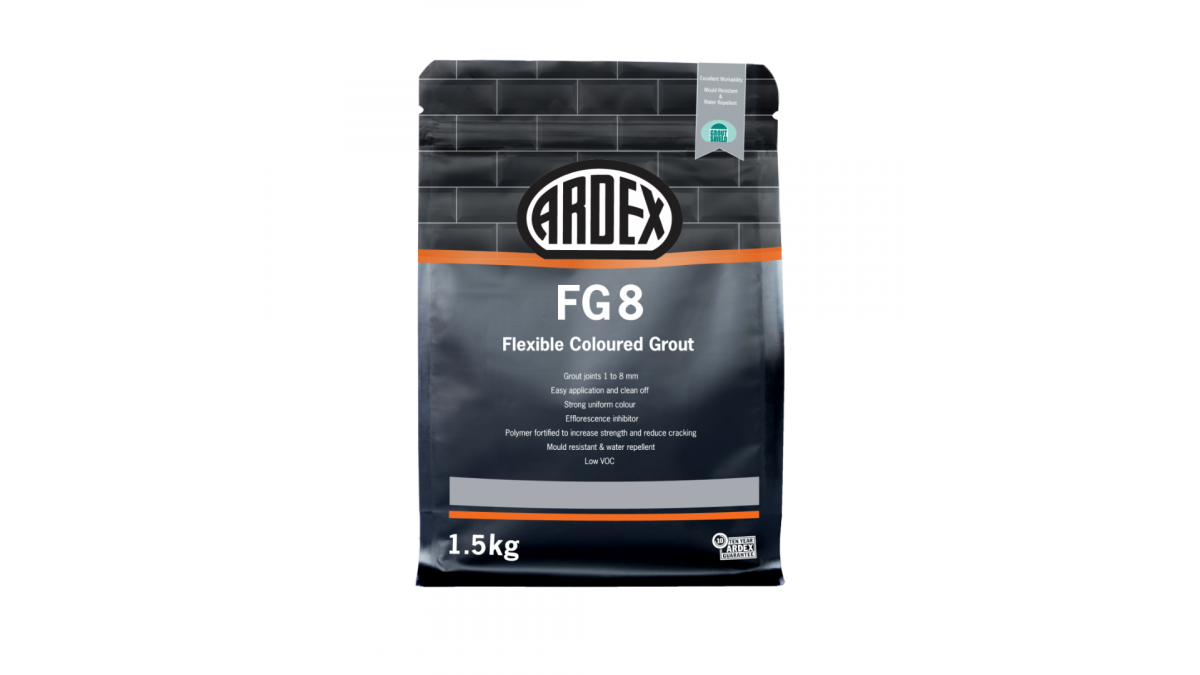

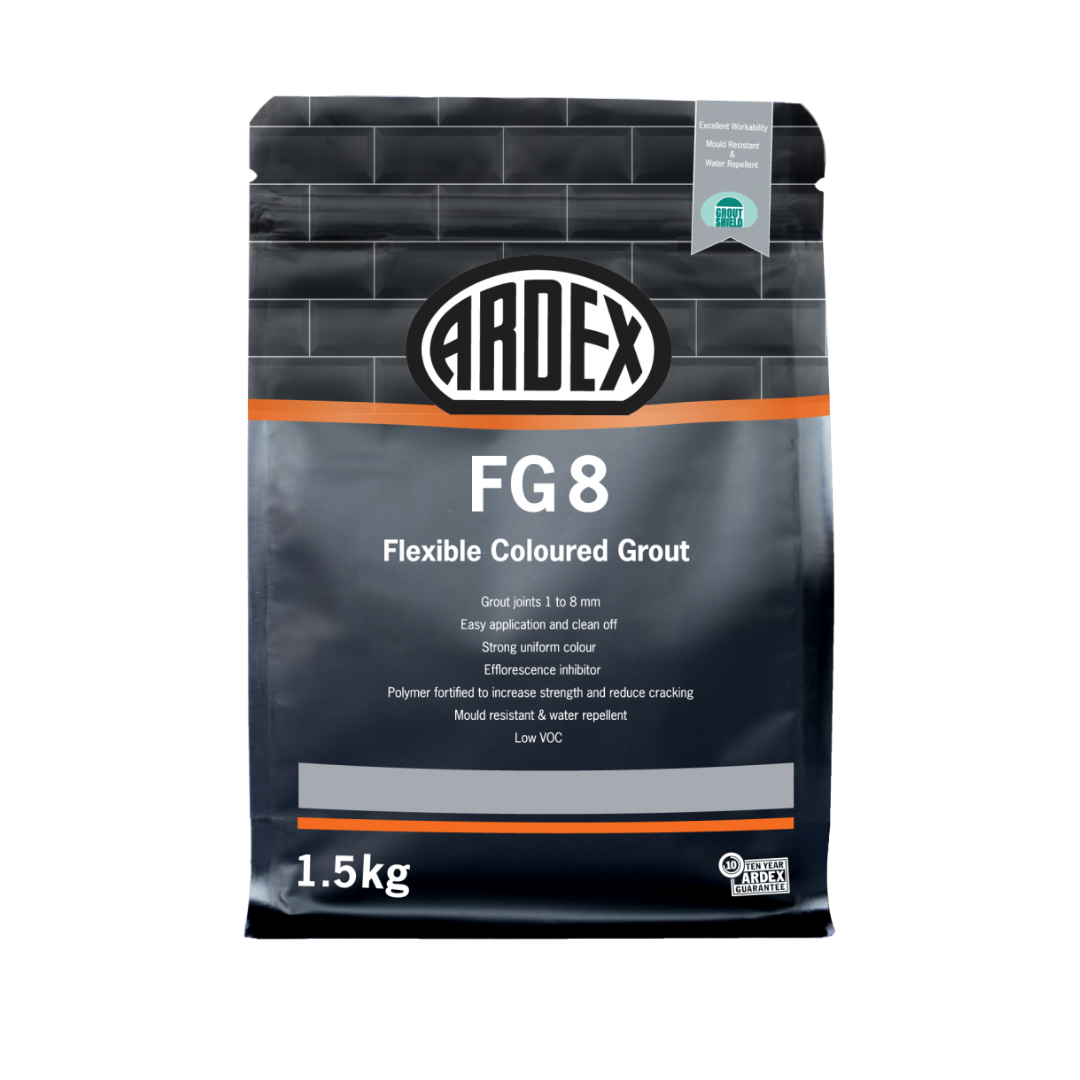

  • Tile Grout: ARDEX FG 8

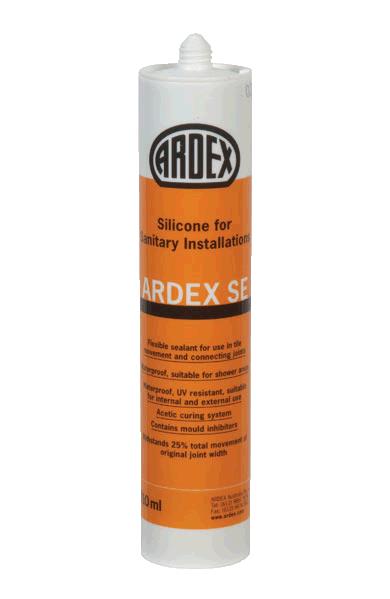

  • Silicone: ARDEX SE
Key Features

ARDEX X 18 Key Features:

  • Fibre reinforced for extra strength and peace of mind
  • Excellent workability with low sand content
  • Flexible — achieves S1 classification (S2 with ARDEX E90)
  • Ideal for all tile types including fully vitrified, porcelain and mosaics
  • Non slump — ideal for large format and heavy tiles on floors and walls
  • Extended open time
  • Use over early age concrete/screeds and render
  • For internal and external use Suitable for swimming pools and wet areas.
  • Low VOC content — meets Green Building Council of Australia Green Star IEQ-13 requirements
Categories
Tile Underlay Space Heating: Hydronic
Ranges
Flooring Systems Tiling Systems
Scope of Use

ARDEX X 18:

  • Mix with water to achieve a mortar suitable for internal and external use in residential and commercial applications, including swimming pools.
  • Over internal undertile cable heating systems
Limitations on Use

ARDEX X 18:

  • Do not use over metal or similar substrates
  • ARDEX X18 should not be used on floors with a deflection greater than the joist span divided by 500 for tiles less than 600mm and divided by 700 for greater sized tiles
  • Joist span must comply with AS:1684
  • ARDEX X18 should not be used over substrates subject to shrinkage and other movement e.g. timber, ARDEX provides other systems
Other Performance Attributes
  • ARDEX WPM 750 features Impervashield technology — resists cracking and high resistance to heat
  • Epoxy grout for high performance and high chemical resistance
BRANZ Appraised
BRANZ Appraised
  • Case Studies
Documents
Product info: ARDEX FG 8
URL
Product Info: ARDEX SE
URL
Product Info: ARDEX WPM 750
URL
Product Info: ARDEX X 18
URL
Product Info: ARDEX X 56
URL
BRANZ Appraisal 727: WPM 750 & WPM 1000

727 [2017]

URL
Warranty
URL
ARDITEX NA Video – Substrate Priming and Mixing Procedure
URL
