Metro Series ThermalHEART® with Centrafix™ Bi-Fold Windows and Doors
For high-performance double-glazing, explore AGP’s product range available now Explore
Description

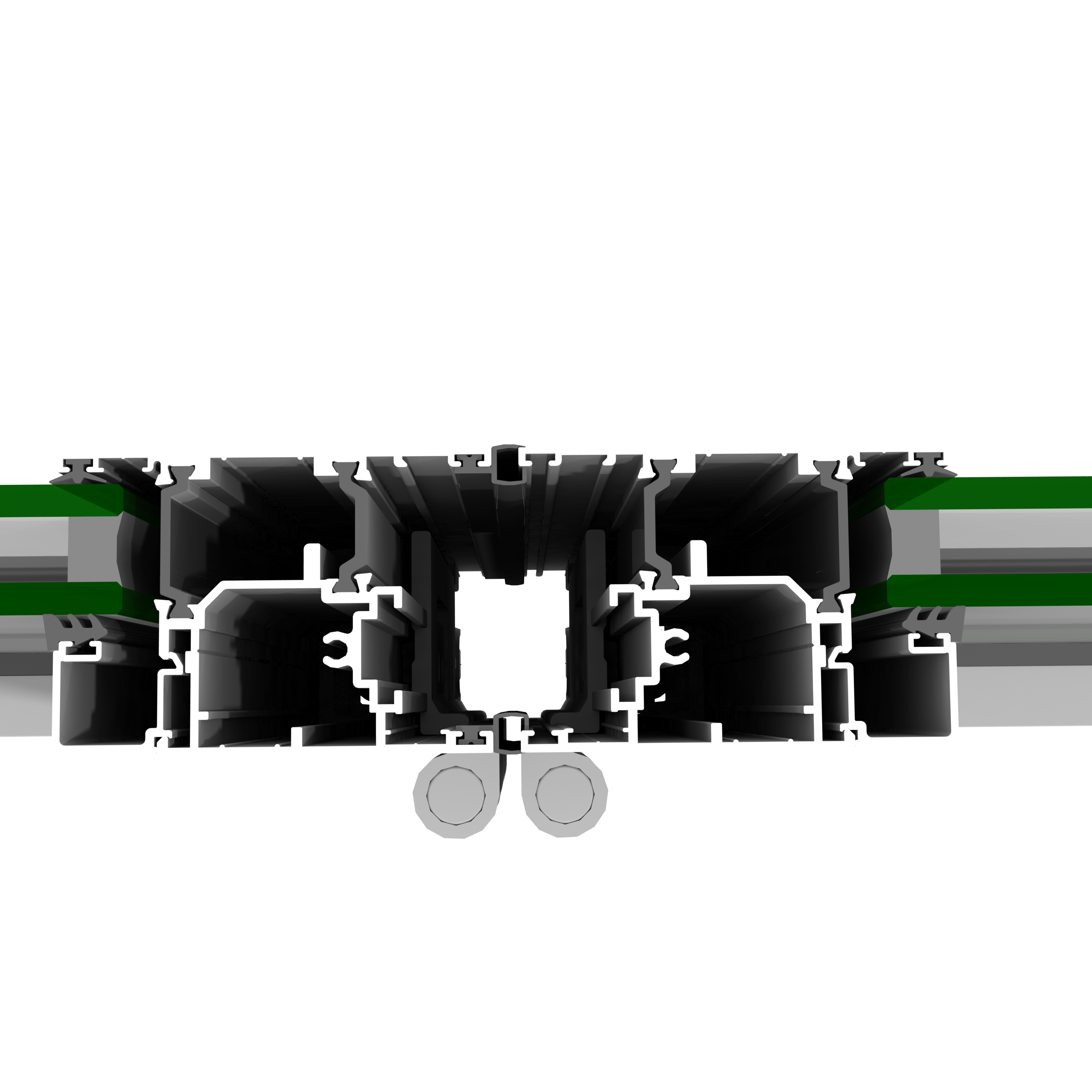

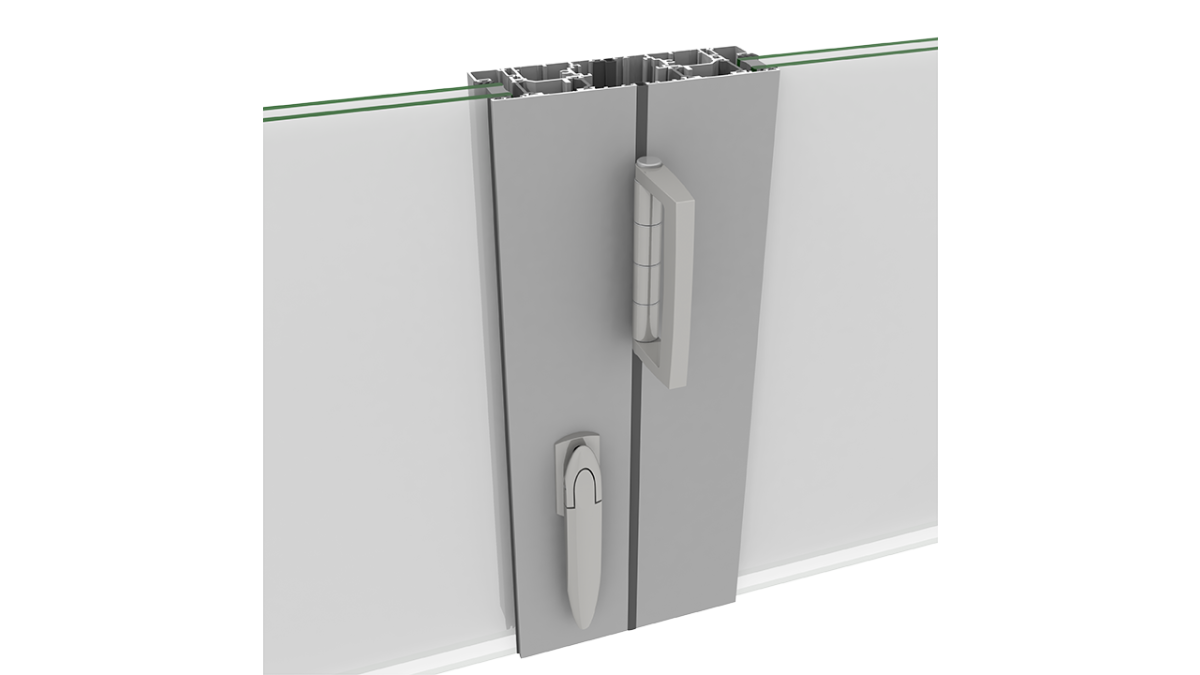

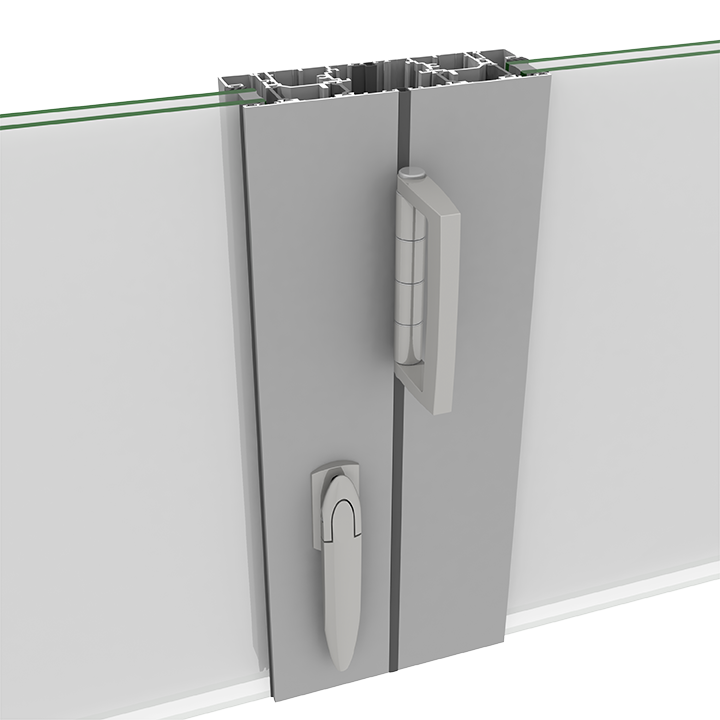

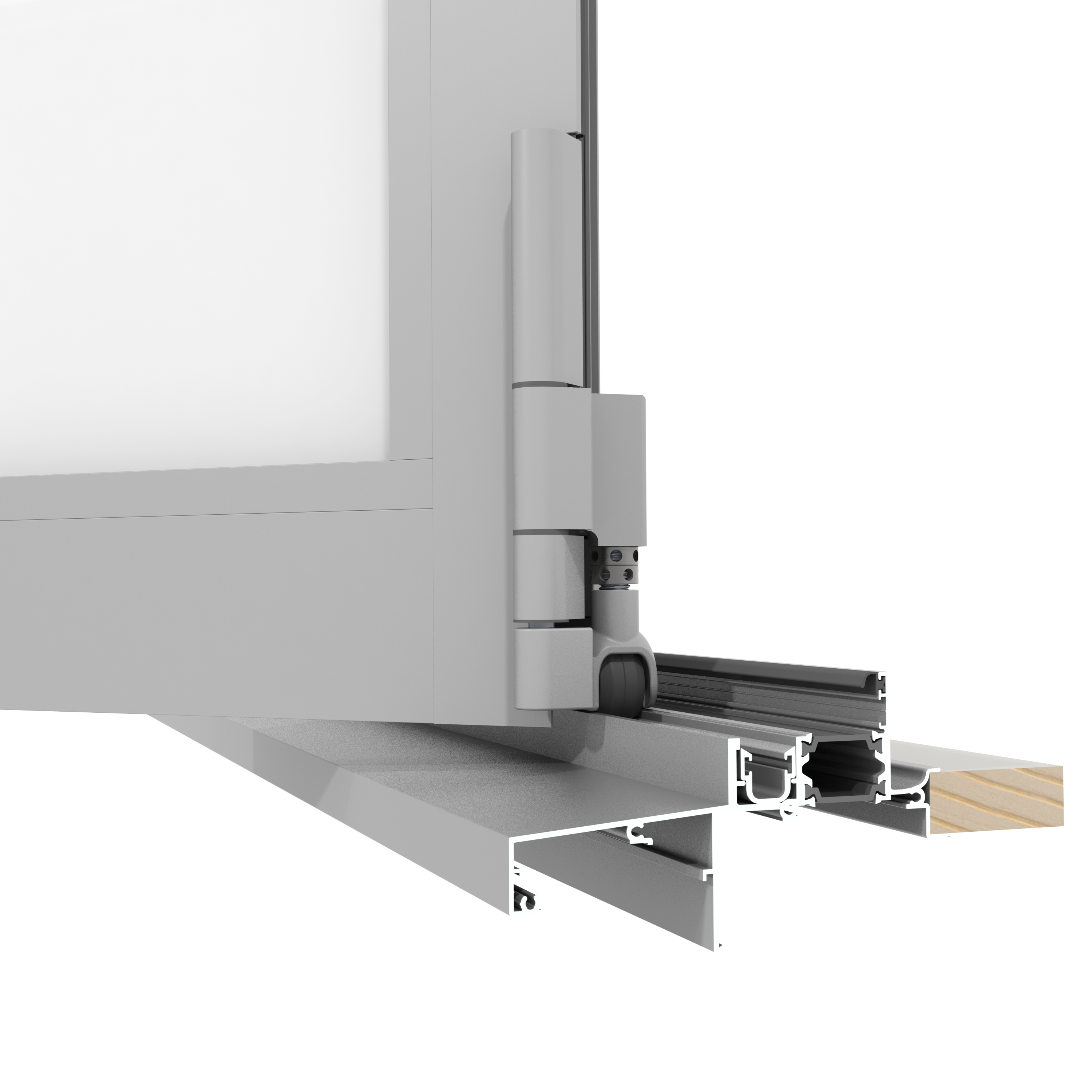

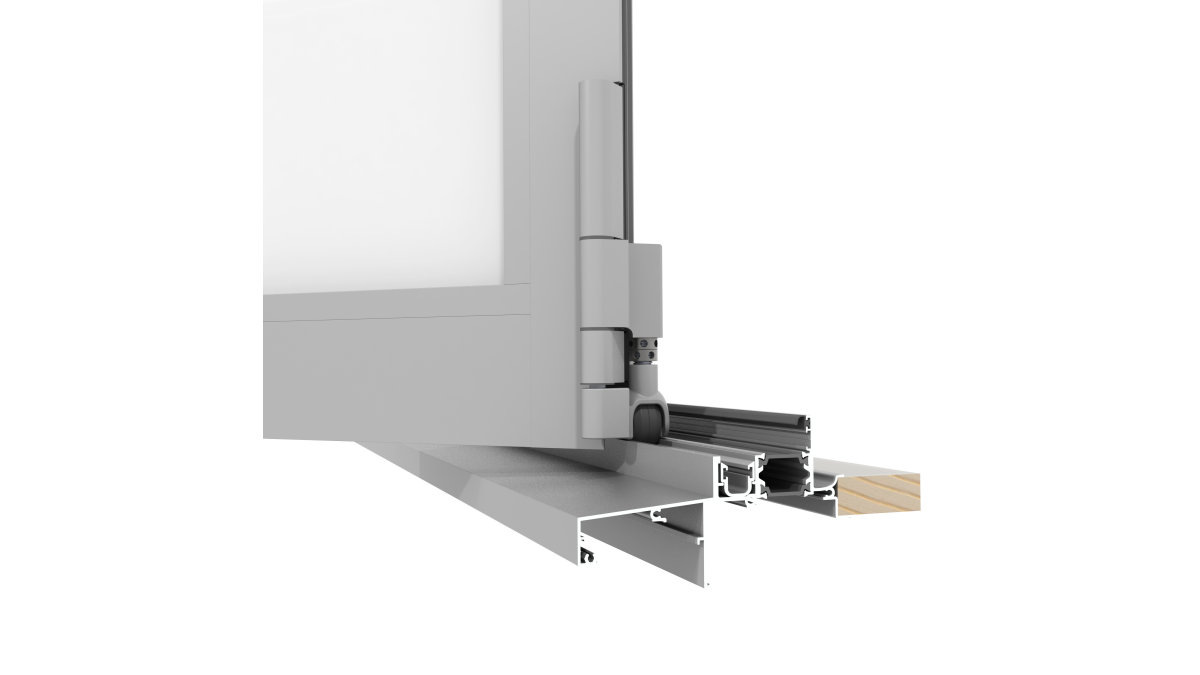

The bi-fold system is bottom rolling with an in-frame track for optimum panel support. Rated to 2.7m high in ExtraHigh wind zones. The bi-fold window system uses the bi-fold door system with a smaller stile and top and bottom panel rail.

Key Features

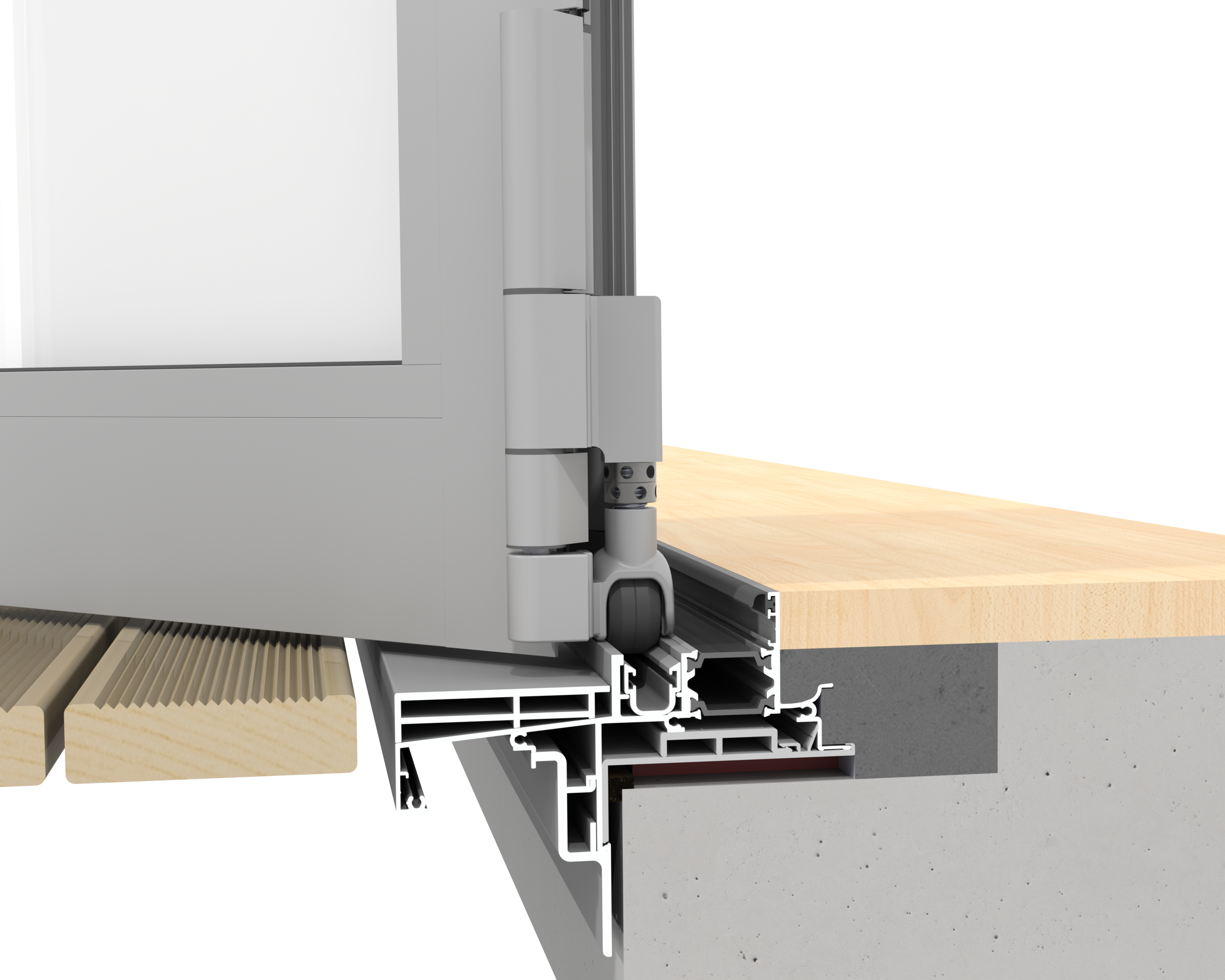

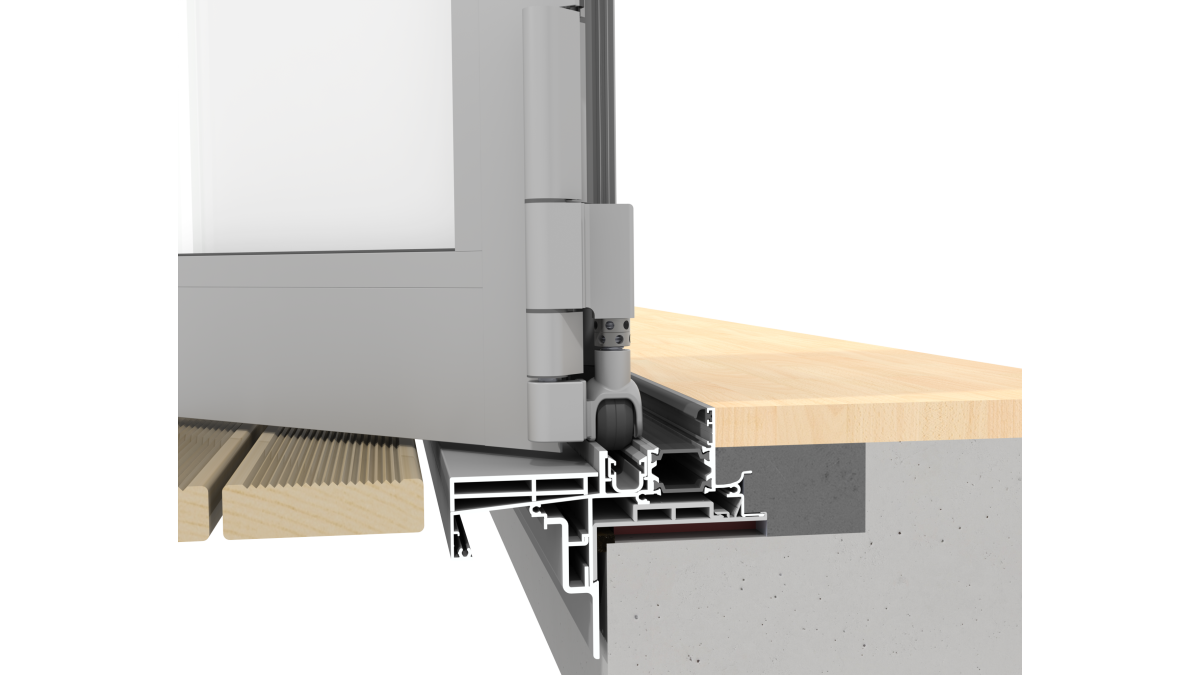

  • Bottom rolling with an in-frame track for optimum panel support

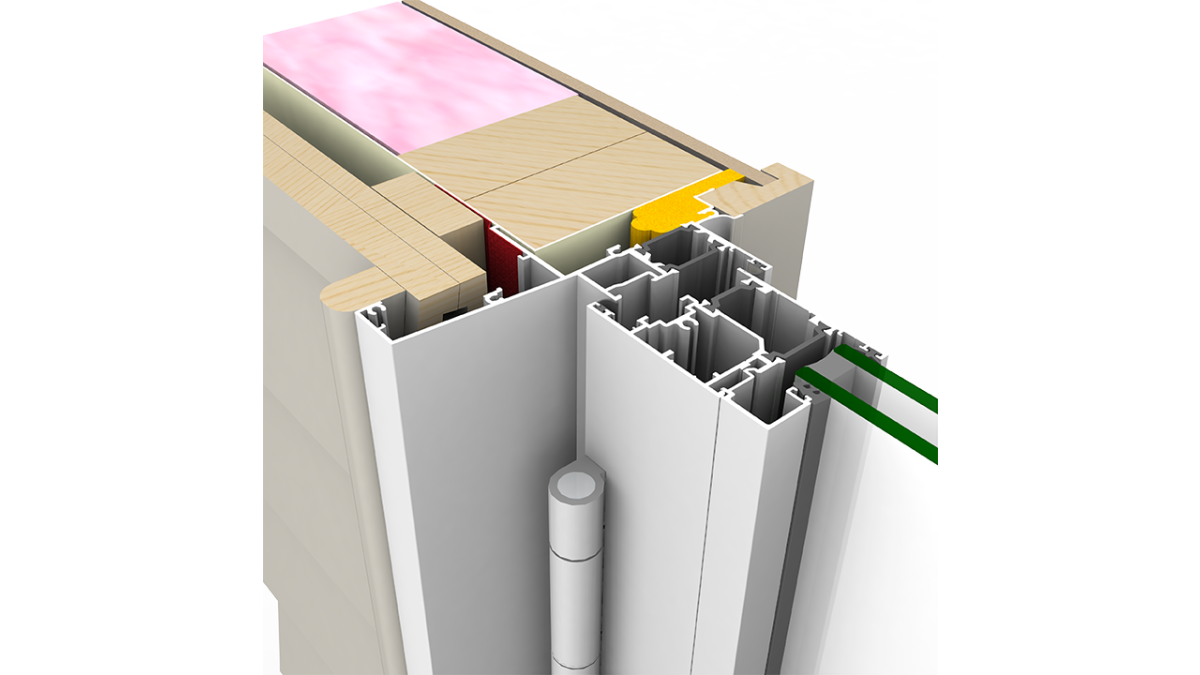

  • Glazing is deeply set within the building wall, delivering a strong appearance
  • A wide range of configurations available
  • Assured smooth operation through enhanced adjustability

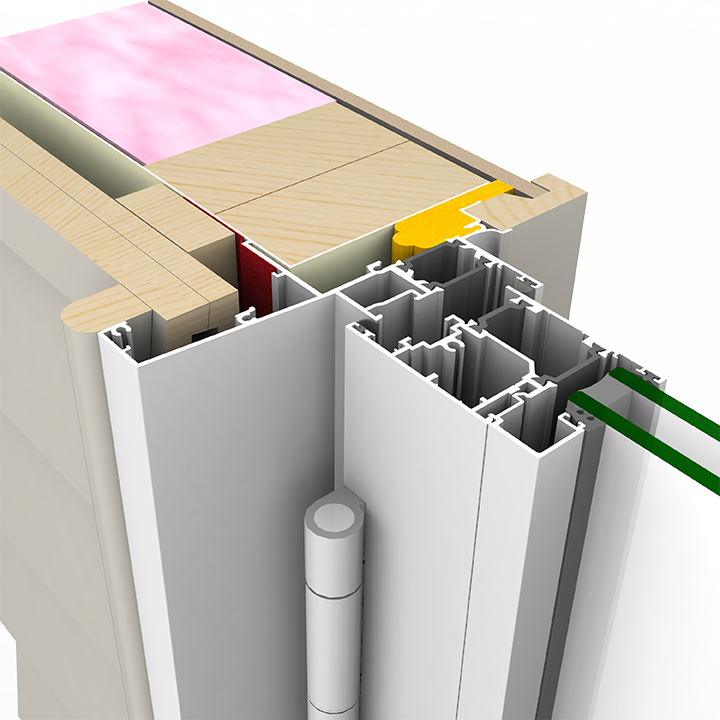

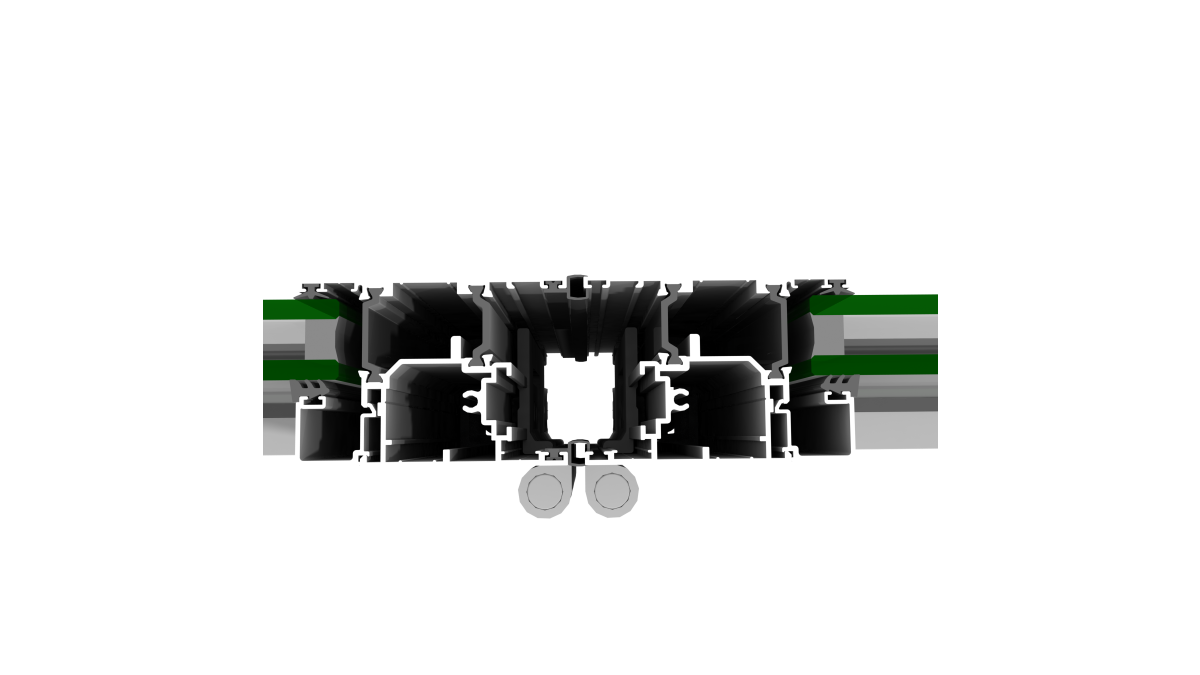

  • Jamb pivots remove any stresses in bi-fold geometry
  • A slender door stile and rail option is available to minimise visual intrusion
  • Layback bi-fold option available in APL Architectural Series ThermalHEART®
  • Overlights possible

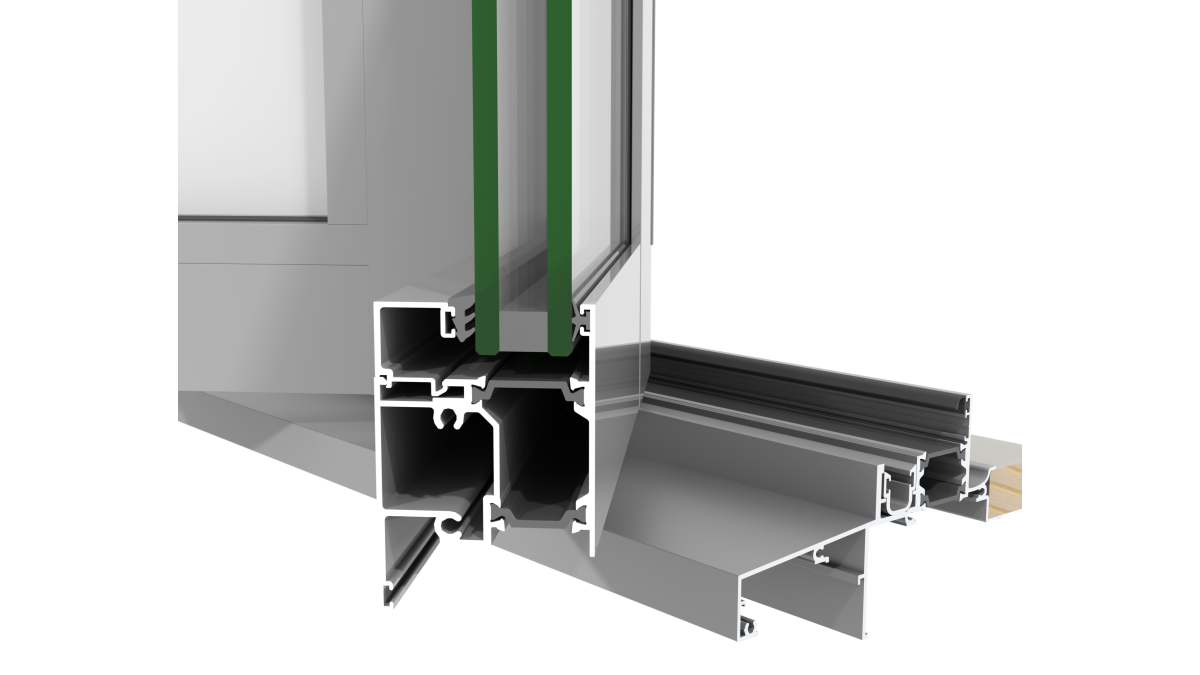

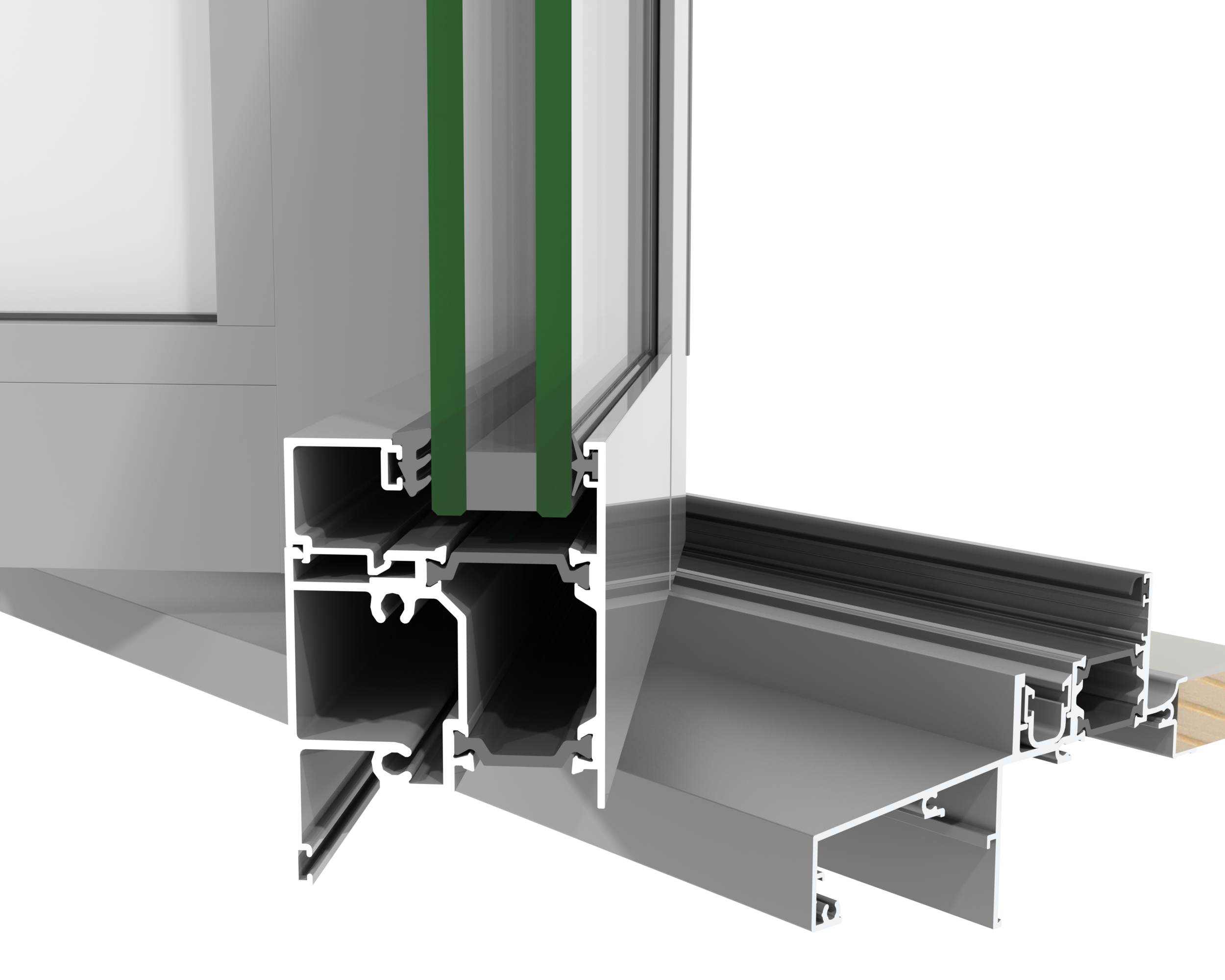

  • Maximum glass thickness of 44mm IGU — compliance with NZBC clause H1 Energy Efficiency requires high performing Low-E double glazing
Scope of Use
  • Suitable for broad residential use, including in apartments and buildings over 10m in height
  • Available in defined maximum sizes
Limitations on Use
  • Recommended maximum 2700mm high doors in Very High wind zones
  • Compliance with NZBC clause H1 Energy Efficiency requires high performing Low-E double glazing
Statement of Building Code Compliance
  • Designed, tested and manufactured to meet NZS 4211: Specification for Performance of Windows, and NZS 4233: Glazing in Buildings, Parts 1-4
  • Conforms to all relevant NZ Building Code clauses
In-Service History
  • Metro Series ThermalHEART® with Centrafix™ is a new system introduced in 2023
Other Performance Attributes
  • Window and door warranty provided under normal conditions of use against failure of materials and workmanship for a period of five years
  • Surface finish is covered by a separate performance warranty dependent on the actual finish selected. Metro Series ThermalHEART® with Centrafix™ products can have a different colour on the interior and exterior faces as an optional choice.
  • A hardware/componentry warranty is offered against defects in manufacturing, functionality and surface finish for a period of five years, provided care and maintenance guidelines have been followed
Documents
Specifier Guide (Doors)
Specifier Guide (Windows)

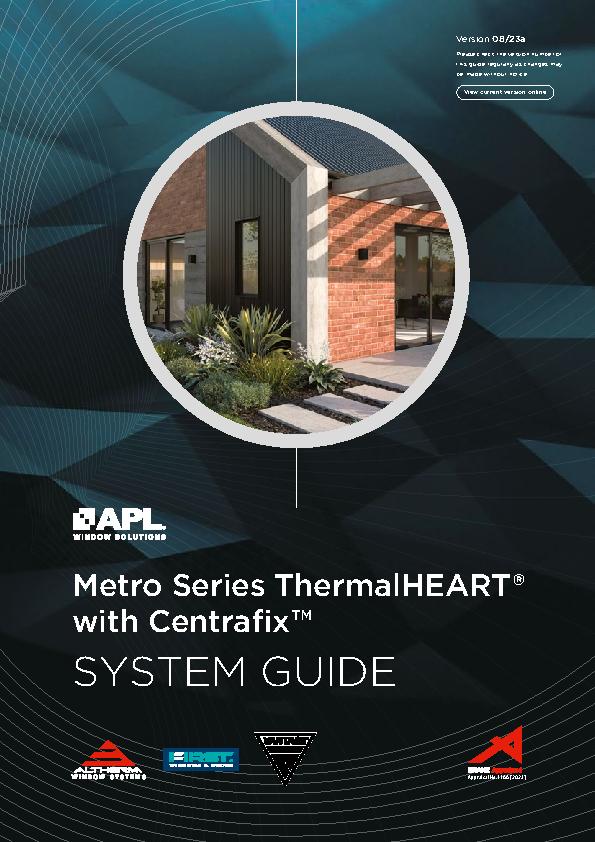

Centrafix™ System Guide

2023

QR Code: Centrafix™ on Working Spec
Data Sheet: Metro Series ThermalHEART® with Centrafix™ Doors

2023

Data Sheet: Metro Series ThermalHEART® with Centrafix™ Windows

2023

Span Tables: Metro Series ThermalHEART® with Centrafix™ Bi-Fold Doors

2023

Altherm on Masterspec
Full Specification Guide: Metro Series ThermalHEART® with Centrafix™

2023

Specification Guide: Metro Series ThermalHEART® with Centrafix™ Bifold Windows and Doors

2023

Manufacturer Contact List
AGP Cleaning & Maintenance

2021

Altherm Care, Maintenance & Warranty Brochure (with AGP)

2020

Altherm Design Brochure

2020

AGP Condensation Guide
AGP Visual Quality of Glass
APL and Sustainability
CAD/PDF Details
Metro Series ThermalHEART® with Centrafix™ Bi-Fold Doors

FULL SET

PDF and ZIP (contains all DWGs)

Metro Series ThermalHEART® with Centrafix™ Bi-Fold Doors — With Rail Options

CFXBD01-0

Metro Series ThermalHEART® with Centrafix™ Bi-Fold Doors — With Overlight Transom

CFXBD02-0

Metro Series ThermalHEART® with Centrafix™ Bi-Fold Doors — 2 Panel

CFXBD03-0

Metro Series ThermalHEART® with Centrafix™ Bi-Fold Doors — 2+1 Panel

CFXBD04-0

Metro Series ThermalHEART® with Centrafix™ Bi-Fold Doors — 3 Panel

CFXBD05-0

Metro Series ThermalHEART® with Centrafix™ Bi-Fold Doors — 2+2 Panel

CFXBD06-0

Metro Series ThermalHEART® with Centrafix™ Bi-Fold Doors — 3+1 Panel

CFXBD07-0

Metro Series ThermalHEART® with Centrafix™ Bi-Fold Doors — 4 Panel

CFXBD08-0

Metro Series ThermalHEART® with Centrafix™ Bi-Fold Doors — 3+2 Panel

CFXBD09-0

Metro Series ThermalHEART® with Centrafix™ Bi-Fold Doors —4+1 Panel

CFXBD10-0

Metro Series ThermalHEART® with Centrafix™ Bi-Fold Doors —5 Panel

CFXBD11-0

Metro Series ThermalHEART® with Centrafix™ Bi-Fold Doors —3+3 Panel

CFXBD12-0

Metro Series ThermalHEART® with Centrafix™ Bi-Fold Doors — 4+2 Panel

CFXBD13-0

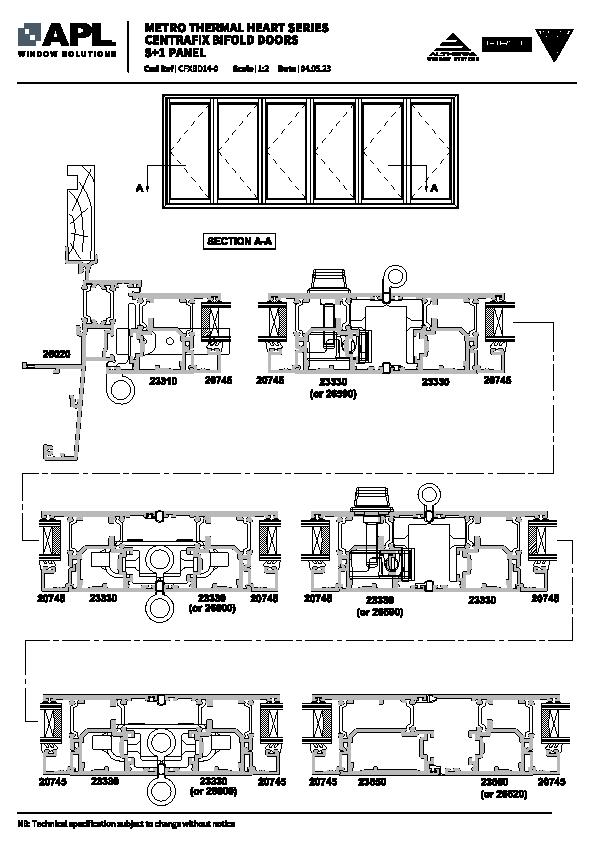

Metro Series ThermalHEART® with Centrafix™ Bi-Fold Doors —5+1 Panel

CFXBD14-0

Metro Series ThermalHEART® with Centrafix™ Bi-Fold Doors — 6 Panel

CFXBD15-0

Metro Series ThermalHEART® with Centrafix™ Bi-Fold Doors — Sidelight Options

CFXBD16-0

Installation Details
The Installation Details must be used in conjunction with this Metro Series ThermalHEART® Centrafix™ SYSTEM GUIDE
Metro Series ThermalHEART® with Centrafix™ Bifold Door Open In on Board & Batten

CFXBDBB

The Installation Details must be used in conjunction with the Metro Series ThermalHEART® Centrafix™ SYSTEM GUIDE

Metro Series ThermalHEART® with Centrafix™ Bifold Door Open In on Brick Veneer

CFXBDBV

The Installation Details must be used in conjunction with the Metro Series ThermalHEART® Centrafix™ SYSTEM GUIDE

Metro Series ThermalHEART® with Centrafix™ Bifold Door Open In on Bevelback Weatherboard

CFXBDBW

The Installation Details must be used in conjunction with the Metro Series ThermalHEART® Centrafix™ SYSTEM GUIDE

Metro Series ThermalHEART® with Centrafix™ Bifold Door Open In on Flat Sheet

CFXBDFS

The Installation Details must be used in conjunction with the Metro Series ThermalHEART® Centrafix™ SYSTEM GUIDE

Metro Series ThermalHEART® with Centrafix™ Bifold Door Open In on Profile Metal

CFXBDPM

The Installation Details must be used in conjunction with the Metro Series ThermalHEART® Centrafix™ SYSTEM GUIDE

Metro Series ThermalHEART® with Centrafix™ Bifold Door Open In on Rusticated Weatherboard

CFXBDRW

The Installation Details must be used in conjunction with the Metro Series ThermalHEART® Centrafix™ SYSTEM GUIDE

Metro Series ThermalHEART® with Centrafix™ Bifold Door Open In on Stucco

CFXBDST

The Installation Details must be used in conjunction with the Metro Series ThermalHEART® Centrafix™ SYSTEM GUIDE
