Metro Series ThermalHEART® with Centrafix™ Hinged and French Doors

ALTHERM Window Systems

All products

For high-performance double-glazing, explore AGP’s product range available now Explore

Product Enquiries

Description

These are available in open-in and open-out formats. Doors are rated to 2.7m high. For higher doors consider using APL Architectural Series ThermalHEART®. Both open-in and open-out door systems are available with integrated sidelights and overlights, with or without opening sashes. French doors have flush meeting stiles for a clean look.

Key Features

Door panels lap over frame for superior aesthetics, weather tightness and thermal performance
Glazing is deeply set within the building wall, delivering a strong appearance
Lapped panels enhance security by hindering access to door latch
Flush meeting stiles give a clean appearance in French doors and provide superior weathering
Open-out and open-in frames available
Parliament hinges allow doors to open outwards a full 180° in brick veneer situations
Three-way adjustable hinges for optimum installation and performance
Concealed hinge option available utilising the Eurogroove feature
Overlights and sidelights are possible
Maximum glass thickness of 44mm IGU – compliance with NZBC clause H1 Energy Efficiency requires high performing Low-E double glazing
A range of door handle and lock options are available, including multi-point locking

Ranges

Metro Series ThermalHEART® with Centrafix™

Scope of Use

Suitable for broad residential use, including in apartments and buildings over 10m in height
Available in defined maximum sizes

Limitations on Use

Recommended maximum 2700mm high doors in Very High wind zones — for larger sizes consider using APL Architectural Series ThermalHEART®
Compliance with NZBC clause H1 Energy Efficiency requires high performing Low-E double glazin

Statement of Building Code Compliance

Designed, tested and manufactured to meet NZS 4211: Specification for Performance of Windows, and NZS 4233: Glazing in Buildings, Parts 1-4
Conforms to all relevant NZ Building Code clauses

In-Service History

Metro Series ThermalHEART® with Centrafix™ is a new system introduced in 2023

Other Performance Attributes

Window and door warranty provided under normal conditions of use against failure of materials and workmanship for a period of five years
Surface finish is covered by a separate performance warranty dependent on the actual finish selected. Metro Series ThermalHEART® with Centrafix™ products can have a different colour on the interior and exterior faces as an optional choice
A hardware/componentry warranty is offered against defects in manufacturing, functionality and surface finish for a period of five years, provided care and maintenance guidelines have been followed

Documents

Specifier Guide

Categories

Popular Products

Popular Brands

Features

Sections

This Month

Caesarstone: Redefining Surface Excellence with Crystalline Silica Free Formulations

NZ's Largest Mass Timber Office Building: The Sustainable Timber Engineering Behind 90 Devonport Rd

Terra Lana Insulation for a World-Leading Hospital Targeting Zero Carbon Certification

SECTIONS

Exploring Options for Self-certification of Building Work

Complaints Not Upheld

From Windows to Warm Roofs: How Can We Make the New Insulation Standards Work?

Description

Key Features

Categories

Ranges

Scope of Use

Limitations on Use

Statement of Building Code Compliance

In-Service History

Other Performance Attributes

Metro Series ThermalHEART® with Centrafix™ Hinged Doors

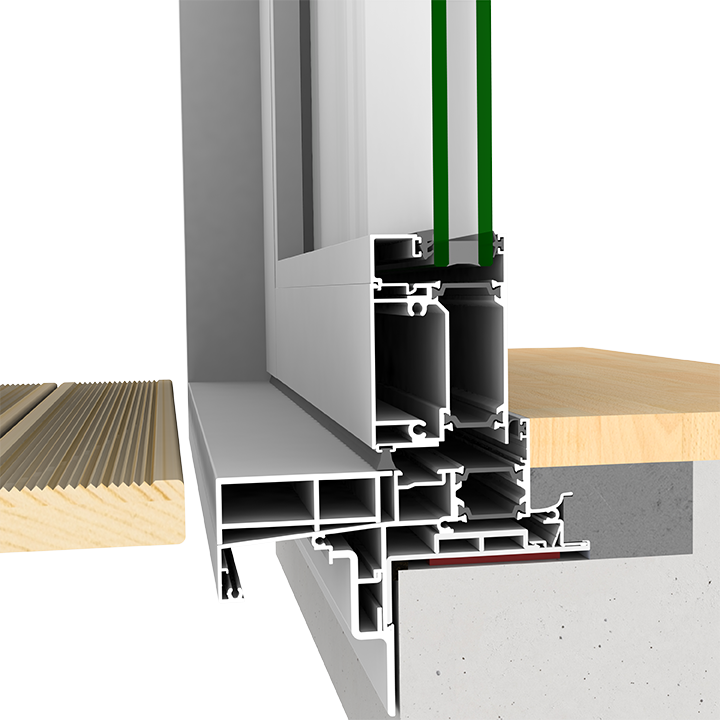

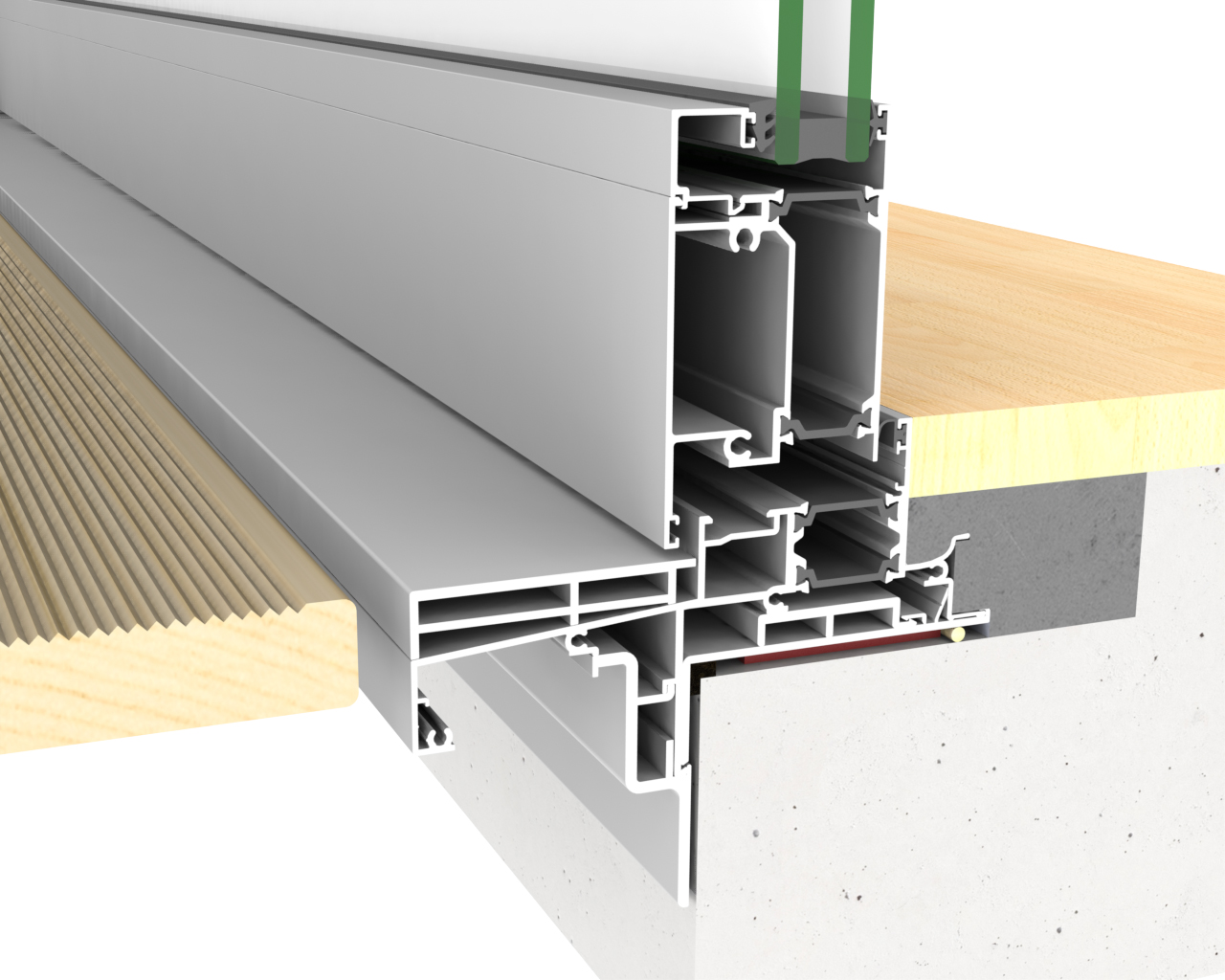

Metro Series ThermalHEART® with Centrafix™ Hinged Doors — Open Out with Rail Option

Metro Series ThermalHEART® with Centrafix™ Hinged Doors — Open Out Overlight with Flushrail Options

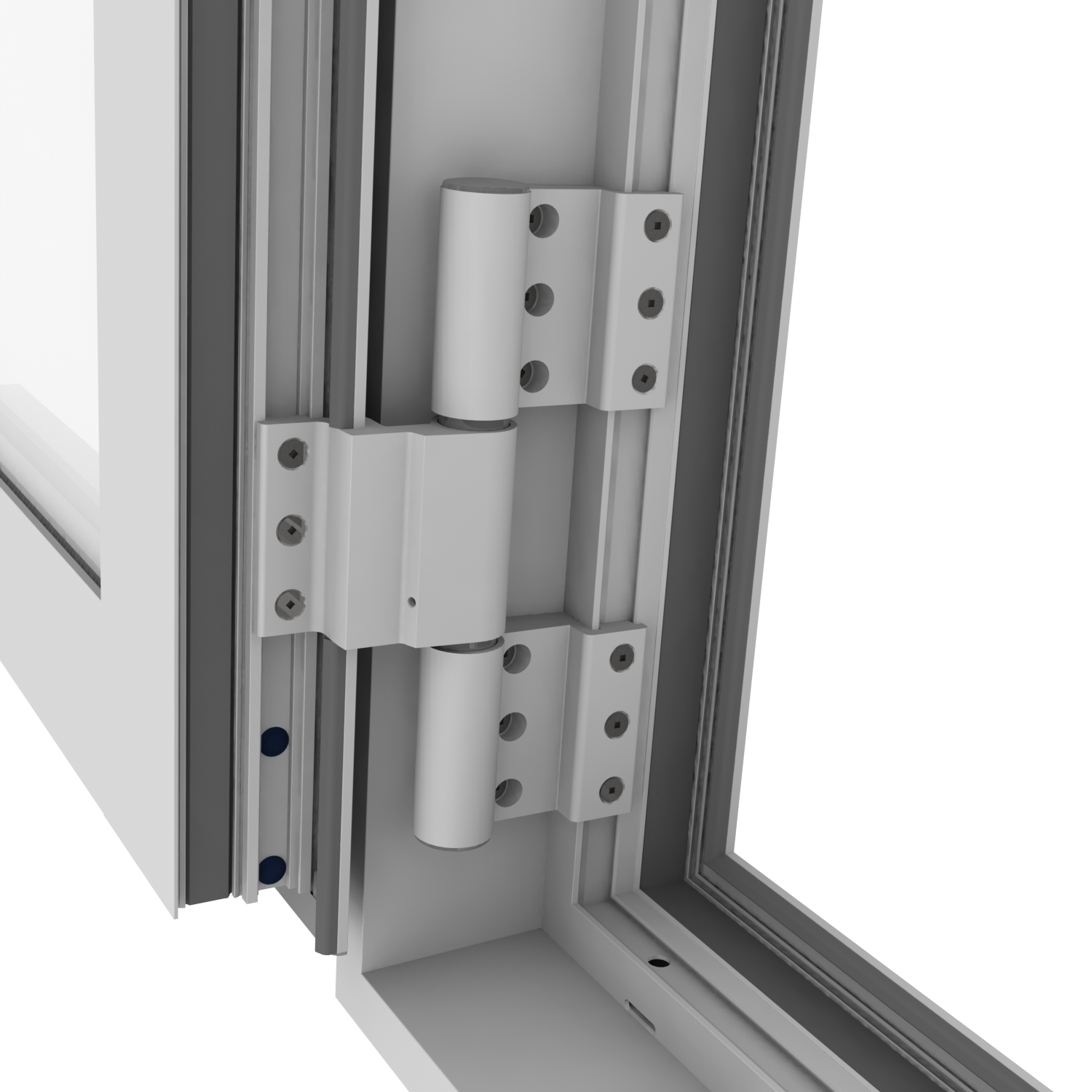

Metro Series ThermalHEART® with Centrafix™ Hinged Doors — Open Out Hinge Options

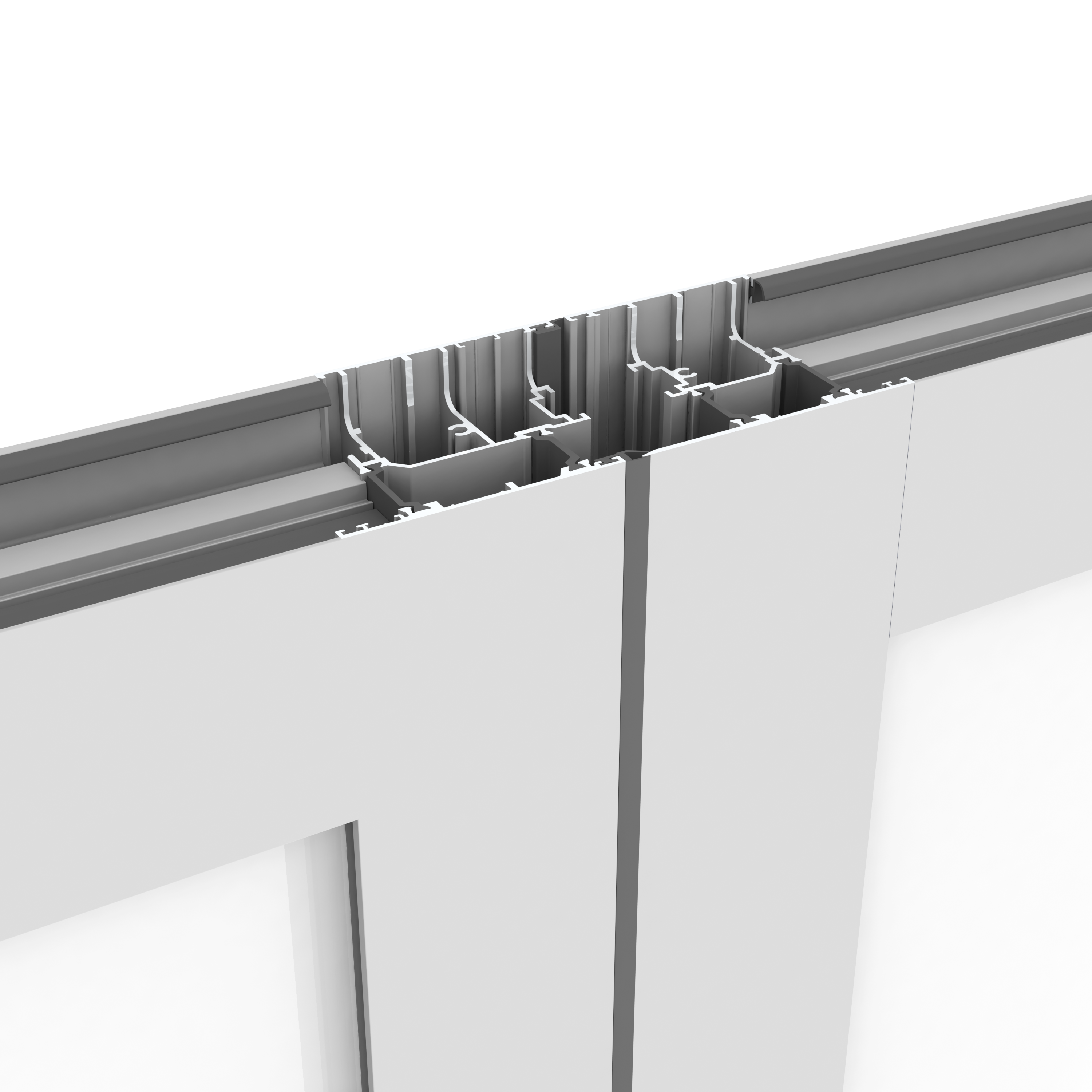

Metro Series ThermalHEART® with Centrafix™ French Doors — Open Out Meeting Stile

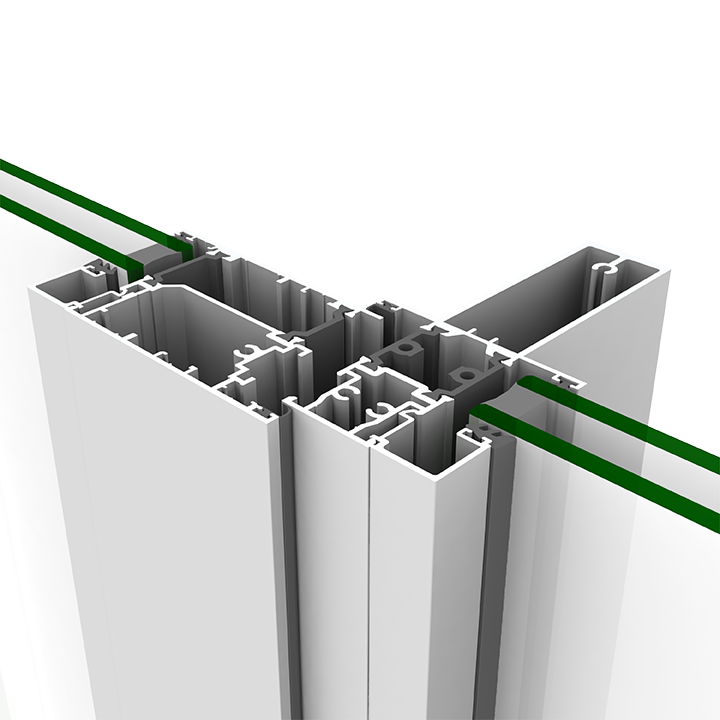

Metro Series ThermalHEART® with Centrafix™ Hinged Doors — Open Out Sidelight Mullion Option

Metro Series ThermalHEART® with Centrafix™ Hinged Doors — Open In with Rail Option

Metro Series ThermalHEART® with Centrafix™ Hinged Doors — Open In Overlight Option

Metro Series ThermalHEART® with Centrafix™ French Doors — Open In Meeting Stiles

Metro Series ThermalHEART® with Centrafix™ Hinged Doors — Open In Sidelight Mullion

The Installation Details must be used in conjunction with this Metro Series ThermalHEART® Centrafix™ SYSTEM GUIDE

Altherm Metro Series ThermalHEART® with Centrafix™ Hinged Door Open In on Board & Batten

Altherm Metro Series ThermalHEART® with Centrafix™ Hinged Door Open In on Brick Veneer

Altherm Metro Series ThermalHEART® with Centrafix™ Hinged Door Open In on Bevelback Weatherboard

Altherm Metro Series ThermalHEART® with Centrafix™ Hinged Door Open In on Flat Sheet

Altherm Metro Series ThermalHEART® with Centrafix™ Hinged Door Open In on Profile Metal

Altherm Metro Series ThermalHEART® with Centrafix™ Hinged Door Open In on Rusticated Weatherboard

Altherm Metro Series ThermalHEART® with Centrafix™ Hinged Door Open In on Stucco

Altherm Metro Series ThermalHEART® with Centrafix™ Hinged Door Open Out on Board & Batten

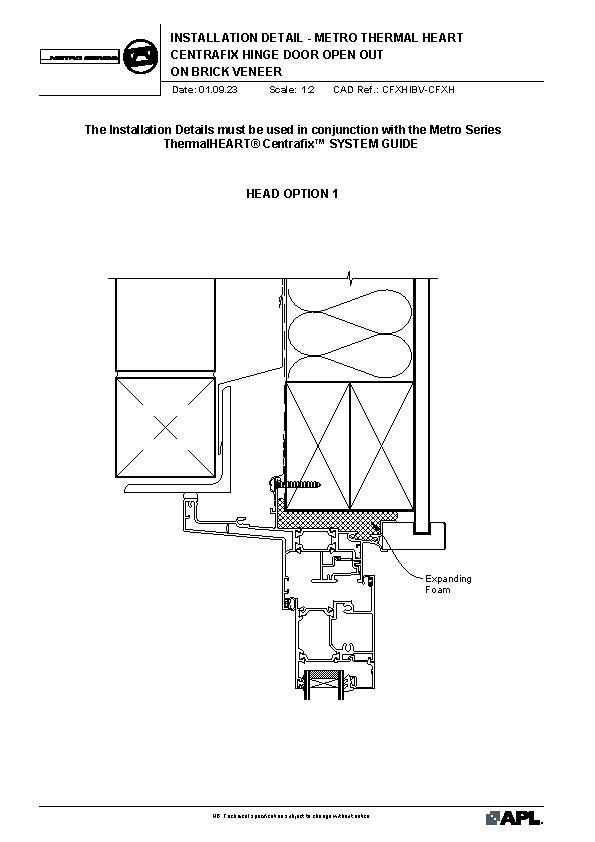

Altherm Metro Series ThermalHEART® with Centrafix™ Hinged Door Open Out on Brick Veneer
