APL Architectural Series ThermalHEART® Sliding Windows

ALTHERM Window Systems

All products

For high-performance double-glazing, explore AGP’s product range available now Explore

Product Enquiries

Description

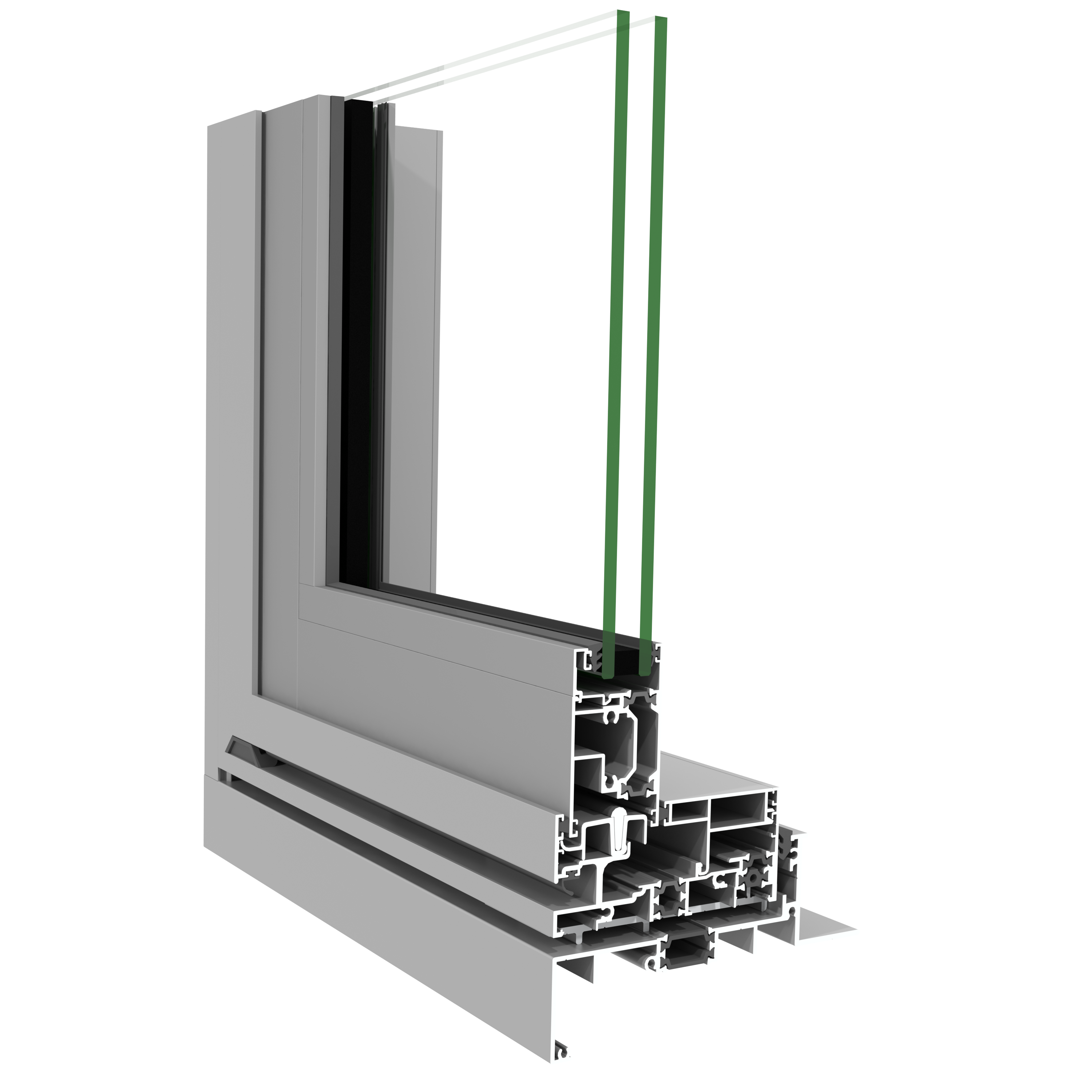

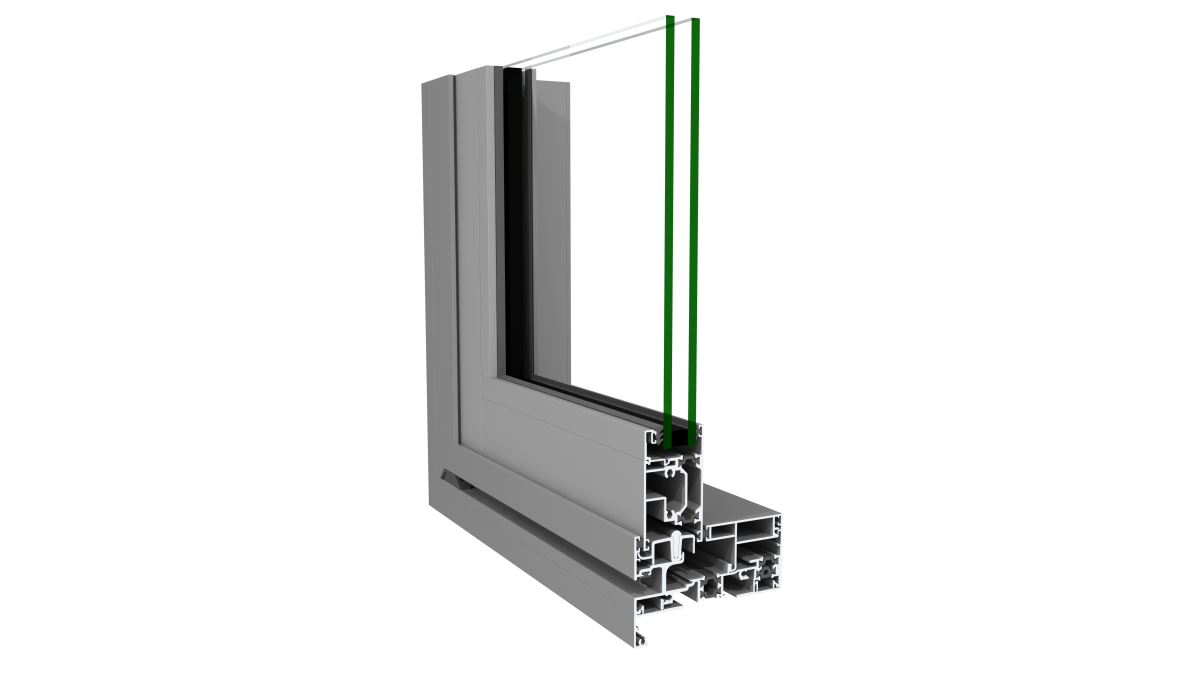

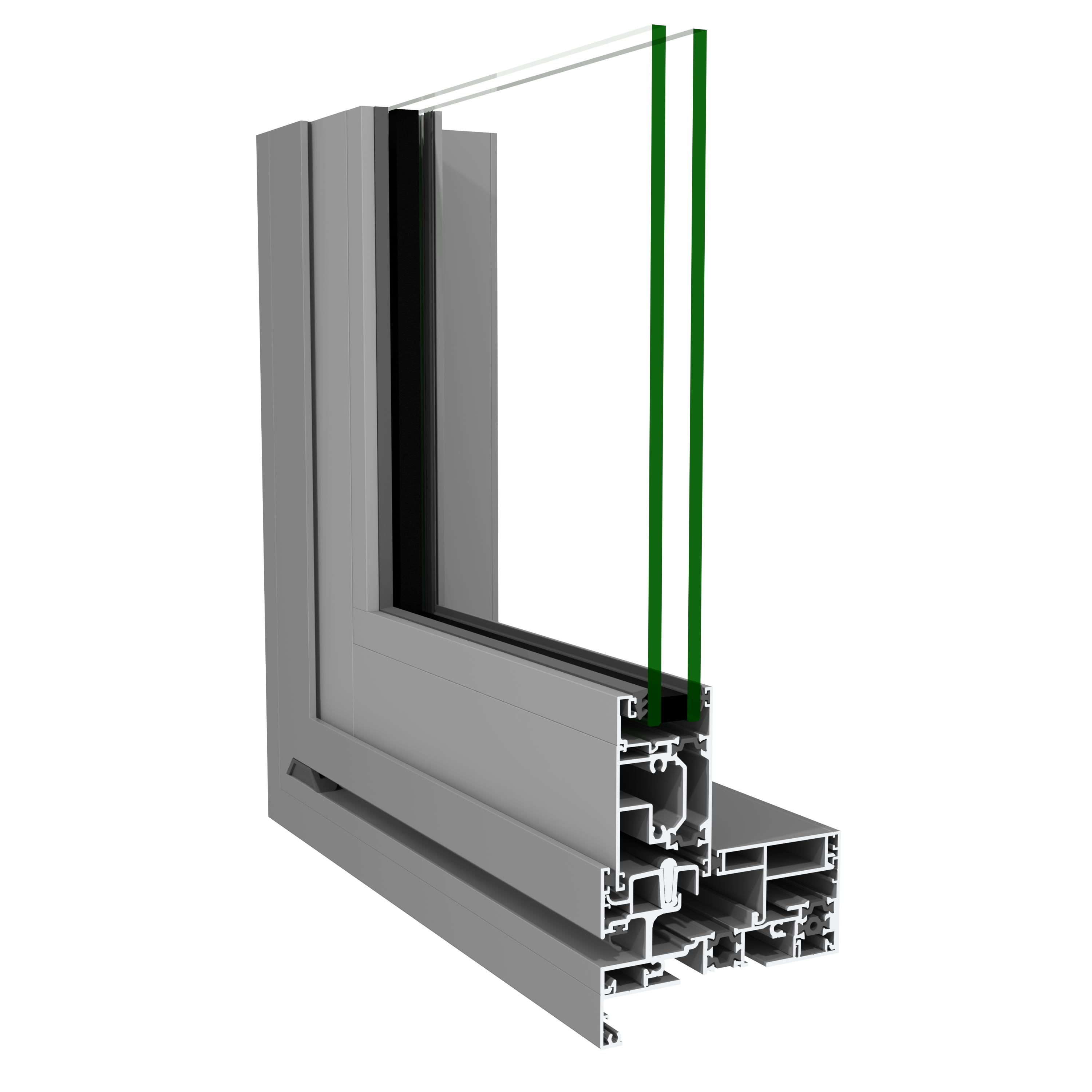

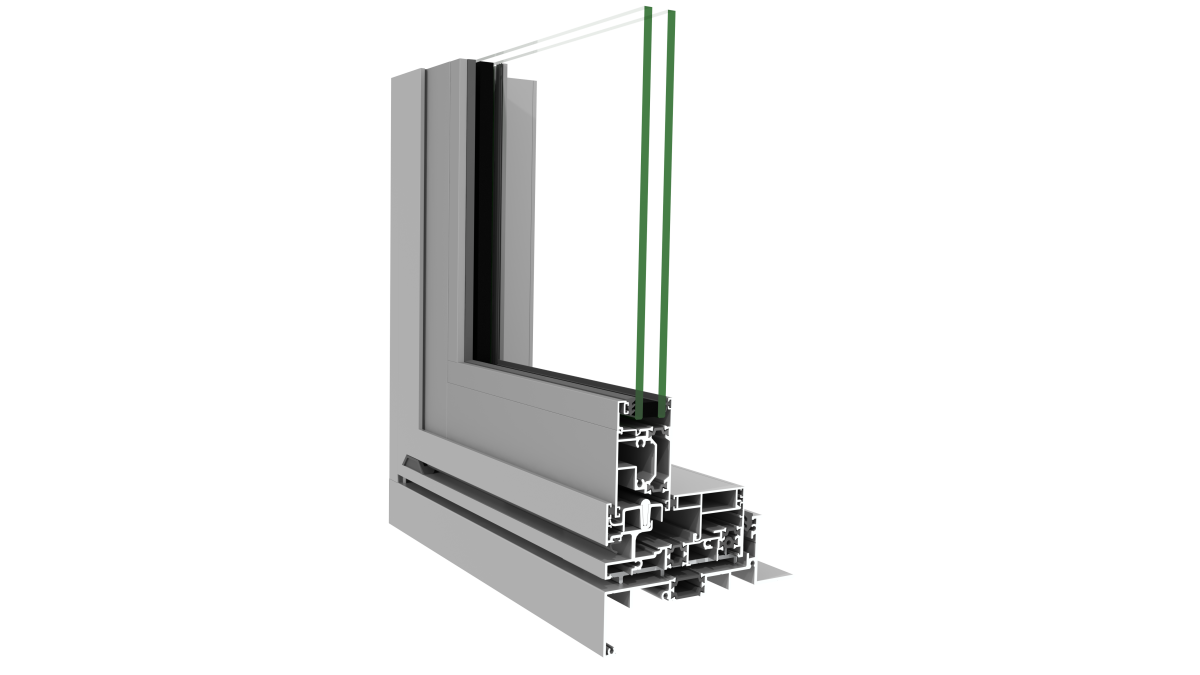

Sliding windows use the sliding door system, which has slender sightlines. The sill frame has a flush track. Interlocker stiles and mullions are flush in the closed position.

Key Features

An exterior sliding track as standard
Ideal for non-projecting or servery windows
Smooth sliding action

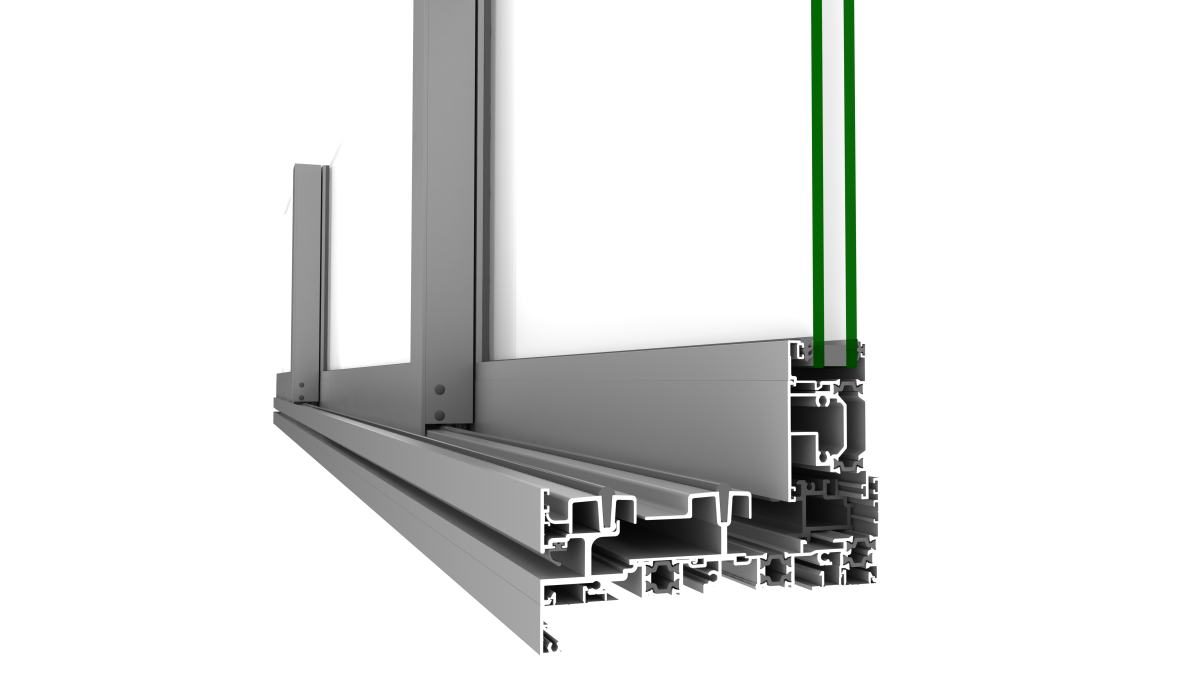

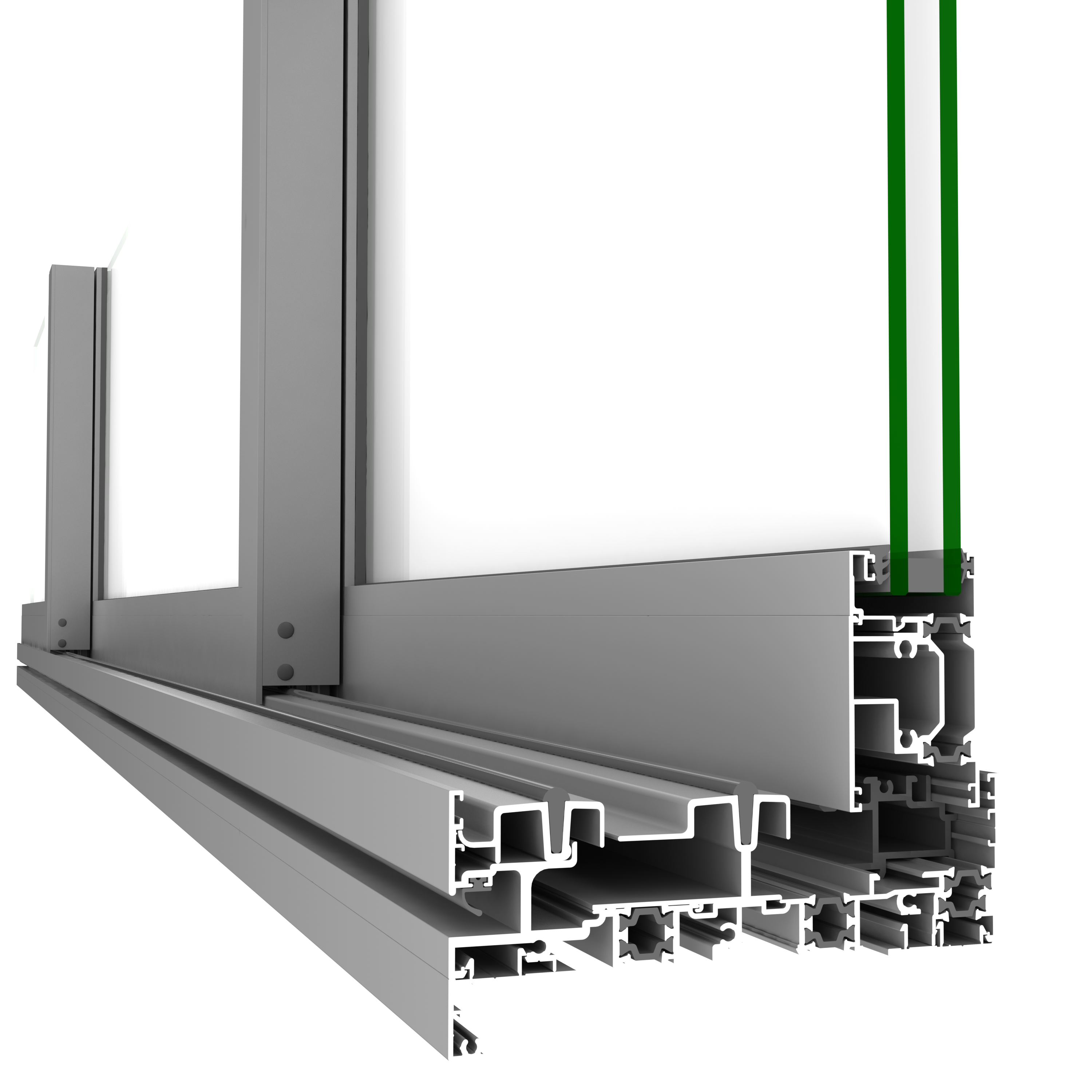

Wide opening is possible in bi-parting or stacking configurations.
Stiles and rails feature slender sightlines

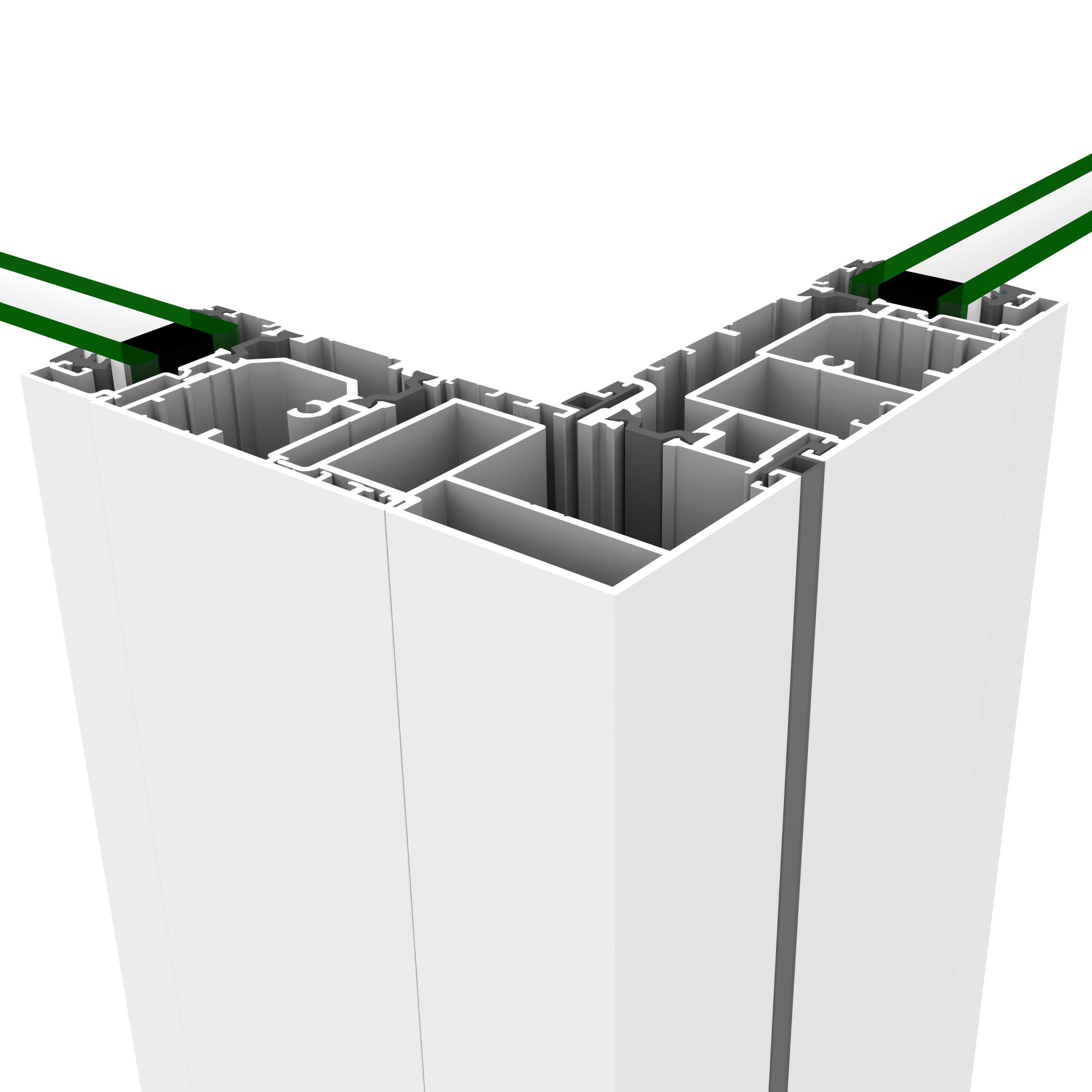

Corner sliding windows (90°) are available with no corner post (exterior and interior corners)
Maximum glass thickness of 32mm IGU — compliance with NZBC clause H1 Energy Efficiency requires high performing Low-E double glazing

Ranges

APL Architectural Series ThermalHEART®

Scope of Use

Suitable for broad residential use, including in apartments and buildings over 10m in height

Limitations on Use

Recommended in maximum sizes
Compliance with NZBC clause H1 Energy Efficiency requires high performing Low-E double glazing

Statement of Building Code Compliance

Designed, tested and manufactured to meet NZS 4211: Specification for Performance of Windows, and NZS 4233: Glazing in Buildings, Parts 1-4
Conforms to all relevant NZ Building Code clauses

In-Service History

Launched in 2023
New range rolling out nationally

Other Performance Attributes

Window and door warranty provided under normal conditions of use against failure of materials and workmanship for a period of five years
Surface finish is covered by a separate performance warranty dependent on the actual finish selected. APL Architectural Series ThermalHEART® products can have a different colour on the interior and exterior faces as an optional choice.
A hardware/componentry warranty is offered against defects in manufacturing, functionality and surface finish for a period of five years, provided care and maintenance guidelines have been followed

Documents

Full Specification Guide: APL Architectural Series ThermalHEART®

2023

docx

Specification Guide: APL Architectural Series ThermalHEART® Sliding Windows

docx

Span Tables

pdf

Data Sheet: APL Architectural Series ThermalHEART®

2023

pdf

APL and Sustainability

URL

Declare Label

pdf

Manufacturer Contact List

URL

AGP Cleaning & Maintenance

pdf

AGP Condensation Guide

pdf

AGP Visual Quality of Glass

pdf

Altherm Brochure

URL

Altherm Care, Maintenance & Warranty Brochure (with AGP)

URL

Altherm on Masterspec

URL

Specifier Guide

2023

URL

WGANZ Guide to E2/AS1

pdf

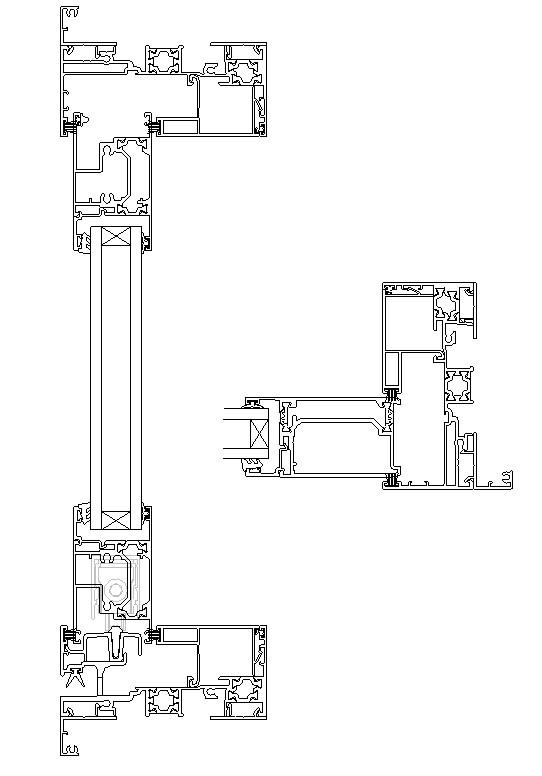

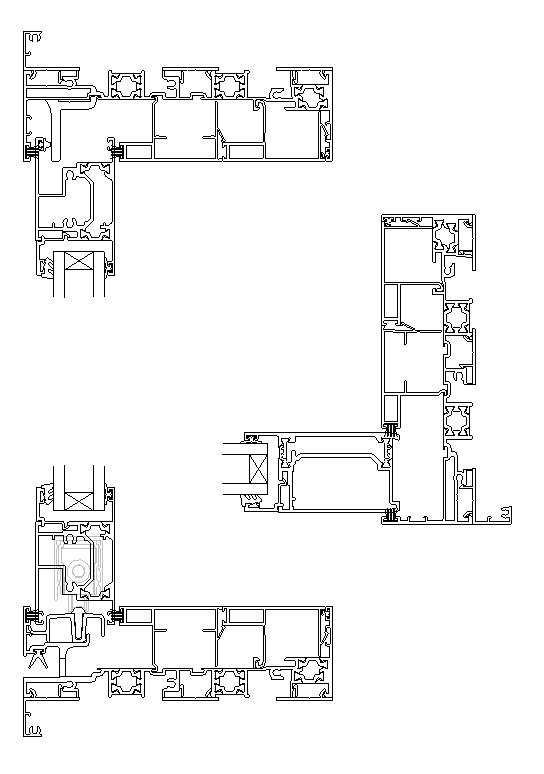

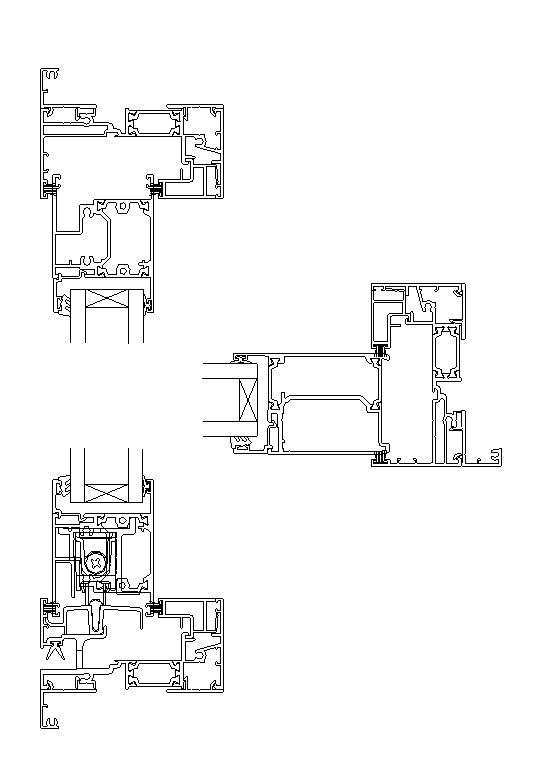

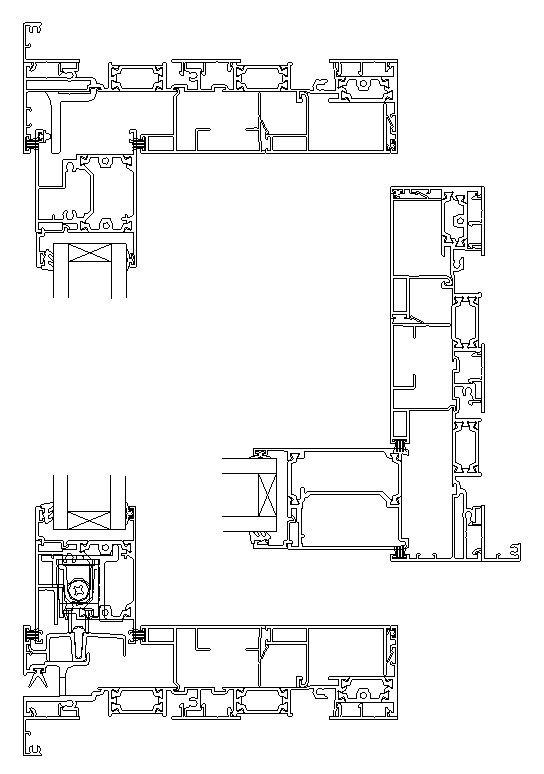

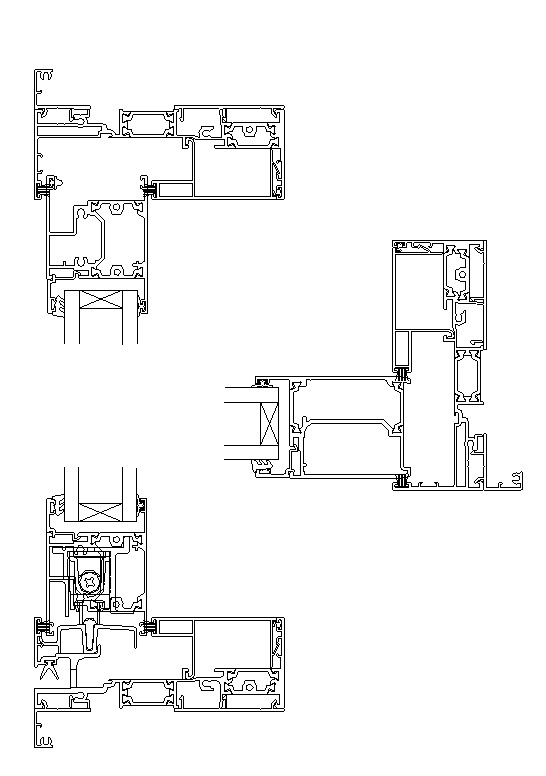

CAD/PDF Details

View full

APL Architectural Thermal Heart Sliding Window Drawings pdf

APL Architectural Series ThermalHEART® Sliding Windows

FULL SET

PDF and ZIP (contains all DWGs)

pdf

zip

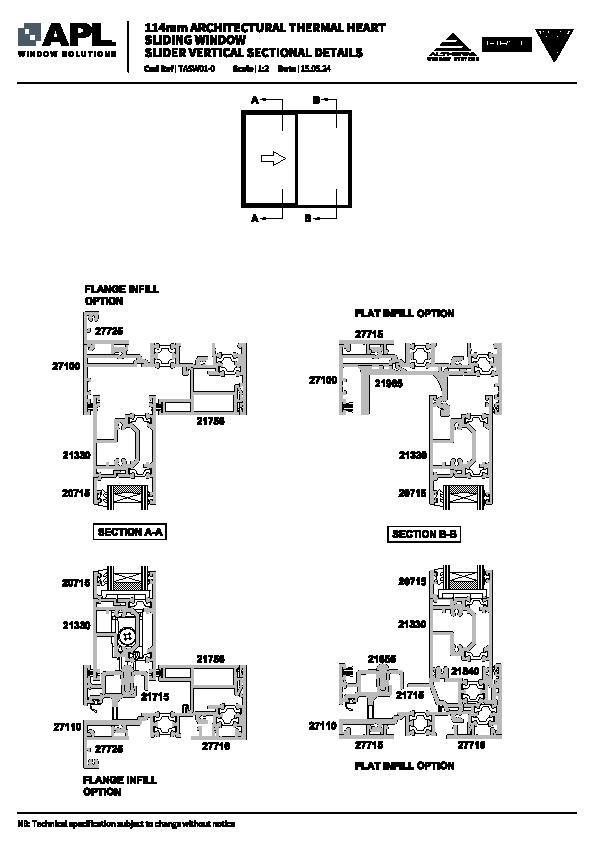

114mm APL Architectural Series ThermalHEART® Sliding Window - Slider Vertical Sectional Details

TASW01

dwg

dxf

pdf

114mm APL Architectural Series ThermalHEART® Sliding Window - Underlight Transom

TASW02

dwg

dxf

pdf

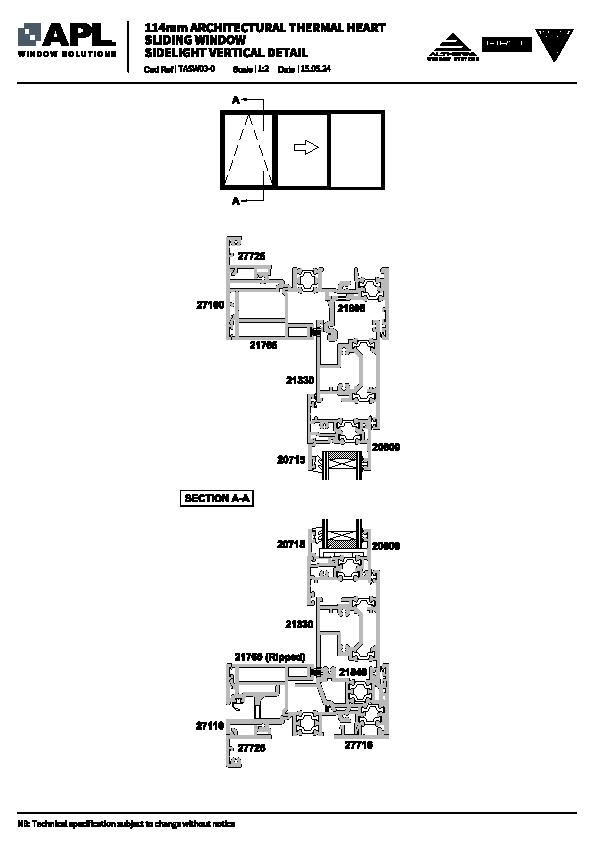

114mm APL Architectural Series ThermalHEART® Sliding Window - Sidelight Vertical Detail

TASW03

dwg

dxf

pdf

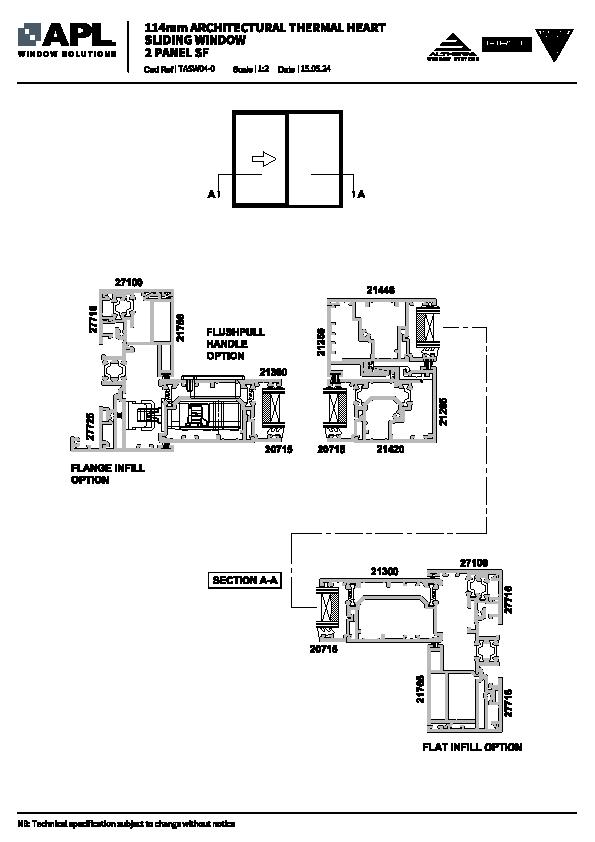

114mm APL Architectural Series ThermalHEART® Sliding Window - 2 Panel SF

TASW04

dwg

dxf

pdf

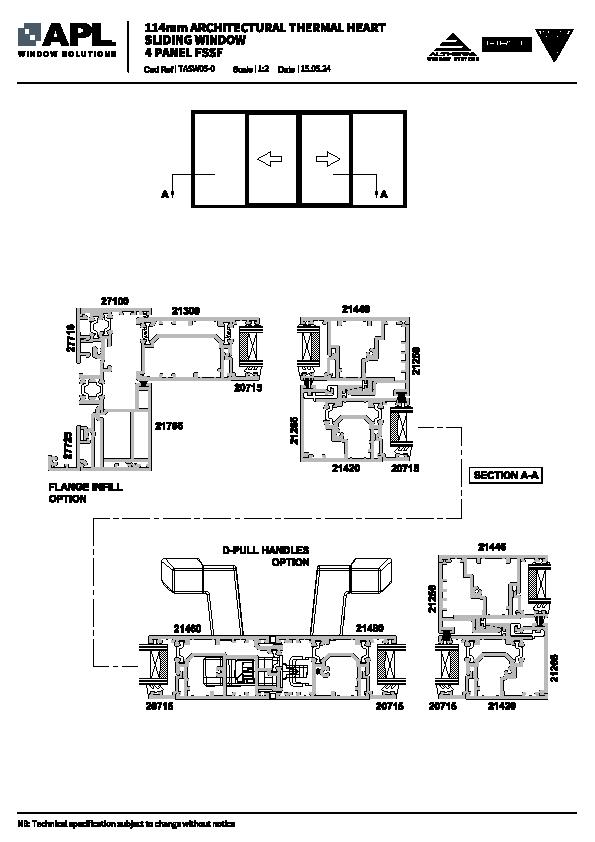

114mm APL Architectural Series ThermalHEART® Sliding Window - 4 Panel FSSF

TASW05

dwg

dxf

pdf

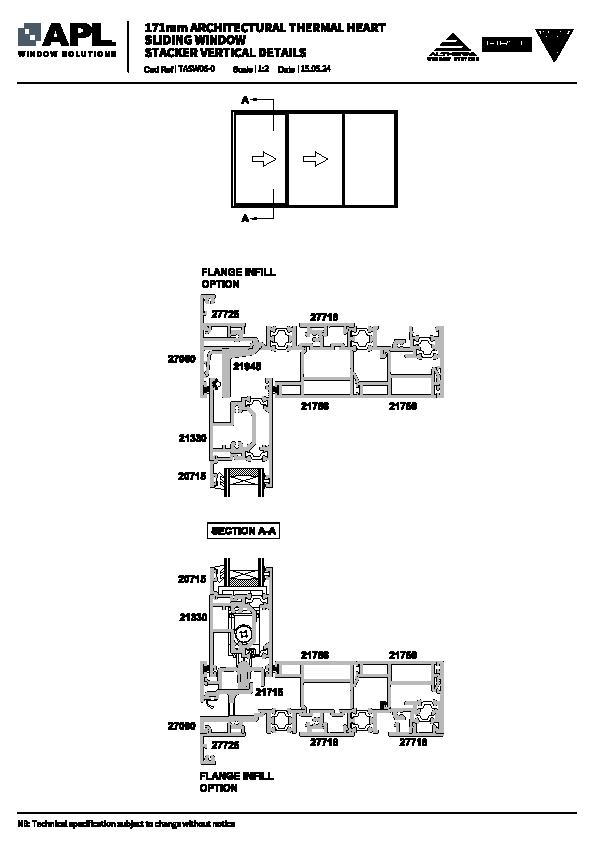

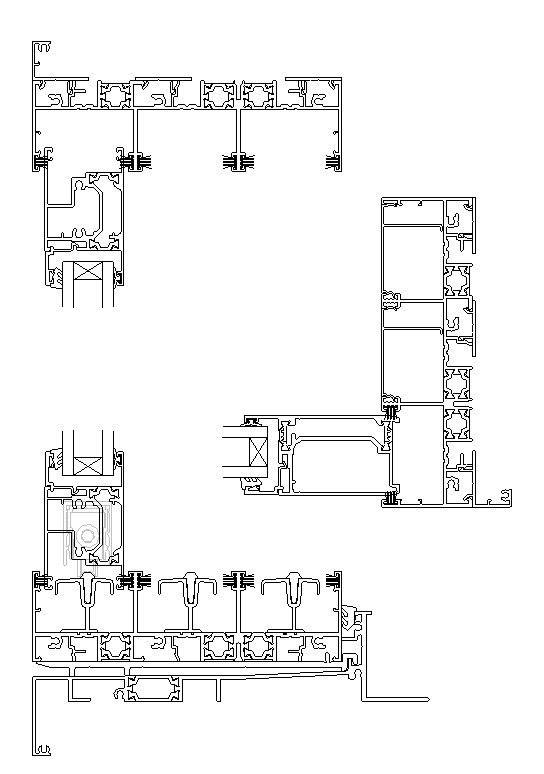

171mm APL Architectural Series ThermalHEART® Sliding Window - Stacker Vertical Details

TASW06

dwg

dxf

pdf

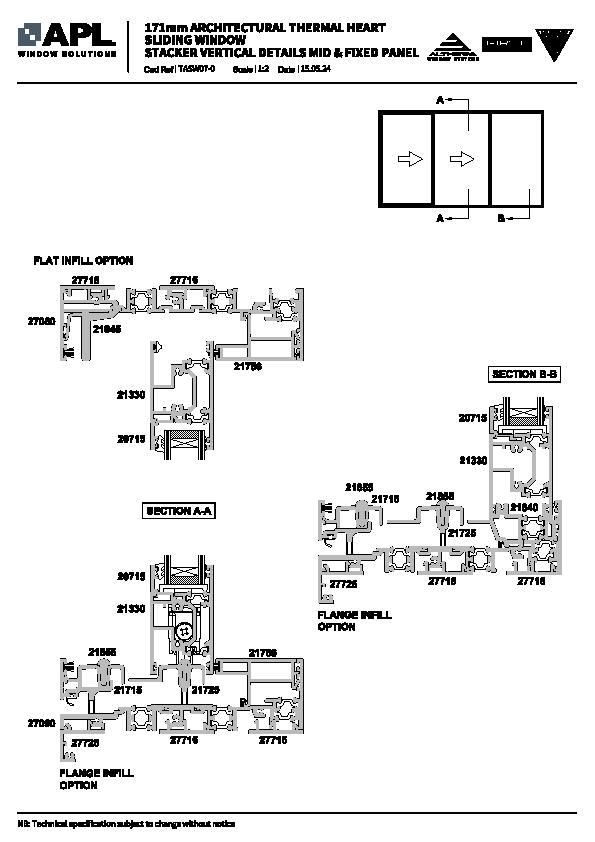

171mm APL Architectural Series ThermalHEART® Sliding Window - Stacker Vertical Details Mid & Fixed Panel

TASW07

dwg

dxf

pdf

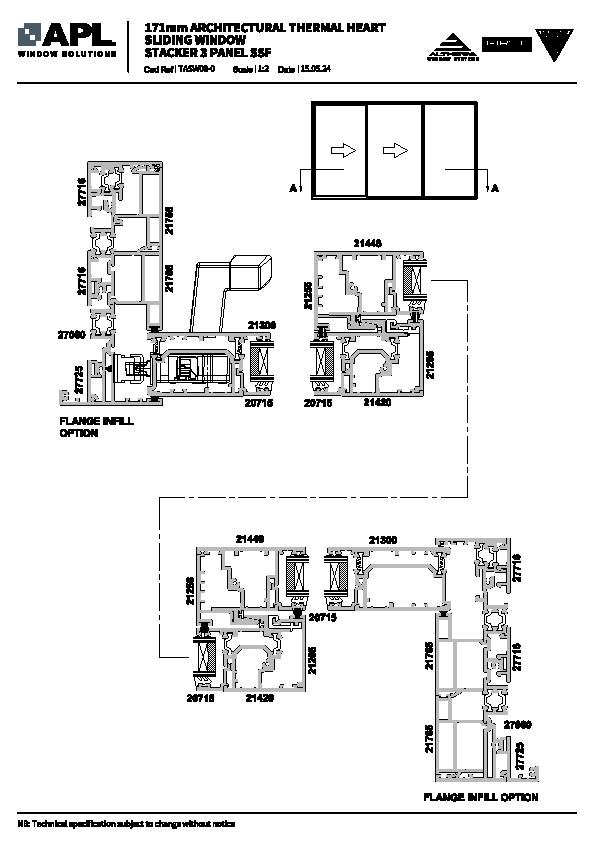

171mm APL Architectural Series ThermalHEART® Sliding Window - Stacker 3 Panel SSF

TASW08

dwg

dxf

pdf

Installation Details

View full

APL Architectural Series ThermalHEART® - 114mm Sliding Window on Brick Veneer

TA114SWBV

dwg

pdf

APL Architectural Series ThermalHEART® - 114mm Sliding Window on Bevelback Weatherboard

TA114SWBW

dwg

pdf

APL Architectural Series ThermalHEART® - 114mm Sliding Window on Flat Sheet

TA114SWFS

dwg

pdf

APL Architectural Series ThermalHEART® - 114mm Sliding Window on Profile Metal

TA114SWPM

dwg

pdf

APL Architectural Series ThermalHEART® - 114mm Sliding Window on Stucco

TA114SWST

dwg

pdf

APL Architectural Series ThermalHEART® - 171mm Sliding Window on Board & Batten

TA171SWBB

dwg

pdf

APL Architectural Series ThermalHEART® - 171mm Sliding Window on Brick Veneer

TA171SWBV

dwg

pdf

APL Architectural Series ThermalHEART® - 171mm Sliding Window on Bevelback Weatherboard

TA171SWBW

dwg

pdf

APL Architectural Series ThermalHEART® - 171mm Sliding Window on Flat Sheet

TA171SWFS

dwg

pdf

APL Architectural Series ThermalHEART® - 171mm Sliding Window on Stucco

TA171SWST

dwg

pdf

APL Architectural Series ThermalHEART® - 114mm Sliding Window on Board & Batten

TA114SWBB

dwg

pdf

APL Architectural Series ThermalHEART® - 114mm Sliding Window on Rusticated Weatherboard

TA114SWRW

dwg

pdf

APL Architectural Series ThermalHEART® - 171mm Sliding Window on Profile Metal

TA171SWPM

dwg

pdf

APL Architectural Series ThermalHEART® - 171mm Sliding Window on Rusticated Weatherboard

TA171SWRW

dwg

pdf
