Metro Series Bi-Fold Doors & Windows
ALTHERM Window Systems
All products
For high-performance double-glazing, explore AGP’s product range available now Explore

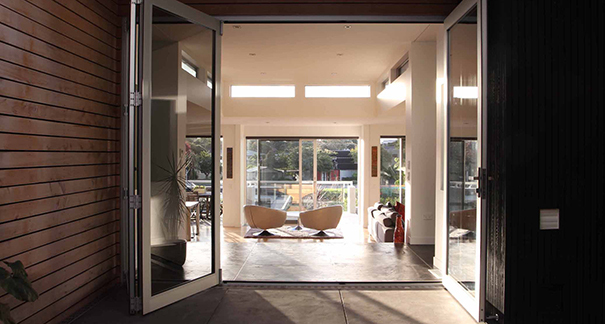

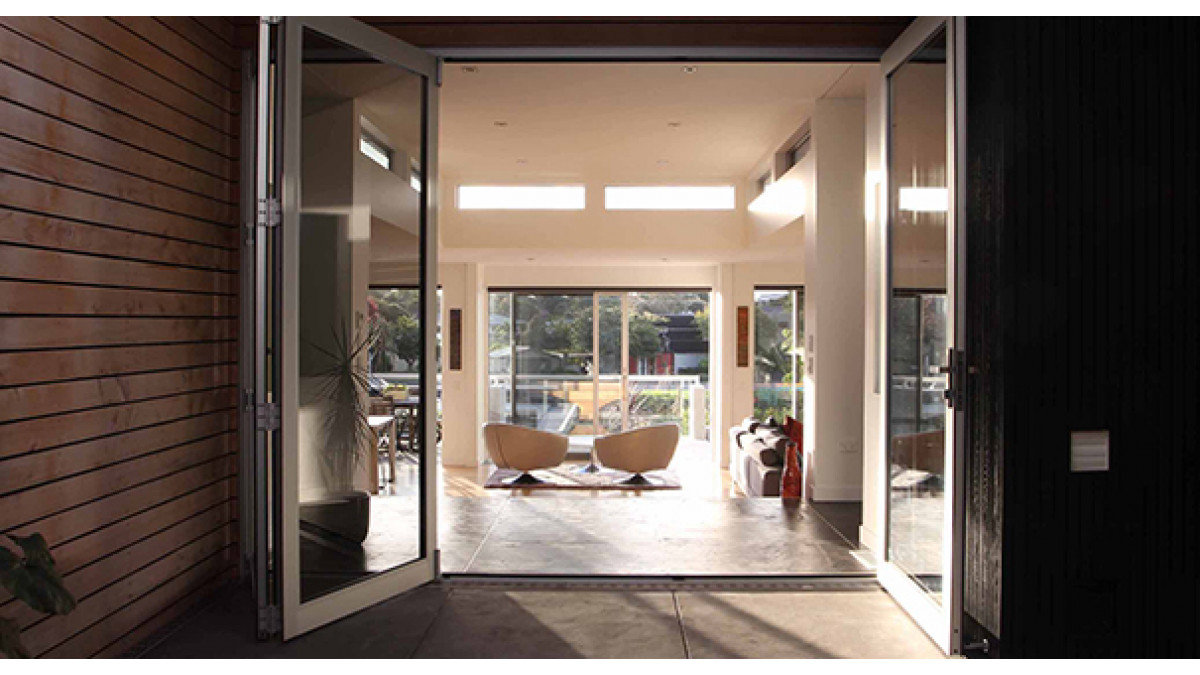

Alth Metro Bifold Drs Gilpin

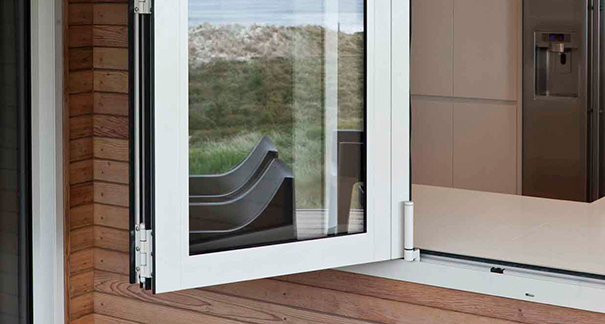

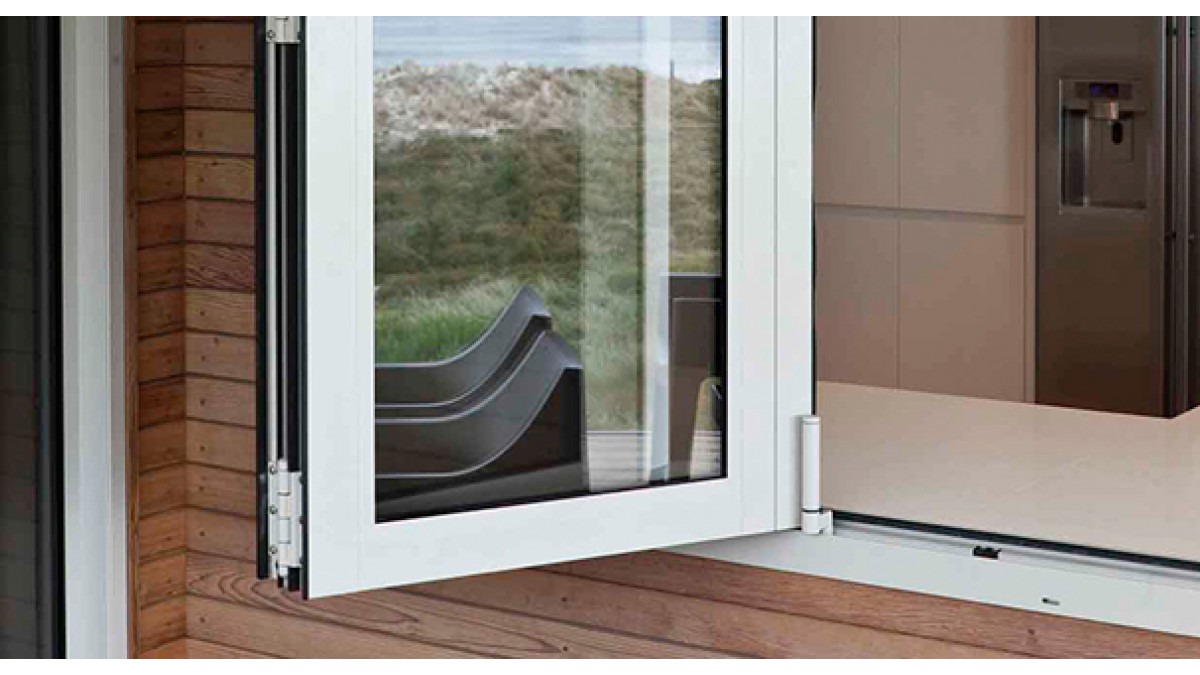

Alth Metro Bifold win Gilpin

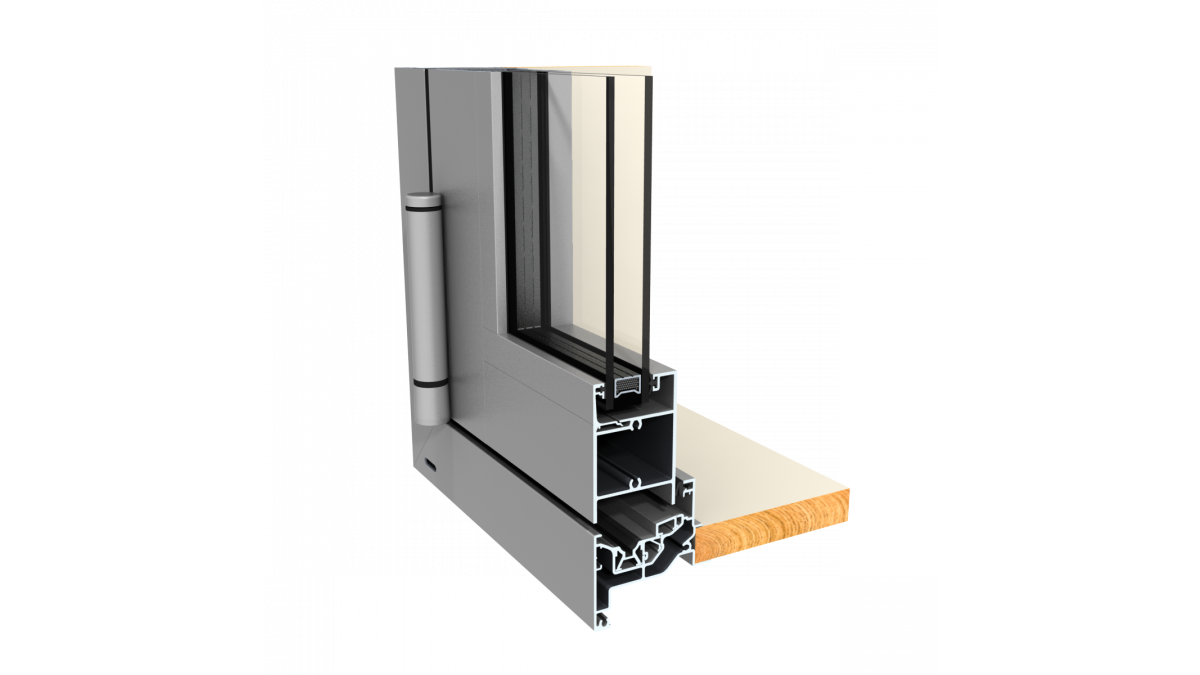

117 Metro BW Corner

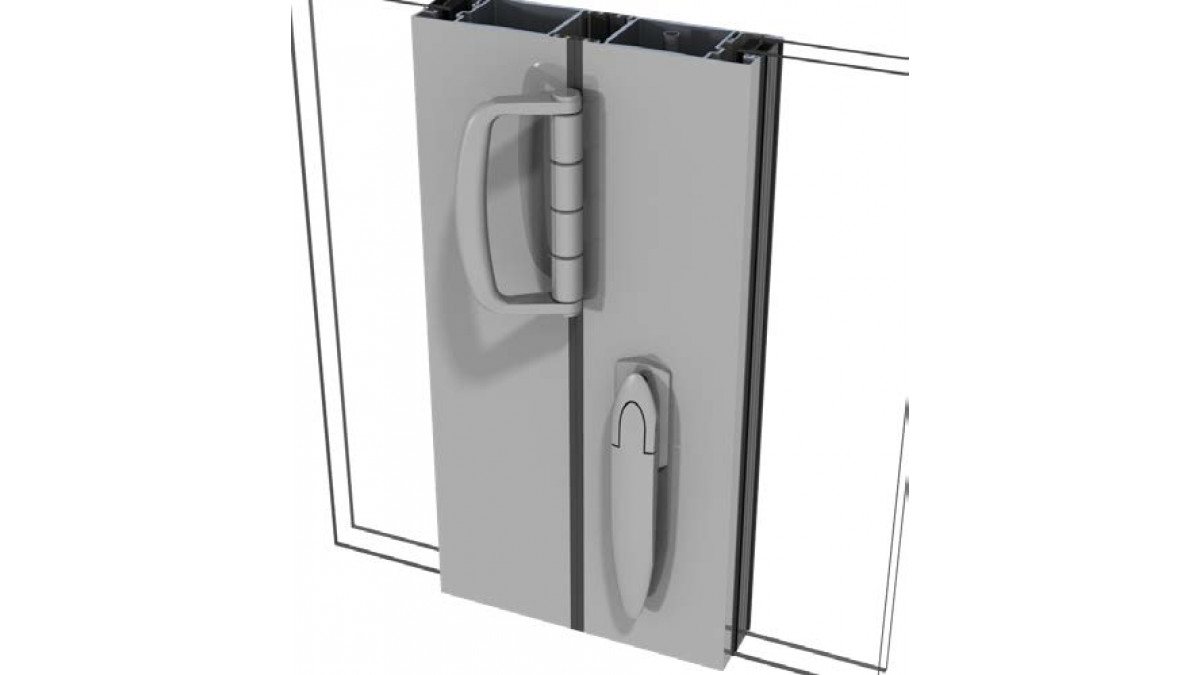

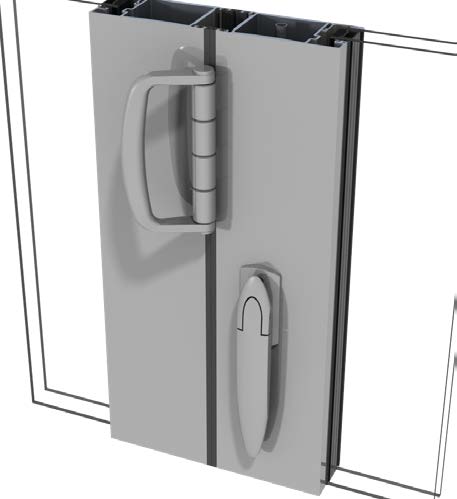

Bi fold hinged stiles and Miro handle

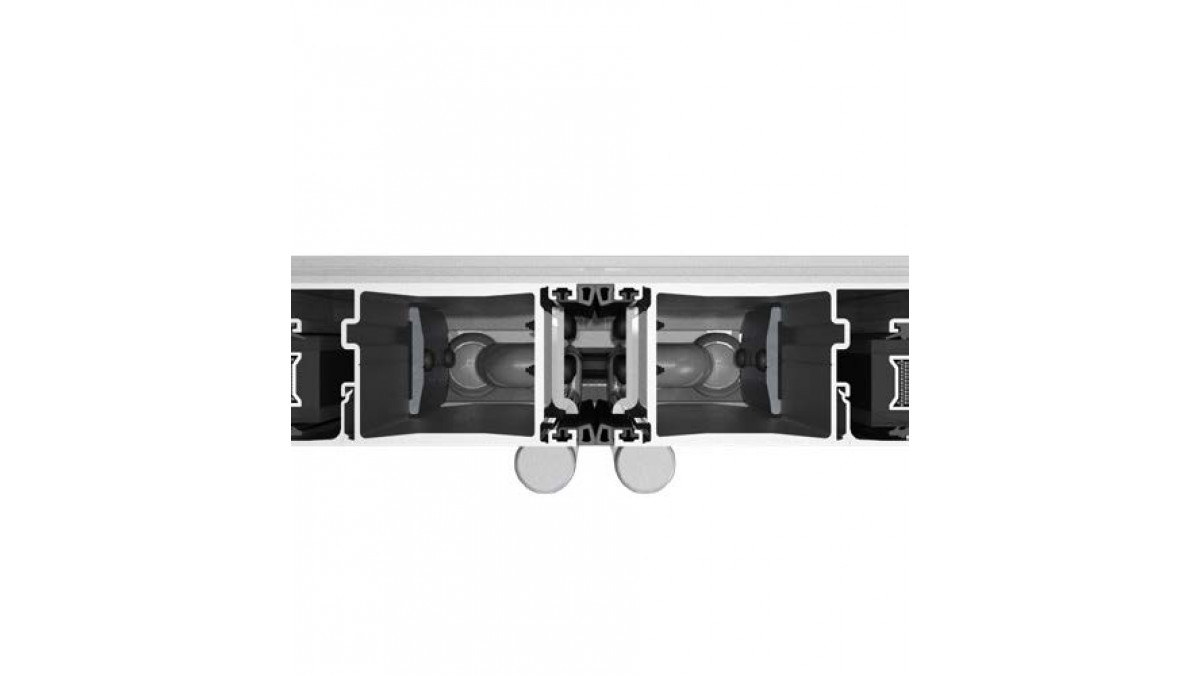

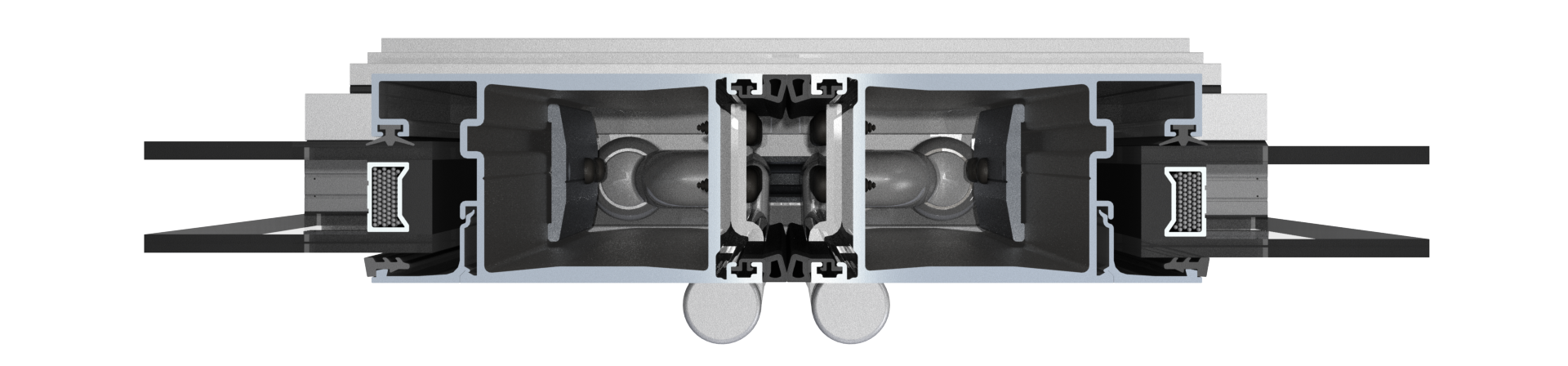

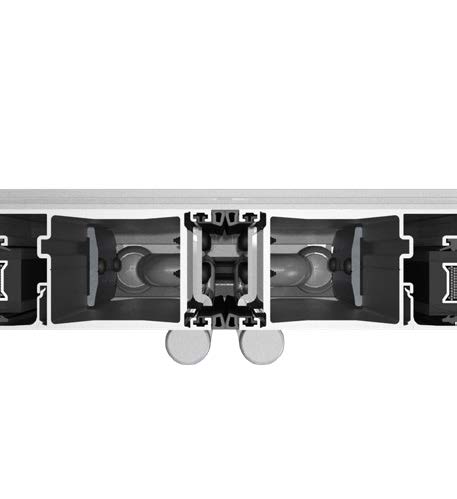

Bi fold door meeting stiles

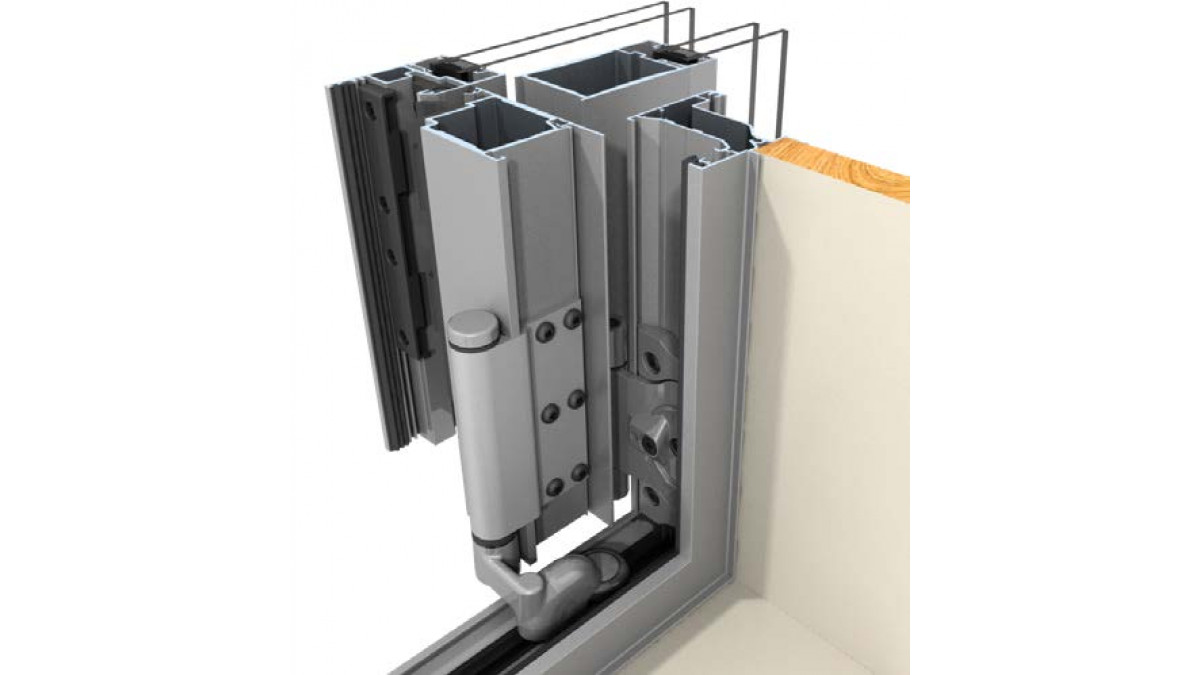

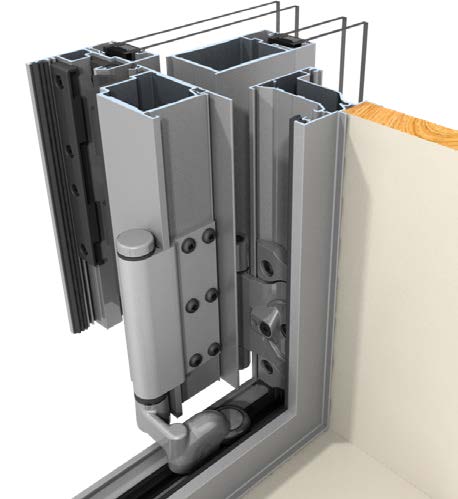

Lay back fully open

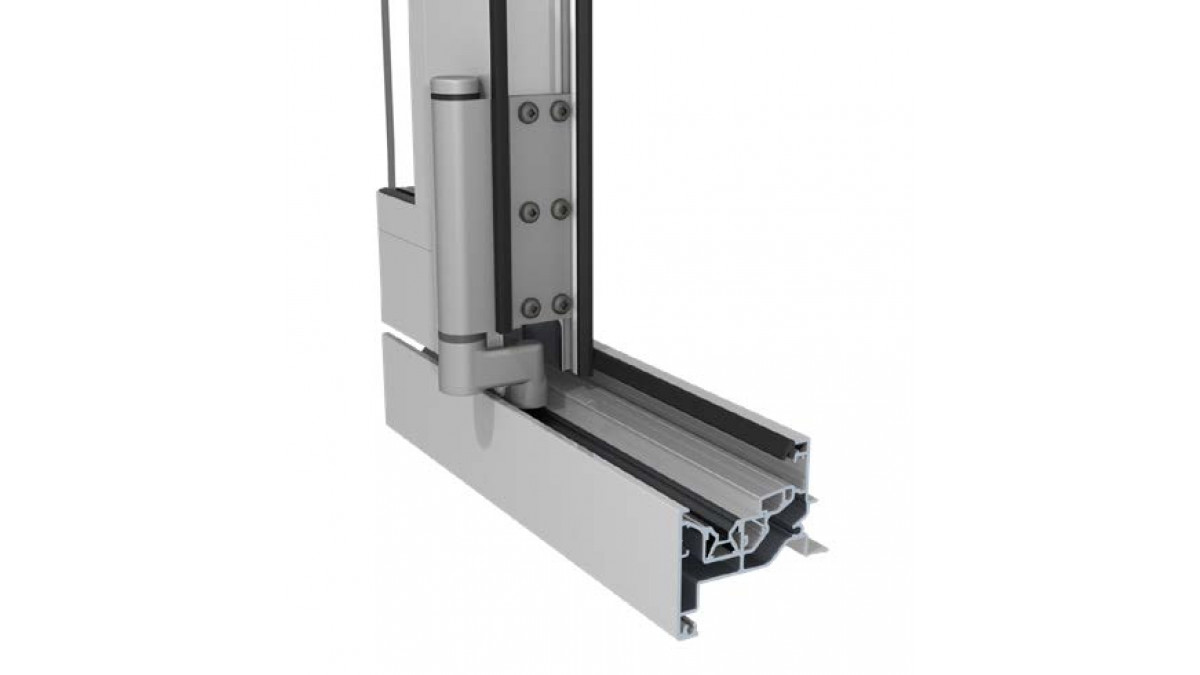

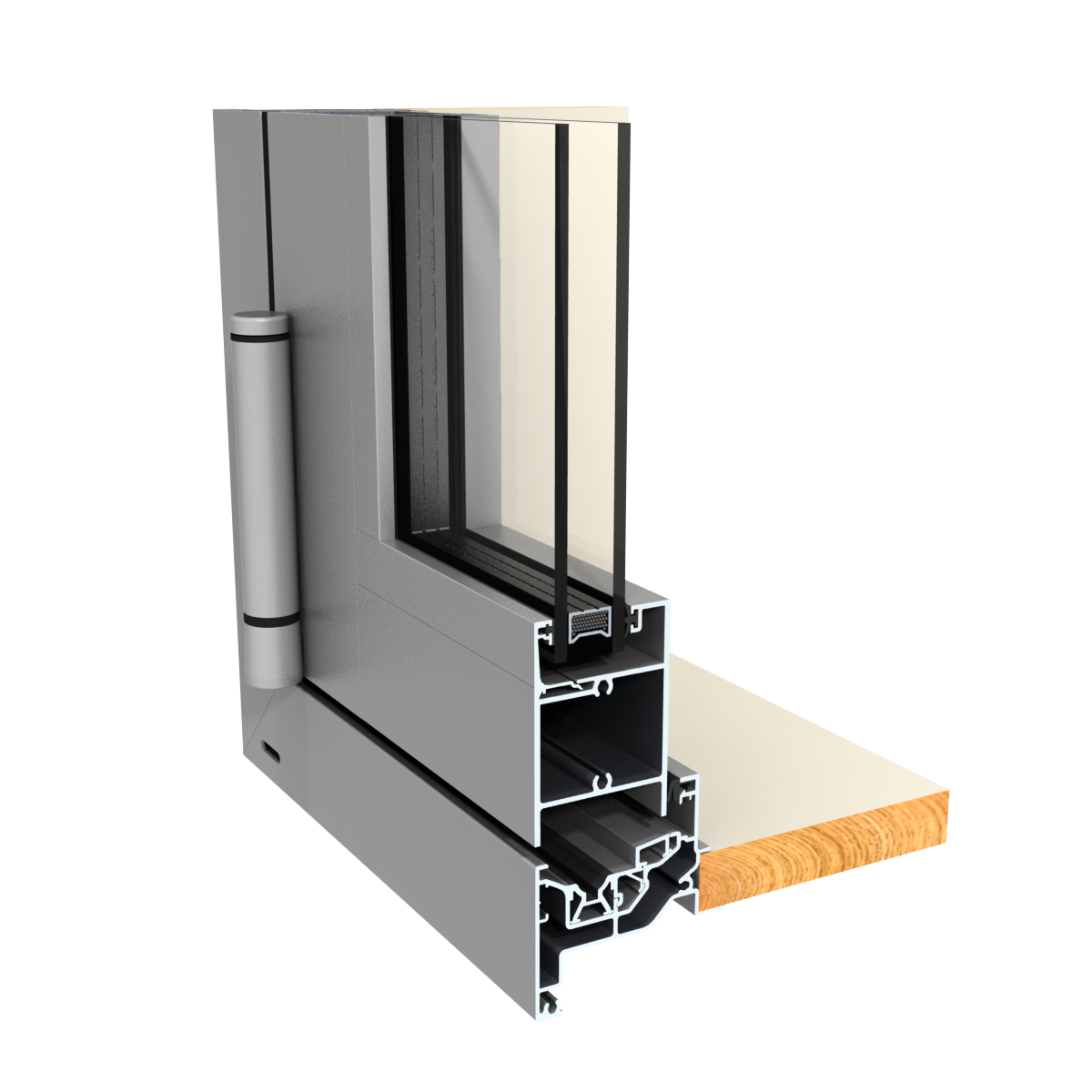

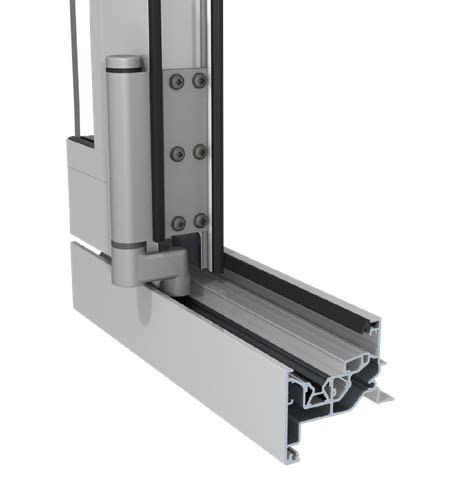

Sill track and panel roller
Description

Metro Series bifold doors and windows use the same system, which is bottom-rolling with an in-frame track.

A lay-back option is available for certain configurations — 2-panel, 2+2 and 2+1, where the open panels fold back against an adjoining wall for an unobstructed deck.

Key Features
  • Maximum 2400mm high doors in very high wind zones — for larger sizes consider using the APL Architectural Series
  • Maximum glass panel thickness of 27mm
  • Corner bi-folds are available that do not require a corner post
  • The efficient bottom roller system allows optimum load capacity and increased panel width
  • Single panel access door can be used in conjunction with bi-fold doors
  • Lay-back panels require the facing to be within 15mm of final finished cladding line in order to achieve 180° opening
  • A wide range of configurations available
  • A rebated sill track option is available in sheltered locations
  • Overlights possible
  • Open-in frame available
Categories
Bifold Doors Bifold Windows
Ranges
Metro Series
Scope of Use
  • Suitable for broad residential use
  • Maximise views and ventilation but need to be monitored if windy conditions occur
  • Available in defined maximum sizes
Limitations on Use
  • Maximum 2100mm high doors in very high wind zones — For larger sizes consider using the Metro ThermalHEART Series
  • Careful consideration of bi-fold use is required when projecting on to decks or pedestrian areas
  • In closed position bi-fold window and door stiles impact views
Statement of Building Code Compliance
  • Designed, tested and manufactured to meet NZS 4211: Performance of Windows, and NZS 4233:  Glazing in Buildings, Parts 1-4
  • Designed and tested to conform to NZ Building Code, including Clause E2
In-Service History
  • Launched in 2006
  • Design upgrades regularly released
  • Widely used by homeowners, builders, Group home builders and specifiers
Other Performance Attributes
  • Window and door warranty provided under normal conditions of use against failure of materials and workmanship for a period of five years
  • Surface finish is covered by a separate performance warranty dependent on the actual finish selected
  • A hardware/componentry warranty is offered against defects in manufacturing, functionality and surface finish for a period of five years, provided care and maintenance guidelines have been followed
  • News
Documents
Data Sheet
pdf
Span Tables
pdf
Declare Label

2022

pdf
Altherm on Masterspec
URL
Full Specification
docx
Specification Clause
docx
Specifier Guide
pdf
Specifier Guide
pdf
WGANZ Guide to E2/AS1
pdf
Altherm Care, Maintenance & Warranty Brochure (with AGP)

2020

URL
Altherm Design Brochure

2020

URL
AGP Cleaning & Maintenance
pdf
AGP Condensation Guide
pdf
AGP Visual Quality of Glass
pdf
APL and Sustainability

2019

URL
Manufacturer Contact List
URL
CAD/PDF Details
View full
AMBD02 0
Full Set of Drawings
pdf
AMBD02 0

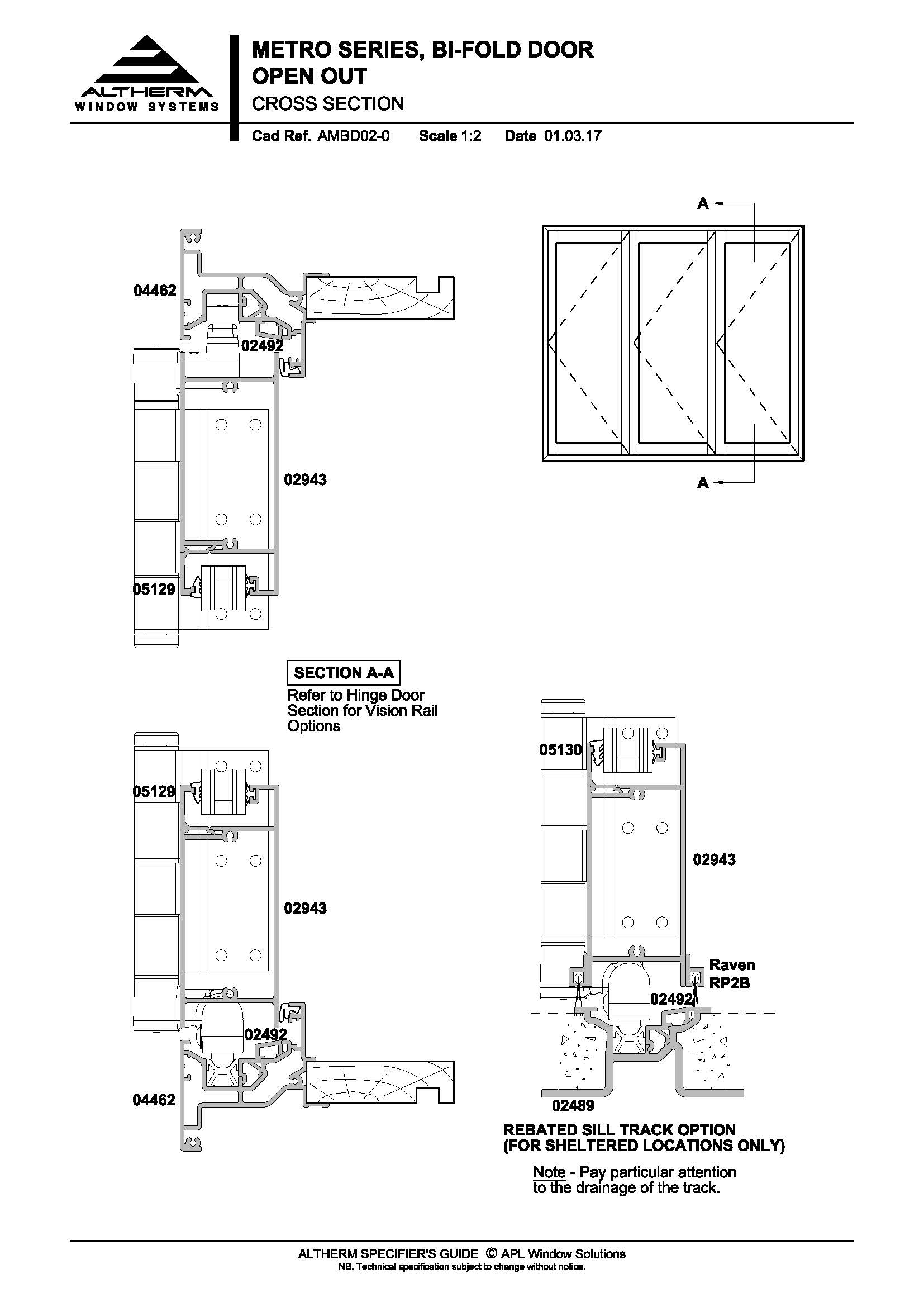

Altherm Metro Series Bi-Fold Door Open Out

AMBD02-0

dwf
dwg
dxf
pdf
AMBD03 0

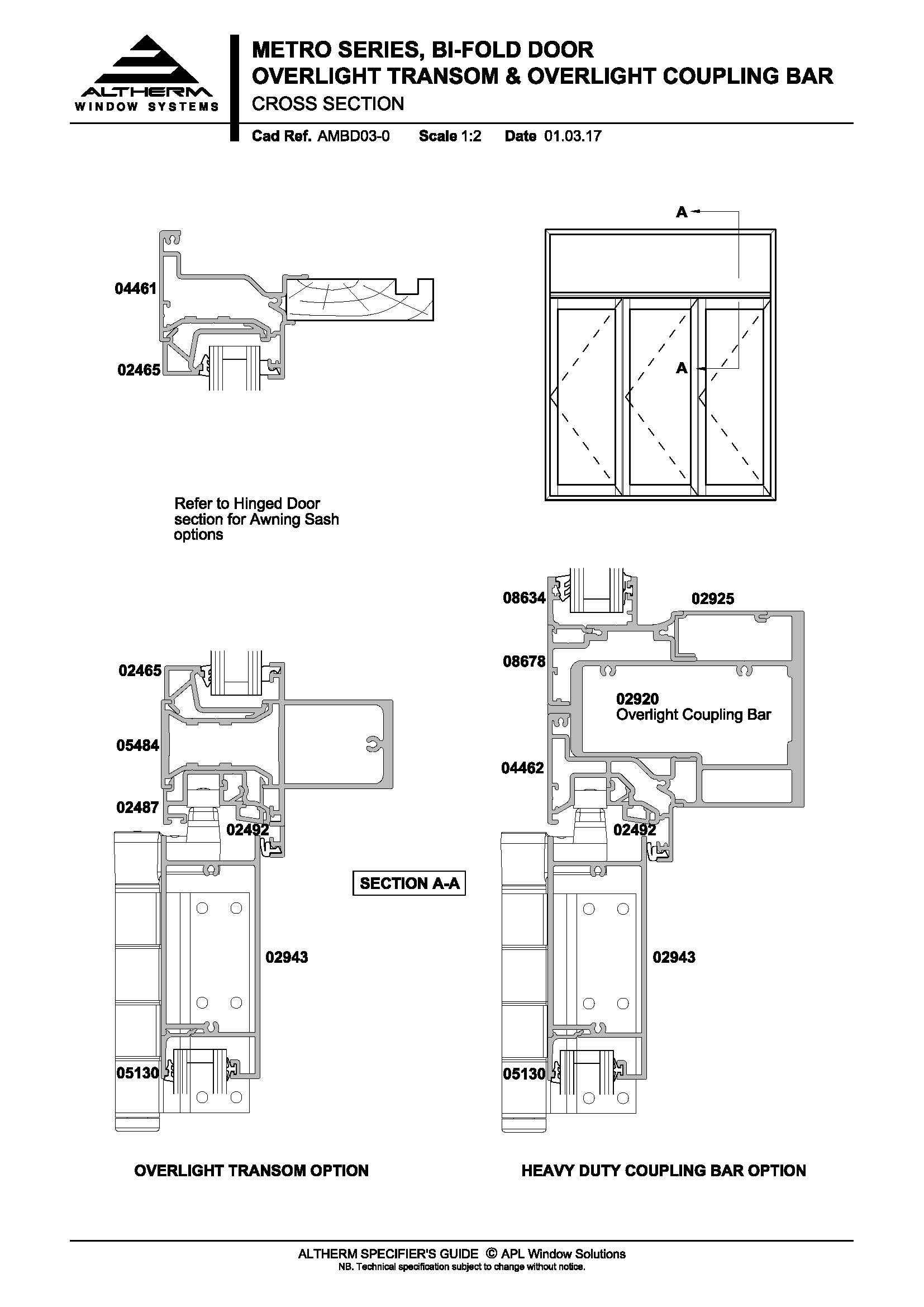

Altherm Metro Series Bi-Fold Door Overlight Transom & Overlight Coupling Bar

AMBD03-0

dwf
dwg
dxf
pdf
AMBD04 0

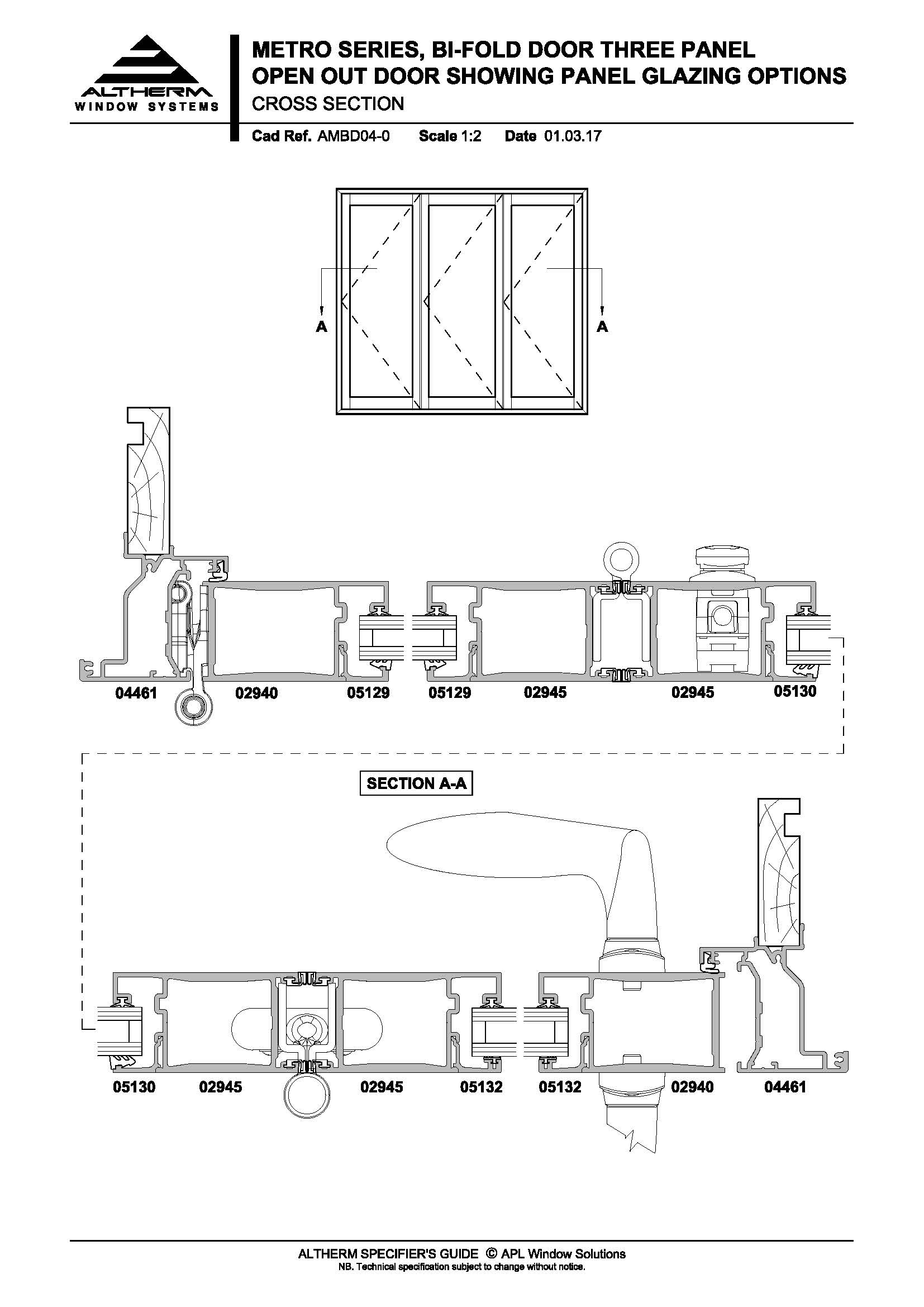

Altherm Metro Series Bi-Fold Door Three Panel Open Out Door Showing Panel Glazing Options

AMBD04-0

dwf
dwg
dxf
pdf
AMBD05 0

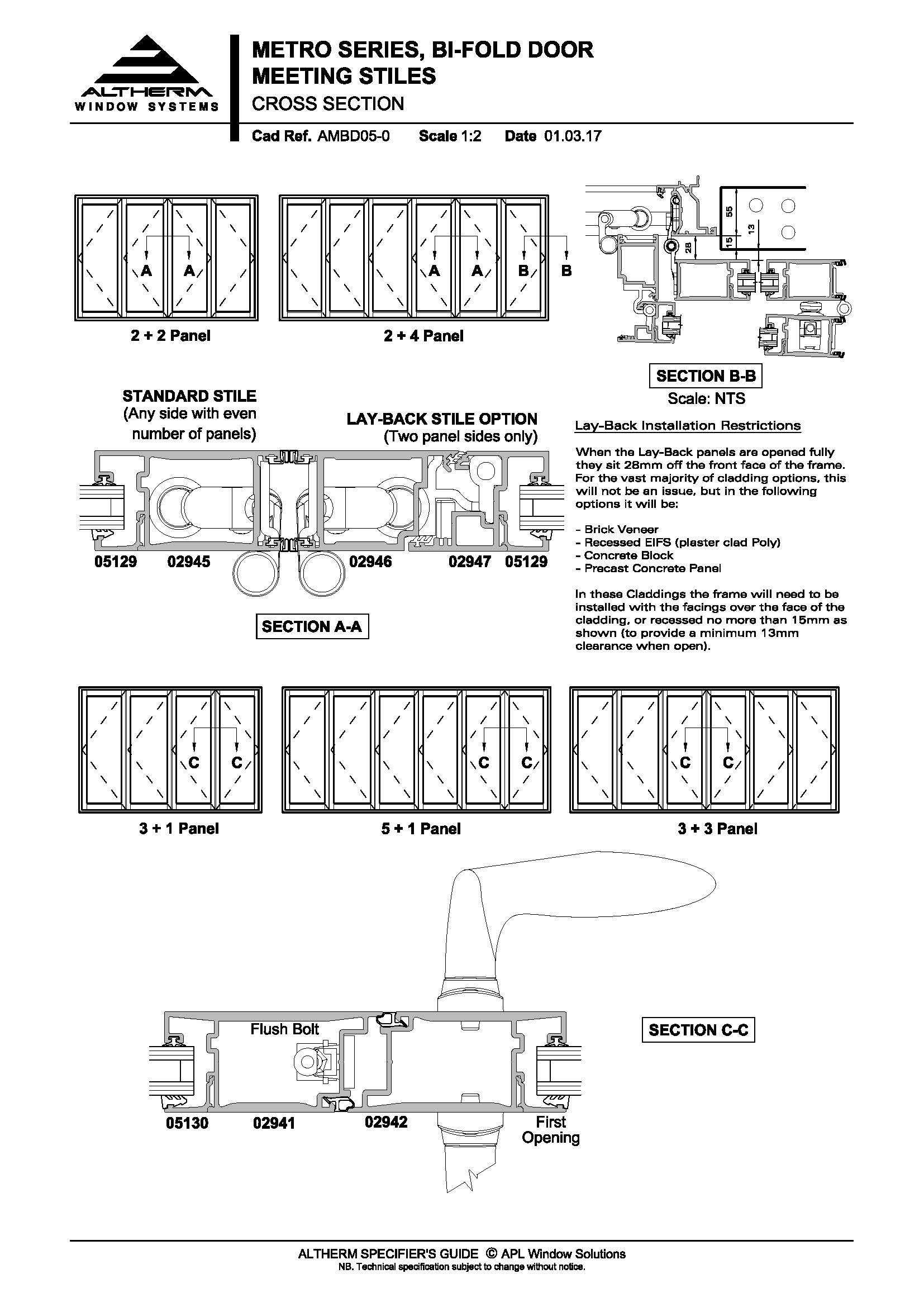

Altherm Metro Series Bi-Fold Door Meeting Stiles

AMBD05-0

dwf
dwg
dxf
pdf

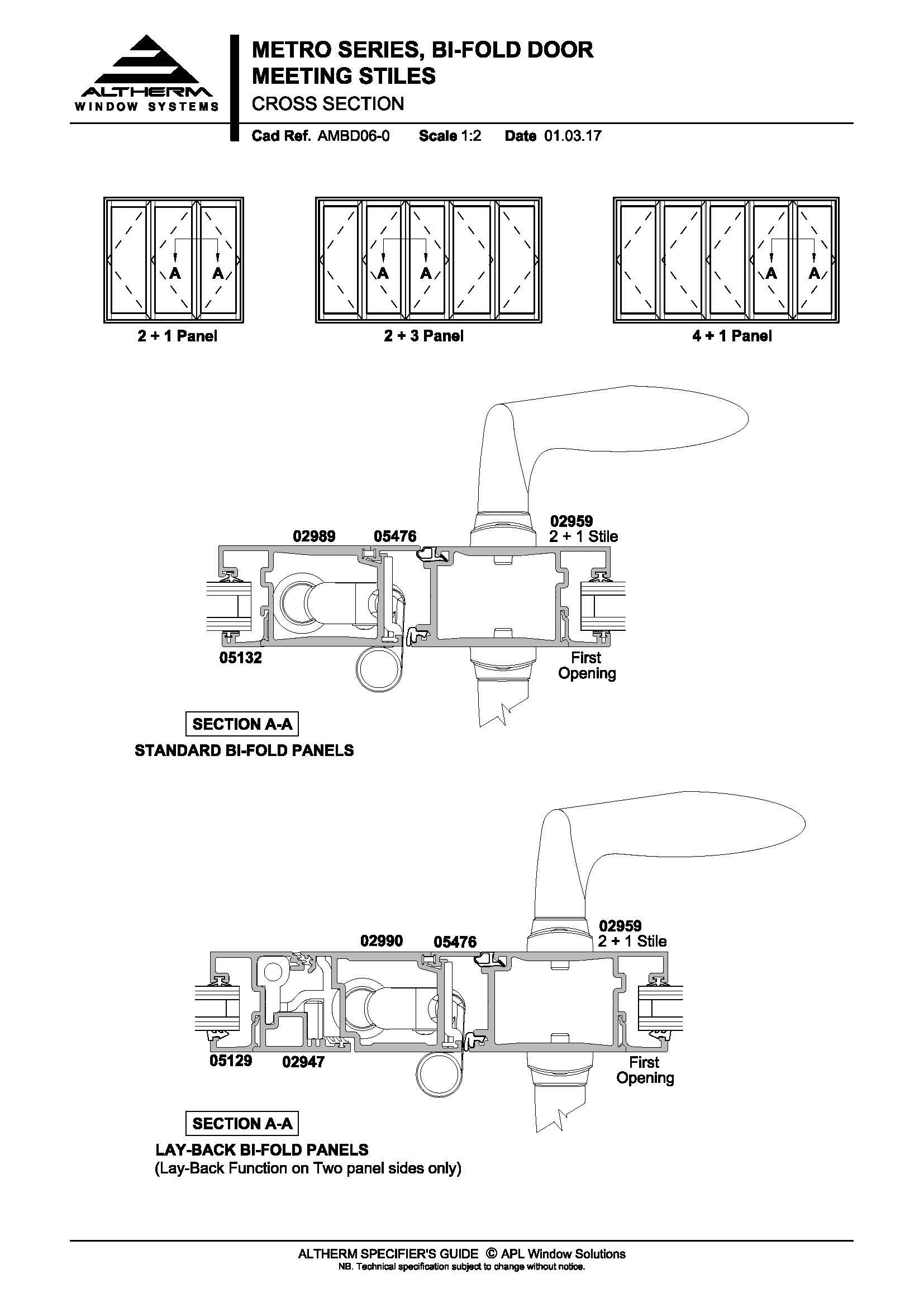

AMBD06 0
Altherm Metro Series Bi-Fold Door Meeting Stiles

AMBD06-0

dwf
dwg
dxf
pdf
AMBD07 0

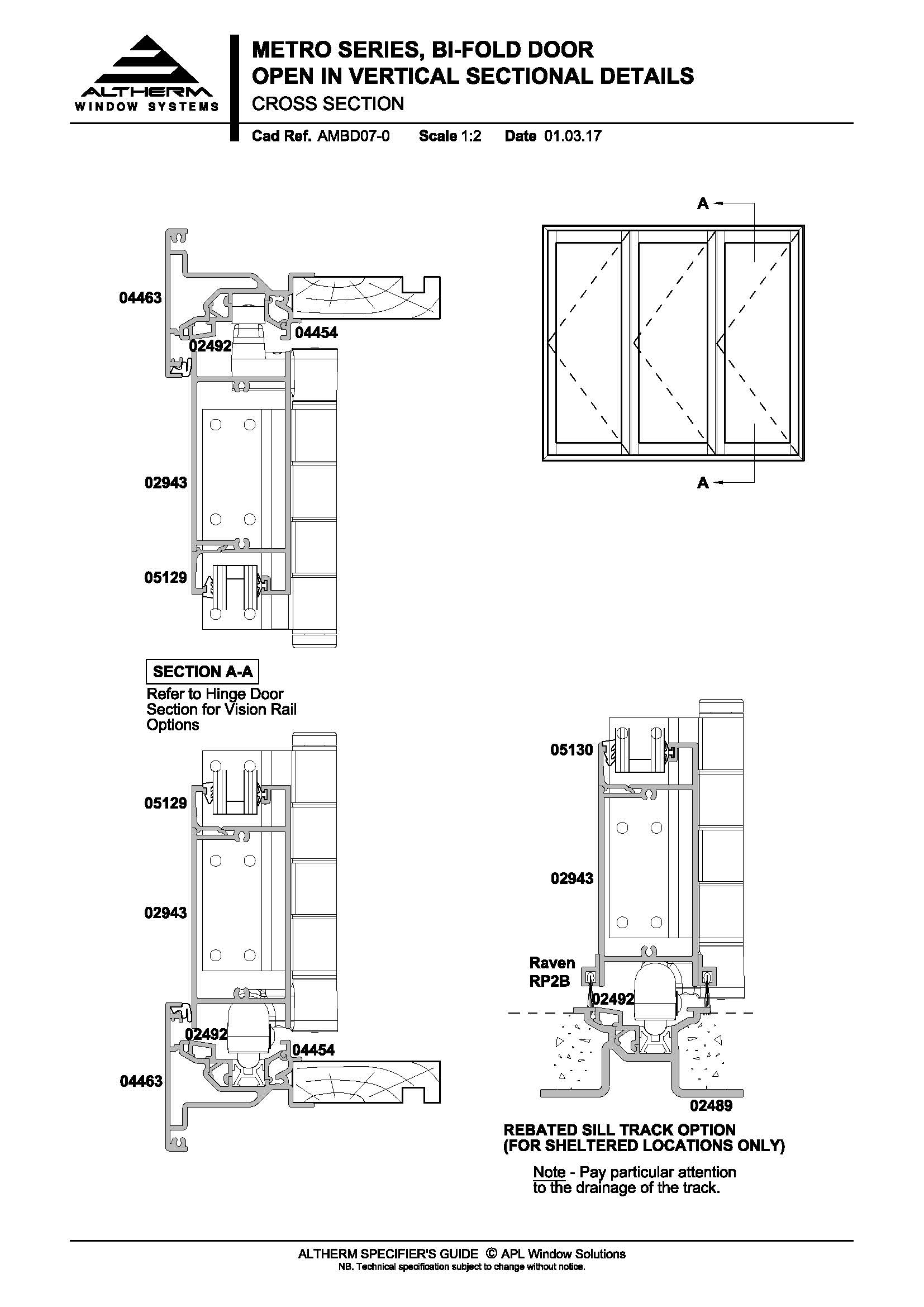

Altherm Metro Series Bi-Fold Door Open In Vertical Sectional Details

AMBD07-0

dwf
dwg
dxf
pdf
AMBD08 0

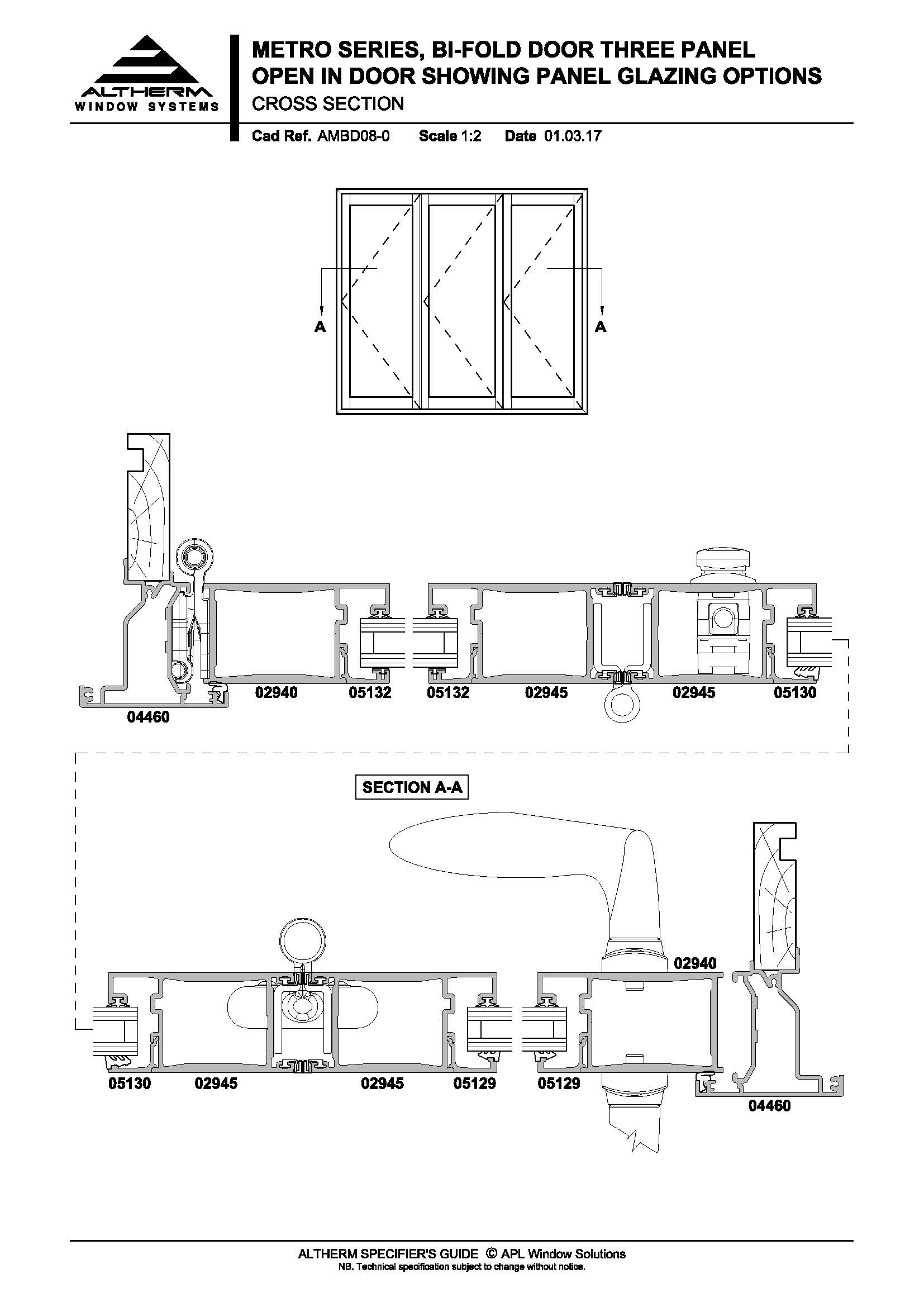

Altherm Metro Series Bi-Fold Door Three Panel Open In Door Showing Panel Glazing Options

AMBD08-0

dwf
dwg
dxf
pdf
Installation Details
View full

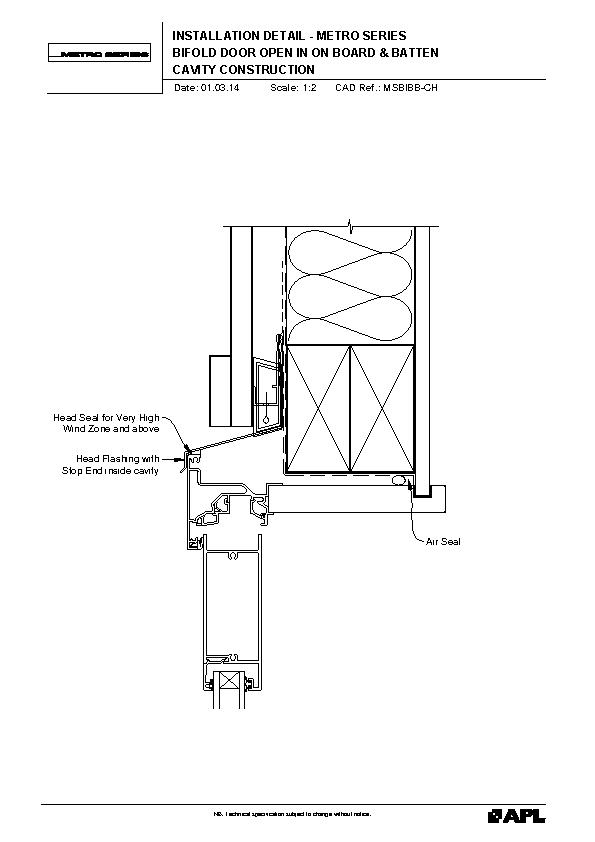

Altherm Metro Series Bifold Door Open In on Board & Batten

MSBIBB

dwg
pdf

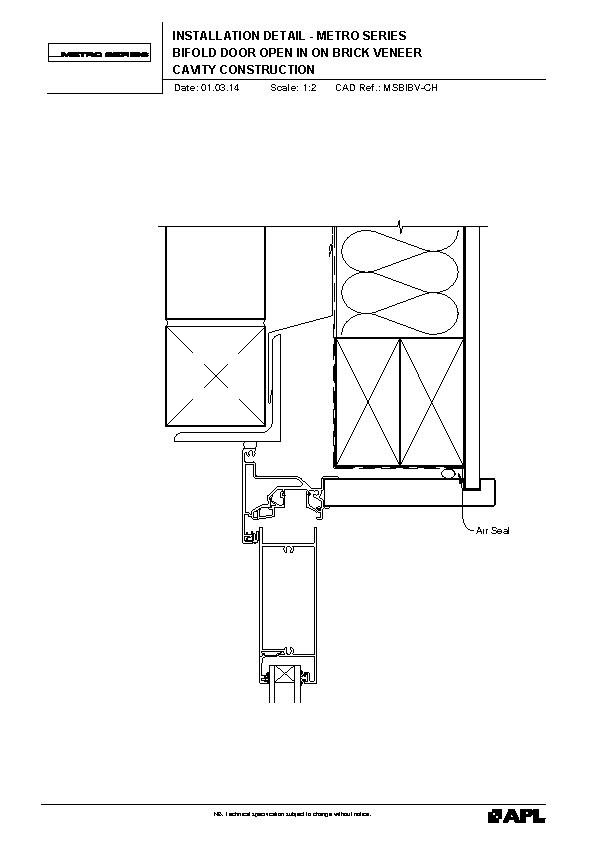

Altherm Metro Series Bifold Door Open In on Brick Veneer

MSBIBV

dwg
pdf

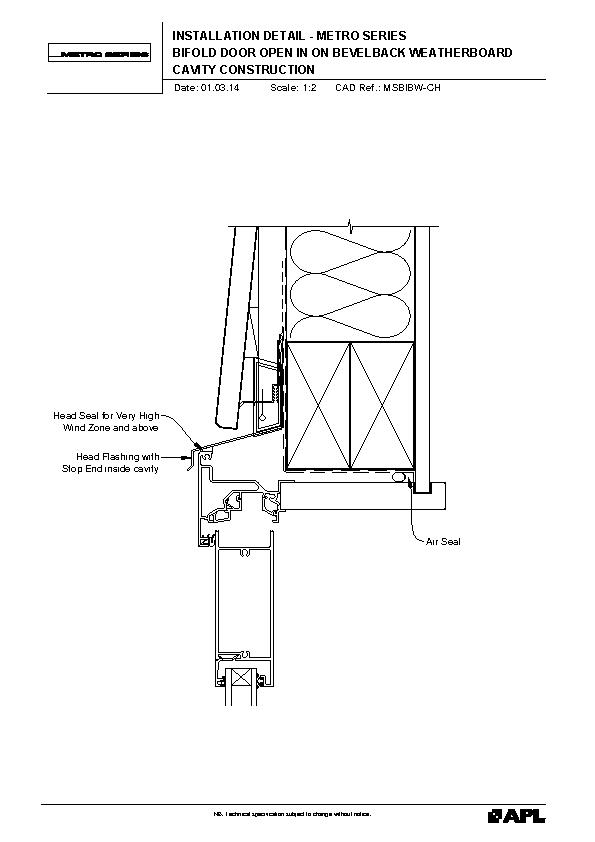

Altherm Metro Series Bifold Door Open In on Bevelback Weatherboard

MSBIBW

dwg
pdf

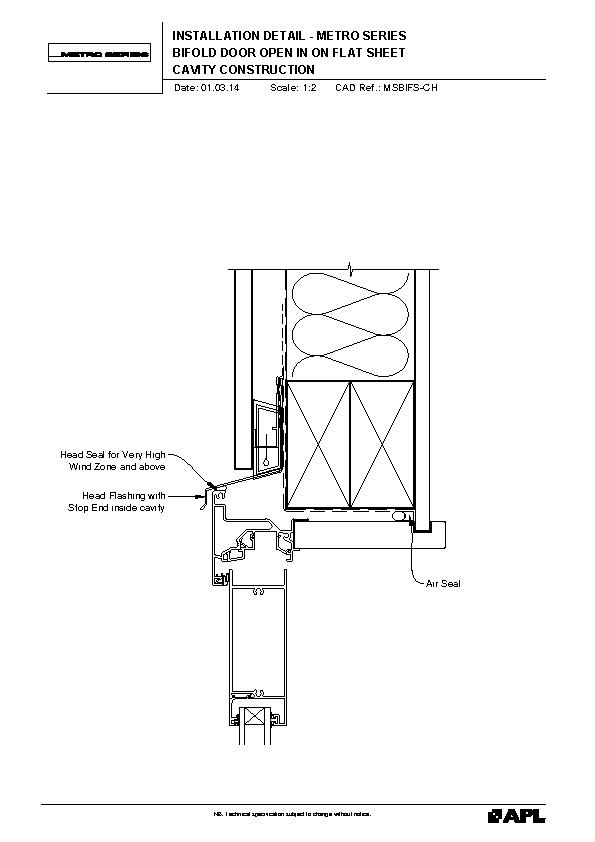

Altherm Metro Series Bifold Door Open In on Flat Sheet

MSBIFS

dwg
pdf

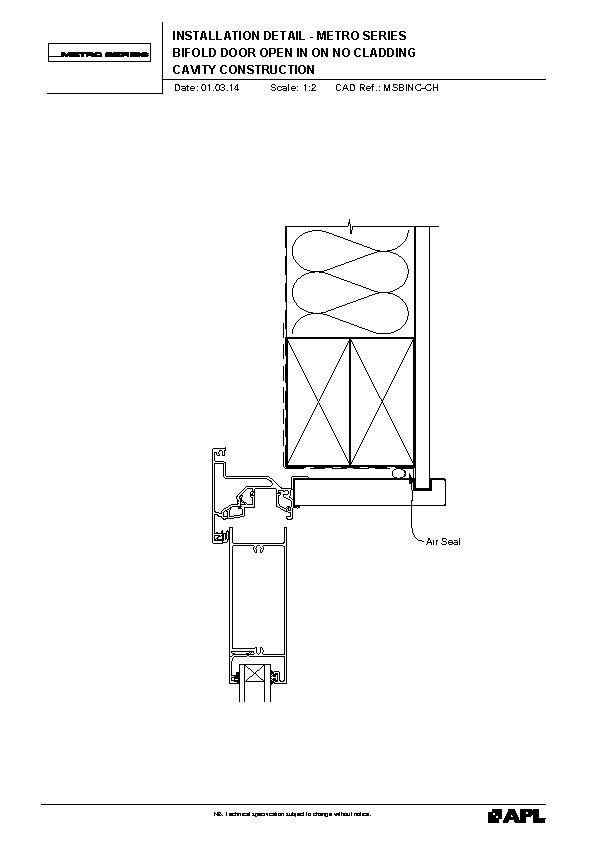

Altherm Metro Series Bifold Door Open In on No Cladding

MSBINC

dwg
pdf

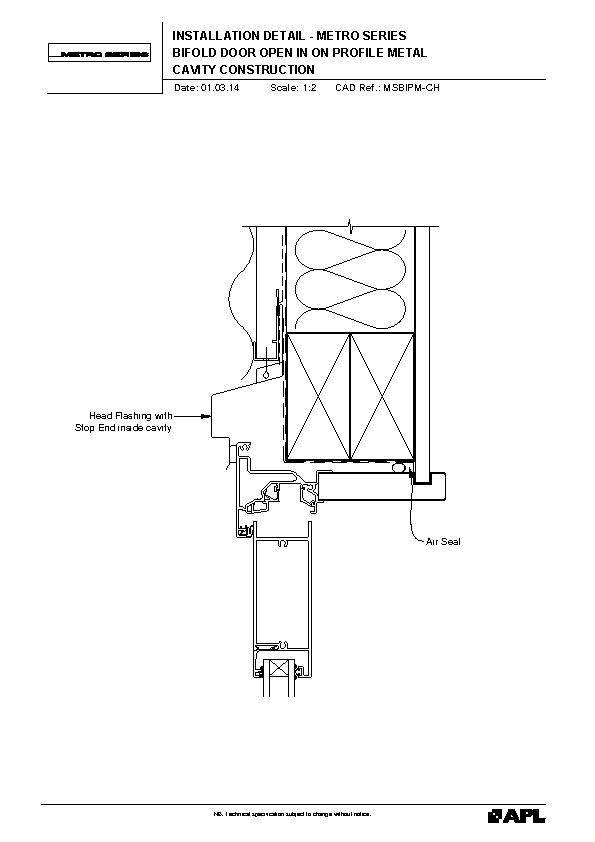

Altherm Metro Series Bifold Door Open In on Profile Metal

MSBIPM

dwg
pdf

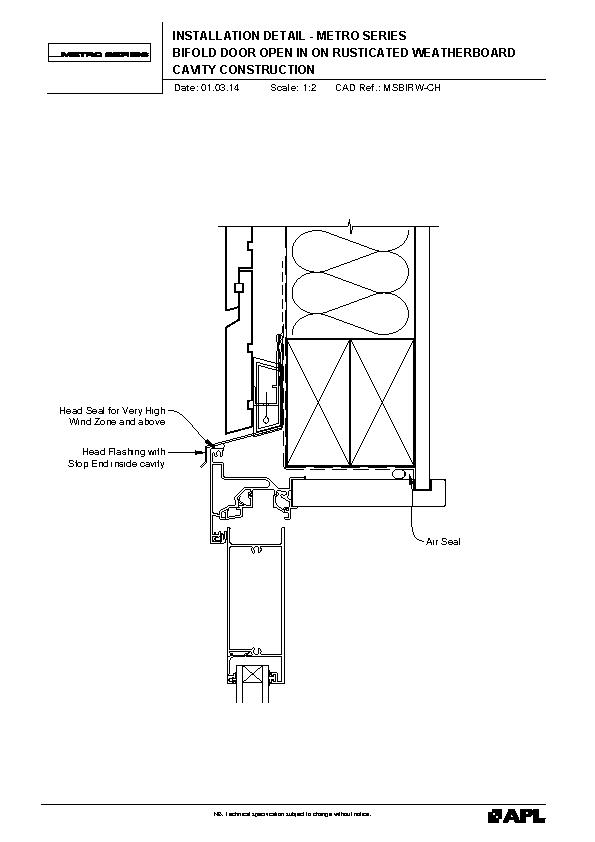

Altherm Metro Series Bifold Door Open In on Rusticated Weatherboard

MSBIRW

dwg
pdf

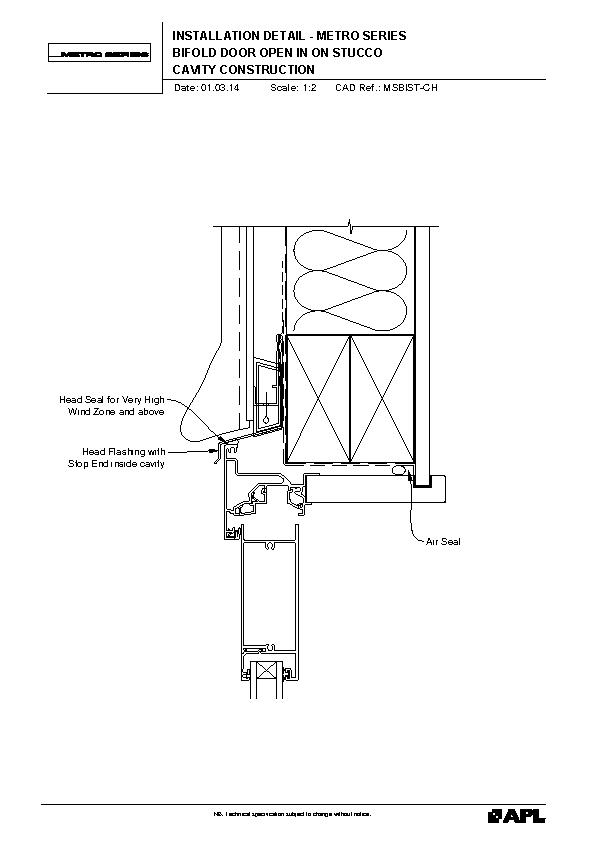

Altherm Metro Series Bifold Door Open In on Stucco

MSBIST

dwg
pdf

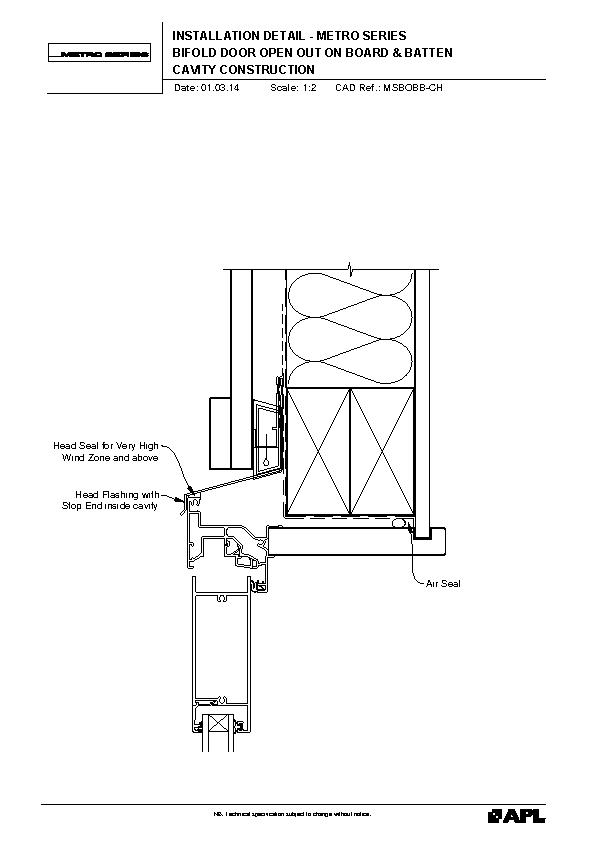

Altherm Metro Series Bifold Door Open Out on Board & Batten

MSBOBB

dwg
pdf

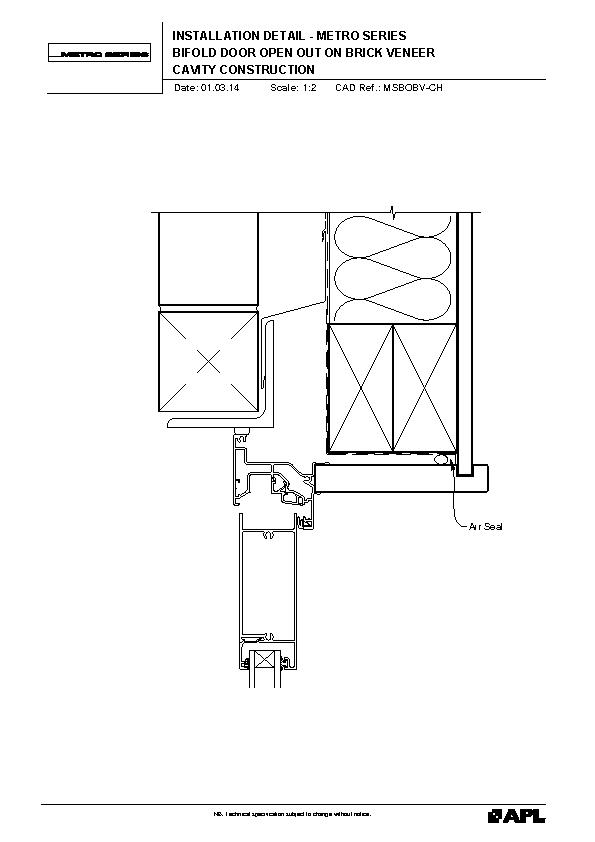

Altherm Metro Series Bifold Door Open Out on Brick Veneer

MSBOBV

dwg
pdf

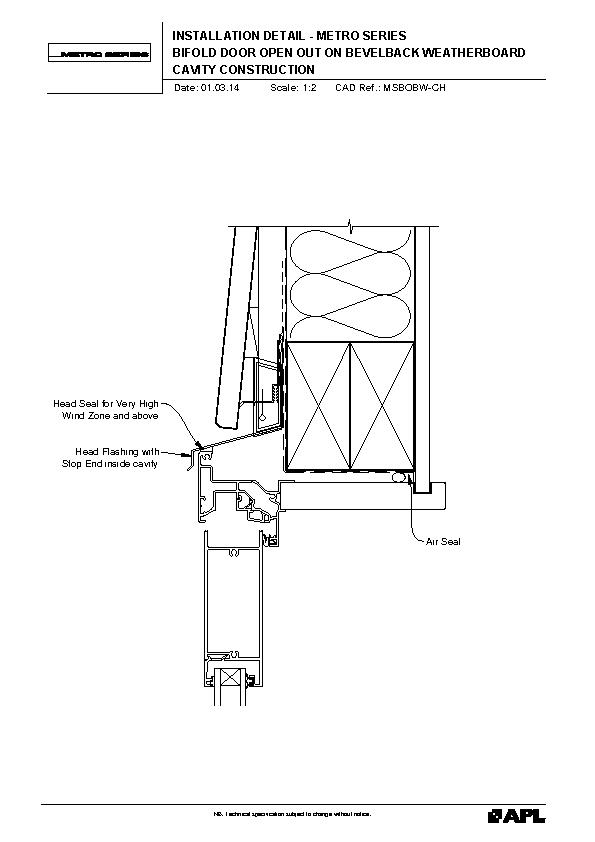

Altherm Metro Series Bifold Door Open Out on Bevelback Weatherboard

MSBOBW

dwg
pdf

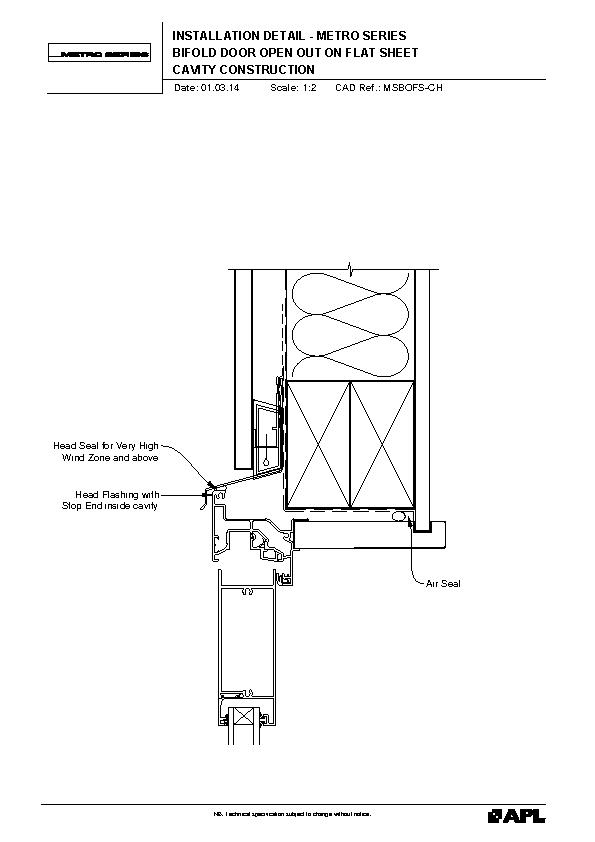

Altherm Metro Series Bifold Door Open Out on Flat Sheet

MSBOFS

dwg
pdf

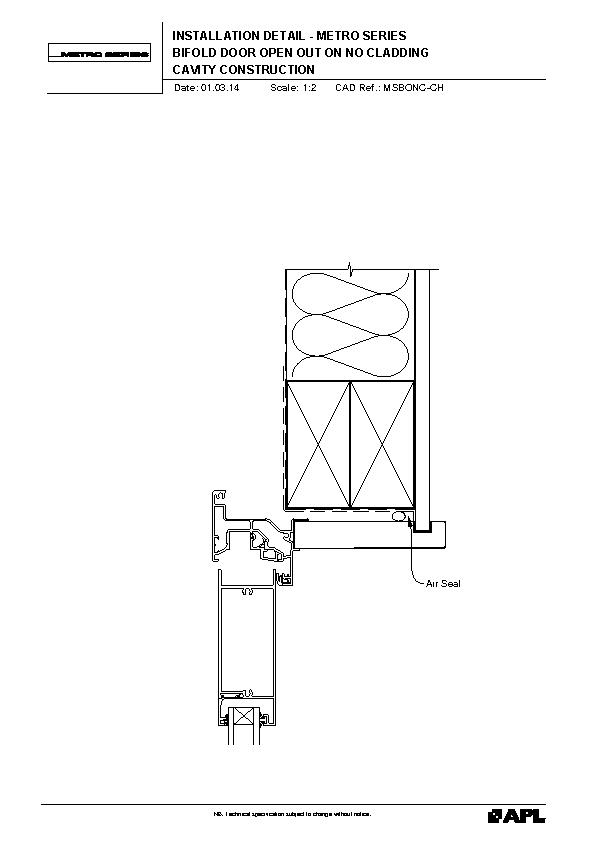

Altherm Metro Series Bifold Door Open Out on No Cladding

MSBONC

dwg
pdf

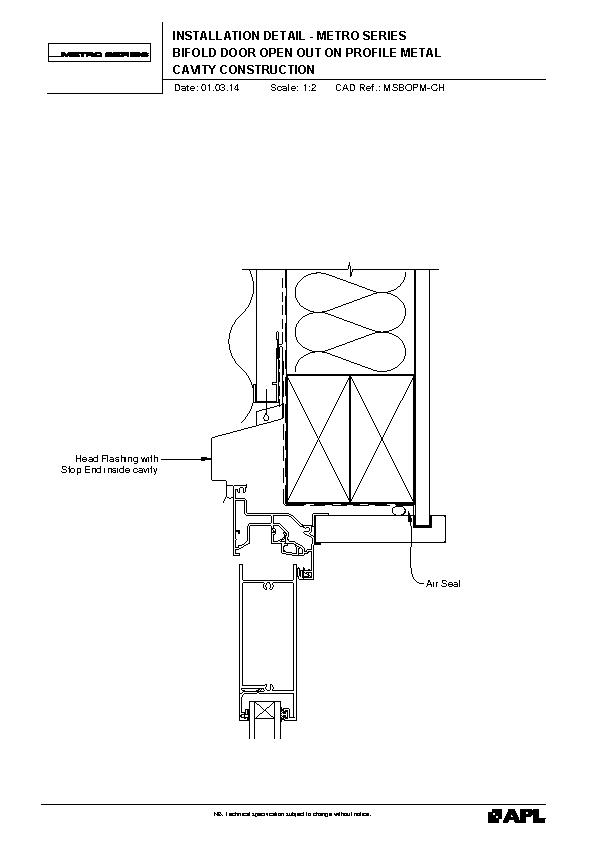

Altherm Metro Series Bifold Door Open Out on Profile Metal

MSBOPM

dwg
pdf
Altherm Metro Series Bifold Door Open Out on Rusticated Weatherboard

MSBORW

dwg
pdf

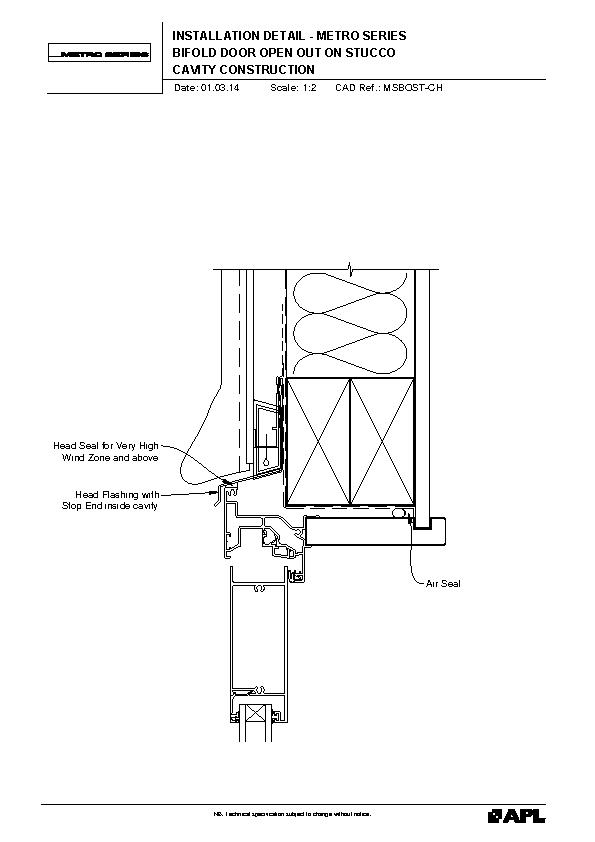

Altherm Metro Series Bifold Door Open Out on Stucco

MSBOST

dwg
pdf

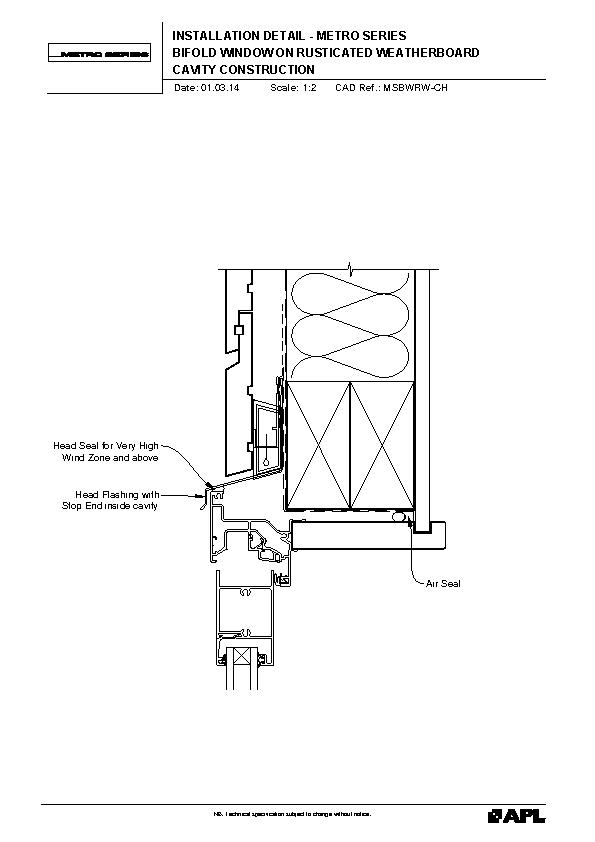

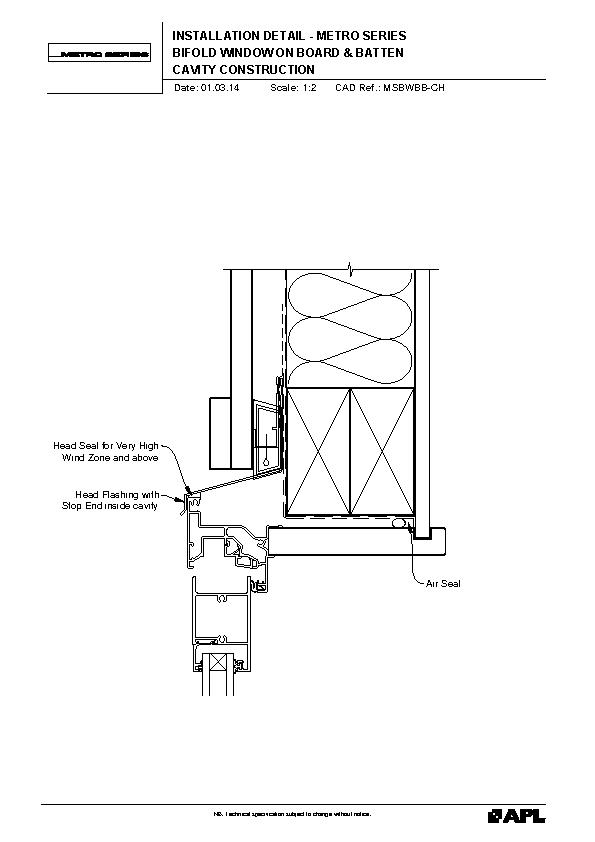

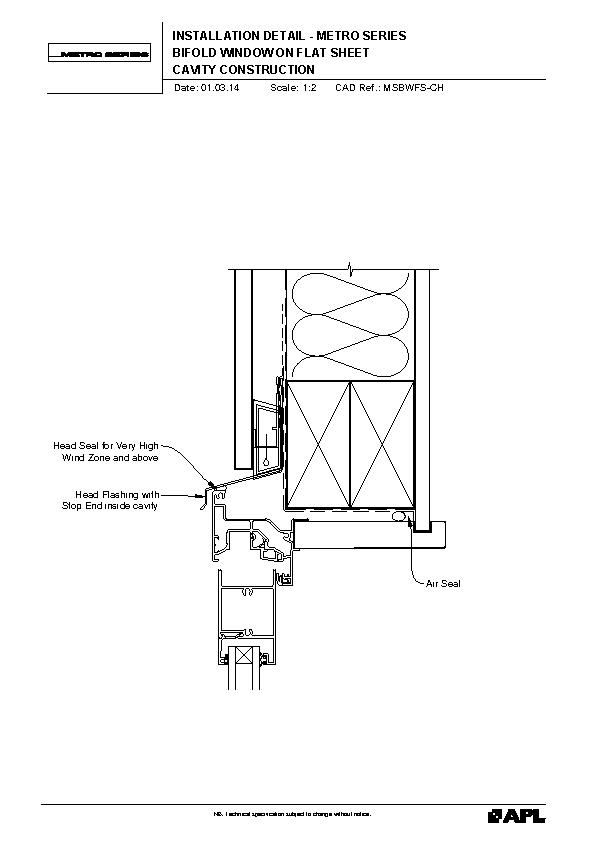

Altherm Metro Series Bifold Window on Board & Batten

MSBWBB

dwg
pdf
Altherm Metro Series Bifold Window on Brick Veneer

MSBWBV

dwg
pdf
Altherm Metro Series Bifold Window on Bevelback Weatherboard

MSBWBW

dwg
pdf
Altherm Metro Series Bifold Window on Flat Sheet

MSBWFS

dwg
pdf

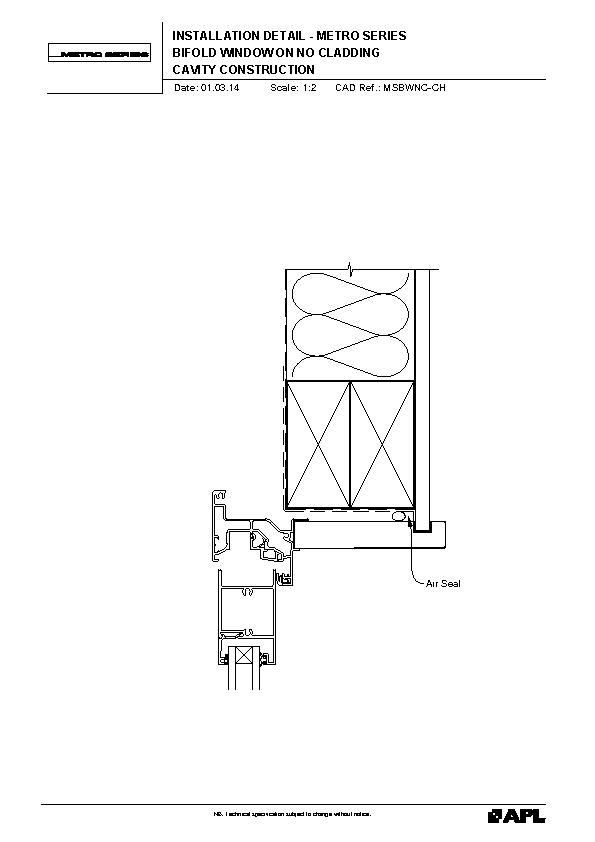

Altherm Metro Series Bifold Window on No Cladding

MSBWNC

dwg
pdf
Altherm Metro Series Bifold Window on Profile Metal

MSBWPM

dwg
pdf

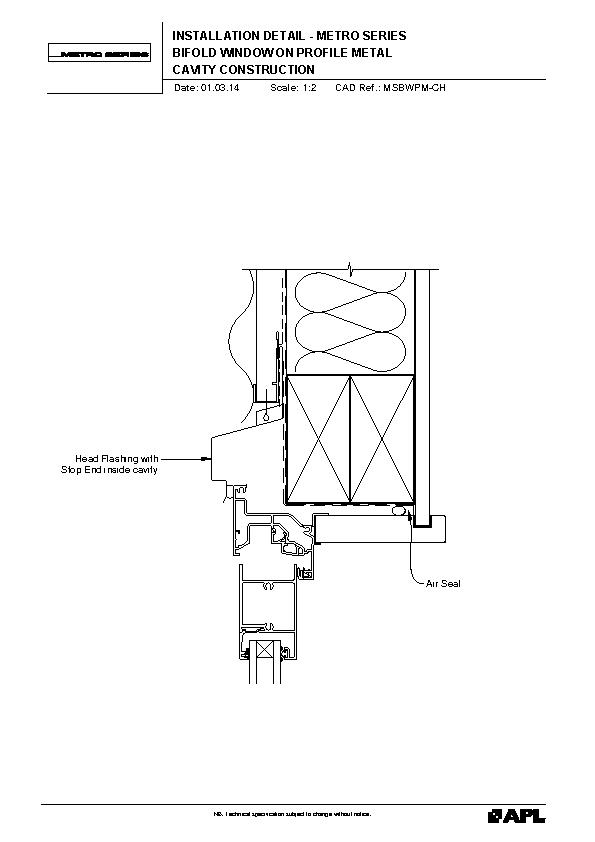

Altherm Metro Series Bifold Window on Rusticated Weatherboard

MSBWRW

dwg
pdf

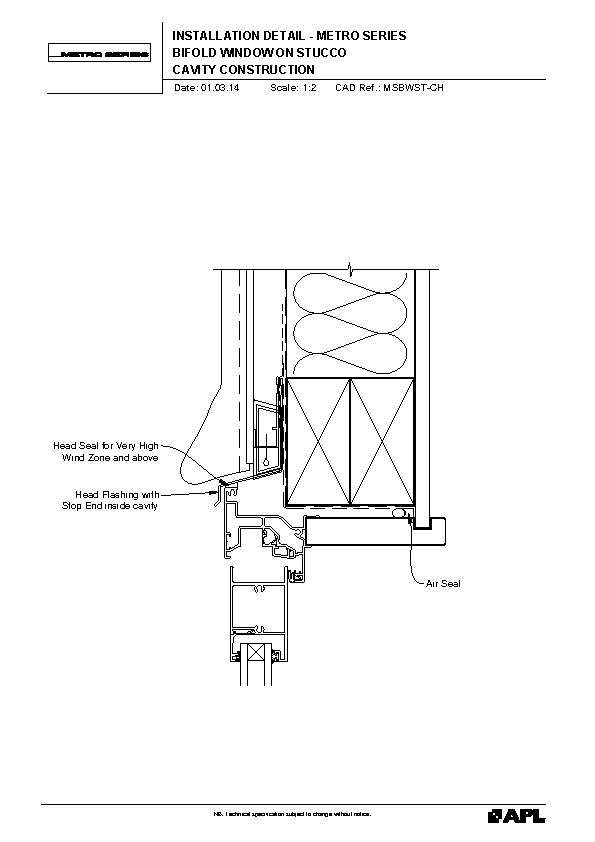

Altherm Metro Series Bifold Window on Stucco

MSBWST

dwg
pdf

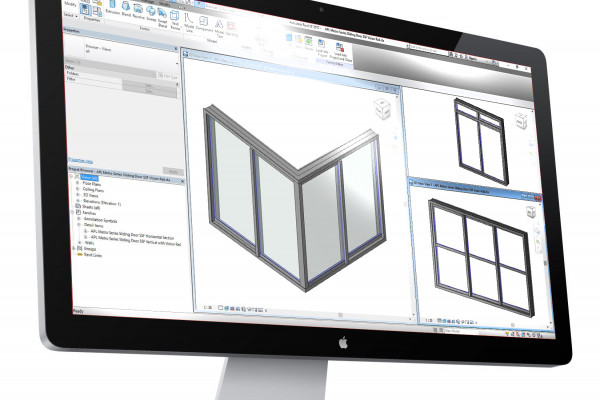

BIM
View full

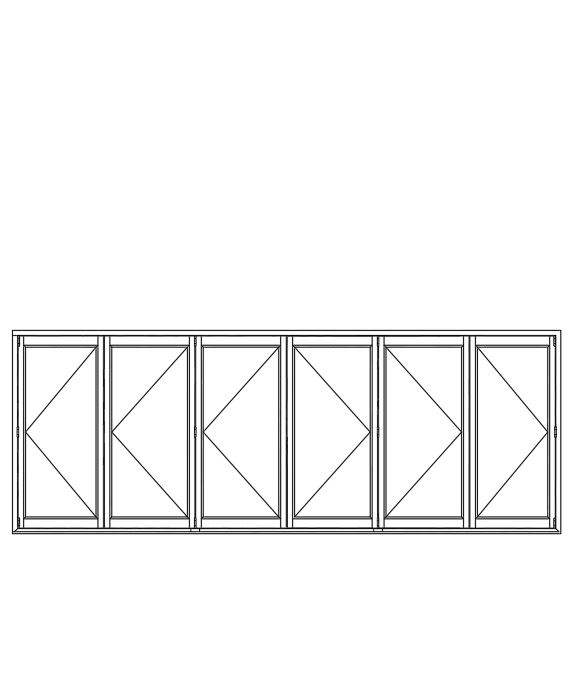

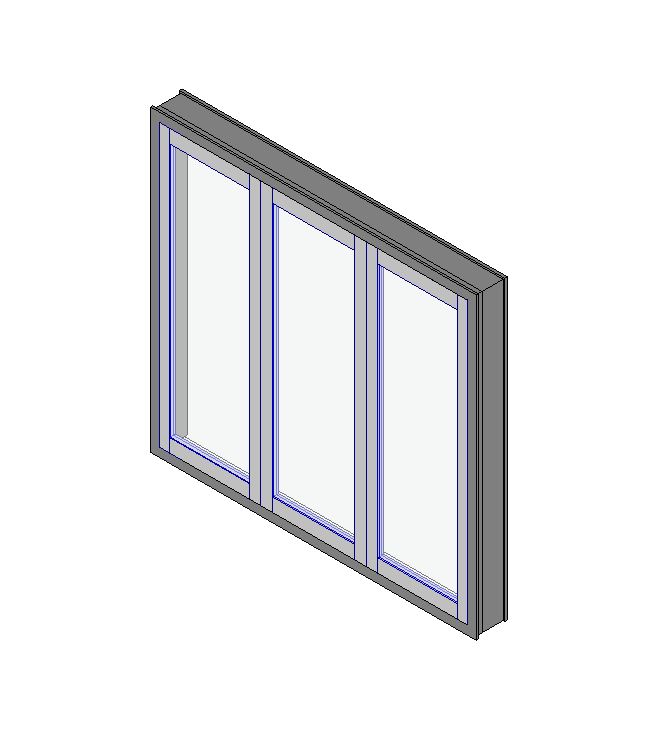

2+1 panel
Altherm Metro Series Bi-Fold Door 2+1 Panel Open Out
zip

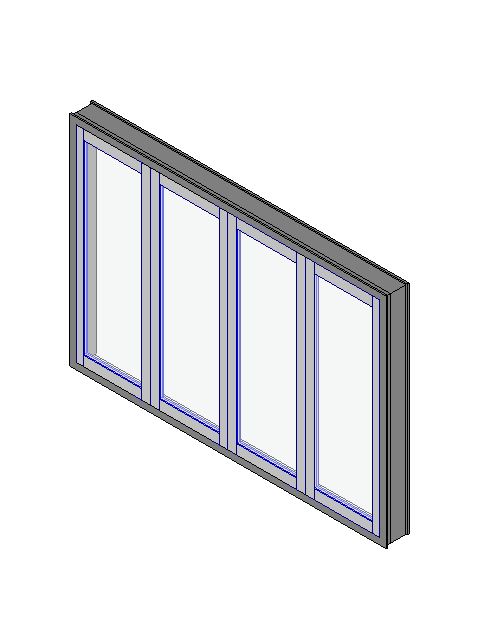

2+2 panel
Altherm Metro Series Bi-Fold Door 2+2 Open Out
zip
3 panel

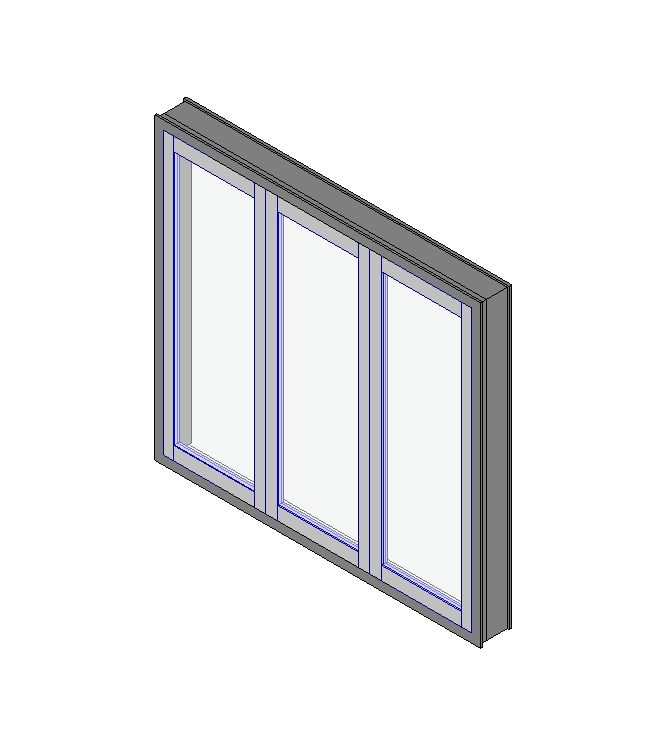

Altherm Metro Series Bi-Fold Door 3 Panel Open Out
zip
3+1 panel
Altherm Metro Series Bi-Fold Door 3+1 Open Out
zip

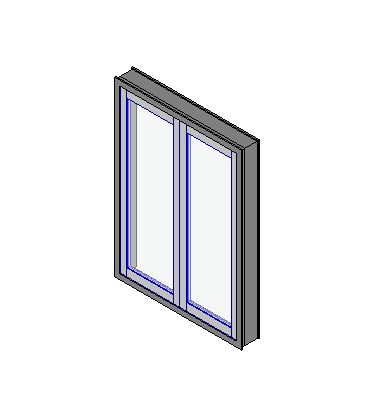

open in
Altherm Metro Series Bi-Fold Door Open In
zip

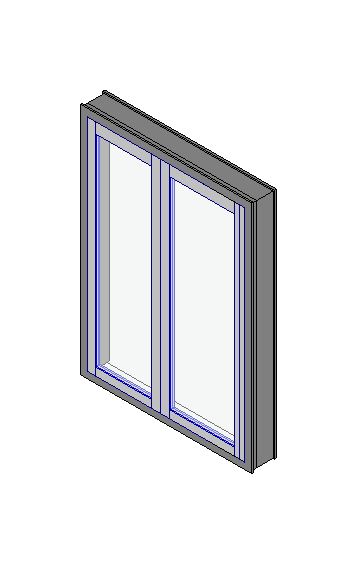

2 panel
Altherm Metro Series Bi-Fold Door Open Out (Layback, Rebated, Standard options)
zip
window

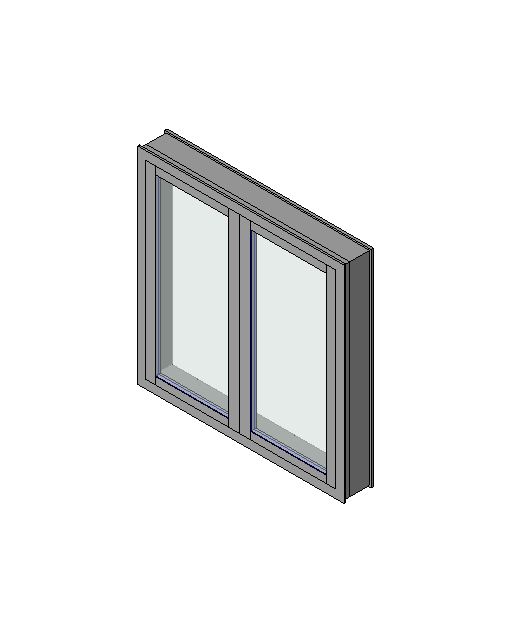

Altherm Metro Series Bi-Fold Window Open Out
zip
Capture

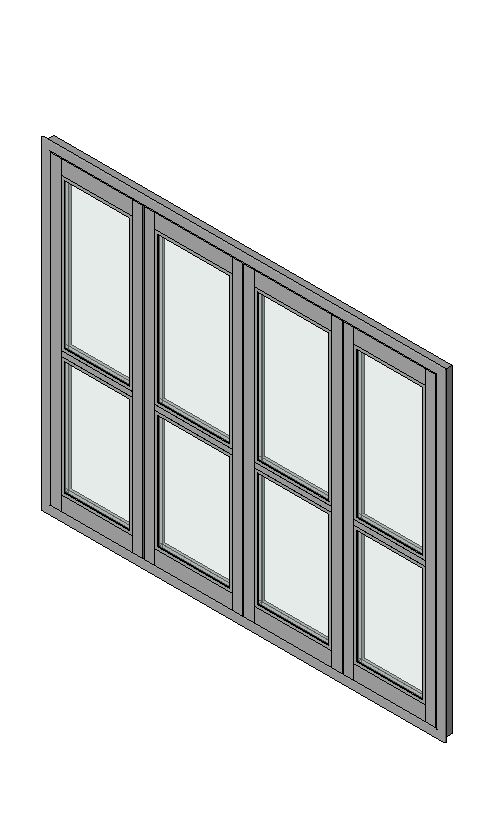

APL Metro Series Bifold Door 4 Panel Open Out

Revit LT 2020

zip
33
Metro Series Bifold Door Open Out 3+3

Revit LT 2020

rfa
