Von Duprin 99 Series
Allegion
All products

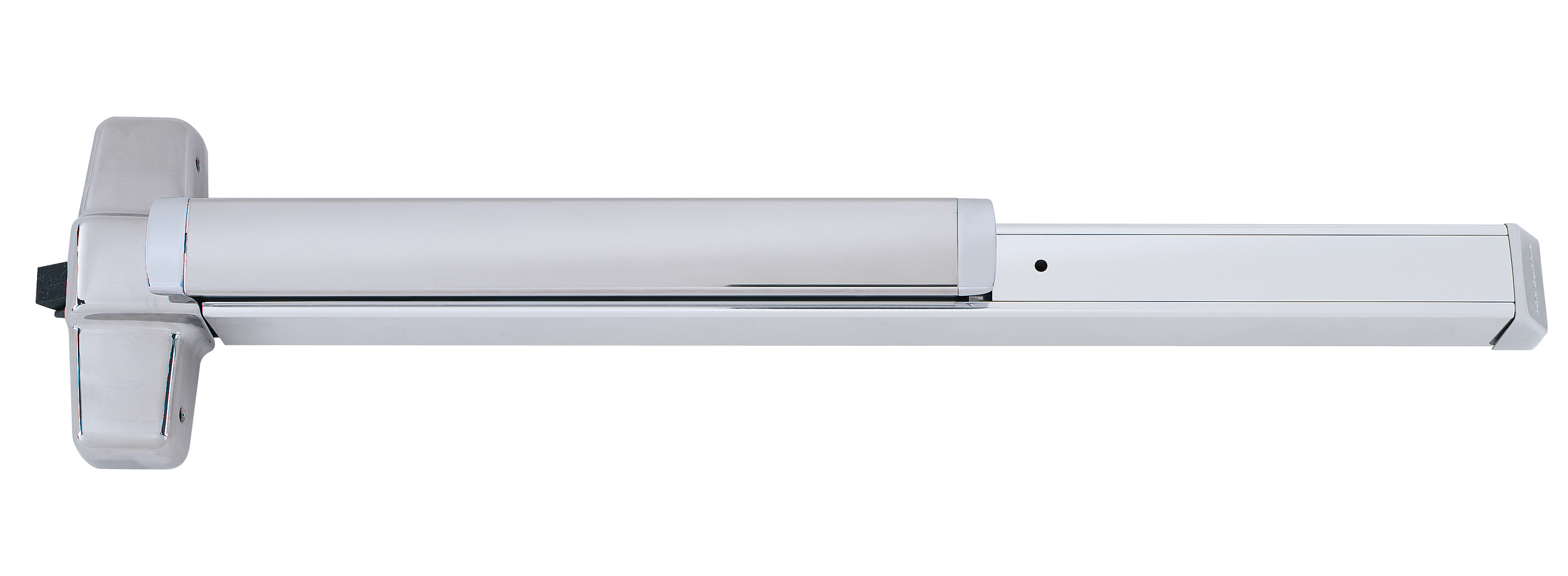

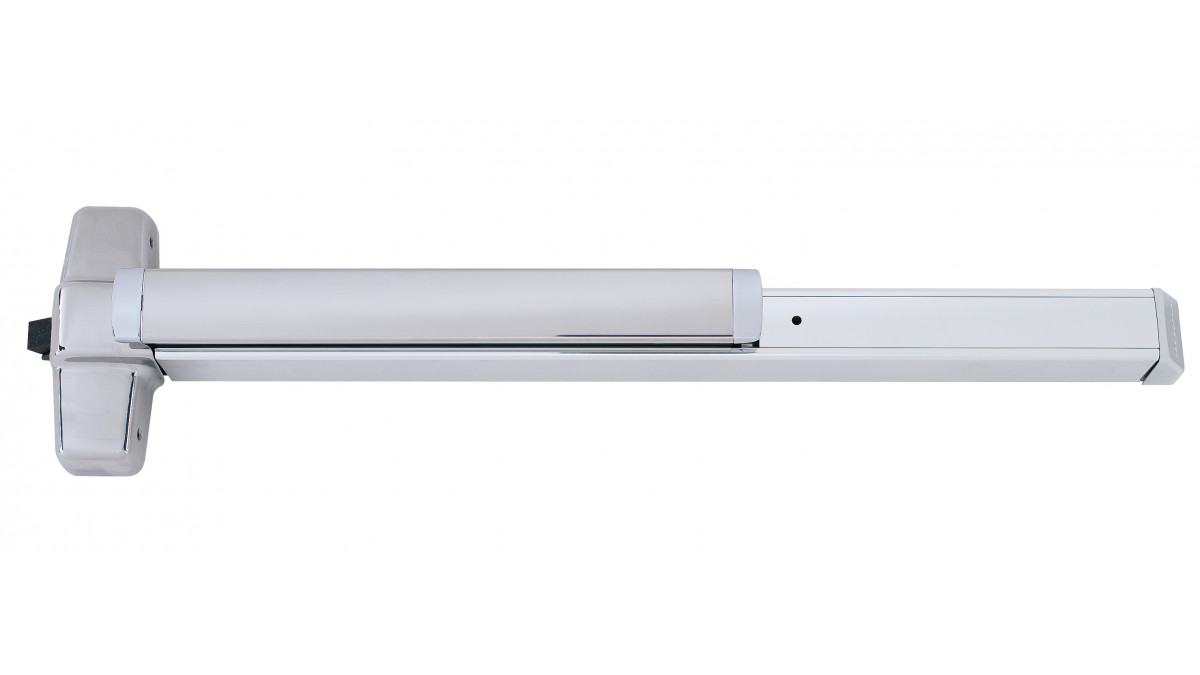

Von Duprin 99 Series Exit Device

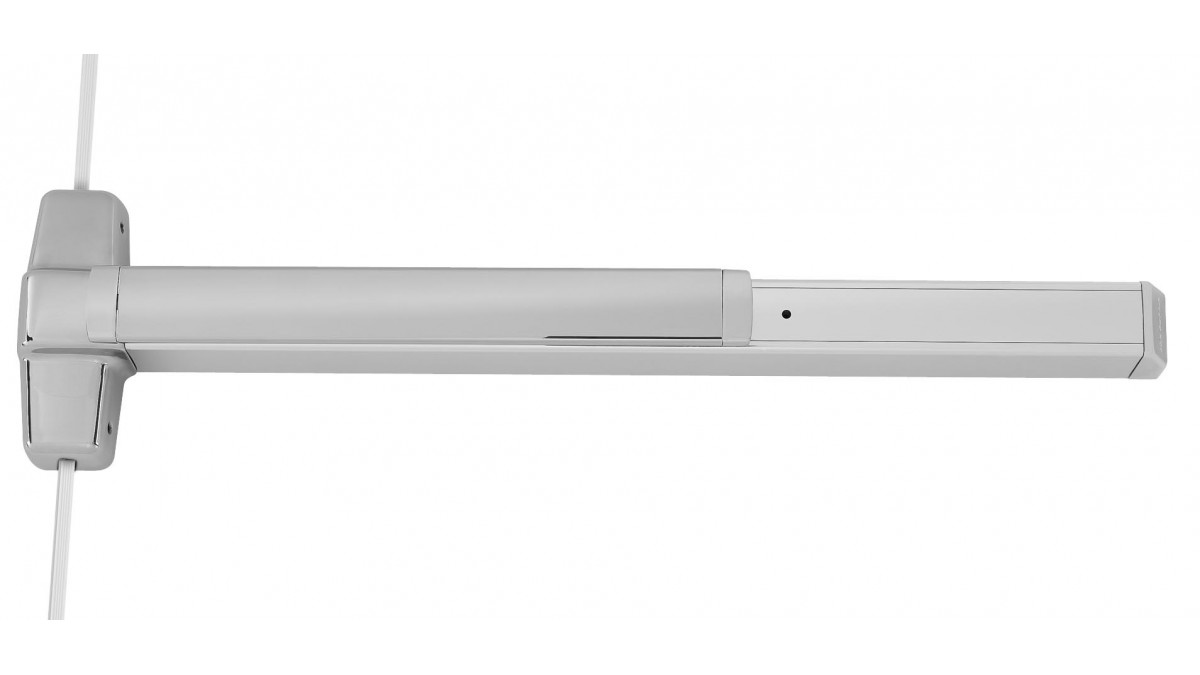

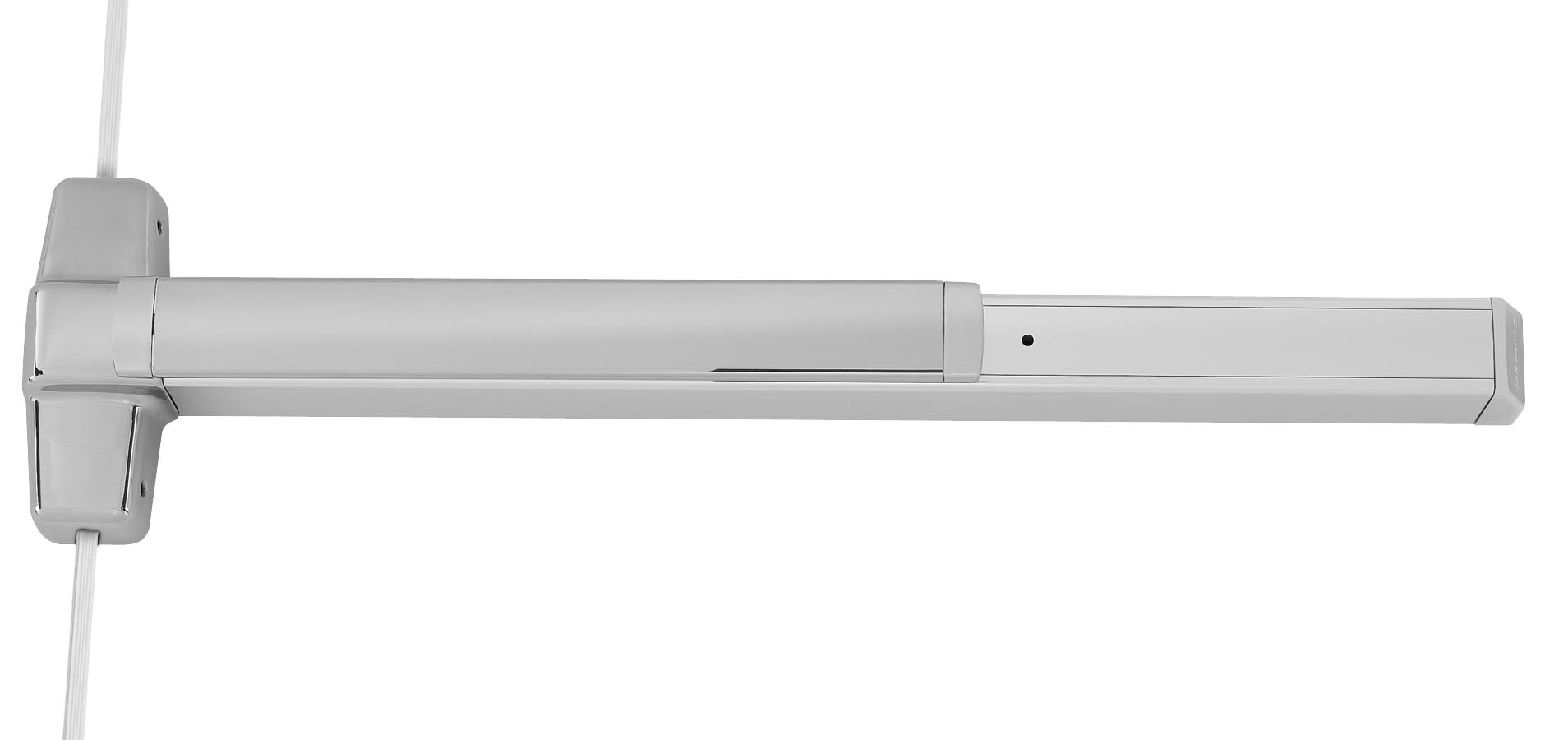

Von Duprin 9927 Series Exit Device

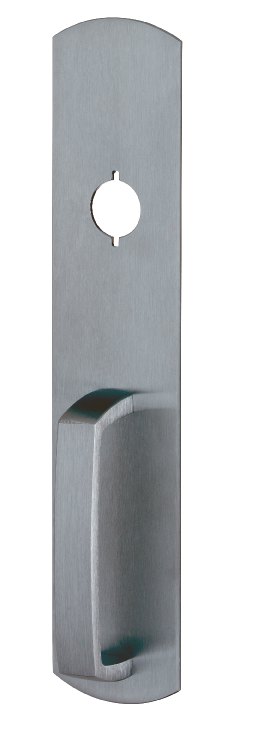

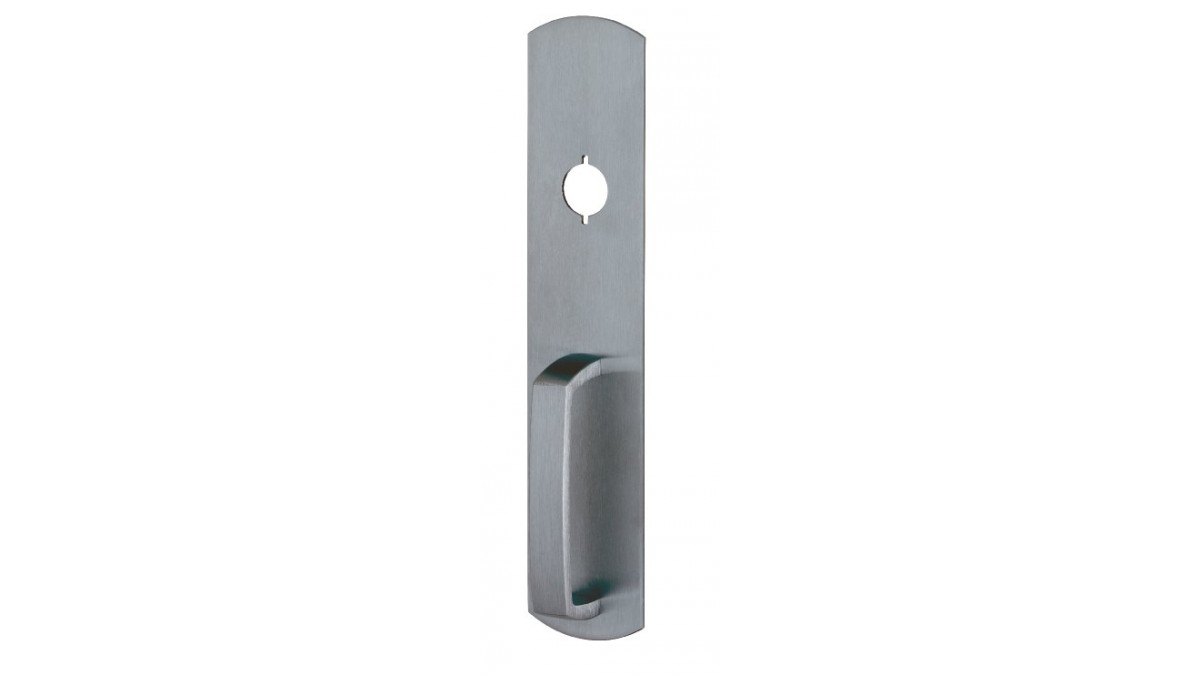

Von Duprin 990NL Night Latch Trim
Description

The Von Duprin 99 Series is a heavy-duty range of push pad exit devices designed to suit single and double door applications. The 99 Series has been designed to be used on metal or timber swinging commercial doors.

Furnished on all 99 Series exit devices is a fluid dampener which decelerates the push pad on its return stroke and eliminates most noise associated with exit device operations.

The 99 Series, with its architectural design, is specifically used in public areas such as main entrances, front of house exits, and main foyer areas.

Key Features
  • Easy installation tilt
  • Non-handed
  • Field sizeable to accommodate a range of door openings
  • Rim device has deadlocking latch with 19mm throw
  • Vertical rod device has deadlocking anti-friction latch with 16mm throw
  • Available in 914mm and 1220mm lengths to suit a range of door openings
  • 'F' models are fire rated and have no dogging feature
  • Optional external trims available for key access
  • Optional alarm kit available to deter unauthorised use of an opening
  • Latch Monitoring (LX) and Request to Exit (RX) switch kits available to provide monitoring to access control systems
  • Quiet Electric Latch Retraction (QEL) module available for access-controlled opening
Categories
Miscellaneous Joinery Hardware
Ranges
Von Duprin Door Furniture
Scope of Use
  • Heavy-duty range of push pad exit devices designed to suit single and double door applications
  • The 99 Series has been designed to be used on metal or timber swinging commercial doors
  • 'F' models are fire rated and have no dogging feature

VD99EO Specifications

  • Door thickness: Combination of fasteners are furnished for surface mounting or through bolting, surface mounted - 19mm minimum, through bolt - 44mm to 57mm
  • Stile width: 111mm minimum with standard 299 strike
  • Door width: 914mm length - 711mm minimum*, 1220mm length - 838mm minimum*,  (* based on standard strike and 13mm stop height)
  • Handing: Reversible
  • Latch: 19mm throw, deadlocking
  • Dogging: Hex key dogging



VD99EO-F Specifications

  • Door thickness: Combination of fasteners are furnished for surface mounting or through bolting, surface mounted - 19mm minimum, through bolt - 44mm to 57mm
  • Stile width: 111mm minimum with standard 299F strike
  • Door width: 711mm minimum * based on standard strike and 13mm stop height
  • Handing: Reversible
  • Latch: 19mm throw, deadlocking



VD9927EO Specifications

  • Door thickness: Combination of fasteners are furnished for surface mounting or through bolting, surface mounted - 19mm minimum, through bolt - 44mm to 57mm
  • Stile width: 94mm minimum
  • Door width: 914mm length - 711mm minimum, 1220mm length - 864mm minimum * based on standard strike and 13mm stop height
  • Door height: 2134mm standard. Extension rods available for door heights up to 3050mm
  • Handing: Reversible
  • Latch: 16mm throw, deadlocking
  • Dogging: Hex key dogging



VD9927EO-F Specifications

  • Door thickness: Combination of fasteners are furnished for surface mounting or through bolting, surface mounted - 19mm minimum, through bolt - 44mm to 57mm
  • Stile width: 94mm minimum
  • Door width: 711mm minimum * based on standard strike and 13mm stop height
  • Door height: 2134mm standard. Extension rods available for door heights up to 3050mm.
  • Handing: Reversible
  • Latch: 16mm throw, deadlocking
Other Performance Attributes
  • 'F' models are fire rated and have no dogging feature
