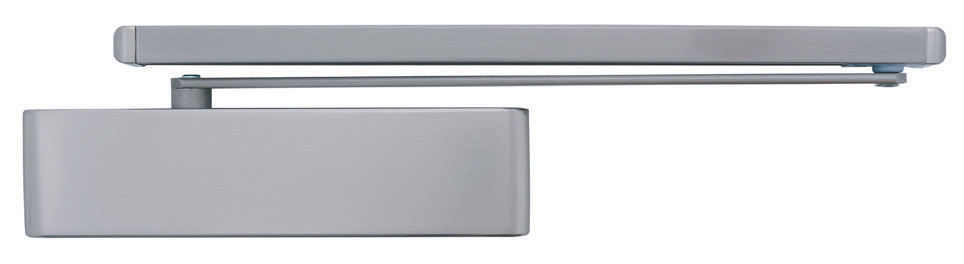

Briton 2300 Series Cam Action Closer
Description

The Briton 2300 Series incorporates cam action technology to reduce the resistance encountered when opening fire or smoke barrier doors.

The 2300 series makes opening fire doors much easier, ensuring that the elderly, children and those with physical disabilities can exit the building easily.

In contrast to a conventional rack and pinion door closer, the linear cam action principle is extremely efficient. The initial opening force decreases as the door opens, and the closer retains power and control to close the door afterwards.

The Briton 2300 Series offers easy opening and reliable closing while meeting accessibility standards.

Key Features
  • Extruded aluminium body with cam action technology
  • High-quality hydraulic fluid with built-in temperature compensation (will operate effectively between -15 to +40 degrees Celsius)
  • Adjustable backcheck as standard
  • Adjustable closer strength 2 – 4
  • Separate closing speed and latch action adjustment
  • Optional mechanical hold-open available: 80° - 120° angle
Categories
Door Closers
Scope of Use

The Briton 2300 Series incorporates cam action technology to reduce the resistance encountered when opening fire or smoke barrier doors.

  • Optional mechanical hold-open available: 80° - 120° angle
  • Door type: Timber or metal
  • Door size: Max width: 850mm – 1100mm, max weight: 40kg – 80kg
  • Applications: Regular – pull side mount, stop face – push side mount
  • Adjustment controls: Closing speed, latching speed, backcheck
  • Strength: 2-4 adjustable
Other Performance Attributes
  • The Briton 2300 Series is CE marked to EN1154 and fire tested to EN1634 on timber doors to achieve a 2 hour fire rating.
  • The Briton 2300 Series is tested to meet local accessibility, durability and fire standards, refer to fire door manufacturer for approval.
