Shuttle Entrance Mat
Description

Shuttle is a unique patented entrance mat system design for unrivalled appearance and performance. Shuttle is a premium quality aluminium and carpet mat system in a modular grid format designed to complement any environment, and actively traps dirt and moisture approaching from all directions.

Key Features

Safe:

  • Designed to eliminate heel traps
  • Polyamide moisture absorbent inserts reduce slip hazards
  • Compliant — exceeds New Zealand fire regulations (the New Zealand Building Code Clauses C1-C6 Protection from Fire requires floor surfaces in exit-ways to achieve a minimum of 2.2 kW/m²)

Performs:

  • Heavy duty aluminium construction accommodates heavy rolling loads with ease
  • Polyamide inserts trap more dirt, saving on cleaning costs
  • Patented modular design has a four way dirt cleaning capability

Attractive:

  • Smart modular grid formation system
  • Stylish interlocking modules with inserts that can be supplied in a variety of colours
  • Extendable modular system, providing flexibility

Easy to install and maintain:

  • Special 100mm low profile design doesn't need a recess for installation
  • Can be rolled up from both directions for ease of cleaning
  • Specially designed dirt collection zones make cleaning quick and easy
NZ Made
NZ Made
NZ-Owned Business
NZ-Owned Business
Recyclable Content (Post-Consumer)
Post-Consumer Recyclable Content
Scope of Use
  • Protected outdoor and interior applications with polyamide inserts
  • Can be used unprotected outside with ReTread recycled rubber inserts, (however optimum performance is achieved if the mat system is in a weather-protected area).

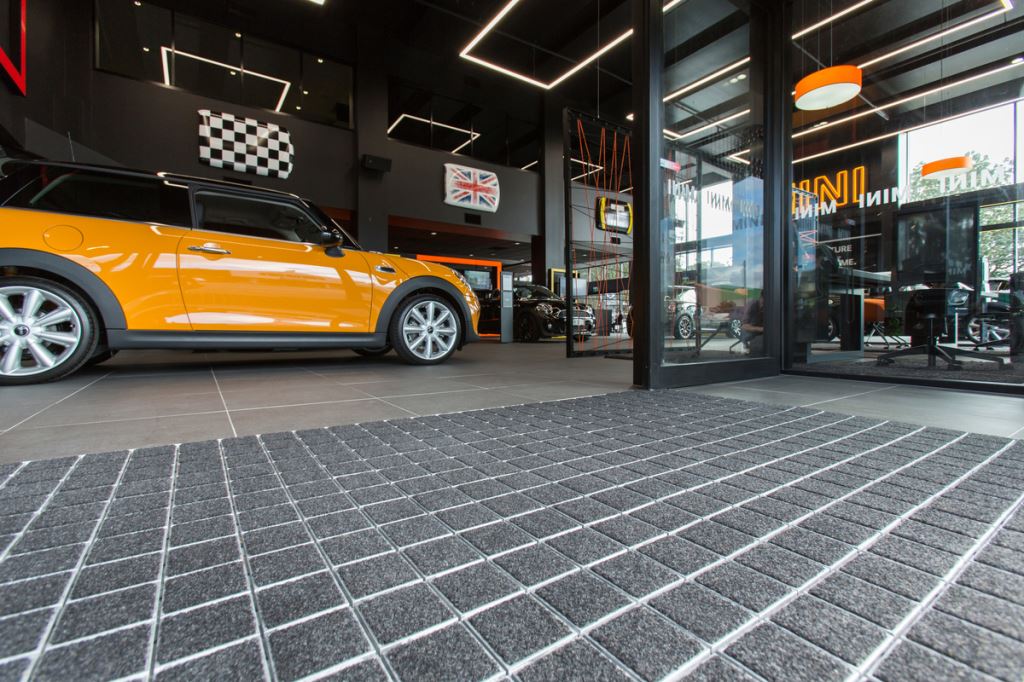

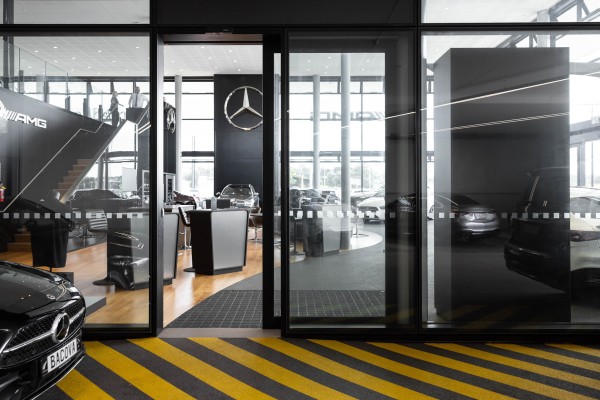

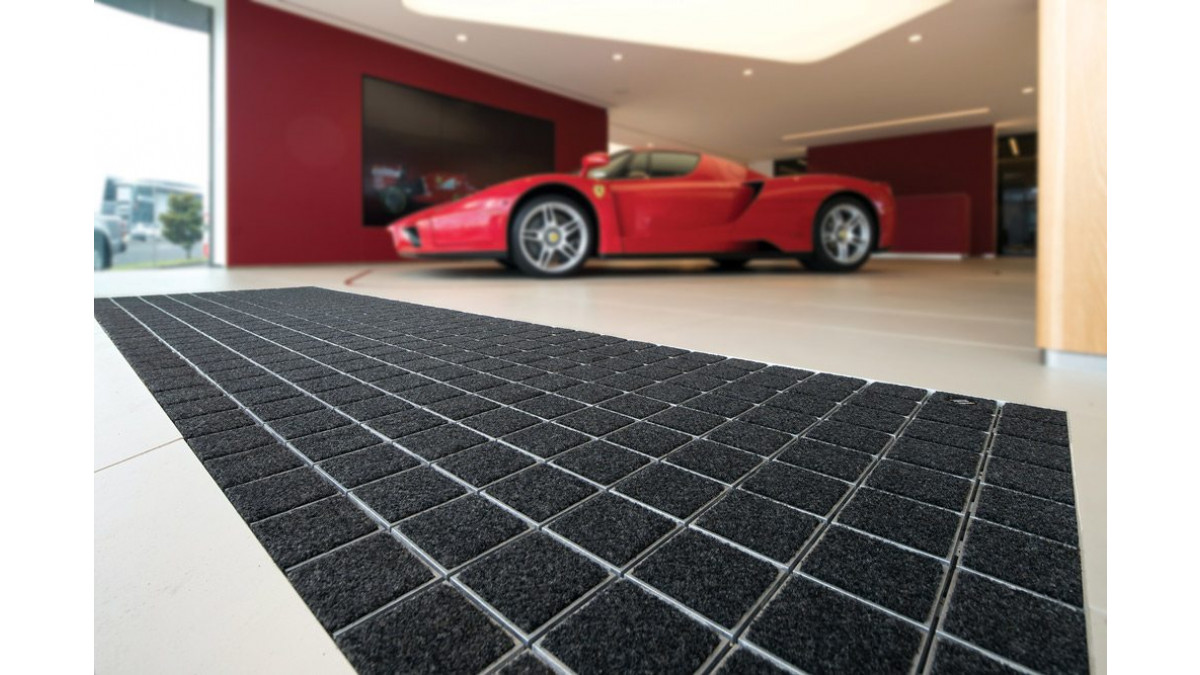

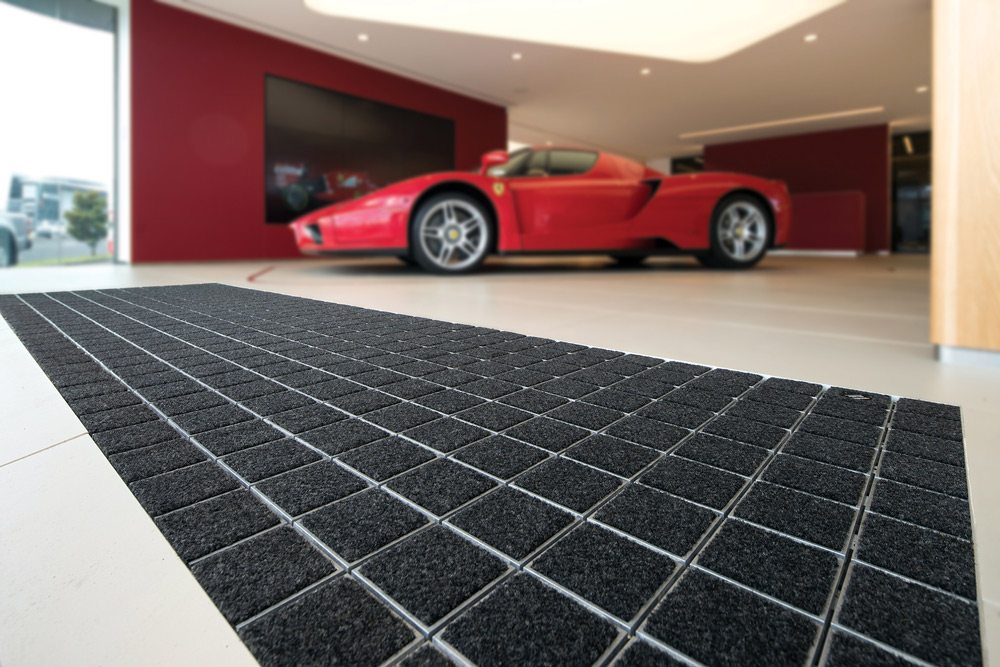

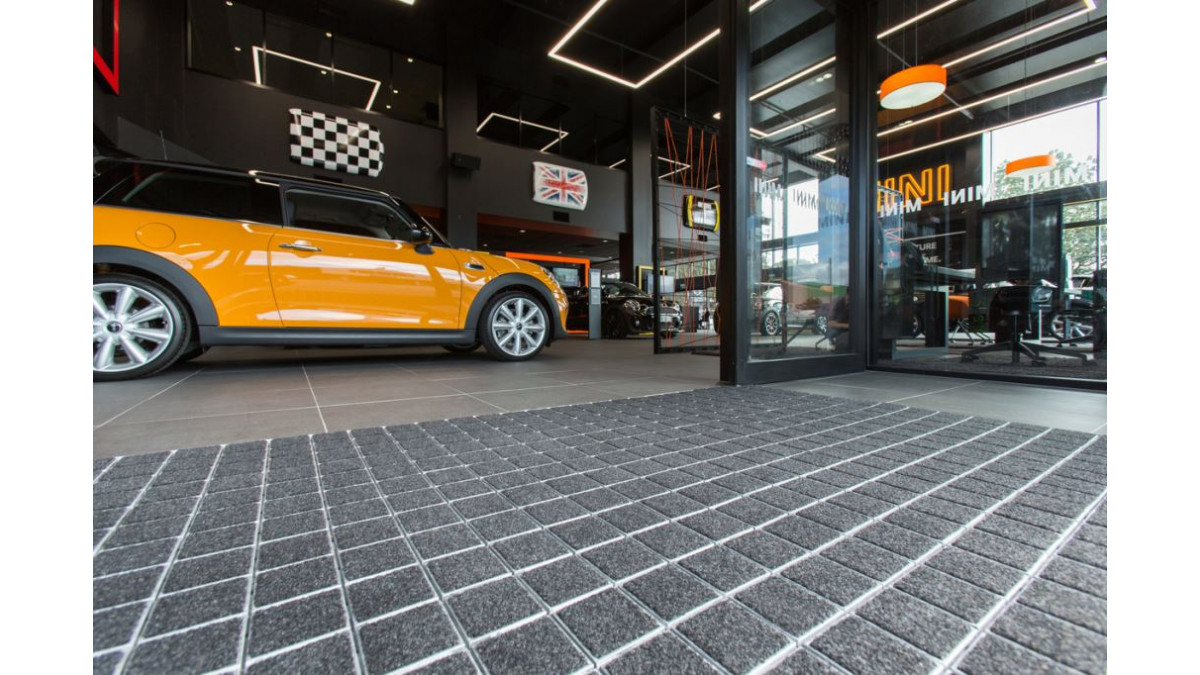

  • Heavy duty use for applications such as Transport hubs, car showrooms, shopping centres and public buildings
  • Designed to accommodate extra heavy rolling loads
Statement of Building Code Compliance
  • The Shuttle system is compliant and exceeds the minimum of 2.2 kW/m² CRF required for exits in all buildings excluding non-sprinkled buildings for detention or care, C/VM2, Verification Method: Framework for Fire Safety Design (the New Zealand Building Code Clauses C1-C6 Protection from Fire requires floor surfaces in exitways to achieve a minimum of 2.2 kW/m²).
  • Test Certificates available upon request
  • The New Zealand Code recommends that a mat should have a minimum dimension of 1.8 metres from front to back which allows for 2 contacts of each foot. Refer Acceptable Solution D1/AS1 Access Routes.
In-Service History

Shuttle has been used extensively and installed in numerous projects right across New Zealand over 16 years.

C Protection from Fire compliant
Protection from Fire
D1 Access Routes compliant
Access Routes
Independent Assessment
Independent Assessment
Test Results
Test Results
Documents
Data Sheet
Test Results
Maintenance Instructions
Product Brochure
Colour Range
