3M DBI-SALA 8 mm Permanent Horizontal Lifeline System
Description

The 3M™ DBI-SALA Permanent Horizontal Lifeline System can be used for either work restraint or fall arrest and is suitable for multiple applications. It allows users complete freedom of movement to carry out their work uninterrupted, in a continuous straight line and around corners, provided a suitable structure is available for connection of the lifeline.

Key Features
  • The patented energy absorbing technology provides predictable linear, high capacity performance
  • Free cloud based calculation software to support the system
  • Tensioning tool offers a quick and easy way to tension DBI-SALA 8 mm lifeline system
  • Mounting bracket options allow easier navigation around corners and building contours
  • Travellers incorporate large D-ring for easy connection
  • Short wheelbase of the Overhead Traveller enables a smooth movement through corners
  • 316 Stainless Steel components provide long-term corrosion resistance*
  • The system has been tested to: AS/NZS 1891.2, EN 795:2012 Type C, — CEN TS 16415:2013 Type C and meets the requirements of OSHA 1926.502
  • Each system allows up to a maximum of 4 users. All users are permitted to work within one span, if required, at any one time allowing a concentration of workforce in one specific area.
Scope of Use

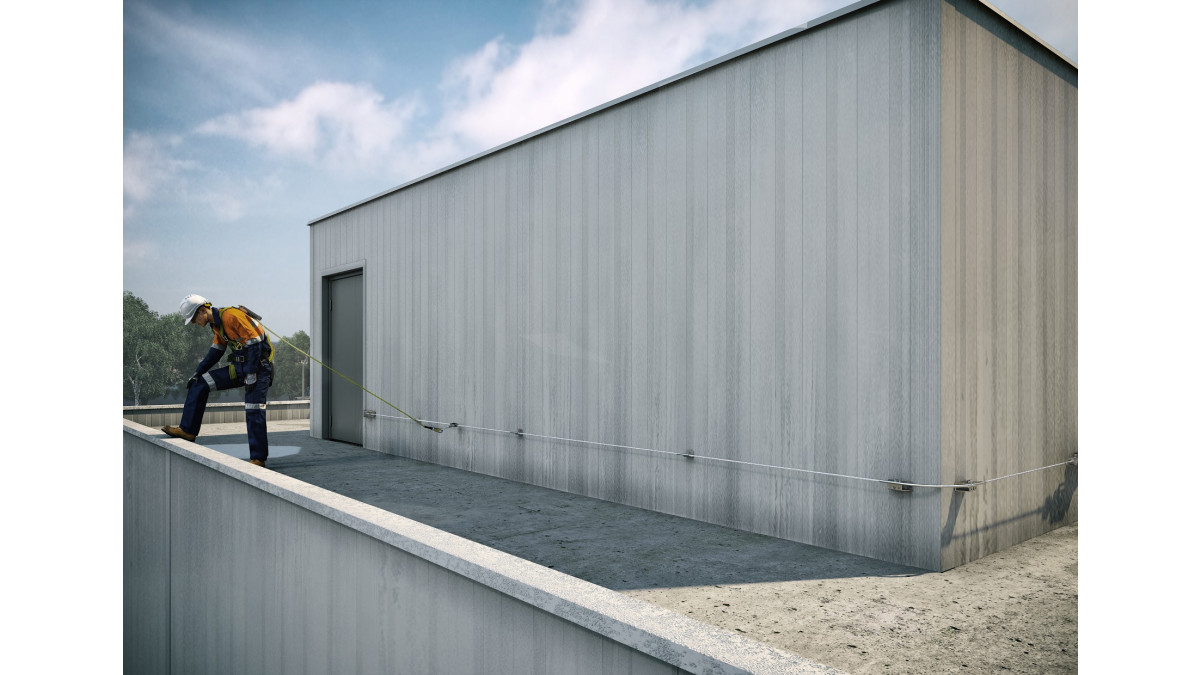

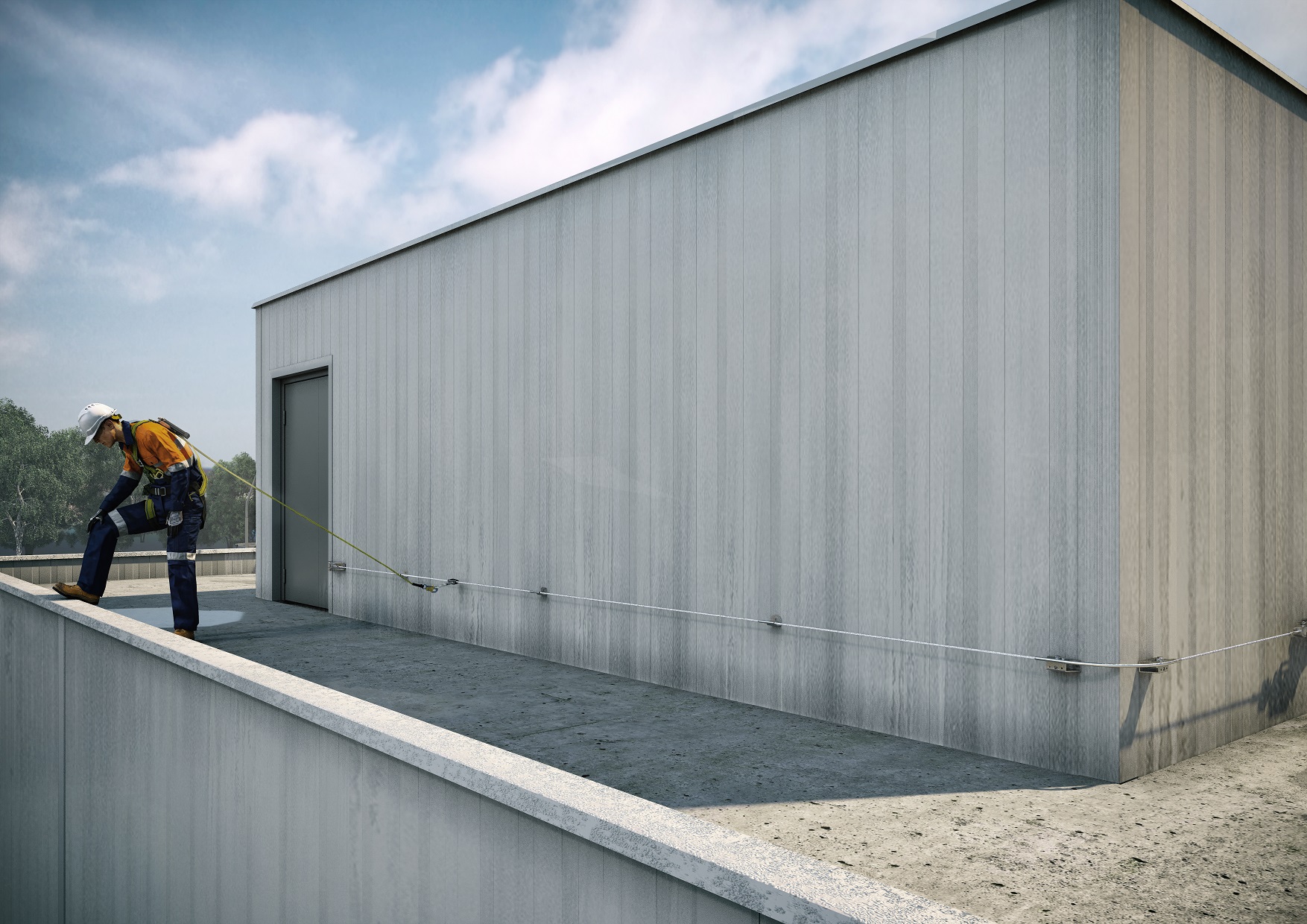

Wall and floor applications.

  • Ideally suited to modern building projects, refurbishments and industrial safety applications
  • Can be fitted to steel beams, concrete and brickwork
  • Suitable for use on older roof constructions in conjunction with fabricated anchor posts (not supplied by 3M Fall Protection)
  • Allows up to 15m spans between support brackets for multiple users.

Overhead applications.

  • Specifically designed to meet the needs of transport and industrial customers
  • Enables safe work at height to be carried out on trucks, trains and aircraft, crane walkways and loading bays
  • Solves access and safety problems within the entertainment and arena industry
  • Can support Self-Retracting Lifelines and controlled rate descent devices up to 15 kg
  • Allows up to 60m single span for 1 user and up to 30 m single span for multiple users**
  • Corner brackets available for overhead applications.



Limitations on Use

** The number of system users and span lengths must be verified by the calculation software

316 Stainless Steel components provide long-term corrosion resistance — some aggressive environments can cause corrosion and discolouration of stainless steel.

Other Performance Attributes
  • 316 Stainless Steel components provide long-term corrosion resistance
  • The system has been tested to: AS/NZS 1891.2, EN 795:2012 Type C, — CEN TS 16415:2013 Type C and meets the requirements of OSHA 1926.502
