Western Red Taper Sawn Shakes Fature on Cabin Home

Cedar Shakes are longer and thicker than the more popular Cedar Shingle, which allows the exposed section to measure up to 210mm, instead of the 140mm max for the shingles. Tim has used a “peel and stick” bituminous waterproofing membrane on plywood and also papered all of roof to add an additional layer of protection and for peace of mind.

This ensures that the roof will remain waterproof even in extreme conditions. The shakes are all fixed using stainless steel Annular grooved nails or stainless steel divergent point staples.

Both the owner and the architect are very happy with the result and Tim is looking forward to doing the house next year.

The Building Agency — Cedar Shingles and Shakes

The Building Agency

View Product

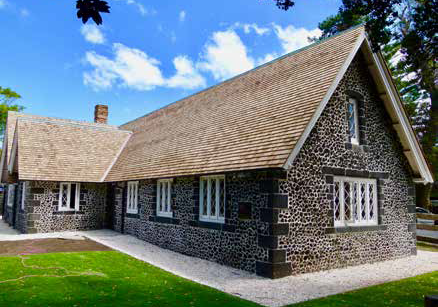

Shingles: The Building Agency (formerly South Pacific Shingles) provide the premium grade of shingles for roofs, gable ends and sidewalls which are all 100% heartwood, 100% clear and 100% edge grain.

Roofing
Wall cladding
Gables and bay windows
Decor cladding
Landscape buildings
Commercial buildings
Residential buildings
Suitable for rainwater collection
Cedar Shingles will accept most modern paint systems
A variety of products are offered for topical application to act as water repellents, mould and moss growth inhibitors, colour retainers and preservatives

For a comprehensive explanation of scope of use for the different Shingle and Shakes please refer to the Technical Manual document.

B1.3.1, B1.3.2, B1.3.3 (a, b, h, m, q), B1.3.4 (a, b, c, d, e) Structure: The Cedar Shingles have been expertly assessed for durability and structural adequacy by Harrison Grierson Consultants (March 2005), A bulletin issued by BRANZ with respect to fixings, substrates and shingles size and laps subject on roof pitch.
B2.3.1 (b), B2.3.2 (b) Durability: Treated to H3: CCA or alkaline copper quaternary (ACQ) preservatives with a salt retention of 6.4 kg/m3. Where untreated, historic performance of heartwood Cedar recognised for resistance to decay. Refer Harrison Grierson Consultants (March 2005) opinion of structural adequacy and BRANZ Bulletin Issue 648 with respect to fixings, substrates and shingle size and laps subject on roof pitch.
E2.3.1, E2.3.2, E2.3.7(a, b, c) External moisture: BRANZ Bulletin Issue 648. Review and supply of applicable installation details, based on the international fixing details.
F2.3.1 Hazardous building materials: Where treated flash off requirements are met.

Timber shingles are a light weight roof covering in accordance with NZS 3604, The New Zealand Code of Practice for Light Timber Framed Construction.

Independent Assessment

PASS

Test Results
