Transform Areas with Hard Flooring into Havens of Warmth

As the winter chill sets in, there's nothing more inviting than stepping onto a warm floor, especially during those early mornings when the thought of leaving your cozy bed feels like a daunting task.

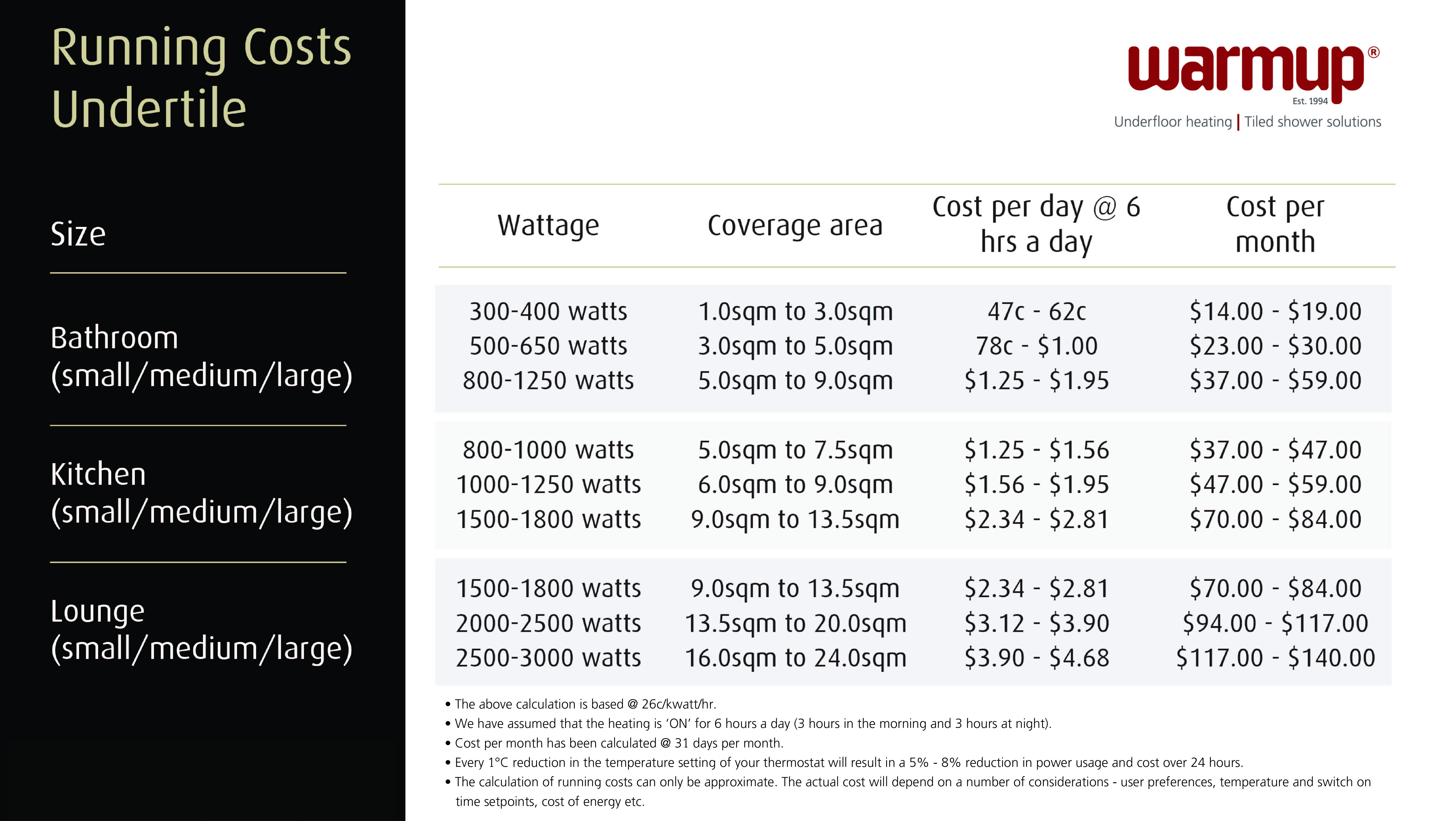

Adding Warmup undertile heating to bathrooms, kitchens, and tiled floors in renovations and new builds provides affordable warmth at a fraction of the cost of other underfloor heating options. Contrary to popular belief, undertile heating doesn't have to be a costly investment. Warmup prides itself on offering efficient heating solutions that are not only affordable to install but also economical to run. The weekly cost of heating an average bathroom will be less than a cup of coffee.

In terms of efficiency, Warmup’s BRANZ appraised undertile heating system is laid directly under tiles to avoid intermediary heat loss. Maximum effectiveness is achieved when used in conjunction with Marmox insulation boards. Not only does this produce a fantastic increase in the response time of the heating, but it also significantly improves energy efficiency and running costs.

Warmup Insulation Boards will save money by acting as a very efficient insulation barrier by reflecting the heat upwards into the room instead of allowing heat loss down through the sub-floor below. Offered in a sleek modern design, Warmup’s user-friendly thermostats provide seven-day, fully programmable control over your heating. By leveraging innovative technology and energy-efficient designs, Warmup ensures that homeowners can enjoy the benefits of heated floors without worrying about skyrocketing utility bills.

One of the key advantages of Warmup's undertile heating system is its ease of installation. Whether you're renovating a home or building from scratch, this system can be seamlessly integrated into the existing floor without the need for extensive construction work. The system is laid by Warmup’s trained installers, offering clients peace of mind and a lifetime warranty. Warmup offers undertile heating in easy-to-install DIY kits with user-friendly installation guides and customer support at your disposal, making the process hassle-free and convenient.

Experience comfort at a fraction of the cost compared to other underfloor heating options. Call Warmup today on 0800 WARMUP (927 687) or email [email protected] and discover the comfort of undertile heating.

Warmup Undertile Heating System

Warmup

View Product

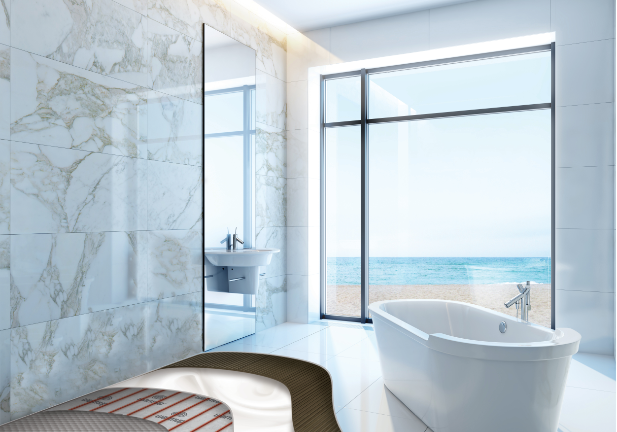

Warmup Undertile Heating is a system of low-temperature electric radiant elements which are laid directly under the floor covering and deliver luxurious and efficient heating for residential and commercial properties, including wet areas.

Warmup Undertile Heating has been appraised (BRANZ Appraisal 644 [2017]) for use in internal dry and wet areas of buildings within the following scope:

on structural substrates of concrete, plywood or compressed fibre cement sheet (excluding particle board flooring); and,
with optional floor overlays of fibre cement tile underlays or Warmup Insulation Backer Board; and,
when protected from physical damage by a screed and ceramic or stone tiles; and,
where floors are designed and constructed such that deflections do not exceed 1/360th of the span; and,
movement and control joints in the substrate must be carried through to the screed, tile or stone finish; and,
the design and construction of the movement and control joints is specific to the building and therefore the responsibility of the building designer and building contractor and is therefore outside this scope; and,
when used in a wet area a waterproofing system must be used; and,
where floors are designed not to exceed a continuous operating temperature of 35°C; and,
the system must be installed using detailing as set out in the Technical Literature; and,
Warmup Undertile Heating must be installed by trained applicators, approved by Warmup New Zealand Ltd

It is important to review the size of the room that is being heated and check for movable and immovable features or furniture in the room. This will determine the actual area to be heated and the size of the heating element required. (the floor under cupboards does not need to be heated).

The Warmup Undertile Heating System, if designed, used, installed and maintained in accordance with the statements and conditions of BRANZ Appraisal #644 [2017] will meet the following provisions of the New Zealand Building code:

Clause B2 DURABILITY: Performance B2.3.1(b), 15 years and B2.3.1 (c), 5 years. Warmup Undertile Heating meets these requirements — see paragraphs 8.1 and 8.2
Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1 Warmup Undertile Heating meets this requirement and will not present a health hazard to people
Clause G9 ELECTRICITY: Performance G9.3.1. Warmup Undertile Heating meets this requirement. See Paragraphs 9.1 and 12.1

BRANZ Appraised

Marmox Multiboard

Warmup

View Product

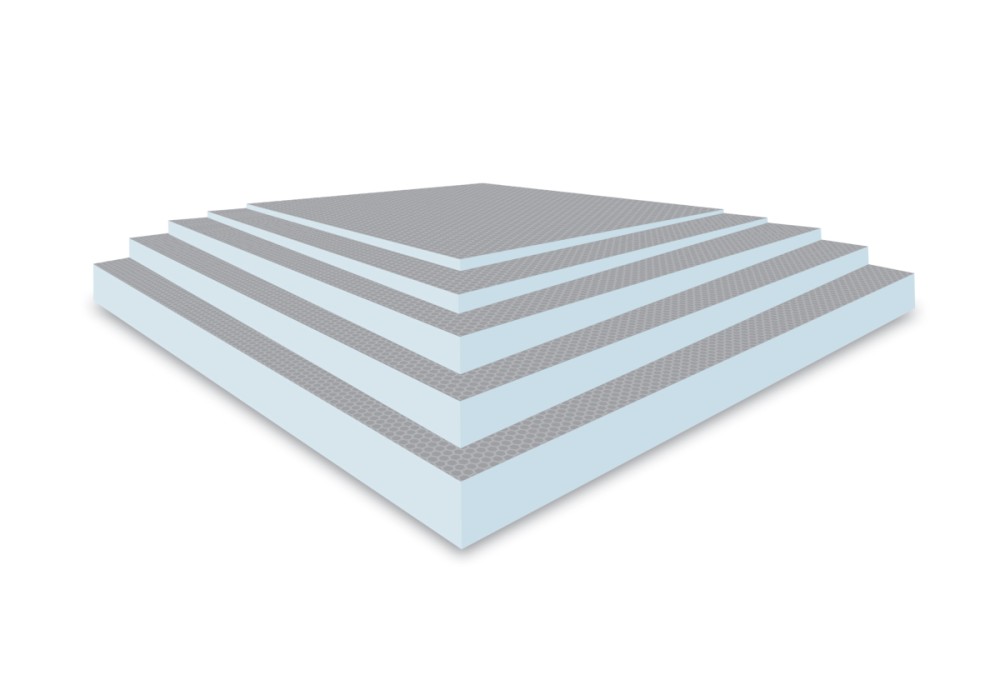

Marmox insulation boards are thin sheet boards designed to insulate the floor surface of new or existing buildings, saving up to 50% of the heat lost with conventional underfloor heating.

Marmox Building Products have been appraised (BRANZ Appraisal 895[2018]) for use as an intermediate substrate to tiling for interior areas when applied to timber, plywood, fibre cement or concrete floors.

Installed using a flexible tile adhesive in a similar manner to a large tile

Applications:

Walls and floors
Partition walls
Bath and shower base panels
Wash tables and benches

In the opinion of BRANZ (Appraisal 895[2018]), Marmox Building Products, if designed, used, installed and maintained in accordance with the statements and conditions of this Appraisal, will meet or contribute to meeting the following provisions of the NZBC:

Clause B2 DURABILITY: Performance B2.3.1 (b) 15 years and B2.3.2. Marmox Building Products meet these requirements. See Paragraph 9.1
Clause E3 INTERNAL MOISTURE: Performance E3.3.3. Marmox Building Products contribute to meeting this requirement. See Paragraphs 12.1-12.4
Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1. Marmox Building Products meet this requirement

BRANZ Appraised

Warmup Thermostats — Programmable and Non-Programmable

Warmup

View Product

Warmup has a range of programmable and non-programable thermostats for use with underfloor heating.

Dual Touch thermostat — programmable or non-programmable for underfloor heating and heated towel rail control
Colour Touch thermostat (with or without WIFI) to control underfloor heating
Non-Programmable Electronic Thermostats to control air or floor temperature
