Innovative Alternative to Timber Decking

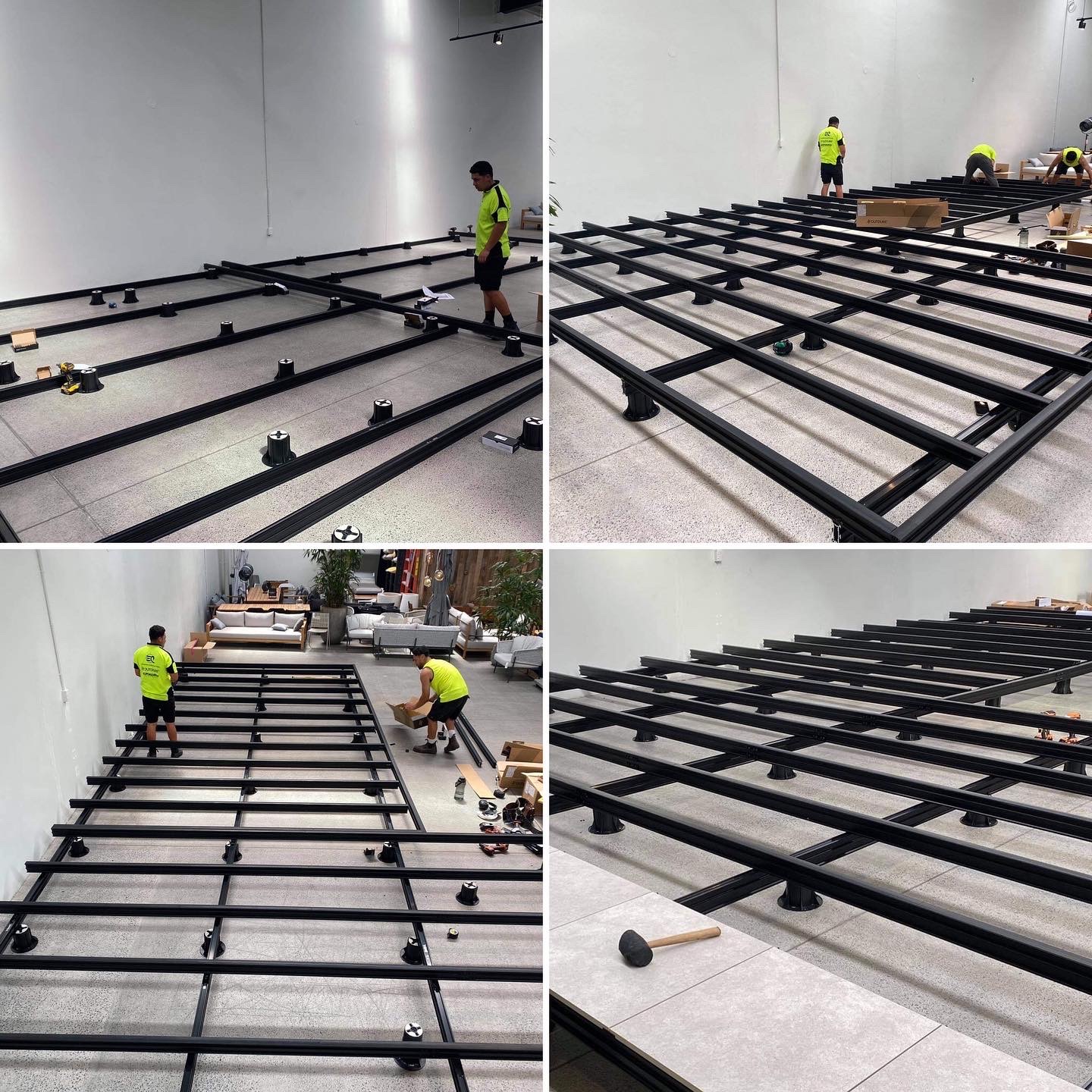

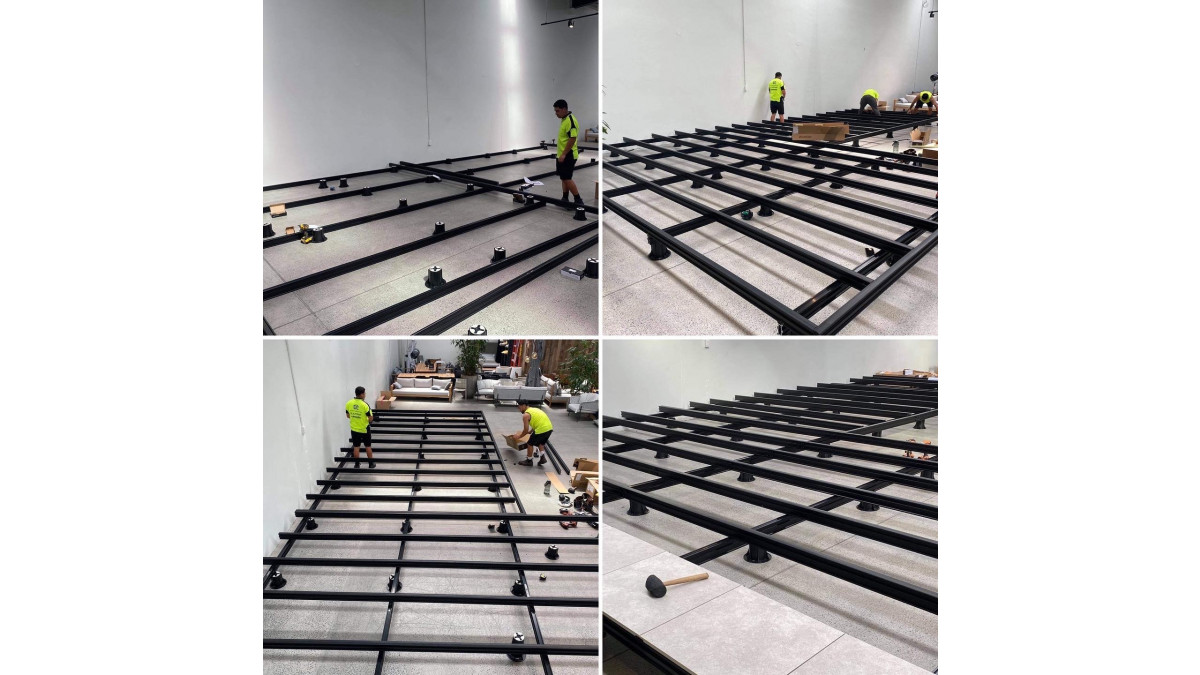

These mid install pics of the stunning new Dawson and Co showroom spaces situated in Constellation Drive and at The Strand in Parnell feature Outdure's QwickBuild exterior flooring system being laid out over the concrete retail space.

QwickBuild is a moisture-proof alternative to traditional timber deck sub-frames with the added benefits of minimal waste, low height capabilities and multi-surface integration.

The system comprises of Global Green Tag certified structural aluminium joist-bearer profiles which make up the framework. For this project the 45 x 45mm profiles were used to support the Outdure pavers and ResortDeck capped composite decking and trim boards.

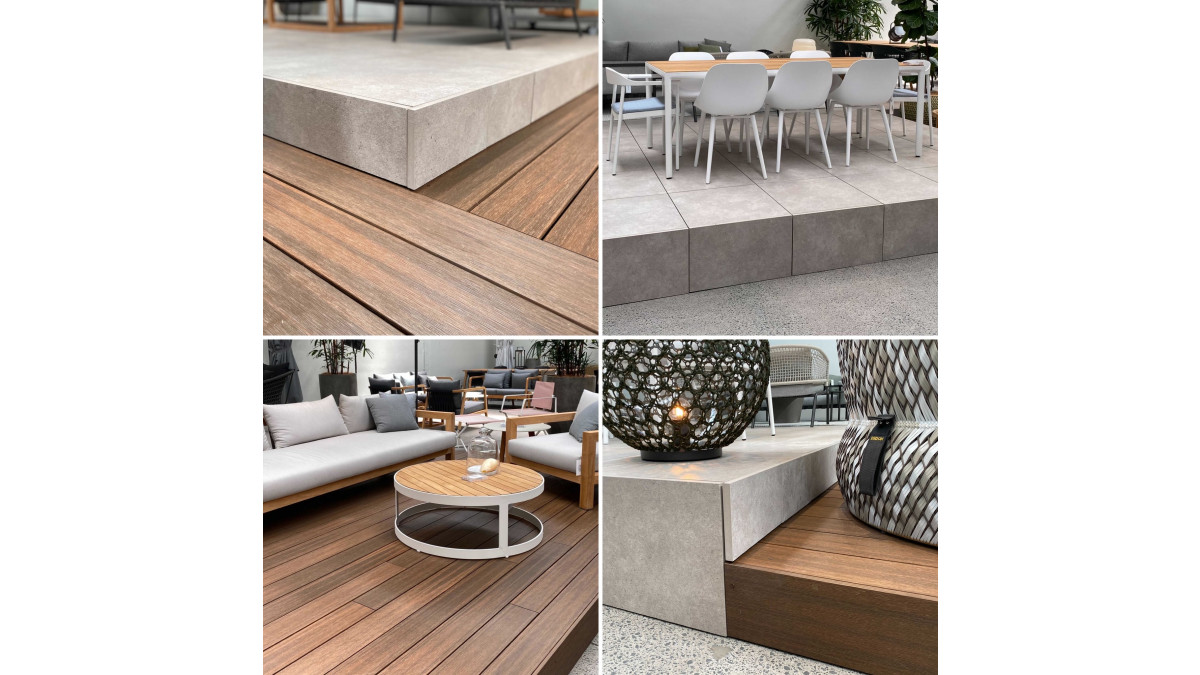

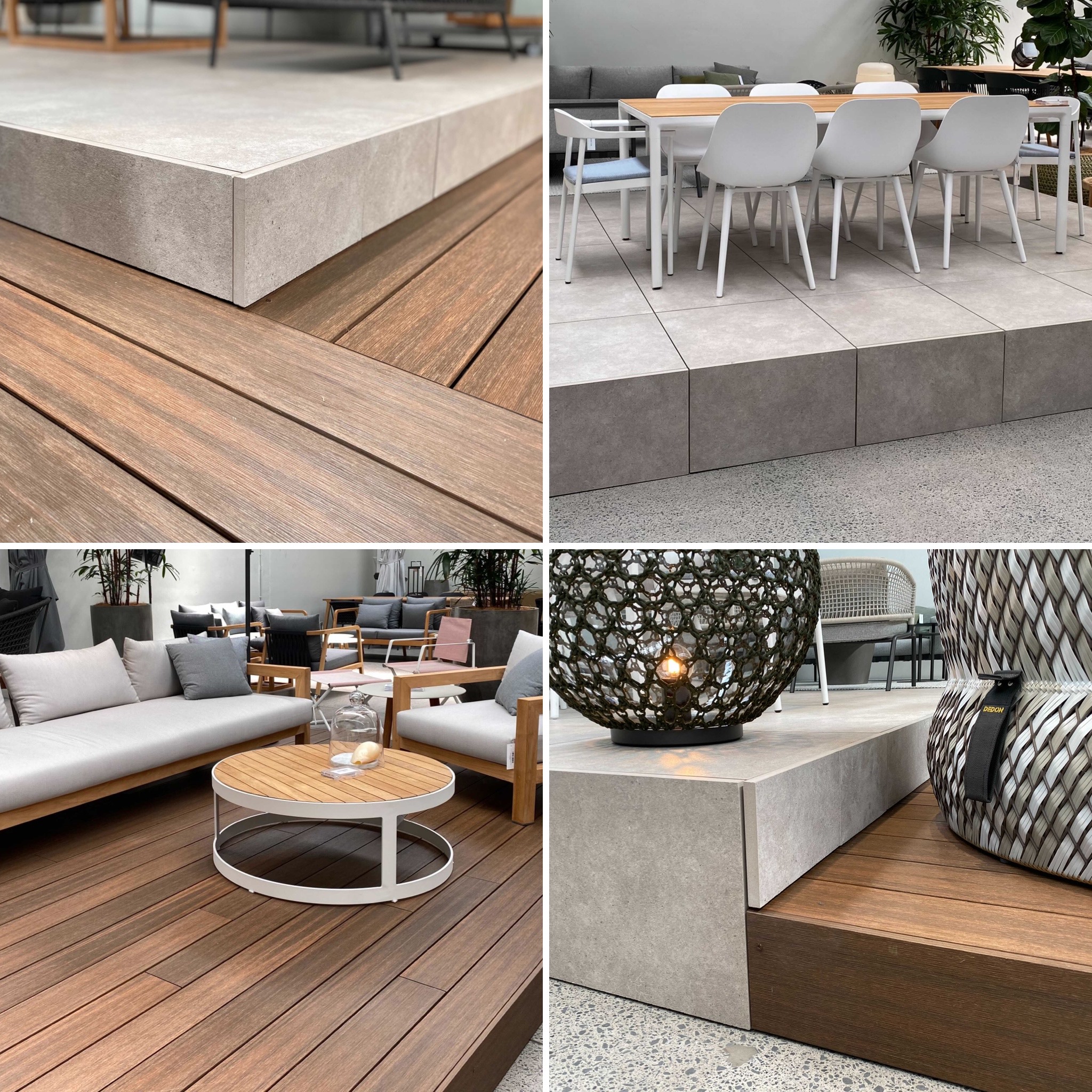

ResortDeck boards look like a freshly oiled hardwood deck but are encapsulated in an UltraShield layer for durability and low maintenance. Made of recycled wood fibers and recycled polymers, the range comes in six contemporary colours.

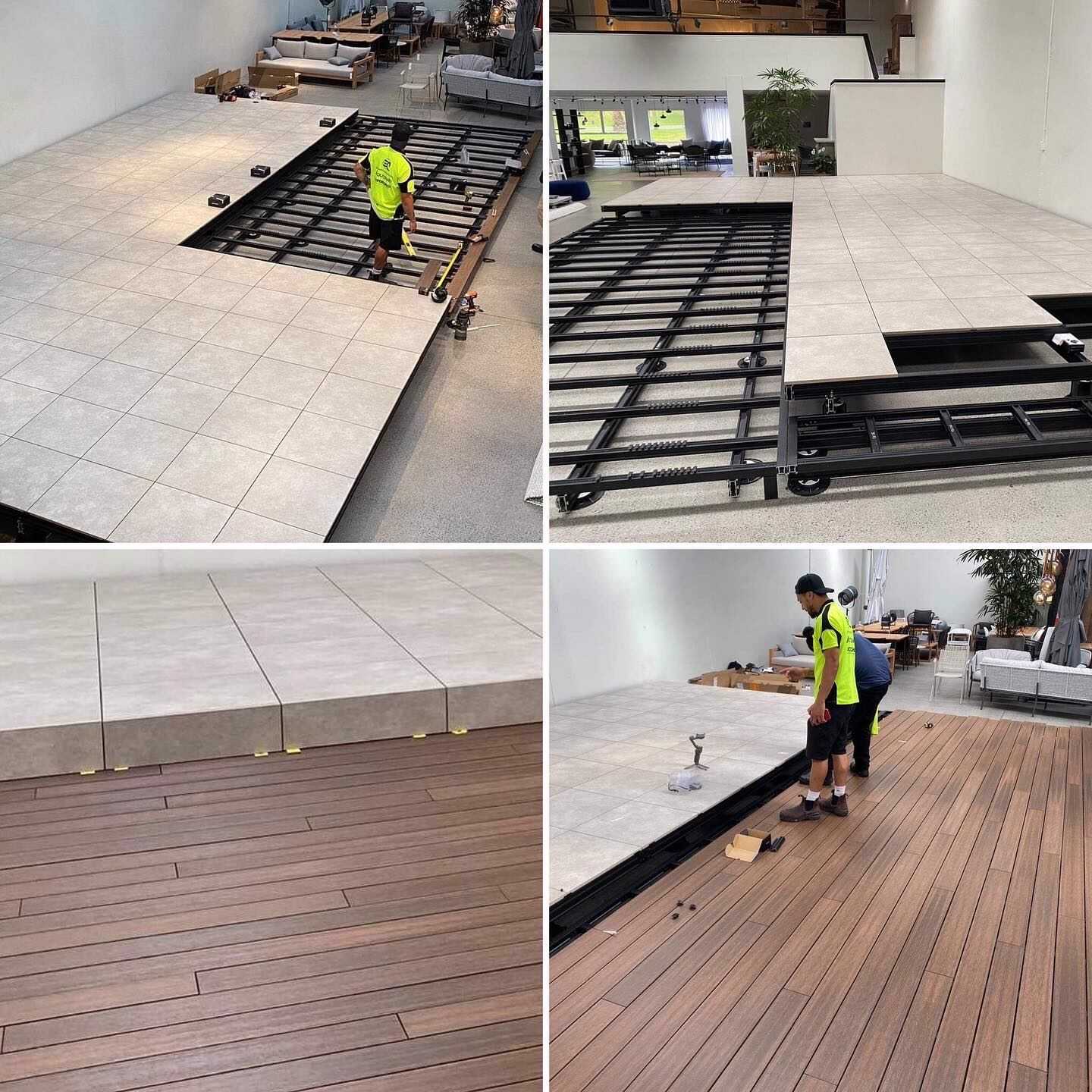

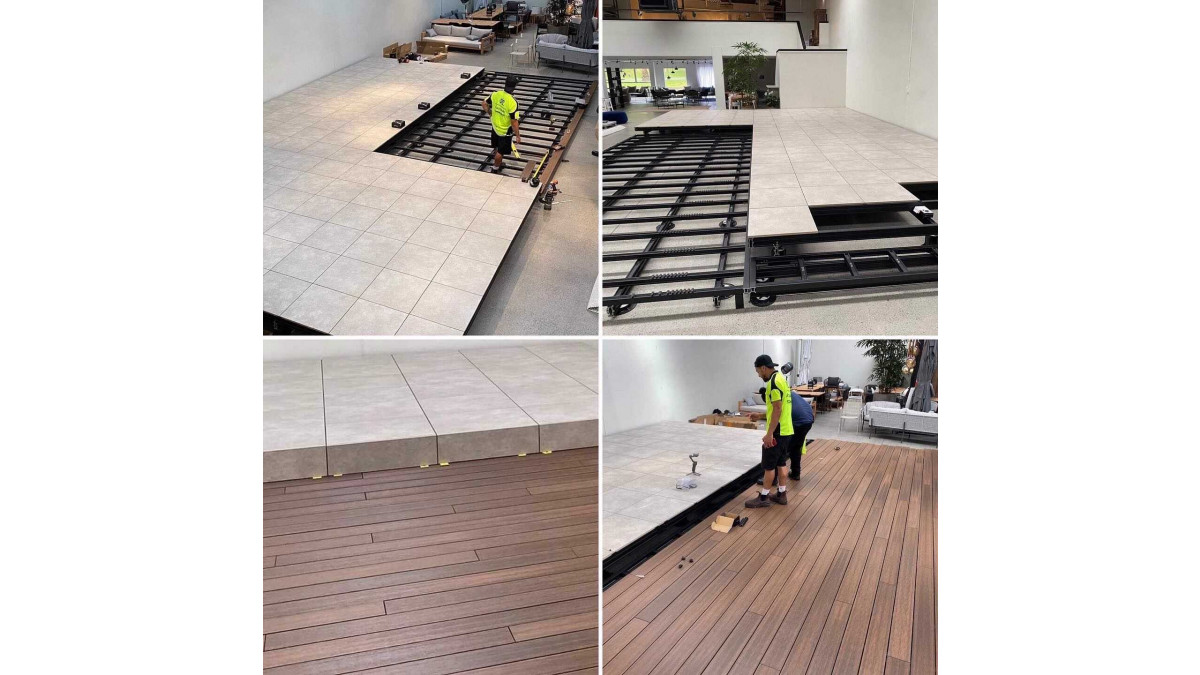

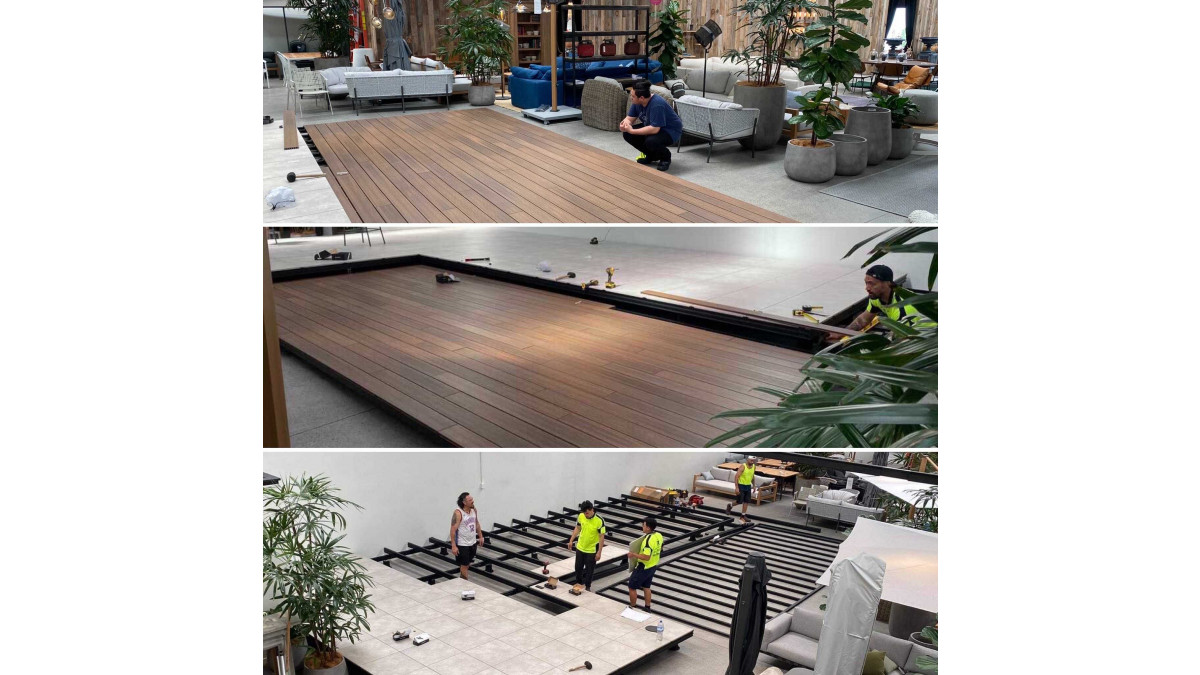

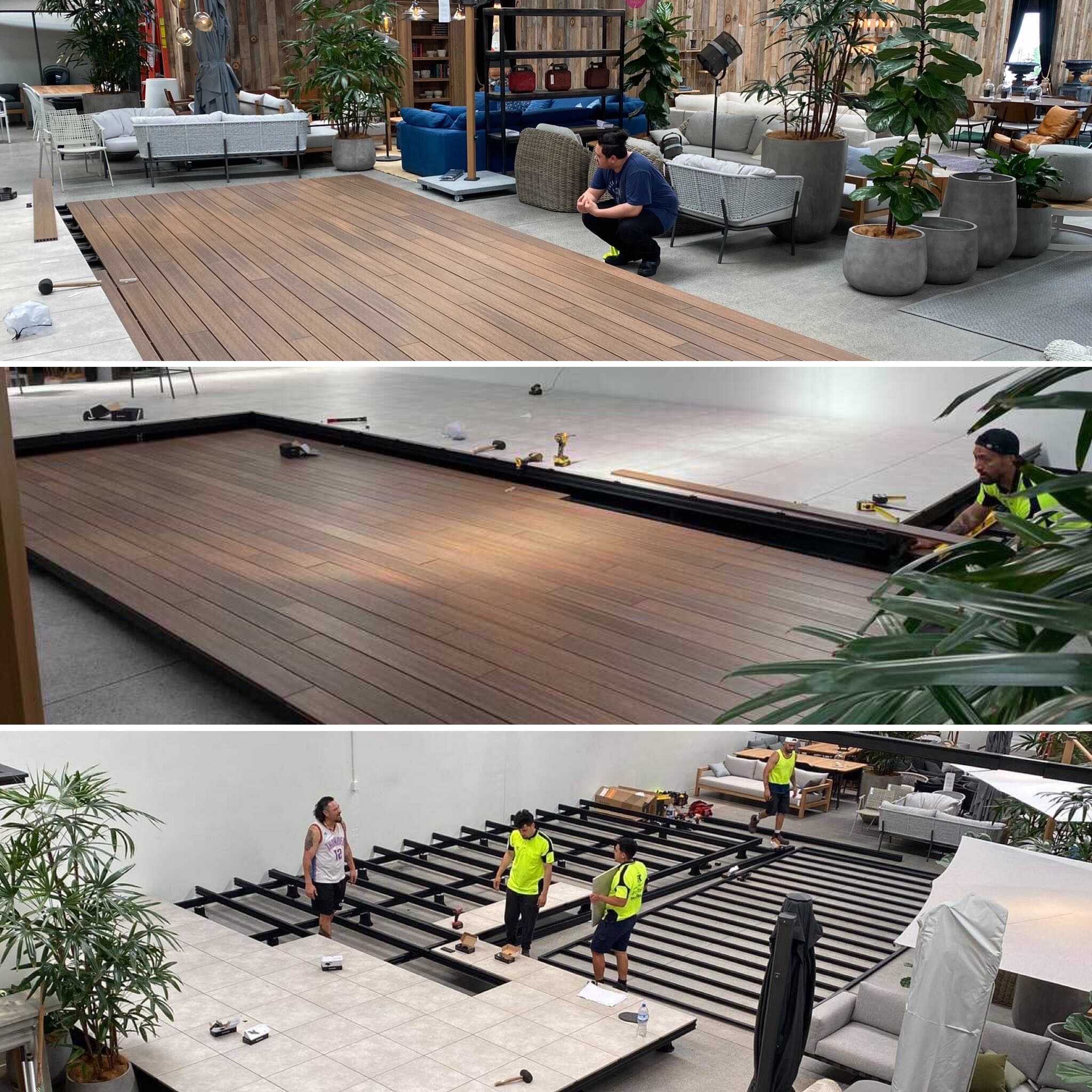

The images illustrate just how easy it is to install decking and tiles onto Outdure's QwickBuild with the hidden QwickClip fastenings.

Fast, straight, level and stable with no nails and no grout needed.

QwickBuild is ideal for all deck projects and substrates. Profiles for all finished deck heights heights from under 100mm to decks over 2m+.

For more information and to utilise Outdure's design and quantification service please call 0800 77 88 77 or visit www.outdure.co.nz

QwickBuild Deck Frame System for Decking, Tiles and Synthetic Turf

Outdure

View Product

QwickBuild is an external flooring system that provides strong, durable, stable structures to support hardwood and composite decking boards, exterior tiles, and synthetic turf, or a combination of surfaces.

QwickBuild is designed for installations over natural ground, concrete pads, existing pavers and waterproof membranes. The system allows for the construction of support structures ranging from ultra-low height through to structures 3m+.

Benefits for deck structures under 400mm in height, especially areas where deck structures are built over a waterproof membrane, this includes rooftop spaces and apartment balconies. The system has low height capabilities enabling a flush internal and external floor levels that are of complex integrating surfaces.

Residential and commercial applications
Framework designed to 'float' on a waterproof membrane without penetrating it
Low-height, long-span capabilities
Load capacity of up to 5kN point load and 5kPa UDL
Accessible solution — enables flush levels between interior and exterior floor surfaces

Suitable for:

Commercial rooftop decks
Apartment complexes
Resorts
Educational facilities
Aged care facilities
Backyard renovations

Commercial rooftop decks
Apartment complexes
Resorts
Educational facilities
Aged care facilities
Backyard renovations

Profiles are manufactured from lightweight structural aluminium with marine-grade anodised or powder-coated finish.

ResortDeck with UltraSheild Technology

Outdure

View Product

ResortDeck attributes include durability, style, and ease of maintenance.

Suitable for installation onto a traditional timber deck frame, or onto the QwickBuild sub-frame system.

UV Resistant Layer
Non-slip coefficient
Termite and pest proof
10 years warranty
