Aged Care Complex Features Outdure QwickBuild, Tiles and Turf

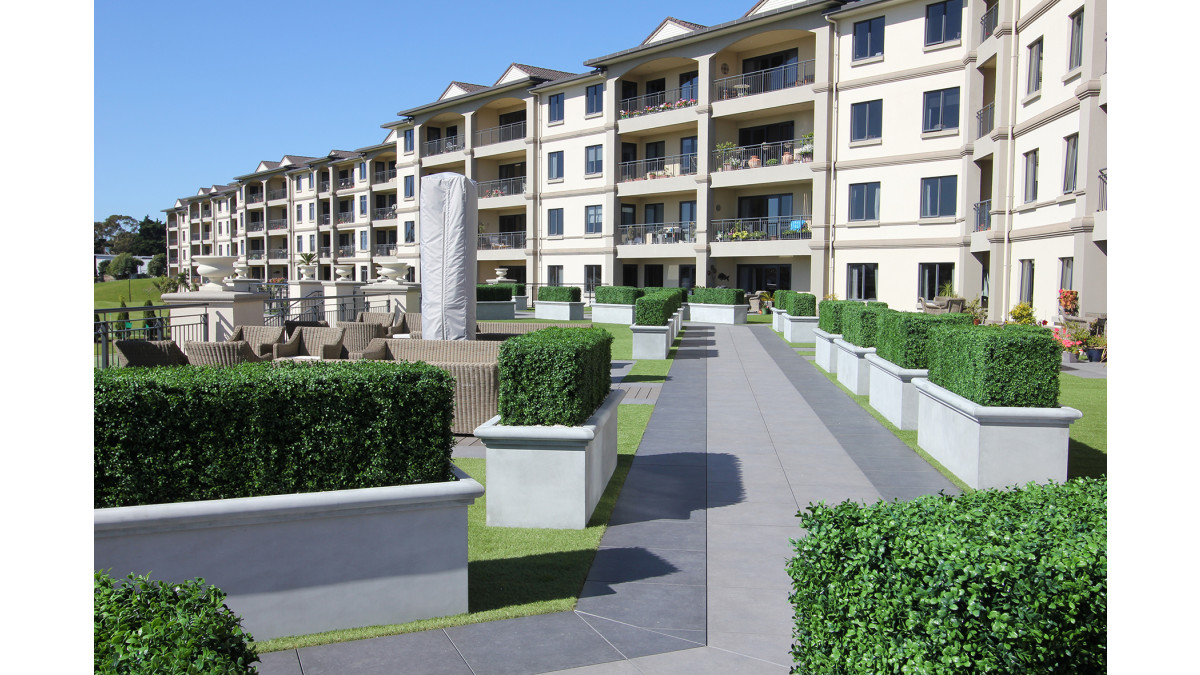

The project at the Sir Edmund Hillary Retirement Village in Auckland included the removal of existing tiles and membrane and the installation of new membrane and new deck finishes. Ryman's in-house architects found a solution with Outdure's QwickBuild modular framing and support system. The lightweight structure is designed to ‘float' on a membrane to protect it from penetration and damage.

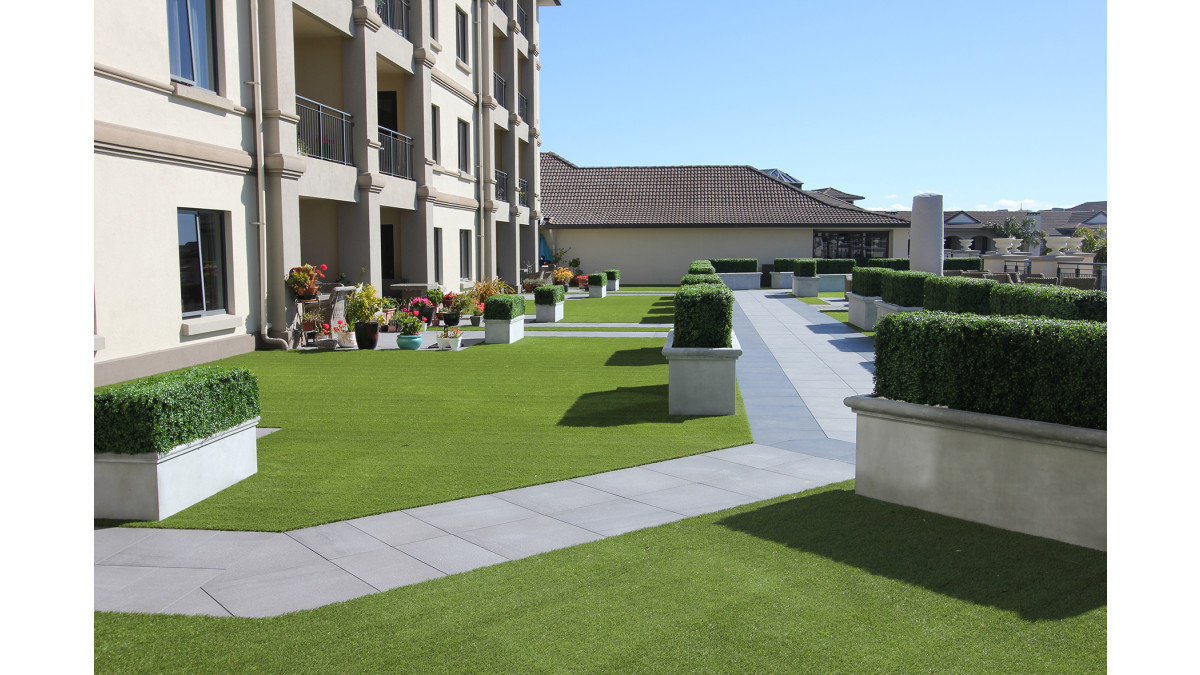

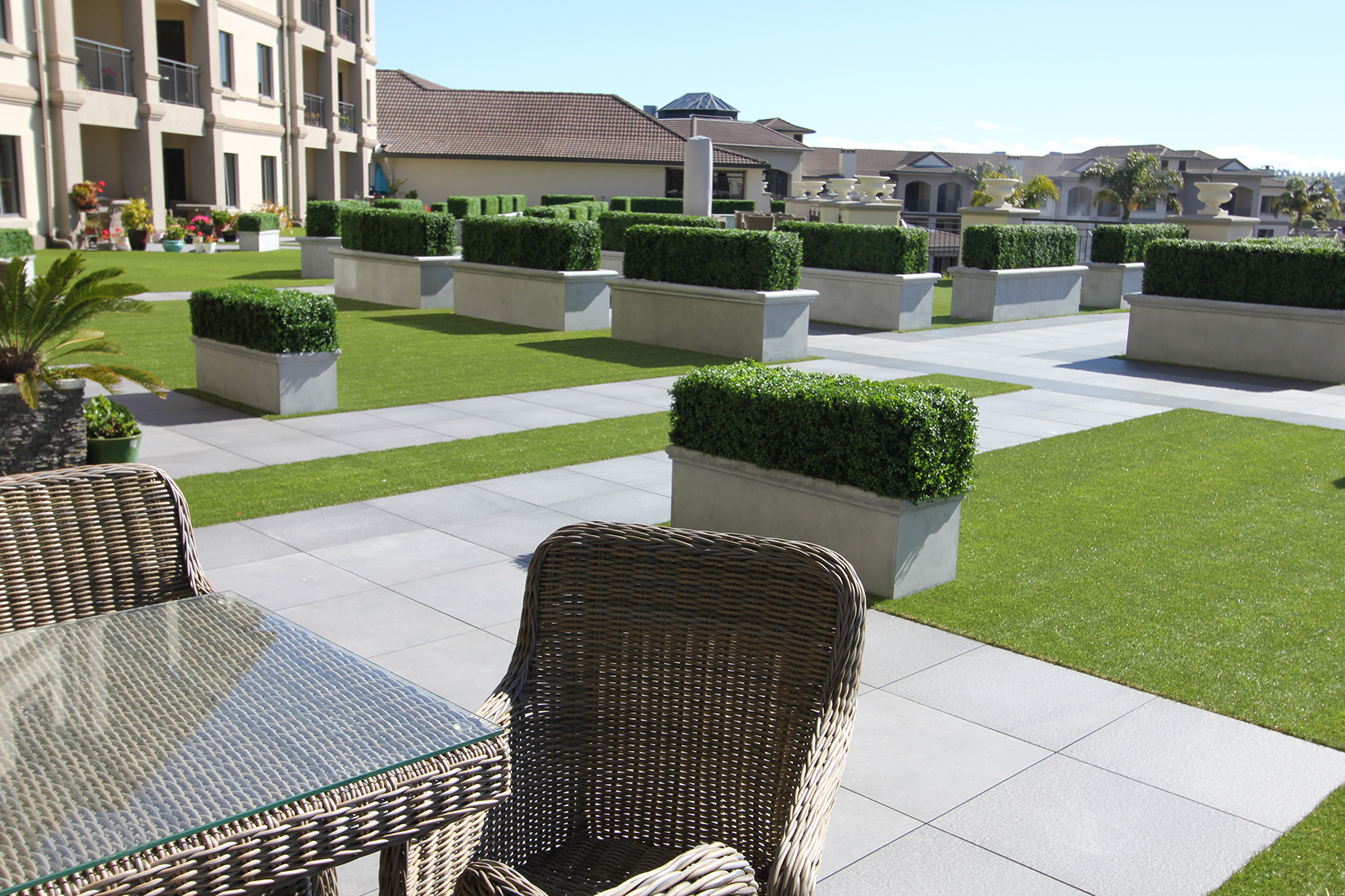

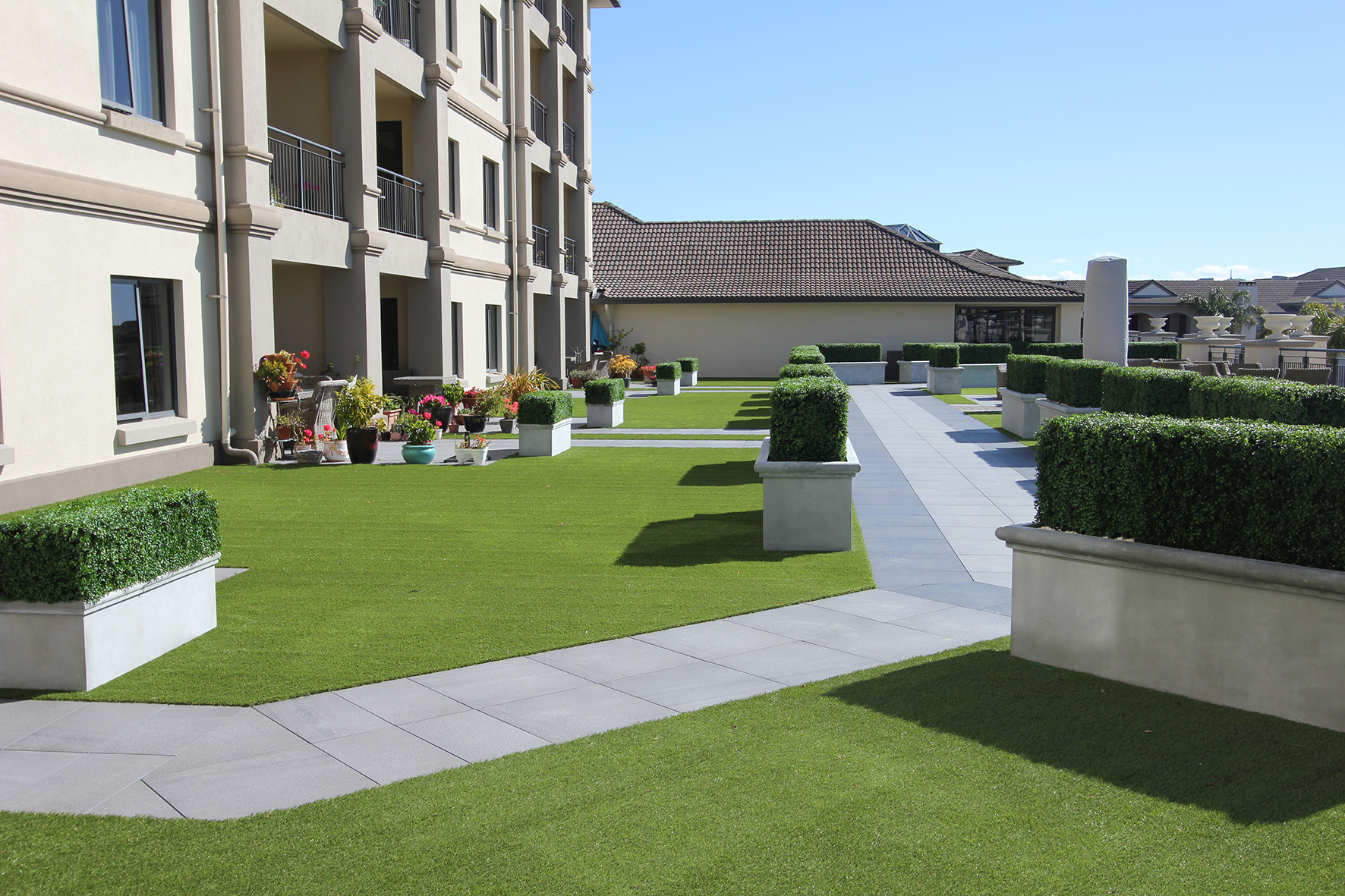

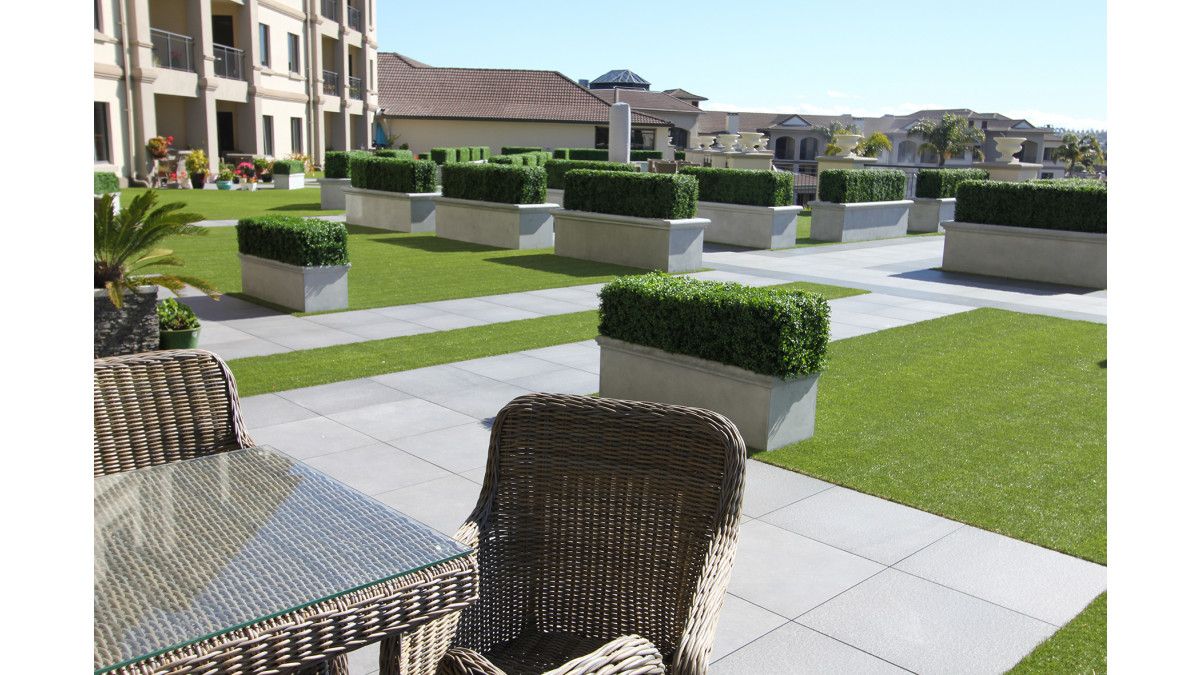

The versatility of the system gave the architects more options than they had anticipated as they could easily integrate not just tiles and decking into the design but also synthetic turf — supported by the framework and the innovative aluminium turf baseboards. The relatively large commercial project was fast to install as the majority of the 1,207m² of QwickBuild was supplied in prefabricated, made-to-measure frames and turf baseboards with partial loose framing for ease and efficiency on site.

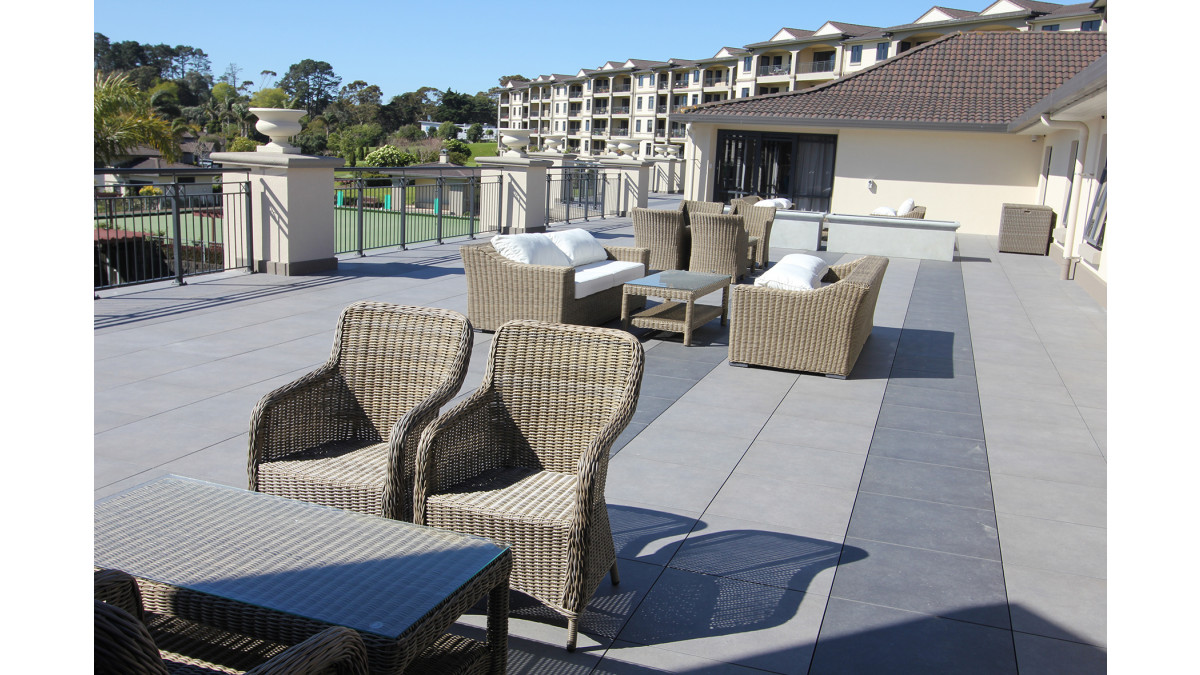

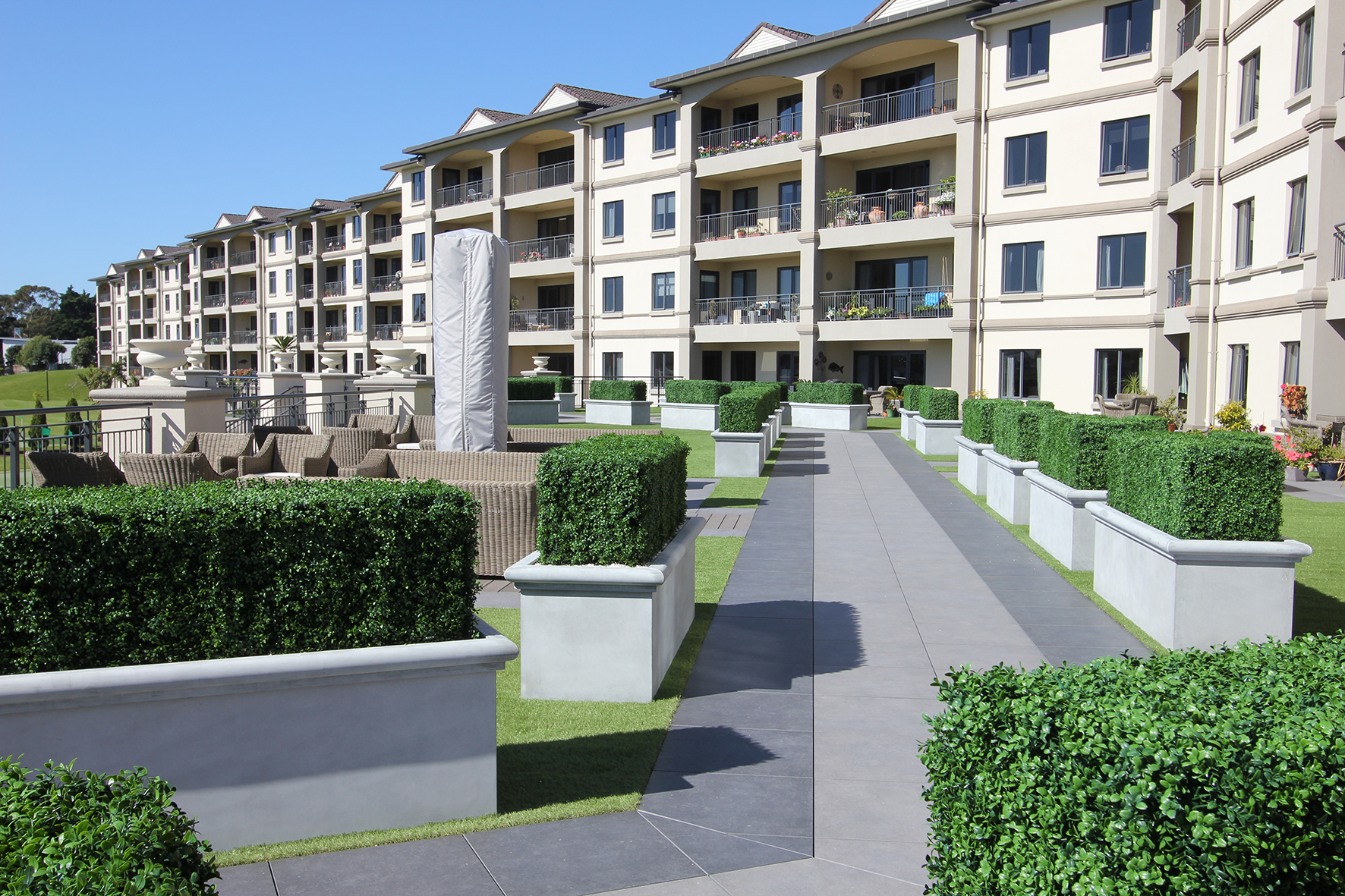

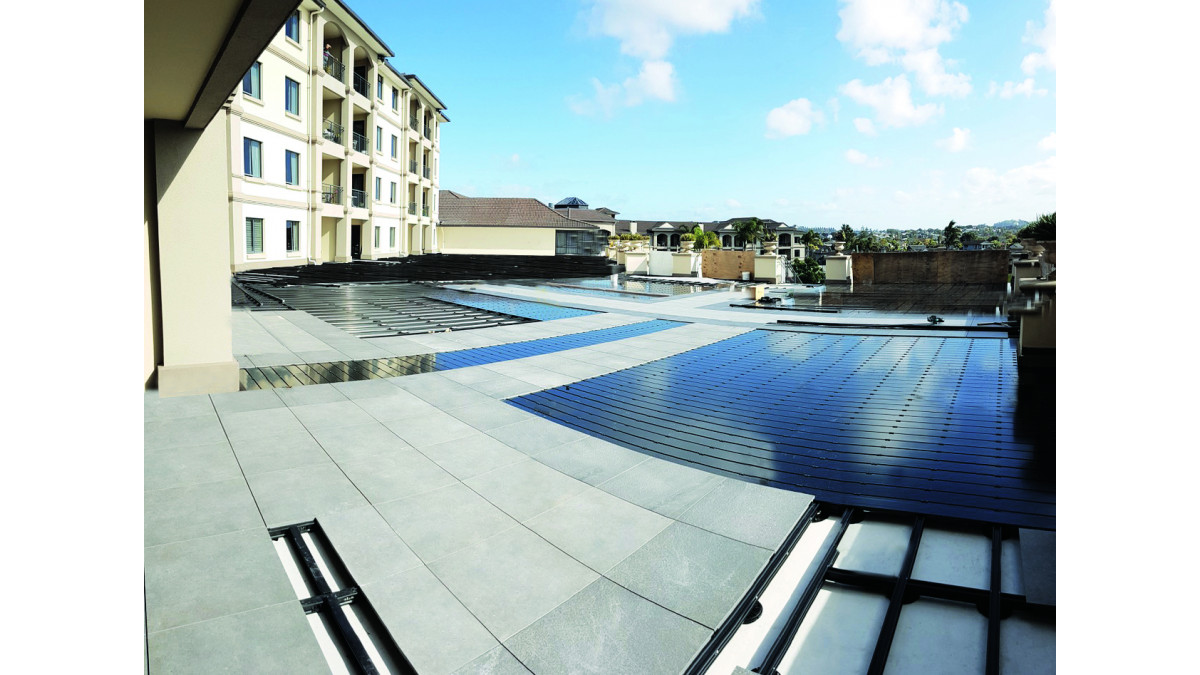

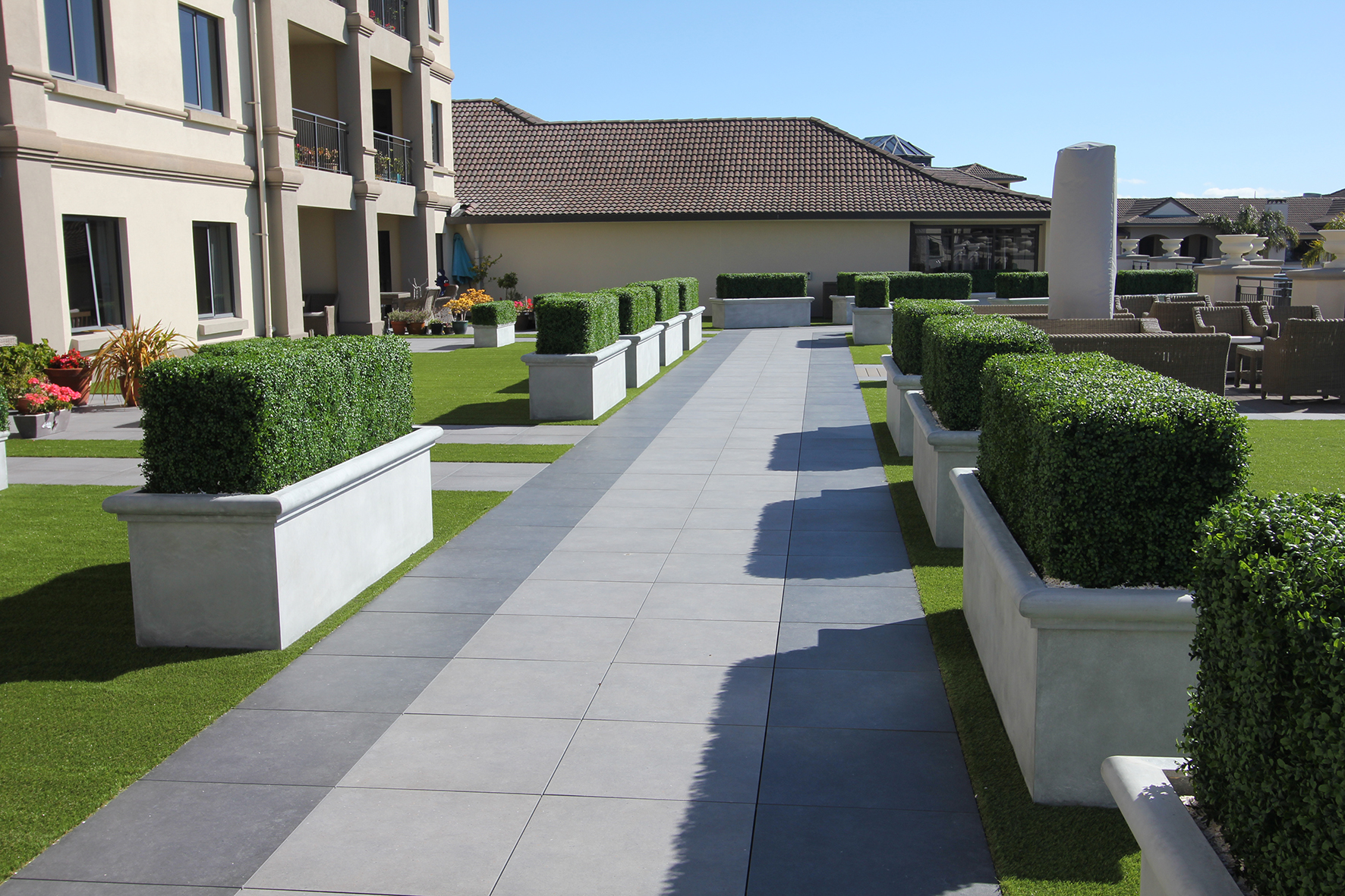

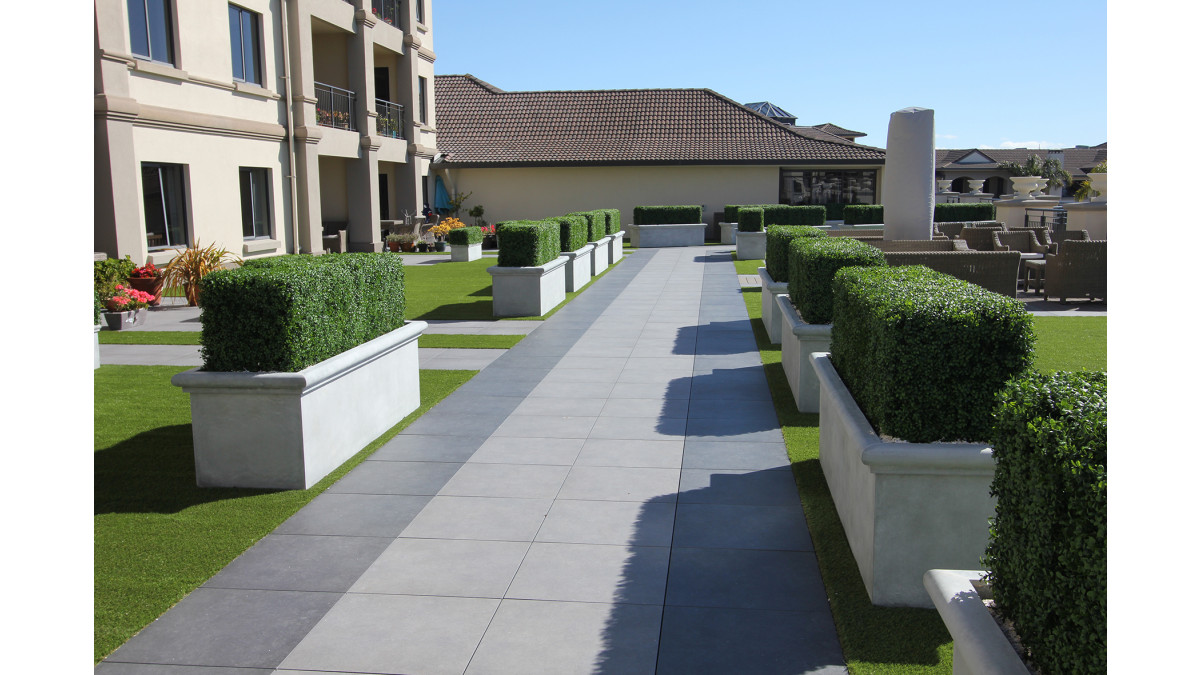

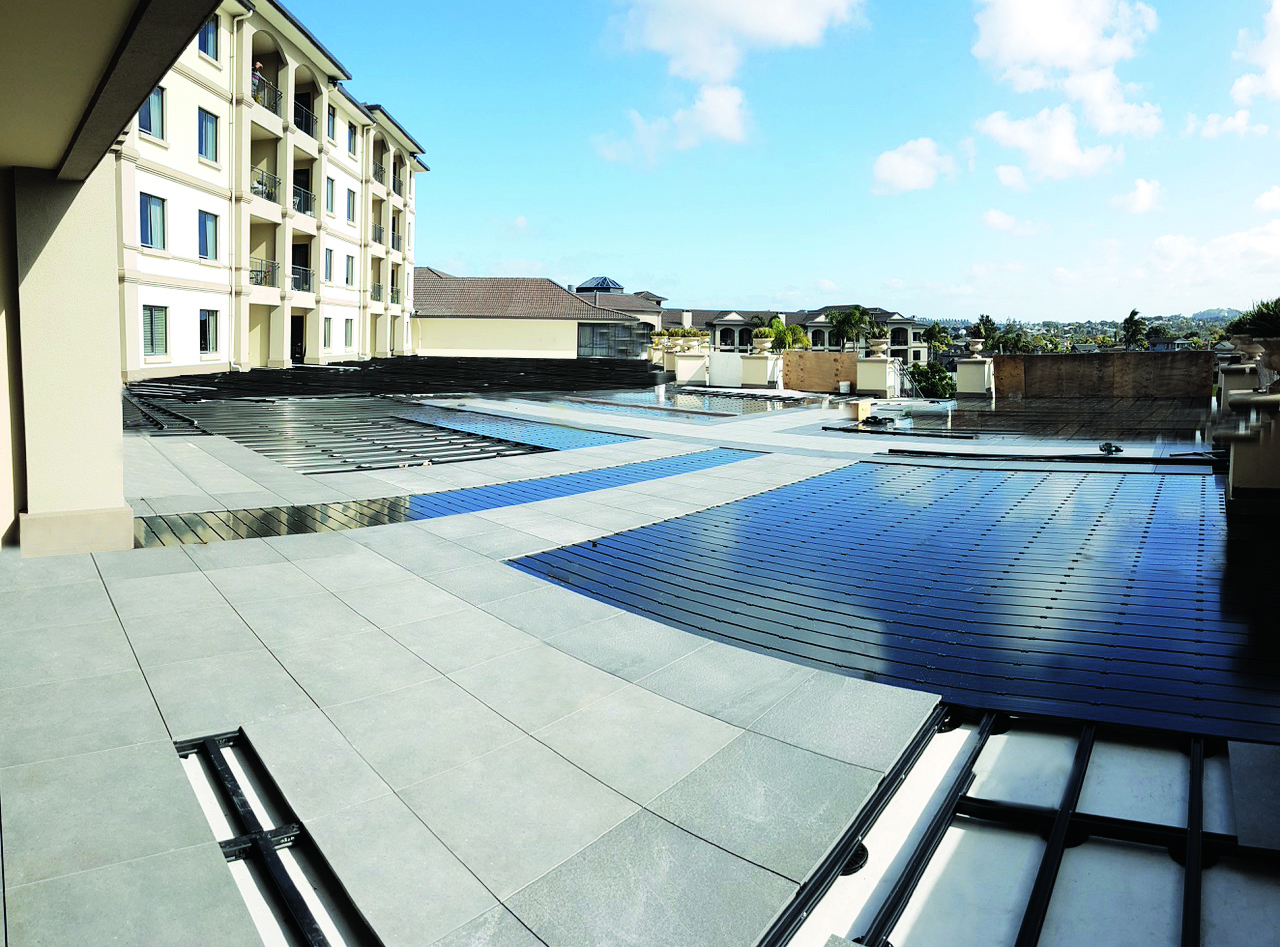

The architects and quantity surveyors collaborated with the Outdure design team to maximise the usability of the space. For this project QwickBuild was used as a 'floating floor system’ to support and integrate with decking, tiles and turf using interlocking, hidden fastenings. Installation of lightweight GRC planter boxes together with the low maintenance Outdure tiles, synthetic turf and decking boards reduced the ongoing lawn maintenance and watering requirements, assisting to reduce running costs in the long term.

Outdure products:

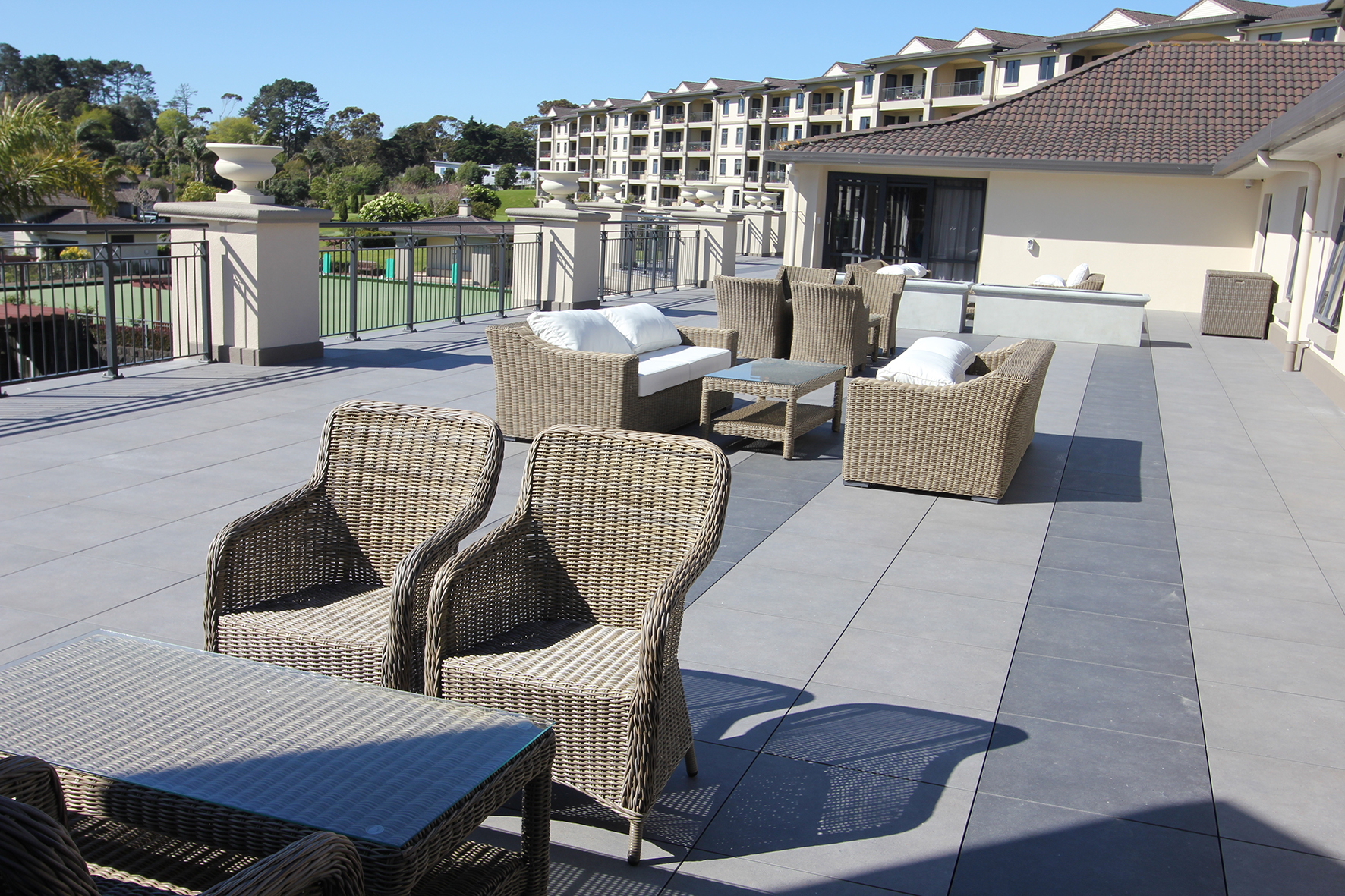

Exterior Tiles: Mineral Structural Tiles 552m²
Synthetic Turf: UltraPlush Turf 556m²
Decking: EcoDecking 40m²
Structure: QwickBuild system 1207m²
Components: Range of aluminium joist bearer profiles, deck jack pedestals, QwickGrates for ventilation and access
Fastenings: A comprehensive range of QwickClip and Outdure fastenings including ‘X’ rubber tiles spaces

For more information please call 0800 77 88 77 or visit the Outdure website.

QwickBuild Deck Frame System for Decking, Tiles and Synthetic Turf

Outdure

View Product

QwickBuild is an external flooring system that provides strong, durable, stable structures to support hardwood and composite decking boards, exterior tiles, and synthetic turf, or a combination of surfaces.

QwickBuild is designed for installations over natural ground, concrete pads, existing pavers and waterproof membranes. The system allows for the construction of support structures ranging from ultra-low height through to structures 3m+.

Benefits for deck structures under 400mm in height, especially areas where deck structures are built over a waterproof membrane, this includes rooftop spaces and apartment balconies. The system has low height capabilities enabling a flush internal and external floor levels that are of complex integrating surfaces.

Residential and commercial applications
Framework designed to 'float' on a waterproof membrane without penetrating it
Low-height, long-span capabilities
Load capacity of up to 5kN point load and 5kPa UDL
Accessible solution — enables flush levels between interior and exterior floor surfaces

Suitable for:

Commercial rooftop decks
Apartment complexes
Resorts
Educational facilities
Aged care facilities
Backyard renovations

Commercial rooftop decks
Apartment complexes
Resorts
Educational facilities
Aged care facilities
Backyard renovations

Profiles are manufactured from lightweight structural aluminium with marine-grade anodised or powder-coated finish.

Deck Jack Pedestal System

Outdure

View Product

Tiling over membrane decks or concrete is made easy, fast and efficient with Outdure’s range of height adjustable deck jacks.

QwickGrates

Outdure

View Product

Part of the QwickBuild decking system, the QwickGrate has been designed as an attractive, smart solution to comply with council requirements.

For ventilation purposes and easy access to gutters and downpipes on floating decks over membrane.
Use with CasaDeck and ResortDeck
Accessibility solution — allows decks to be flush with internal floor levels for

UltraPlush Turf

Outdure

View Product

Enjoy outdoor living year round.

Commercial rooftop decks
Apartment complexes
Resorts
Educational facilities
Aged care facilities
Backyard renovations

High UV and moisture resistance
A very low maintenance solution
Fire retardant
FIFA certified

Stone Inspire Exterior Tile Range

Outdure

View Product

The elegant Stone Inspire range is characterised by a subtle tonal variation making each tile unique.

Suitable for use with deck jacks/pedestals
Ideal for high traffic zones
Exterior use

Suitable for:

Commercial rooftop decks
Apartment complexes
Resorts
Educational facilities
Aged care facilities
Backyard renovations

Anti-slip rating of R11
Resistant to frosts, chemicals and staining
