Robust, Hygienic Bathroom Solutions for High Traffic Netball Centre in Hamilton

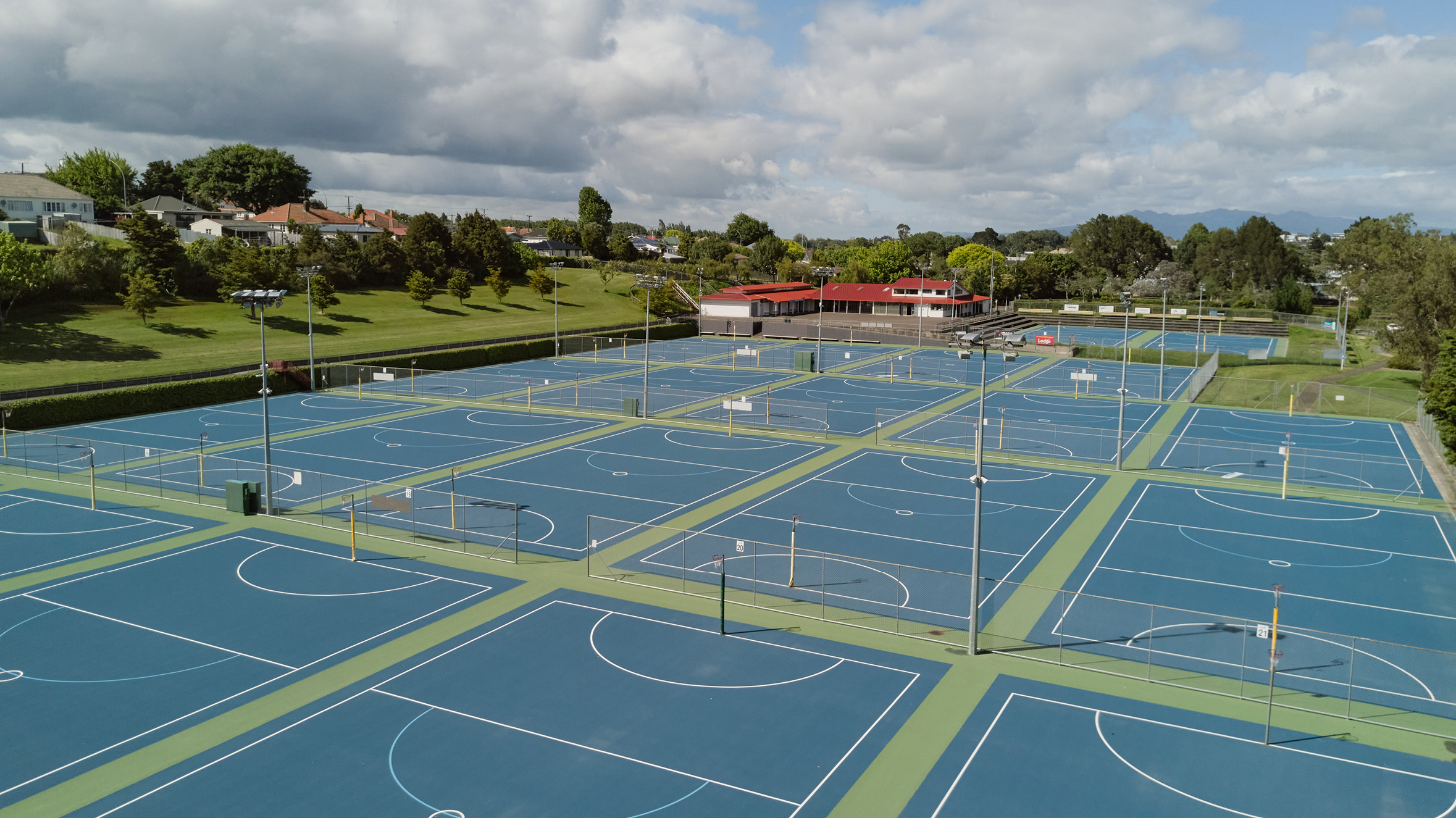

For over 30 years Hamilton City Netball Centre has been located at Minogue Park in Forest Lake, Hamilton. The centre provides netball to 5,500+ members from primary school age through to adults. In a season over 270 games of netball are played over five days each week on 21 courts.

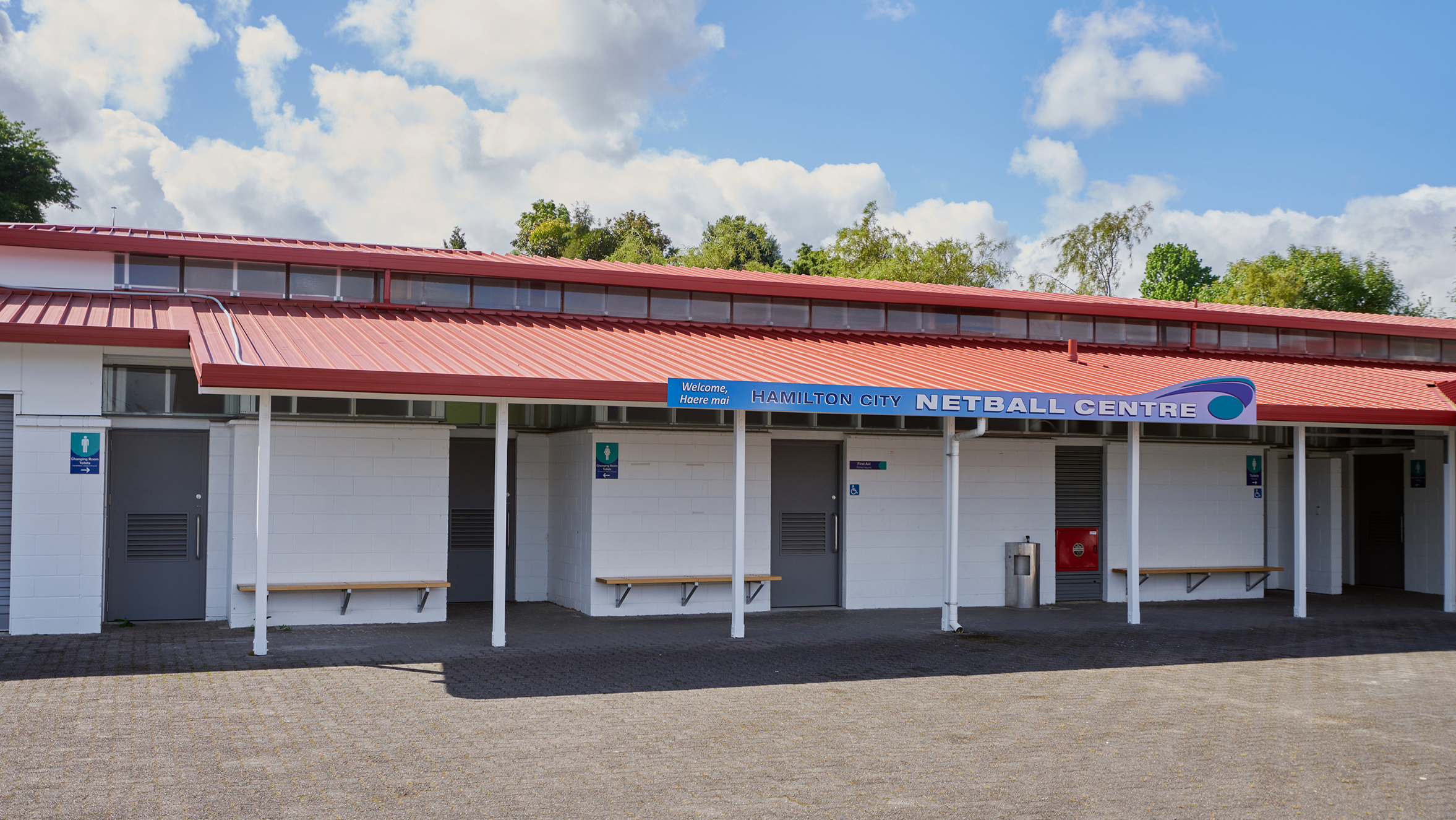

Hamilton Netball Centre secured $3M of external funding from Trust Waikato for improvements to the Minogue Park netball courts’ playing surface. Part of the funding went towards refurbishment of the toilets, changing rooms and storage to meet the needs of the netball community who regularly use the facility.

MacDonald Industries were pleased to be involved with this project, supplying a wide selection of fixtures that have been specifically designed for busy sporting facilities.

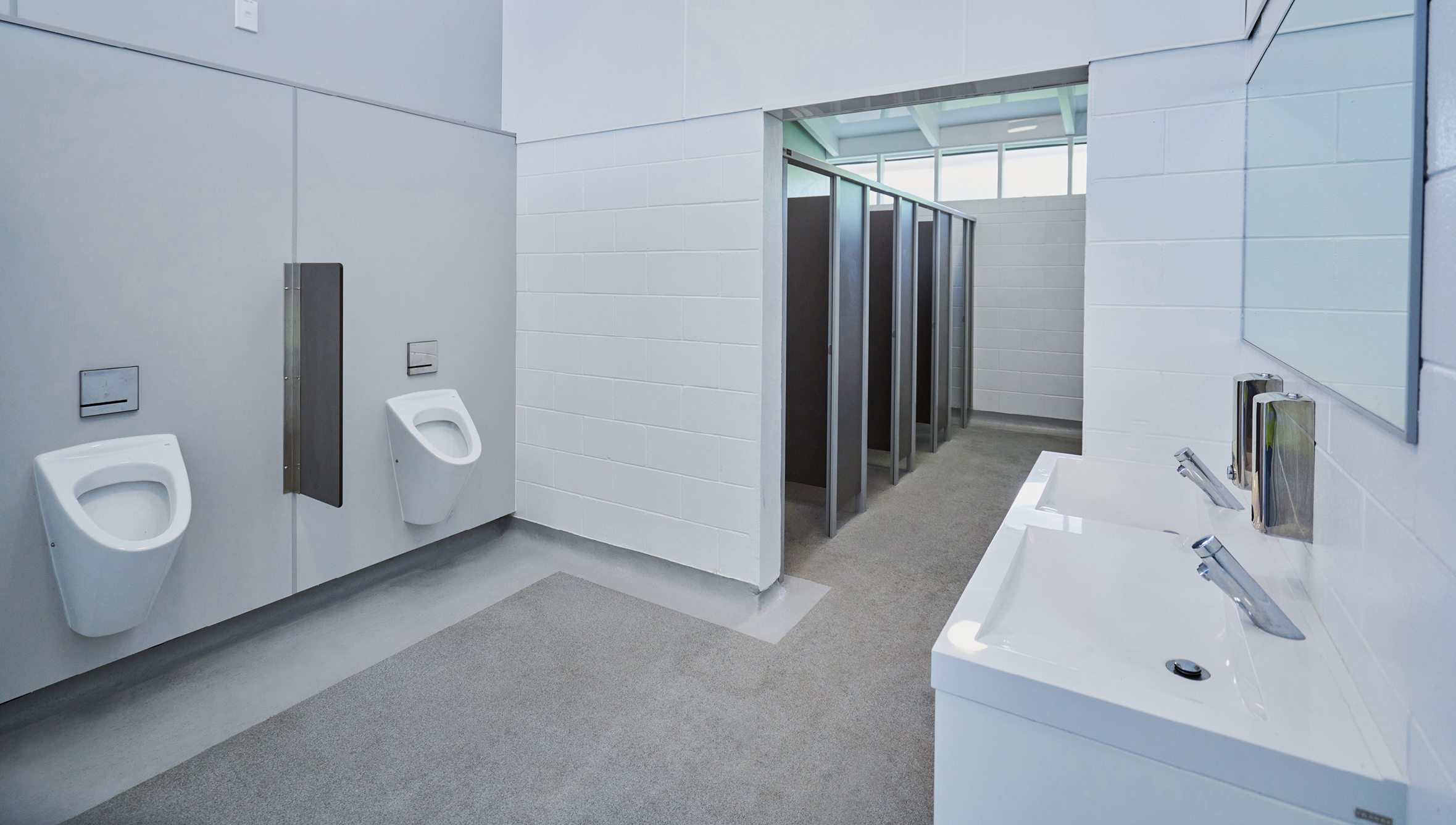

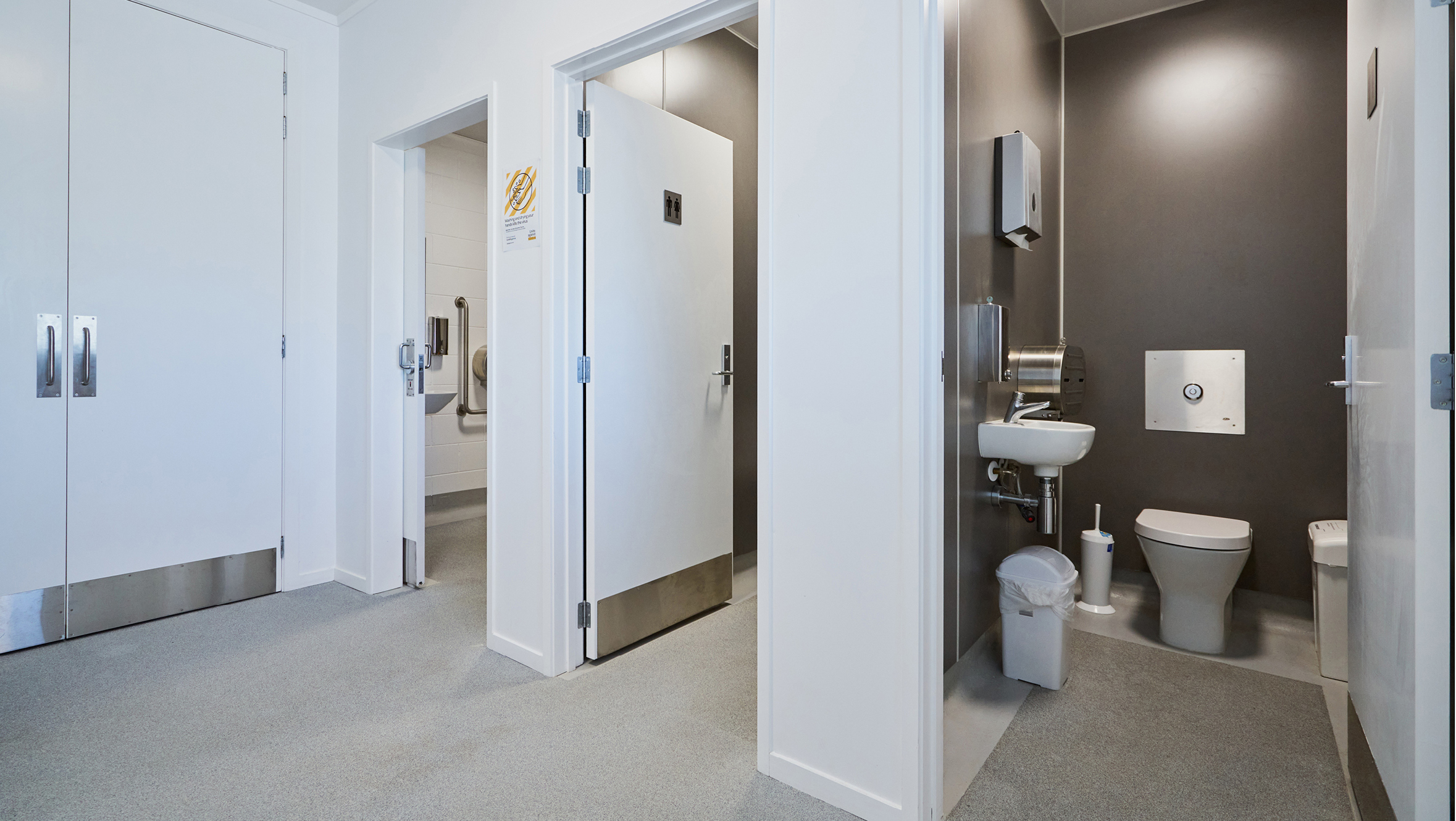

When you have bathrooms hit by a sudden rush of players and cheering crowds on a regular basis you are going to need bathroom fixtures that are robust, reliable, hygienic and easy to clean while offering maximum water and energy savings.

Location: Hamilton, New Zealand
Project: Changing room and toilet block upgrade
Client: Hamilton City Council
Time of Project: Completed March 2021
Architect: Peddlethorp

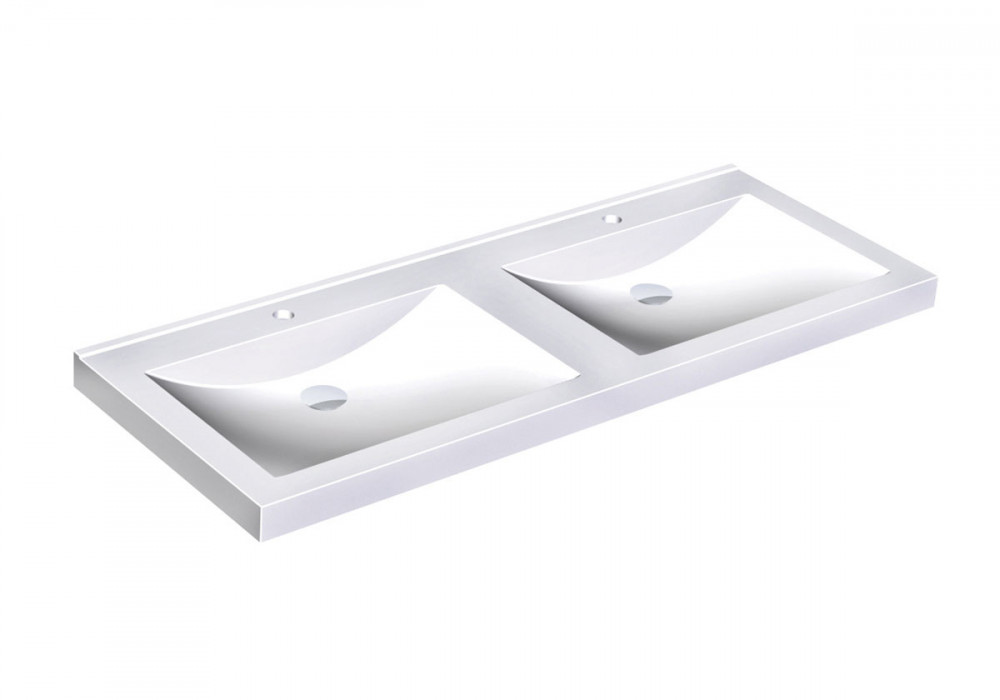

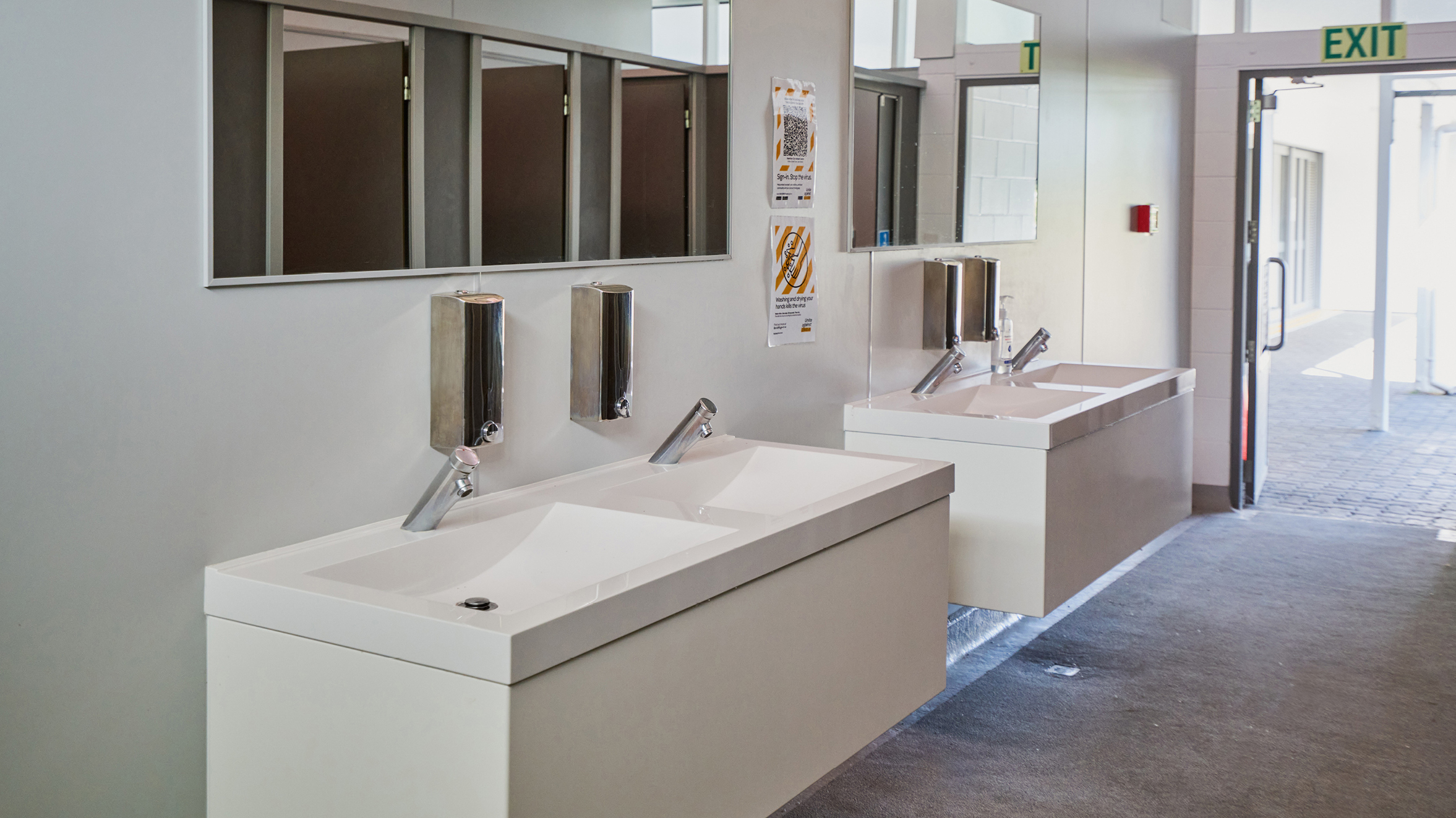

KWC Quadro Double Washbasin - FR-ANMW420

MacDonald Industries

View Product

The KWC Quadro double washbasin is made of MIRANIT, a resin-bonded mineral material with smooth, pore-free surface (temperature resistant up to 80°C), and features two seamless, rectangular bowls, without overflow.

Washbasin dimensions 1400 x 60 x 530mm (W x H x D), bowl dimensions 580 x 40/90 x 360mm (W x H x D)
Available with or without taphole
No overflow

temperature resistant up to 80°C

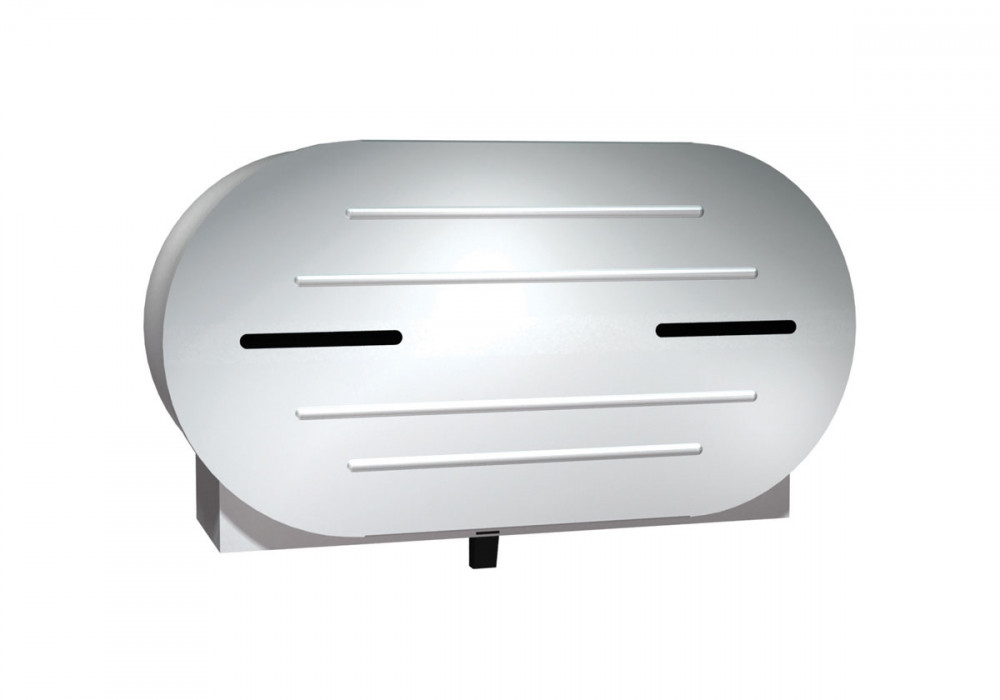

ASI Surface Mounted Jumbo Double Toilet roll Dispenser - AS0040

MacDonald Industries

View Product

ASI AS0040 is a surface mounted double, jumbo (250 dia with a 76 or 57mm core) roll, toilet paper dispenser.

Jumbo roll size (250 dia with a 76 or 57mm core)
Tumbler key lock, keyed to other ASI products

Tissue dispenser mechanism is high impact, flame retardant ABS
Cabinet cover is fabricated in 1mm Type 304 satin finish stainless steel

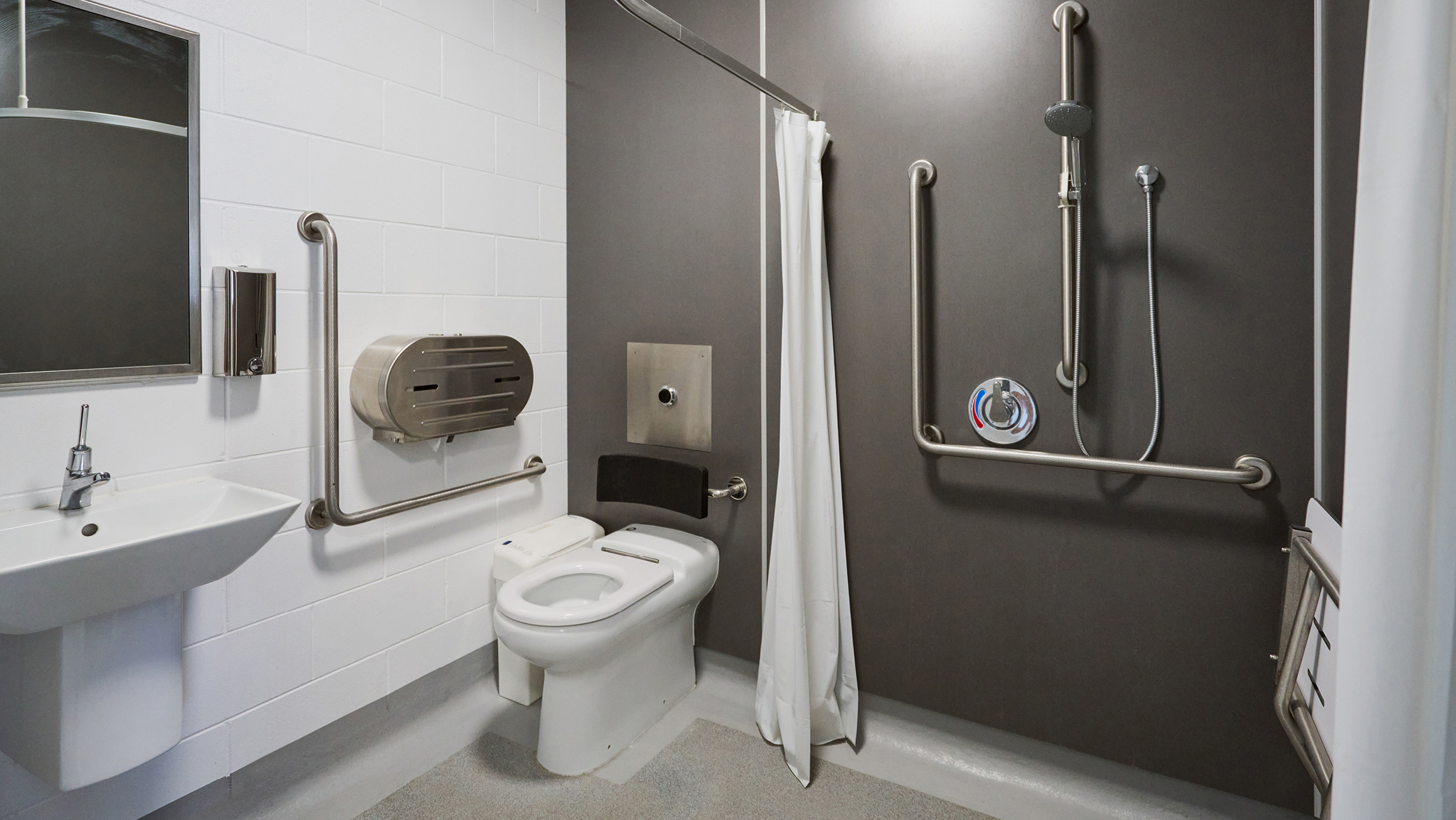

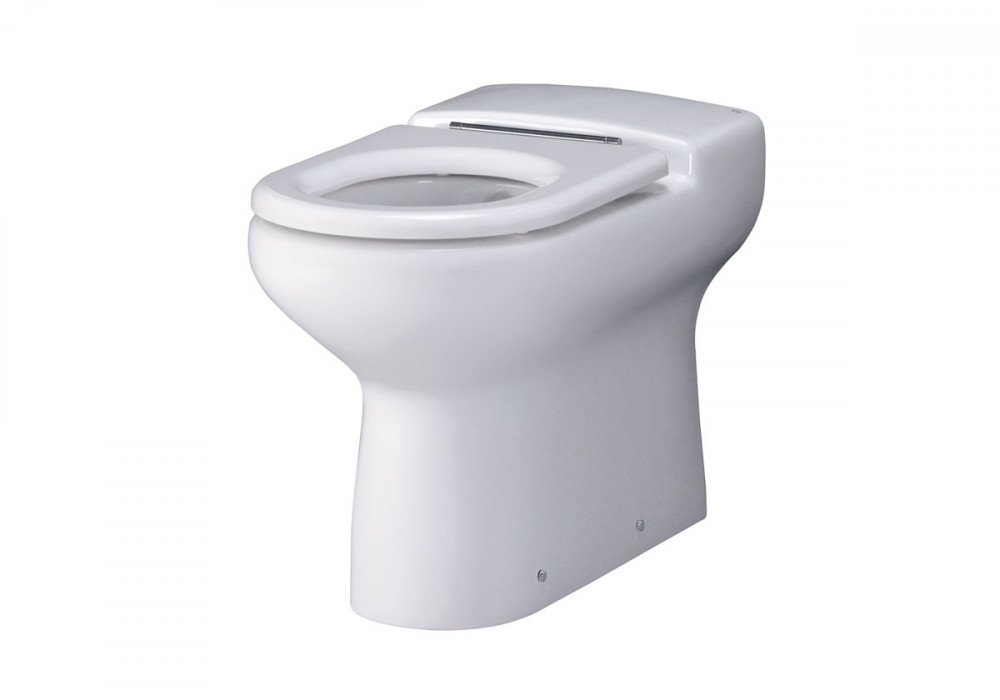

RAK Compact Accessible Wall Faced Toilet Pan — RA-CO1144

MacDonald Industries

View Product

The Compact accessible toilet range has been created to provide comfortable convenience to people with additional needs.

When used with the soft close seat and lid, the Compact suite meets the requirements of AS1428.1:2009 as being suitable for use in disabled bathrooms
Compact accessible is available in wall-faced toilet suite, wall-faced toilet pan (as shown) or wall-hung toilet pan formats

Delabie Temposoft and Tempostop Basin Taps — DE702351, DE740000

MacDonald Industries

View Product

Tempostop and Temposoft are deck mounted time flow basin taps designed to prevent water wastage and flooding.

Suitable for public bathrooms and commercial use
Suitable for mains or high-pressure systems

Recommended for:

Educational facilities
Industrial buildings
Public and retail amenities
Sporting facilities
Commercial office buildings (DE702351 only)

Time flow ~7 sec.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.5 to 6 lpm

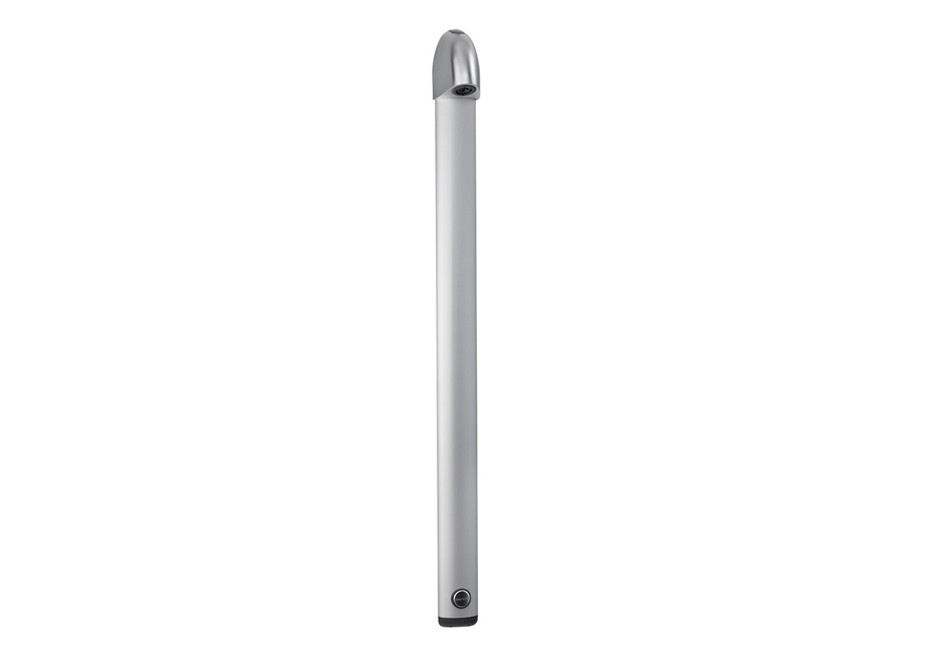

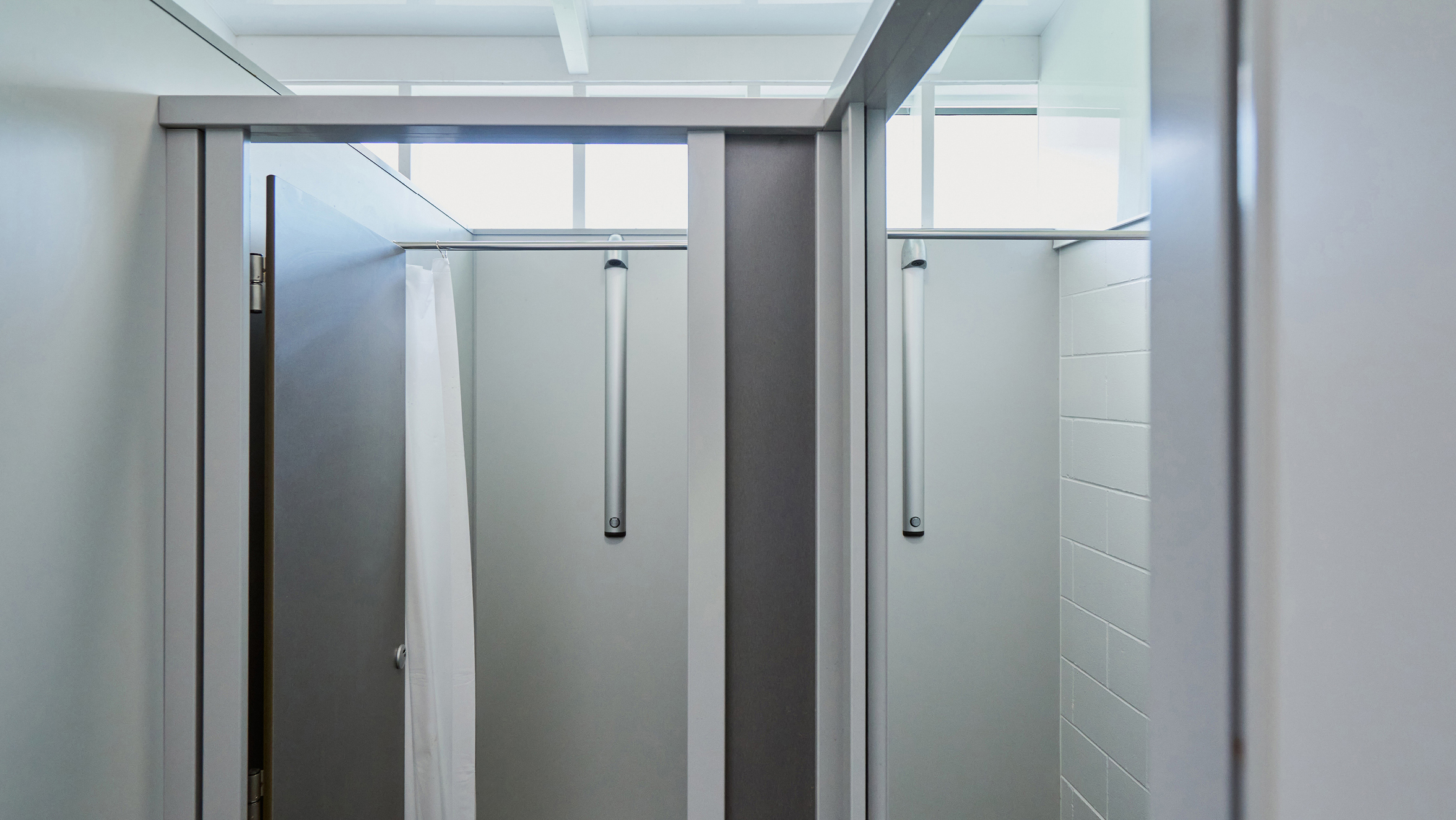

Delabie Sporting 2 Shower Panel — DE714700

MacDonald Industries

View Product

The Delabie Sporting 2 Shower is a time flow shower panel for surface mounting with soft touch operation.

Suitable for public facilities
Time flow ~30 seconds
Flow rate 6L/min at 300kPa
Operating pressure 100-500kPa, 300kPa is recommended
Supplied with non-return valve, filter, integrated stopcock and M1/2” connection for mixer water supply

Tamperproof fixed shower head with scale resistant outlet

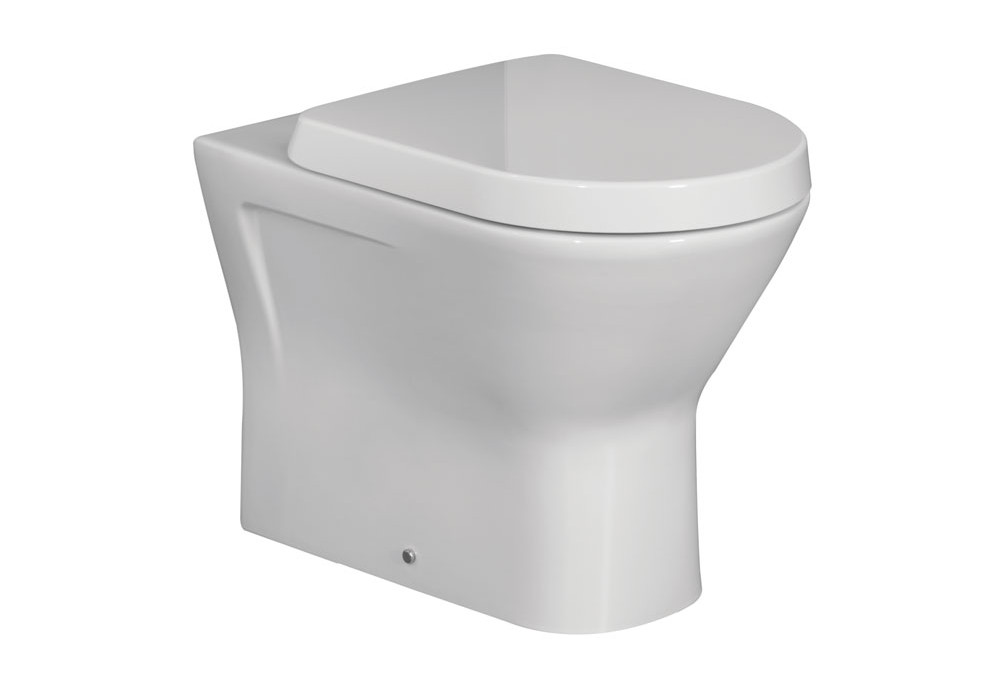

RAK Resort Rimless Wall Faced Toilet Pan: RA-RE1124

MacDonald Industries

View Product

Resort toilet range combines aesthetics and practicality in an elegant manner while its compact form uses space economically, making the bathroom area feel luxuriously spacious.

For public and commercial buildings
Suited to small bathrooms
P-trap or S-trap outlet connections

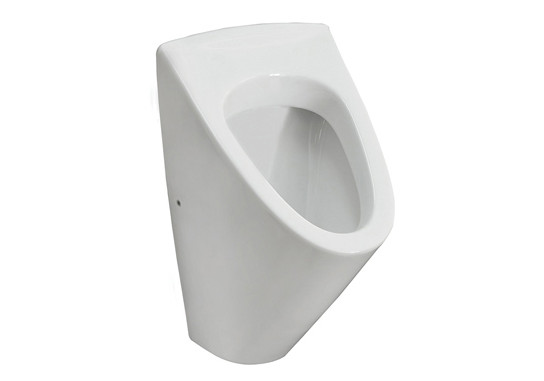

Venice Wall Hung Urinal - RA-VE3200

MacDonald Industries

View Product

The Venice urinal has unique and exotic design characteristics.

Water pressure range: 100-500kPa
