Premium Wall Lining for a Premium Look

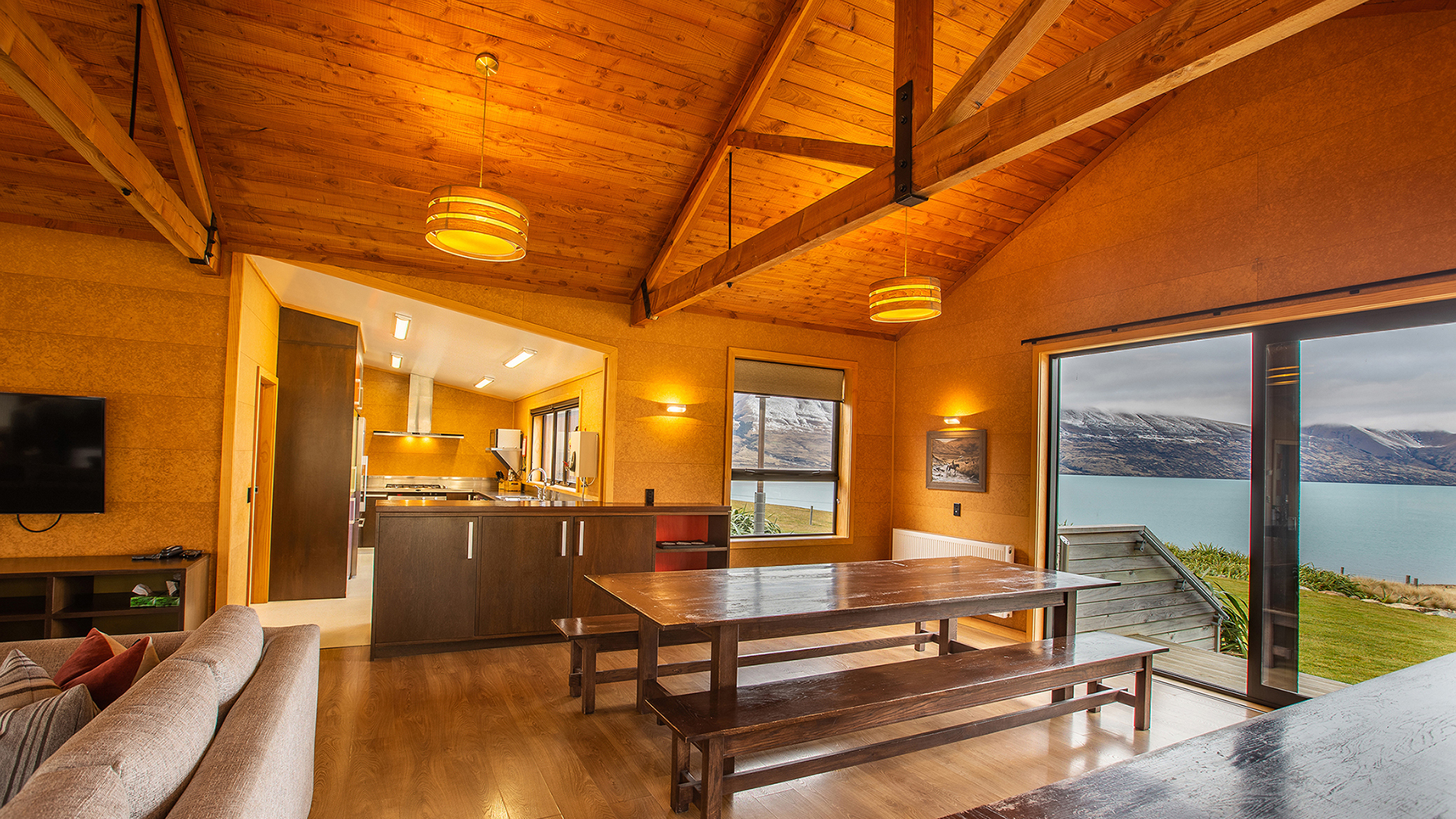

When scenic Lake Ohau Quarters needed wall lining options, they searched for a product that was not only appealing to the eye, but one that would blend in with the stunning alpine backdrop. Triboard TGV was the premium solution with its unique tones and natural patterns.

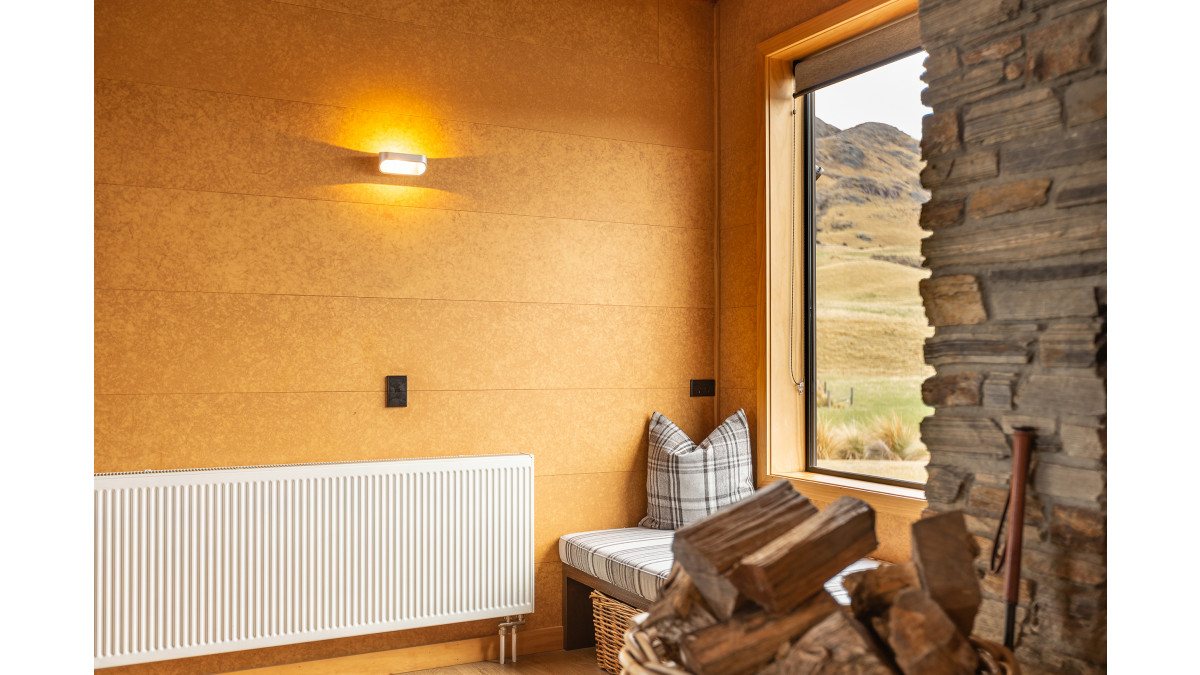

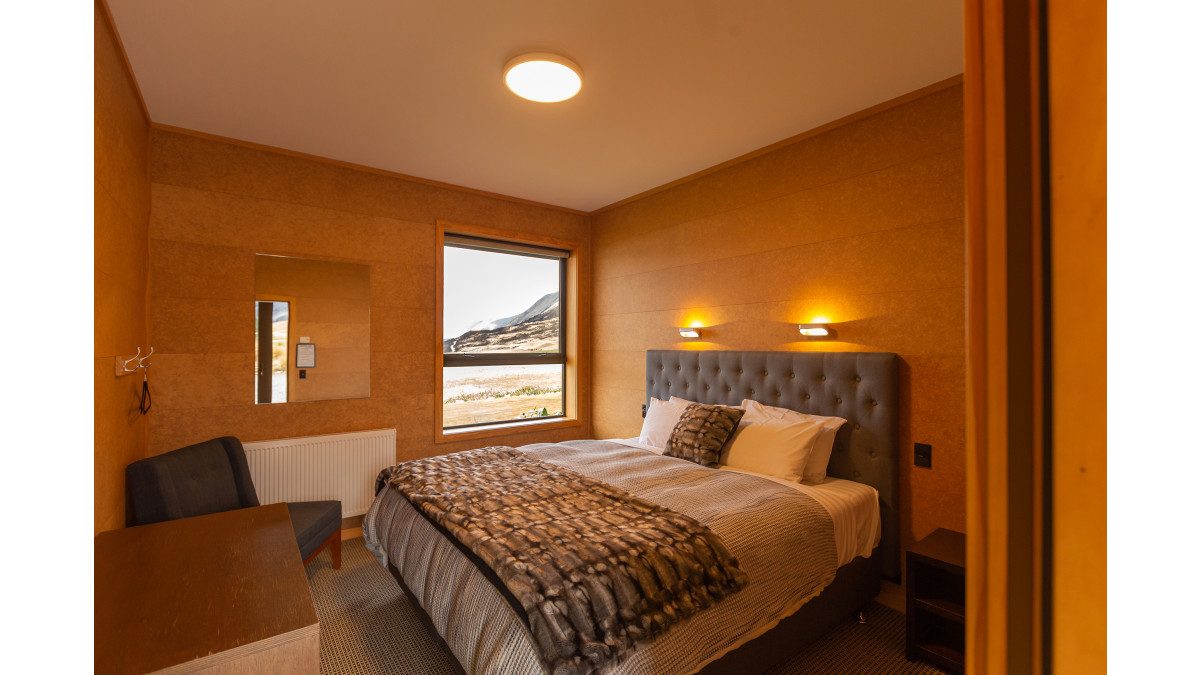

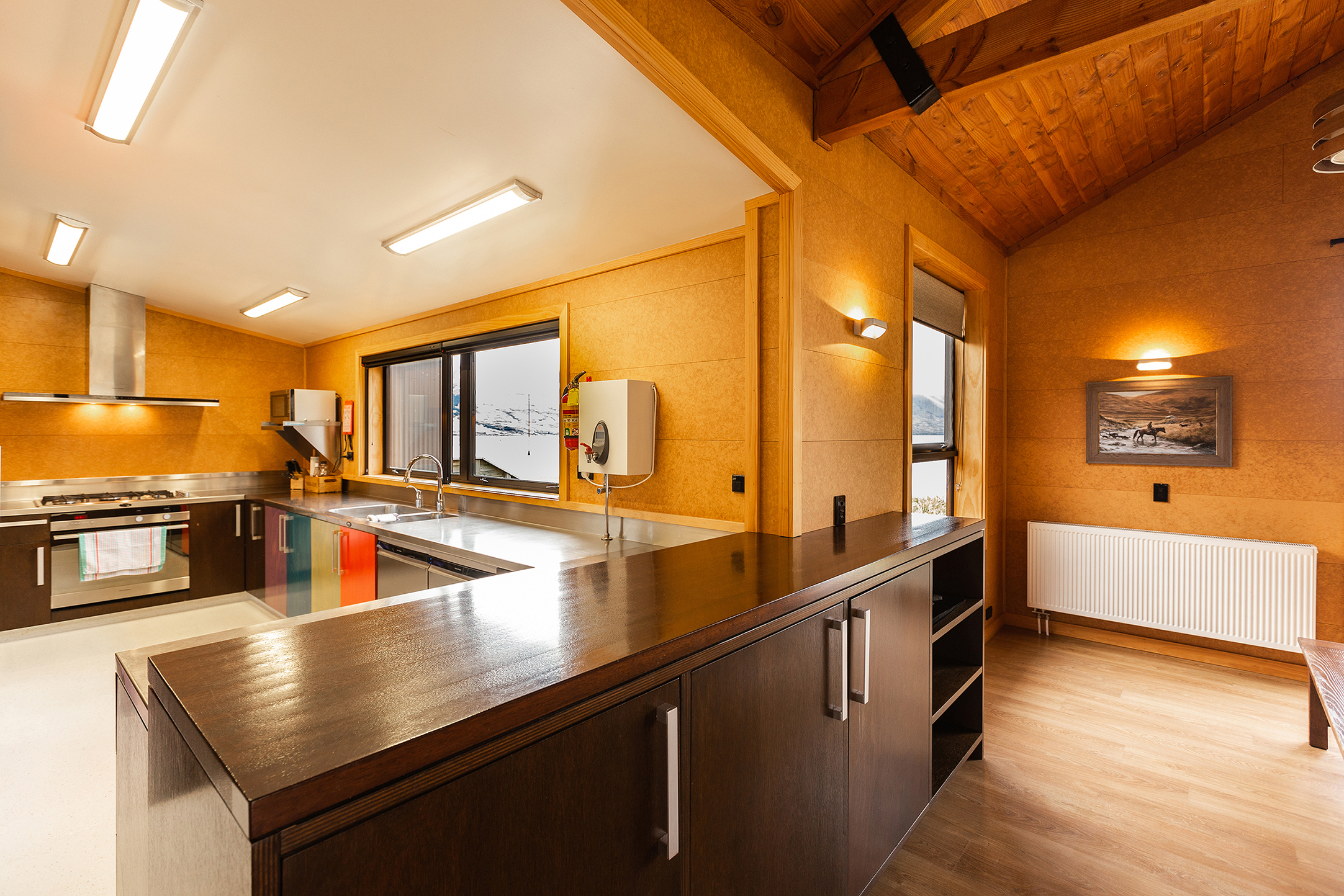

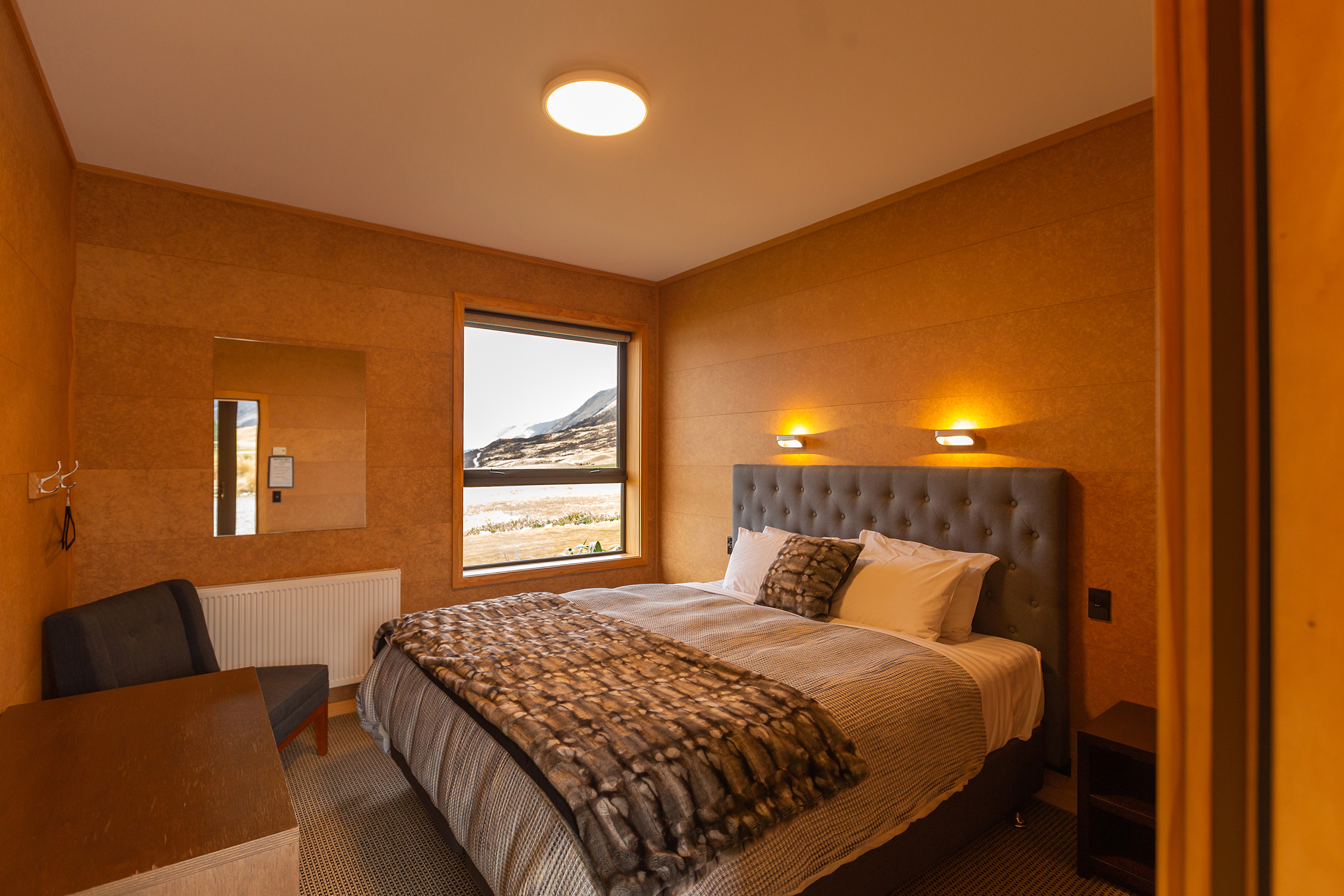

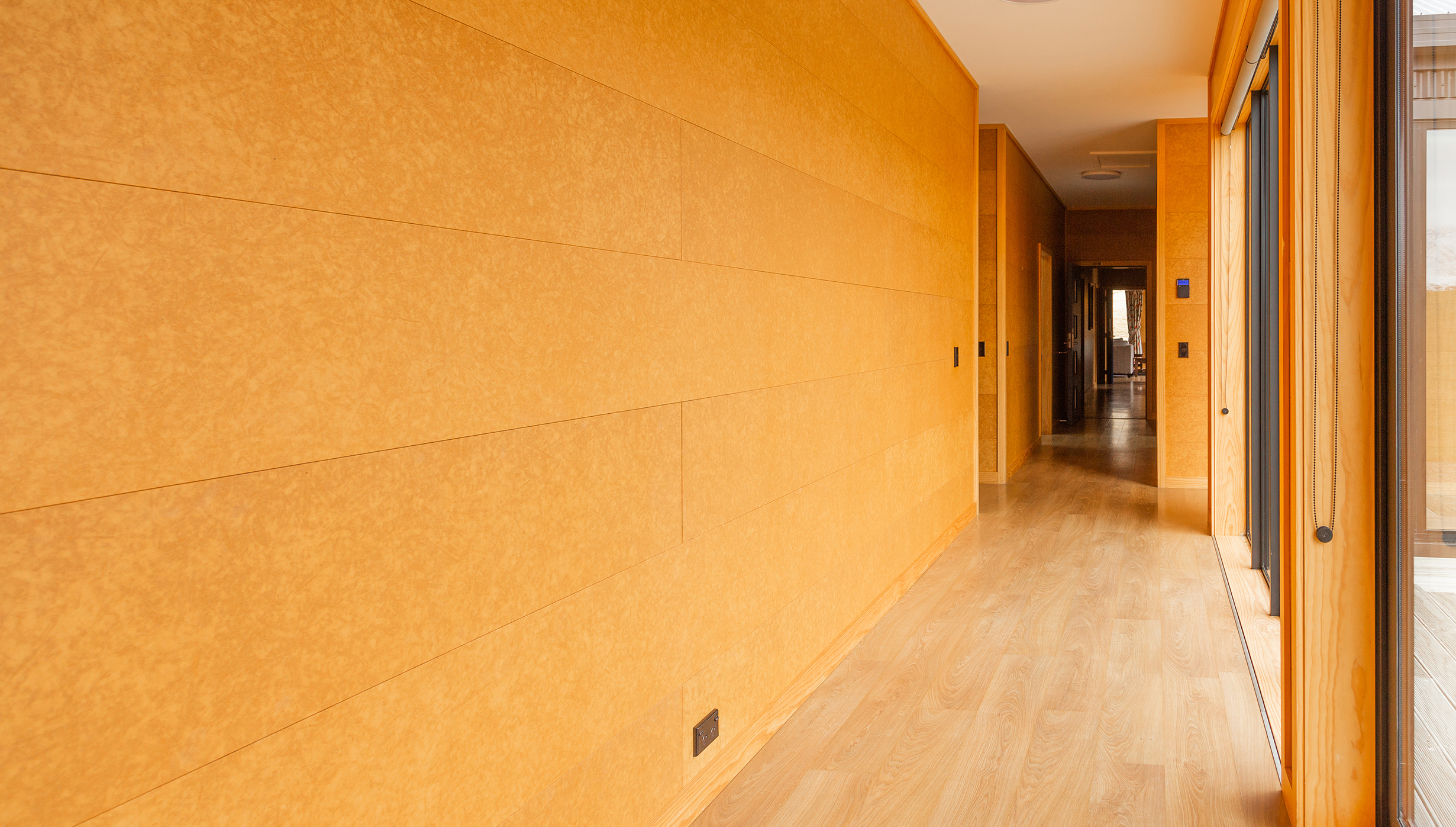

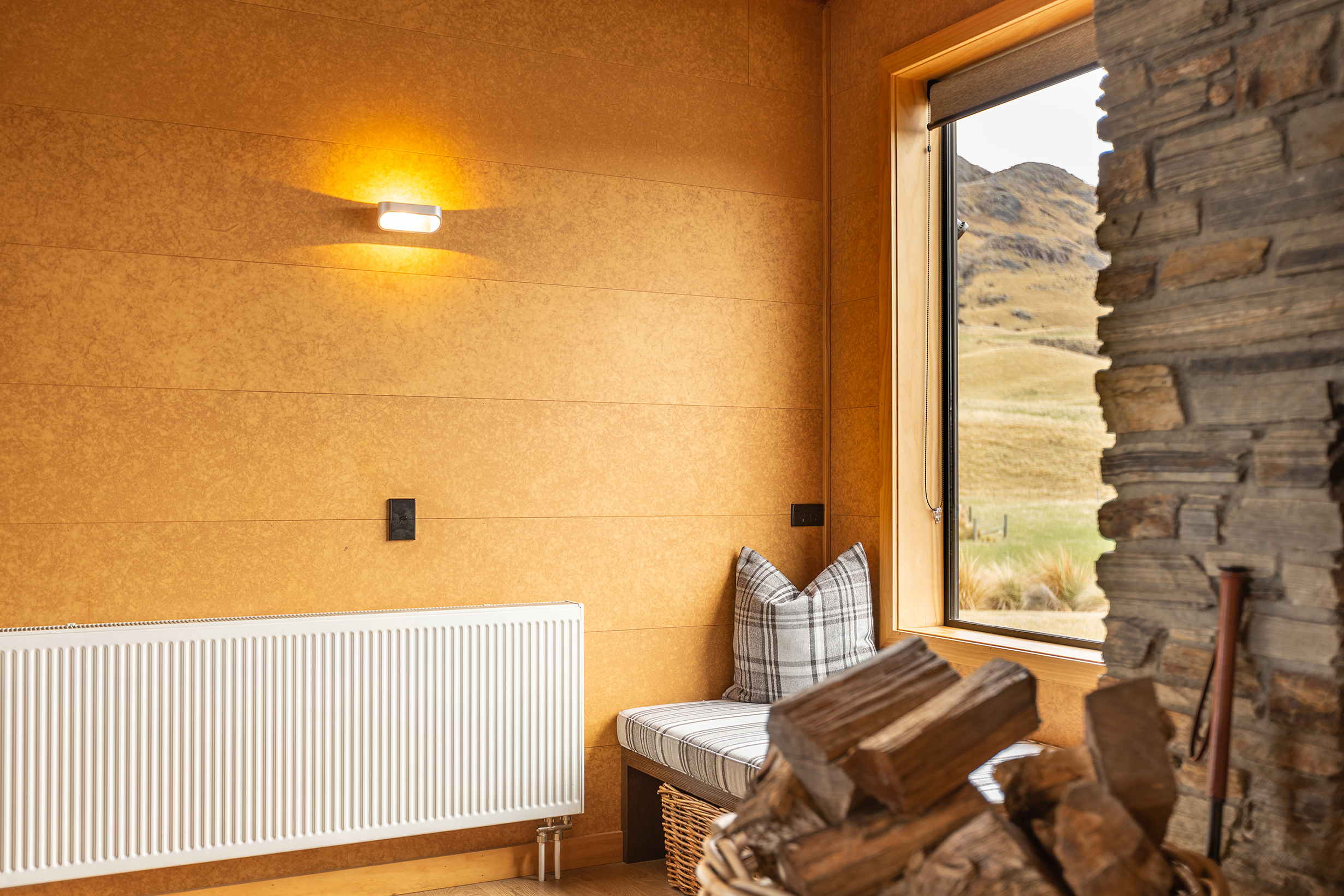

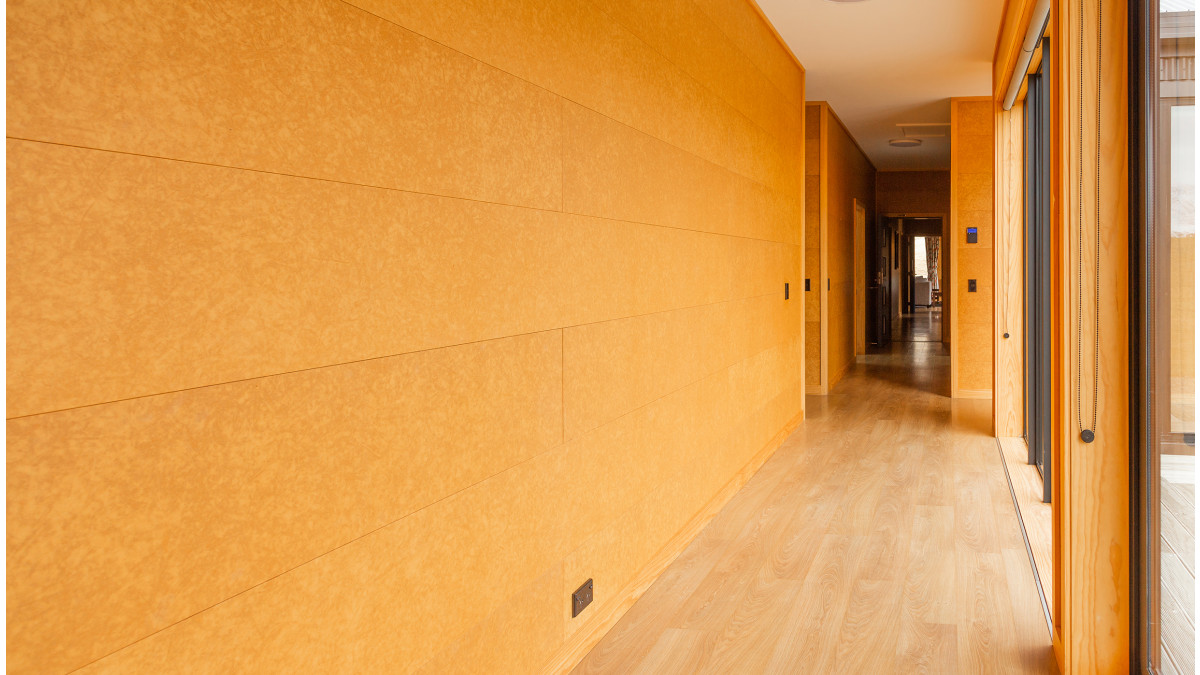

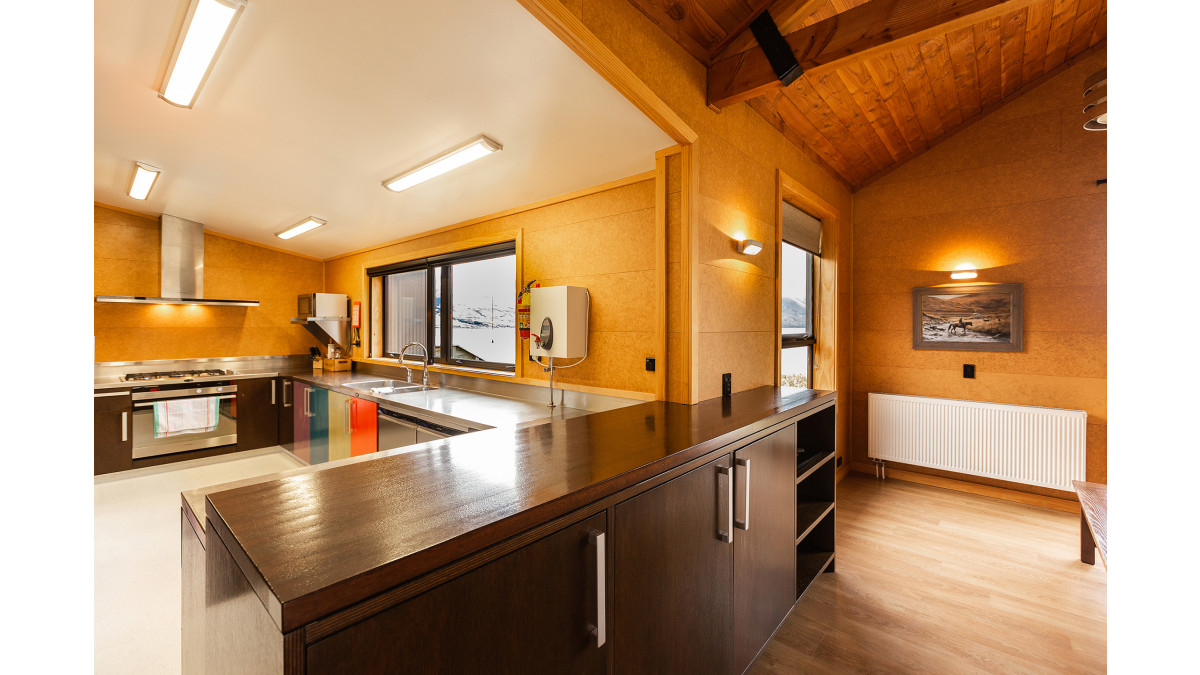

The warm tones of Triboard’s TGV finish in the horizontal format provided each room with space, warmth and a natural connection to the beautiful surrounds.

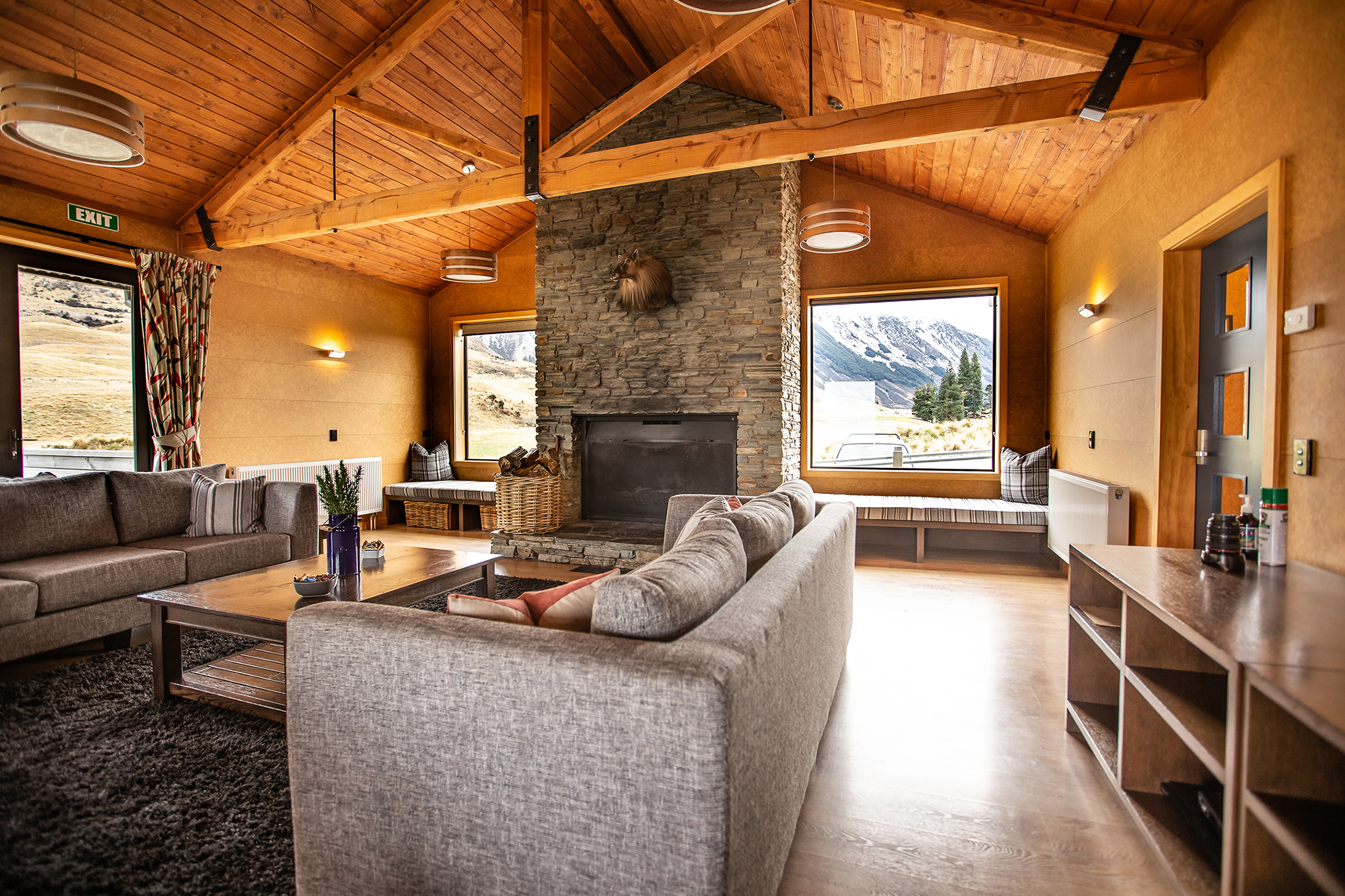

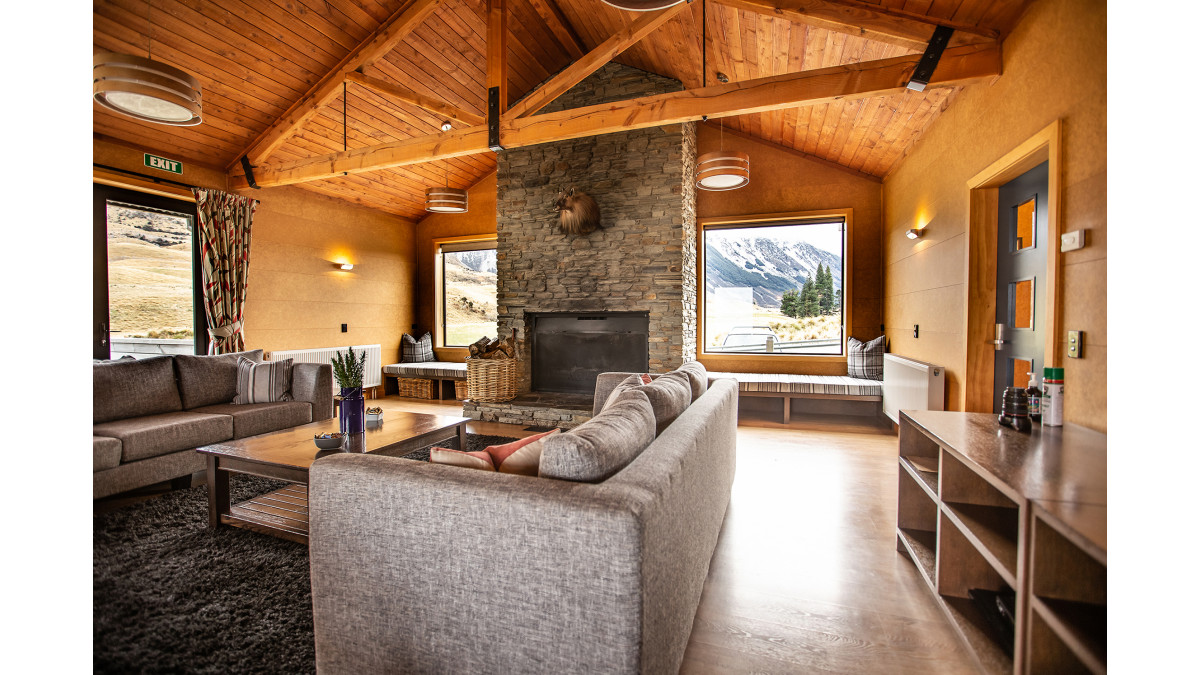

Surrounded by mountains and Lake Ohau, Triboard TGV gives this exceptional South Island high country accommodation the luxurious look and feel it deserves.

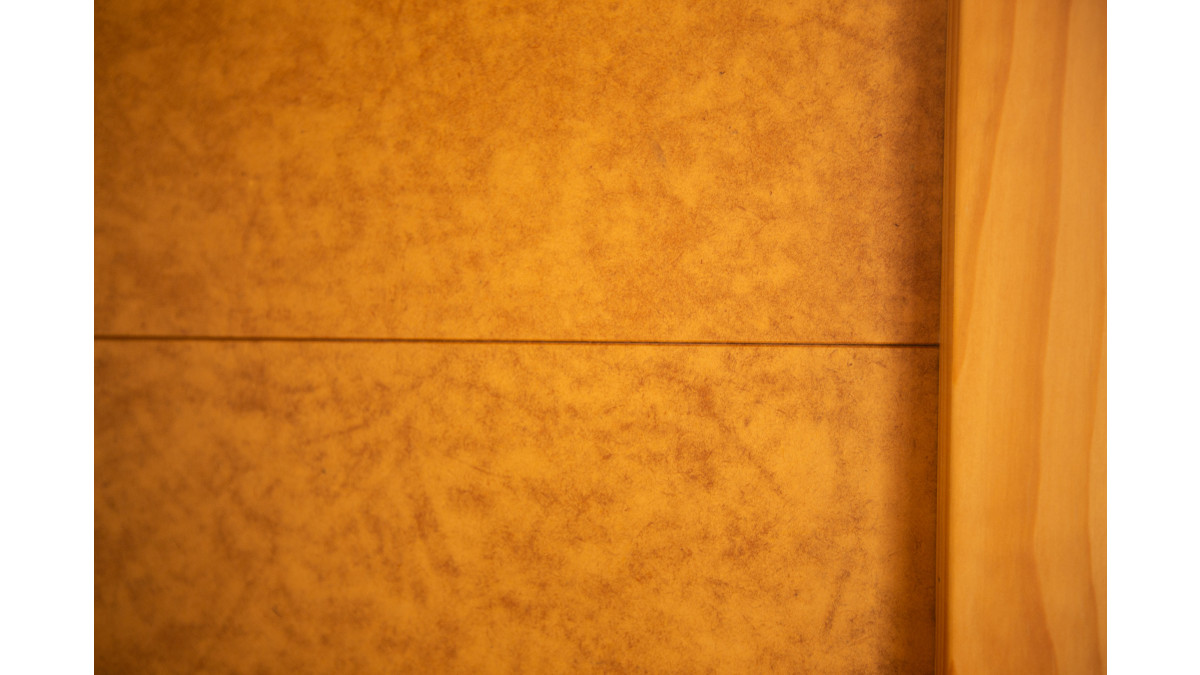

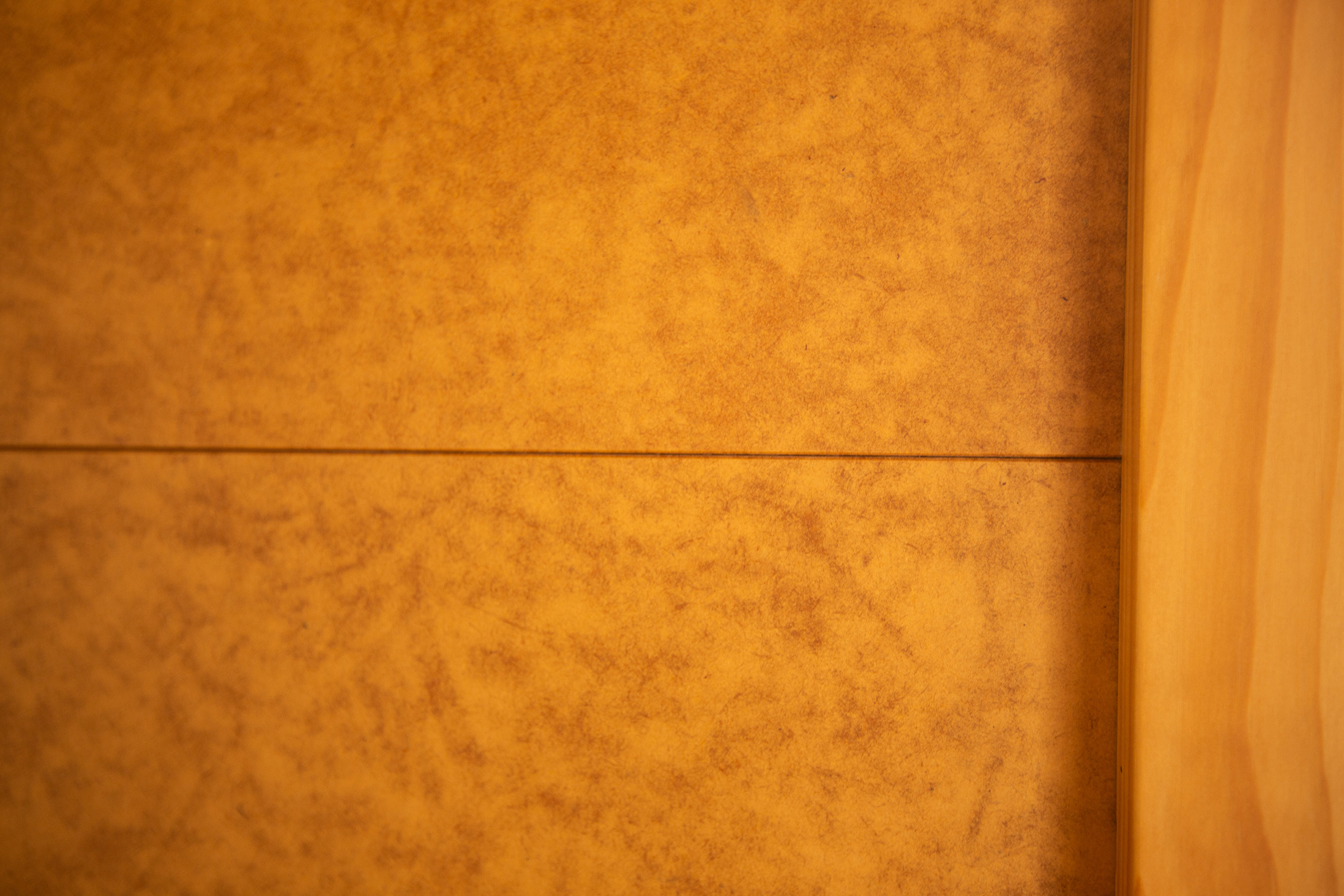

New Zealand made Triboard TGV is a three-layered panel, with a wood strand core, sandwiched between MDF outer “skins”. The result is a clean-lined panel that has great resistance to impact. The dimensionally stable core also provides superior screw holding ability, meaning screws will not loosen over time. And the tongue and groove system also allows for fast and easy installation.

Triboard TGV is also ideal for lining ceilings and can be erected horizontally or vertically on walls. The MDF surfaces offer a grade 5+ paint finish capability, so designers and homeowners are free to decorate it however they choose. This innovative combination of smooth surfaces with inner strength makes it a premium alternative to traditional wall lining products.

Key features:

Common sheet sizes for 10mm and 15mm: 2400(L) x 400(W) x 15mm(H) and 3740 x 400 x 15mm
Technical product support available at [email protected] or call (09) 373 3933
Made in New Zealand for New Zealanders from a responsibly managed forest resource
Forest Stewardship Council (FSC) certified.

Triboard — TGV Lining

Juken New Zealand

View Product

Triboard TGV is a durable lining for walls and ceilings.

FSC Certified

Common sheet sizes: 2400 x 400 x 15mm / 3740 x 400 x 15mm
Suitable for home renovations, sheds, beach houses, garages, and workshops — where high impact resistance is required
Paint-ready. MDF surfaces offer a grade 5+ paint finish capability
Easy to install. The panels are light enough for a one man installation

Tongue and Groove joint:

Each TGV panel is 400mm wide and it may be that the stud centres are not at 400 or, if lining a Portal or Pole shed, it’s likely that there will be no studs at all. Having a Tongue and Groove joint between the Triboard panels means that it doesn’t matter what centres the studs are because no framing is needed behind the join.
Or, in the case of having girts only in a portal building, you don’t need to install vertical nogs to support the edge of the sheet as you would for other lining products.

Triboard TGV as Wall Bracing:

Owing to the narrow (400mm) width of a TGV panel, it is generally not suited to installation as bracing as the fixings required to the bottom plate are prohibitive
Should Wall Bracing be required, full size Triboard sheets are available in 10mm and 15mm. Bracing figures compliant with NZS3604 are available from Juken.

Fixing Triboard TGV Panels to the frame:

When lining Steel Portal Sheds:
- Self-Tapping 8g screws suitable for light gauge steel with Drill or Winged points, fixed into the horizontal girts
- Girts should be at no more than 1.0m spacing vertically
- The screws are recommended at approximately 180mm centres in each panel. (3 per panel per girt)
When lining a Timber Portal or Pole Farm Shed:
- Use 8g CSK wood screws 35-40mm long into the girts
- Install screws to the same fixing pattern as for steel (3 per panel per girt)
- The same fixing is appropriate into the horizontal nogs of conventionally framed timber walls

Self-Tapping 8g screws suitable for light gauge steel with Drill or Winged points, fixed into the horizontal girts
Girts should be at no more than 1.0m spacing vertically
The screws are recommended at approximately 180mm centres in each panel. (3 per panel per girt)

Use 8g CSK wood screws 35-40mm long into the girts
Install screws to the same fixing pattern as for steel (3 per panel per girt)
The same fixing is appropriate into the horizontal nogs of conventionally framed timber walls

Panel adhesive is recommended for all fixing types:

As Triboard is not used as wall bracing, and therefore doesn’t perform a structural role, these fixing specifications are simply guidelines
For less visible fixing, good results can also be obtained using gun fired nails or brads in conjunction with panel adhesive.

See Juken website for full information

Improved impact resistance over some traditional internal lining solutions
MDF surfaces offers a grade 5+ paint finish capability
Made in New Zealand from a responsibly managed forest resource — Forest Stewardship Council (FSC) certified
