James Hardie Delivers Multi-Clad Appeal for St Kilda Homes

The quarter acre dream is still within reach at the St Kilda subdivision in Cambridge. In this newly developed subdivision, an average section is 1,600m², which is twice the size of today's average suburban sections for sale in Hamilton and Cambridge.

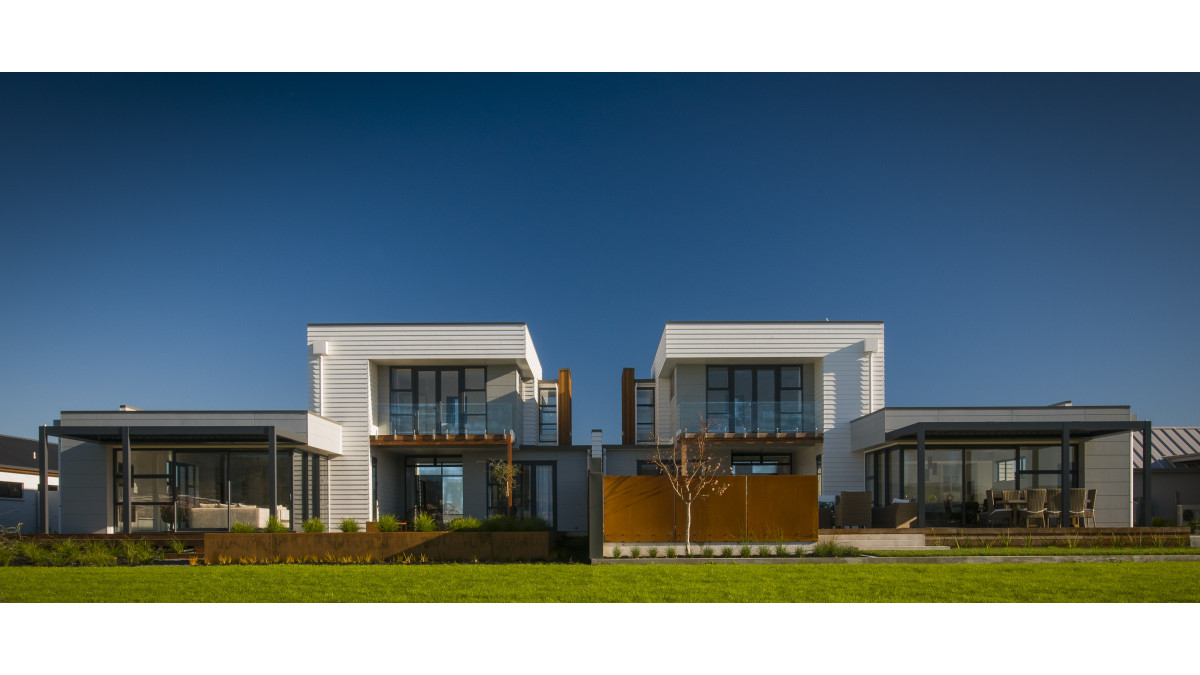

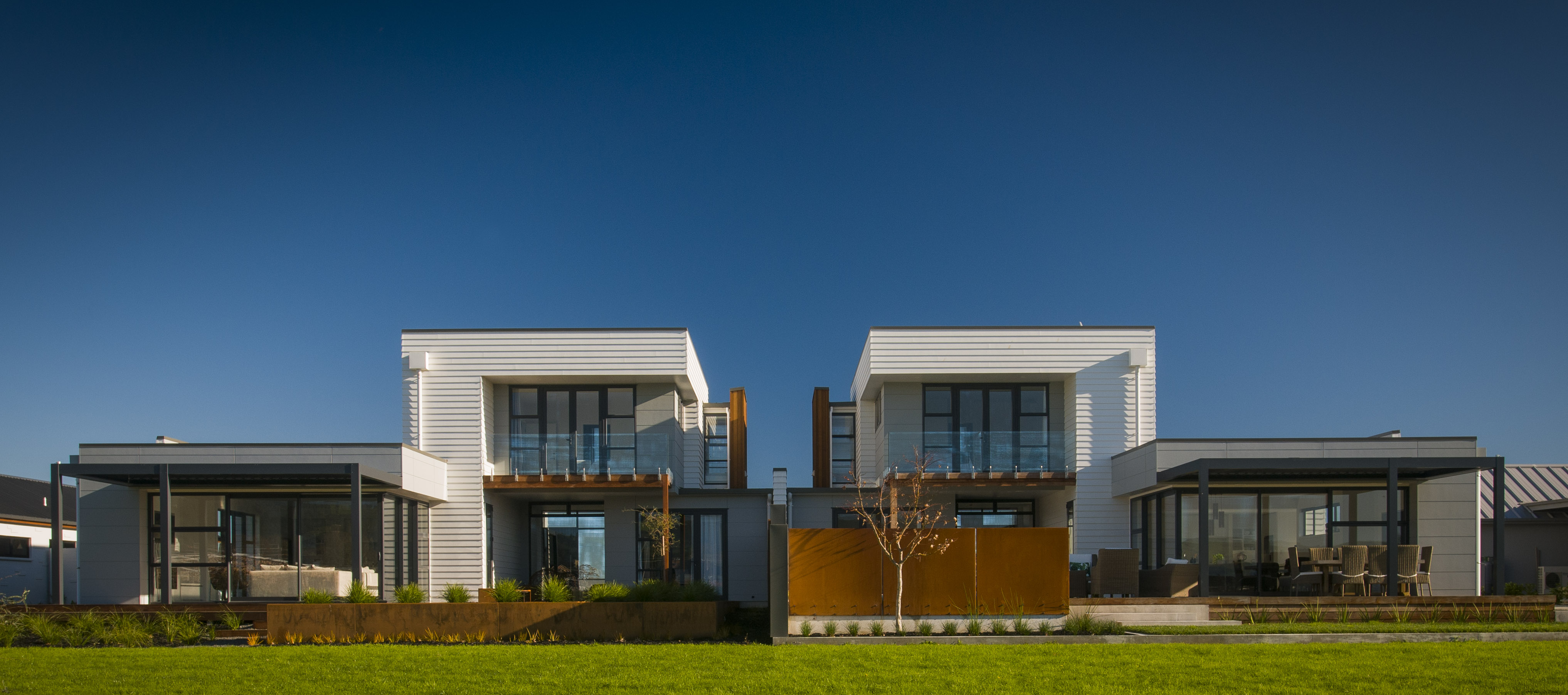

The high spec two-storey Wetlands Duplex showhome features James Hardie Linea Weatherboard and Stria Cladding on the exterior, with Secura Interior Flooring on the upper floor. The materials were selected for their superior quality, with the cladding providing an 'upmarket and high-end' feel.

The Challenge

The requirement was architecturally designed homes that allow easy and comfortable modern day living on large sections — without breaking the bank — and without compromise.

With a starting price of just $270,000, these homes are built using quality materials to deliver value-for-money that is difficult to find elsewhere in New Zealand.

The James Hardie Solution

"We didn't want to compromise on the claddings and fixtures," says Aaron Guerin, Director of LAD Architecture. "Linea Weatherboard and Stria Cladding are showcase products and possess unique features that complement the cedar panelling also used on the home's exterior."

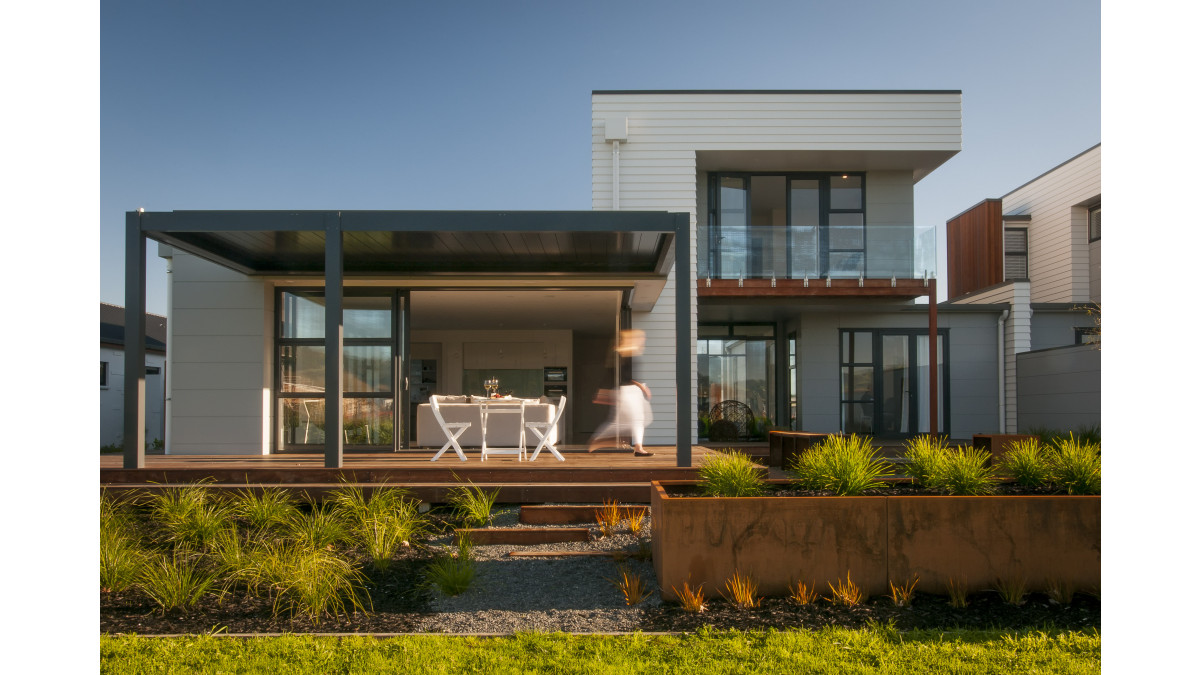

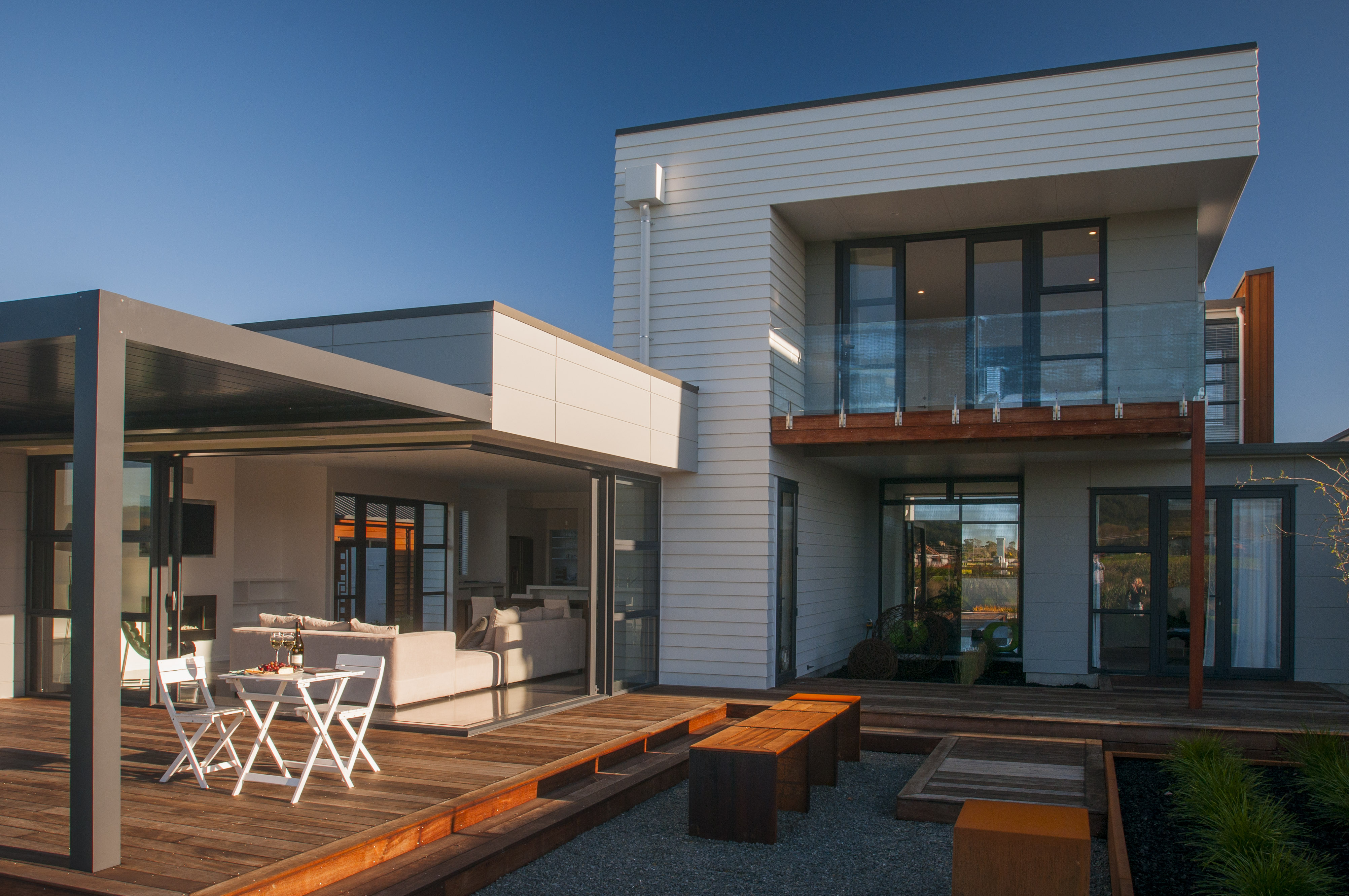

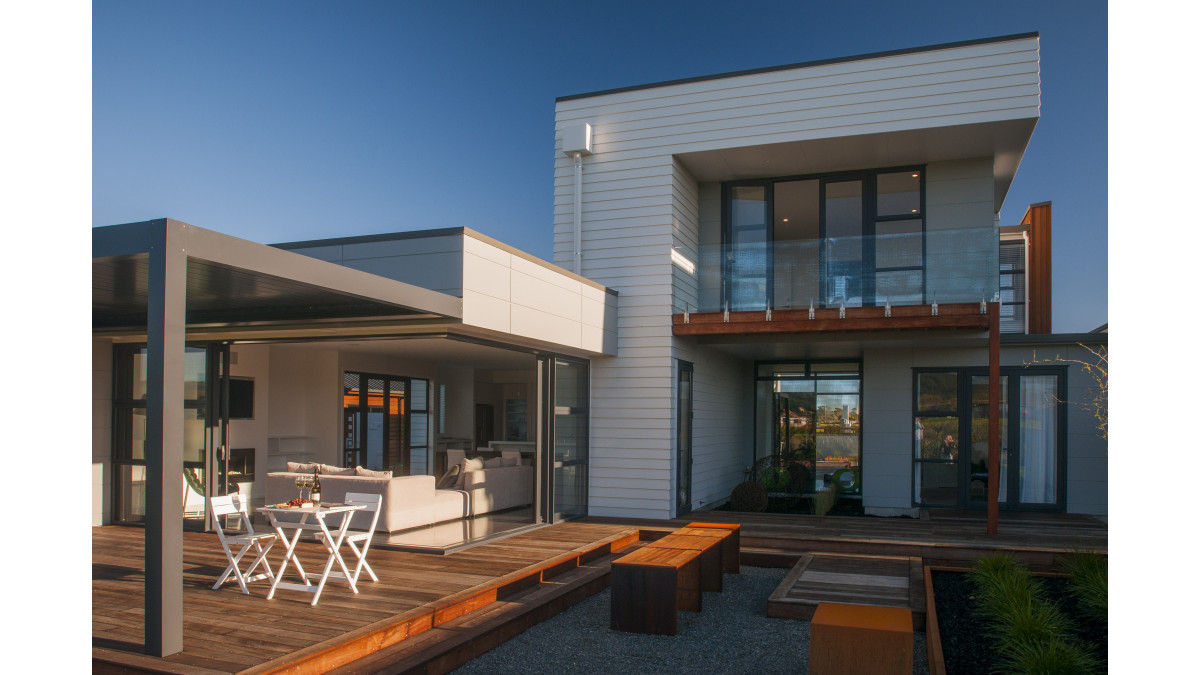

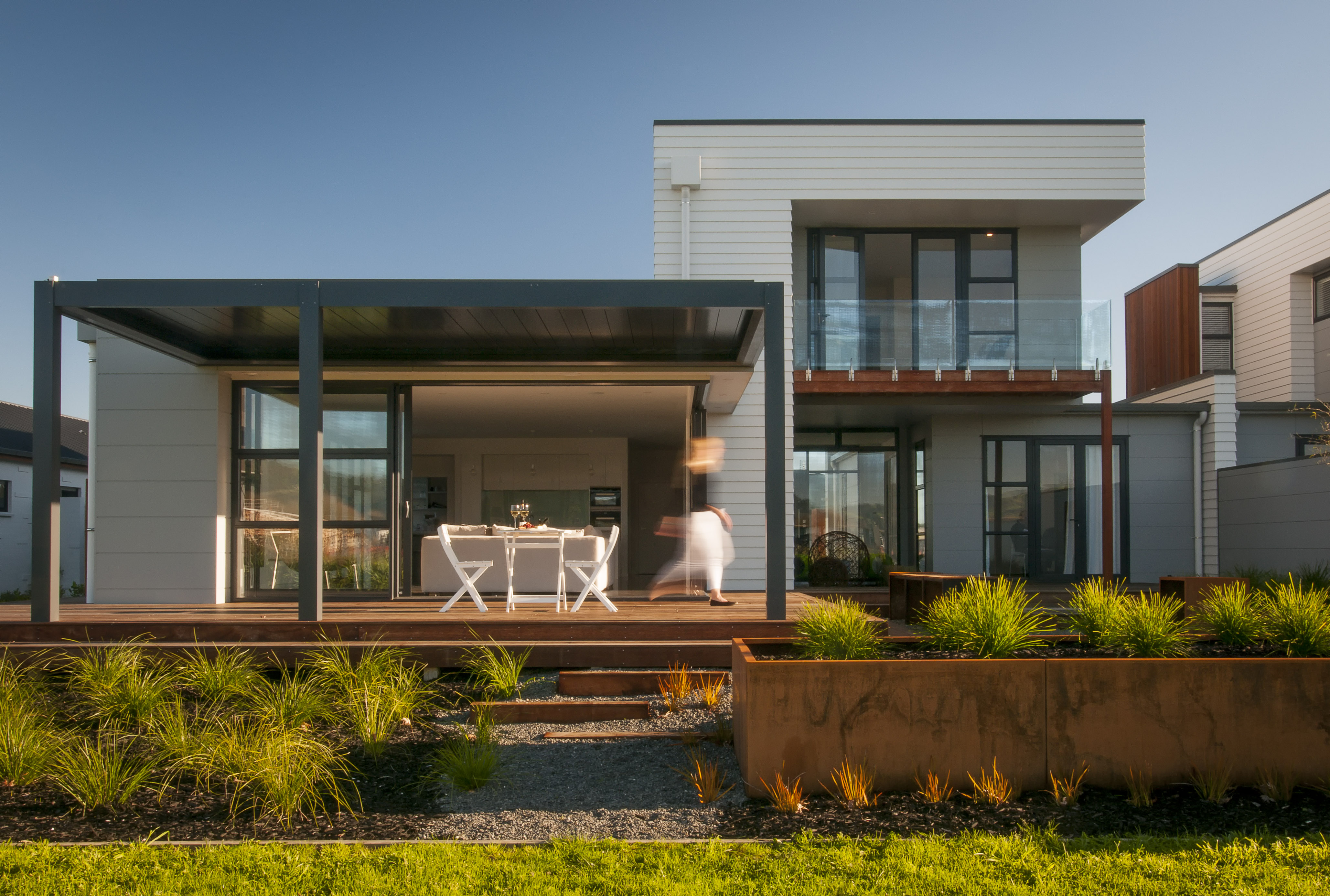

James Hardie products work well together and with other products to provide maximum design flexibility, as evidenced in this home. Linea Weatherboard was installed as the predominant cladding, with Stria Cladding used on the lower floor as a striking feature. The broad, clean lines of Stria create a bold and dynamic finish, making it ideal for this contemporary design home. The claddings are painted in a modern dark grey colour scheme.

In addition to design flexibility, James Hardie claddings provide build benefits. The lightweight cement composite sheets are gun nailable and easy to work with.

"The builders can lift and fix the sheets quickly and easily, providing significant benefits labour-wise," explains Guerin. These benefits are passed onto the homeowner and are reflected in the affordability of these homes.

During construction James Hardie reps were on hand to provide support to the build. Reps also provided installation training prior to works commencing, which Guerin says will help ensure the home meets the expectations of customers and Synergy Designer Homes' own high standards.

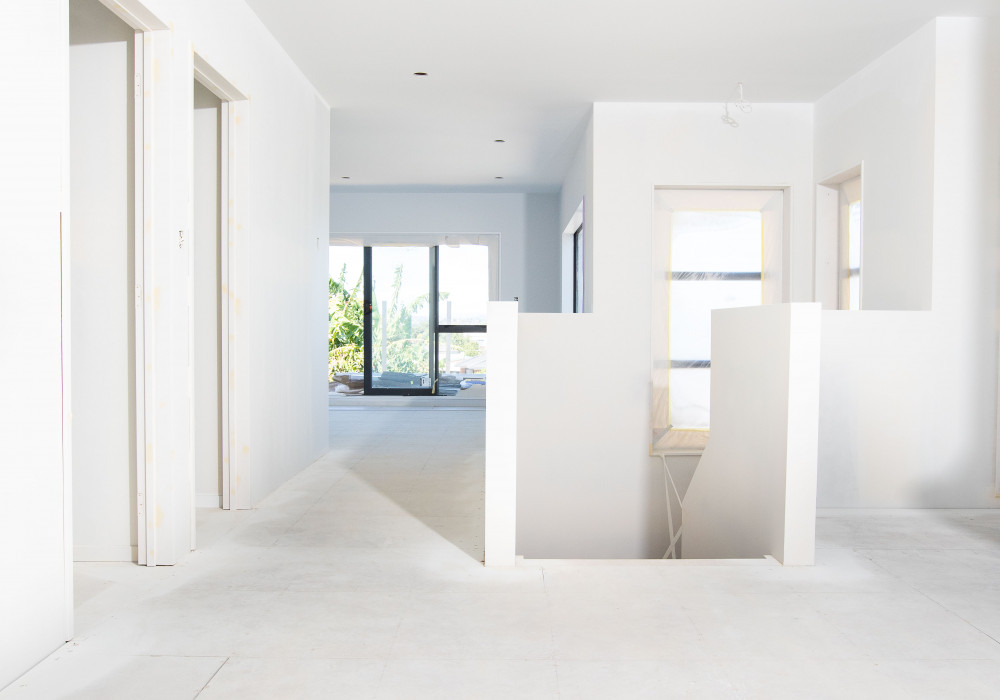

The flooring for the upstairs master bedroom also provided building efficiencies.

Secura Interior Flooring is an all-in-one product — it can be tiled directly without the need for underlay, saving further time and money on the build.

The moisture-resistant sealer is an easy way to protect against moisture damage to interior floors. Guerin says, "The waterproofing element has provided us with security during the build and it provides long-term benefits in terms of its durability."

Its durable construction gives a squeak-free, solid feel under carpet, tiles or vinyl. The acoustic properties of the flooring, coupled with its stability and rigidity, are ideal for this high spec home.

"We pride ourselves on design, detail, and finish — and James Hardie's products fit the brief well," says Guerin.

Linea Weatherboard

James Hardie

View Product

Linea™ Weatherboard provides a traditional weatherboard look with deep shadow lines that ensure sustainability well into the future.

NZ Made

Provides a traditional weatherboard look — 16mm thick bevel-backed weatherboard
Linea Weatherboard can be used to achieve bracings
30, 60 and 90 minute fire resistance ratings can be achieved when installed as per the current James Hardie Fire and Acoustic Design Manual
Direct or Cavity fix
Tongue and groove ends for easy and unflashed off stud jointing
Exceptional performance in harsh conditions, including coastal environments
Boards come pre-primed manila white in colour can be painted dark colours

Clause B1 STRUCTURE: Performance B1.3.1, B1.3.2, B1.3.4 for the relevant physical conditions of B1.3.3 (a), (f), (h), (j) and (q).
Clause B2 DURABILITY: Performance B2.3.1(b) 15 years and B2.3.2.
Clause C3 FIRE AFFECTING AREAS BEYOND THE FIRE SOURCE: Performance C3.5, C3.7
Clause E2 EXTERNAL MOISTURE: Performance E2.3.2, E2.3.5, E2.3.6 and E2.3.7
Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1.

BRANZ Appraised

CodeMark

Secura Interior Flooring

James Hardie

View Product

Secura™ Interior Flooring is a high performance structural floor, offering the robust feel of concrete with the speed of timber installation.

A high performance structural floor for residential and light commercial floors
Can be used as a lightweight intertenancy floor
Wet and dry areas
Ideal substrate for wet area tiling vinyl or carpet over timber floor joists
The tongue and groove joint removes the requirement for blocking
Can be gun nailed
Can be tiled directly without the need for underlay, avoiding noticeable height differences from one floor finish to the next

Stria Cladding

James Hardie

View Product

Stria™ Cladding is a wide format board that has the classic appeal of decorative render and solid masonry.

NZ Made

For use as an external wall cladding installed either horizontally or vertically in residential and light commercial:
- Feature walls
- Full cladding for new builds
- Cladding for additions and renovations
- Internal feature walls
- Ideal for overhangs, protective cantilevers and other architectural features
Designed to withstand harsh weather and coastal conditions
Can be painted any colour, even the darker shades

Feature walls
Full cladding for new builds
Cladding for additions and renovations
Internal feature walls
Ideal for overhangs, protective cantilevers and other architectural features

In the opinion of BRANZ, Stria™Cladding Horizontal, if designed, used, installed and maintained in accordance with the statements and conditions of this Appraisal, will meet the following provisions of the NZBC:

Clause B1 STRUCTURE: Performance B1.3.1, B1.3.2 and B1.3.4. Stria™Cladding Horizontal meets the requirements for loads arising from self-weight, wind, impact and creep [i.e. B1.3.3 (a), (h), (j) and (q)]. See Paragraphs 9.1-9.3.
Clause B2 DURABILITY: Performance B2.3.1 (b) 15 years, B2.3.1 (c) 5 years and B2.3.2. Stria™ Cladding Horizontal meets these requirements. See Paragraphs 10.1-10.4.
Clause E2 EXTERNAL MOISTURE: Performance E2.3.2. Stria™ Cladding Horizontal meets this requirement. See Paragraphs 14.1-14.5.
Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1. Stria™ Cladding Horizontal meets this requirement.

See BRANZ Appraisal No. 1224 for full information

In the opinion of BRANZ, Stria™ Cladding Vertical, if designed, used, installed and maintained in accordance with the statements and conditions of this Appraisal, will meet the following provisions of the NZBC:

Clause B1 STRUCTURE: Performance B1.3.1, B1.3.2 and B1.3.4. Stria™ Cladding Vertical meets the requirements for loads arising from self-weight, wind, impact and creep [i.e. B1.3.3 (a), (h), (j) and (q)]. See Paragraphs 9.1-9.3.
Clause B2 DURABILITY: Performance B2.3.1 (b) 15 years, B2.3.1 (c) 5 years and B2.3.2. Stria™ Cladding Vertical meets these requirements. See Paragraphs 10.1-10.4.
Clause E2 EXTERNAL MOISTURE: Performance E2.3.2. Stria™ Cladding Vertical meets this requirement. See Paragraphs 14.1-14.5.
Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1. Stria™ Cladding Vertical meets this requirement.

See BRANZ Appraisal No. 1225 for full information

The system if designed, used, installed and maintained in accordance with CodeMark number GM-CM30109 will meet the following provisions of the NZBC:

Clause B1 STRUCTURE: Performance B1.3.1, B1.3.2, B1.3.4 for the relevant physical conditions of B1.3.3 (a), (f), (h), (j) and (q).
Clause B2 DURABILITY: Performance B2.3.1(b) 15 years and B2.3.2.
Clause C3 FIRE AFFECTING AREAS BEYOND THE FIRE SOURCE: Performance C3.5, C3.7
Clause E2 EXTERNAL MOISTURE: Performance E2.3.2, E2.3.5, E2.3.6 and E2.3.7
Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1.

See CodeMark number GM-CM30109 for full information

BRANZ Appraised

CodeMark
