GIB Weatherline Gets Thumbs-Up from Down South

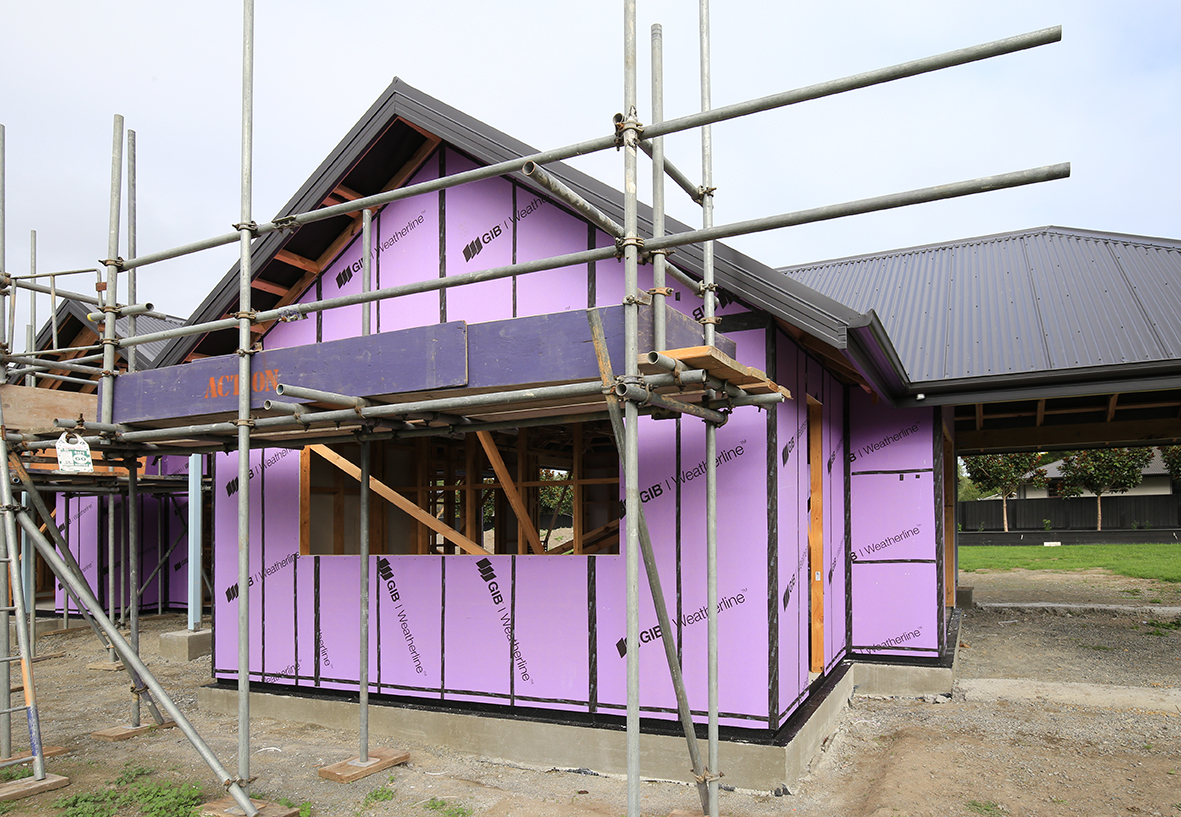

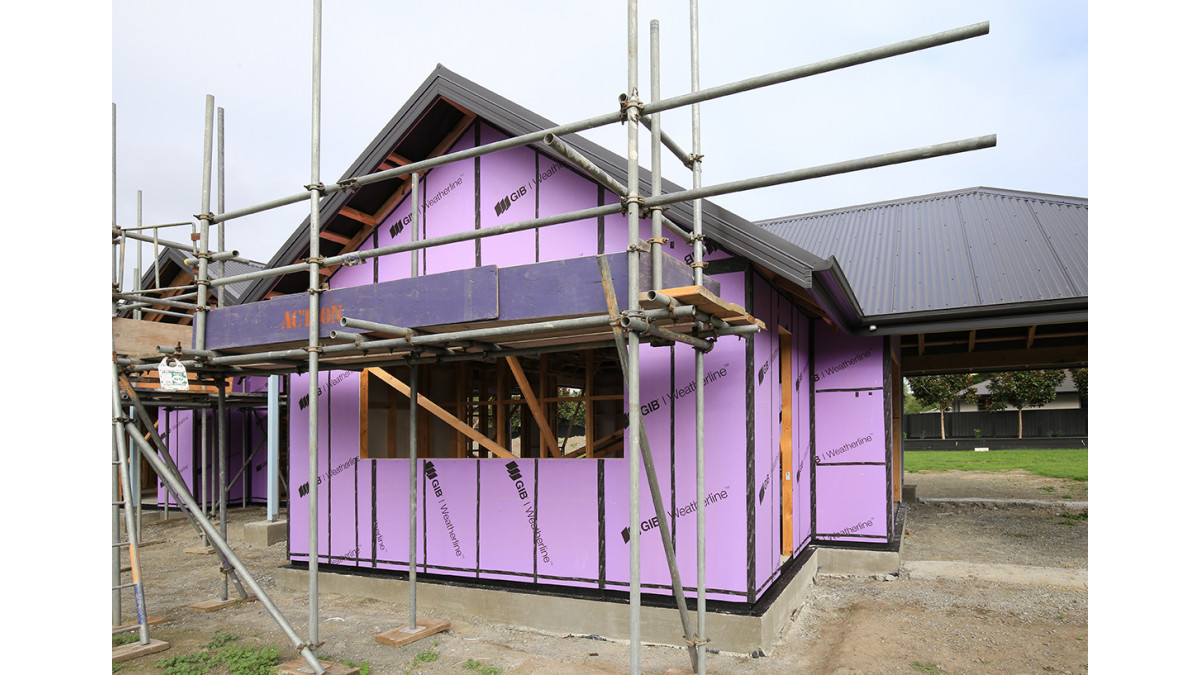

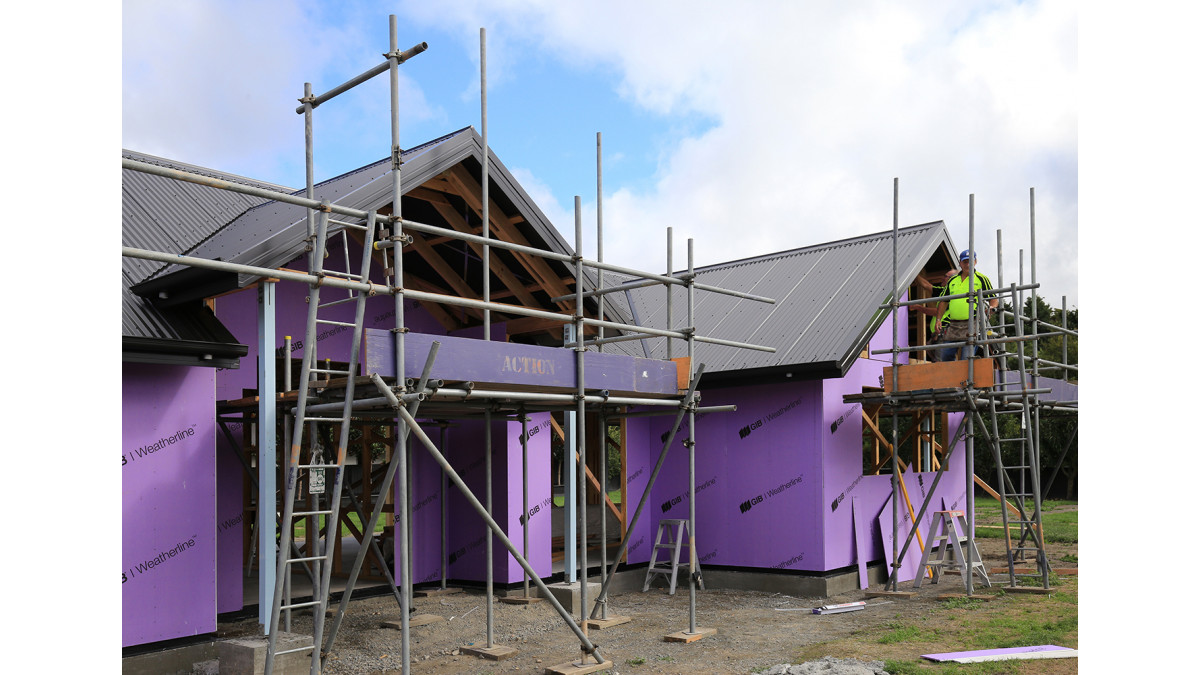

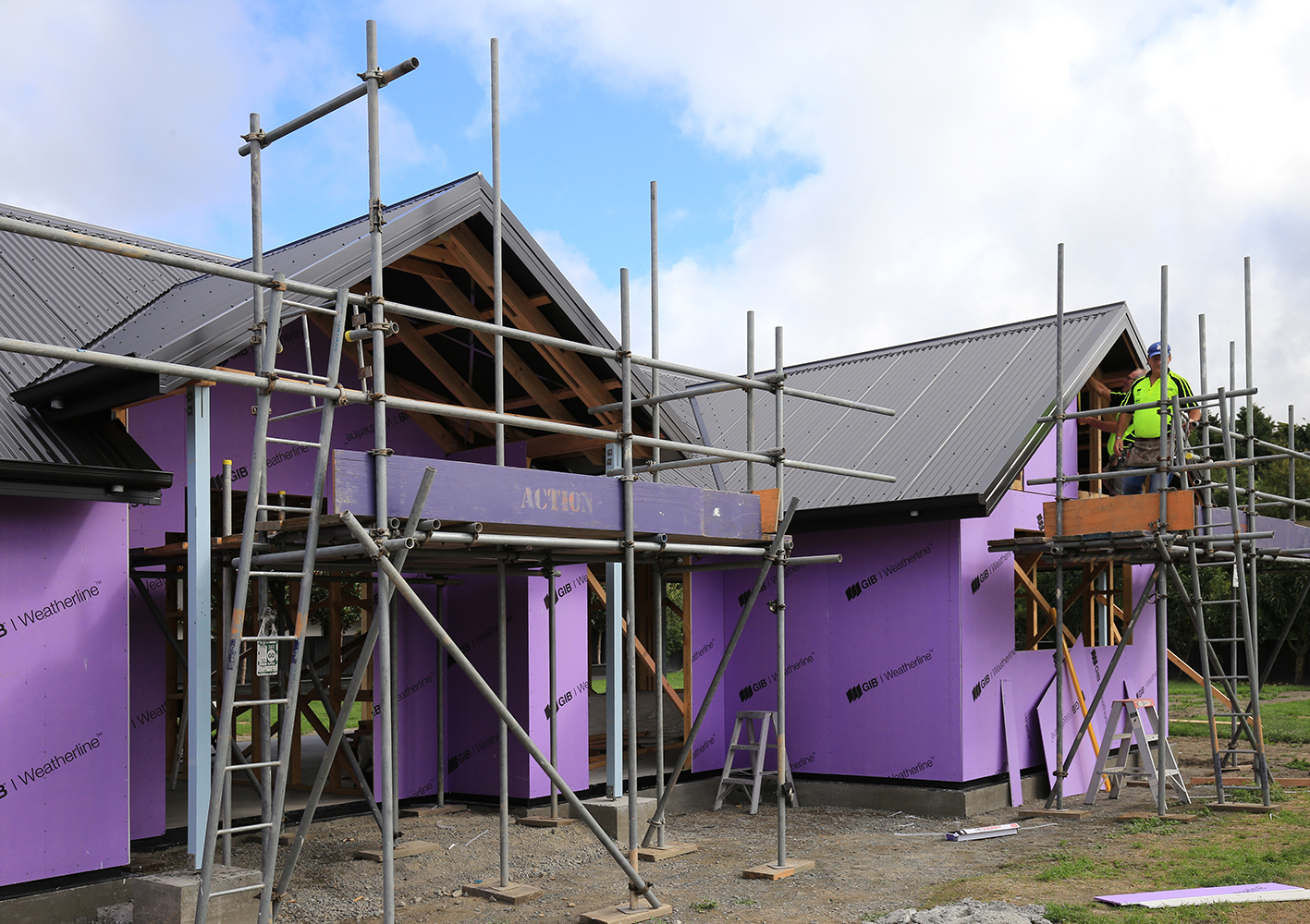

Christchurch installers Keith Cochrane and John Molten found the new exterior plasterboard easy to use and said being able to score and snap it made the process fast and straightforward. “To have the house closed in so quickly keeps the timber dry and makes for a nice working environment, as there’s no wind or moisture finding its way in. It’s a big advantage to have the house lockable and secure once the windows are in,” says Keith, a Club GIB Installer (CGI) member offering supply, fix and stop services predominantly in the group housing sector.

The trump card for GIB Weatherline is its ability to close houses in fast, thanks to its glass-faced gypsum core rigid area barrier. But the product offers a raft of other benefits too. The pair noticed that it significantly cut down external noise even before the installation of insulation and internal linings, plus it made for an excellent bracing system and reduced waste.

“It’s great once you have GIB Weatherline installed as bracing systems because you can take all the cross bracing down. That makes it really easy to work inside and you know the house is not going to move,” says fixer John, who is a builder by trade.

“Waste can be minimal, particularly if you can tell the pre-nailer to set the frames out at 1200 centres. Cut to length sheets make installation even faster and reduce waste even further which is good for the environment.”

The pair needed a little time to get used to the taping, adding that a tape-master would be brilliant for the flat tapes, but both agreed GIB Weatherline was a stellar product that performed really well. “The product as itself is really good and we would both use it again."

GIB Weatherline Rigid Air Barrier System

GIB

View Product

Used as a component in GIB Weatherline Rigid Air Barrier Systems, GIB Weatherline sheets feature a water and mould resistant fibreglass reinforced gypsum core and a water resistant glass fibre sheet facing for excellent water, mould and fire performance.

Can have the added benefit of providing bracing, fire and acoustic performance.

System Description:

GIB Weatherline Systems have been appraised by the Building Research Association of New Zealand (BRANZ), Appraisal No. 1048 (2019) and meet the NZ Building Code requirements for rigid underlays (rigid air barriers). GIB Weatherline System components include a range of 10mm and 13mm GIB Weatherline sheets which can be exposed to weather for up to 90 days prior to cladding installation as well as GIB Grabber Ceramic Coated fasteners, and GIB Weatherline Flashing and Sill Tapes, specially designed and tested for use in GIB Weatherline Systems.

GIB Weatherline Systems are suitable for use in both residential and commercial buildings and have been tested for wind speeds up to and including Extra High wind zone as defined in NZS 3604.

Technical information is available to allow specific design for buildings outside the scope of NZS 3604.

In the opinion of BRANZ, GIB Weatherline Rigid Air Barrier Systems, if used, designed, installed and maintained in accordance with the statements and conditions of this Appraisal, will meet, or contribute to meeting the following provisions of the NZBC:

Clause B1 STRUCTURE: Performance B1.3.1, B1.3.2 and B1.3.4. GIB Weatherline Rigid Air Barrier Systems meet the requirements for loads arising from earthquake and wind [i.e. B1.3.3 (f) and (h)]. See Paragraphs 12.1 – 12.6.
Clause B2 DURABILITY: Performance B2.3.1 (a), not less than 50 years, B2.3.1 (b), 15 years and B2.3.2. GIB Weatherline Rigid Air Barrier Systems meet this requirement. See Paragraph 13.1.
Clause C3 FIRE AFFECTING AREAS BEYOND THE FIRE SOURCE: Performance C3.7. GIB Weatherline Rigid Air Barrier Systems can be used to meet this requirement by providing passive fire and smoke protection. See Paragraphs 15.1 and 15.2.
Clause E2 EXTERNAL MOISTURE: Performance E2.3.2. When used as part of the cladding system, GIB Weatherline® Rigid Air Barrier Systems will contribute to meeting this requirement. See Paragraphs 16.1 and 16.2.
Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1. GIB Weatherline® Rigid Air Barrier Systems meet this requirement and will not present a health hazard to people. 3.2 GIB Weatherline® Rigid Air Barrier Systems can be used to satisfy the bracing demand requirements of Section 5 of NZS 3604 which is an NZBC Acceptable Solution

See BRANZ Appraisal 1048 for full information.
