Some GIB EzyBrace elements require additional hold-downs. This is commonly achieved by using the GIB Handibrac which is fixed through the timber bottom plate with a Bowmac blue hexagonal head screw bolt.

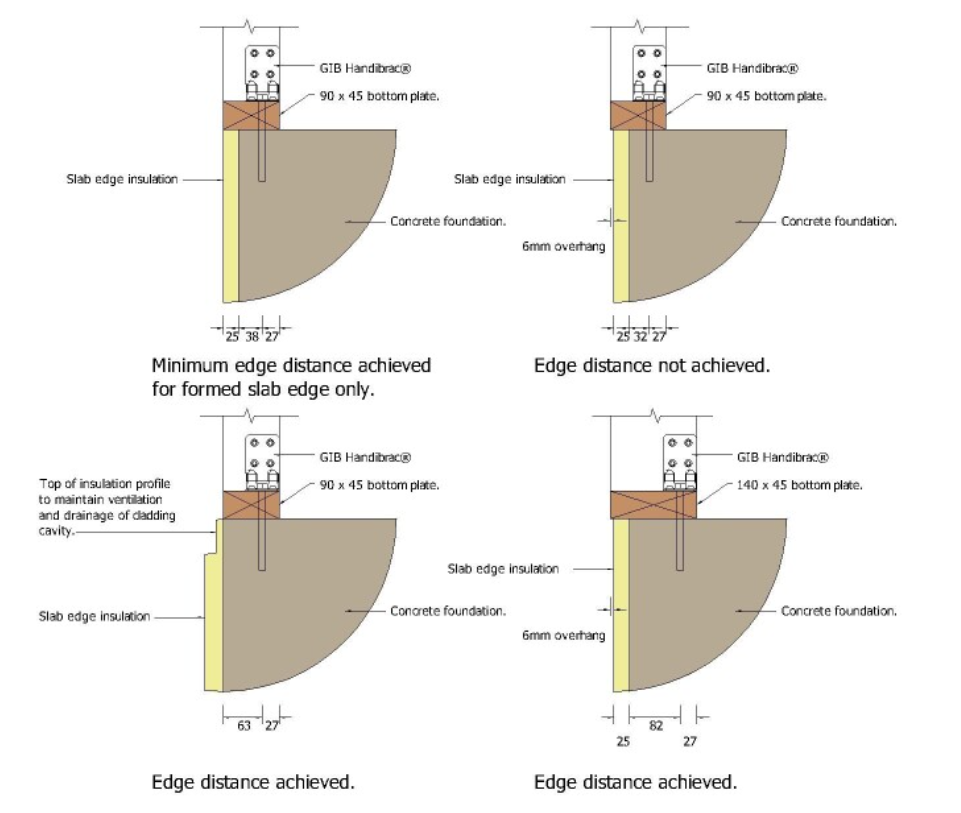

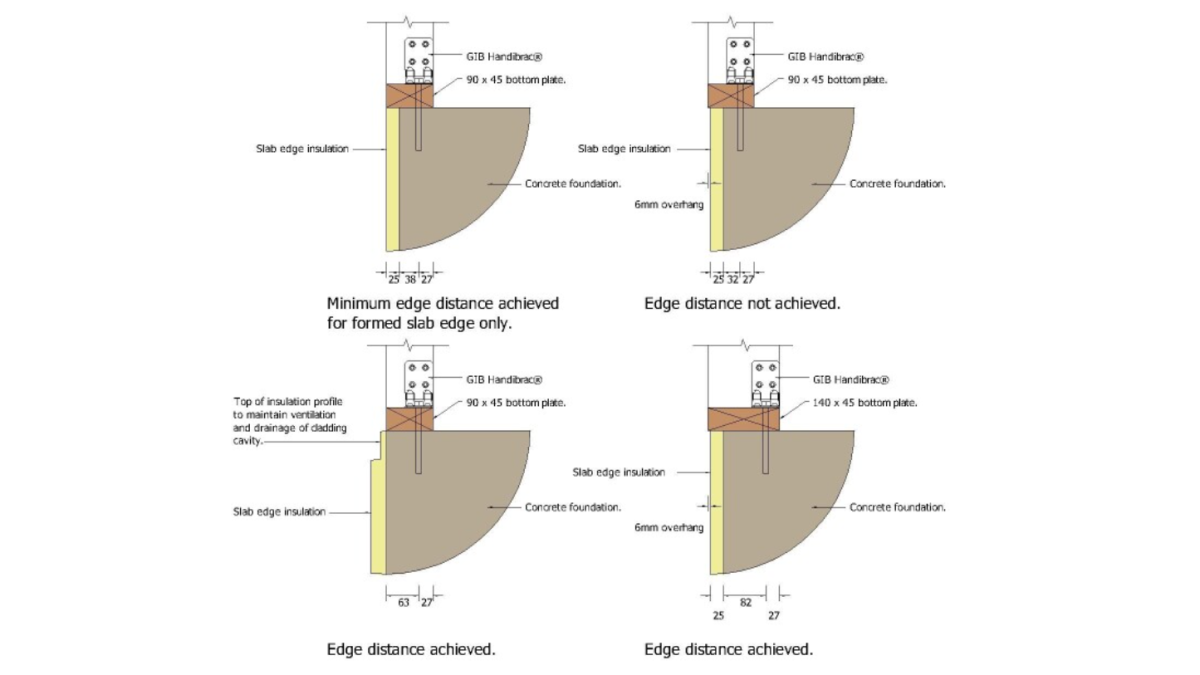

To ensure performance, the GIB Handibrac requires a minimum edge distance of 35mm for formed slab edges, this increases to 55mm when fixing to a standard concrete floor with masonry header block. When using 90mm thick framed external walls, a typical approach would be to have the bottom plate overhanging the slab to allow for the slab edge insulation plus any required cladding capillary gap. All this means the required edge distance for the bolt may not be achieved. If slab edge insulation is specified, careful consideration needs to be taken at early design stage. Such a small difference in measurement can have a large-scale flow-on effect! The type of foundations, cladding, insulation, and framing depth are all factors that affect the achievable edge distance.
