Fire Sprinkler System Protects from Above

While water pipes are common above the ceiling — delivering hot and cold water to faucets, showers and baths — there is a lot more they could be doing.

It only takes two or three minutes for a fire to transform a solid house into a charred wreck, and Leap's Blazestop Home Fire Sprinkler System offers the perfect solution.

With Blazestop, a single ring of pipe will run through the ceiling, and one connection may go to the vanity of an ensuite. The next connection will go to a sprinkler to ensure that the adjoining bedroom won't be destroyed in the event of a fire.

Such a system does require a decent amount of pressure. If the council can't guarantee enough at the Water Toby, Leap can supply a booster pump that runs on a variable speed drive. This ensures users get the correct flow of water, from having a shower to saving the house from destruction.

BlazeStop Home Fire Sprinkler System

Leap

View Product

BlazeStop is an affordable home fire sprinkler system linked to a domestic water supply which can be installed in a new build or retro fitted into an existing home.

Residential applications — existing or new builds
Ideal for houses — urban or rural areas
BlazeStop can cater for any sized residential home — the pump size may differ from a small 2 bedroom single level home to a 6 bedroom multilevel home with a buried water supply tank
Sprinkler pipework is generally concealed in the roof space. Occasionally pipework or sprinklers maybe exposed due to design restrictions
If the sprinkler is charged by a pump/tank, the pump would be located near the tank in a weatherproof enclosure or shed
If the sprinkler is charged by a pump/tank, then power is required for the pump

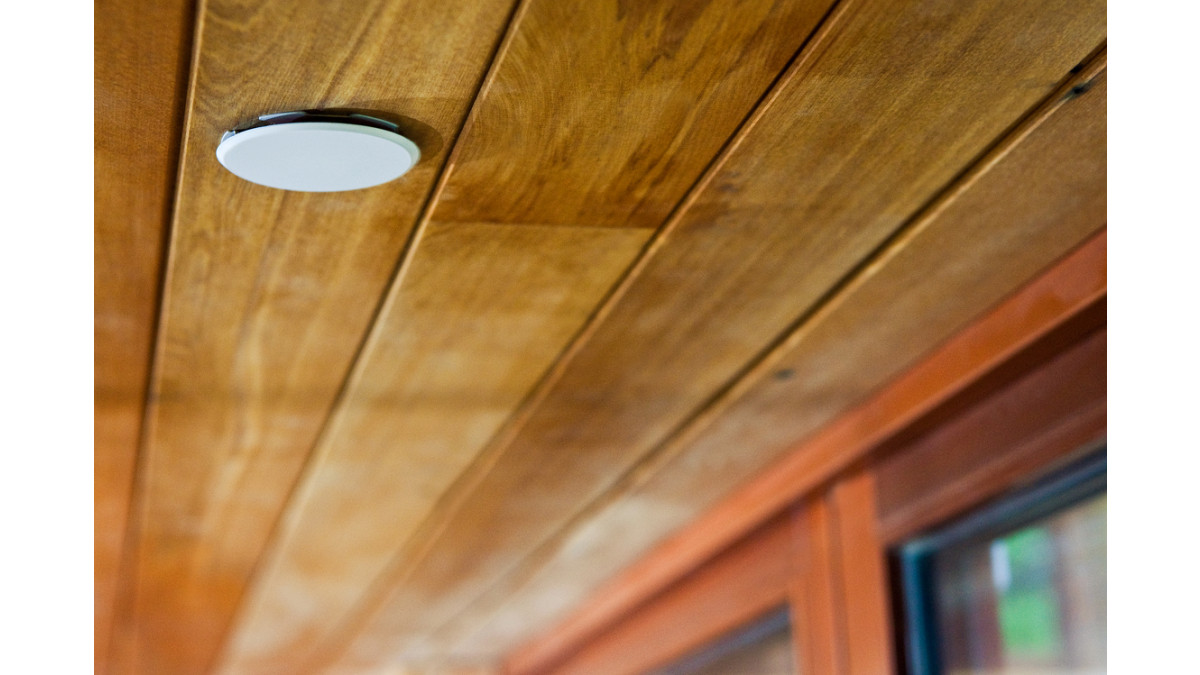

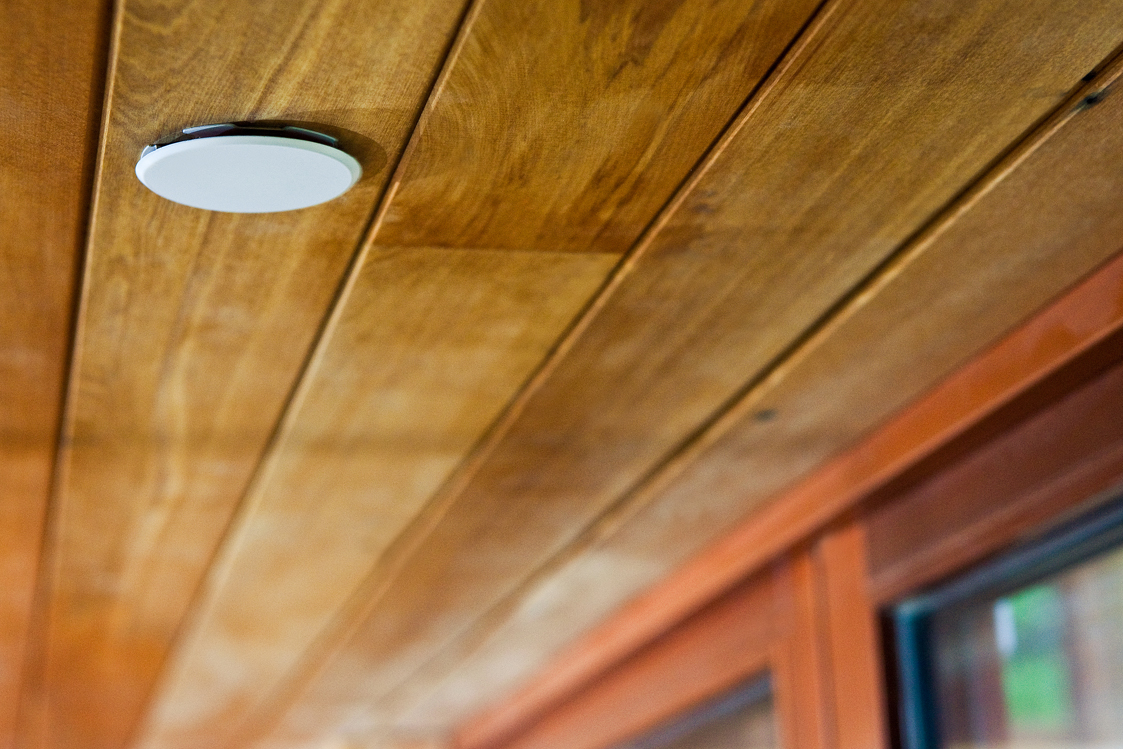

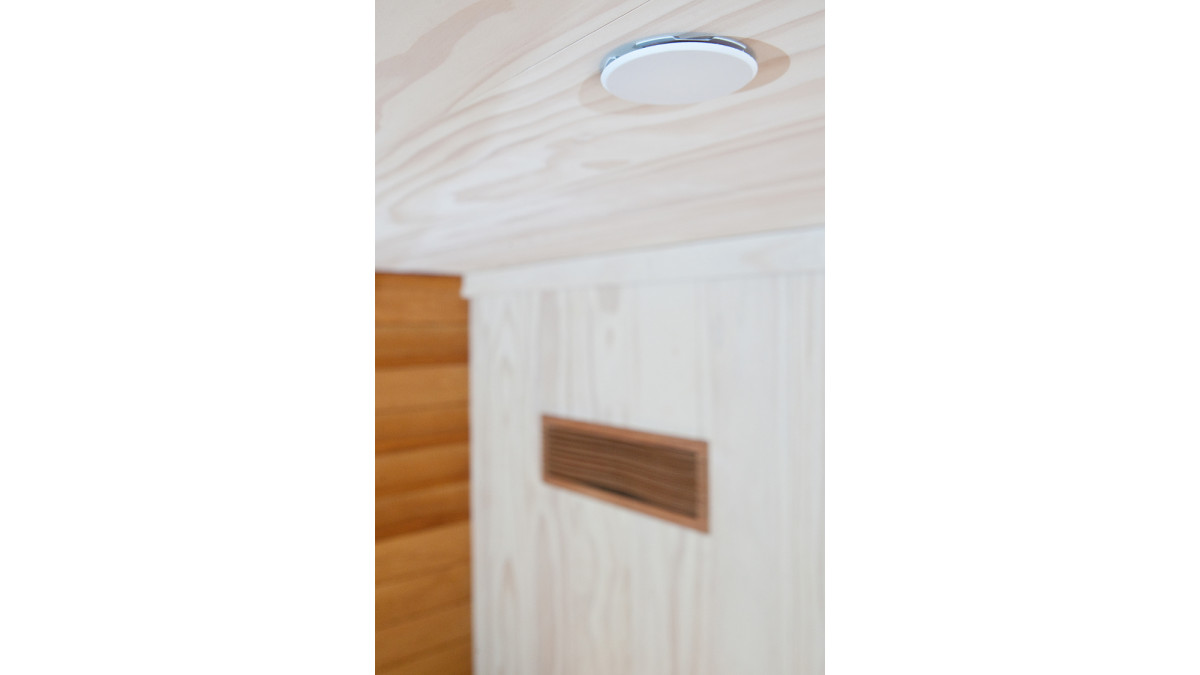

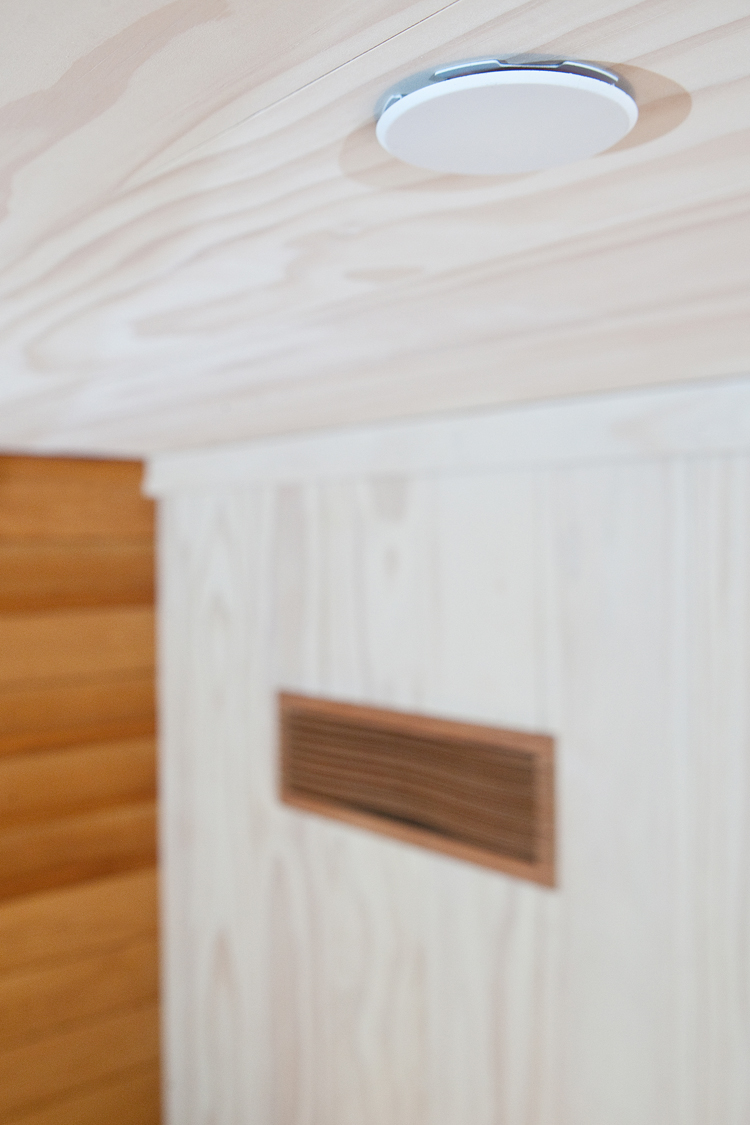

Pipework and sprinklers are mounted in the roof space. The 'cover plates' are installed from inside the room – fixed to the sprinklers at the ceiling
BlazeStop sprinklers are automatic — activated by heat
The sprinkler system is designed to include a WC which is an instant red flag that there’s a problem with the water supply if the toilet won’t flush

Leap BlazeStop Systems are designed to meet NZS 4517:2010 Fire Sprinkler Systems for houses and comply with New Zealand Building Code (NZBC) Clause G12 water supplies and acceptable solution C/AS1
