Retirement Living Designed for Life with Style

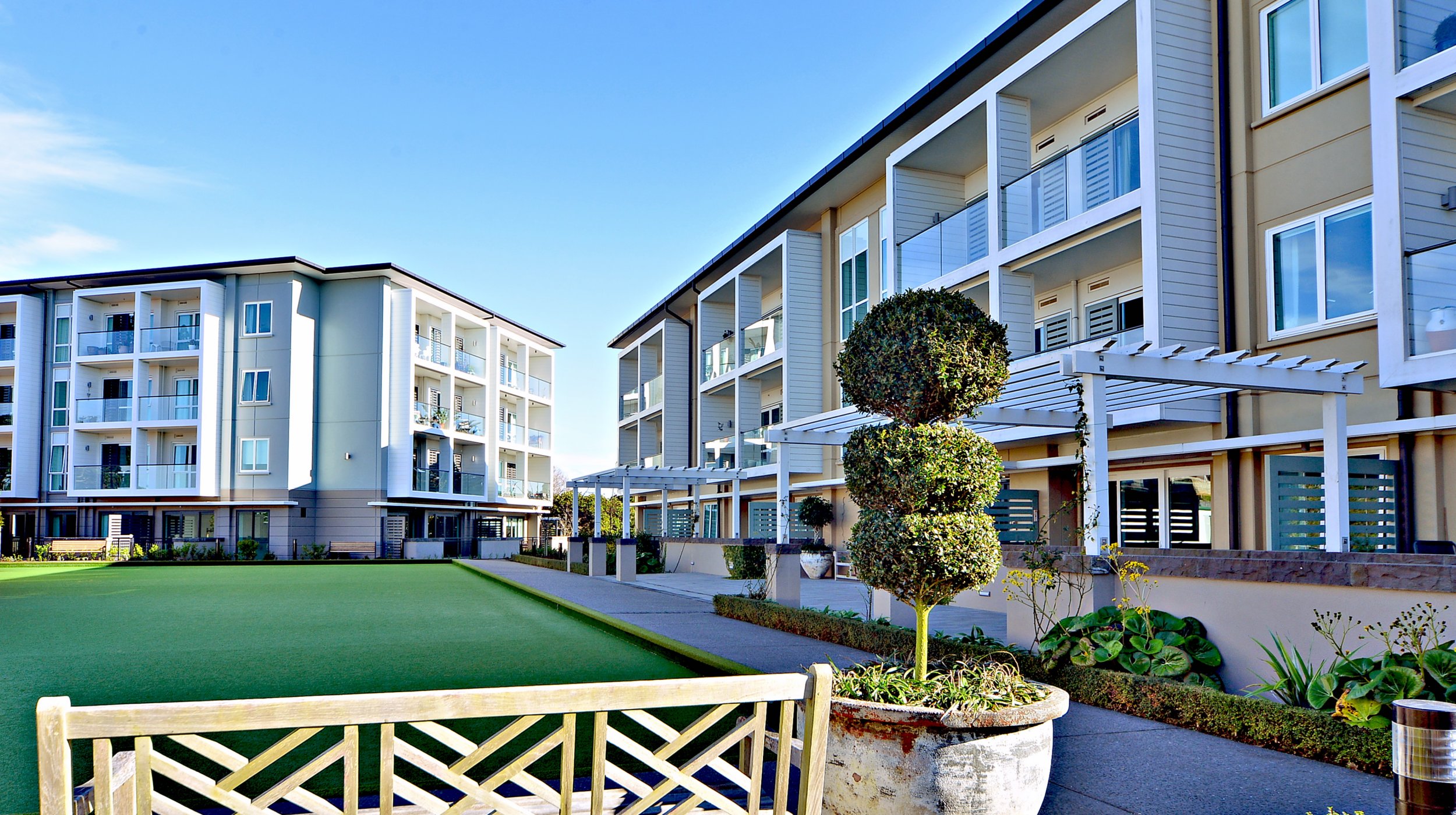

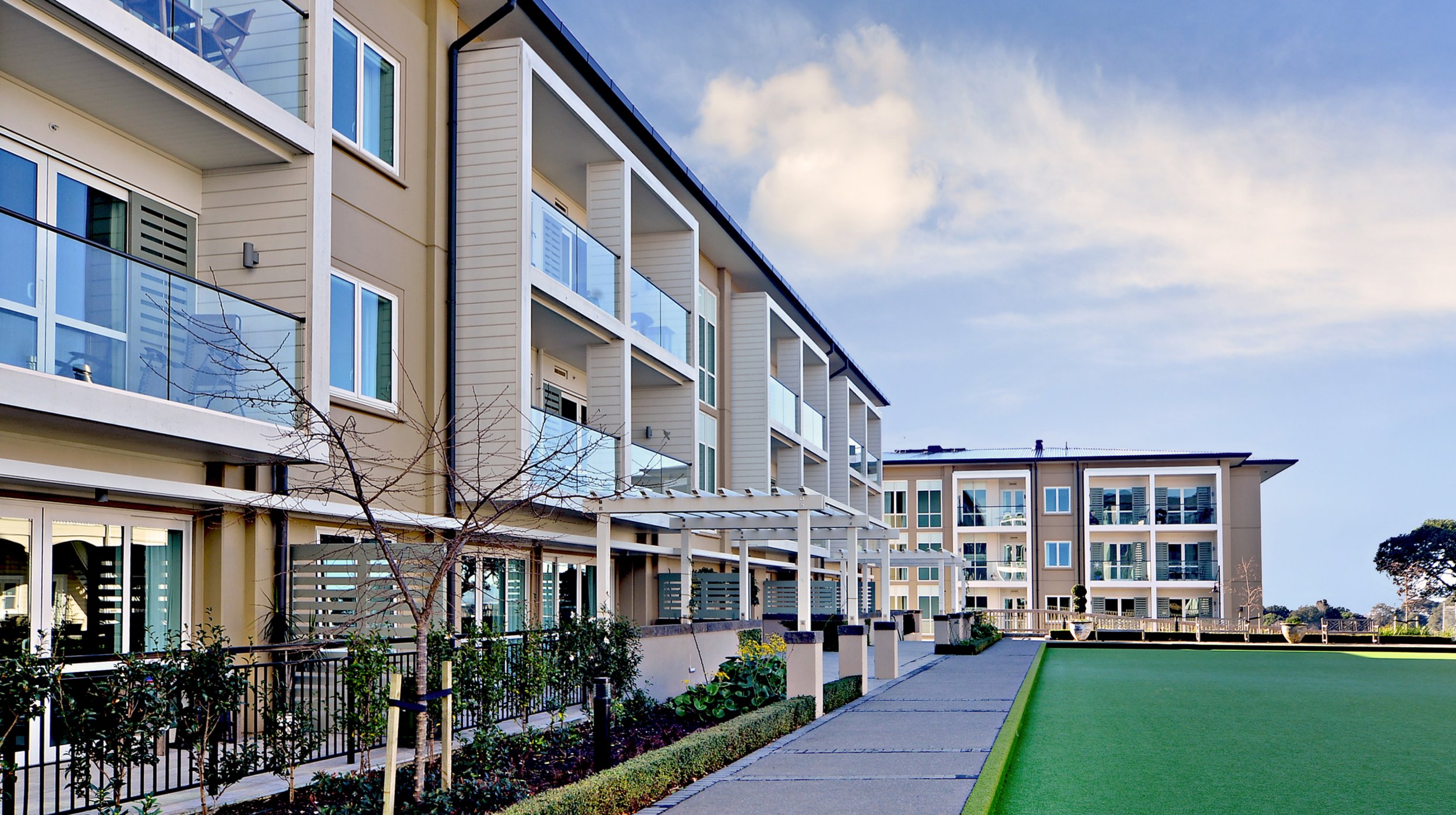

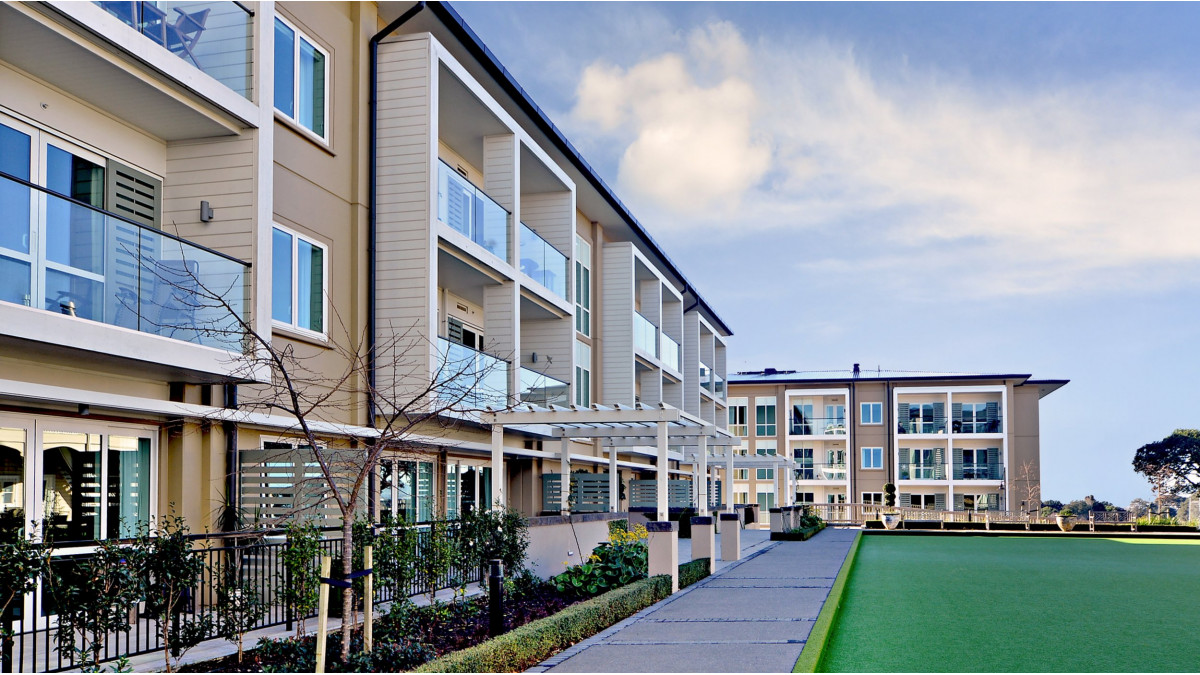

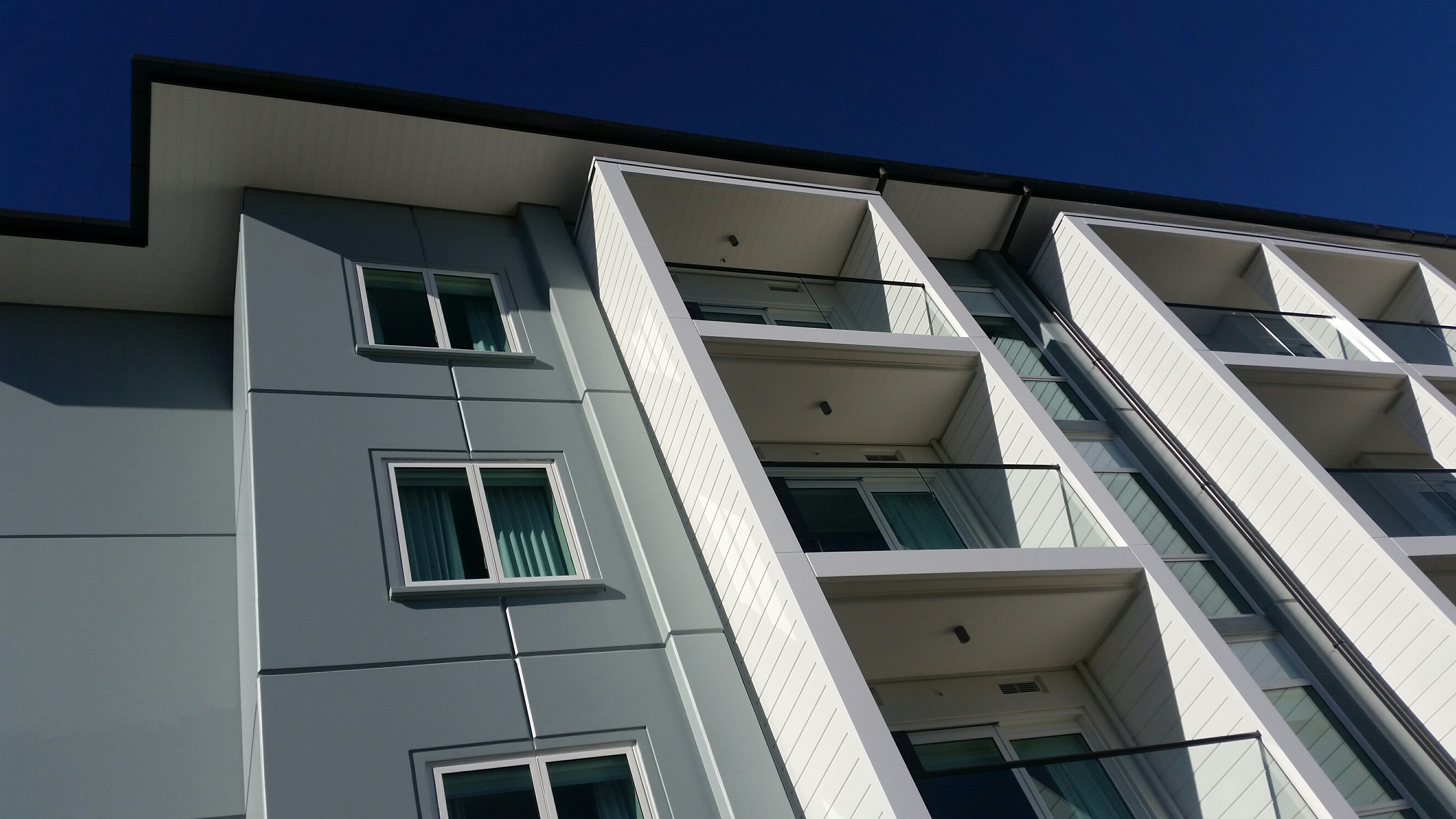

Dynex Soffit provided the ideal solution at the newly completed Ranfurly Retirement Village in Three Kings, Auckland. The sleek, clean lines are in tune with the overall aesthetic of the surrounding buildings and the architect was impressed by the durable, contemporary tongue and groove finish and the fact that the product never needs painting.

Ongoing maintenance is a consideration for any building, but especially a commercial one of this scale. The fact that pre-finished Dynex Soffit never needs painting was seen as a clear advantage, not only from the time of installation, but also well into the future.

Proudly made in New Zealand for local conditions, the uPVC soffit is backed by a 25 year manufacturer’s guarantee.

Dynex Soffit

Dynex

View Product

A low-maintenance, pre-finished, durable soffit lining made in New Zealand by Dynex Extrusions.

NZ Made

The DynexSoffit system has been appraised for use as an external soffit lining for buildings within the following scope:

Constructed with timber framing in accordance with the scope limitations of NZBC Acceptable Solution E2/AS1, Paragraph 1.1; or,
Constructed with steel framing subject to specific engineering design with building height and floor plan area scope limitations of NZBC Acceptable Solution E2/AS1; and,
Situated in NZS 3604 Wind Zones up to and including Extra High.

Dynex Soffit, if used, installed and maintained in accordance with the statements and conditions of the installation instructions, will meet the following provisions of the NZBC:

Clause B1 Structure: Performance B1.3.1, B1.3.2 and B1.3.4. Dynex Soffit meets the requirement for loads arising from self-weight, earthquake, wind, impact and creep [i.e. B1.3.3 (a), (f), (h), (j) and (q)].
Clause B2 Durability: Performance B2.3.1(b), 15 years.
Clause E2 External Moisture: Performance E2.3.2.
Clause F2 Hazardous Building Materials: Performance F2.3.1. Dynex Soffit will not present a health hazard to people.

Independent Assessment
