Achieve Longer Spans and Improved Design Efficiency with Hibond 80

Designed and developed in New Zealand by Dimond Structural, the competitive new Hibond 80 Steel Composite Flooring System is a high-performing solution for multi-level buildings, car parks, apartments, units, offices, stadiums, community centres, hotels and industrial buildings.

Hibond 80 is the latest addition to the Hibond composite steel floor decking systems range manufactured and distributed by Dimond Structural in New Zealand, joining the existing Hibond 55 profile.

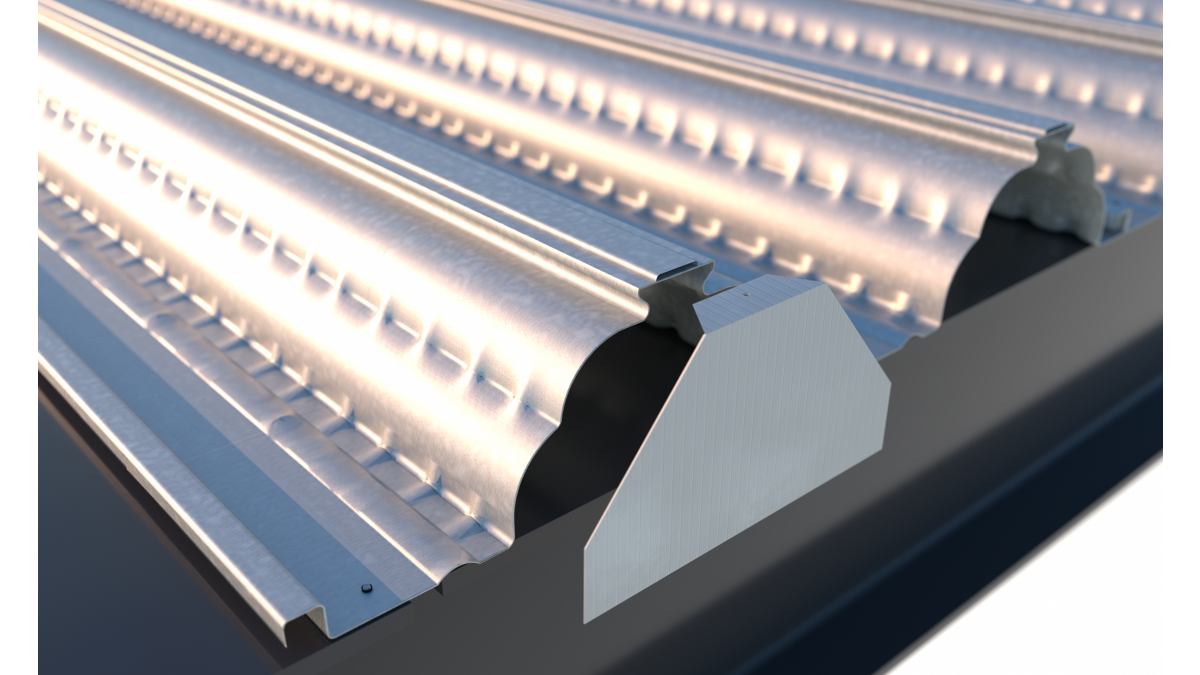

This is a great opportunity to offer designers and builders choice when it comes to metal decking systems, as it drives economy in the built environment. Hibond 80 was developed in New Zealand using unique arch-shaped ribs to support large un-propped spans, providing dependable and robust performance. This product builds on the integrity and trust of Dimond’s long-standing presence in the market.

Dimond Structural flooring systems are supported by a dedicated technical team and specialised sales and manufacturing teams in both the North and South Island, and Dimond can also recommend a range of professional installers who offer flexibility, quality, and economy when it comes to construction.

Hibond 80’s design software has been developed in conjunction with the Heavy Engineering Research Association (HERA) and has capabilities that give it the edge.

Versatile and intuitive, as well as easy to use, the software tackles the hard stuff for design efficiency with single, multiple spans and cantilever configurations for the construction stage and the composite stage — along with the flexibility to analyse unequal spans in one application.

Additional features:

Design issues are highlighted with warnings as you go, allowing ease of tracking and analysis as design decisions are made.
Minimal tabular inputs help guide through the design, producing extensive graphical outputs, all encapsulated as a complete PDF document.
The design methodology can be selected to AS/NZS 2327 or Eurocode 4 using structural properties established by testing to EN 1993-1-3 and EN 1994-1-1.

Dimond Structural is a Fletcher Steel owned business and has manufacturing sites in Auckland and Christchurch and its products are distributed through the Easysteel and Dimond Roofing nationwide regional branch network.

Find out more at: www.hibond80.co.nz with the free intuitive design software available online at www.dimondstructural.co.nz/software

Hibond 80 Composite Steel Flooring System

Dimond Structural

View Product

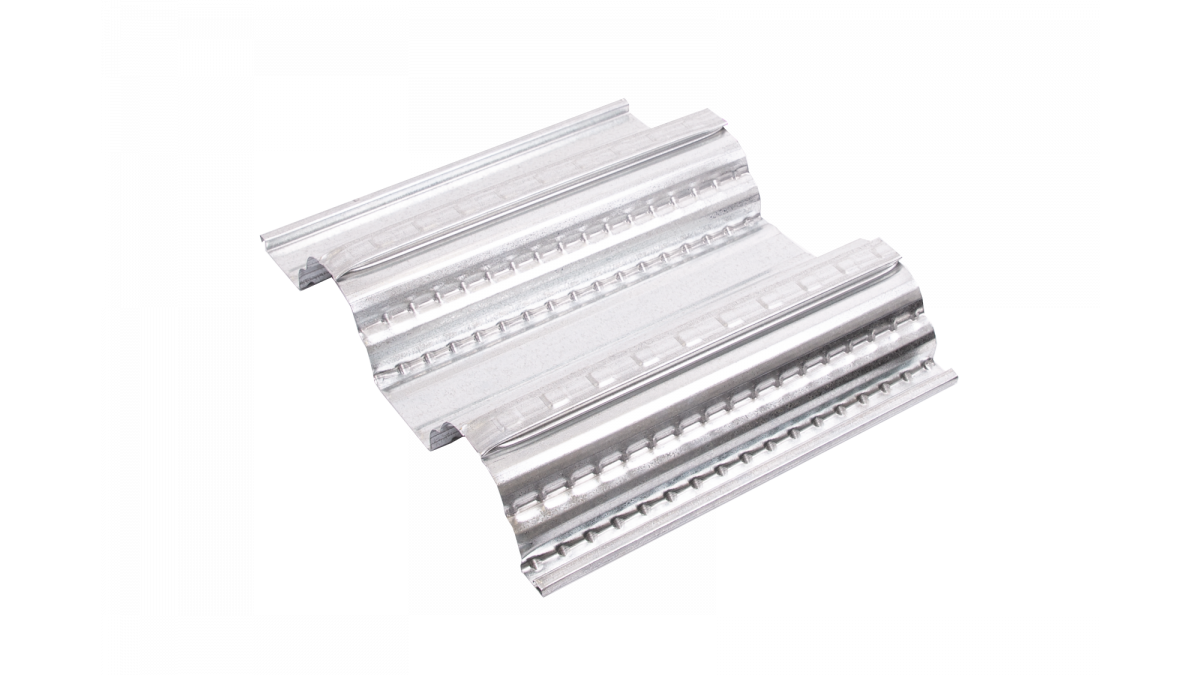

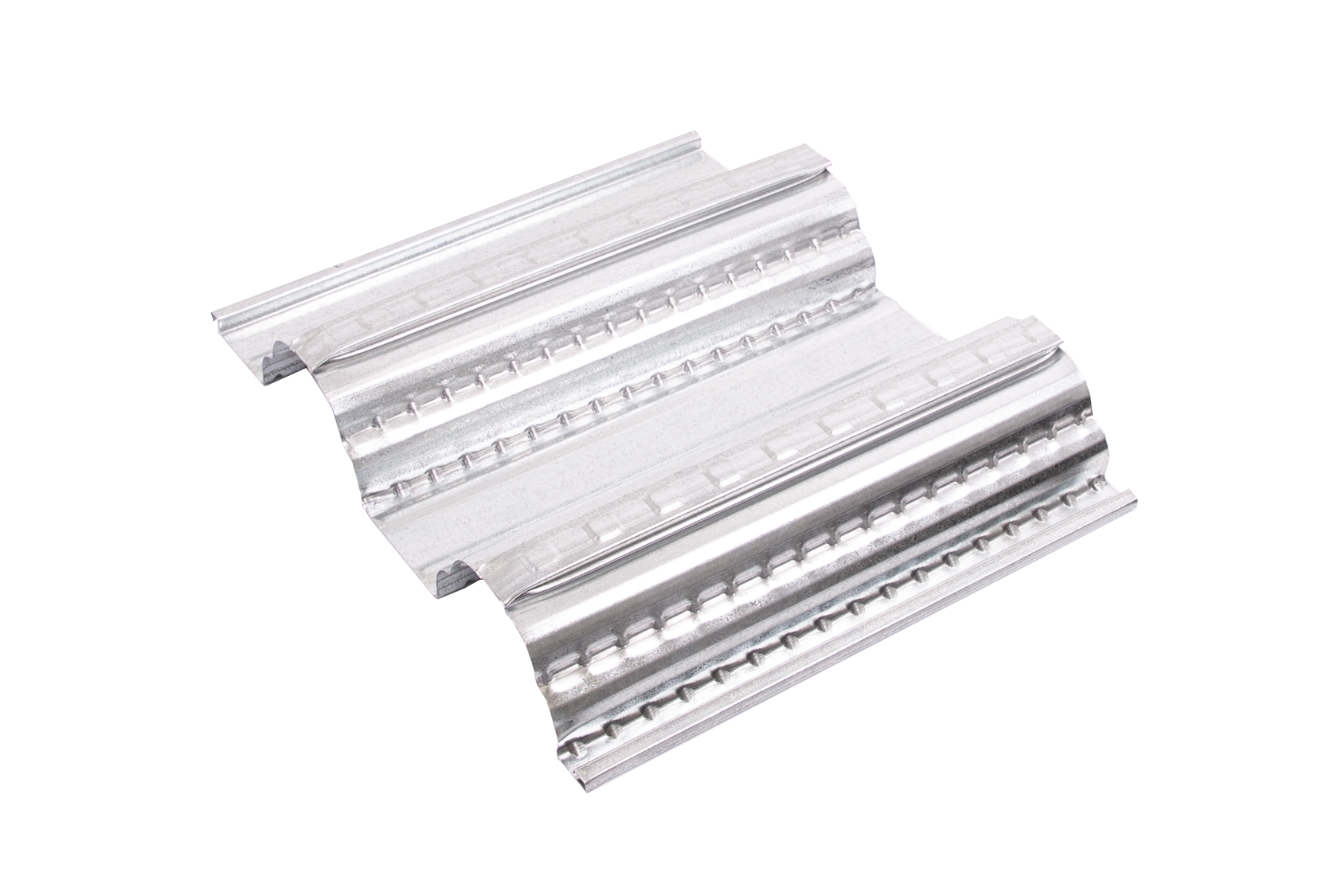

Hibond 80 is a composite steel flooring system with the deepest flooring profile allowing longer un-propped spans, minimising beam layout.

NZ Made

NZ-Owned Business

Dimond Structural Flooring Systems use a roll-formed profiled galvanised steel sheet as a component in reinforced concrete floor systems

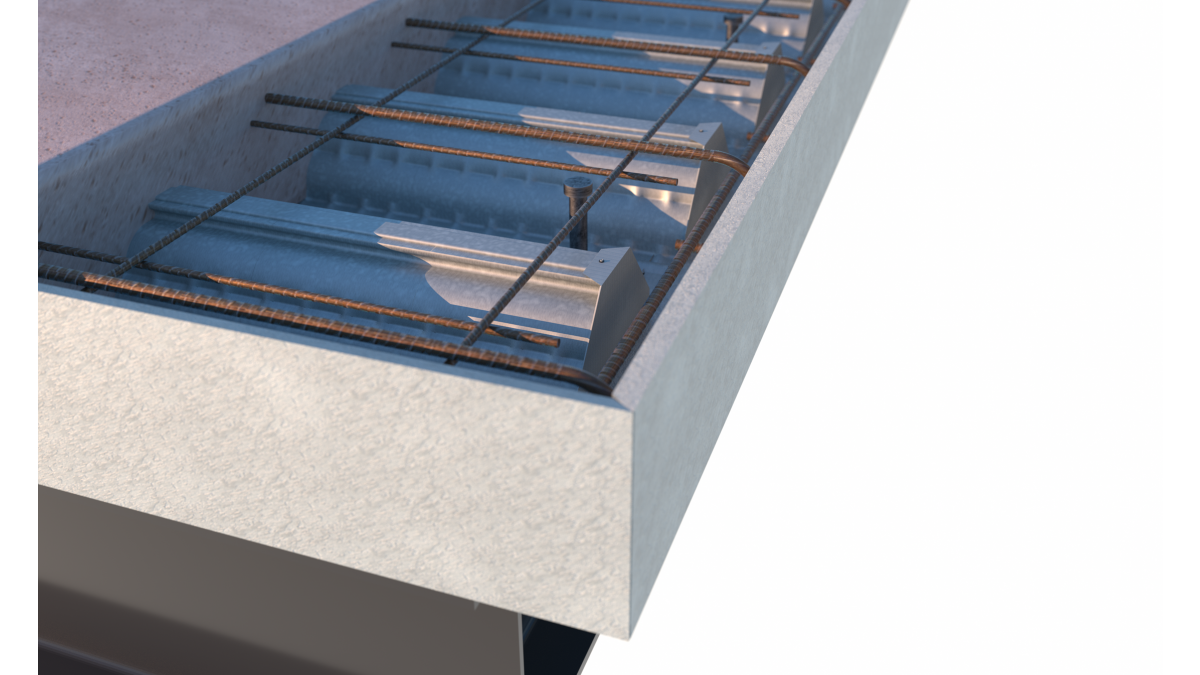

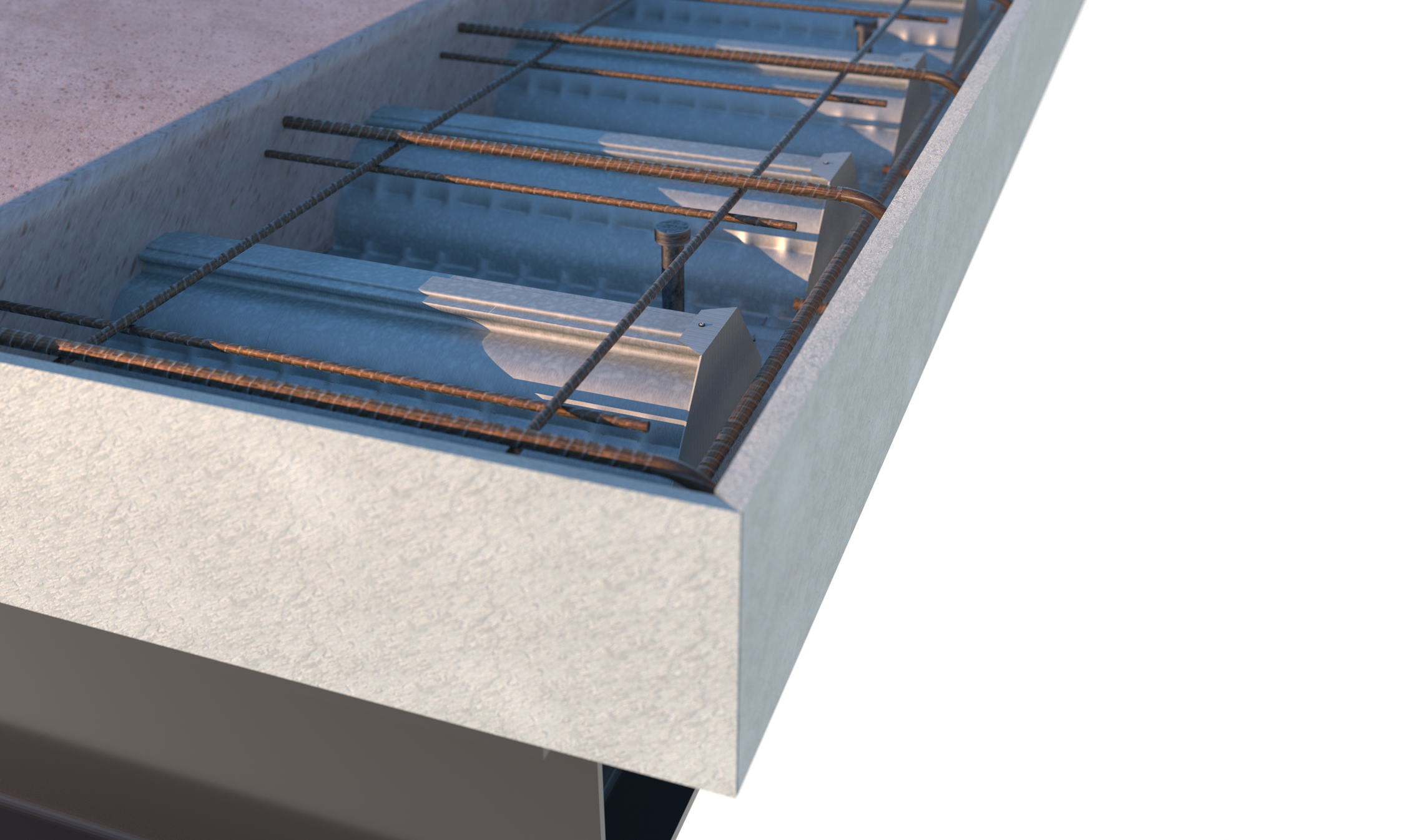

The steel decking sheet provides both permanent formwork and positive tensile reinforcement in one way reinforced composite floor slab construction over concrete block walls, poured concrete beams, steel beams or timber beams, subject to the environmental limitations referenced to the appropriate grade of the material selected
It is critical to product performance that the loads applied, spans, formwork material thickness and overall composite floor slab thickness are designed within the appropriate Limit State Loads and limitations published in Flooring Systems Design Manual
Before commencing a project using a Dimond Structural Flooring System, the user must refer to the information within the manual and all sections as appropriate, ensuring relevant information is available to the end-user. Failure to observe this information may result in a significant reduction in product performance
Dimond Structural accepts no liability whatsoever for products which are used otherwise than in accordance with these recommendations.

Past history of use of Dimond Structural Flooring Systems indicate that provided the system design, product use and maintenance is in line with the guidelines of Flooring Systems Design Manual, Dimond Structural Flooring Systems can reasonably be expected to meet the performance criteria in Clause B1 Structure and B2 Durability of the New Zealand Building Code for a period of not less than 50 years, provided they are kept free from moisture.

Dimond Structural Flooring Systems designed using the Fire Design Sections 3.3.4, 3.4.6 and 3.5.6 of this manual and will meet the performance criteria in Clauses C3 and C4 of the New Zealand Building Code (section 3.3.4 is based on testing to EN 1365-2 and sections 3.4.6 and 3.5.6 are based on HERA reports R4-82 and R4-131).

Using the Flooring Acoustic Performance sections 3.3.5, 3.4.7 and 3.5.7, Dimond Structural Flooring Systems can be designed using this manual for guidance to achieve Sound Transmission Class (STC) and Impact Insulation Class (IIC) of 55 meet the requirements of the current New Zealand Building Code Clause G6, airborne and impact sound.

Where products used in Dimond Structural Flooring Systems are manufactured by other suppliers, compliance to the New Zealand Building Code should be checked with that product's manufacturer.
